Aviosys IP Kamera 9070 User manual

- 1-
Ref#90020326K0709

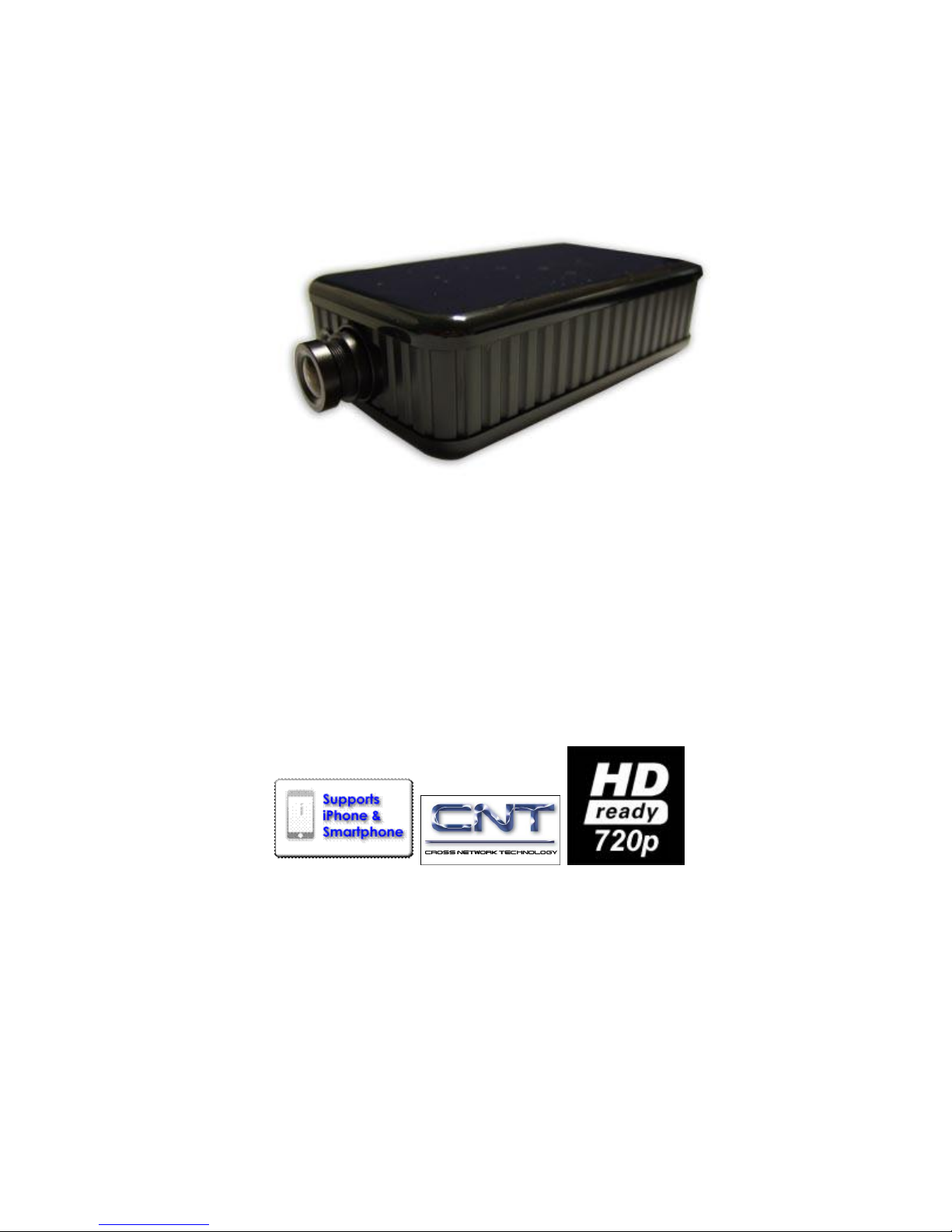

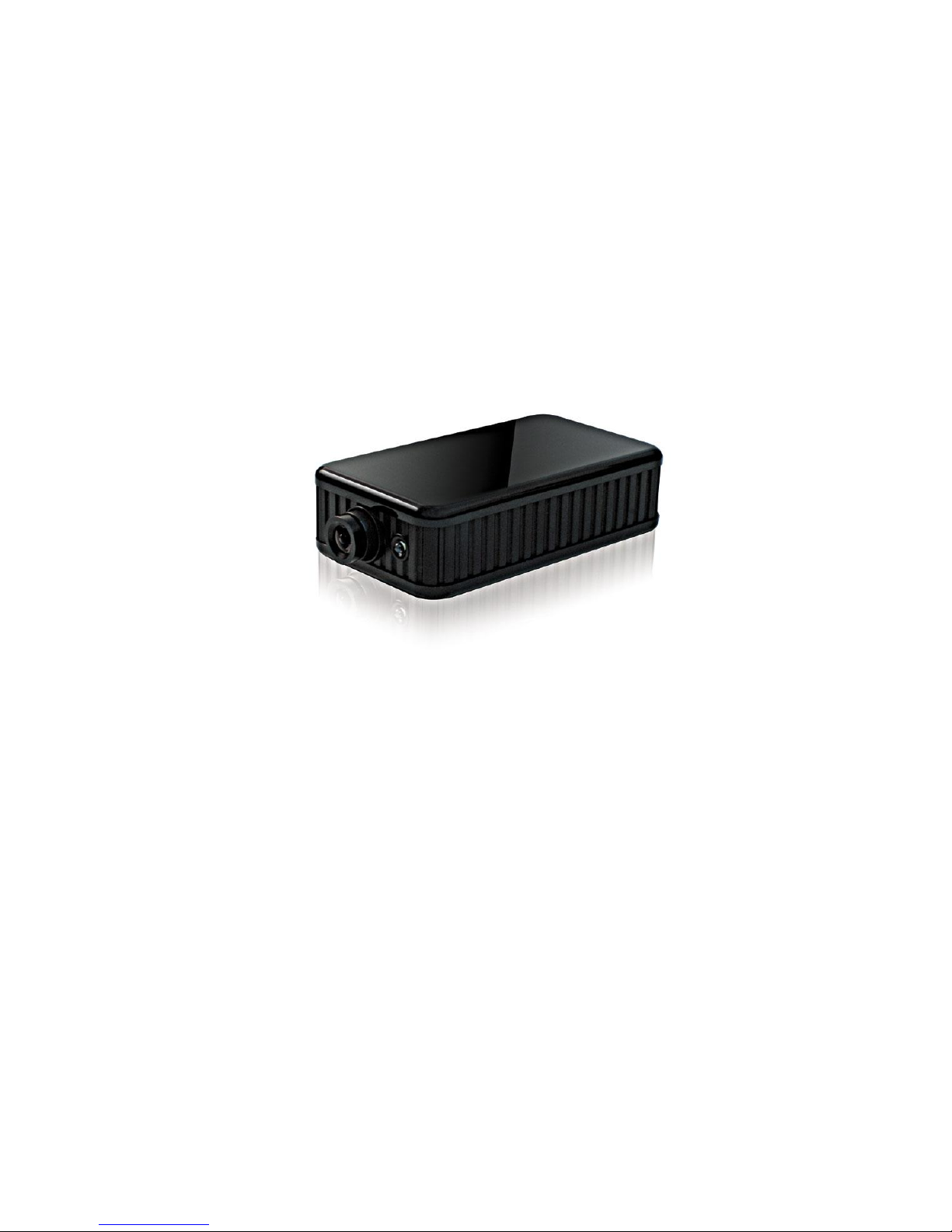

IP Kamera 9070
User Manual
Release Date: 8/20/2010
Manual Version: V1.2.1.4plus

- 2-
Ref#90020326K0709
Warning: Any changes made to this equipment without permission may cause
damages to the device!
IMPORTANT NOTICE
1. IP Kamera 9070 was designed for indoor use, it is the responsibility of the user for any possible
damages caused by outdoor use, especially in the rain.
2. Please use the power adapter provided by the dealer, the manufacturer responsibility for the
possible damage from using power adapters not .
3. Do not shake the IP Kamera 9070 in any fashion
4. Please contact the dealer If IP Kamera 9070 is not working properly.
Copyright © 2009 All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written consent of us.
All trademarks and products mentioned in this document are the properties of us.

- 3-
Ref#90020326K0709
Table of Content
1.) WELCOME.........................................................................................................................6
INTRODUCTION..........................................................................................................................6
MINIMUM SYSTEM REQUIREMENTS ...............................................................................................7
2.) PRODUCT OVERVIEW ........................................................................................................7
FEATURES.................................................................................................................................7
SPECIFICATION ..........................................................................................................................7
PACKAGE CONTENTS...................................................................................................................8
3.) INTERFACE DESCRIPTION...................................................................................................9
REAR PANEL VIEW .....................................................................................................................9
4.) HARDWARE SETUP..........................................................................................................10
INTERNET ACCESSIBLE SETUP ......................................................................................................10
ROUTER /FIREWALL SETUP ................................................................................................................. 10
STATIC IP SETUP ................................................................................................................................ 11
CONNECTING THE DEVICE...........................................................................................................11
5.) SOFTWARE SETUP ...........................................................................................................12
SOFTWARE FOR IP KAMERA 9070................................................................................................12
SOFTWARE .............................................................................................................................12
INSTALLING VLC CODEC.............................................................................................................13
IP EDIT ..................................................................................................................................14
QUICK EASY SETUP (RECOMMEND FOR BEGINNER USERS)........................................................................ 15
CUSTOM SETUP (ADVANCE USERS)....................................................................................................... 16
IP SERVICE .............................................................................................................................18
6.) WEB INTERFACE..............................................................................................................19
CONNECTING TO THE 9070-BASIC................................................................................................19
THE CONTROL CONSOLE ............................................................................................................21
LIVE VIDEO .............................................................................................................................22
TYPE AND ZOOM................................................................................................................................ 22
MOTION DETECTION .......................................................................................................................... 23
MOUSE EPTZ.................................................................................................................................... 23

- 4-
Ref#90020326K0709
ACTIVE RECORD................................................................................................................................. 23
RECORD ........................................................................................................................................... 24
SNAPSHOT ........................................................................................................................................ 24
IMAGE...................................................................................................................................25
IMAGE SETTINGS................................................................................................................................ 25
TUNE IMAGE ..................................................................................................................................... 28
NETWORK ..............................................................................................................................29
NETWORK......................................................................................................................................... 29
FTP ................................................................................................................................................. 30
SMTP (OUTGOING E-MAIL SERVER)..................................................................................................... 30
SNTP............................................................................................................................................... 31
IP SERVICE ........................................................................................................................................ 32
RTSP............................................................................................................................................... 33
SYSTEM .................................................................................................................................33
DATE AND TIME................................................................................................................................. 34
TIME STAMP ..................................................................................................................................... 34
USER................................................................................................................................................ 35
IR CONTROL...................................................................................................................................... 35
DEVICE TUNE UP............................................................................................................................... 36
LANGUAGE........................................................................................................................................ 36
UPDATE............................................................................................................................................ 37
EVENT LOG ....................................................................................................................................... 38
APPLICATION ..........................................................................................................................39
SETTING ........................................................................................................................................... 39
SCHEDULE RECORD ............................................................................................................................ 47
ALARM............................................................................................................................................. 48
MEDIA PLAYER ........................................................................................................................50
LOGOUT.................................................................................................................................50
7.) CONTROLLING THE DEVICE ..............................................................................................51
CGI HTTP COMMANDS.............................................................................................................51
SNAPSHOT COMMAND: ...................................................................................................................... 51
CHANGE NAME: ................................................................................................................................ 51
CHANGE IP ADDRESS:......................................................................................................................... 52
CHANGE PORT:.................................................................................................................................. 52
65BCHANGE SUBNET MASK: ..................................................................................................................... 52
CHANGE GATEWAY: ........................................................................................................................... 52
CHANGE DNS: .................................................................................................................................. 52
MJPEG STREAMING........................................................................................................................... 52
8.) USING RTSP WITH VLC.....................................................................................................53
9.) USING CNT WITH SURF16 CH ...........................................................................................55
MAC ADDRESS .......................................................................................................................55

- 5-
Ref#90020326K0709
ADD DEVICE USING CNT ............................................................................................................56
10.) FREQUENTLY ASKED QUESTIONS (F.A.Q)........................................................................57
11.) CUSTOMER FEEDBACK...................................................................................................57

- 6-
Ref#90020326K0709
1.) Welcome
Introduction
The IP Kamera 9070 provides reliable, high quality solution to IP Kameras. Its distinctive 720P HD quality
picture, Tri-mode video capability, RTSP broadcasting capability, wide angle lens, built in 2GB microSD
memory, and much more functions makes this small device very powerful and unique. Also with innovative
features like My Web and EZ blog technology the 9070 can take your IP Kamera and make it a wonderful
promotional tool, blogging camera.
Using innovative IP technology, the built in web server of the IP Kamera 9070 will allow you to view your IP
Kamera from any remote locations around the world while bringing you world class surveillance and ease of
mind. Furthermore, with CNT technology the 9070 is easy to setup & use, simply just plug and play.

- 7-
Ref#90020326K0709
Minimum System Requirements
CPU Minimum Requirements
Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent
Operating Systems: WINDOWS Operating Systems (IE5.0+SPI)
512 MB system memory or above
Video Card: 3D hardware accelerator card required –100% DirectX 9.0c compatible
10/100 Ethernet switch/hub
Sound Card: DirectX 9.0c compatible sound card
Ethernet network port/card
Network cable
Internet (For remote access) or Ethernet Network (Internal Network use) with some type of Internet
connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service)
Software
VLC media player 0.8.6b or above.
Windows XP Service Pack 2 or above.
Resolution of screen setting: 1280x960 or higher for the display of 720P
2.) Product Overview
Features
1. Tri-Mode Camera (MPG4-1/MPEG4-2/M-Jpeg )
2. Advance Motion detection trigger AVI /Jpeg save on FTP / SD card or Email
3. 3 layers (Admin, Operator, and User) Password protected
4. Resolution from CIF 352x192 up to HD 1280x720P
5. Supports NTP protocol to get correct time schedule.
6. 1/2.5‖ Advance CMOS sensor, with highly sensibility for quick response insufficient lighting.
7. Supports HTTP CGI command set. Easy for system integration
8. IP Service Search utility, to find your IP Kamera on internet with ease
9. Watchdog / Event log design
10. TV Output capabilities
11. Built in LED Spotlight
12. Automatic alarm recording buffer
13. CNT Technology –Just Plug and Play no need to port forward
14. EPTZ –Electronic Pan, Tilt, and Zoom
15. Scheduler recording capabilities & Email Capabilities
16. EZ Blog and My Web Technology
17. Built In 2GB Embedded microSD memory
18. Supports: HTTP Web Server (HTTP), SSL, FTP client, SMTP client, NTP client, DHCP client,
UPnP client, RTSP over UDP, RTP
Specification
Casing: Lightweight plastic
Case Color: Black
Weight: 105 Grams (0.231 Lbs)
Dimensions (W x L x H): 108 X 58 X 28mm
Operating Conditions: 5 –50 °C (41 –122 °F)
Humidity 20 –80% RH
(non-condensing)
Power: AC Adaptor
Input: 100-240V~0.3A MAX 10-20VA, 50-60Hz
Output: +5V 1.0A Max 5W

- 8-
Ref#90020326K0709
Package Contents
1.) 9070 Unit x 1
2.) 9070 Installation CD
3.) AC Adaptor
(One AC adaptor will be included and will correspond
to the countries power standards)
Specs:
Input: 100-250Vac /47-63Hz, 1A
Output: 5Vdc/1A
4.) Camera Mounting Bracket
5.) RJ45 Cable x 1 (Optional)

- 9-
Ref#90020326K0709
3.) Interface Description
Rear Panel View
Rear View
Device Reset:
Reset to Manufacturer Default:
Hold Reset button for 5-10 Seconds and the device
will reset to manufacturer default
Video Out:
The Video out requires a RCA connector to output
video to a different source.
RJ45 Ethernet:
Plug in the RJ45 Ethernet cable to the Ethernet port
DC 5 V Power Input:
Plug in the Power Adapter to the DC 5V

- 10-
Ref#90020326K0709
4.) Hardware Setup
*Before setup the device make sure of the following:
1.) Make sure that all the package contents are all included
if anything is missing please contact the store or your distributor.
2.) Make sure the power adaptor is the correct specification.
3.) Make sure that all the cables are working correctly
Internet Accessible Setup
The internet connection can be setup in two main ways so that the 9070 can be accessed
through the internet
Router / Firewall Setup
Using a Router/Firewall to connect each device to the internet
Note: The device needs to be port forwarded on the router so that it can be accessed by the
internet.
For example
9070-Basic IP Address: 192.168.1.882
9070-Basic Port: 9070
On the router that is being used port forwarded (port triggered) IP Address 192.168.1.882 and
port 9070. For this section you may be required to refer the user manual for the router due to the
fact that each router has a different way of setting up the device.
Note: Please refer to page: 43 on how to use CNT (Cross Network Technology). With CNT no
port forwarding is required to view the camera. But for normal functionality please use the web
browser to view the camera.
