Aviosys IP Power 9255 User manual

Ref#92550216001
IP Power 9255
User Manual
Release Date: 11/30/2019
Manual Version: 1.12
Firmware: Ver. 4.03
- 1-

Ref#92550216001
Warning: Any changes made to this equipment without permission may cause
damages to the device!
IMPORTANT NOTICE
1. IP Power 9255 was designed to be used with a protective covering, the user is
responsible for any damages caused from misuse, or use under inappropriate
conditions.
2. Please use the power adapter provided by the dealer, the manufacturer is not
responsible for any damage caused from using power adapters not.
3. Do not shake the IP Power 9255 in any fashion
4. Please contact the dealer If IP Power 9255 is not working properly.
Copyright © 2012 All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the
prior written consent of us.
All trademarks and products mentioned in this document are the properties of us.
- 2-

Ref#92550216001
Table of Contents
1.) WELCOME.........................................................................................................................5
INTRODUCTION..........................................................................................................................5
MINIMUM SYSTEM REQUIREMENTS................................................................................................6
2.) PRODUCT OVERVIEW ........................................................................................................7
FEATURES.................................................................................................................................7
SPECIFICATION...........................................................................................................................7
PACKAGE CONTENTS ...................................................................................................................8
3.) INTERFACE DESCRIPTION...................................................................................................9
HARDWARE INTERFACE................................................................................................................9
4.) SETTING UP YOUR DEVICE ...............................................................................................10
BEFORE WE START ....................................................................................................................10
SETUP FOR INTERNET ACCESS ......................................................................................................10
9255 QUICK INSTALLATION ........................................................................................................11

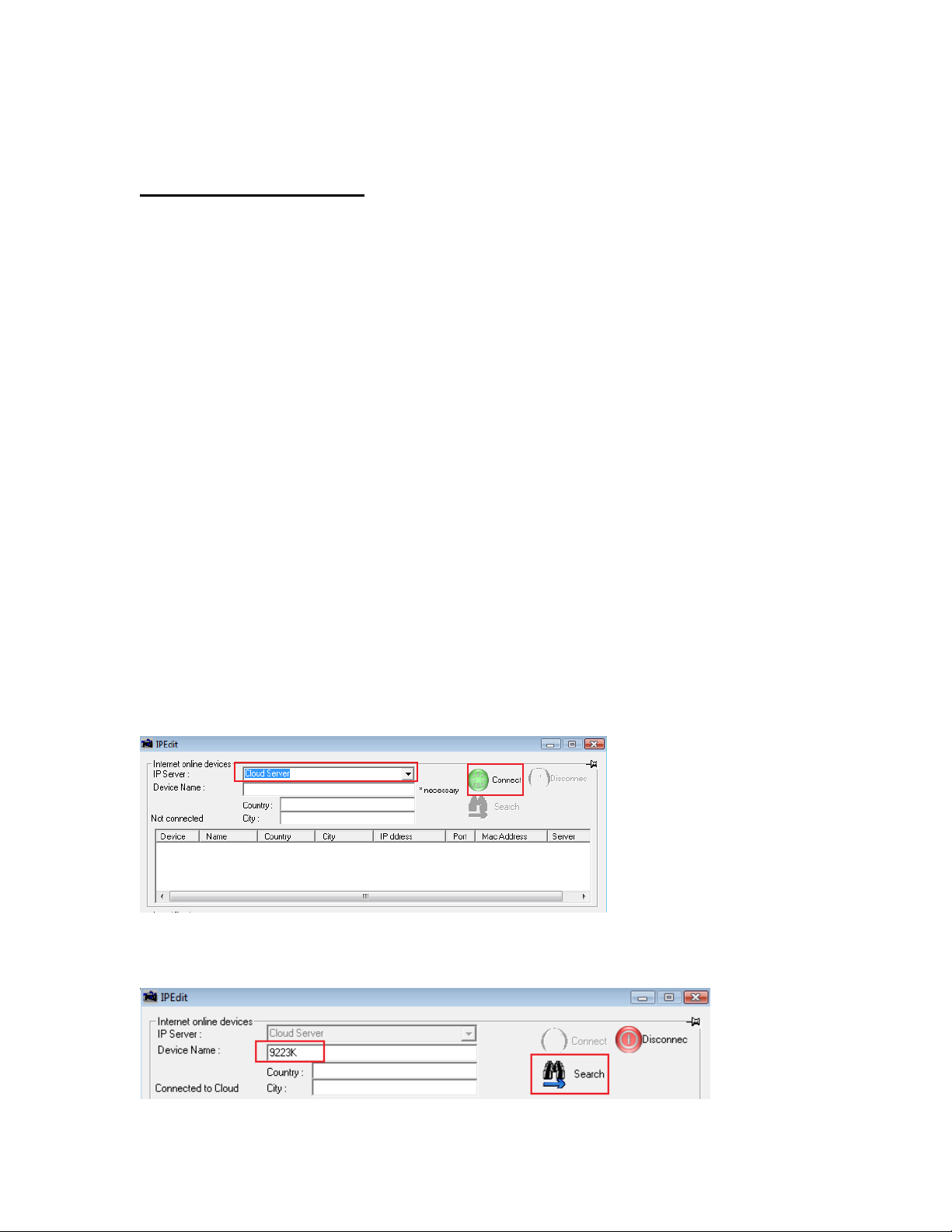

USING IP EDIT.........................................................................................................................12
USING IP SERVICE ....................................................................................................................14

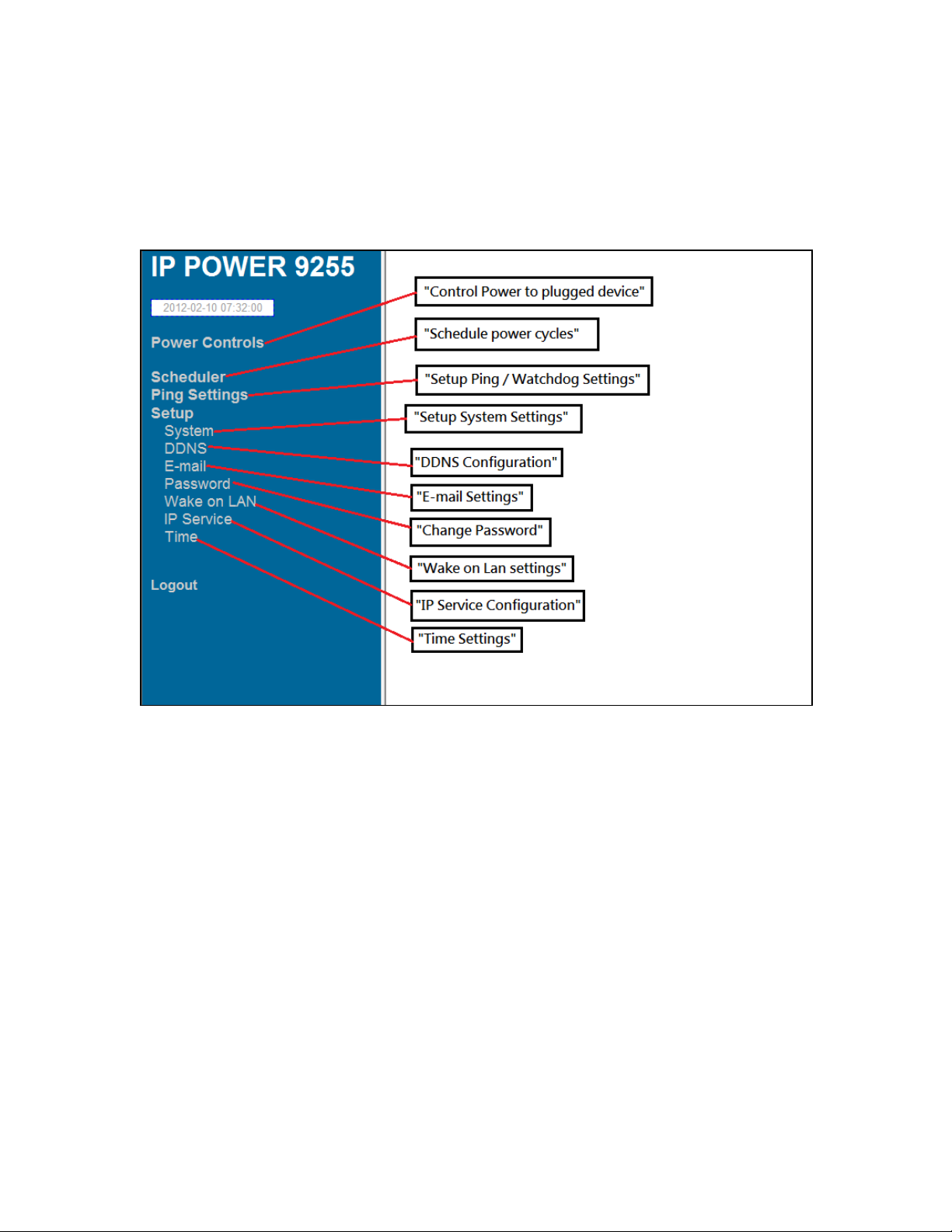

5.) WEB INTERFACE ..............................................................................................................16
POWER CONTROLS ...................................................................................................................17
SCHEDULER.............................................................................................................................18
PING SETTINGS ........................................................................................................................19
SETUP ...................................................................................................................................21
SYSTEM ............................................................................................................................................ 22
DDNS.............................................................................................................................................. 22
E-M....................................................................................................................................AIL 24
CHANGE PASSWORD........................................................................................................................... 25
WAKE ON LAN................................................................................................................................... 25
IP SERVER CONFIGURATION ................................................................................................................. 26
TIME................................................................................................................................................ 26
LOGOUT.................................................................................................................................27
6.) CONTROLLING THE DEVICE ..............................................................................................27
CGI HTTP COMMANDS .............................................................................................................27
- 3-

Ref#92550216001
A.) SET POWER COMMAND.................................................................................................................. 27
B.) POWER DELAY .............................................................................................................................. 28
C.) READ POWER COMMAND ............................................................................................................... 28
TELNET COMMANDS .................................................................................................................29
7.) FREQUENTLY ASKED QUESTIONS (F.A.Q) ..........................................................................30
- 4-

Ref#92550216001
1.) Welcome
Introduction
The 9255 is an industrial grade single port relay perfect to power management
through an Ethernet connection. This device can easily integrate with other
devices and allow power control with your integrated system. With the 9255
robust design and high quality components it provides an added incentive to
other devices or can be used independently. The 9255 brings an economical
solution to a professional industry.
- 5-

Ref#92550216001
Minimum System Requirements
CPU Minimum Requirements
•Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent
Operating Systems:
•Windows Operating Systems (IE5.0+SPI & Firefox)
•512 MB system memory or above
•10/100 Ethernet switch/hub
•Sound Card: DirectX 9.0c compatible sound card
•Ethernet network port/card
•Network cable
•Internet (For remote access) or Ethernet Network (Internal Network use) with
some type of Internet connection, (i.e. ADSL, Cable, Dial up or any other
forms of Internet service)
Software
Windows XP Service Pack 2 or above.
Resolution of screen setting: 800x600 or higher
- 6-

Ref#92550216001
2.) Product Overview
Features
1.) Inrush Current relay design for extra protection.
2.) Designed to control T5 fluorescent lighting.
3.) Industrial single port Relay design network controller.
4.) Accessible with popular web browsers - IE, Google Chrome, Netscape &
Firefox.
5.) Supports up to maximum current: 8 Amp.
6.) Power surge protection design to protect against high voltage power surge.
7.) Designed to meet high voltage and current safety standard design and
regulation.
8.) Reliability and testing certification
9.) Comes in 5 standard global socket types.
10.) Network protocols supported: Http, DDNS, DHCP, Virtual and Dynamic IP.
11.) SDK for own software development.
12.) Smartphone and IOS supported.
13.) Embedded web server - No PC is required for it to work.
Specification
Power Cable Input:
Specification: 10AMP 18AWG 0.75 x 3C (Standard PC Power Cable)
Weight:
192.6 grams without packaging.
Dimensions:
(L x W x H): 8.5 x 7 x 8.5 cm
Casing: Plastic
Relay Specification:
Regular Use: Max. 8A / port
T5 fluorescent light control: 240Watt
- 7-

Ref#92550216001
Package Contents
1.) 9255 Unit x 1
2.) 9255 Installation CD
CD will provide manual, software, and documentation
on the 9255
3.) Standard PC Power
Cable (Optional)
Specification: 10AMP 18AWG 0.75 x 3C
- 8-

Ref#92550216001

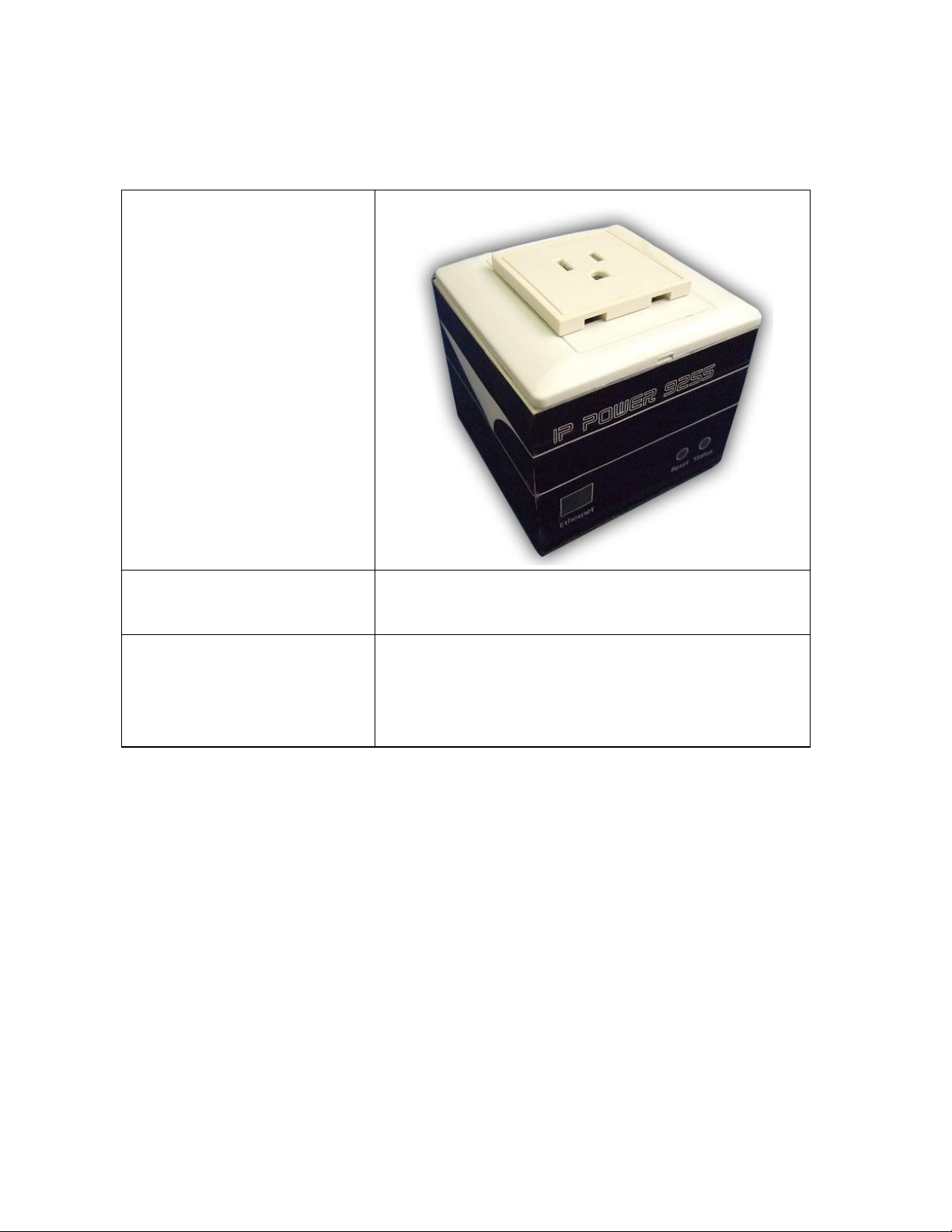

Power Cable Input:
The Power Input is found on the back
of the device.
Power Output
The Power output is on the top of the
device. Simply plug in the device that
you would like to power control.
(Comes in different plug standards)
RJ45 Ethernet:
Plug in the RJ45 Ethernet cable to the
Ethernet port
RESET
To revert to manufacturer default, hold
down for 7-9 seconds until you hear 2
long beeps.
Status Indicator
Red Status Indicator: Output port is
set to off
Green Status Indicator: Output is On
3.) Interface Description
Hardware Interface
- 9-

Ref#92550216001
4.) Setting up your Device
Before we Start
*Before setting up the device make sure of the following:
1.) All the package contents are all included if anything is missing please
contact the dealer where the device was purchased from.
2.) Check that the power input cable is working correctly.
3.) Check the cables to make sure there are no problems with the cable.
Setup for Internet Access

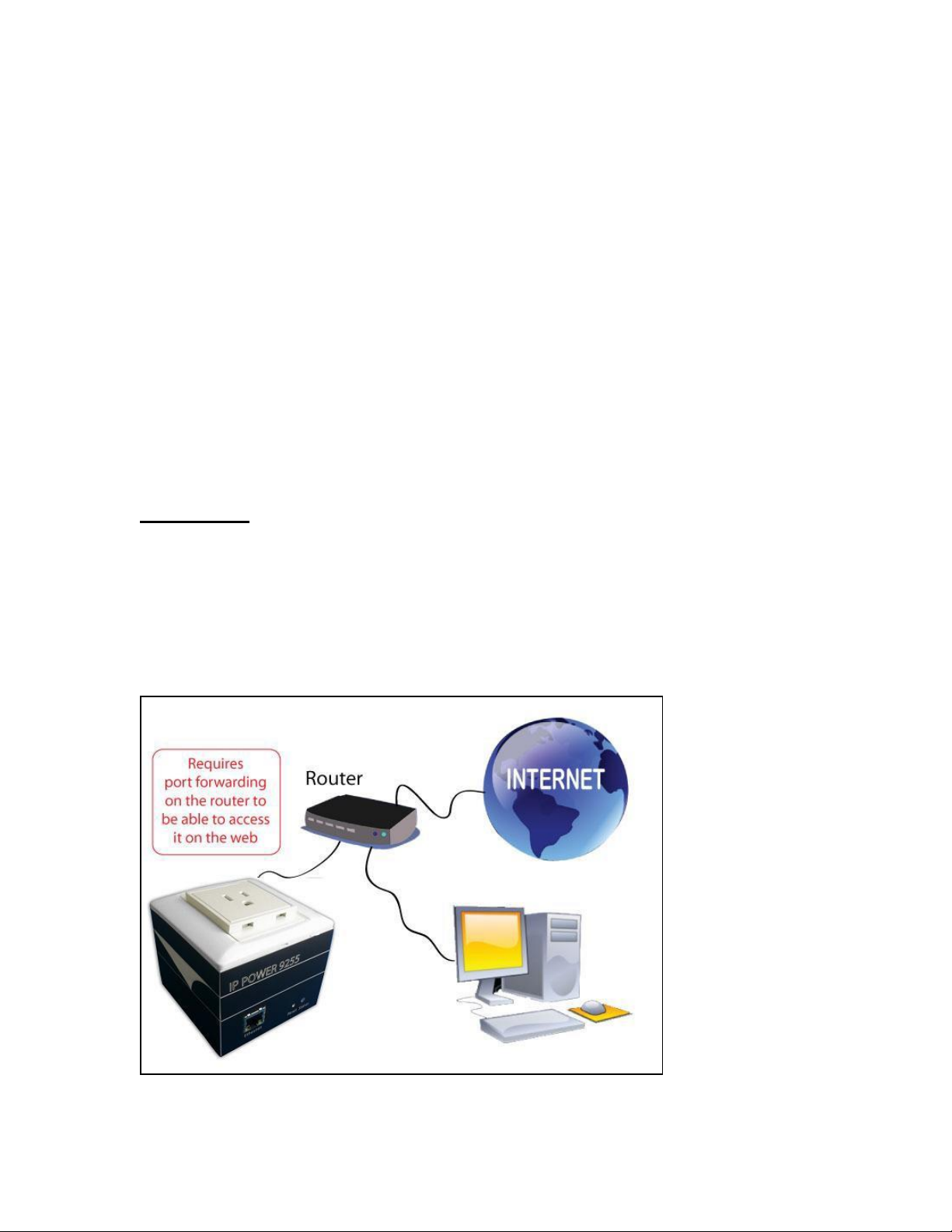

To access the 9255 from the internet, the router will require port forwarding to be
activated for your IP Power device.
* Please refer to your routers manual on how to port forward the device.
For example
9255 IP Address: 192.168.100.200
Port: 8080
* On the router you will need to port forward both TCP / UDP to the IP Address
192.168.100.200 on Port 8080.
- 10-
