User Manual
YS-3018
YS-30116
YS Series Audio/Video
Distribution Amplifier

YS Series Audio/Video Distribution Amplifier—User Manual
1
Before You Use the System
1、Read manual——Carefully read the manual before you use the system.
2、Installation environment——The system should be installed indoor only. Install either on a
sturday rack or desk in a well-ventilated place.
3、Lightning——Unplug the power cord during lightning or after a prolonged period of non-use
to avoid damage to the equipment.
4、Maintenance——Only qualified technical engineers or specified distributors are permitted to
repair or replace components and parts of the equipment upon failure.

YS Series Audio/Video Distribution Amplifier—User Manual
2
Table of Contents
1.0 Audio/Video Distribution Amplifier..........................................................................................3
1.1 YS Series Audio/Video Distribution Amplifier.................................................................3
1.2 Contents of Package ..........................................................................................................4
2.0 Product Description:..................................................................................................................4
3.0 Component Video Distribution Amplifier Application Areas ...................................................4
4.0 Product Features........................................................................................................................4
4.1 Video .................................................................................................................................4
4.2 Audio .................................................................................................................................4
5.0 Product Specifications...............................................................................................................5
5.1 Video .................................................................................................................................5
5.2 Audio .................................................................................................................................5
6.0 Front/Rear Panel View ..............................................................................................................6
6.1 Front Panel View ...............................................................................................................6
6.2 Rear Panel View ................................................................................................................7
7.0 Installation Steps .......................................................................................................................7
8.0 YS-3018 Distribution Amplifier and Peripheral Equipment Connection .................................8
9.0 Serial Connection Operation .....................................................................................................9
10.0 FAQ .......................................................................................................................................10

YS Series Audio/Video Distribution Amplifier—User Manual
3
1.0 Audio/Video Distribution Amplifier
1.1 YS SeriesAudio/Video DistributionAmplifier
The YS-3018/YS-30116 is an 8/16 output connectors RCA distribution amplifier with 1 set
of YpbPr video and 1 pair of audio RCA female input connectors and 8/16 sets of YpbPr video
and 8/16 pairs of audio RCA female output connectors.
The YS series audio/video distribution amplifier is a professional high performance
audio/video signal distribution amplifying equipment. It is used in one audio/video signal input
to multiple computer signals and audio/video signal output distribution amplification; each video
signal and audio signal are independently transmitted, thereby enabling attenuation of signal
transmission to be reduced to the minimum and ensuring high fidelity video and audio signals
output.
The YS series audio/video distribution amplifier is mainly used in broadcasting and TV
engineering projects, multimedia conference rooms, large display engineering projects, TV
teaching, and command control centers. This product has power overload protection and
synchronous video functions.
Figure 1-1 YS-3018 Distribution Amplifier
Figure 1-2 YS-30116 Distribution Amplifier

YS Series Audio/Video Distribution Amplifier—User Manual
4
1.2 Contents of Package
nOne AVLINK YS-3018 or YS-30116 Audio/Video Distribution Amplifier
nUser Manual
nAC Power Cord
Please check with your distributor in case of shortage.
2.0 Product Description:
YS-3018 or YS-30116 YpbPr distribution amplifier: 1 set of YpbPrvideo and 1 set of
audio RCA female input connector, 8/16 sets of YpbPr video and 8/16 pairs of audio RCA female
output connectors.
3.0 Component Video Distribution Amplifier Application Areas
nTest bench facilities
nTest Rooms
nInformation Desks
nHomes
nEmporia
nMass Media: Stock Price Display, Time Display, Teaching Rooms
nData Centers
nHelp Desks
4.0 Product Features
nMulti-tasking
n3U 19-inch stack design
4.1 Video
nVideo bandwith: 400MHz(-3dB)
nPermits extension of video signal to 15 meters
nPermits serial connection
nComponent/composite output connector compatible with standard RCA connector
4.2 Audio
nStereo sound
nPermits serial connection
nApplicable to RCA audio equipment

YS Series Audio/Video Distribution Amplifier—User Manual
5
5.0 Product Specifications
5.1 Video
Length of extension: maximum 15 meters
Signal type: Component/Composite Video
Input connector: 1 set（YPbPr）RCA female connector
5.2 Audio
Working frequency: 20Hz—20KHz
Input impedance: >10KΩ
Input connector: 1 pair (R,L) RCA female connectors
Function YS-3018 YS-30116
Type Component video
Composite Video
Input Impedance 75Ω
Input Connector 1 set (YPbPr) RCA female connectors
Video
Output Connectors 8 sets (YPbPr) RCA female
connectors
16 sets (YPbPr) RCA female
connectors
Type Unbalanced stereo sound
Input Impedance >10KΩ
Input Connector 1 pair (R,L) RCA female connectors
Audio
Output Connectors 8 pairs (R,L) RCA female
connectors
16 pairs (R,L) RCA female
connectors
Power Transformer (Min) AC 100V～240V, 50/60Hz,Internal
Housing Aluminum
Weight 4.4Kg 4.5Kg
Measurements (L*W*H) 485*272*140mm

YS Series Audio/Video Distribution Amplifier—User Manual
6
6.0 Front/Rear Panel View

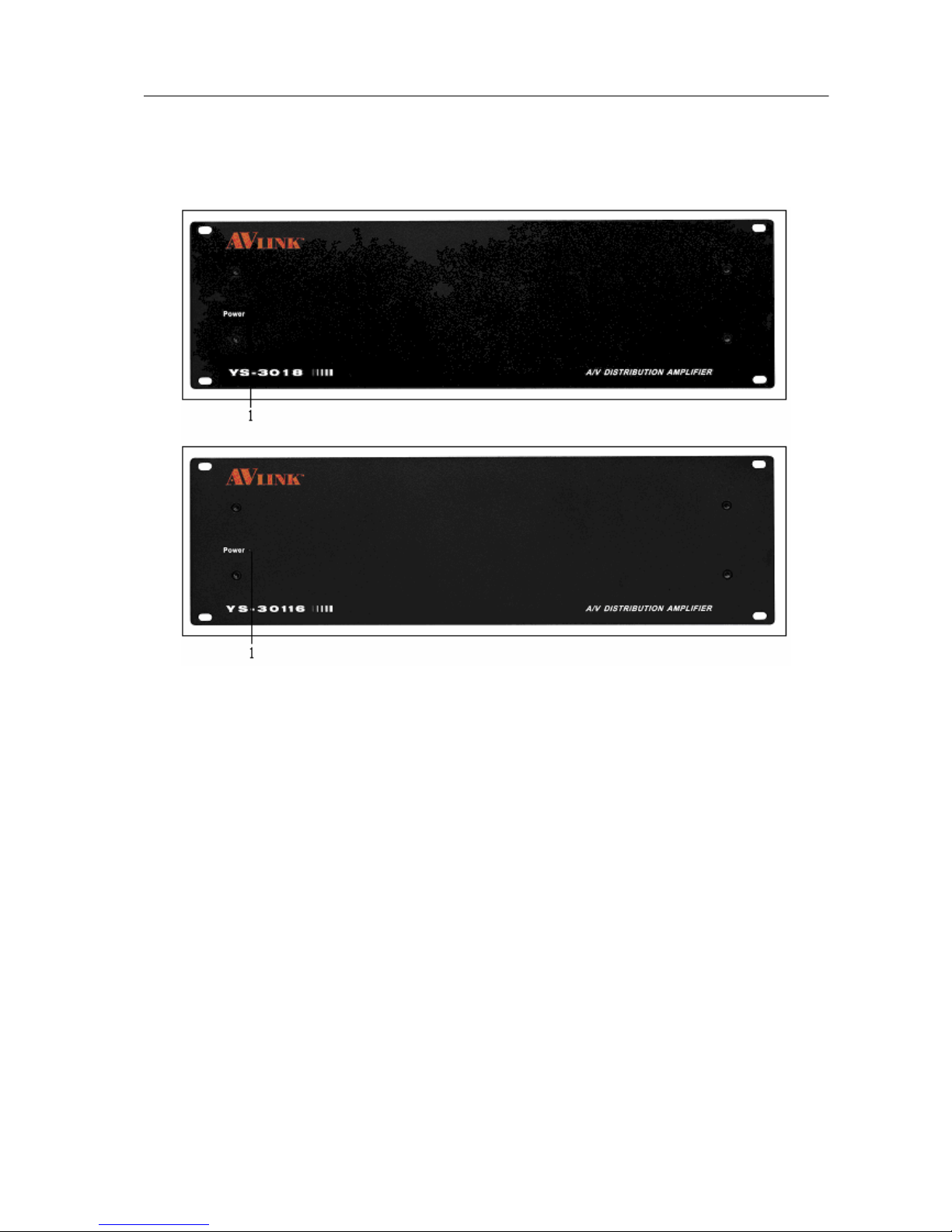

6.1 Front Panel View
Figure 6-1
1. LED Power Indicator

YS Series Audio/Video Distribution Amplifier—User Manual
7
6.2 Rear Panel View
Figure 6-2
2. Input AC power plug
NOTE: YS-3018 has 8 sets of output connectors.
YS-30116 has 16 sets of output connectors.
7.0 Installation Steps
1. Turn off power to the DVD player and TV/HDTV.
2. Use the audio/video extension cord to connect the RCA female input connectors of the
YS-3018 or YS-30116 to the DVD player.
3. Use the audio/video extension cord to connect the RCA female output connectors of the
YS-3018 or YS-30116 to the TV/HDTV.
4. Connect one end of the power cord to the product and the other end to the mains.
5. Turn on the DVD player and the TV/HDTV.

YS Series Audio/Video Distribution Amplifier—User Manual
8
8.0 YS-3018 Distribution Amplifier and Peripheral
Equipment Connection
Figure 8-1

YS Series Audio/Video Distribution Amplifier—User Manual
9
9.0 Serial Connection Operation
1. To display video on multiple TV/HDTVs you have to serially connect another distribution
amplifier.
2. Use the audio/video extension cord to connect to any RCA female output connector of the
front YS-3018/30116 audio/video distribution amplifier to the RCA female input connector of
the rear YS-3018/30116 audio/video distribution amplifier.
NOTE:
You are recommended not to connect too many distribution amplifiers because video
transmission will become unstable.

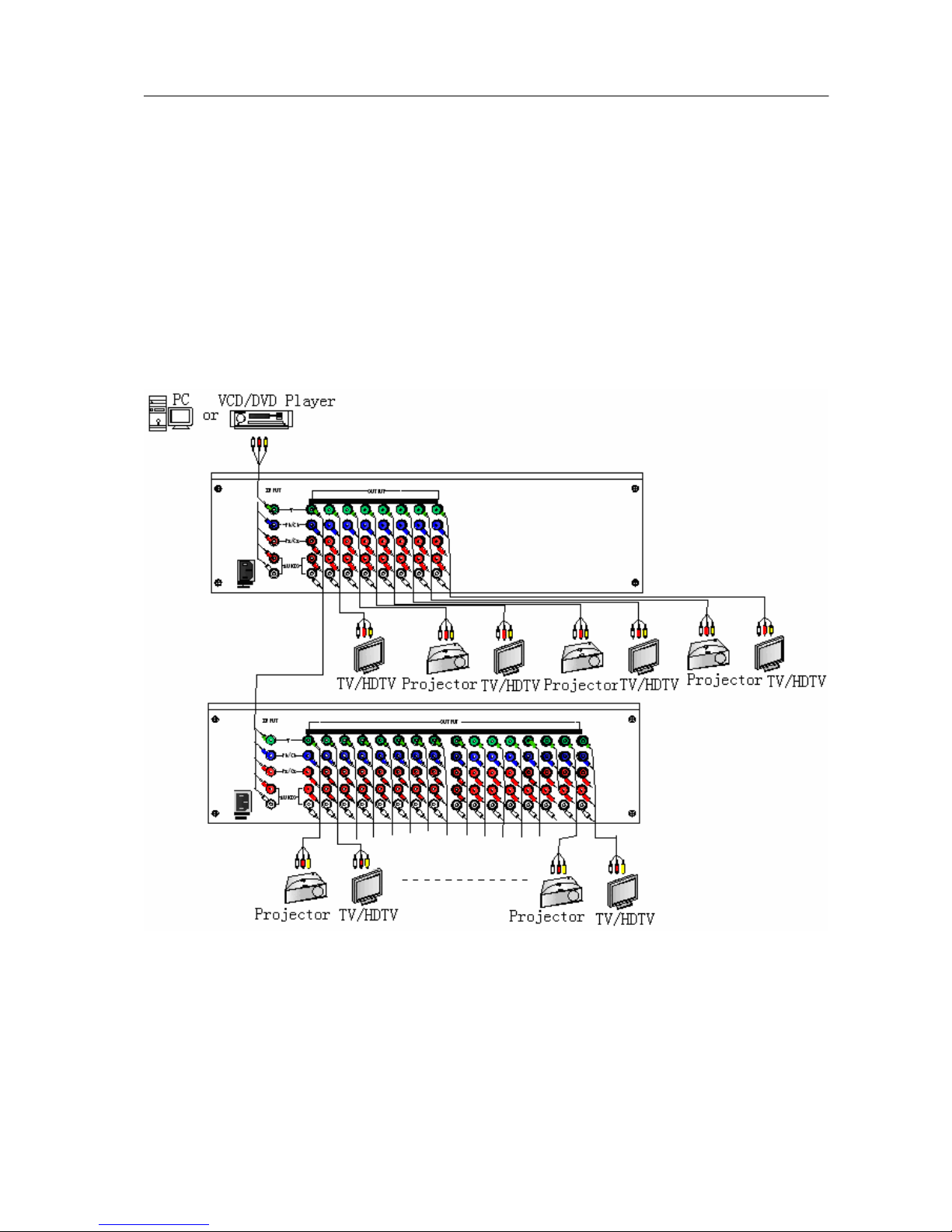

Figure 9-1
Remarks: Above figure shows serial connection of an 8-connector distribution amplifier to a
16-connector distribution amplifier. However, you can also serially connect other output
connectors to the YS-3018/30116 audio/video distribution amplifier.

YS Series Audio/Video Distribution Amplifier—User Manual
10
10.0 FAQ
1．What should I do if the distribution amplifier fails to display or the display color is abnormal
after hot plug?
Answer: The internal switching of the distribution amplifier is carried out by IC chips. There is
an electric potential difference between the input signal equipment and the distribution amplifier.
The IC chips of the distribution amplifier can be easily damaged if the difference is big. You are
recommended to turn off power to the distribution amplifier and do not hot plug if you want to
replace wires.
2．What should I do if ghosting happens when video signal outputs to the display equipment?
Answer: Ghosting usually happens when the projector is improperly adjusted or the cable quality
is not up to standard. Generally, it is either poor cable quality or long transmission distance. You
are recommended to replace with better quality cable to avoid the problem.
3．What should I do if loss of color happens or even no video signal output?
Answer: Check if both sides of the video signal cable are correctly connected to the
corresponding connector.
4. What should I do if the power indicator does not lit?
Answer: Check if the equipment power input is properly in contact.
5. What should I do if static electricity is markedly sensed during plugging and unplugging of the
audio/video connectors?
Answer: It could be that your equipment power is not properly grounded. Make sure that you
have properly grounded your equipment to avoid damaging to the product and shorten product
life.
NOTE:
Do not replace the damaged power cord yourself. Only the distributor maintenance engineer
is authorized to replace the damaged power cord.
