AWA MHDV4601-O3 User manual

MHDV4601-O3
46" 117cm FULL HD LED LCD Television
USER MANUAL
Thank you for purchasing this LCD TV. Before connection and operation of this
product please read the manual carefully and completely.
Please keep this manual for future reference.
N294
Version 1.0

Contents
-2-
INTRODUCTION..............................................................................1
SAFETY ANDWARNINGS.............................................................3-5
BASE STAND ......................................... 6
INSTALLATION......................................................................... 7 -10
REMOTE CONTROL.................................................................11-12
OPERATION.............................................................................13-17
TROUBLE SHOOTING...................................................................18
TECHNICAL SPECIFICATIONS.......................................................19
ASSEMBLY INSTRUCTION
WALL MOUNTING INSTALLATION GUIDELINES............................... 6

-3-
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
This symbol indicates that dangerous
voltages, constituting a risk of electric
shock are present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Toreduce the riskof fire or electric shock,
do not exposethis apparatus torain or
moisture.
WARNING:
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do notuse this apparatusnear water.
6) Clean onlywith a drycloth.
7) Do notblock any ventilation openings,
install in accordancewith the instructions.
8) Do notinstall near anyheat sources such
as radiators, heatregisters, stoves, orother
apparatus (including amplifiers)that
produce heat.
9) Protect thepower cord frombeing
walked on orpinched particularly at plugs,
convenience receptacles, andthe point
where they exit from the apparatus.
10) Only useattachments/accessories
specified by themanufacturer.
11) Unplug this apparatusduring lightning
storms or when unused for long periods of
time.
12) Refer allservicing to qualified service
personnel. Servicing isrequired when the
apparatus has beendamaged in any way,
such as power-supplycord or plug is
damaged, liquid hasbeen spilled or objects
have fallen intothe apparatus, the
apparatus has beenexposed to rain or
moisture, does notoperate normally, or has
been dropped.
13) Mains plugis used as the disconnect
device, the disconnectdevice shall remain
readily operable.
14) The ventilation should notbe impeded
by covering theventilation openings with
items, such asnewspapers, table-cloth,
curtains, etc.
15) No nakedflame sources, such as
lighted candles, shouldbe placed on the
apparatus.
16) This device is notwarranted for use in
unreasonably hot, cold,or humid
environments.
17) The apparatus shall notbe exposed to
dripping or splashingand no objects filled
with liquids, suchas vases, shallbe placed
on the apparatus.
This symbol indicates thatthis product
incorporates double insulation between
hazardous mains voltage anduser
accessible parts. When servicinguse only
identical replacement parts.
The batteries shallnot be exposed to
excessive heat suchas sunshine, fire or
the like.
WARNING:

-4-

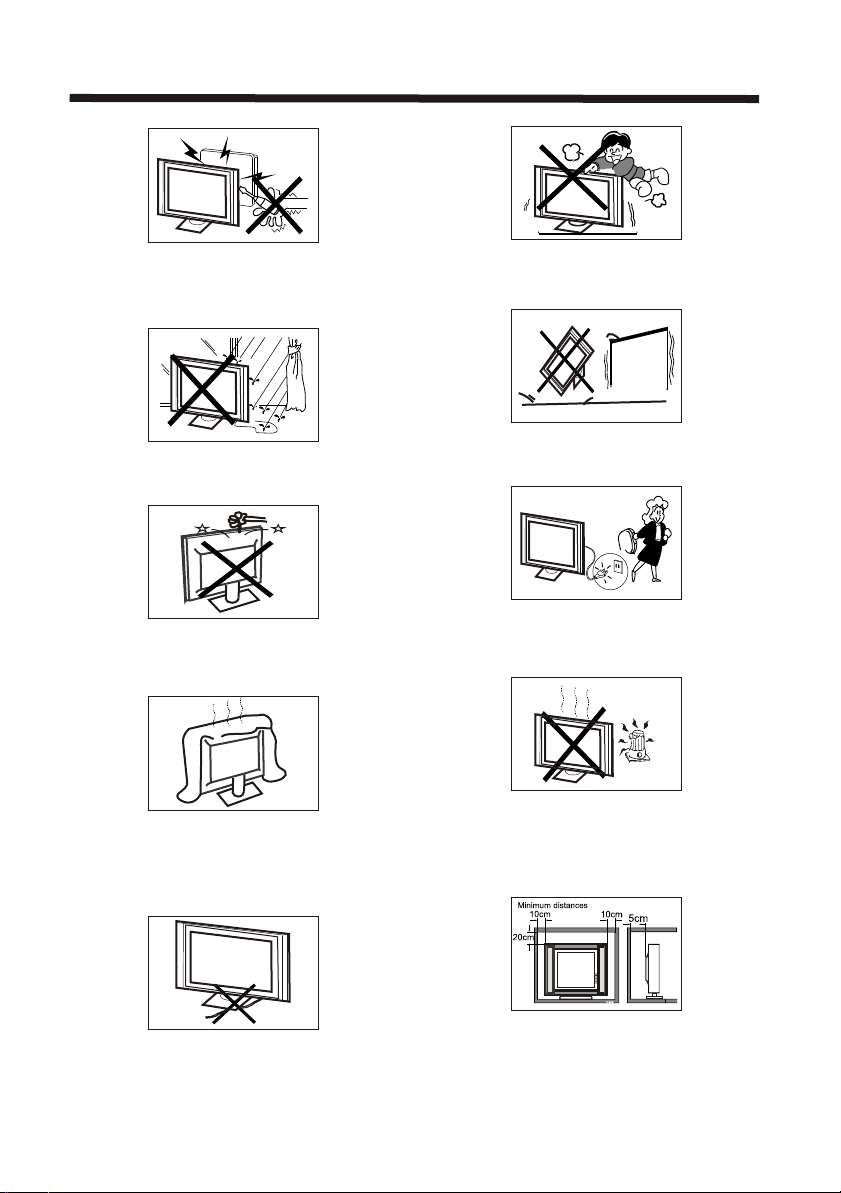

High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set.
Refer servicing to qualified service personnel.
To prevent fire or electrical shock hazard, do not
expose the television receiver to rain or moisture.
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Do not block the ventilation holes in the back
cover.
Adequate ventilation is essential to prevent
failure of electrical components.
Do not trap the power supply cord under the
television receiver.
Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if it
falls.
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an individual,
and damage to the television may result if it falls.
When the televisionreceiver is notused for an
extended period of time, it is advisable to
disconnect theAC power cord from the AC outlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.
Dim:515*320mm(
SAFETY AND WARNINGS

-5-
SAFETY AND WARNINGS
CAUTION
Never tamper with any components inside the TV, or any other adjustment controls not mentioned in
this manual.
All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD
PANEL or CABINET, the power cord should be physically removed from the mains outlet. You may
then wipe the TV with a dry soft cloth. During thunder and lightning, unplug the power cord and
antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by
qualified TV service personnel.
Warning: Change or modifications to this unit not expressly by the part responsible for compliance
could void the user 's authority to operate the Equipment.
a. Do not expose to dripping or splashing.
b. No objects filled with liquids, such as vases, shall be placed on the apparatus.
c. The mains plug of this device is used as the disconnect device and shall remain readily accessible
and operable.
d. No naked flame sources, such as lighted candles, should be placed on the apparatus.
e. Allow suitable distances around the apparatus for sufficient ventilation. Ventilation should not be
impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and
such like.
The display panel isa very sensitive hightechnology product, giving youfinely detailed pictures.
Occasionally, afew non-active pixels mayappear on the screenas a fixed pointof black, blue,
green or red. Pleasenote that this doesnot affect the performance of your product.
About After- Image
The extended use offixed image programme materialcan cause a permanentafter - image on
the screen.
This background image isviewable on normal programsin the form of a stationary fixed image.
This type of irreversiblescreen deterioration can belimited by:
A. Reduce the brightness/contrastsetting to a minimumviewing level.
B. Do not displaythe fixed image forextended periods of time.
C. Turn the power off when not in actualuse.
Important Information Regarding Useof Video Games, Computers, Captions or Other Fixed
Image Displays.
Do not allow astill picture to bedisplayed for an extendedperiod, as this can cause a
permanent after-image to remainon the screen.
Examples of still picturesinclude logos, video games,computer images, teletext andimages
displayed in 4:3 mode.
CAUTION:
The permanent after-image onthe screen resulting fromfixed image use isnot an operating
defect and as suchis not covered bythe warranty.
This product is notdesigned to display fixedimages for extended periodsof time.

-6-
INSTALLATION

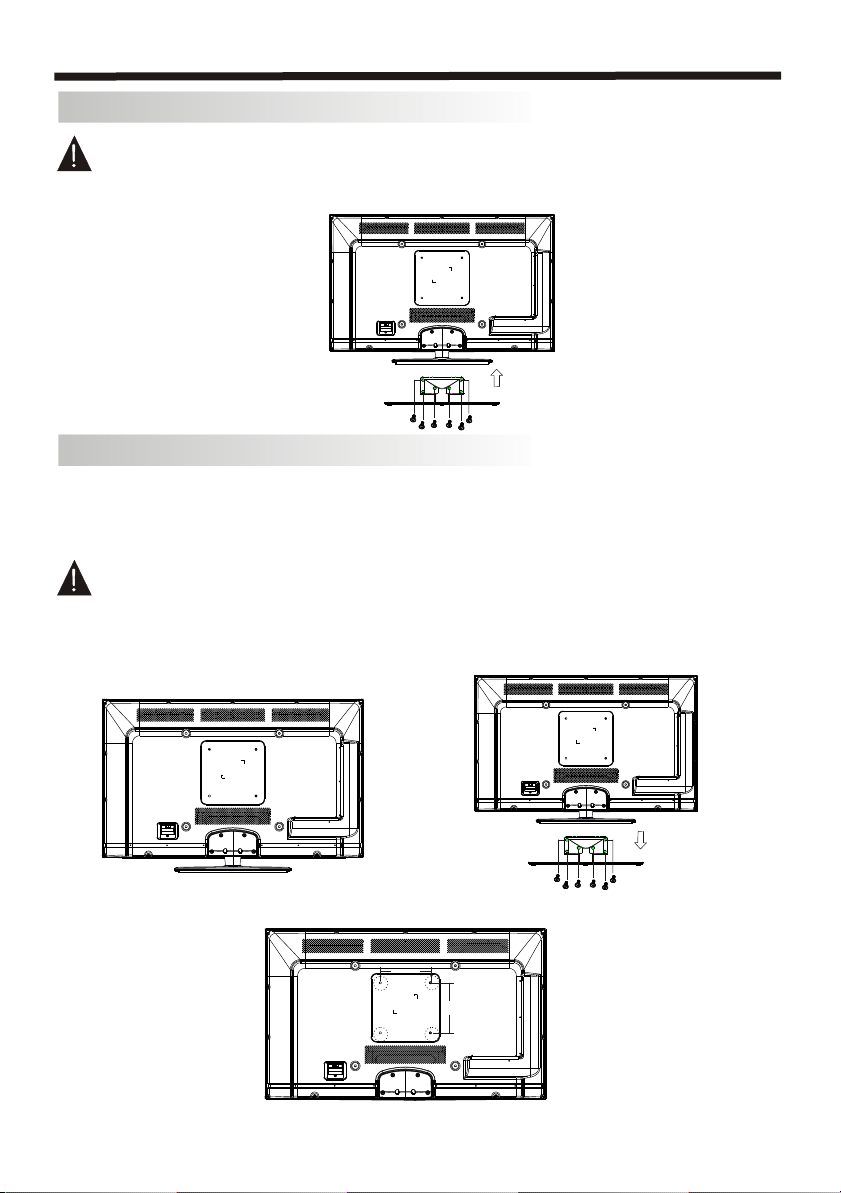

Base Stand Assembly Instruction
1. Place theTV with thedisplay side down on a flat surface. Ensure the table or desk you use provides
a flat, totallyclean surface. Use a cloth between the face ofthe TV and the table to protect the TV's
screen.
2. Gently slidethe bracket from the base stand into the slotin the rear of the TV, aligning the hole in
the bracket withthe hole in the TV. Secure the base stand usingthe supplied screw.
WALL MOUNTING INSTALLATION GUIDELINES
For wall mountingwith an optional bracket, please read the following instructionsin conjunction with the
bracket's instructions. Makesure qualified service personnel perform the operation.
AWAbears no responsibilityfor improper mounting that results in accident or injury.
This television canbe wall mounted as follows:
1.Place the LEDLCD Television face downonto a solid surface. Please place some soft material over
the front ofthe screen to protect it from any damage. TheLCD panel is a fragile component, and must
be suitably protectedwhen removing the base stand. Be sure that nohard or sharp objects can come
into contact withthe screen's surface. Do not exert pressure on thefront of the unit at any time, as this
may damage theLCD screen.
2.Remove the screwfrom the lower part of the television, where thebase joins to the TV, and take
away the stand(put the stand and screws somewhere safe for futureuse).
3.Use the fourM4 screws provided to fix the TV onto awall mounting bracket (not included) viathe
four VESA standard holes on the back of the television.
wall mounting holespacing
and locations
400 mm
400 mm

INSTALLATION
-7-
Front panel
1: Remote control sensor.
2: Indicator LED:
GREEN = POWER ON.
RED = STANDBY.
3: Key board (on side of TV).
4: Main power switch (on bottom rear of TV)
KEYBOARD
1. SOURCE:
Displays the input source Menu.
2. MENU:
Displays the main MENU.
3. CH+/CH-
In TV mode, press "CH+" or "CH-" to change the channel up and down.
In MENU mode, press "CH+" or "CH-" to select items.
4. VOL+/VOL-
Adjusts the sound level.
In MENU mode, press "VOL+" or "VOL-" to adjust the item that you have selected.
5. STANDBY
Once the TV's main power switch has been activated, press this button to turn the
unit ON from STANDBY mode.
Press it again to return the set back to STANDBY.
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
The remote controlneeds to bepointed directly,
within +/- 30 , of the sensor on the front of the
TV for reliableoperation.
30 30
1
4
2
3

INSTALLATION
-8-

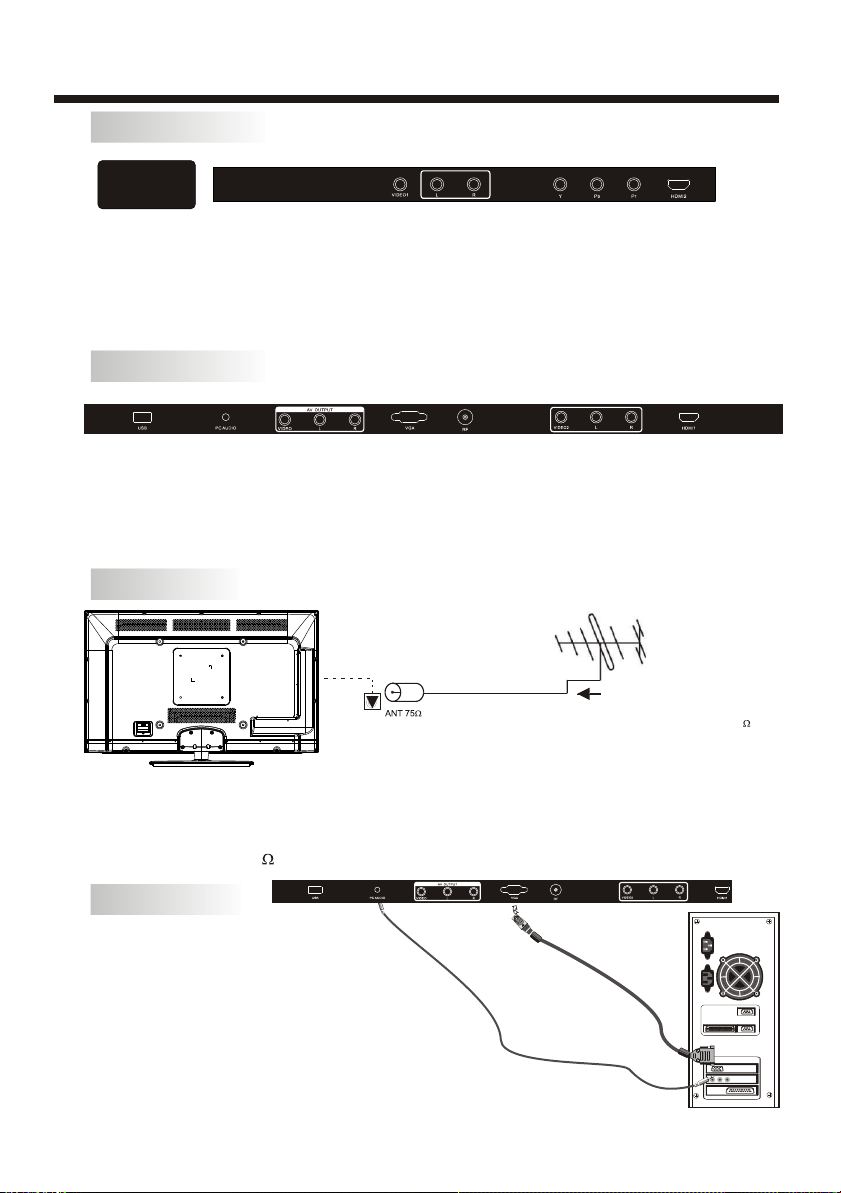

STEPS:
PC
Be sure boththe TV and computer are
set to Poweroff.
1.Connect a VGAand audio cable.
2.Connect the powercord.
3.Power on theTV,switch to PC mode.
4.Power on thePC.
This connection andpower-up sequence
is very important.
ANTENNA
Note:
Aerial connections: IEC(female).
Input impedance: 75 unbalanced.
REAR AV Connections
All the terminals are (from left to right):
, Audio input, YPbPr (component video) input,
HDMI2 input.
Note: 1. and YPbPr share one audio channel.
2. When the HDMI2 port receives a DVI signal, the matching audio signal is received
from the YPbPr/ Audio input.
AC POWER INPUT, AV1 input
AV1
AV1
SIDE AV Connections
All the terminals are (from left to right):
USB, PC Audio input, (composite video and audio) VGA input,
Note: When HDMI1 receives a DVI signal, the matching audio signal is received from the PC
Audio input.
AV output ,
Antenna socket,AV2 Input,HDMI1.
Plug (not supplied)
Outdoor antenna (not supplied)
For optimum digital TVreception,
the use of highquality shielded 75
coax cable is recommended.
VGA and audiocable
not supplied
AC-INPUT
100-240V~ 50/60Hz

PRESET MODE
PC
-9-
INSTALLATION
1
2
3
4
5
6
7
720*400
640*480
800*600
800*600
800*600
1024*768
1024*768
70
60
56
60
72
60
70
31.47
31.47
35.156
37.88
48.08
48.36
56.48
RESOLUTION V.Freq.(Hz) H.Freq.(kHz)
AC-INPUT
100-240V~50/60Hz

INSTALLATION
-10-

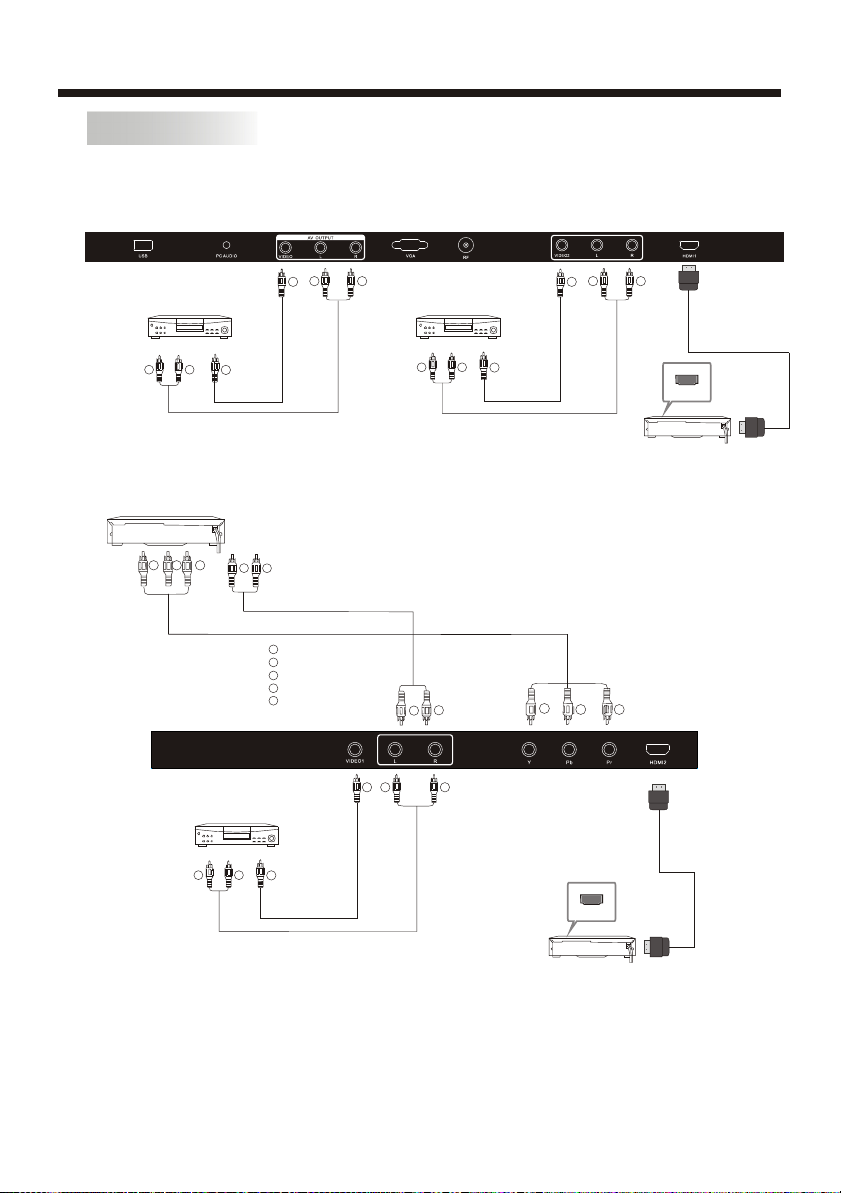

AV EQUIPMENT
W R
GBR
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
WR
GBR
WR
HDMI
TO AUDIO OUTPUTS
TO VIDEO
OUTPUT HDMI
W R
WR
TO AUDIO INPUTS
TO VIDEO
INPUTS
You can use the input and output terminals on the TV set as follows.
Your TV can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats: 480i,576i,480p,576p,720p,1080i.
Use an HDMI connection to support 1080p operation.
(component video)
Y
Y
Y
VIDEO EQUIPMENT
WR
Y
VIDEO EQUIPMENT
WR
WR
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUT
Y
Y

-11-
REMOTE CONTROL
REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1:POWER:Toset the TVto standby or power on.
2: :In USBmode, used as reverse key, in teletext
mode used assubpage key.
3: : InUSB mode, used as forword key, in teletext
mode used asreveal key.
4: : Press the PlayButton in USB Mode to begin or continue
Playback.
5: : Press the PauseButton to pause play in USB Mode.
6:TEXT:Toenter or TELETEXT.
7: SUBTITLE: To turn onsubtitles press thesubtitle button
in DTV mode.
8 : :Displays the main on-screen menu.
9 :CURSOR:To move within the menu.
10:OK: Confirms selection.
11: EPG: To display informationabout the program being viewed
and what's onnext in DTV mode.
12:FAV: To access your favourite channels listin TV orDTV mode.
13:VOL+/- : To adjust soundlevel.
14:NUMERIC KEY: For directaccess to channels.
15:AUDIO: To select theavailable audio languageof TV programs.
16:MUTE: To disable orenable the soundoutput.
17: : InUSB mode, used as next key, in teletextmode used as
list key.
18: : InUSB mode, used as previous key, in teletext mode used
as hold key.
19: :In teletextmode used as index.
20: : Press tostop play in USB mode.
21:INFO: To display theprogram information ofthe show you
are watching, pressthe info button.
22:FREEZE: Press to freezethe picture you are watching.
23: : Pressto display andselect the available video sources.
24:EXIT: To return tothe previous menuor exit menu.
25:CH+/CH-: To access thenext or previouschannels.
26:REP: In USBmode,select Repeat mode.
27:RECALL: DTV Mode:RECALL:Jumpsto last channel
viewed.
VOL CH
REP
FREEZE

-12-
REMOTE CONTROL
TELETEXT
TEXT
SELECTING A PAGE
DIRECT ACCESS
TO THE ITEMS
INDEX
SUB PAGE
HOLD
REVEAL

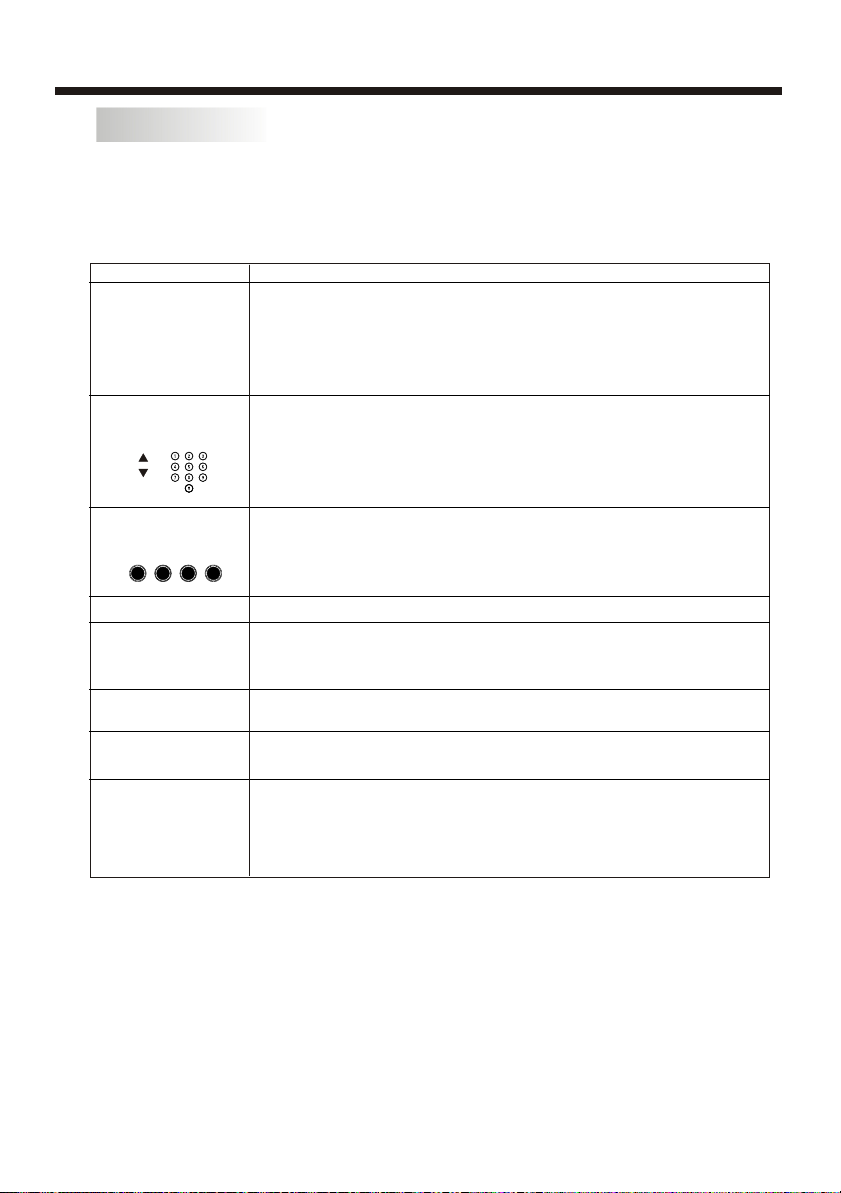

Press: You will obtain:
LIST
Enter the numberof the page required using the 0 to 9 up/down.
Example: page 120,enter 120. The number is displayedtop left, the
counter turns andthen the page is displayed. Repeat this operation to
view another page.If the countercontinues to search, this means
that the pageis not transmitted. Select another number.
Coloured buttons correspondto the colours at the bottom of the
screen. The 4coloured keys are used to accessthe items or
corresponding pages. Thecoloured areas flash when the itemor the
page is notyet available.
This returns tothe contents page (usually page 100).
Certain pages containsub-pages which are automatically
displayed successively.This key isused to stop or resume sub-
page acquisition. The indication appears topleft.
To freeze the page.
To display or hide the concealed information (games solutions).
The user canset four favourite pages to be directly linked to the four
color keys. Whilelist mode is activated, it is not possibility to use TOP
or FLOF navigationwith the colourkeys. The favourite pagenumbers
should be storedand restored to/from nonvolatile memory for each
channel by thesystem software.
This is usedto call or exit teletext modes. The summary appearswith
a list ofitems that can be accessed. Each item has a corresponding
3 digit pagenumber. If the channel selecteddoes not broadcast
teletext, the indication100 will be displayed and the screen will
remain blank (inthis case, exit teletext and selectanother channel).
Teletext is an information system broadcast by certain channels whichcan be
consulted like anewspaper. Italso offers access to subtitlesfor viewers withhearing
problems or whoare not familiarwith the transmissionlanguage (cable networks,
satellite channels, etc.)

-13-
OPERATION
Installation Guide
Press to select country at first,then press the OK button to start auto tuning.
This screen only appears when the TV is turned on for the first time, or reset to factory settings.You can choose
language, country and auto tuning programs. After tuning, the screen will skip to the first DTV program.
1.CHANNEL MENU
The first item of the MENUis channel menu (for ATV or DTV source only). ATV = Analogue TV, DTV = Digital TV.
You can search channels and edit programs here.
1).Auto tuning:
Search all the channels automatically (you can select ATV and DTV)
ATV Manual Tuning
Programme Edit
Signal Information
< >< >
CHANNEL
Auto Tuning
DTV Manual Tuning
Software Update(USB)
Software Update(OAD)Off
Dansk
Deutsch
Hrvatski
Italiano
Please select an OSD Language
OK
Magyar
Nederlands
Norsk
PolskiEnglish
Cesky
E k
Espanol
~
Fran ais
Portugues
Pycck
Austria
Belgium
Country
OK
Australia
Croatia Finland Greece Luxembourg
Czech France Hungary Netherlands
Bulgaria Denmark Germany Italy
Tune Type DTV+ATV
MENU
Austria
Belgium
Australia
Croatia
Czech
Bulgaria
Finland
France
Denmark
NOTE:
All the channels including ATV, DTV and Radio can be tuned at once, if the Tune Type is DTV+ATV.
Any previously storedchannels will be deleted after auto tuning is carried out.
After auto tuning, the receiver will skip to the first DTV channel.
Channel Tuning
TV : 0 Programme(s)
DTV : 0 Programme(s)
Radio : 0 Programme(s)
96% UHF CH 68 DTV

2).DTV Manual tuning:
You can select a DTV channel then find the program in this channel.
Press to select the channel, then press OK to search the programs .
OPERATION
NOTE:
The Bad Normal Good bar graph onthis screen shows signal intensity.
3). ATV Manual tuning :
You can change the sound system, search the analog TV channels and fine tune them, then store the
channels you selected.
ATV Manual Tuning
Storage To 1
System BG
Current CH 1
Search
Fine-Tune
Frequency 255.25 MHz
Save MENU
__++
DTV Manual Tuning
VHF CH 5
__++
Bad Nomal Good
Press OK to search
NOTE:
Press the teletext red button on the remote control to store the channels after manual tuning.

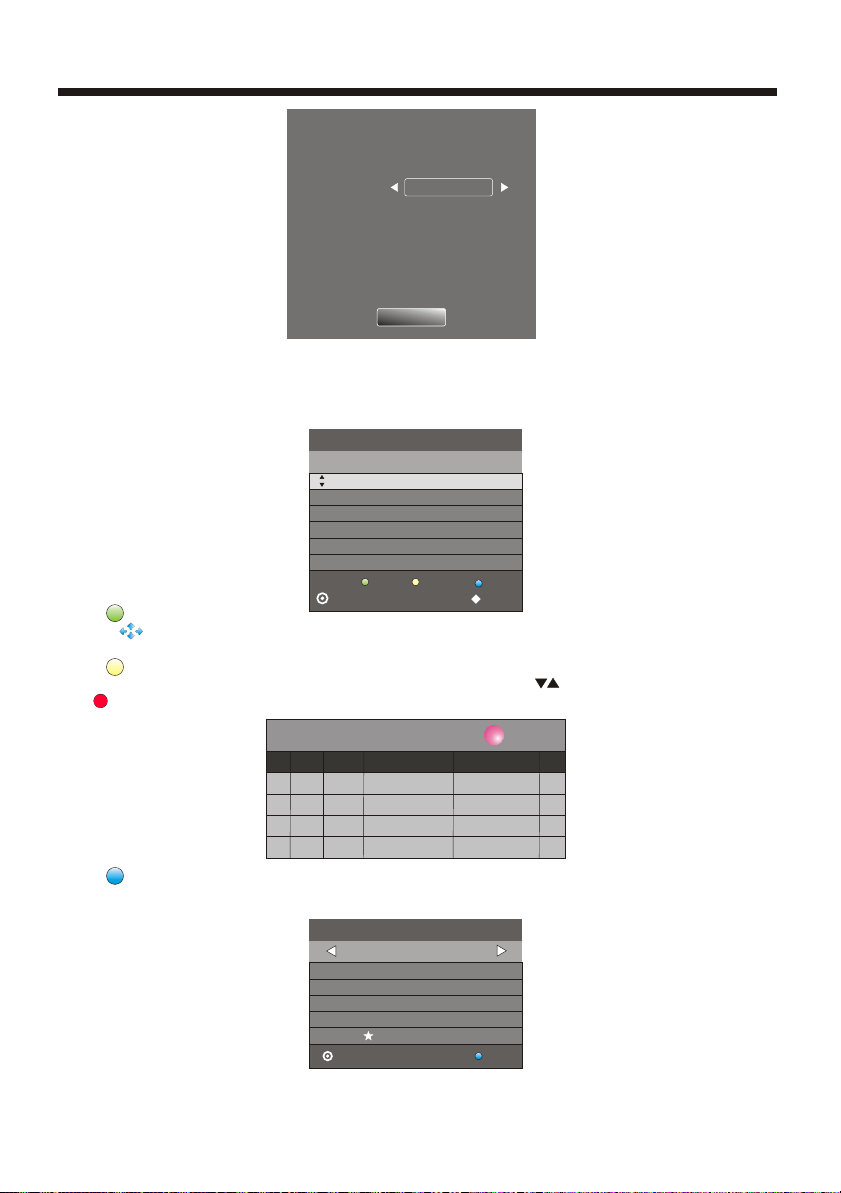

4). Program edit:
You can Delete, Rename, Move, Skip, or FAV any programs.
-14-
Rename:
You can only rename ATV programs.
Move the cursor to the program,press the teletext green button to rename the program.
Press to choose the character. Press to move the cursor.
Press MENU button to exit edit,Press EXIT to exit the menu.
Note: ATV program names can only be 5 characters long, DTV program namescan be up to 25 characters.
Press to choose the program, pressthe teletext blue button to skip this program, the symbol will
show on the right side ofthe program.
Choose the skipped program, press the blue button again, you can cancel the skip and the symbol will
disappear.
Delete
Press t he teletext red button, the program in the cursor will be deleted.

-15-
OPERATION
Favourite
Press to choose the program, pressthe FAV button and it will show on the right side of theprogram.
Choose the FAV program, press FAV button again, you can cancel the FAV and will disappear .
Once your favorite group is created,you can press the FAV key to quickly access your favourite channel.
The second item of the MENUis PICTURE MENU.You can adjust picture effects here, such as contrast,
brightness, etc.
Press to move, press OK toadjust.
2. PICTURE MENU
Color Temperature
Aspect Ratio
Noise Reduction
Screen
Picture Mode Standard
< >< >
MENU
Picture Mode Standard
Contrast 50
Brightness 50
Color 50
Sharpness 50
Tint 50
Color Temperature Medium
Red 50
Green 50
Blue 30
MENU
NOTE:
1).Tint is available in NTSC system only.
2).There are four color temperature modes that can be selected: medium, warm, cool, user.
3).The Screen op ti on is only available in PC mode,which allows you to adjust Horizontalposition, vertical
position, size and phase.
3.SOUND MENU
The third item of the MENU is the SOUND MENU.
You can adjust the sound effect here such as treble, bass, balance etc.
Press to move, press OK toadjust.
< >< >
Balance
Auto Volume
Sound Mode Standard
SOUND
Note:
Auto volume: only available when theinput signal volume is too large or there is distortion.
4.TIME MENU
The fourth item of the menuis the TIME MENU You can adjust the clock, power on/off time, sleep time etc
Press to move, press OK toadjust.
NOTE:
If within 15 minutes there is no signal, the TV will auto sleep, if AutoSleep is set ON. The clock time can be
set from the DTV system.
Off Time
On Time
Sleep Timer
Auto Sleep
Time Zone
Clock -- -- -- --
TIME
< >< >

-16-
OPERATION
5.OPTION MENU
Toenter the Option Menu, press MENU button and thepress or buttons to select the Option Menu.
Once in OptionMenu, press or buttons to select the settings you wish to adjust.Press MENU button
to return tothe Main Menu.
< >< >
OSD Language English
OPTION
Audio Languages
Subtitle Languages
Country Australia
Restore Factory Default
NOTE:
Restore Factory Defaultwill clear all the programs and password.
Press the OKbutton to enter the DMP Menu.
PHOTO MUSIC MOVIE TEXT
6.LOCK MENU
Toenter the LOCK Menu, press MENU button and thenpress or buttonsto select theLOCK Menu.
The default passwordis 6666.
Please set anew password so it is easy to remember.Follow the on screen steps to set.
Set Password
Lock System
LOCK
< >< >
Block Program
Parental Guidance Off
7. APPLICATIONS MENU
Toenter the Applications Menu, press MENU button andthen press or buttons to select the
Applications Menu. Thisis where youwill be able to view and play your USB files.
< >< >
APPLICATIONS
DMP
The supported formatsare as below:
Photo: JPEG
Music: MP3
Movie: AVI
Text:TXT

OPERATION
-17-
Schedule List 04:55 28th Apr Delete
Time Date Programme Title Channel Name
3.
Press the Blue Button to booka program for future viewing and add to the schedule list.
Remind
802 SZTVM03
08 Minute
05 Hour
Apr Month
28 Date
Once Mode
Reminder setting
BACK
OK
__++
8.EPG Menu (ElectronicProgram Guide).
The EPG Menuis used to look at what is being broadcasted in DTV or Radio modes. Press the EPG
Button to accessthe EPG Menu. You will receive detailed program information of the channel you
are currently watchingas well as programs in the near future.
28 Apr 04:39
800 SZTVM01 No Information
801 SZTVM02
802 SZTVM03
803 SZTVM04
804 Date
No Information
No Information
No Information
No Information
PROGRAMME GUIDE TIME
ScheduleINFO Remind
OK INDEX
2.
Press the teletext yellow key to list all the reminder schedule, press to choose the list, press red key
to delete the schedule list, Press EPG to return to EPG menu.
Schedule
DELETE
1.
Use to select a program andthen press the Green Button or INFO key on the Remote to display the
highlighted program's information.
INFO
Sample1.ts
Resolution: 720x576
Subtitle: 1/1
Size: 30574 KBytes
Close
AudioTrack: 1/2 ½
Program: 1/1

-18-

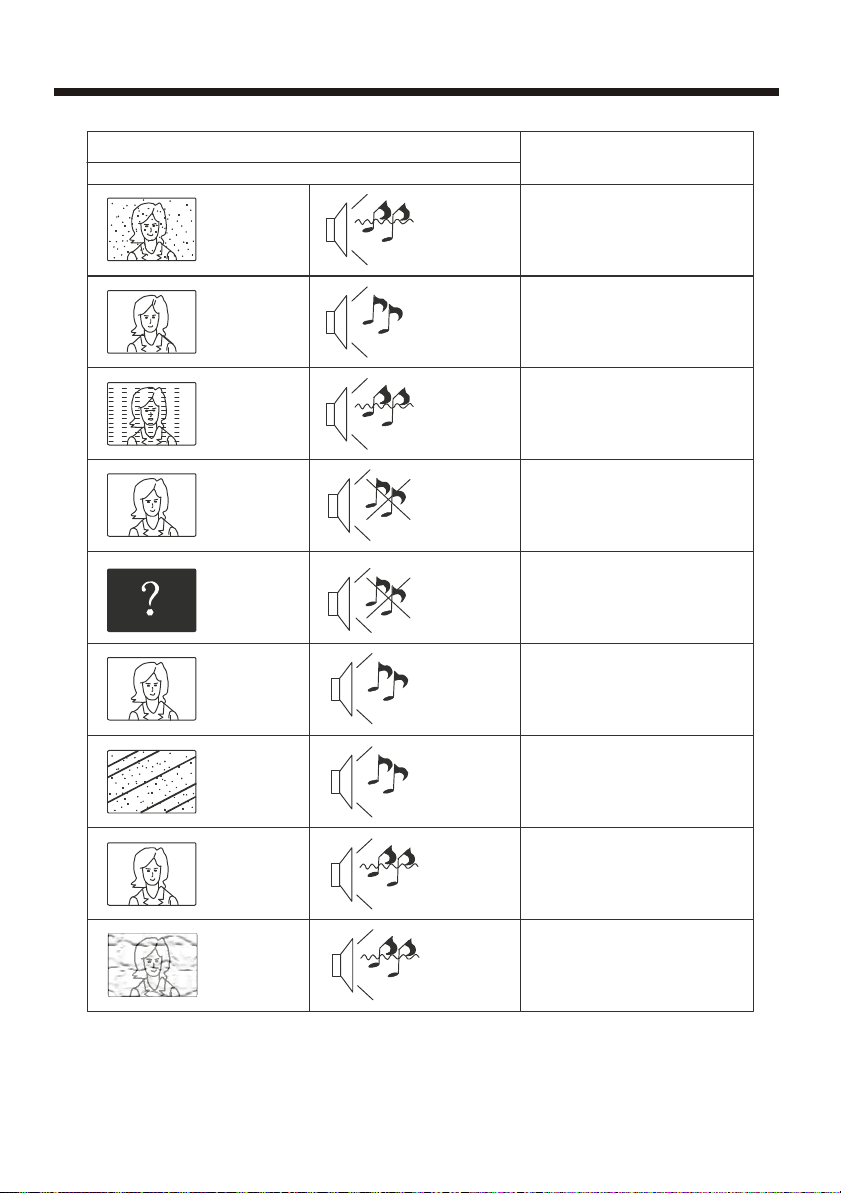

TROUBLE SHOOTING
Picture Audio
Snow Noise antenna position, direction
or connection
Inspection Check
Interference Noise electronic equipment, car/
motorcycle, fluorescent light
Normal Picture Mute
Volume (checkif mute is
activated or ifthe audio system
connections are notcorrect)
No picture Mute
Power cord isnot inserted
Power switch isnot activated
Contrast and brightness/volume
setup
Press standby keyon the remote
control for inspecting
No colour Normal audio Colour control
breaking up
Normal audio
or weak
retune channel
No colour Noise TV system
Normal audio
antenna position, direction
or connection
Trouble phenomenon Symptom
Ghost
Mosaic Unnormal Antenna Loose
Please press themain power switch at the rear or bottom ofthe TV before
attempting to turnon the TV via the Standby button or theRemote Control.

SPECIFICATIONS
-19-
Resolution
Aspect Ratio
46" (117cm)
1920x1080
16:9
HDMI Input
Composite Video Input
USB Input
2
2
Composite Video Output
1
2
1
1
1
LCD :
Display colours
Brightness
Contrast ratio
Response time
View angle
16.7M
400 cd/m
4000:1
6.5 ms
TV:
DVB-T decode
DVB-T de-modulation
Terminals:
Others:
TV system
Y PbPr (Component video) Input
2
VGA Input
Audio Input
178(H)/178(V)
Digital TV: DVB-T
Analog TV: PAL/SECAM
Audio: MPEG2Audio Layer I&II
Video: MPEG2 Transport MP@HL
Demodulator : COFDM
OFDM Mod.: 2K,8K FFT, SFN and MFN
Packed Carriers: 2K/8K
Guard Interval: 1/4,1/8, 1/16, 1/32
Viewing Picture Size (diagonal)
Power consumption
100V-240V~ 50/60Hz
110W
2 x 8W
Input Power Voltage
Audio Output Power (THD 7%)
PC Audio Input 1
Audio Output 1
