Award 5AX User manual

R-10-02-080721
5AX
USER'S MANUAL
¯Support Intel Pentium, MMX, Cyrix/IBM 6x86MX, M2, AMD K5, K6,
K6-2 & IDT C6 CPUs.
¯Support auto detect CPU Voltage.
¯Support Parity check or Ecc Function.
¯Support Fully AGP 1.0 Specification.
¯Support switching mode Voltage regulator on Board.
¯Support 66/75/83 MHz and 100MHz are optional.
¯Support Modem Ring On (COM B).
¯Support Wake on Lan(The ATX power supply supports larger
than 600 mA).
¯Thermal Protection
Pentium

Processor PCI - ISA BUS MAINBOARD
REV. 1.0 Second Edition
Release Date 98.07.21

5AX
1
The author assumes no responsibility for any errors or omissions which may
appear in this document nor does it make a commitment to update the information
contained herein.
¯THIRD-PARTY BRANDS AND NAMES ARE THE PROPERTY OF THEIR
RESPECTIVE OWNERS.
JULY 21, 1998 Taipei, Taiwan

Quick Installation Guide
2
I. CPU Jumper Setting Table:
tSW: CPU INT./ EXT. FREQ. RATIO
SW 4 5 6 7
OON AUTO X X X O
XOFF 2.0 V X X X X
2.1 V X X OX
2.2 V XOX X
2.3 V XO O X
2.4 V OX X X
SW 238 2.5 V OXOX
x 1.5 XXX 2.6 V O O X X
x 2 OX X 2.7 V OOOX
x 2.5 O O X2.8 V XXXO
x 3 XOX2.9 V X X O O
x 3.5 XXX 3.0 V XOXO
x 4 OXO3.1 V XOOO
x 4.5 OOO 3.2 V OX X O
x 5 XO O 3.3 V OXO O
x 5.5 X X O3.4 V O O XO
3.5 V OOOO
MHz SW1 SW4
66 X2-3
75 X1-2
83 O2-3
100 O1-2

5AX
3
II. Quick Installation Guide:
CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP4
1. Pentium

Processor 100 MHz OFF OFF OFF OFF OFF OFF ON OFF 2-3
2. Pentium

Processor 133 MHz OFF ON OFF OFF OFF OFF ON OFF 2-3
3. Pentium

Processor 166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3
4. Pentium

Processor 200 MHz OFF OFF ON OFF OFF OFF ON OFF 2-3
5. Intel MMX-166MHz OFF ON ON OFF OFF OFF ON OFF 2-3
6. Intel MMX-200MHz OFF OFF ON OFF OFF OFF ON OFF 2-3
7. Intel MMX-233MHz OFF OFF OFF OFF OFF OFF ON OFF 2-3
8. P54CT-166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3
9. P54CTB-166 MHz OFF ON ON OFF OFF OFF ON OFF 2-3
10. P54CTB-200 MHz OFF OFF ON OFF OFF OFF ON OFF 2-3
11. AMDK5-PR133 OFF ON OFF OFF OFF OFF ON OFF 2-3
12. AMDK5-PR166 OFF ON ON OFF OFF OFF ON OFF 2-3
13. AMD-K6/166 (2.9V) OFF ON ON OFF OFF ON ON OFF 2-3
14. AMD-K6/200 (2.9V) OFF OFF ON OFF OFF ON ON OFF 2-3
15. AMD-K6/233 (3.2V) OFF OFF OFF ON OFF OFF ON OFF 2-3
16. AMD-K6/266 (66*4 2.2V)
AMD-K6-2/266 (66*4 2.2V)
OFF ON OFF OFF ON OFF OFF ON 2-3
17. AMD-K6/266 (100*2.5
2.2V)
ON ON ON OFF ON OFF OFF OFF 1-2
18. AMD-K6/300 (66*4.5 2.2V) OFF ON ON OFF ON OFF OFF ON 2-3

Quick Installation Guide
4
19. AMD-K6/300 (100*3 2.2V)
AMD-K6-2/300 (100*3
2.2V)
ON OFF ON OFF ON OFF OFF OFF 1-2
CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 JP4
20. Cyrix/IBM 6x86-150MHz-
PR200+ (75*2) OFF ON OFF OFF OFF OFF ON OFF 1-2
21. Cyrix/IBM 6x86L-PR166+
(2.8V) OFF ON OFF OFF OFF OFF ON OFF 2-3
22. Cyrix/IBM 6x86MX-PR200+
(75*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 1-2
23. Cyrix/IBM 6x86MX-PR166
(66*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 2-3
24. Cyrix/IBM 6x86MX-PR200
(66*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF 2-3
25. Cyrix/IBM 6x86MX-PR200
(75*2 2.9V) OFF ON OFF OFF OFF ON ON OFF 1-2
26. Cyrix/IBM 6x86MX-PR233
(66*3 2.9V) OFF OFF ON OFF OFF ON ON OFF 2-3
27. Cyrix/IBM 6x86MX-PR233
(75*2.5 2.9V) OFF ON ON OFF OFF ON ON OFF 1-2
28. Cyrix/IBM 6x86MX-PR233
(83*2 2.9V) ON ON OFF OFF OFF ON ON OFF 2-3
29. Cyrix/IBM 6x86MX-PR266
(66*3.5 2.9V) OFF OFF OFF OFF OFF ON ON OFF 2-3
30. Cyrix/IBM 6x86MX-PR266
(75*3 2.9V) OFF OFF ON OFF OFF ON ON OFF 1-2
31. Cyrix/IBM 6x86MX-PR266
(83*2.5 2.9V) ON ON ON OFF OFF ON ON OFF 2-3
32. Cyrix M2-PR300
(66*3.5 2.9V) OFF OFF OFF OFF OFF ON ON OFF 1-2
33. IDT C6-200 (66*3 3.52V) OFF OFF ON OFF OFF OFF ON OFF 2-3
34. IDT C6-225 (75*3 3.52V) OFF OFF ON OFF OFF OFF ON OFF 1-2
35. IDT C6-266 (66*4 3.52V) OFF ON OFF OFF OFF OFF ON ON 2-3

5AX
5
¬Note: If Cyrix 6x86 is being used, please check the CPU Date Code after 605.

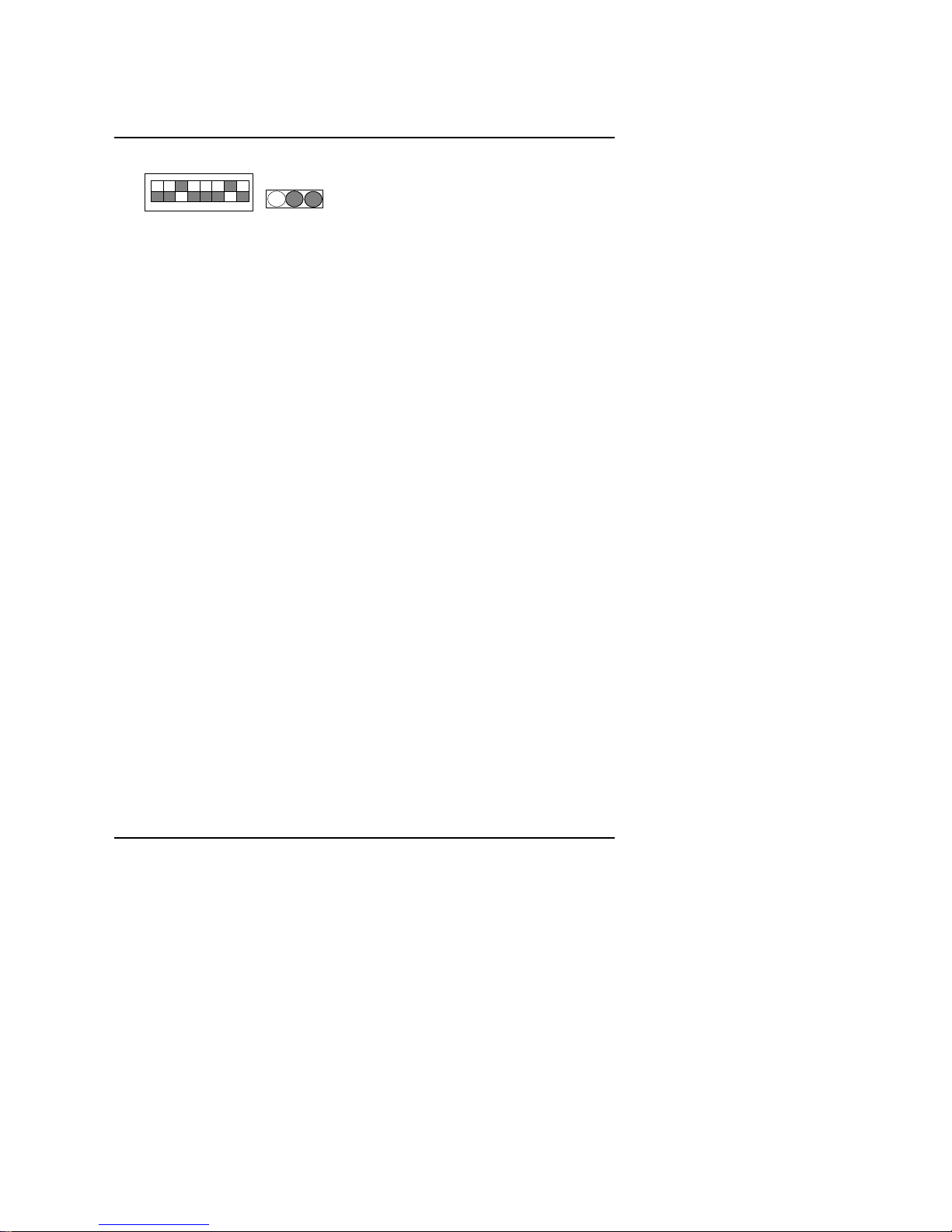

1. Pentium

Processor 100 MHz
CPU
JP8
S1
JP5JP4
1 1
JP7JP6
JP10
1
1
1
1
2
3
4
5
6
7
8
ON
1 1
1 1
1JP4
sw
JP4
1
2. Pentium

Processor 133 MHz
JP4
1ON
sw
1 2 3 4 5 6 7 8
OFF
0
3. Pentium

Processor 166 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
4. Pentium

Processor 200 MHz

Quick Installation Guide
6
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

5AX
7

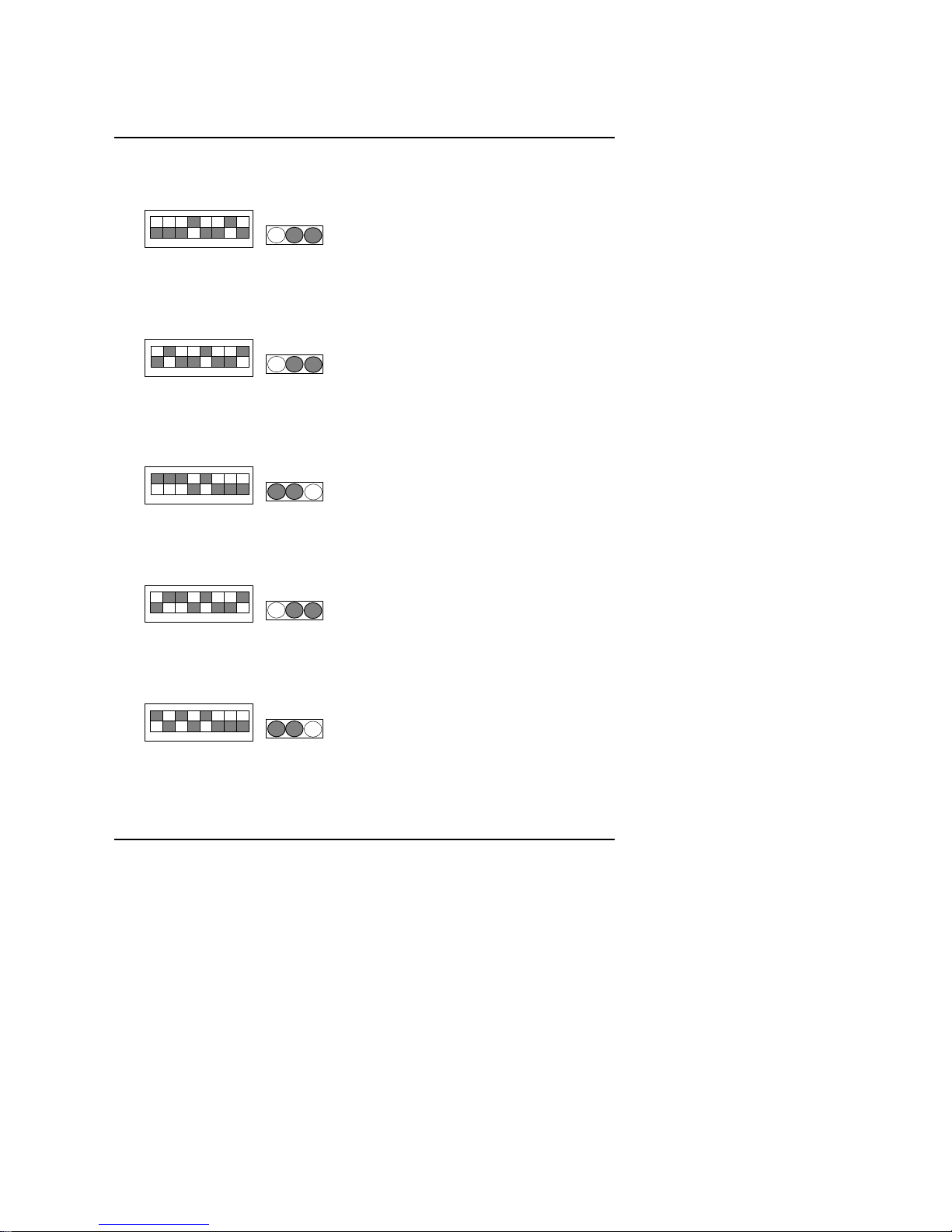

5. Intel MMX-166 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
1
6. Intel MMX-200 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
7. Intel MMX-233 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
8. P54CT-166 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
9. P54CTB-166 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

Quick Installation Guide
8
10. P54CTB-200 MHz
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
11. AMDK5-PR133
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
12. AMDK5-PR166
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
13. AMD-K6/166 (2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
14. AMD-K6/200 (2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

5AX
9

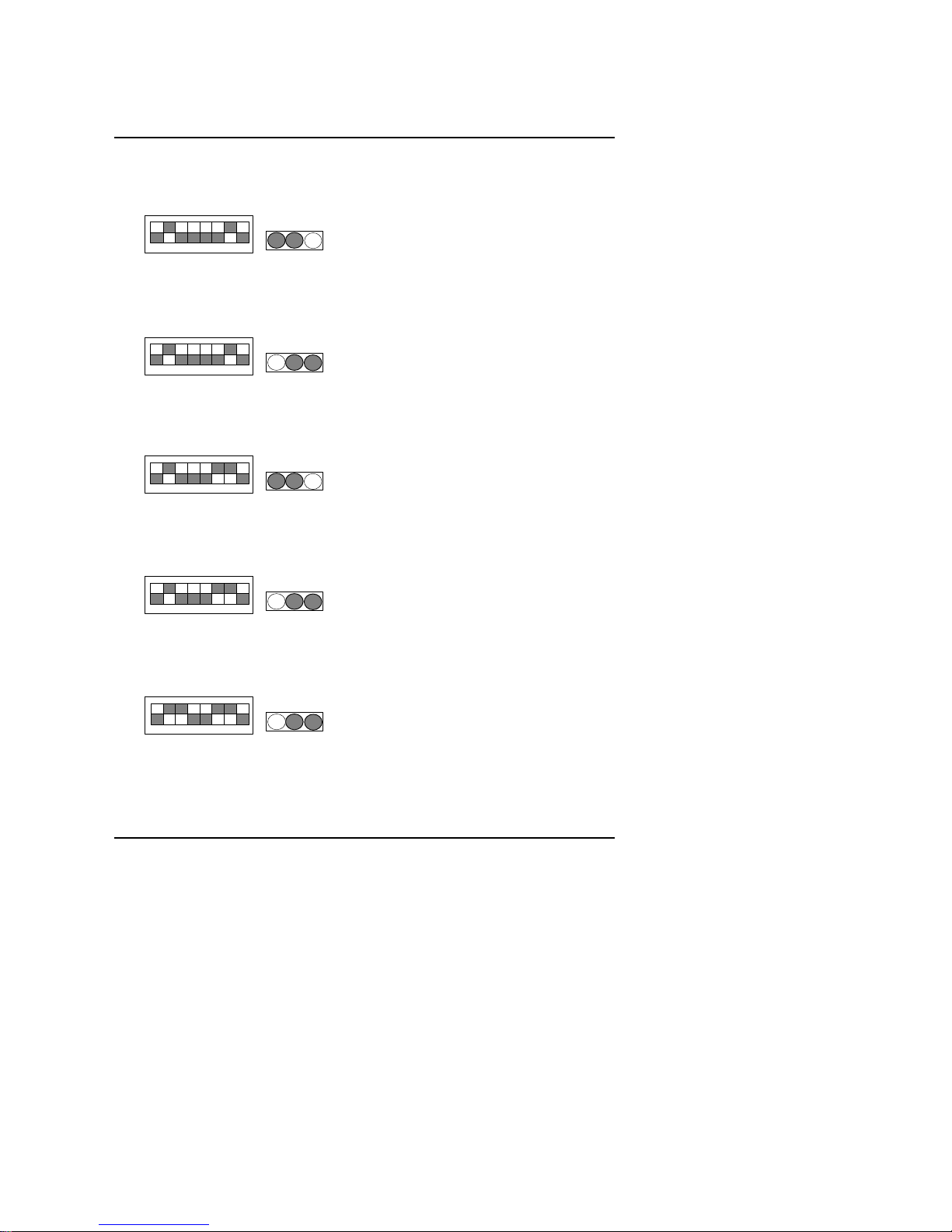

15. AMD-K6/233 (3.2V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
16. AMD-K6/266 (2.2V 66*4); AMD-K6-2 266 (2.2V 66*4)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
17. AMD-K6/266 (2.2V 100*2.5)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
18. AMD-K6/300 (2.2V 66*4.5)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
19. AMD-K6/300 (2.2V 100*3); AMD-K6-2 300 (2.2V 100*3)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

Quick Installation Guide
10
20. Cyrix /IBM 6x86-150 MHz-PR200+ (75*2)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
21. Cyrix / IBM 6x86L-PR166+ (2.8V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
22. Cyrix / IBM 6x86L-PR200+ (75*2 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
23. Cyrix / IBM 6x86MX-PR166 (66x2 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
24. Cyrix / IBM 6x86MX-PR200 (66x2.5 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

5AX
11
25. Cyrix / IBM 6x86MX-PR200 (75x2 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
26. Cyrix / IBM 6x86MX-PR200 (66x3 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
27. Cyrix / IBM 6x86MX-PR233 (75x2.5 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
28. Cyrix / IBM 6x86MX-PR233 (83x2 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
29. Cyrix / IBM 6x86MX-PR266 (66x3.5 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

Quick Installation Guide
12
30. Cyrix / IBM 6x86MX-PR266 (75x3 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
31. Cyrix / IBM 6x86MX-PR266 (83x2.5 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
32. Cyrix M2-PR300 (66x3.5 2.9V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
33. IDT C6-200 (66x3 3.52V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
34. IDT C6-225 (75x3 3.52V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1

5AX
13
35. IDT C6-266 (66x4 3.52V)
ON
sw
1 2 3 4 5 6 7 8
OFF
JP4
1
III. Quick Installation Guide of Jumper setting:

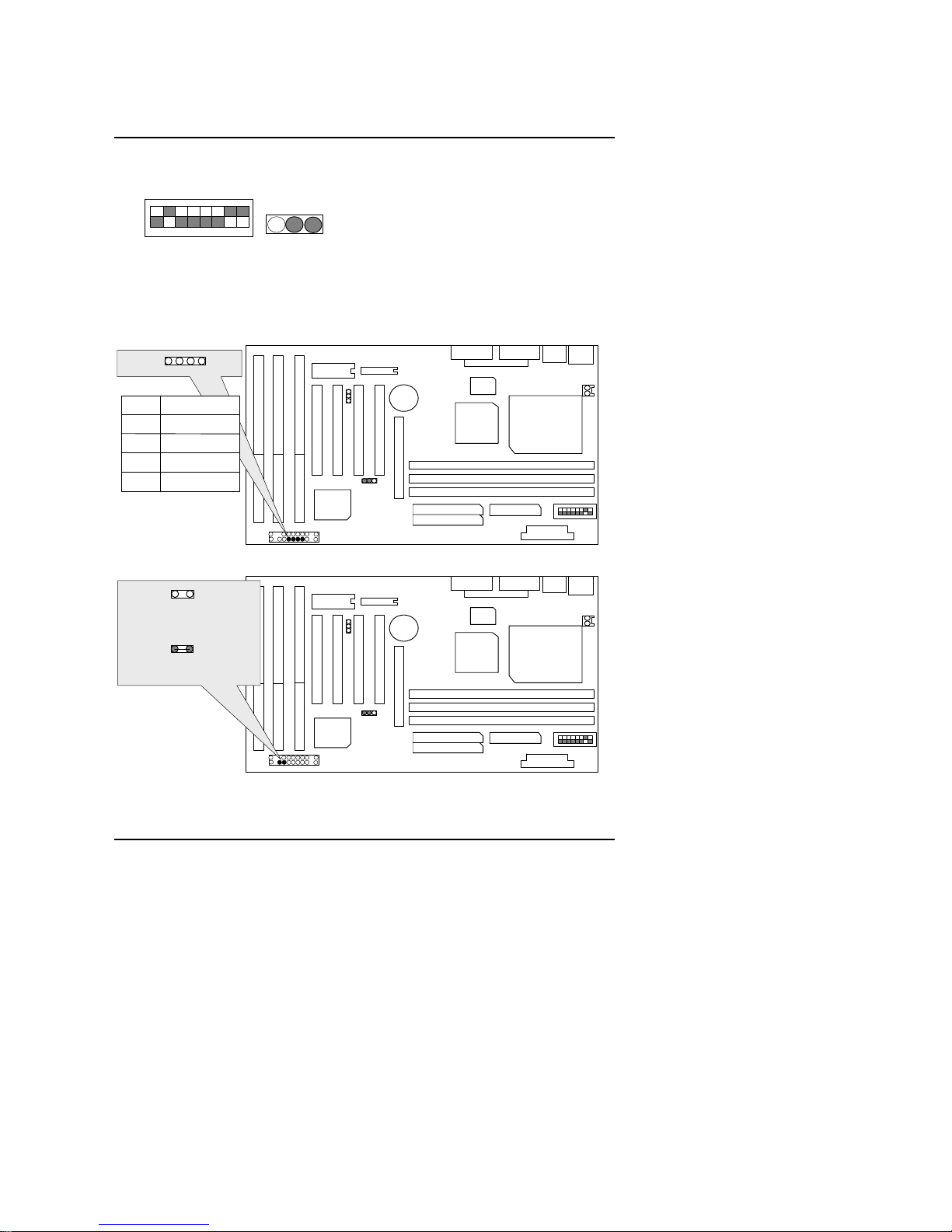

SPK : Speaker Connector
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4
1
Pin No. Function
1
2
3
4
VCC
NC
NC
Data
RST : Reset Switch
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4
1
Close :
For hardware reset system.
Open :
Normal operation.
1

Quick Installation Guide
14

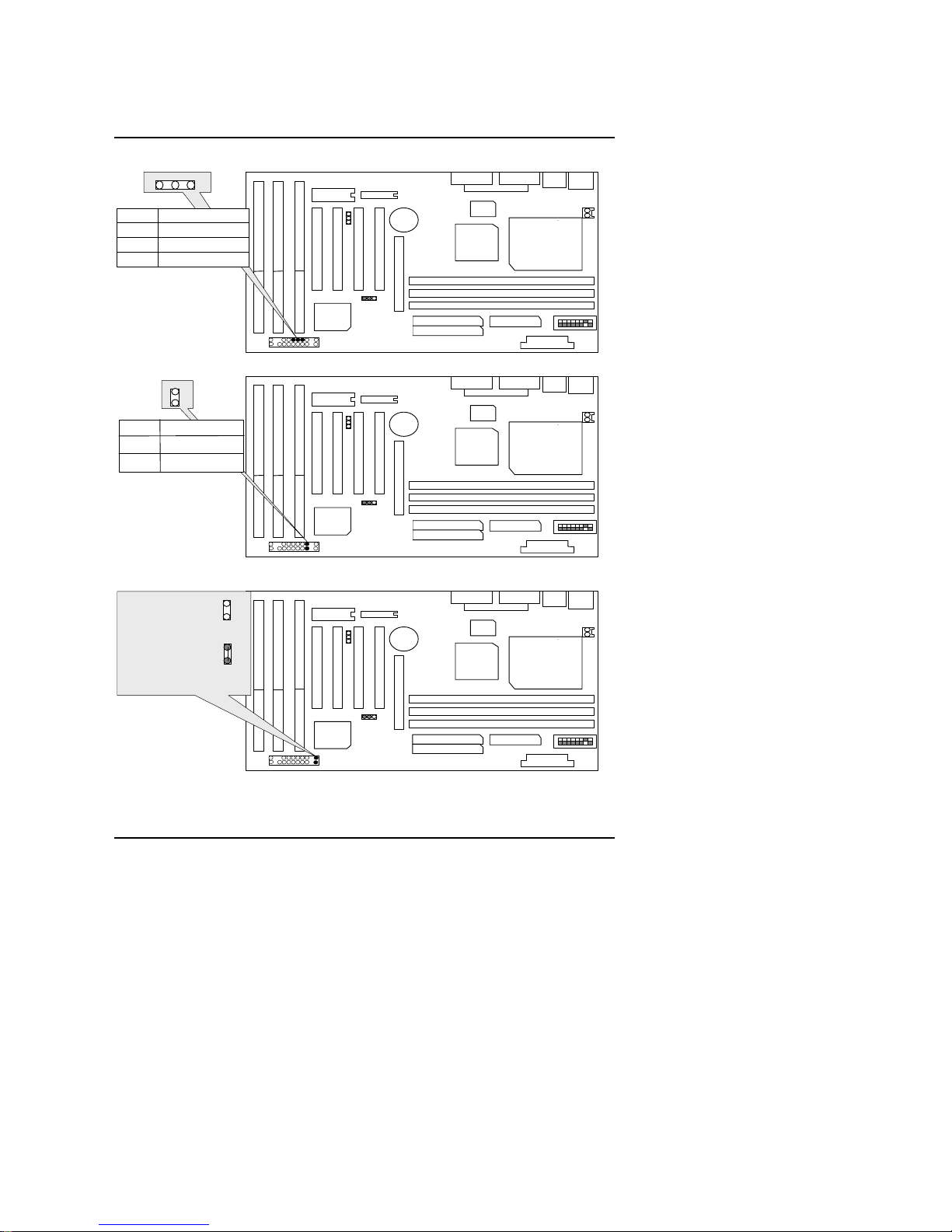

PWR LED : Power LED (As a 3 steps ACPI LED)
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
Pin No. Function
1
2
3
LED anode (+).
LED cathode (-).
LED cathode (-).
1
JP4
HD : IDE Hard Disk Active LED
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
Pin No. Function
1
2LED anode (+) LED cathode (-)
1
JP4
GN : Green Function Switch
CPU
JP8
S1
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
Close one time:
For system entering Green
mode
Open :
Normal operation.
1
JP4

5AX
15
GD : Green LED
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4
1
Pin No. Function
1
2LED canode (-) LED athode (+)
SOFT PWR : Power On/Off Switch
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
system immediately
1. Instant On/Off:Power On/Off
2. Delay 4 Seconds:Power. Off
system.Press over 4 Secs
Two Option :
1
1
JP4
ATX Power Connector
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
11
Pin No.
Function
3,5,7,13,15-17
4,6,19,20 GND
10
12
18
8
+12V
-12V
-5V
VCC (+5V)
Power Good
9
14 5V SB (Stand by )
PS-ON(Soft ON/OFF)

Quick Installation Guide
16
JP9 : CPU Cooling Fan Power Connector
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
Pin No. Function
1
2GND
+12V
1
JP4
JP8: Wake On Lan
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
Pin No.
Function
+5V
GND
Signal
3
2
1
1
1
JP4
LPT : LPT PORT
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4

5AX
17

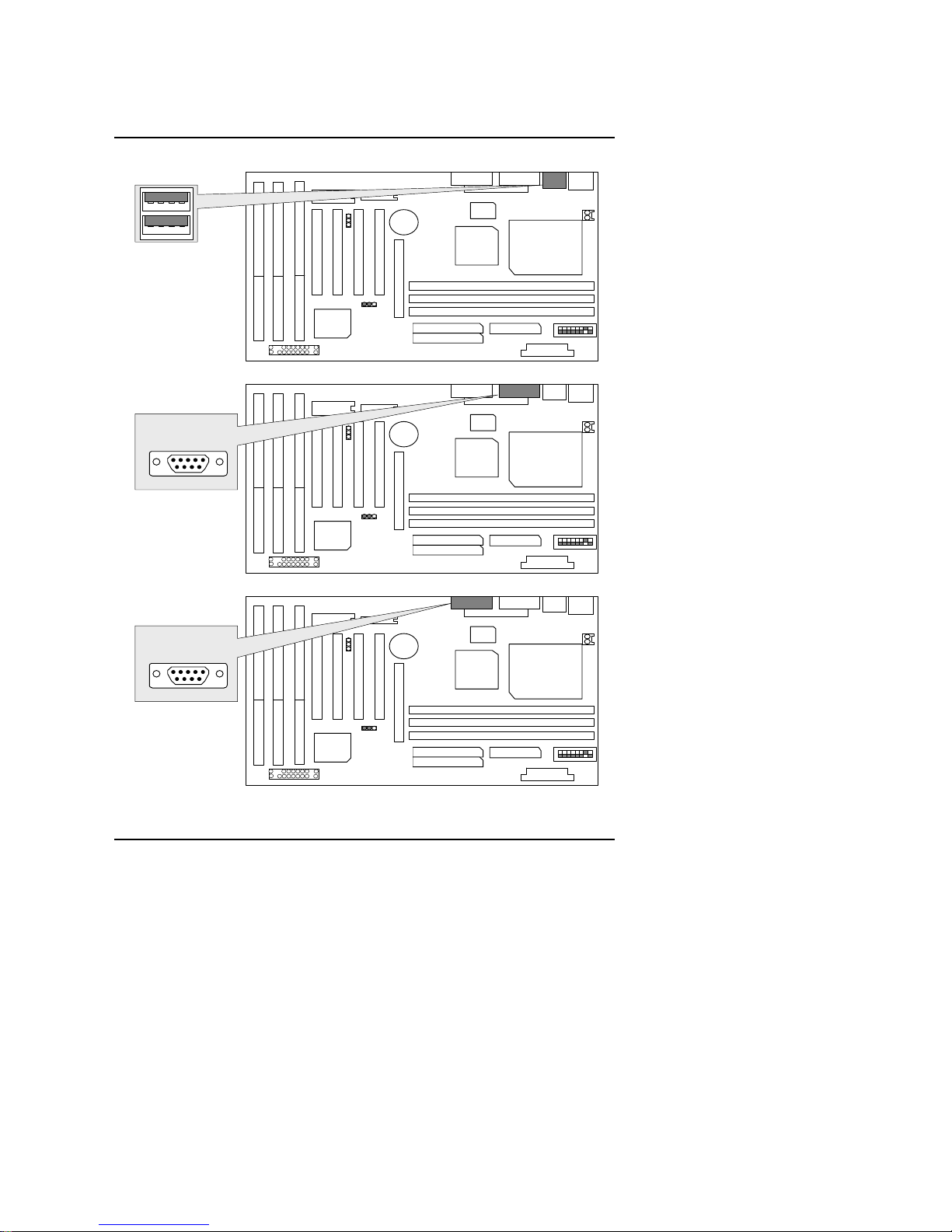

CN4 : USB Port
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4
CN5 : COM B
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4
CN6 : COM A
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
1
JP4

Quick Installation Guide
18
JP11 : PS/2 Mouse / Keyboard Connector
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
Pin No.
Function
1
2
3
4
5Key Clock.
Key Data
NC
VCC (+5V)
GND
PS/2 Mouse / Keyboard
6NC
PS/2 Mouse
PS/2 Keyboard
1
JP4
CN2 : FLOPPY PORT
1
JP4
CPU
JP8
S1
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
RED LINE
1
CN1 : For Primary IDE port
1
JP4
CPU
JP8
S1
JP
5
JP
4
1
1
JP
7
JP
6
JP1
0
1
1
1
1
1
1
1
RED LINE
1
