Award IB882 User manual

IB882
Intel ®ATOM
Poulsbo chipset
3.5” Disk Size Motherboard
USER’S MANUAL
Version 1.0

Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® ATOM processors are registered trademarks of
Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii IB882 User’s Manual

Table of Contents
Introduction.......................................................1
Product Description.............................................................1
Checklist..............................................................................2
IB882 Specifications...........................................................3
Board Dimensions...............................................................4
Installations.......................................................5
Installing the Memory.........................................................6
Setting the Jumpers .............................................................7
Connectors on IB882.........................................................11
BIOS Setup.......................................................19
Drivers Installation......................................37
Appendix...........................................................51
A. I/O Port Address Map...................................................51
B. Interrupt Request Lines (IRQ)......................................52
C. Watchdog Timer Configuration....................................53
IB882 User’s Manual iii

iv IB882 User’s Manual
This page is intentionally left blank.

INTRODUCTION
IB882 User’s Manual 1
Introduction
Product Description
The IB882 3.5” disk-size board incorporates the Mobile Intel® Poulsbo Chipset
for Embedded Computing, consisting of the Intel® single-chip system controller
hub (SCH), an optimized integrated graphics solution with a 533MHz and
400MHz front-side bus. Dimensions of the board are 102mm x 147mm.
The integrated powerful 3D graphics engine, based on Intel® Graphics Media
Accelerator) architecture 500, operates at core speeds of up to 200 MHz. It
features a low-power design, With DDR2 533/400MHz one SO-DIMM socket
on board, the board supports up to 1GB of DDR2 system memory.
Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the availability of system memory for general
computer usage, while supplying additional graphics memory when a
3D-intensive application requests it. The Intel graphics architecture also takes
advantage of the high-performance Intel processor. Intel graphics supports Dual
Independent Display technology.
The main features of the board are:
Supports Intel® ATOM Z530 (1.6GHz), Z510 (1.1GHz)
Supports up to 533MHz FSB
One DDR2 SDRAM SO-DIMM, Max. 1GB memory
Onboard Two Intel Gigabit LAN
Intel® VGA for CRT (ID398) / LVDS
1x SATA, 8x USB 2.0, 4x COM, Watchdog timer
1x PCI-104 Socket

INTRODUCTION
2IB882 User’s Manual
Checklist
Your IB882 package should include the items listed below.
•The IB882 3.5” disk-size motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Options:
•Cable kit
•CRT board (ID398)

INTRODUCTION
IB882 User’s Manual 3
IB882 Specifications
Form Factor Little board 3.5” SBC
CPU Type Intel ATOM (Silverthorne) CPUs 400/533 MHz,
- Ultra Low Voltage
- 512KB On-die L2 Cache
- 441 balls , BGA , 14X13 mm
- C0-C6 low power states ( Split-Vtt Support in C6 power state )
- Hyper- Threading Technology support
System Speed 1.1G / 1.6GHz
CPU Operating
Frequency 400M/533MHz
Cache 512K/1M L2 cache
Green /APM APM1.2
BIOS Award BIOS: supports ACPI Function
Chipset Intel
- Poulsbo SCH Chipset, 1249-pin BGA, 22X22 mm
Memory 1 x 200-pin DDRII, 400/533-MT/s SO-DIMM, Max. Capacity 1GB
(Single channel )
VGA - Thru SDVO port (ID398)
LAN Poulsbo SCH offer two PCI express channel for expansion.
Use one channel Thru PCIE switch(PLX pex8505) for two GigaLAN (INTEL
82574Lx2)
USB Poulsbo SCH built-in USB2.0 host controller with 8 ports,
Audio Poulsbo SCH built-in Audio controller ALC 888 5.1-Channel (Line-in, Line-out &
MIC)
PATA-IDE Poulsbo SCHbuilt-in one channel Ultra DMA 33/66/100, for IDE (44-pin box-header
x 1) & CF (TYPEII)
SATA-IDE Thru PCIE switch (PLX pex8505) for SATAII x1 (JMICRON JMB362)
LPC I/O Winbond 83627EHF:
- COM1 (RS232), COM2 (RS232/422/485),
- LPT1
- Hardware monitor (3 thermal inputs, 6 voltage monitor inputs)
- KB/Mouse Connector (KB 1ST Priority)
2’nd LPC I/O FINTEK F81216DG COM3 &COM4(RS232)
RTC/CMOS Poulsbo SCH built-in with on board Lithium Battery
Edge Connector PS/2 connector x1 for PS/2 KB/Mouse
DB15 x1 for VGA (OPTIONAL by daughter board)
DB9 x1 for COM1
RJ45 x2 for GigaLAN
Dual USB stack connector x1 for USB1/2 ,
On Board Header /
Connectors DF13 Socket x 1 for LVDS
8 pins header x 3 for 6 USB ports
44-pin box header x1 for IDE
36-pin female connector x1 for SDVO port
12 pins header x1 for audio
10 pins header x3 for COM2,COM3,COM4
26 Pins header for SD/SDIO/MMC
Digital I/O 4 IN / 4 OUT
Expansion Slots PCI104 , BY PCIE to PCI bridge (PLX pex8112)
Watchdog Timer Yes (256 segments, 0, 1, 2…255. sec/min)
Power Connector DC Power jack x1 for +12V ~+19V DC-in
Board Size 102x147mm
Note: IB882-16 supports 1.6GHz(z530) FSB 533MHz CPU.
[
IB882-11 supports 1.1GHz(z510) FSB 400MHz CPU.

INTRODUCTION
Board Dimensions
4IB882 User’s Manual

INSTALLATIONS
IB882 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IB882 in order to set up a workable system. The topics
covered are:
Installing the Memory ........................................................................... 6
Setting the Jumpers................................................................................ 7
Connectors on IB882........................................................................... 11

INSTALLATIONS
Installing the Memory
The IB882 board supports two DDR2 memory socket for a maximum
total memory of 1GB in DDR2 533/400 memory type.
Installing and Removing Memory Modules
To install DDR2 modules, locate the memory socket on the board and
perform the following steps:
1. Hold the DDR2 module so that the keys of the DDR2 module align
with those on the memory slot.
2. Gently push the DDR2 module in an angle as shown in the picture
below until the clips of the sockets lock to hold the DDR2 module in
place when the DDR2 module touches the bottom of the socket.
3. To remove the DDR2 module, press the clips with both hands.
6IB882 User’s Manual

INSTALLATIONS
IB882 User’s Manual 7
Setting the Jumpers
Jumpers are used on IB882 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB882 and their respective functions.
Jumper Locations on IB882................................................................... 8
JP3: Clear CMOS Setting...................................................................... 9
JP11: CompactFlash Slave/Master Selection ........................................ 9
JP5, JP10, JP12: RS232/422/485 (COM2) Selection............................ 9
JP12: LCD Panel Power Selection ........................................................ 9
J5, J6: SD/IO Power Selection ............................................................ 10

INSTALLATIONS
Jumper Locations on IB882
8IB882 User’s Manual

INSTALLATIONS

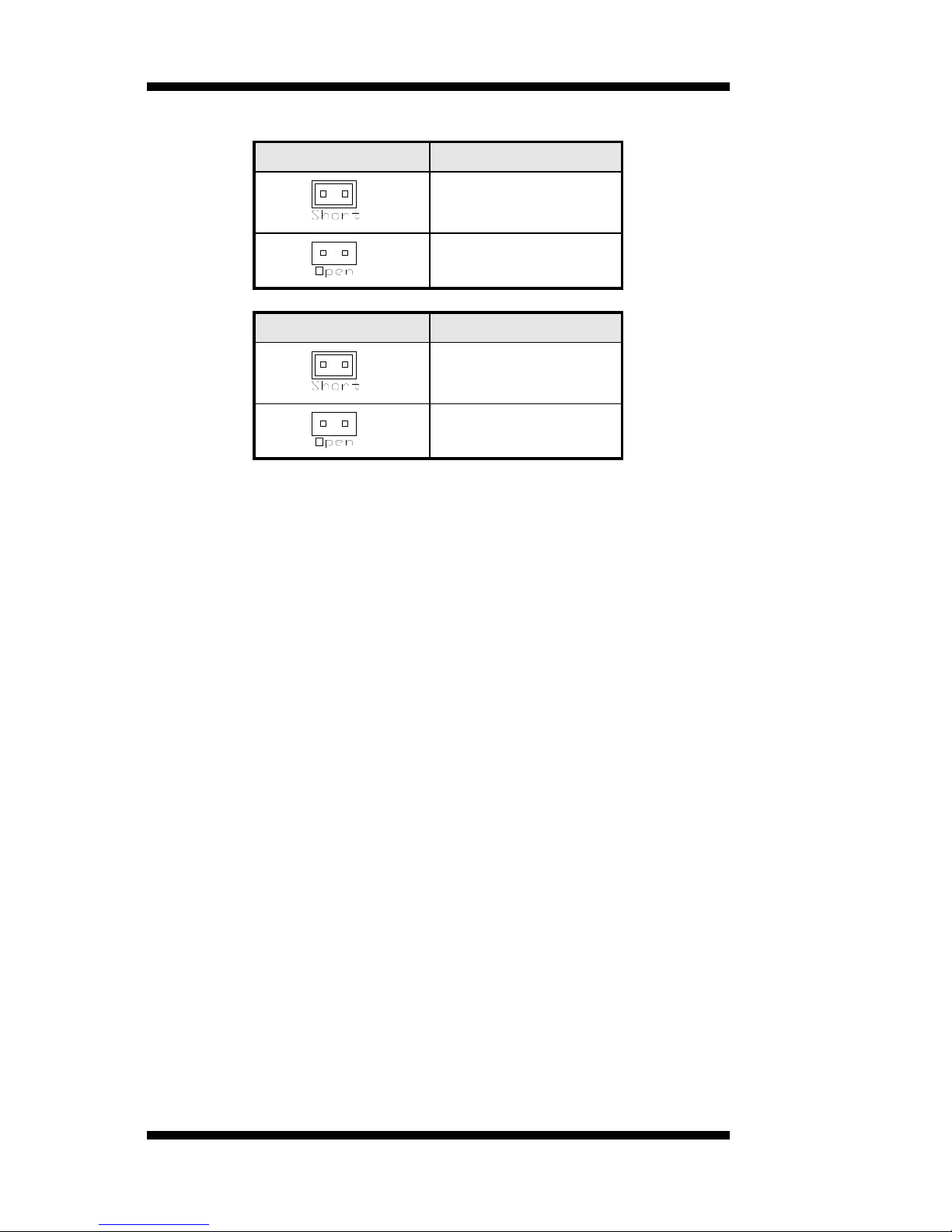

JP3: Clear CMOS Setting
JBAT1 Setting
Normal
Clear CMOS
JP11: CompactFlash Slave/Master Selection
JP1 CF Setting
Master
Slave
[
JP5, JP10, JP12: RS232/422/485 (COM2) Selection
COM1, COM3, COM4 are fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
JP5:
1-2
JP10:
3-5 & 4-6
JP12:
3-5 & 4-6
JP5:
3-4
JP10:
1-3 & 2-4
JP12:
1-3 & 2-4
JP5:
5-6
JP10:
1-3 & 2-4
JP12:
1-3 & 2-4
JP12: LCD Panel Power Selection
JP12 LCD Panel Power
3.3V
5V
IB882 User’s Manual 9

INSTALLATIONS
J5, J6: SD/IO Power Selection
J5 SLOT2 Power
Enable
By MANUAL
J6 SLOT1 Power
Enable
By MANUAL
10 IB882 User’s Manual

INSTALLATIONS
IB882 User’s Manual 11
Connectors on IB882
Connector Locations on IB882............................................................ 12
IDE1: IDE Connector.......................................................................... 13
J1: Board Input Power Connector ....................................................... 13
CN1: PCI-104 Connector.................................................................... 13
CN2: PS/2 Keyboard and PS/2 Mouse Connectors............................. 13
J2: CPLD Connector (factory use only).............................................. 14
J3: SDVO Connector........................................................................... 14
J4: SD/IO Connector ........................................................................... 14
J7 (F_PANEL): System Function Connector ...................................... 15
J8: Compact Flash Connector.............................................................. 15
J10: Digital I/O.................................................................................... 16
J12: Parallel Port Connector................................................................ 16
J13: LCD Backlight Connector ........................................................... 16
J14: Audio Connector.......................................................................... 17
J15: LVDS Connectors........................................................................ 17
J16, J17: Gigabit LAN RJ-45 Connector............................................. 17
J18: SATA Connectors........................................................................ 17
J19~J23: USB Connectors................................................................... 17
J24: +5V Output Power Connector ..................................................... 18
COM_PORT: COM1~COM4 Serial Ports Connector ........................ 18

INSTALLATIONS
Connector Locations on IB882
12 IB882 User’s Manual

INSTALLATIONS
IDE1: IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect
p
in
DR
Q
0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IR
Q
14 31 32
N
o connec
t
Address 1 33 34 Cable Detec
t
Address 0 35 36 Address 2
Chi
p
select 0 37 38 Chi
p
select 1
Activit
y
39 40 Ground
+5V 41 42 +5V
Ground 43 44
N
C
J1: Board Input Power Connector
Pin # Signal Name
1 +12V~+19V
2 GND
IB882 User’s Manual 13
1
CN1: PCI-104 Connector
CN2: PS/2 Keyboard and PS/2 Mouse Connectors
CN3
Pin # Signal Name
1 Keyboard data
2 Mouse data
3 Ground
4 Vcc
5 Keyboard Clock
6 Mouse Clock

INSTALLATIONS
J2: CPLD Connector (factory use only)
J3: SDVO Connector
14 IB882 User’s Manual
2
36
Signal Name Pin # Pin # Signal Name
+12V 1 2 +3.3V
+12V 3 4 +3.3V
CTRL-DATA 5 6 +3.3V
GND 7 8 GND
CTRL-CLK 9 10 +2.5V
GND 11 12 +2.5V
RED+ 13 14 GND
RED- 15 16 RESET
GND 17 18 GND
GREEN+ 19 20 TV-CLK+
GREEN- 21 22 TV-CLK-
GND 23 24 GND
BLUE+ 25 26 INIT+
BLUE- 27 28 INIT-
GND 29 30 GND
CLK+ 31 32 STALL+
CLK- 33 34 STALL-
GND 35 36 GND
1
35
J4: SD/IO Connector
Signal Name Pin # Pin # Signal Name
SLOT2-PWR(3.3V) 1 14 SLOT1-PWR(3.3V)
SLOT2-DATA0 2 15 SLOT1-DATA0
SLOT2-DATA1 3 16 SLOT1-DATA1
SLOT2-DATA2 4 17 SLOT1-DATA2
SLOT2-DATA3 5 18 SLOT1-DATA3
SLOT2-DATA4 6 19 SLOT1-CMD
SLOT2-DATA5 7 20 SLOT1-CLK
SLOT2-DATA6 8 21 SLOT1-CD#
SLOT2-DATA7 9 22 SLOT1-WP
SLOT2-CMD 10 23 N/A
SLOT2-CLK 11 24 N/A
SLOT2-CD# 12 25 Ground
SLOT2-WP 13 26 Ground

INSTALLATIONS
J7 (F_PANEL): System Function Connector
J7 provides connectors for systemindicators that provide lightindication
of the computer activities and switches to change the computer status. J7
is an 8-pin header that provides interfaces for the following functions.
Power LED: Pins 1 – 2
Pin # Signal Name
1 LED(-)
2 LED(+)
ATX Power ON Switch: Pins 3 and 4
This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.
Reset Switch: Pins 5 and 6
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.
Hard Disk Drive LED Connector: Pins 7 and 8
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin # Signal Name
7 LED(+)
8 LED(-)
J8: Compact Flash Connector
IB882 User’s Manual 15

INSTALLATIONS
J10: Digital I/O
Signal Name Pin # Pin # Signal Name
GND 1 2 VCC
OUT3 3 4 OUT1
OUT2 5 6 OUT0
IN3 7 8 IN1
IN2 9 10 IN0
J12: Parallel Port Connector
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
J13: LCD Backlight Connector
Pin # Signal Name
1 +12V
2 Backlight Enable
3 ADJ
4 Ground
16 IB882 User’s Manual
