Award IB780 User manual

IB780
Full-Size Socket 370
VIA Apollo PLE133 CPU Card
USER’S MANUAL
Version 1.0

ii IB780 User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Celeron are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

IB780 User’s Manual iii
Table of Contents
Introduction.....................................................................1
Product Description........................................................1
Checklist........................................................................2
Specifications .................................................................3
Board Dimensions ..........................................................4
Installations.....................................................................5
Installing the CPU ..........................................................6
MicroPCI Daughter Card Installation...............................7
Installing the Memory (DIMM).......................................8
Setting the Jumpers.........................................................9
Connectors on IB780 ....................................................13
BIOS Setup.....................................................................25
Drivers Installation.......................................................45
Appendix ........................................................................59
A. I/O Port Address Map..............................................59
B. Interrupt Request Lines (IRQ)...................................59

iv IB780 User’s Manual
This page was intentionally left blank.

INTRODUCTION
IB780 User’s Manual 1
Introduction
Product Description
IB780 is a high-performance flexible CPU card based on the VIA Apollo
PLE 133T chipset. The VIA Apollo PLE 133T chipset is based on an
innovative and scaleable architecture with proven reliability. It is a two-
chip set consisting of the VT8601T North Bridge Controller and
VT82C686B South Bridge Controller.
IB780 supports 66/100/133MHz system bus, up 1.2GHz CPU speed, the
VT8601T integrated graphics accelerator. Additional key features
include support for four USB ports, AC-97 link for audio, hardware
monitoring, and power management.
System memory is provided by three 168-pin DIMM sockets that
accommodate SDRAM with a maximum capacity of 1.5GB. The Award
BIOS facilitates easy system configuration and peripheral setup.
Expansion functionality is provided with MicroPCI socket that supports
MicroPCI daughter cards for Ethernet (LAN), SCSI, and IEEE 1394
functions.
Other advanced features include DiskOnChip flash disk support, 16-
level watchdog timer, and IrDA interface.
DiskOnChip flash disks are storage devices that has no moving parts and
emulates FDD/HDD with Flash/RAM/ROM offering reliable
data/program storage and long life span. They are reliable and suitable
for industrial or other harsh environments characterized by motion,
shock, vibration, adverse temperature, dust and humidity. Other features
include faster data access, longer MTBF, lower power consumption, cost
effective for small capacity and small form factor.

INTRODUCTION
2IB780 User’s Manual
Checklist
Your IB780 package should include the items listed below.
• The IB780 Industrial CPU Card
• This User’s Manual
• 1 IDE Ribbon Cable
• 1 Floppy Ribbon Connector
• 2 Serial Port Ribbon Cable and 1 Parallel Port Attached to a
Mounting Bracket
• 1 Y-Cable supporting a PS/2 Keyboard and a PS/2 Mouse
• 1 CD containing the following:
• Chipset Drivers
• Flash Memory Utility

INTRODUCTION
IB780 User’s Manual 3
Specifications
Processor
Supported Socket 370 supports Intel Pentium III / Celeron 533MHz~1.2GHz, 66/100/133MHz Front Side Bus
Chipset VIA Apollo PLE133 Chipset
North bridge: VT8601T (552-pin BGA package)
South bridge: VT82C686B (352-pin BGA package)
BIOS Award BIOS
Supports ACPI, DMI, PnP
System Memory 3x DIMM sockets support up to 1.5GB capacity
PC100/PC133supported
I/O Chipset VT82C686B chipset
Keyboard controller built-in
I/O Features 1x FDD (up to 2.88MB, 3 Mode, LS120)
1x Parallel Port (EPP, ECP Port)
2x Serial Ports (1x RS232 and 1x RS232/422/485)
1x IrDA TX/RX Headers
Bus Master IDE 2x IDE interfaces for up to 4 devices; supports PIO Mode
3/4 or UDMA/33/66/100 HDD, and ATAPI CD-ROM
VGA VT8601T integrated graphics controller
Shared main memory; max. 8MB
Audio VT82C686B chipset built-in sound controller
With AC97 Codec
VT1611A (Line-out, Line-in, Mic)
LAN Realtek RTL8139C Ethernet controller
10Base-T / 100Base-TX protocol
Optional Dual Ethernet solution via MicroPCI socket
USB 4 ports (pin header)
Watchdog Timer 16 levels (0, 2, 4, 6, …30 sec.)
Hardware
Monitoring Built-in VT82C686B chipset Monitors CPU/system temperature and voltages
DiskOnChip Support M-Systems 2MB~288MB DiskOnChip flash disk
MicroPCI Socket OneMicroPCI socketsupports MicroPCIdaughter cards
with VGA, Ethernet, SCSI and IEEE 1394 functions
Other Features ISAhighdrive
PICMG compliance
Wake on LAN
Form Factor Full Size CPU card
Dimensions 338mm x 122mm (13.3”x 4.8”)

INTRODUCTION
4IB780 User’s Manual
Board Dimensions

INSTALLATION
IB780 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IB780 in order to set up a workable system. The topics
covered are:
Installing the CPU ..........................................................6
MicroPCI Daughter Card Installation...............................7
Installing the Memory (DIMM).......................................8
Setting the Jumpers.........................................................9
Connectors on IB780 ....................................................13

INSTALLATIONS
6IB780 User’s Manual
Installing the CPU
The IB780 CPU Card supports a Socket 370 processor socket for Intel
Pentium III and Celeron processors.
The Socket 370 processor socket comes with a lever to secure the
processor. Raise this lever to about a 90°angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the
lever to the lock position. Refer to the figures below.
After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.
NOTE:Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATION
IB780 User’s Manual 7
MicroPCI Daughter Card Installation
The IB780 CPU card is integrated with a MicroPCI socketthat use
SO-DIMM 144-pin connectors. These sockets can accommodate the
optional MicroPCI daughter cards.
To insert the MicroPCI daughter cards, position it at 30°to the PCB and
gently push it into the MicroPCI connector (See Figure 1 below). The
card will not fit when inserted at an angle of 45°or 15°. Once inserted,
slowly press the card towards the PCB until it locks on both sides to the
clips of the connector. Screw the card to the PCB to secure the
installation. To remove the MicroPCI card, pull the‘clips’sideways as
shown in Figure 2 below.
Figure 2.
Figure 1.

INSTALLATIONS
8IB780 User’s Manual
Installing the Memory (DIMM)
The IB780 CPU Card supports three 168-pin DIMM socket for a
maximum total memory of 1.56GB in SDRAM type. The memory
module capacities supported are 64MB, 128MB, 256MB, and 512MB.
Installing and Removing DIMMs
To install the DIMM, locate the memory slot on the CPU card and
perform the following steps:
1. Hold the DIMM so that the two keys of the DIMM align with those on
the memory slot.
2. Gently push the DIMM in an upright position until the clips of the slot
close to hold the DIMM in place when the DIMM touches the bottom
of the slot.
3. To remove the DIMM, press the clips with both hands.
Top View of DIMM Socket
DIMM
Lock
Lock
Lock
Lock

INSTALLATION
IB780 User’s Manual 9
Setting the Jumpers
Jumpers are used on IB780 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB780 and their respective functions.
Jumper Locations on IB780...............................................................10
Configuring the CPU Frequency......................................................11
JP1, JP2, JP3: RS232/422/485 (COM2) Selection........................11
JP4: Realtek RTL8139C LAN Enable/Disable ..............................11
JP6: Clear CMOS Contents ...............................................................12
JP7: DiskOnChip Address Select.....................................................12
JP19, JP20, JP21, JP22, JP23: CRT VGA Signal Select..............12

INSTALLATIONS
10 IB780 User’s Manual

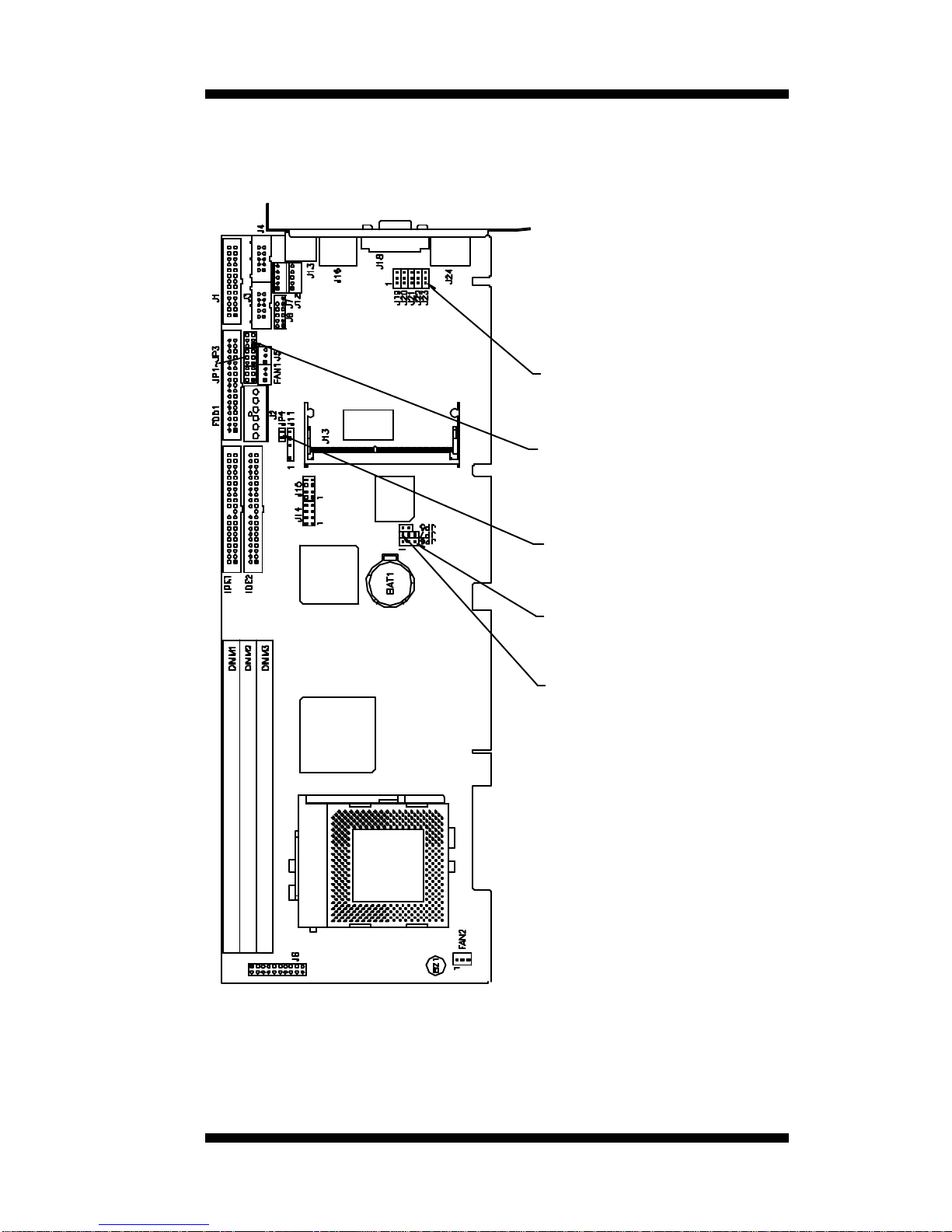

Jumper Locations on IB780
JP19, JP20, JP21, JP22, JP23:
CRT VGA Signal Select
JP1, JP2, JP3:
RS232/422/485
(COM2) Selection
JP4:
Realtek RTL8139C
LAN Enable/Disable
JP6:
Clear CMOS Contents
JP7:
DiskOnChip Address Select

INSTALLATION
IB780 User’s Manual 11
Configuring the CPU Frequency
The IB780 CPU card does not provide DIP switches to configure the
processor speed (CPU frequency). However, processors in the market
today are available with the CPU frequency fixed at a certain speed and
cannot be changed.
JP1, JP2, JP3: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
JP1:
1-2
JP2:
3-5 & 4-6
JP3:
3-5 & 4-6
JP1:
3-4
JP2:
1-3 & 2-4
JP3:
1-3 & 2-4
JP1:
5-6
JP2:
1-3 & 2-4
JP3:
1-3 & 2-4
JP4: Realtek RTL8139C LAN Enable/Disable
Use JP4, a 3-pin header, to enable or disable the on board Realtek
RTL8139C Ethernet controller.
JP4 Setting Function
Short/Closed Enabled
Open Disabled

INSTALLATIONS
12 IB780 User’s Manual
JP6: Clear CMOS Contents
Use JP6, a 3-pin header, to clear the CMOS contents. Note that the
ATX-power connector should be disconnected from the CPU card before
clearing CMOS.
JP6 Setting Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
JP7: DiskOnChip Address Select
JP7 Address
D0000-D7FFF
D8000-DFFFF (default)
JP19, JP20, JP21, JP22, JP23: CRT VGA Signal Select
Use JP19, JP20, JP21, JP22, and JP23 to select the CRT VGA signal,
either from the on board VGA or from an optional MicroPCI VGA.
JP19/20/21/22/23 Function
On Board VGA
MicroPCI VGA

INSTALLATION
IB780 User’s Manual 13
Connectors on IB780
The connectors on IB780 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on IB780 and their respective
functions.
Connector Locations on IB780..........................................................14
J1: Parallel Port Connector................................................................15
FDD1: Floppy Drive Connector.......................................................15
J2: P8 AT Power Connector..............................................................16
J3, J4: COM1, COM2 Serial Port.....................................................16
IDE1, IDE2: EIDE Connectors.........................................................17
FAN1: System Fan Power Connector..............................................18
FAN2: CPU Fan Power Connector..................................................19
J5: External ATX Power Connector.................................................19
J6: System Function Connector........................................................19
J7: External Keyboard Connector.....................................................21
J8: External Audio Connector...........................................................22
J10: Wake On LAN Connector.........................................................22
J11: IrDA Connector...........................................................................22
J12: External PS/2 Mouse Connector..............................................23
J13: PS/2 Keyboard and Mouse Connector....................................23
J14, J15: USB Connectors.................................................................23
J16: Primary RJ45 Connector for onboard LAN............................24
J17: MicroPCI Connector..................................................................24
J18: VGA CRT Connector.................................................................24
J24: Secondary RJ-45 Connector for MicroPCI LAN...................24

INSTALLATIONS
14 IB780 User’s Manual
Connector Locations on IB780
J24: Secondary RJ-45 Connector
J18: VGA CRT Connector
J16: Primary RJ45 Connector
J13: PS/2 Keyboard and Mouse Con.
J4: COM2 Serial Port
J12: External PS/2 Mouse Connector
J7: External Keyboard Connector
J8: External Audio Connector
J3: COM1 Serial Port
J1: Parallel Port Connector
J5: External ATX Power Connector
FAN1: System Fan Power Connector
J10: Wake On LAN Connector
J2: P8 AT Power Connector
J11:IrDAConnector
FDD1: Floppy Drive Connector
J15: USB Connector
J14: USB Connector
IDE2: EIDE Connector
IDE1: EIDE Connector
J6: System Function Connector
FAN2: CPU Fan Power Connector

INSTALLATION
IB780 User’s Manual 15
J1: Parallel Port Connector
The following table describes the pin out assignments of this connector.
Signal Name Pin # Pin # Signal Name
Line printer strobe 114 AutoFeed
PD0, parallel data 0 215 Error
PD1, parallel data 1 316 Initialize
PD2, parallel data 2 417 Select
PD3, parallel data 3 518 Ground
PD4, parallel data 4 619 Ground
PD5, parallel data 5 720 Ground
PD6, parallel data 6 821 Ground
PD7, parallel data 7 922 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
J1
Select 13 N/A N/A
FDD1: Floppy Drive Connector
FDD1 is a 34-pin header and will support up to 2.88MB floppy drives.
Signal Name Pin # Pin # Signal Name
Ground 1 2 RM/LC
Ground 3 4 No connect
Ground 5 6 No connect
Ground 7 8 Index
Ground 910 Motor enable 0
Ground 11 12 Drive select 1
Ground 13 14 Drive select 0
Ground 15 16 Motor enable 1
Ground 17 18 Direction
Ground 19 20 Step
Ground 21 22 Write data
Ground 23 24 Write gate
Ground 25 26 Track 00
Ground 27 28 Write protect
Ground 29 30 Read data
Ground 31 32 Side 1 select
FDD1
Ground 33 34 Diskette change

INSTALLATIONS
16 IB780 User’s Manual
J2: P8 AT Power Connector
Pin # Signal Name
1N.C.
2+5V
3+2V
4-12V
5Ground
6Ground
J3, J4: COM1, COM2 Serial Port
J3 and J4 both 10-pin headers, are the onboard serial port connectors of
the IB780. The following table shows the pin assignments of these
connectors. Pin # Signal Name
RS-232 RS-422 RS-485
1DCD TX- DATA-
2RX TX+ DATA+
3TX RX+ NC
4DTR RX- NC
5GND GND GND
6DSR RTS- NC
7RTS RTS+ NC
8CTS CTS+ NC
9RI CTS- NC
J3
fixed as
RS-232
J4
Configurable
as RS-232/ RS-
422/485 with
jumpers
JP1/JP2/JP3
10 NC NC NC
