Axial AX90031 User manual

COVER

4
4
4
4
2

4
4
4
4
3

Turn on the transmitter.
3
4 Turn on the electronic speed controller.
2 Install the battery.
1 Put the battery in the car.
4
Make sure charger is correct for battery type selected for use.
Examples: Do NOT charge Lipo batteries with Nickel Metal Hydride
charger. Do NOT charge Nickel Cadmium batteries Lipo charger.
Stellen Sie sicher, Ladegerät ist korrekt für Batterietyp zur Verwendung ausgewählt.
Beispiele: Laden Sie keine Lipo-Akkus mit Nickel-Metall-Hydrid-Ladegerät. Laden Sie
keine Nickel-Cadmium-Akkus Lipo Ladegerät.
Assurez-vous que le chargeur est correcte pour le type de batterie sélectionné
à l'emploi. Exemples: Ne pas charger les batteries Lipo avec chargeur hydrure
métallique de nickel. Ne chargez pas les batteries au nickel-cadmium Lipo chargeur.

Steering Servo
C-Hub
Receiver Box
Steering
Transmission
Upper 4-link Bar
Shock Absorber
Spur/Pinion/Slipper
(Under Cover)
Motor 35T
Steering Knuckle
Driveshaft
Lower 4-link Bar
Battery Tray
Differential
(inside axle housing)
Top View Parts
5

Getting-Started Checklist
The following checklist is a guide for getting you vehicle running for the first time.
Read ‘Cautions’ in Manual. (Page 2) Familiarize yourself with vehicle and
its components.
Even though the vehicle is new check
driveshaft setscrews and other screws to
make sure they are tight from the factory.
Charge battery pack. (Page 4) Install 4X AA batteries into Transmitter.
(Page 7)
Install battery pack in vehicle. (Page 4)
Check to make sure steering and throttle
operation work correctly. (Page 7)
Range check radio system. (Next Page)
Drive vehicle, challenge yourself and
have fun!
Maintain vehicle. (Next Page)
Turn on transmitter first,
then plug in battery
(power ESC) (Page 4)
6

6
KEEP CHASSIS FREE OF DIRT
OR DEBRIS
CHECK FOR LOOSE SCREWS
ON CHASSIS ESPECIALLY
THE KNUCKLE, C-HUB AND
AXLE LOCKOUT SCREWS
CHECK FOR WEAR ON
THE BALL JOINTS IN THE
STEERING AND SUSPENSION
LINKS
(REPLACE IF NECESSARY)
CHECK DRIVESHAFT SET
SCREWS AND RE-THREAD
LOCK IF NECESSARY
CHECK WHEEL NUTS MAKING
SURE THEY’RE SNUG
CHECK TIRES MAKING SURE
THE BEADS ARE STILL FIRMLY
BONDED TO THE ENTIRE
CIRCUMFERENCE OF THE RIM
REPLACE TRANSMITTER
AA’S IF THE GREEN LIGHT IS
BLINKING
INSPECT THE SPUR AND
PINION GEARS FOR DAMAGE
CHECK SLIPPER CLUTCH IF
APPLICABLE, FOR PROPER
OPERATION (SEE PAGE 25 STEP
23 FOR SETUP INSTRUCTIONS)
CHECK DRIVELINE FOR
SMOOTH BIND-FREE
OPERATION
CHECK FOR ANY LOOSE
CONNECTIONS OR FRAYED
WIRING
INSPECT SHOCK
ABSORBERS FOR SMOOTH
DAMPENED OPERATION
CHECK RECEIVER ANTENNA
TO CONFIRM IT’S NOT
DAMAGED
CHECK STEERING
OPERATION FOR ANY BINDS
REPLACE ANY NOTICEABLE
BENT OR BROKEN PARTS
Maintaining Your Vehicle
Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative
maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain
your vehicle.
Range-Checking Your Radio System
The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range.
1. Turn on the transmitter first and then the vehicle.
2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
3. Walk away until you are at the farthest distance you plan to operate the vehicle.
4. Steer the vehicle back and forth and throttle both forward and reverse making sure there is no erratic behavior.
5. If any erratic behavior is exhibited do not operate the vehicle, call customer service for further assistance.
RANGE-CHECKING FOR DISTANCE
7

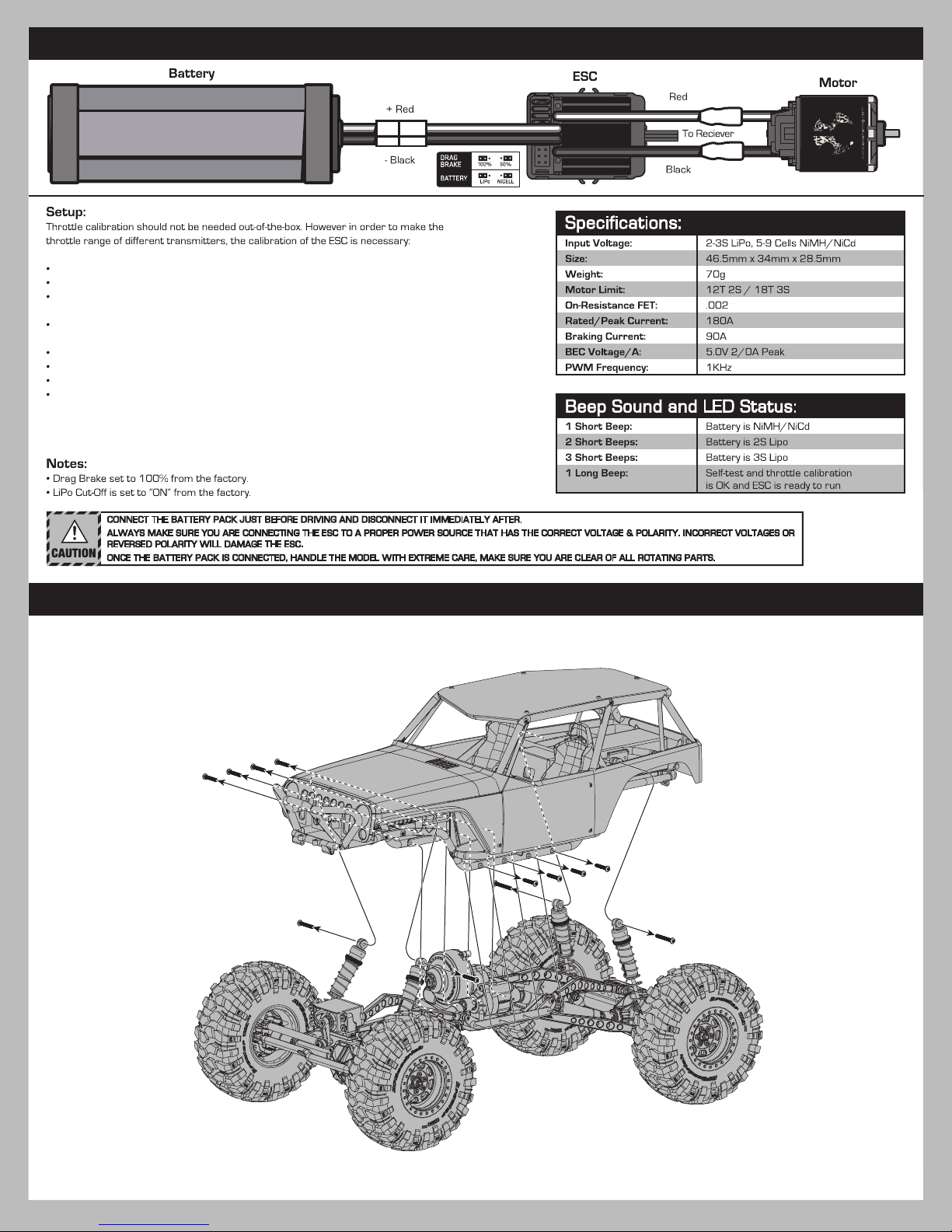

AE-5 Forward/Reverse ESC w/ Drag Brake
Roll Cage Removal
Mount the ESC in an area that is well ventilated and isolated from vibration and shock.
Connect the ESC motor wires to the motor red-red & black-black.
Plug the receiver with into the throttle channel on the receiver. The black negative wire should be
towards the outside of the receiver.
Before plugging the battery into the ESC, make sure your transmitter is on and the throttle trim is set at
zero.
Connect the battery to the ESC, this will turn on the ESC.
Test forward and reverse control using the transmitter.
To calibrate the ESC, make sure the transmitter is on and the throttle control is at neutral.
Connect the battery to the ESC and wait 3 seconds to let the ESC initiate a self-test and automatic
throttle calibration.
When the ESC is ready to run a long beep sound will be emitted from the motor.
Always disconnect the battery when the vehicle is not in use.
8

Pinion 56 60 64 68
11
28.85 30.91 32.97 35.03
12 26.44 28.33 30.22 32.11
13 24.41 26.15 27.90 29.64
14 22.67 24.88 25.90 27.52
21.15 22.67 24.18 25.69
19.83 21.25 22.67 24.08
18.67 20.00 21.33 22.67
15
16
17
Spur Gear
32 Pitch 38T/13T (Stock Gearing AX30392 or HD AX30395)
Pinion 56 60 64 68
11
32.64 34.97 37.31 39.64
12 29.92 32.06 34.20 36.33
13 27.62 29.59 31.57 33.54
14 25.65 27.48 29.31 31.14
23.94 25.65 27.36 29.07
22.44 24.04 25.65 27.25
21.12 22.63 24.14 25.65
15
16
17
Spur Gear
32 Pitch 43T/13T (Underdrive HD Gearing AX30402)
Pinion 56 60 64 68
11
25.38 27.19 29.00 30.81
12 23.26 24.92 26.58 28.25
13 21.47 23.01 24.54 26.07
14 19.94 21.36 21.94 22.60
19.61 19.94 21.27 22.60
17.45 18.69 19.94 21.18
16.42 17.59 18.77 19.94
15
16
17
Spur Gear
32 Pitch 36T/14T (Overdrive HD Gearing AX30401)
Final Drive Gear Ratio = (Spur/Pinion)x5.67
Gesamtubersetzung = (Spur/Pinion)x5.67
39.64:1
16.42:1
9
NOTES

10
NOTES

AXIAL LIMITED WARRANTY
Your Axial product is warranted to be free of defects in materials and workmanship when new in the factory sealed box. This warranty does not cover damages due to normal wear and tear,
users' failure to perform routine maintenance, error of assembly or installation, modications or addition of aftermarket parts or option parts. This warranty lasts as long as the original
purchaser owns the product and is not transferable (verified by dated itemized sales receipt accompanied with product). In the event of a defect under this warranty, Axial will, at
our discretion, repair or replace the product, provided our inspection indicates that an original defect exists. Axial provides a 10-day warranty from the date of purchase on electronics
(i.e. servo, esc, radio). Axial reserves the right to replace any product which is no longer available with a product of comparable value and function. If Axial determines the repair is not
covered under warranty guidelines, there could be a charge applied for the repair and return shipping charges. Note: Purchasing products from unauthorized distributors may void warranty
and prevent support and service.
INTERNATIONAL CUSTOMER WARRANTY
Please return product to the dealer where the purchase was made. If your Axial product purchase was made through an on-line retailer, any warranty issues must be taken care of by that
retailer. Axial assumes no responsibility for Axial products sold internationally by on-line retailers.
REPAIR
For warranty repair, please contact Axial Customer Service at (877) 64-AXIAL (877-642-9425).
HOURS AVAILABLE:
8:00 am - 5:00 pm Monday through Friday, Central Time.
11
Warranty Info

12

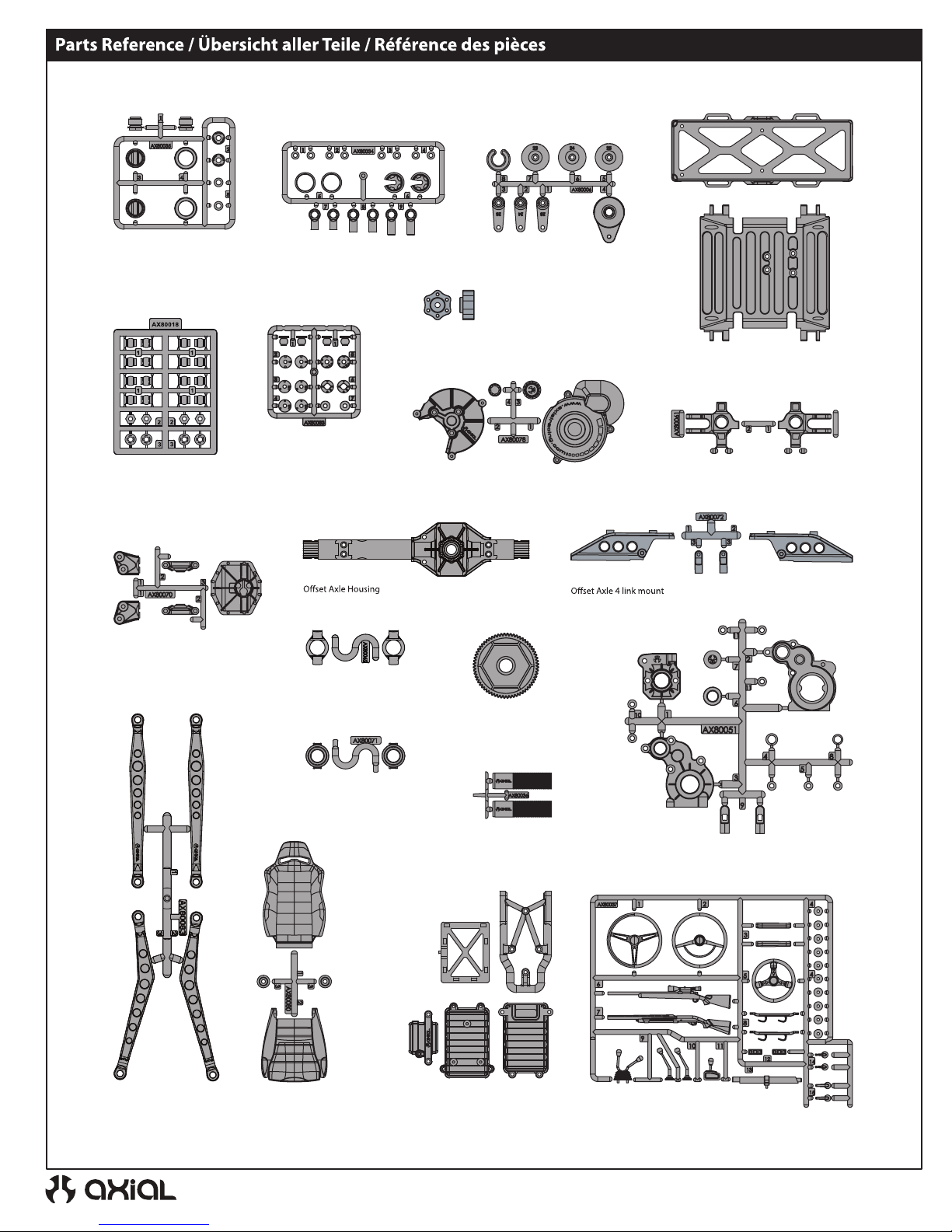

AX80072 x1
AX80078
Transmission Gear Cover
x1
AX80081
Radio Case
x1
AX80090
Corbeau LG1 Seat(Black)
x1
AX80079
Rock Buggy Skid Plate/Battery Tray
x1
AX31301
10mm Shock Caps Set x2
AX80083
Rock Buggy Links Set x1
AX80062
XR10 C Hub Carrier Set
x1
AX80069
x2
AX31300
10mm Shock Parts Tree 2 (Blue) x2
AX80071
Straight Axle Adapter Rear x1
AX80006
Servo Set x1
AX80018
Hardware Parts Tree x3
AX80033
10mm Shock Set 1 x2
AX31065
Spur Gear 32P 64T
x1
AX80070
Axial Di Cover
x1
AX80037
Interior Details Parts Tree-Black
x1
AX80051
Dig Transmission Case
x1
AX80036
72-103mm Shock Body
x1
AX80061
Steering Knuckles Plastic Set
x1
AX31266
12mm Hex Hub Adapter Narrow
x4

13

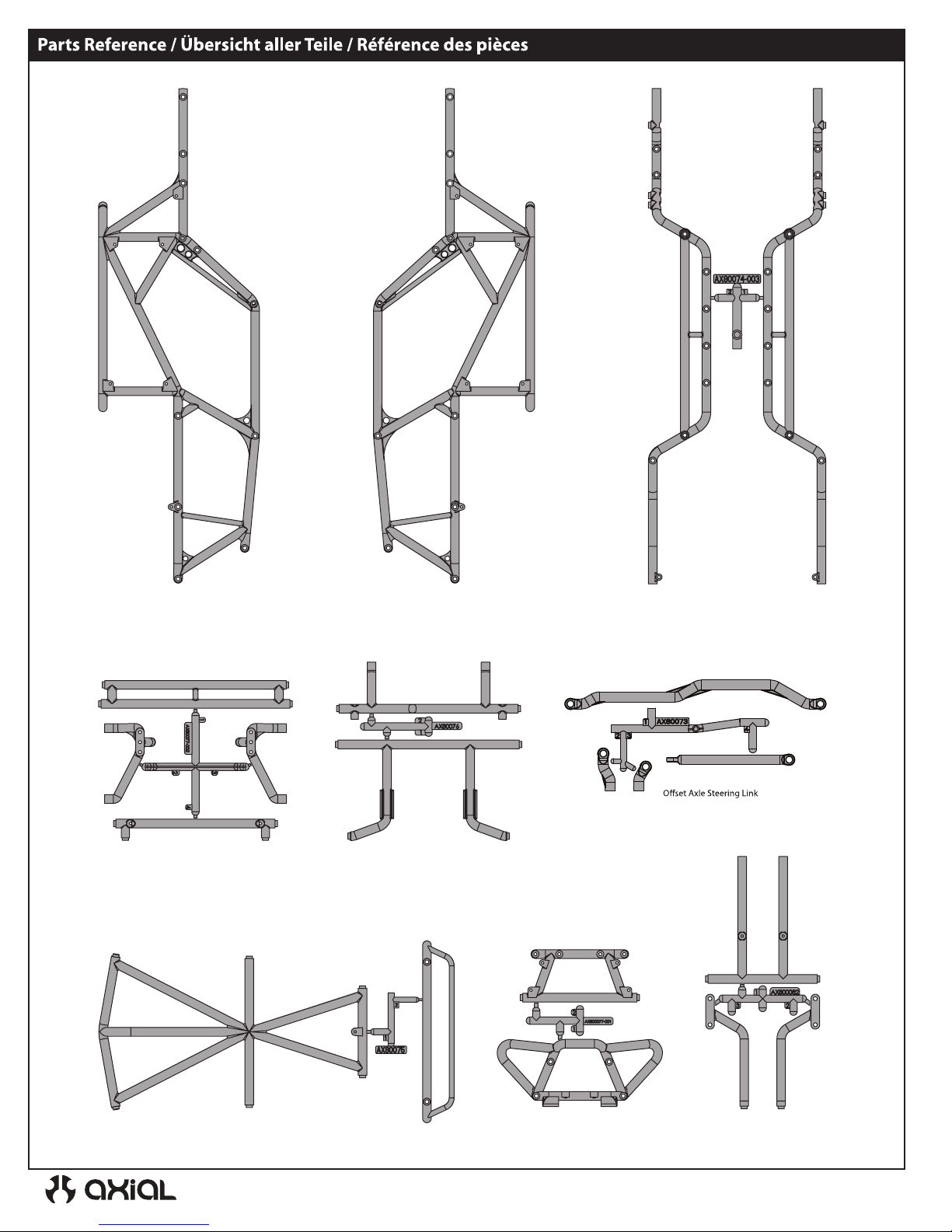

AX80074-002
Rcok Buggy Main Frame
x1
AX80074-001
Rcok Buggy Main Frame
x1
AX80075
Wraith Tube Frame TOP
x1
AX80074
Rock Buggy Main Frame
x1
AX80076
Rock Buggy Rear Brace Set
x1
AX80089
Rock Buggy Front End 2
x1
AX80076
Rock Buggy Battery Brace x1
AX80077-001
Rcok Buggy Front end 1
x1
AX80073 x1

14

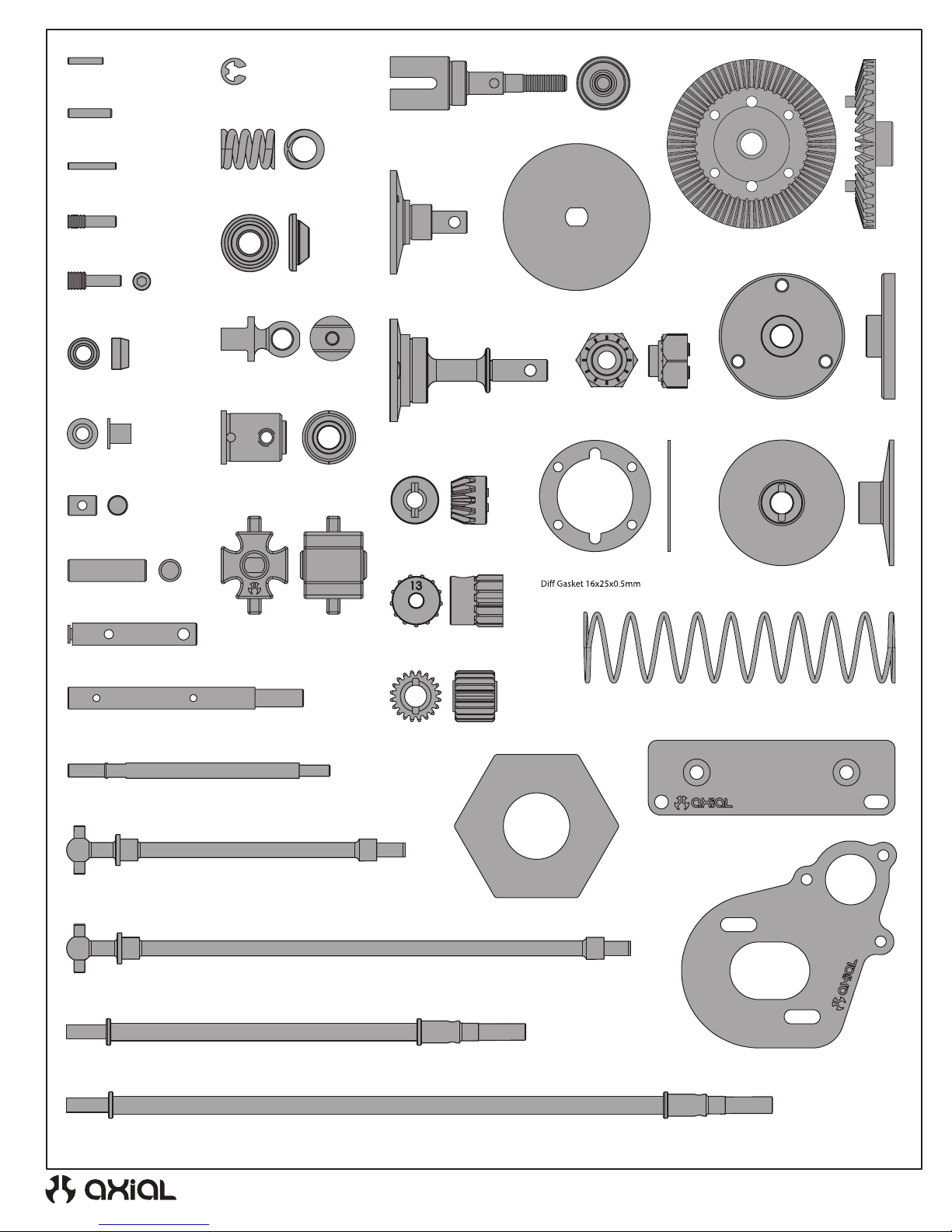

AX30463
4.5x6.5mm Join Pin x4
AX30385
x2
AX30500
Heavy Duty Locker x2
AX30113
Rubber Bump Stop 3.6x7x4 x4
AX30413
Slipper spring x1
AXA0286
M4x12mm x1
AX30392
38T Bevel Gear x2
A
Pad
X31068
Slipper x2
AX31059
Slipper Plate x2
AX30429
12mm Aluminum Hub x4
AX30408
Input Shaft 5x29mm x2
AX30163
Pin 2x10mm
x6
AX30166
Pin 1.5x11mm
x4
AX30190
Shaft 5x18
x1
AX30190
56x17mm Servo Plate
x1
AX30491
AX10 Scorpion Motor Plate
x1
AX30410
Lnner Slipper Plate
x1
AX30411
Outer Slipper Plate
x1
AX30198
Slipper Drive gear Shaft 5x53.5
x1
AXA1393
E2.5 e-clip x1
AX30435
Steel Outdrive Shaft
x1
AX0175
Screw Shaft M3x20mm
x4
AX30450
Flange Pipe 3x4.5x5.5
x4
AX30162
Pin 1.5x8mm
x2
AX31148
WB8-HD Joint 10X15mm x4
AX31148
WB8-HD Joint Male Universal x4
AX30392
13T Bevel Gear x2
AX30112
Shock Diaphragm 13x4.5mm x4
x1
AX30419
Solid Axle Dogbone 7x69mm
x1
AX30419
Solid Axle Dogbone 7x125mm
AX30776
Straight Axle Shaft 6x160.2mm x1
AX30776
Straight Axle Shaft 6x104.2mm
x1
AX30155
Shock Shaft 3x59.5 x4
AX30394
20T Drive Gear
x1
AX30368
Axle 6x39mm x2
AX30224
Spring 14x70mm 1.43 lbs/in - Purple (2pcs) x2
AX30437
Dig Lockout Shaft x1
AX30724
13T 32P Pinion 3mm Motor Shaft
x1

15
AXA0439
M3x20mm
x4
AXA436
M3x12mm
x1
AXA0437
M3x15mm
x9
AXA0438
M3x18mm
x46
AXA433
M3x6mm
x8
AXA441 x4
AXA0422
M2.6x6mm
x16
AXA115
M3x10mm
x14
AXA087
M3x16mm
x8
AXA083
M3x6mm
x5
AXA091
M3x30mm
x2
AXA089
M3x25mm
x3
AXA015
M2x10mm
x16
AXA1046
M4 Serrated Nylon Locking Nut (Blue)
x4
AXA144
M3x8mm
x10
AXA0113
M3x6mm
x9
AXA117
M3x15mm
x19
AXA118
M3x18mm
x46
AXA0023
M2.6X8mm
x4
AXA413
M2.6x8mm
x2
AXA463
M3x6mm
x2
AXA464
M3x8mm
x4
AXA465
M3x10mm
x6
AXA466
M3x12mm
x6
AXA412
M2.6x6mm
x3
AXA412
M2.6x10mm
x6
AXA416
M2.6x18mm
x2
AXA1071
Washer 4x8x0.5mm
x2
AXA1070
Washer 3x6x0.5 mm x1
AXA1052
M3 Thin Nylon Locking Hex Nut x13
AXA1053
M3 Nylon Locking Hex Nut x4
AXA1041
M2.5 Nylon Lock Nut
x4
AXA1040
M3 Thin Hex Nut x2
AXA1230
Bearing 10x15x4mm x6
AXA1243
Bearing 15x21x4mm x1
AXA1221
Bearing 5x11x4mm x21
AXA1218
Bearing 5x10x4mm x4
AXA1225
Bearing 8x16x5mm x1
AXA1280
M3x10mm Servo Flange Screw
x1
AXA1202
O-Ring 3.5x2mm x8
AXA1184
O-Ring 7.5x1.5mm x4
AXA1069
Washer 2.7x6.7x0.5 mm x8
AXA1091
Washer 5x10x0.5 mm x1
AXA180
M3x3mm
x12
AXA0187
Set Screw M3x20mm x4
AXA013
M2x6mm x4
AXA434
M3x8mm
x2
AXA435
M3x10mm
x36
AXA440 x2
M3x25mm
AXA1356
Silicone Shock Bushing 7.5x8mm
x4
AXA291
M4x4mm
x1

16
AX80078
AX80078
AXA1045
AXA0414
AXA0414
AXA0422
AXA0422
AXA0422
AXA0422
AXA0414
AX30491
AX30127
AX31026
AX31026
AX31068
AX31068
AX30413 AX31027
AX30499
AX80078
AX80037
AX80037
AX80037
AX80037
AX4028
AX4028
AX80037
AX80037
AX80037
AX80037
AX80037
AXA013
AXA013
AXA013
AXA0113
AXA1040
AXA1040
AXA0113
AXA013
AXA013
AXA013
AX80090
AX80090
AX80090
AX80090
AX80090
AX80090
AXA466
AXA466
AXA466
AXA466 AX80090
AX80090
AXA463
AXA463
AXA465
AXA465
AX80079
AXA465
AXA466
AX30724
AXA291
AXA083
AXA1070
AXA1070
AX24003
AXA0437
AX80051
AXA1218
AX30394
AX31149
AX30162
AXA1218
AX80051
AX80051
AX80051
AXA089
AXA436
AXA0113
AXA1218
AXA1218
AX30190
AX80010
AXA1221
AXA1243
AXA1225
AX30435
AX80010
AX30437
AXA013
AXA083

17
AXA0414
AXA0414
AXA0414
AXA0412
AXA0412
AXA0412
AXA0416
AXA0416
AX80081
AX80081
AX30566
AX30566
AX24257
AX24206
AX80081
AX80081
AX4038
AX4038
AX80081
AX24259
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA436
AXA436
AXA436
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA436
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA0437
AXA0437
AXA0437
AXA0437
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AXA438
AX80079
AX80082
AX80076
AX80076
AX80077
AX80077
AX80089
AX80075
AX80075
AX80074
AX80074
AX80088
AX80088
AX80077
AX80082
AX80082
AX80077
AX80077
AXA0413
AXA0413
AXA0413
AXA0413
AXA0422
AXA0422
AXA0422
AXA0422
AXA0422
AXA0422
AXA0422
AXA0422
AXA0422
AXA0422 AXA0422
AXA441
AXA441

18
AX80018
AX80018
AXA1052
AXA1052
AXA1052
AXA1052
AXA091
AXA437
AXA437
AXA0439
AXA0439
AXA118
AXA118
AX80018
AX80018
AX80018
AX80018
AX80083
AX80083
AX80083
AX80083
AXA118
AXA118
AXA187
AXA187
AX80018
AX80018
AX80034
AX80034
AX30368
AX30368
AX30450
AX30450
AX30450
AX30778
AX30778
AXA1230
AXA1230
AXA1221
AXA1221
AX80061
AX80061
AX30450
AX80062
AX80062
AX30419
AXA115
AXA115
AXA115
AXA115
AXA464
AXA465
AXA433
AXA433
AXA433
AXA433
AXA1230
AX30392
AX30385
AXA015
AXA015
AXA435
AX30500
AXA1393
AX30392
AX30163
AX30408
AXA1221
AXA087
AXA087
AX80069
AX80072
AX80070
AX80070
AXA1221
AXA1221
AXA1221
AXA1052
AXA1052
AXA1052
AXA1053
AXA0439
AXA180
AXA180
AXA180
AX30419
AX80070
AX80070
AX80070 AX80002
AXA1230
AXA1052
AX80018
AX80018
AX80073
AX80073
AX80018
AX80018
AXA117
AXA117
AXA436
AXA0113
AXA434
AXA434
AXA1070
AX80006
AX80072
AX80072
AXA1053
AX30777
AXA464
AXA464
AXA1280
AXA1280
AXA117
AXA1052
AXA015
AXA435
AXA435
AX31114
AX31148
AXA0286
AX31028
AX31148
AX31148
AX31114
AXA144
AX31114
AXA144
AX31114
AX31148
AX31148
AX31028
AX31148
AX31114
AXA0286
AX80018
AX80018

19
AXA0286
AXA0286
AX31114
AX31114
AX31114
AX31114
AX31114
AXA144 AXA144
AX31028
AX31028
AX31148
AX31148
AX31148
AX31148
AX31148
AX31148
AX80018
AX80018
AXA1221
AXA1053
AX30776
AX30776
AX80070
AX80070
AX80069
AX80072
AX80018
AX80018
AX80018
AXA091 AXA464
AXA435
AXA435
AXA015
AXA015
AXA435 AXA435
AX80070
AXA0439
AXA087
AXA015
AXA087
AXA465
AXA0437
AXA0437
AX80018
AX80018
AX80018
AX80018
AX80034
AX80083
AX80083
AX80083
AX80034
AX80018
AXA440
AXA433
AXA433
AXA180
AXA180
AXA180
AXA118
AXA118
AXA187
AXA1052
AXA1052
AXA1052
AXA1221
AXA1230
AXA1230
AX30392
AX30385
AX30500
AX80002
AX80070
AX80070
AX30408
AX30163
AX30392
AXA1393
AXA1221
AXA1053
AXA1052
AXA1053
AX80071
AXA187
AX80083
AX80071 AXA1221
AXA433
AXA118
AXA433
AXA118
AXA440

20
AX80035
AXA1356
AX30112
AXA1041
AXA1069 AXA1069
AX30155
AX80036
AX80035
AX80035
AXA1202
AXA1202
AX80035
AX80035
AX30224
AX30113
AX80034
AX80034
AXA1184
AX80033
AX12021
AX12021
AX12021
AX12021
AX30429
AX31266
AX31266
AX30429
AXA435
AXA435
AXA180
AXA180
AX31028
AX31028
AX31250
AX31250
AXA0023
AXA0023
AX08141
AX08141
AX08141
AX08141
AX08141
AX08141
