AXIAL BUMPER TO BUMPER ONE (1) YEAR LIMITED WARRANTY
Axial’s warranty center, Hobby Services, guarantees this kit to be free from defects in materials
and workmanship for one (1) year from the date of purchase. Axial will repair or replace, at the
discretion of Hobby Services, Axial will repair or replace any incorrectly made part. Your receipt or
invoice at the time of purchase is your proof of purchase and is required for Axial to honor any
warranty. Axial reserves the right to change or modify this warranty without notice. This warranty
does not cover damages due to normal wear and tear, users' failure to perform routine
maintenance, user error of assembly or installation, modifications, misuse, crash damage or the
addition of aftermarket parts or optional parts.
Repair or replacement of the product by Hobby Services is the sole and exclusive remedy for any
loss or damages.
Neither Axial nor Hobby Services are liable under this limited warranty for any incidental,
consequential, indirect or special damages, including without limitation, loss of profits or other
economic damages.
Note: Purchasing products from unauthorized retailers may void the warranty and prevent support
and service.
INTERNATIONAL CUSTOMER WARRANTY
Please contact the dealer where the purchase was made. If your Axial product purchase was made
through an on-line retailer, any warranty issues must be taken care of by that retailer. Axial
assumes no responsibility for Axial products sold internationally by on-line retailers outside of your
home country/region.
SPECIFICATIONS & DESCRIPTION CHANGES
All information found in this manual is subject to change without notice. Visit Axialracing.com for
the latest updates and information regarding your model. Axial maintains no responsibility for
inadvertent errors in this manual or on the box art.
WARRANTY REPAIRS CONTACT
Hobby Services
3002 N. Apollo Drive Suite 1
Champaign, IL 61822
ATTN: Service Department
Phone: 877-64-AXIAL (877-642-9425)
8:00 am – 5:00 pm Central Time M-F
E-mail: [email protected]

3
AXIAL BUMPER TO BUMPER ONE (1) YEAR LIMITED WARRANTY
Axial’s warranty center, Hobby Services, guarantees this kit to be free from defects in materials
and workmanship for one (1) year from the date of purchase. Axial will repair or replace, at the
discretion of Hobby Services, Axial will repair or replace any incorrectly made part. Your receipt or
invoice at the time of purchase is your proof of purchase and is required for Axial to honor any
warranty. Axial reserves the right to change or modify this warranty without notice. This warranty
does not cover damages due to normal wear and tear, users' failure to perform routine
maintenance, user error of assembly or installation, modifications, misuse, crash damage or the
addition of aftermarket parts or optional parts.
Repair or replacement of the product by Hobby Services is the sole and exclusive remedy for any
loss or damages.
Neither Axial nor Hobby Services are liable under this limited warranty for any incidental,
consequential, indirect or special damages, including without limitation, loss of profits or other
economic damages.
Note: Purchasing products from unauthorized retailers may void the warranty and prevent support
and service.
INTERNATIONAL CUSTOMER WARRANTY
Please contact the dealer where the purchase was made. If your Axial product purchase was made
through an on-line retailer, any warranty issues must be taken care of by that retailer. Axial
assumes no responsibility for Axial products sold internationally by on-line retailers outside of your
home country/region.
SPECIFICATIONS & DESCRIPTION CHANGES
All information found in this manual is subject to change without notice. Visit Axialracing.com for
the latest updates and information regarding your model. Axial maintains no responsibility for
inadvertent errors in this manual or on the box art.
WARRANTY REPAIRS CONTACT
Hobby Services
3002 N. Apollo Drive Suite 1
Champaign, IL 61822
ATTN: Service Department
Phone: 877-64-AXIAL (877-642-9425)
8:00 am – 5:00 pm Central Time M-F
E-mail: [email protected]

4

5
4
4
4
4

6
Note:
Power to the vehicle is controlled by
connecting / disconnecting the battery.
Always make sure to disconnect battery
when not in use.
2. Remove the body clips and body.
Install the battery and secure with Hook and Loop Strap.
r.
1. Turn on the transmitte
3. Connect the battery to ESC.
Re-attach the body with body clips.

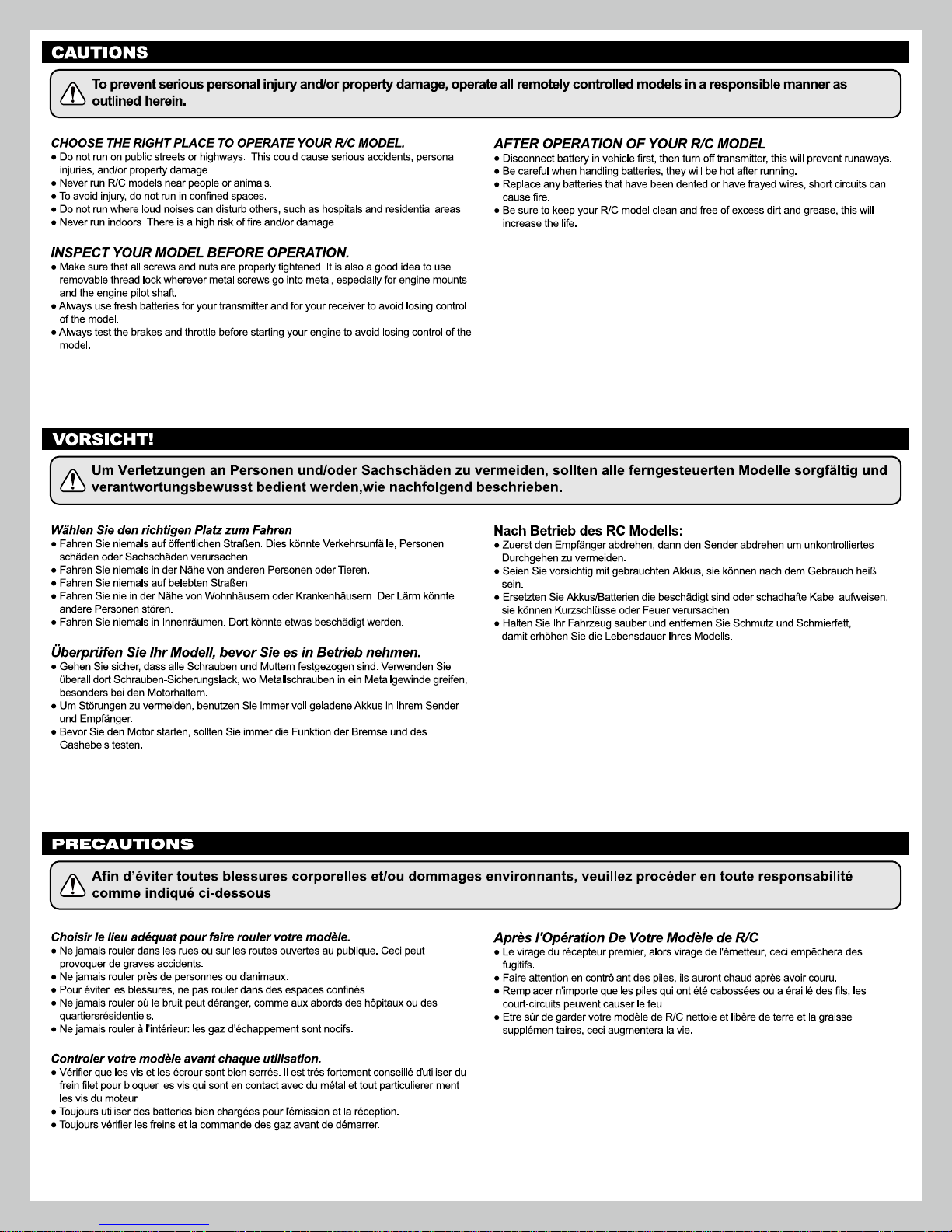

Make sure charger is correct for battery type selected for use.
Examples: Do NOT charge Lipo batteries with Nickel Metal Hydride
charger. Do NOT charge Nickel Cadmium batteries Lipo charger.
Stellen Sie sicher, Ladegerät ist korrekt für Batterietyp zur Verwendung ausgewählt.
Beispiele: Laden Sie keine Lipo-Akkus mit Nickel-Metall-Hydrid-Ladegerät. Laden Sie
keine Nickel-Cadmium-Akkus Lipo Ladegerät.
Assurez-vous que le chargeur est correcte pour le type de batterie sélectionné
à l'emploi. Exemples: Ne pas charger les batteries Lipo avec chargeur hydrure
métallique de nickel. Ne chargez pas les batteries au nickel-cadmium Lipo chargeur.

7
tooltip
Front Body Mount
C-Hub
Receiver Box
Steering Rack
Steering Knuckle
Transmission
Lower 4-link Bar
ESC Plug
Shock Absorber
Tactic TSX45 Servo
Rear Body Mount
Battery Tray
Spur/Pinion/Slipper
(Under Cover)
Motor 35T
AE-5 Electronic
Speed Control(ESC)
Differential
(inside axle housing)
Driveshaft
Upper 4-link Bar
Battery Strap
Top View Parts

8

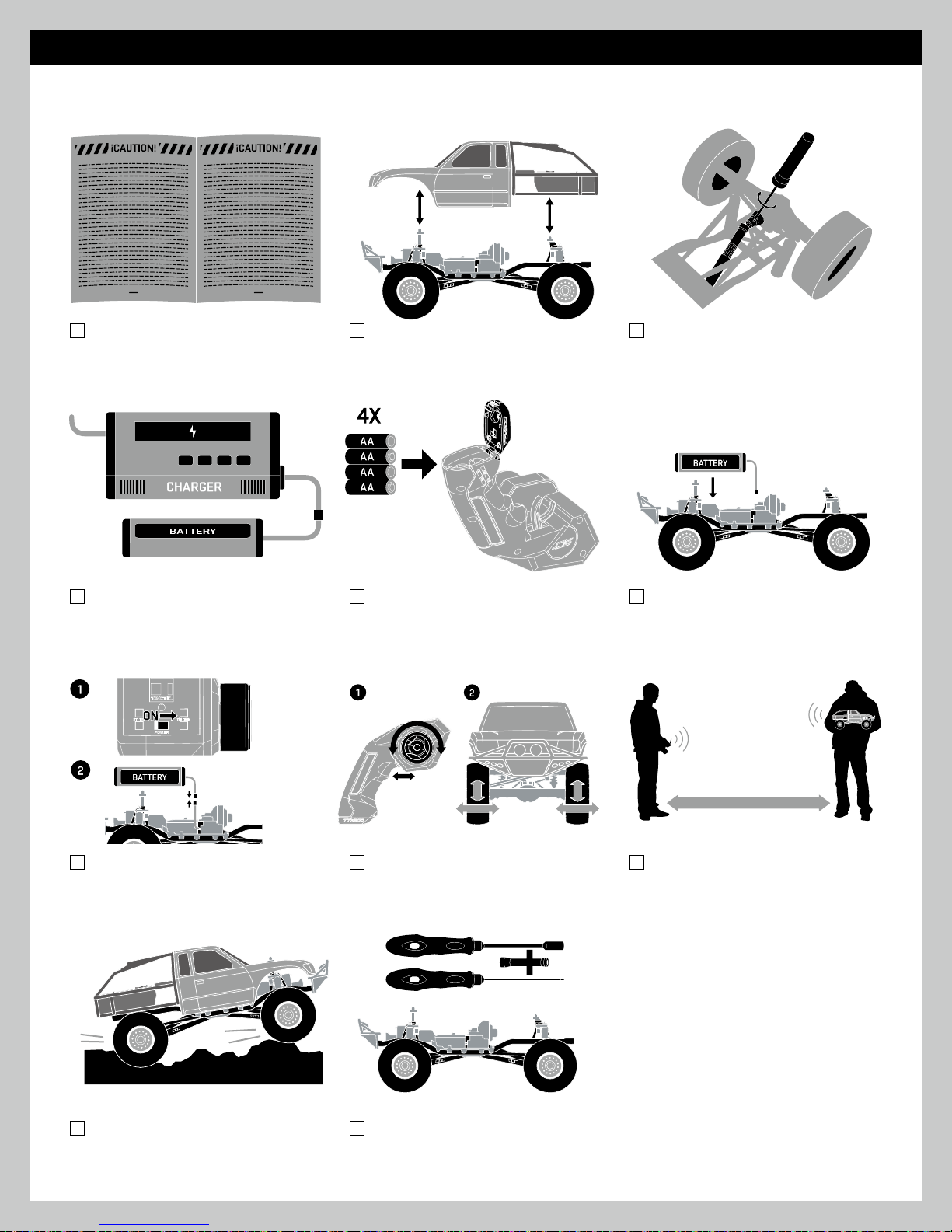

The following checklist is a guide for getting you vehicle running for the first time.
Read ‘Cautions’ in Manual. (Page 2) Familiarize yourself with vehicle and
its components. Even though the vehicle is new check
driveshaft setscrews and other screws to
make sure they are tight from the factory.
Charge battery pack. (Page 4) Install 4X AA batteries into Transmitter.
(Page 7) Install battery pack in vehicle. (Page 4)
Check to make sure steering and throttle
operation work correctly. (Page 7) Range check radio system. (Page 7)
Drive vehicle, challenge yourself and
have fun! Maintain vehicle. (Page 7)
Turn on transmitter first, then plug in
battery. (power ESC) (Page 4)
Getting-Started Checklist

9
6
KEEP CHASSIS FREE OF DIRT
OR DEBRIS
CHECK FOR LOOSE SCREWS
ON CHASSIS ESPECIALLY
THE KNUCKLE, C-HUB AND
AXLE LOCKOUT SCREWS
CHECK FOR WEAR ON
THE BALL JOINTS IN THE
STEERING AND SUSPENSION
LINKS
(REPLACE IF NECESSARY)
CHECK WHEEL NUTS MAKING
SURE THEY’RE SNUG
CHECK TIRES MAKING SURE
THE BEADS ARE STILL FIRMLY
BONDED TO THE ENTIRE
CIRCUMFERENCE OF THE RIM
INSPECT THE SPUR AND
PINION GEARS FOR DAMAGE
CHECK SLIPPER CLUTCH IF
APPLICABLE, FOR PROPER
OPERATION (SEE PAGE 25 STEP
23 FOR SETUP INSTRUCTIONS)
CHECK DRIVELINE FOR
SMOOTH BIND-FREE
OPERATION
CHECK FOR ANY LOOSE
CONNECTIONS OR FRAYED
WIRING
INSPECT SHOCK
ABSORBERS FOR SMOOTH
DAMPENED OPERATION
CHECK RECEIVER ANTENNA
TO CONFIRM IT’S NOT
DAMAGED
CHECK STEERING
OPERATION FOR ANY BINDS
REPLACE ANY NOTICEABLE
BENT OR BROKEN PARTS
Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance.Preventative
maintenance will also help avoid needless breakages which could result in costly repairs.Below are some suggestions to properly maintain
your vehicle.
The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range.
1. Turn on the transmitter and then connect the battery in the vehicle.
2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
3. Walk away until you are at the farthest distance you plan to operate the vehicle.
4. Steer the vehicle back and forth and throttle both forward and reverse making sure there is no erratic behavior.
5. If any erratic behavior is exhibited do not operate the vehicle,call customer service for further assistance.
RANGE-CHECKING FOR DISTANCE
SCREWS AND RE-THREAD
LOCK IF NECESSARY
CHECK DRIVESHAFT SET
REPLACE TRANSMITTER
AA’S IF THE GREEN LIGHT IS
BLINKING
Range-Checking Your Radio System
Maintaining YourVehicle

10
AX31373
AX31373
AX31373
AX31388 3
AX31388 3AX31388 3
AX31373
M2.6x8mm x3

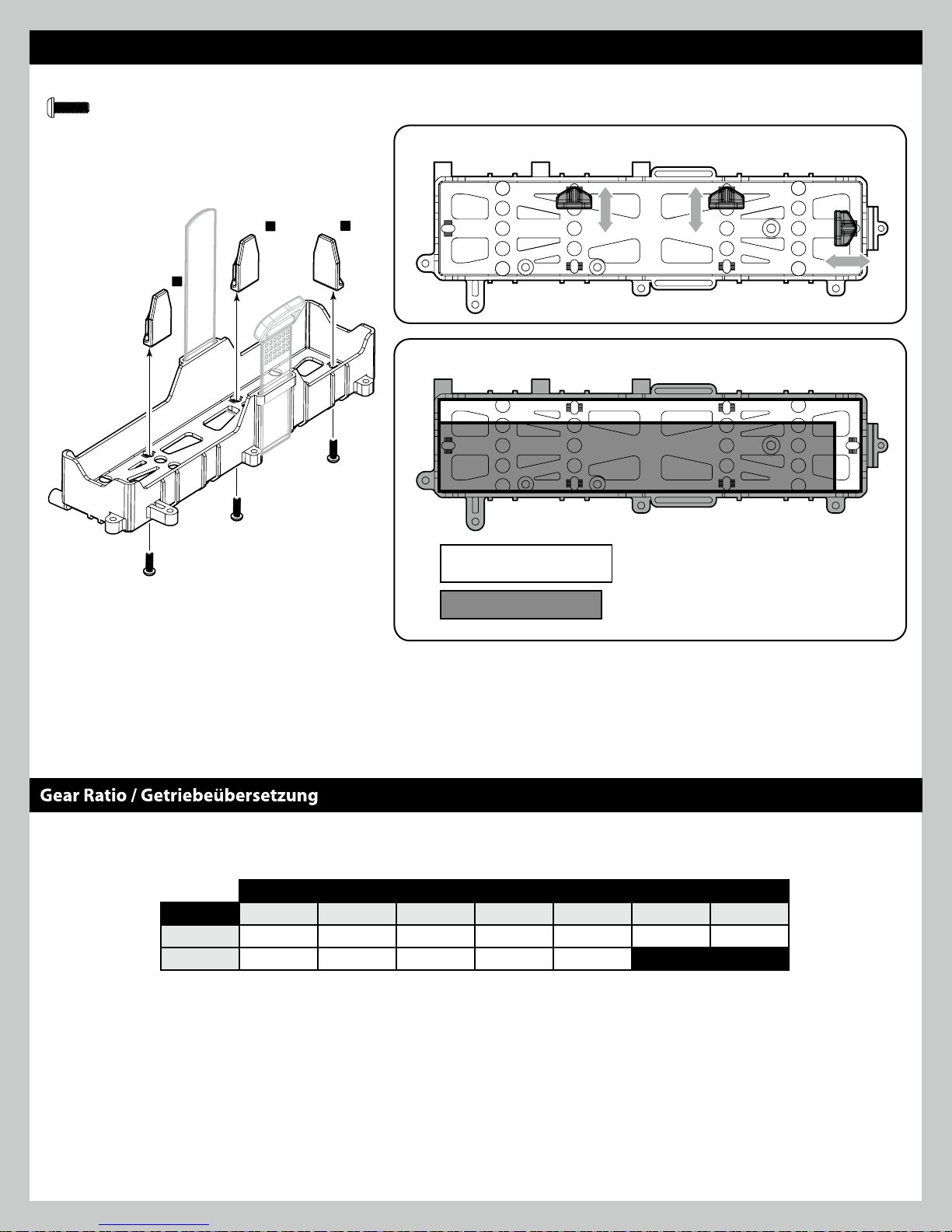

Battery Tray
Adjust to the appropriate range.
Suitable battery size.
5.75” x 1.2” (147mm x 32mm)
5.44” x .94” (138mm x 24mm)
������
������
SCX10 II Spur/Pinion Gear Ratio Chart - LCX Transmission
Spur 12
45.50
48.75
42.00
45.00
39.00
41.79
36.40
39.00
34.13
36.56
32.12 30.33
56
60
13 14 15 16 17 18

11

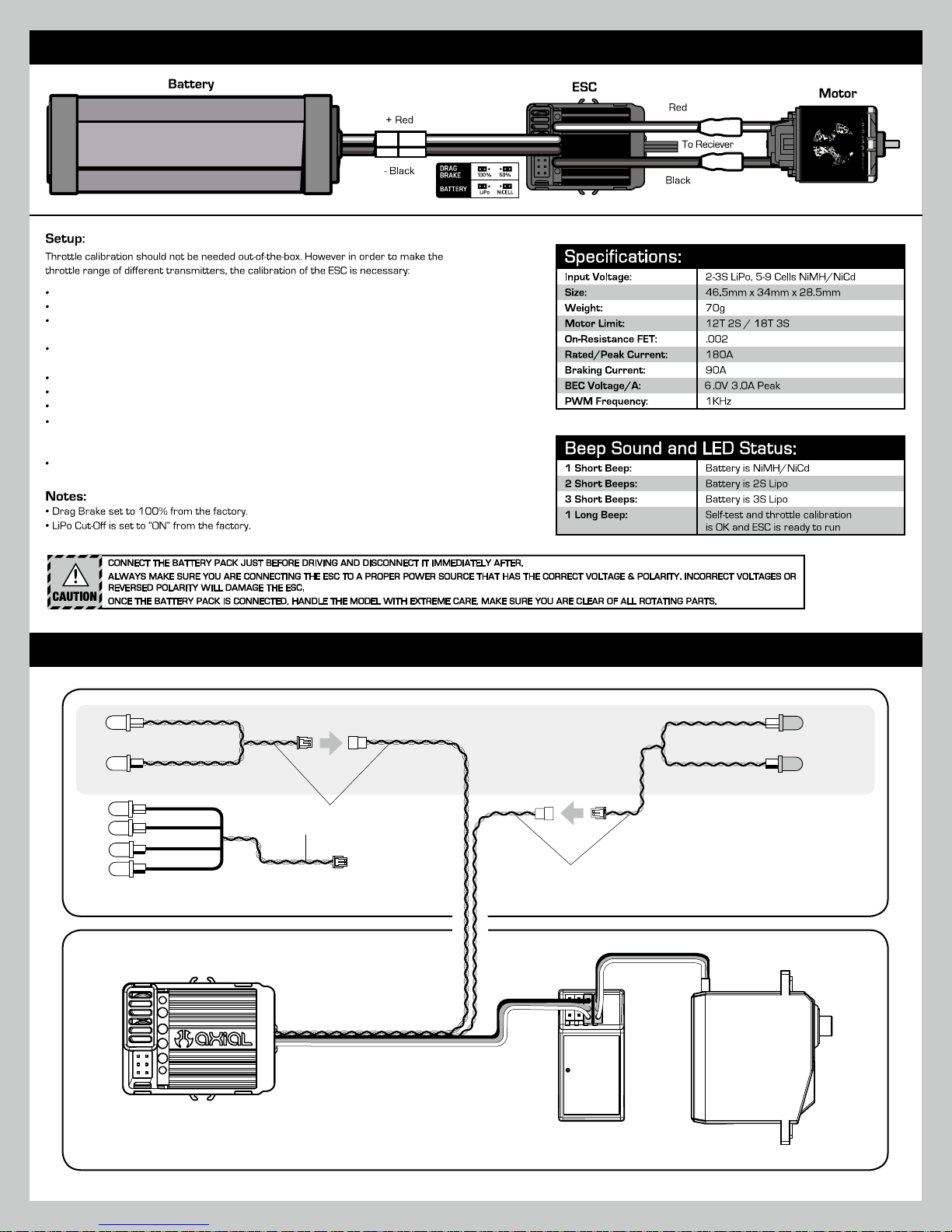

AE-5L Forward/Reverse EAS w/ Drag Brake
4 LED White & Red Light String
Mount the ESC in an area that is well ventilated and isolated from vibration and shock.
Connect the ESC motor wires to the motor red-red & black-black.
Plug the receiver with into the throttle channel on the receiver. The black negative wire should be
towards the outside of the receiver.
Before plugging the battery into the ESC, make sure your transmitter is on and the throttle trim is set at
zero.
Connect the battery to the ESC, this will turn on the ESC.
Test forward and reverse control using the transmitter.
To calibrate the ESC, make sure the transmitter is on and the throttle control is at neutral.
Connect the battery to the ESC and wait 3 seconds to let the ESC initiate a self-test and automatic
throttle calibration.When the ESC is ready to run a long beep sound will be emitted from the motor.
Always disconnect the battery when the vehicle is not in use.
Connecting the 2 LED wires to the ESC. The wires should color match.
Front Rear
4 LED White Light String
(included with optional AX31481 LED Light Set)
Included with vehicle.
AX31480
AE-5L ESC w/ LED Light Ports Receiver Servo
White LED's Red LED's
Red/Black Only
White/Black Only

12
AX80018
Hardware Parts Tree x2
AX31577
Shock Cap Parts Tree x2
AX31586
WB8-HD Standard Driveshaft x2
AX31186
M4 Rod End Set x1
AX31576
10mm Shock Parts Tree x1
AX80030
61-90mm
Shock Body x2
AX31385
SCX10 II Side Plates x1
AX31380
SCX10 II Shock Hoops x1
AX31381
AR44
Steering Knuckles x1
AX31592
AR44 Solid Axle Housing (Front and Rear) x1
AX31589
AR44 Differential Covers (Red) x1
AX31027
Spur Gear 32P 56T x1
AX80049
LED Lens Set - Clear x2

13
AX80046
1/10th Scale Truggy Bed Set x1
AX80046
1/10th Scale Truggy Bed Set x1
AX31588
Body Mount Set x1
AX80046
1/10th Scale Truggy Bed Set x1
AX80044
Axial SCX10

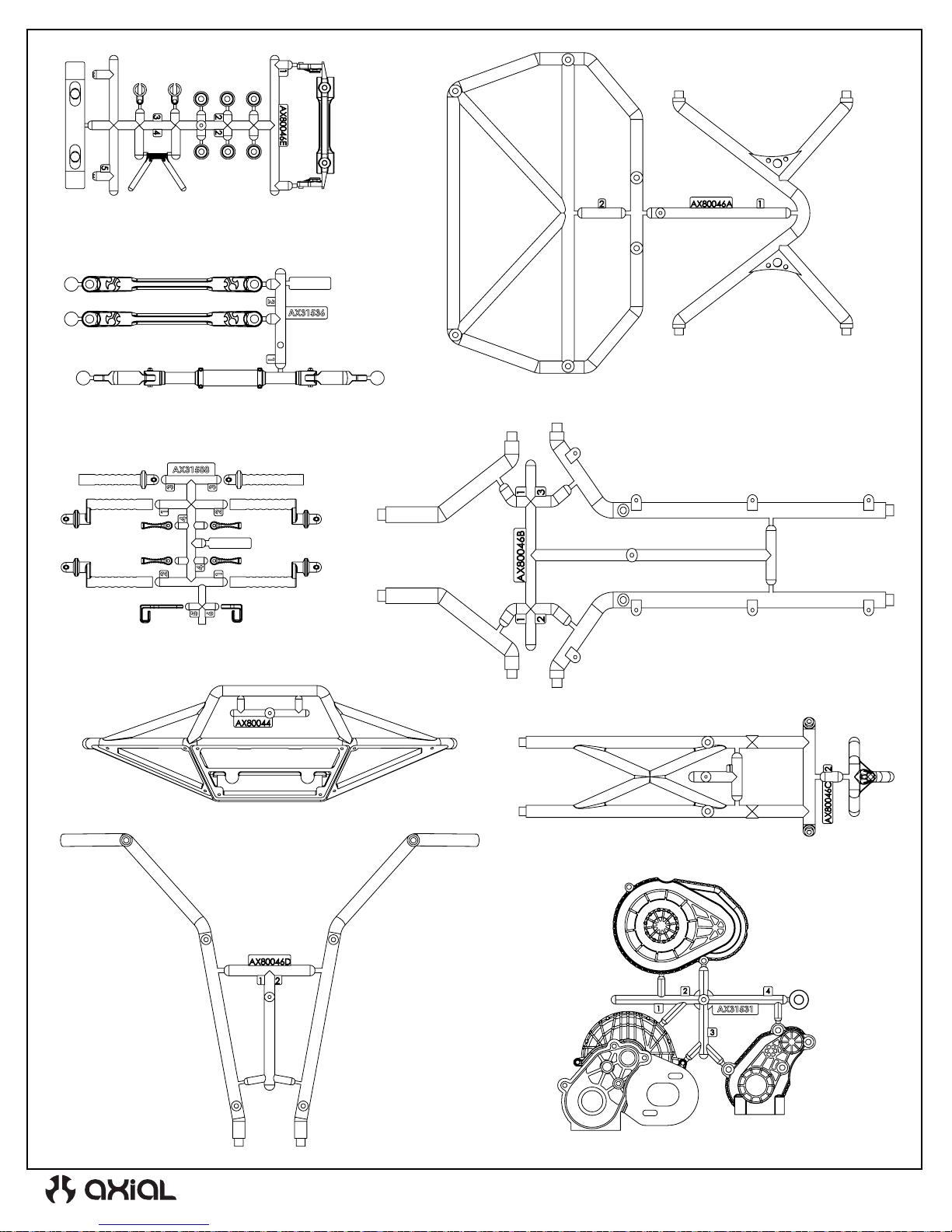

Tube Bumper Parts Tree
x1
AX31536
SCX10 II Steering Link x1
AX80046
1/10th Scale Truggy Bed Set x1
AX31531
LCX Transmission Case (Silver) x1
AX80046
1/10th Scale Truggy Bed Set x1

14

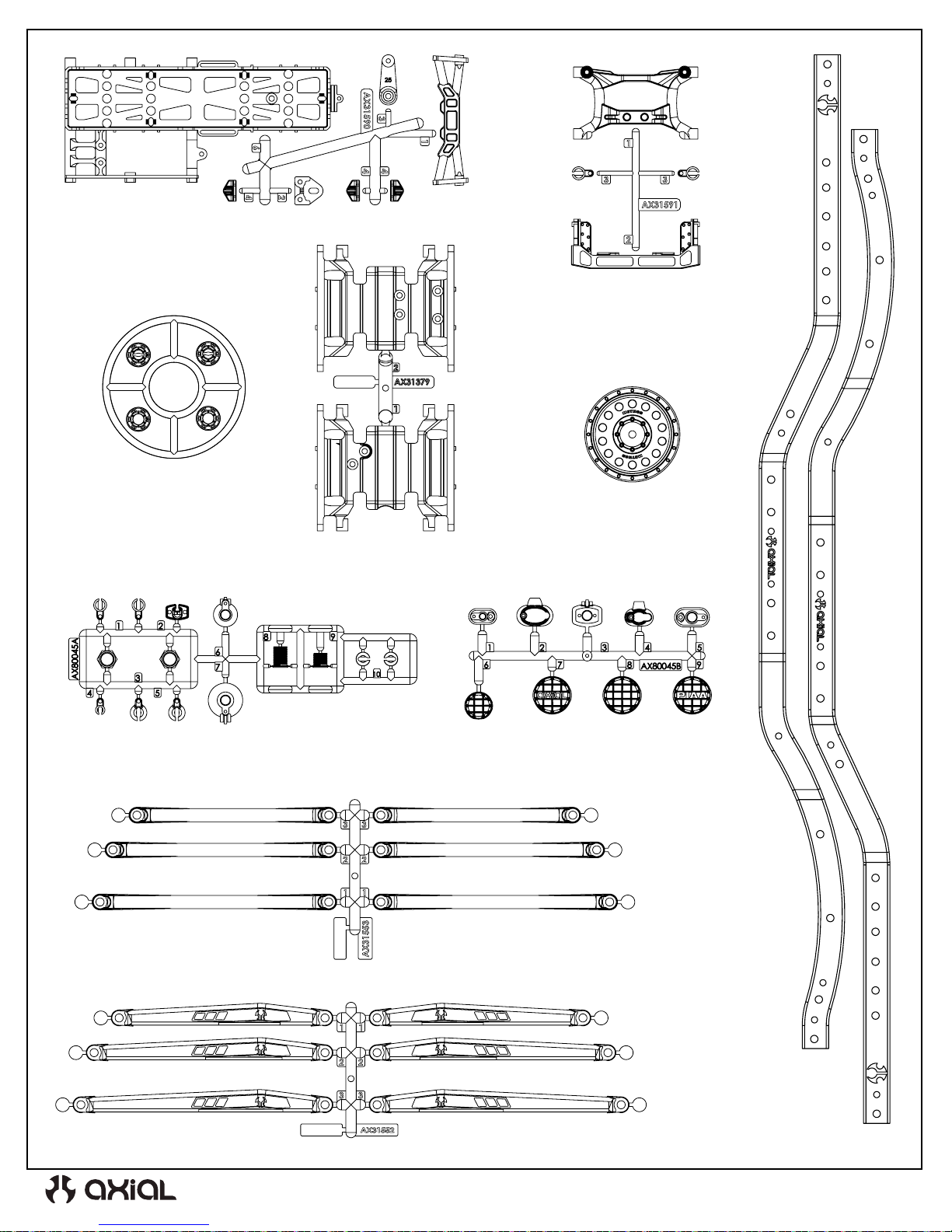

AX31552
SCX10 II™ Lower Links Set x2
AX31533
SCX10 II™ Upper Links Set x2
AX31590
Battery Tray and Servo Mount Set x1
AX31591
Chassis Brace Set x1
AX80045
Light Bucket Set (Black) x2
AX31418
SCX10 II Chassis Rails x1
AX8079
Hub Cover Set - Black x1 AX31541
1.9 Method MR307 Hole Wheels - Black x4
AX31379
SCX10 II Skid Plates x1
AX80045
Light Bucket Set x2

15
AX30413
Slipper spring 8.5x12 x1
x1
AX30427
Narrow 12mm Aluminum Hub x4
AX31083
Radio Box Seals x1
A
Pad
X31068
Slipper Pad 32.8x15.2x1mm x2
AX31148 x4
WB8-HD Driveshaft Coupler Set
AX31026
Slipper Plate Washer 33x5x1.5mmPlate x2
AX31145
Spring 12.5x60mm 2.63 lbs/in - (Yellow) x2
AX31441
Spring 12.5x60mm1.13lbs/in - (White) x2
AX31530
AR44 Locker Bevel Gear Set 30T/8T x2
AX30724
Pinion Gear 32P 13T x1
AX30435
Steel Outdrive Shaft x1
AX80010
Gear Set 52T/28T x1
AX31408
AR44 Straight Axle Shaft
5x106mm x2
AX30530
Front Skid Plates - Tube Style Bumper x1
AX31472
Solid Axle Dogbone 6x73.5mm x2
AX31471
Axle 12x36mm x2
AX30146
Shock Shaft 3x50mm x4
AX31539
Slipper Drive Gear Shaft x1

16

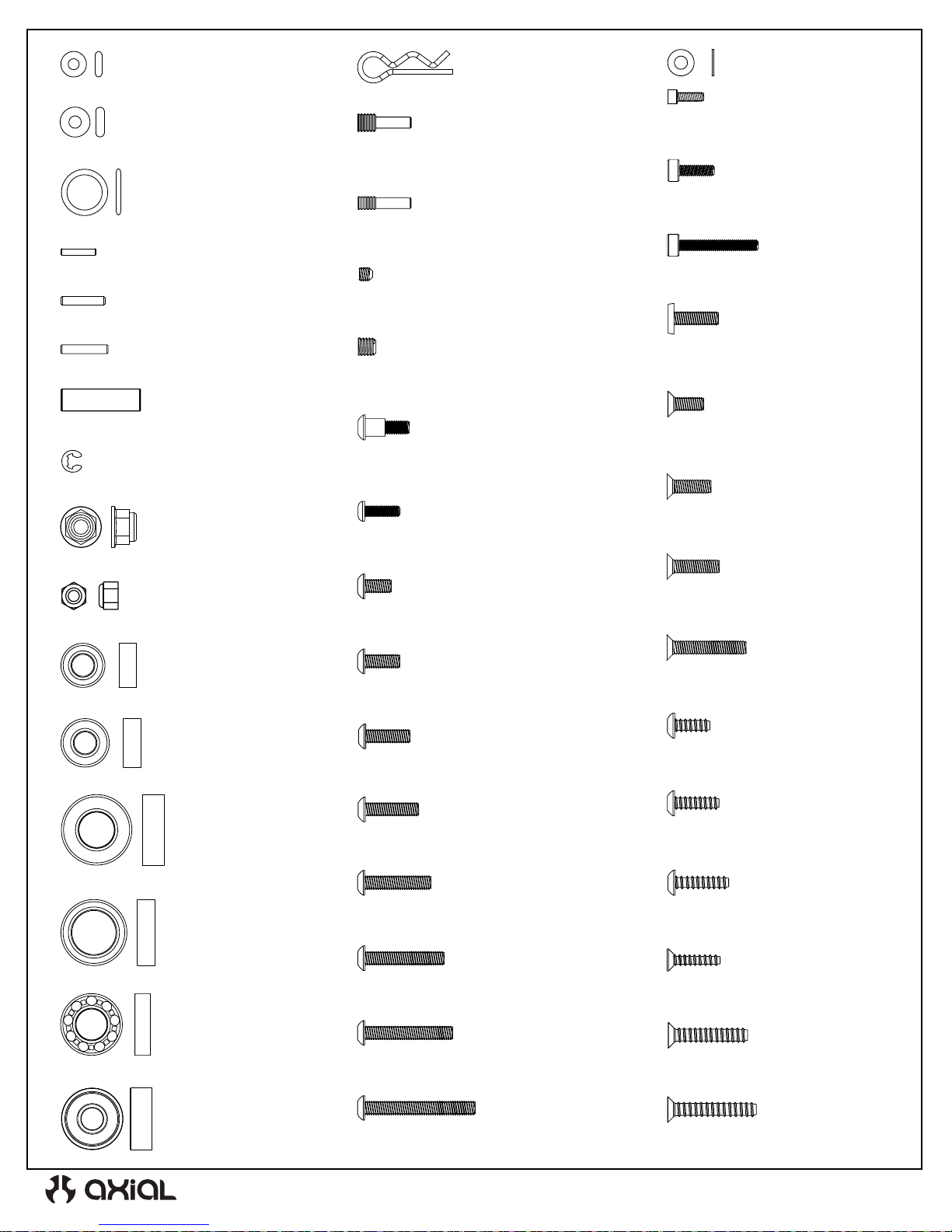

AXA1221
Bearing 5x11x4mm x8
AXA1218
Bearing 5x10x4mm x4
AXA1230
Bearing 10x15x4mm x2
AXA1045
M4 Nylon Lock Nut x5
AXA1059
6mm Body Clip x4
AXA1392
E2 e-clip x8
AXA1179
O-Ring 2.5x1.5mm x8
AXA1201
O-Ring 3x2mm x2
AXA1163
O-Ring 7x1mm x4
x4
AXA180
M3x3mm Set Screw
AXA117
M3x15mm Hex Socket Button Head x19
AXA0113
M3x6mm Hex Socket Button Head x5
AXA119
M3x20mm Hex Socket Button Head x1
AXA120
M3x25mm Hex Socket Button Head x2
AXA114
M3x8mm Hex Socket Button Head x2
AXA115
M3x10mm Hex Socket Button Head x10
AXA144
M3x8mm Hex Socket Flat Head x5
AX31120
M3x10mm Hex Socket Flat Head x4
AX31399
M2.6x18mm Hex Socket Cap Head x8
AXA0109
M3x10mm Oversized Flat Hex Socket
x6
AX30162
Pin 1.5x8mm x1
AX30163
Pin 2x10mm x4
AXA118
M3x18mm Hex Socket Button Head x3
AXA291
M4x4mm Set Screw x1
AXA148
M3x18mm Hex Socket Flat Head x4
AXA146
M3x12mm Hex Socket Flat Head x12
AX31028
PIN 2.0 x11 x4
A XA0286
Screw Shaft M4x12mm x8
AX31373
M2.6x8mm Hex Socket Button Head x5
AX31403
M3x4x10mm Hex Socket Button Head
Shoulder Screw x4
AXA1053
M3 Nylon Lock Nut x1
AX30190
Shaft 5x18 x1
AXA1225
Bearing 8x16x5mm x2
AX31406
Bearing 7x14x3.5mm x4
AX31407
Bearing 5x14x5mm x2
AXA013
M2x6mm Hex Socket Cap Head x31
AXA1260
M2.5x12mm Hex Socket Tapping Flat Head x2
AXA176
Screw Shaft M3x2.5x13mm x2
AXA434
M3x8mm Hex Socket Tapping Button Head x6
AXA435
M3x10mm Hex Socket Tapping Button Head x2
AXA436
M3x12mm Hex Socket TappingButton Head x4
AXA468
M3x18mm Hex Socket Tapping Flat Head x4
AXA469
M3x20mm Hex Socket Tapping Flat Head x2
AXA116
M3x12mm Hex Socket Button Head x1
AXA0023
M2.6x8mm Cap Head x2
AXA1070
Washer 3x6x0.5mm x1

17
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AXA119
AX31536 AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX31536
AXA117
AXA117
AXA120
AXA0113
AXA1070
AX31589
AX31406
AX31530
AX31530
AX31407
AX31472
AX31471
AX31381
AXA1230
AX31472
AXA1221
AXA1221
AXA1221
AX31403
AX31403
AX31403
AXA1221 AX31586
AX31399
AX31399
AX31399
AX31586
AX31586
AX31586
AX31586
AXA144
AXA144
AX31148
AX31148
AX31148
AX31148
AX31148
AX31148
AXA0286
AXA0286
AX31028
AX31028
AX31592
AX31552
AX31533
AX31552
AX31406
AX31590
AX80018
AX80018
AX31536
AXA117
AXA116
AX31471
AX31381
AXA1230
AXA1221
AX31403

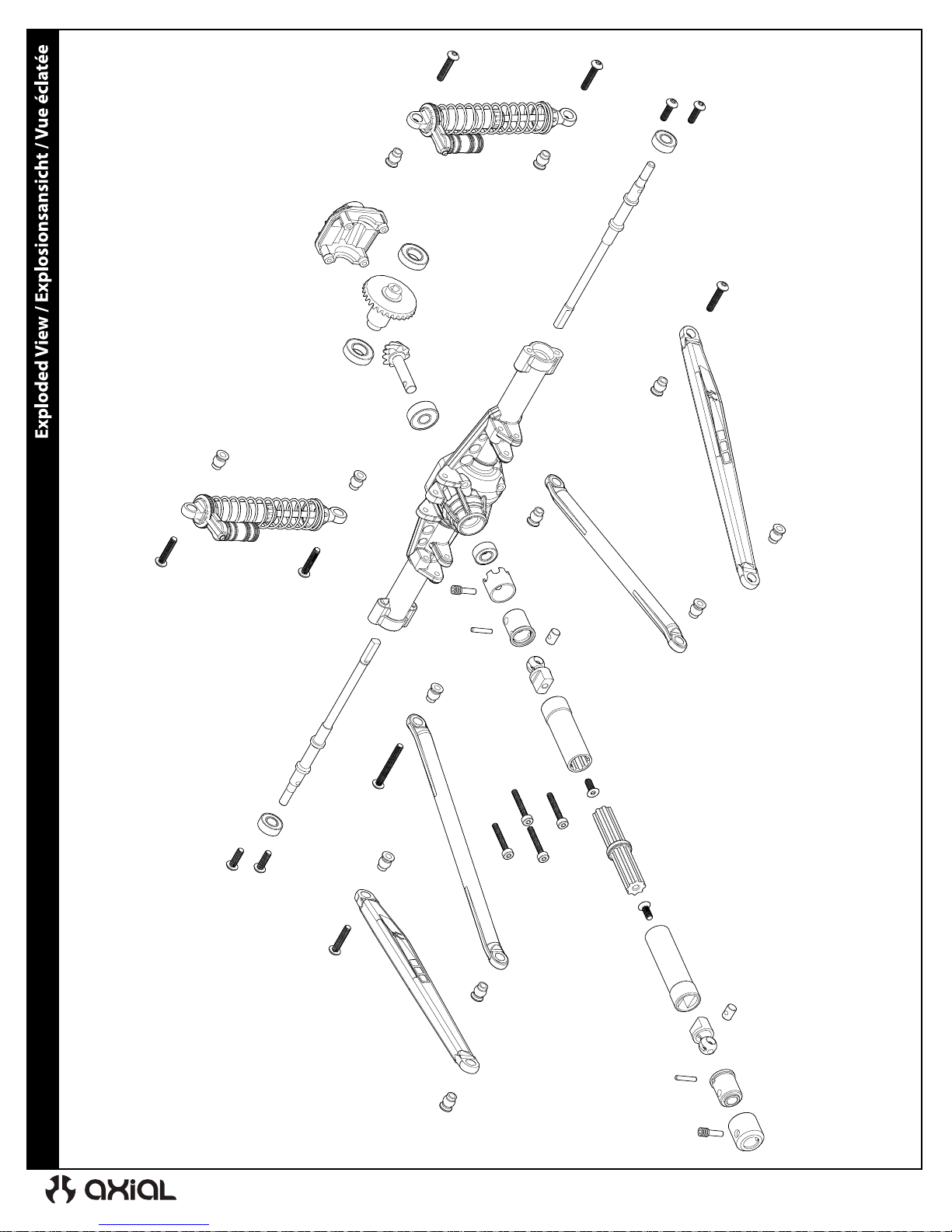

Front Axle

18
AXA120
AX31589
AX31406
AX31530
AX31405
AX31407
AXA1221
AX31586
AX31586
AX31586
AX31586
AX31586
AXA144
AXA144
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AX31148
AX31148
AX31148
AX31148
AX31148
AX31148
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AXA1221
AXA1221
AX31408
AX31408
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AXA0286
AXA0286
AX31028
AX31028
AX31592
AX31406
AX31399
AX31399
AX31399
AX31399
AX31533
AX31552
AX31533
AX31552
AXA115
AXA115
AXA115
AXA115
Rear Axle

19
AX31068
AX31027
AX31027
AXA1045
AX31068
AX31026
AX30435
AX30435
AX80010
AX80010
AXA0109
AXA0109
AXA1225
AXA1218
AXA013
AXA013
AXA013
AXA0023
AXA146
AXA146
AXA146
AXA146
AX30724
AXA291
AX31312
AX31531
AX31531
AX31539
AX31531
AXA0023
AX30190
AX30162
AXA1218
AXA1218
AXA1218
AXA1225
AX30394
AX31026
AX30413
Transmission

20
AXA117
AX30041
AXA114
AXA0113
AXA0113
AXA0113
AXA0113
AX31120
AX31120
AX31120
AX31120
AXA118
AXA118
AXA118
AXA146 AXA146
AXA146
AXA1053
AXA146
AXA118
AXA117
AX31591
AXA114
AX31588
AX31591
AXA117
AXA117
AX31590
AX31590
AXA144
AXA0286
AXA0286
AXA0286
AXA0286
AXA115
AXA115
AXA0109
AXA0109
AXA146
AXA146
AXA146
AXA146
AXA0109
AX31588
AX31588
AXA0109
AX31588
AX31588
AX31379
AX31588
AX31588
AX31591
AXA013
AXA013
AX31591
AX31380
AX31380
AX31373
AX80046
AX31373
AX31373
AX31590
AX31590 AX31590
AX31590
AX31380
AX31380
AX31418
AX31418

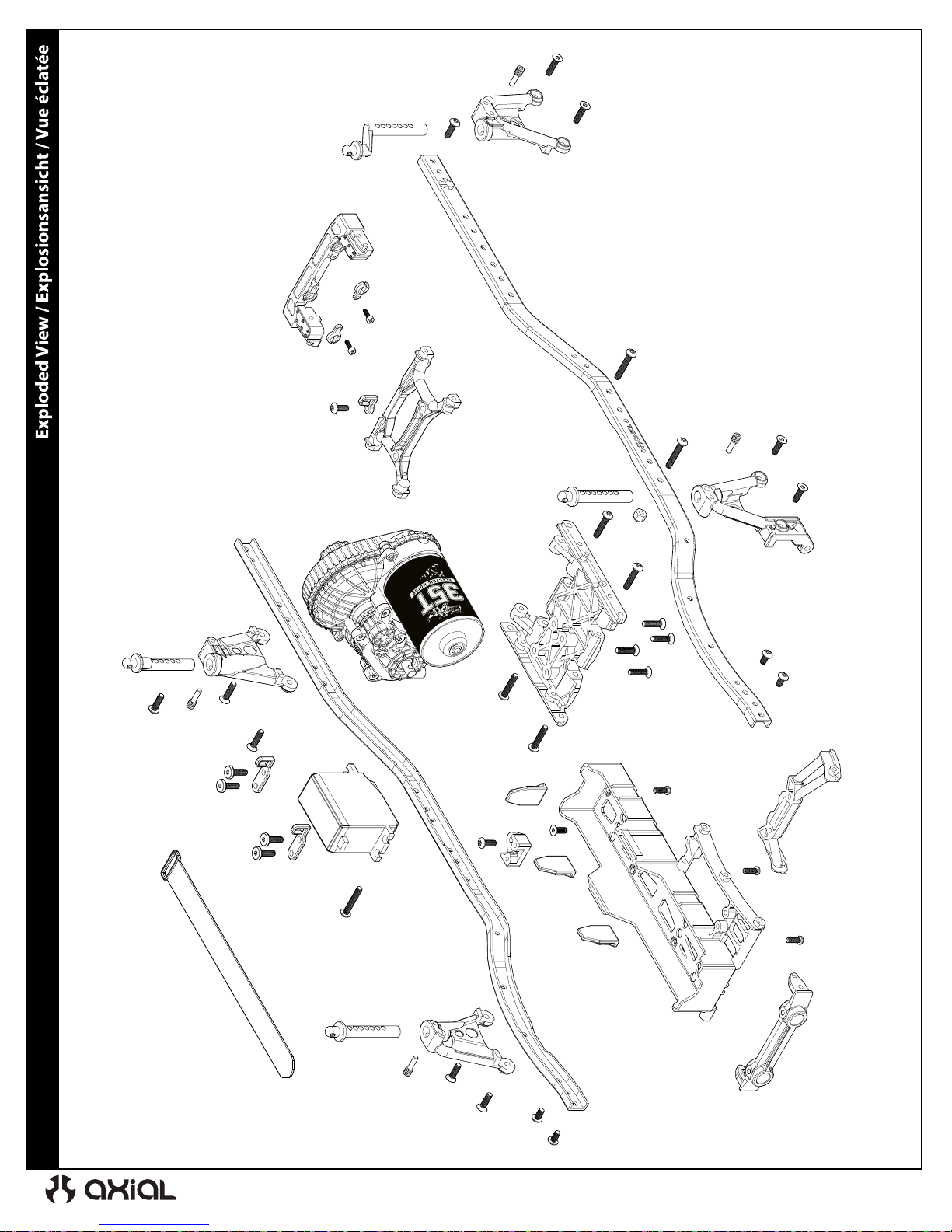

Chassis
