Associated Electrics RC10 B6.4D TEAM KIT User manual

AssociatedElectrics.com

2
:: Introduction:: Introduction
:: RC10B6.4D KIT Features:: RC10B6.4D KIT Features
:: Additional:: Additional
:: Other Helpful Items:: Other Helpful Items
Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and
maintaining your new vehicle. Please take a moment to read through the manual and familiarize yourself with the steps.
We are continually changing and improving our designs; therefore, actual parts may appear slightly different than the illustrations.
New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before
you start to build.
• New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved handling
• New dirt length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to
reduce chassis scrub with the track surface
• 20°, 22.5°, and 25° molded bulkheads included for a complete range of caster and kickup options
• New adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles
• New -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire
wheel throw
• New aluminum RC10B6.4D ESC weight shifted forward in the chassis and with a wider footprint to fit electronics results in a
further forward weight bias
• New front ballstud mount, top plate, and front wing mount to account for the kickup angle change
• New chassis side rails with 3 optional fan mount locations to choose from
• New caged thrust bearing for ball differential
• New cab-forward design RC10B6.4 bodyshell offered in standard (kit) and lightweight (optional) thickness
• Front wing mount and front wing included
• Clear body and clear wing included
• 5mm aluminum clamping rear wheel hexes
• Cyanoacrylate glue (CA)(#1597)
• Thread locking compound (#1596)
• Tires and Inserts, Fronts and Rears
• Wheels w/12mm Hex
Front Wheels #9690, #9691
Rear Wheels #9695, #9696
• Slim Front Wheels w/12mm Hex
(carpet/astro use)
#91757 (white) #91758 (yellow)
Associated Electrics, Inc.
21062 Bake Parkway.
Lake Forest, CA 92630
http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebook.com/TeamAssociated/
Customer Service
Tel: [phone]
Fax: [phone]
Your new B6.4D Team Kit comes unassembled
and requires the following items for completion
(Refer to www.rc10.com and www.Reedypower.com
for complete listings):
• RC two channel surface frequency radio system
• AA-size batteries for transmitter (#302 alkaline)
• Electronic Speed Control, ESC
• Steering servo
• 540 size electric motor
• Pinion gear (48P), size determined by type/wind of motor
• Battery charger (a peak detection charger, or LiPo compatible charger)
• 2 cell LiPo battery pack
• Polycarbonate specific spray paint
• Silicone Shock Fluid (Refer to www.rc10.com for complete listings):
• Body Scissors (AE Part #1737) • FT Body Reamer • Shock Pliers
• FT Hex/Nut Wrenches (AE Part #1519, 1650) • FT Ballcup Wrench (#1579) • FT Universal Tire Balancer (#1498)
• Green Slime shock lube (AE Part #1105) • FT Dual Turnbuckle Wrench (#1114) • Calipers or a Precision Ruler
• Soldering Iron • Hobby Knife • Wire Cutters
• Needle Nose Pliers

3
:: Hardware - 1:1 Scale View:: Hardware - 1:1 Scale View
Notes:
2x3mm (91749)
2.5x8mm (31448)
3x8mm (25201)
3x10mm (25202)
3x12mm (25203)
3x14mm (89208)
3x16mm (25204)
3x18mm (89209)
Flat Head (fhcs)
2x4mm (31510)
Aluminum (8545)
2.5x6mm (31520)
2.5x8mm (31521)
2.5x10mm (31522)
3x4mm (91158)
3x5mm (31530)
3x6mm (31531)
3x8mm (31532)
3x10mm (25211)
3x12mm (89202)
3x14mm (25187)
3x16mm (89203)
3x18mm (2308)
3x20mm (25188)
3x22mm (25189)
3x24mm (89204)
3x30mm (91478)
Button Head (bhcs) Ball Bearings
4x7x2.5mm (31732)
5x8x2.5mm (8680)
5x10x4mm (91560)
5x12x4mm (91567)
10x15x4mm (91563)
3/32 Carbide Diff Balls (6581)
3/32 Ceramic Diff Balls (6584)
Thrust Washer (91990)
Caged Thrust Washer (91990)
Diff Balls
M3 Plain Nut (91477)
M3 Alum. Locknut, Blue (31550)
M3 Locknut, Black (25215
M3 Locknut w/Flange (25612)
FT 3mm Locknuts, Blue(25392)
M4 Nuts:
Serrated Steel (Silver)(91826)
FT Alum. Locknut (Blue) (25391)
Serrated Steel (Black) (91738)
Serrated Steel LP (Black) (91150)
Nuts (lock/plain)
Ballstuds
Silver 5mm long (31283)
Silver 8mm long (31284)
HD 6mm (91047)
Ti HD 6mm (91751)
HD 8mm (91048)
Ti HD 8mm (91752)
HD 10mm (91049)
Ti HD 10mm (91753)
5.5x0.5mm (31381)
5.5x1.0mm (31382)
5.5x2.0mm (31383)
2.6x6mm Washer (89278)
3x8mm Washer (89218)
Shims and Washers
3x2.5mm (31500)
3x3mm (25225)
3x5mm (89219)
3x10mm (4671)
3x20mm (91737)
Set Screws
Socket Head (shcs)
1.6 x 5mm (91611)
3 x 18mm (25191)
3 x 6mm (41089)
3 x 22mm (41095)

4
:: Table of Contents:: Table of Contents
:: Notes:: Notes
This symbol indicates a special
note or instruction in the manual.
This symbol indicates a Racers Tip.
1................... Cover
2................... Introduction
3...................1:1 Hardware “Fold Out”
4................... Table of Contents
5....................Bag 1: Steering
6 - 8..............Bag 2: Front Suspension
8 - 9..............Bag 3: Caster Blocks
9 - 10...........Bag 4: Rear Suspension
10 - 11.........Bag 5: Ball Diff
11 - 13........Bag 6: Gearbox
14.................Bag 7: Rear Hubs
15.................Bag 8: Turnbuckles
16 - 18........Bag 9: Shocks
19 - 23........Bag 10: Battery Strap, Body,
and Wheels
24 - 25.......Tuning Tips
26................Back Cover
!There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardware with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.
Associated Electrics, Inc.
21062 Bake Parkway.
Lake Forest, CA 92630
http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebook.com/TeamAssociated/
Customer Service
Tel: [phone]
Fax: [phone]

:::: Bag 1Bag 1 -- StepStep 22
:::: Optional Anti-Roll Bar Build - NOT INCLUDEDOptional Anti-Roll Bar Build - NOT INCLUDED
5
:::: Bag 1 -Bag 1 - Step 1Step 1
3/22
31500
M3 x 2.5mm
Set Screw
91821
Anti-Roll
Bar Collar
91822
Anti-Roll Bar,
Blue (1.0mm)
Do not overtighten
#31500 - M3 x 2.5mm set screw.
You could bend the bar!
!Tuning option!
!
91973
Steering
Bellcrank
(Right)
Front
91973
Steering
Bellcrank
(Left)
Note orientation
of steering rack.
!TOP
x2x2
x2x2
91974
Steering Hat
Bushing
91974
Steering Hat
Bushing,
Low
x2x2
x2x2
89202
M3 x 12mm
BHCS
25191
M3 x 18mm
SHCS
31283
5mm Ball
Stud, Long
31732
4 x 7 x 2.5
Ball Bearing
31732
4 x 7 x 2.5
Ball Bearing
91973
Steering
Rack
x4x4
x4x4
x2x2
x2x2
91048
Heavy-duty
Ballstud,
8mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
x2x2
x2x2
91049
Heavy-duty
Ballstud,
10mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
91971
Front Ball
Stud Mount
Do not overtighten
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
NOT INCLUDED
High 2.5°0°22.5°25°
High 0°2.5°22.5°25°
High 0°0°22.5°22.5°
High -2.5°0°22.5°20°
High -2.5°2.5°22.5°22.5°
High -2.5°5°22.5°25°
Low 2.5°2.5°22.5°2 7. 5 °
Low 2.5°5°22.5°30°
Low 0°5°22.5°2 7. 5 °
Steering Bulkhead Caster
Insert Chassis Total
Insert
B6.4 Kickup/Steering Option Chart
(Low position)
Bellcranks down,
hat side on top
(High position)
Bellcranks up,
hat side on top
!

6
:::: Bag 2Bag 2 --Step 1Step 1
:::: Bag 2Bag 2 --Step 3Step 3
:::: Bag 2Bag 2 --Step 2Step 2
4671
M3x10mm
Set Screw
91997
Steering
Link, B6.4
31382
FT Ballstud
Washer, Aluminum
(1mm)
Tighten the
steering link ball
cups all the way
until snug.
!
x2x2
Note:
Check the screw length as
both 14mm and 16mm are
in the screw bag. Use the
shorter of the two screws!
! !
!
Align the servo
horn 90 degrees
!
Check the screw length as
both 14mm and 16mm are
in the screw bag. Use the
shorter of the two screws!
!
x2x2
89208
M3 x 14mm
FHCS
91979
Bulkhead
(use 0°)
91967
B6.4
Chassis
91728
Servo Horn
Ring
31284
8mm Ball
Stud, Long
91728
Servo
Horn
Servo not
included!
31531
M3 x 6mm
BHCS
x4x4
91749
M2 x 3mm
FHCS
91976
B6.4 FT Alum.
Chassis Weight,
13g
91988
Battery
Foam, B6.4
x4x4 x5x5
25202
M3 x 10mm
FHCS
91969
Side Rails
(L & R)
25201
M3 x 8mm
FHCS
91988
Battery
Foam, B6.4
+2.5
>
ZERO
-2.5
>
0
There are two bulkheads
included in the kit (0 °, 2.5 °).
0 °is the standard used. The
arrows on the 2.5 °bulkhead
should point forward for the
desired setting.
#1596
thread lock

7
:::: Bag 2 -Bag 2 - Step 6Step 6
:::: Bag 2Bag 2 --Step 5Step 5
:::: Bag 2Bag 2 --Step 4Step 4
31531
M3 x 6mm
BHCS
91885
Servo Mount
Brace
91887
Servo
Mount
x2x2
x2x2
#1596
thread lock
#91728 - Servo Spacers
are not required for most servos.
!
41089
M3 x 6mm
LP SHCS
x4x4
#1596
thread lock
25202
M3 x 10mm
FHCS
x2x2
#1596
thread lock
91971
Top Plate,
B6.4
25187
M3 x 14mm
BHCS
x2x2
The front hinge pin
brace has a sharp
edged side, and a
rounded edge side.
Mount the sharp
edge side towards
the bulkhead.
!
25211
M3 x 10mm
BHCS
x2x2
31510
M2 x 4mm
BHCS
91673
Front Arms,
Gull Wing, B6
91657
Front Hinge
Pin Brace,
B6
x2x2

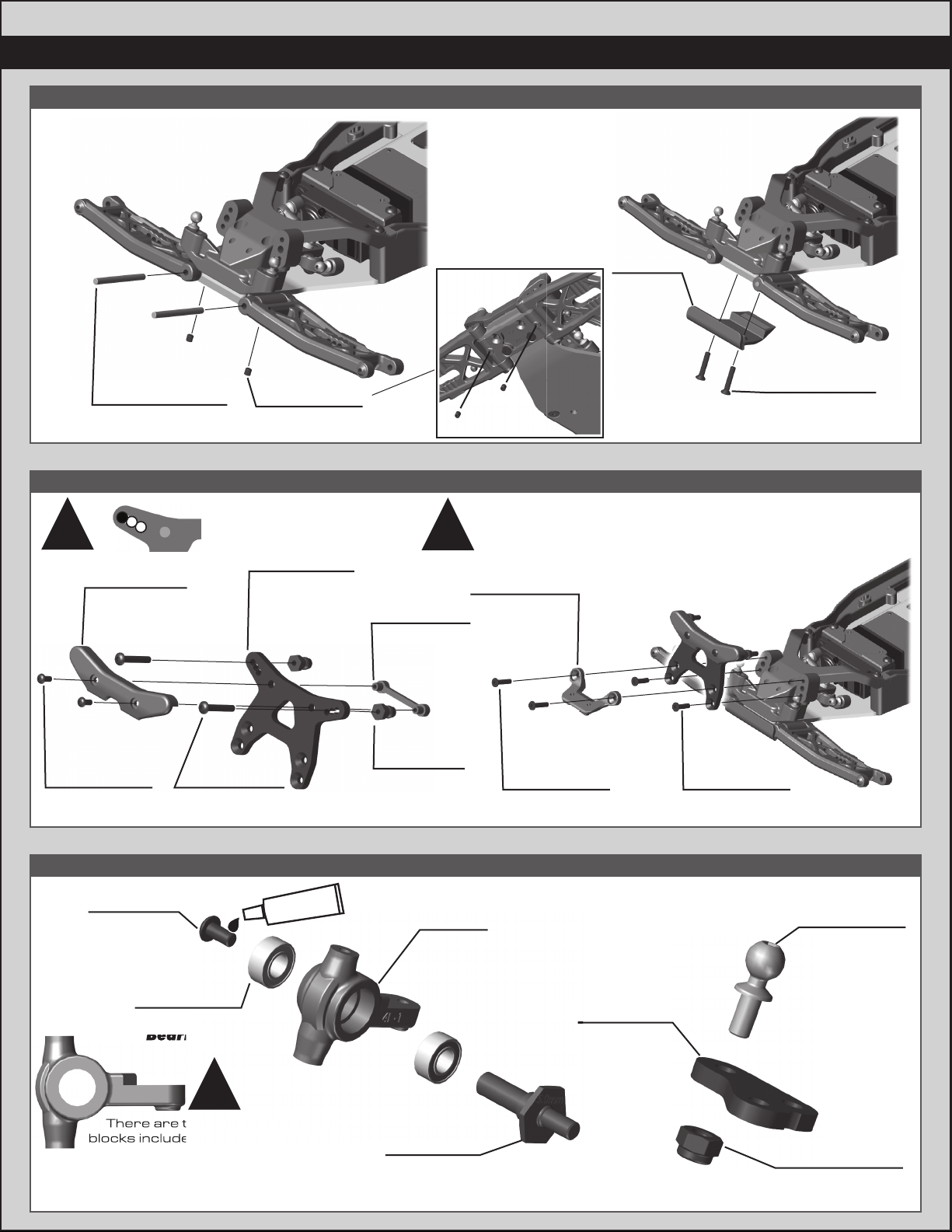

:::: Bag 3 - Step 1Bag 3 - Step 1
:::: Bag 2 - Step 8Bag 2 - Step 8
8
:::: Bag 2 -Bag 2 - Step 7Step 7
!
#91978 - Front Wing Mount is used as a tuning option to
increase front end stabillity by adding a front wing (included).
If you do not use #919778, use #25202
M3x10mm FHCS instead of #89208 M3x14mm FHCS.
25215
M3 Locknut,
black
71144
Steering
Block Arm,
+1mm
91047
Heavy-duty
Ballstud,
6mm
91670
Front Hinge Pin
(Inner, 3x34mm)
25225
M3 x 3mm
Set Screw
x2x2
x2x2 25204
M3 x 16mm
FHCS
91685
Front
Bumper
x2x2
!
25188
M3 x 20mm
BHCS
91815
Shock
Bushing,
10mm
91880
Front Shock
Tower, B6.3,
Gull-Wing
91885
Front Shock
Tower Cover 91885
Front Shock
Tower Nut
x2x2
x2x2
31520
M2.5 x 6mm
BHCS
x2x2
332211
25202
M3 x 10mm
FHCS
89208
M3 x 14mm
FHCS
91978
Wing Mount,
Front
x2x2x2x2
Build 2 (1 left, 1 right)
x2x2
31531
M3 x 6mm
BHCS
91560
5 x 10 x 4
Bearing
91682
Front Axle
91901
Steering
Block
(4mm)
#1596
thread lock
There are two sets of steering
blocks included with your kit, a 3mm
and a 4mm. The 4mm steering
blocks are used for the kit setup.
!
Bearing
There are two sets of steering
blocks included with your kit, a 3mm
4L - 1

:::: Bag 4 - Step 1Bag 4 - Step 1
:::: BagBag 3 - Step 33 - Step 3
9
:::: Bag 3 - Step 2Bag 3 - Step 2
Build 2 (1 left, 1 right)
91049
Heavy-duty
Ballstud,
10mm
25215
M3 Locknut,
black
91901
Caster
Block Insert
(+5°)
There are three caster
block inserts included
(0°, +/- 2.5 °, +/- 5 °).
+5 ° is the standard
insert used.
Tab up =positive caster
Tab down =negative caster
!
91901
Caster
Block
You can install an
optional #31520 screw
to use as a steering
stop setting.
You can install an
optional #4670 set
screw to better hold
the caster block inserts
and hinge pin.
31531
M3 x 6mm
BHCS 31532
M3 x 8mm
BHCS
Build 2 (1 left, 1 right) Build 2 (1 left, 1 right)
Build 2 (1 left, 1 right)
#91670 - Hinge Pin will be
tight in the caster blocks,
but should rotate freely
in the front arms.
Use shorter
screw in front!
!
!
25187
M3 x 14mm
BHCS
89202
M3 x 12mm
BHCS
91676
Caster Hat
Bushing
Top: 2mm
Bottom: 1mm
x2x2
31510
M2 x 4mm
BHCS
91776
Caster Block
Spacer
91670
Front Hinge Pin
(Outer, 3x26mm)
91853
B6.2 Rear
Arms, 73mm
x2x2
x2x2
91737
M3 x 20mm
Set Screw
You can use a dot of CA glue to better secure
the lower shock mounting set screw
11mm
See next
step for pill
chart tips
!
Arm Mount C: 1° Out 91882
Aluminum
Arm Mount, C
92014
Arm Mount
Inserts
(1°)
x2x2
31541
M3 x 6mm
FHCS
x2x2
#1596
thread lock
BC A

10

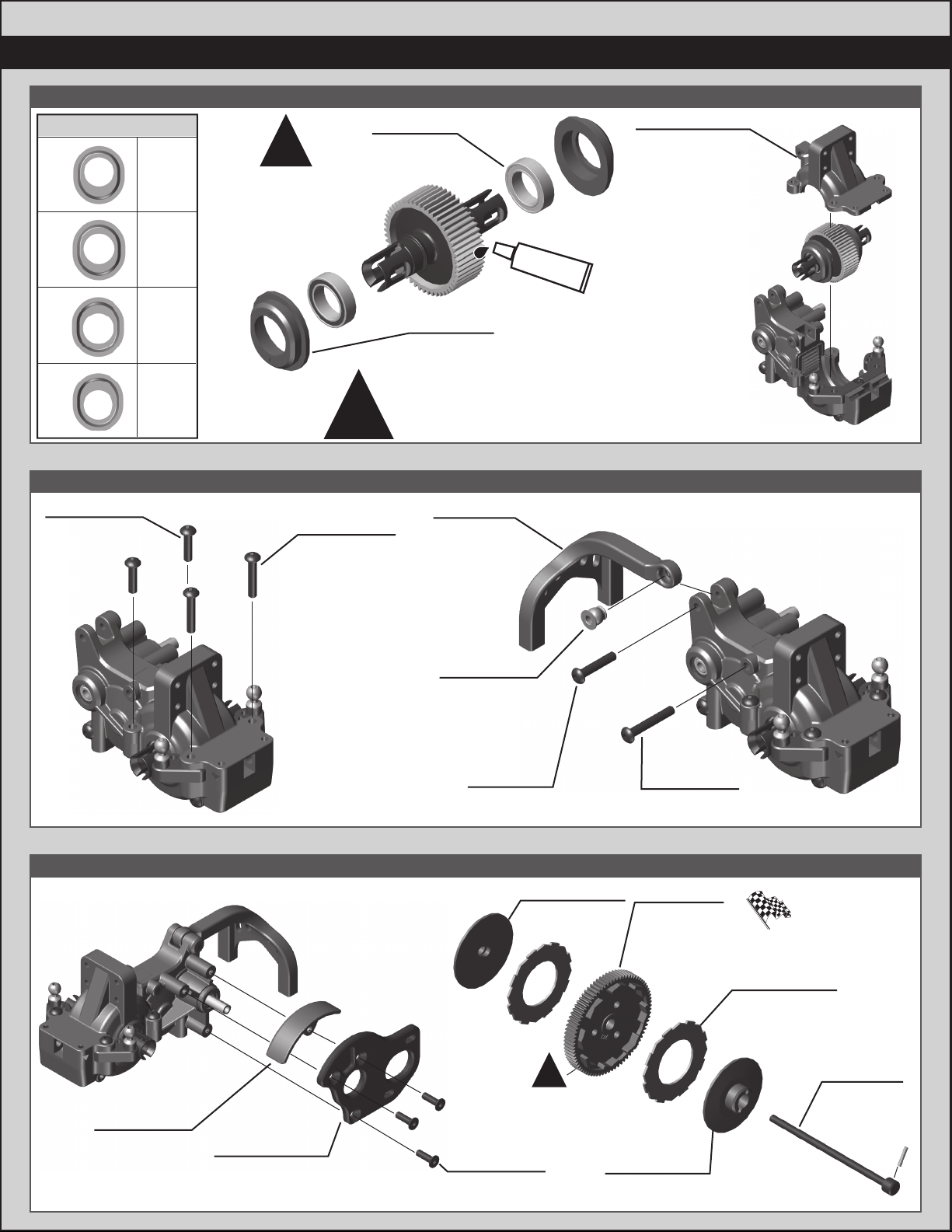

:::: Bag 5 - Step 2Bag 5 - Step 2
:::: Bag 5 - Step 1Bag 5 - Step 1
:::: Bag 4 - Step 2Bag 4 - Step 2
8680
5 x 8 x 2.5mm,
Bearing
6581
3/32 Carbide
Diff Balls
91419
Diff Gear,
52T
91701
Ball Diff
Outdrive
91701
Ball Diff
Outdrive
7666
Diff Drive
Ring
7666
Diff Drive
Ring
x14x14
#6591
diff lube
#6591
diff lube
#6591
diff lube
Build Tip:
The bottom side of the gear has
3 injection dots. This side faced
down will keep the diff balls from
falling thru the holes
Build Tip:
Install the first washer (groove
up), add grease #6588. Install
the caged thrust washer.
Add grease on top of the balls,
then install the 2nd washer
(grooves down).
Build Tip:
Do this entire step with the
diff screw on the end of your
wrench for better control.
!
!
!
The (#91882) C and (#91883) D aluminum arm
mounts allow for a large amount of setup
combinations when using the (#92014) 0.5°
and 1°arm mount inserts.
For a complete list of pill setup combinations, please
visit our website by using the link below.
http://bit.ly/B6PillChart
!
Anti-SquatToe-In
3°
Kit Setup
2°
Kit Setup
Arm Mount C:
1° Out
° Out
° Out
Arm Mount D:
1° Out Down
° Out Down
° Out Down
Arm Mount D:
1° Out Down
91685
Rear
Bumper
91883
Aluminum
Arm Mount, D
91670
Rear Hinge Pin
(Inner, 3.5x48mm)
92014
Arm Mount
Inserts (1°)
91853
Rear Arm
Spacer
x2x2
x2x2 x2x2
#6588
black grease
91990
Thrust
Washer
91990
Caged
Thrust
Bearing
6573
Diff Thrust
Bolt
x2x2
Install the first washer (groove
up), add grease #6588. Install
Add grease on top of the balls,
Do this entire step with the
diff screw on the end of your
wrench for better control.
8680
5 x 8 x 2.5mm,
Bearing

11
:::: Bag 6 - Step 1Bag 6 - Step 1
:::: Optional Anti-Roll Bar Build - NOT INCLUDED
:::: Bag 5 - Step 3Bag 5 - Step 3
As you tighten the diff bolt, you will notice the T-nut ears moving
closer to the bottom of the outdrive slot. This compresses the
spring behind the T-nut. The spring should be completely
compressed at the time the T-nut reaches the end of the slot.
Caution! Pay close attention to the feeling when the spring is
completely compressed. Do not overtighten the bolt. When you
feel the spring completely compressed, loosen the diff bolt 1/8
of a turn. Your diff should now operate smoothly but with
resistance as the outdrives move in opposite directions.
After you have driven the car once, re-check the diff setting.
6575
Diff
cover
6575
Locking
T-nut
6582
Diff
thrust
spring
91791
B6.1 Laydown
Gearbox
(right & left)
91560
5 x 10 x 4,
Bearing
89203
3x16mm
BHCS
31472
2.5x8mm
FHCS
91716
Idler Gear
39T
91799
B6.1 Laydown
Top Shaft
91132
Idler Gear
Shaft,
Aluminum
x4x4
x2x2
91048
Heavy-duty
Ballstud, 8mm
x2x2
x2x2
x2x2
91775
B6.1 Rear
Ballstud Mount,
Aluminum
31383
Ballstud
Washers,
5.5x2.0mm,
Blue Aluminum
31382
Ballstud
Washers,
5.5x1.0mm,
Blue Aluminum
#1596
thread lock
25225
M3 x 3mm
Set Screw
91821
Anti-Roll
Bar Collar
91823
Anti-Roll Bar,
Gray (1.3mm)
!
Build x2 (right and left side)
91997
Steering Link
Ball Cup
x2x2
91821
Anti-Roll
Bar Pivot
4671
M3 x 10mm
Set Screw
2mm
Do not overtighten
#25225 - M3 x 3mm set
screw. You could bend the bar!
25225
M3 x 3mm
Set Screw
x2x2
bar end is flush
with pivot tip
NOT INCLUDEDNOT INCLUDED

12
:::: Bag 6 - Step 4Bag 6 - Step 4
:::: Bag 6 - Step 3Bag 6 - Step 3
:::: Bag 6 - Step 2Bag 6 - Step 2
Diff Height
1
0
3
2
Kit
Setup
2
1
2
1
3
0
3
0
91791
B6.1 Laydown
Gearbox Top
89202
3 x 12mm
BHCS
89203
3 x 16mm
BHCS
x2x2
x2x2
91819
B6.1 Shock
Pivot Ball
91709
Laydown
Chassis
Brace
89203
3 x 16mm
BHCS
25188
3 x 20mm
BHCS
25202
3 x 10mm
FHCS
91813
B6.1 Gear
Guard 71145
T6.2 Laydown
Motor Plate
x3x3
92295
Octalock
Spur Gear,
78T 48P
91799
B6.1 Top
Shaft Screw
and Pin
x2x2
92286
FT Octalock
LCF Slipper
Pad, 19mm
91803
B6.1 Slipper
Hub, Inner
91804
B6.1 Slipper
Hub, Outer
!
#92295 spur gear
walls should point
away from gear box.
There’s also a
72T, 48P spur
gear (#92293)
included for
stock motor use!
#6591
diff lube
Add a drop of Diff
Lube (#6591) to
the teeth of the diff
gear, idler gear, and
top shaft.
!
91792
B6.1 Diff
Height Insert
91563
10x15x4
Bearing
x2x2
x2x2
!
Diff Height Inserts:
The number on top
is the setting.
Stock diff height is 2.

13

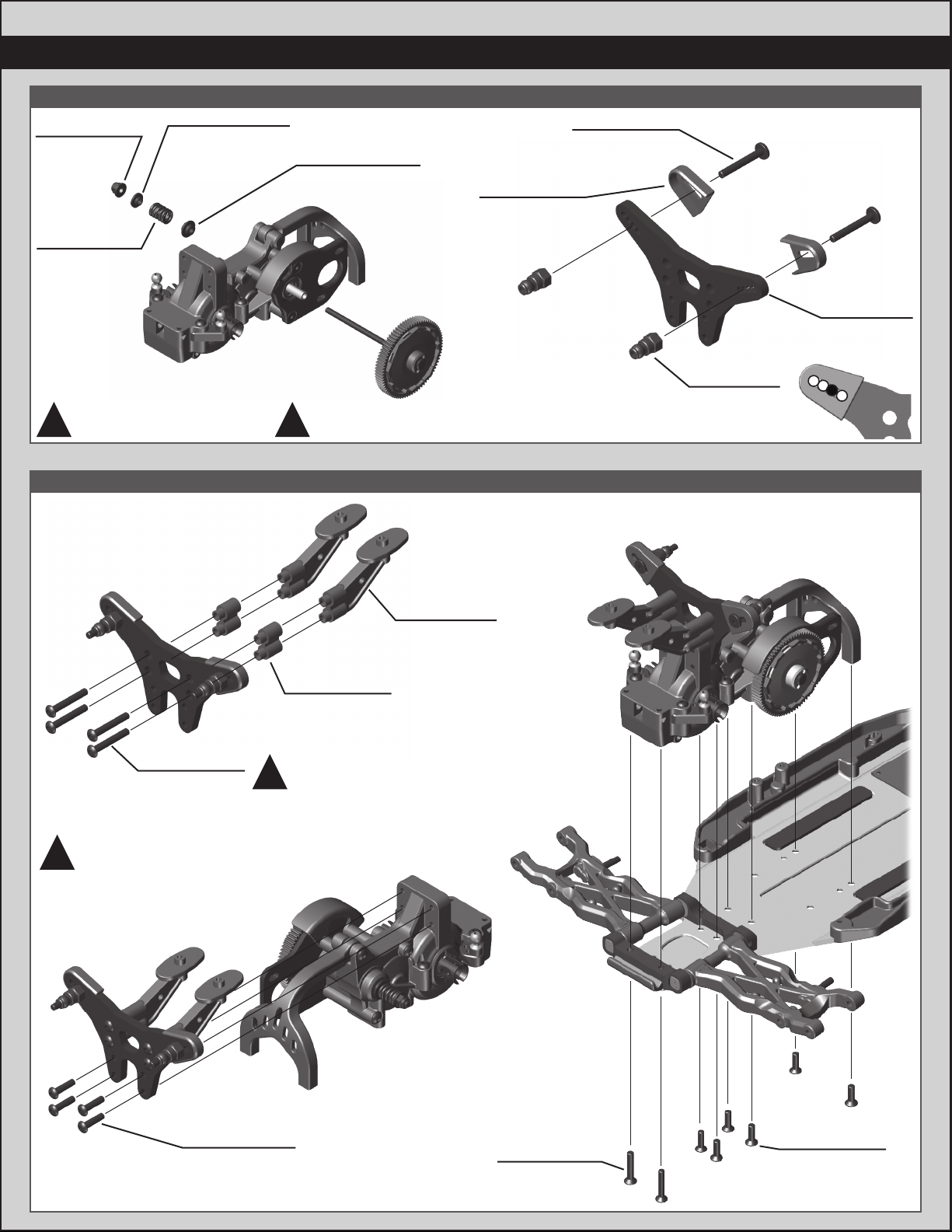

:::: BagBag 6 - Step 66 - Step 6
:::: Bag 6 - Step 5Bag 6 - Step 5
See page 20 for gear
mesh, and slipper clutch
setting instructions!
! !
Set nut
flush with
top shaft.
91801
Slipper Spring
Adapter, Inner
91801
Slipper Spring
Adapter, Outer
91801
B6.1 Slipper
Spring
25612
M3 Locknut,
Flanged
33
442211
41095
M3 x 22mm
LP SHCS
91885
Rear Tower
Cover
x2x2
x2x2
92159
Shock
Bushing,
10mm
91881
Rear Shock
Tower, B6.3
x2x2
89202
M3 x 12mm
BHCS
x4x4
!
!
#25188 x4 (M3x20mm)
#89202 x4 (M3x12mm)
*use 12mm length screws
if rear wing mount spacer
is removed.
25188
M3 x 20mm
BHCS
x4x4
x2x2
x2x2
91718
Rear Wing
Mount
91718
Rear Wing
Mount Spacer
25202
M3 x 10mm
FHCS
x6x6
25204
M3 x 16mm
FHCS
x2x2

14

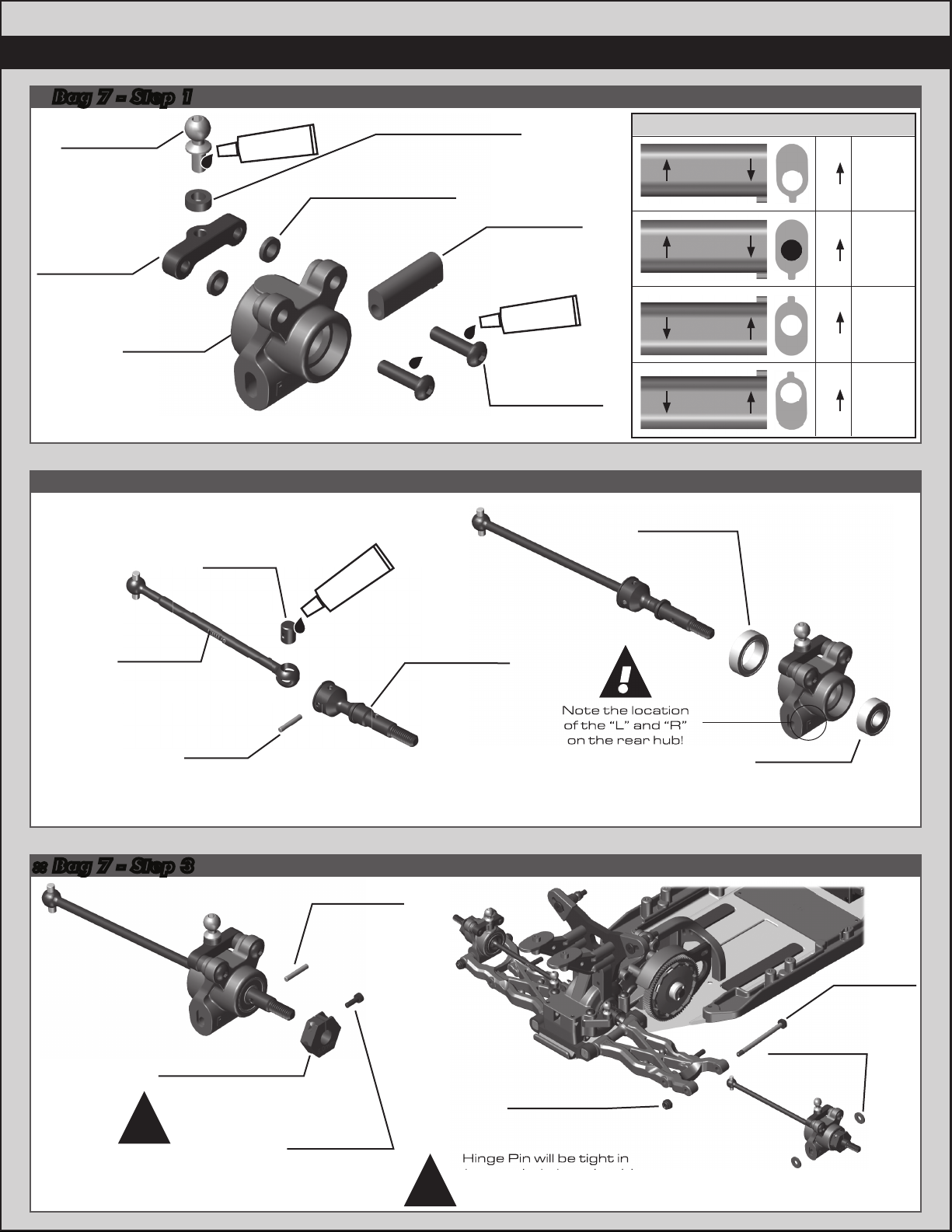

:: Bag 7 - Step 3
:::: BagBag 7 - Step 27 - Step 2
:::: Bag 7 - Step 1
Build x2 (right and left side)Build x2 (right and left side)
91611
M1.6 x 5mm
SHCS
91463
CVA Wheel
Hex Pin
91609
Clamping Wheel
Hex, 5mm Offset
(rear)
Do not overtighten the
1.6 x 5mm SHCS into the
Clamping wheel hex.
!
Hinge Pin will be tight in
the rear hub, but should
rotate freely
in the rear arms.
Note the location
of the “L” and “R”
on the rear hub!
!
!
Build x2 (right and left side)Build x2
#6588
black grease
Note the location
of the “L” and “R”
on the rear hub!
!
91563
10 x 15 x 4
Bearing
91567
5 x 12 x 4
Bearing
91859
B6.2 CVA
Axle, +2mm
91438
CVA Pin
91438
CVA
Coupler
91860
CVA Bone,
69mm
Hinge Pin will be tight in
the rear hub, but should
92179
Rear Hub
Spacer
x2x2
92188
Rear Hub
Hinge Pin
25215
M3 Locknut
Build x2 (right and left side)
89202
M3 x 12mm
BHCS
x2x2
91047
Heavy-duty
Ballstud,
6mm
92180
Rear Hub
Link Mounts
91857
B6.2 Rear
Hubs
92179
Rear Hub
Inserts
31382
Ballstud Washers,
5.5x1.0mm, blue
31383
Ballstud Washers,
5.5x2.0mm, blue
x2x2
Rear Axle Height
1
0
3
2
+3mm
+2mm
Kit
Setup
+1mm
+0mm
0
3
1
2
1
2
0
3
#1596
thread lock
#1596
thread lock

15
:::: Bag 8 - Step 3Bag 8 - Step 3
:: Bag 8 - Step 2
:::: Bag 8 - Step 1Bag 8 - Step 1
Build x2 (right and left side)
Rear Camber Turnbuckle
24.20mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
91722
Ball Cup
91722
Ball Cup
91723
Turnbuckle
3x48mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Build x2 (right and left side)
Front Camber Turnbuckle
22.50mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
91722
Ball Cup
91722
Ball Cup
91722
Ball Cup
91722
Ball Cup
91723
Turnbuckle
3x48mm
91723
Turnbuckle
3x48mm
27.90mm
Steering Turnbuckle
Build x2 (right and left side)
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
has the left hand threads!
!
#6588
black grease
Letter L/R on plastic will be
reversed when installed,
follow the image!
!
#6588
black grease
#6588
black grease

16
:::: Bag 9 - Step 3Bag 9 - Step 3
:::: Bag 9 - Step 2Bag 9 - Step 2
:::: Bag 9 - Step 1Bag 9 - Step 1
Build x2 front shocks
Build x2 front shocks
Build x2 front shocks
Build x2 rear shocks
Build x2 rear shocks
Build x2 rear shocks
Racers Tip:
Use a marker over
the numbers on the
pistons to make
them easily visible!
Mount the shock
pistons with the
number facing up!
!
91936
FT 13mm
Shock Piston,
2mm [2x1.6]
“front”
91937
FT 13mm
Shock Piston,
2mm [2x1.7]
“rear”
91615
V2 3 x 21
Shock Shaft
TiN “front”
31510
M2 x 4mm
BHCS
31510
M2 x 4mm
BHCS
89278
2.5mm
Washer
89278
2.5mm
Washer
91619
V2 3 x 27.5
Shock Shaft
TiN “rear”
Lightly rub shock oil
on the O-ring before
installation!
Racers Tip:
Coating the O-rings
with green slime
(#1105) helps seal
& reduce O-ring
swell! Green slime
not included in kit!
!
91920
13x23mm
Shock Bodies
“front”
91922
13x27.5mm
Shock Bodies
“rear”
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Spacer
91996
13mm Shock
Spacer
91493
X-Ring
91493
X-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
91996
13mm
Shock Cap
O-Ring
91996
13mm
Shock Cap
O-Ring
x2x2 x2x2
x2x2 x2x2
#1105
green slime
#1105
green slime
Shock fluid
There are 3 lengths of
shock eyelet in the kit.
Pay attention to length when
building as these affect your
droop and uptravel.
Lightly rub shock
fluid or green
slime on threads
!
!
#1105
green slime
91997
Shock Eyelets
Front Shocks
+2mm
91997
Shock Eyelets
Rear Shocks
+4mm
91819
Shock
Pivot Ball
91819
Shock
Pivot Ball
0mm +2mm +4mm
droop and uptravel.
0mm
+2mm
+4mm
+2 +4
0

17
:::: Bag 9 - Step 6Bag 9 - Step 6
:::: Bag 9 - Step 5Bag 9 - Step 5
:::: Bag 9 - Step 4Bag 9 - Step 4
Front Shock: 30wt
#5422
Rear Shock: 30wt
#5422
Shock fluid Shock fluid
Steps 9-10Step 8Steps 6-7Steps 4-5Steps 2-3
Shock Bleeding Steps:
1. Before assembly, get each bleed
screw and thread it 1-2 turns into
the shock cap, then remove the
screw. This will make it easier when
you are bleeding your shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone
shock fluid.
4. Slowly move the shock shaft up and
down to remove air from under the
piston.
5. Wait for bubbles to come to surface.
6. Fill shock body to top with silicone
shock fluid.
7. Place a drop of oil in the cap and on
cap threads.
8. Install cap (without bleed screw) and
tighten completely.
9. Slowly compress shaft all the way to
bleed excess silicone shock fluid out
the hole in the cap (use rag around
shock to catch excess fluid).
10. Install M2x4mm button head
screw until snug while shaft is fully
compressed.
#5422
31510
M2 x 4mm
BHCS
91926
13mm
Shock Cap
Stroke
Front: 21mm
Rear: 27.5mm
Stroke
Stroke
91928
13mm
Threaded
Collar
91996
13mm
Threaded
Collar
O-ring
x4x4
x4x4
Build x2 front shocks
Build x4
Build x2 rear shocks
91941
13mm Front
Spring, Gray
(3.40lb)
91948
13mm Rear
Spring, White
(1.90lb)
Racers Tip:
Use your finger to rub
shock fluid on the O-ring
for smoother
adjustment!
91926
13mm Shock
Spring Cup
“Rear - 0mm”
91926
13mm Shock
Spring Cup
“Front - 5mm”
Front:
4.50mm
Rear:
6.50mm
#91926 13mm Shock Spring Cups
0mm 5mm 9mm

18
:::: Bag 9 - Step 7Bag 9 - Step 7
:::: Bag 9 - Step 8
3322
BC A
11
Build x2 (right and left side)
25612
M3 Locknut
w/Flange
Build x2 (right and left side)
Use outside
hole in
front arm!
!
25188
M3 x 20mm
BHCS
x2x2
25612
M3 Locknut
w/Flange
Make sure the
flange on the
shock pivot ball is
towards the rear
arm.
!
33
4422
BC A
11

19
:::: Bag 10 - Step 1Bag 10 - Step 1
:::: Bag 10 - Step 2Bag 10 - Step 2
Fan not included!
25201
M3 x 8mm
FHCS
89203
M3 x 16mm
BHCS
91978
Fan Mount
#1
Fan mount options:
#1 - Laydown gearbox
#2 - Layback gearbox
#3 - Endbell location
#4 - Plug (no fan)
!
See page 25 for
gear mesh setting
instructions!
!Motor not included!
Pinion & Setscrew
not included!
31532
M3 x 8mm
BHCS
x2x2
x2x2 89218
3 x 8mm
Washer
123 4

20
:::: Bag 10 - Step 2Bag 10 - Step 2
:::: Bag 10 - Step 3Bag 10 - Step 3
31531
M3 x 6mm
BHCS
89218
3 x 8mm
Washer
x2x2
x2x2
x2x2
91731
Battery
Strap, B6
91731
B6 Battery
Strap Nut
Make sure the
battery strap
shoulder screw is
flush with the top of
your battery pack!
!
RRFF
91731
Battery
Strap, B6
91730
Battery Strap
Shoulder
Screw
x2x2
ESC not
included!
6727
Servo
Tape
Antenna can be mounted
on the right or left side of
the chassis.
!
Receiver not
included!
Transponder
not included!
25225
M3 x 3mm
Set Screw
6338
Antenna
Tube & Cap
91158
M3 x 4mm
BHCS
x2x2
