Axial SCX10 II 2000 JEEP CHEROKEE User manual

2

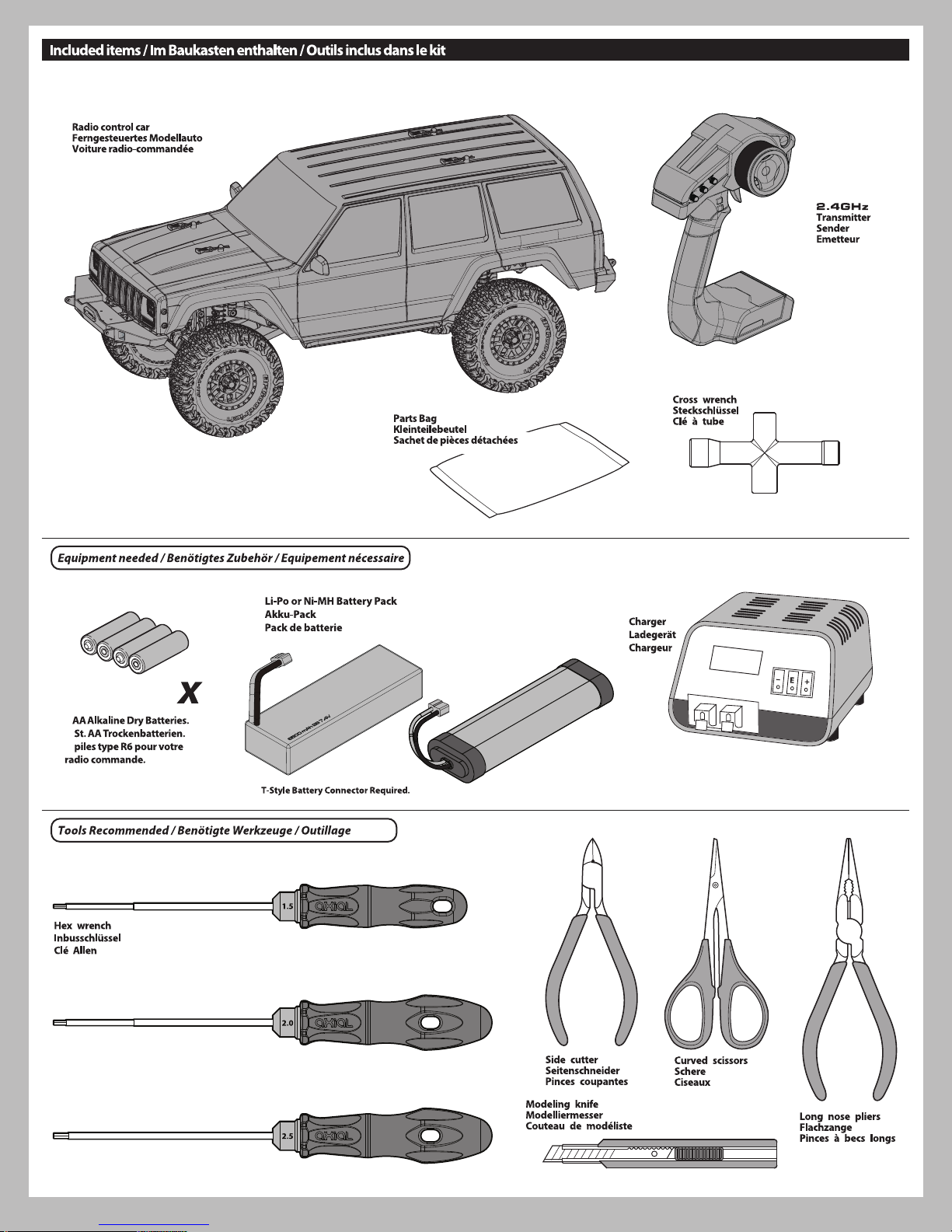

3
4
4
4
4

4

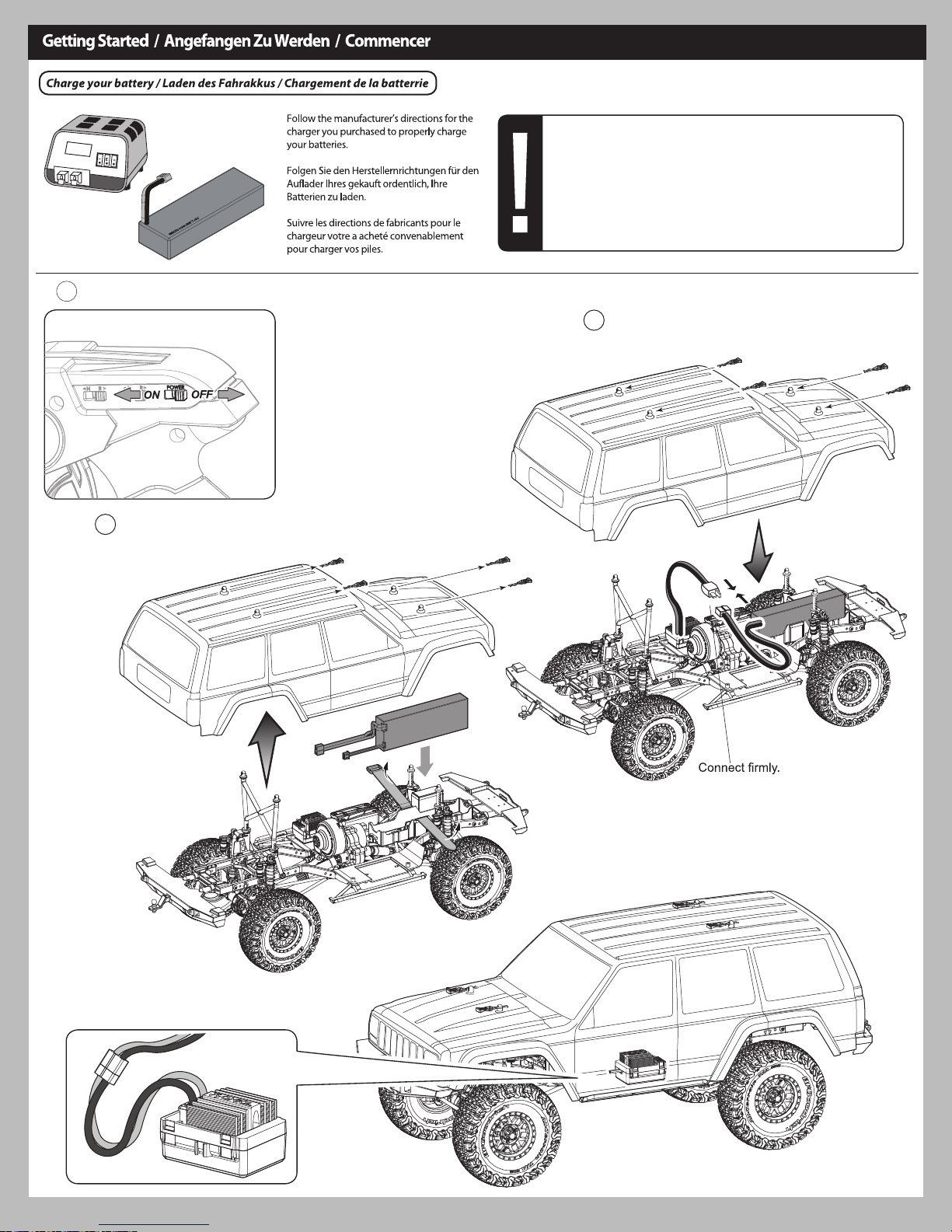

Note:
Power to the vehicle is controlled
by connecting / disconnecting the
battery.
2. Remove the body clips and body.
Install the battery and secure with Velcro straps.
r.
1. Turn on the transmitte
3. Connect the battery to ESC.
Re-attach the body with body clips.
Make sure charger is correct for battery type selected for use.
Examples: Do NOT charge Lipo batteries with Nickel Metal Hydride
charger. Do NOT charge Nickel Cadmium batteries Lipo charger.
Stellen Sie sicher, Ladegerät ist korrekt für Batterietyp zur Verwendung ausgewählt.
Beispiele: Laden Sie keine Lipo-Akkus mit Nickel-Metall-Hydrid-Ladegerät. Laden Sie
keine Nickel-Cadmium-Akkus Lipo Ladegerät.
Assurez-vous que le chargeur est correcte pour le type de batterie sélectionné
à l'emploi. Exemples: Ne pas charger les batteries Lipo avec chargeur hydrure
métallique de nickel. Ne chargez pas les batteries au nickel-cadmium Lipo chargeur.

5
Front Body Mount
Front Bumper
C-Hub
Receiver Box
Steering Rack
Steering Knuckle
Transmission
Lower 4-link Bar
ESC Plug
Shock Absorber
Tactic TSX45 Servo
Battery Strap
Rear Body Mount
Battery Tray
Spur/Pinion/Slipper
(Under Cover)
Motor 35T
AE-5 Electronic
Speed Control(ESC)
Rear Bumper
Differential
(inside axle housing)
Rock Rail
Driveshaft
Upper 4-link Bar
Top View Parts

6
Getting-Started Checklist
The following checklist is a guide for getting you vehicle running for the first time.
Read ‘Cautions’ in Manual. (Page 2) Familiarize yourself with vehicle and
its components.
Even though the vehicle is new check
driveshaft setscrews and other screws to
make sure they are tight from the factory.
Charge battery pack. (Page 4) Install 4X AA batteries into Transmitter.
(Page 7)
Install battery pack in vehicle. (Page 4)
Check to make sure steering and throttle
operation work correctly. (Page 7)
Range check radio system. (Page 7)
Drive vehicle, challenge yourself and
have fun!
Maintain vehicle. (Page 7)
Turn on transmitter first, then plug in
battery. (power ESC) (Page 4)

7
6
KEEP CHASSIS FREE OF DIRT
OR DEBRIS
CHECK FOR LOOSE SCREWS
ON CHASSIS ESPECIALLY
THE KNUCKLE, C-HUB AND
AXLE LOCKOUT SCREWS
CHECK FOR WEAR ON
THE BALL JOINTS IN THE
STEERING AND SUSPENSION
LINKS
(REPLACE IF NECESSARY)
CHECK WHEEL NUTS MAKING
SURE THEY’RE SNUG
CHECK TIRES MAKING SURE
THE BEADS ARE STILL FIRMLY
BONDED TO THE ENTIRE
CIRCUMFERENCE OF THE RIM
REPLACE TRANSMITTER
AA’S IF THE GREEN LIGHT IS
BLINKING
INSPECT THE SPUR AND
PINION GEARS FOR DAMAGE
CHECK SLIPPER CLUTCH IF
APPLICABLE, FOR PROPER
OPERATION (SEE PAGE 25 STEP
23 FOR SETUP INSTRUCTIONS)
CHECK DRIVELINE FOR
SMOOTH BIND-FREE
OPERATION
CHECK FOR ANY LOOSE
CONNECTIONS OR FRAYED
WIRING
INSPECT SHOCK
ABSORBERS FOR SMOOTH
DAMPENED OPERATION
CHECK RECEIVER ANTENNA
TO CONFIRM IT’S NOT
DAMAGED
CHECK STEERING
OPERATION FOR ANY BINDS
REPLACE ANY NOTICEABLE
BENT OR BROKEN PARTS
Maintaining Your Vehicle
Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative
maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain
your vehicle.
Range-Checking Your Radio System
The radio system should be checked before operating the vehicle to ensure it’s operating properly and has adequate range.
1. Turn on the transmitter and then connect the battery in the vehicle.
2. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
3. Walk away until you are at the farthest distance you plan to operate the vehicle.
4. Steer the vehicle back and forth and throttle both forward and reverse making sure there is no erratic behavior.
5. If any erratic behavior is exhibited do not operate the vehicle, call customer service for further assistance.
RANGE-CHECKING FOR DISTANCE
SCREWS AND RE-THREAD
LOCK IF NECESSARY
CHECK DRIVESHAFT SET

8

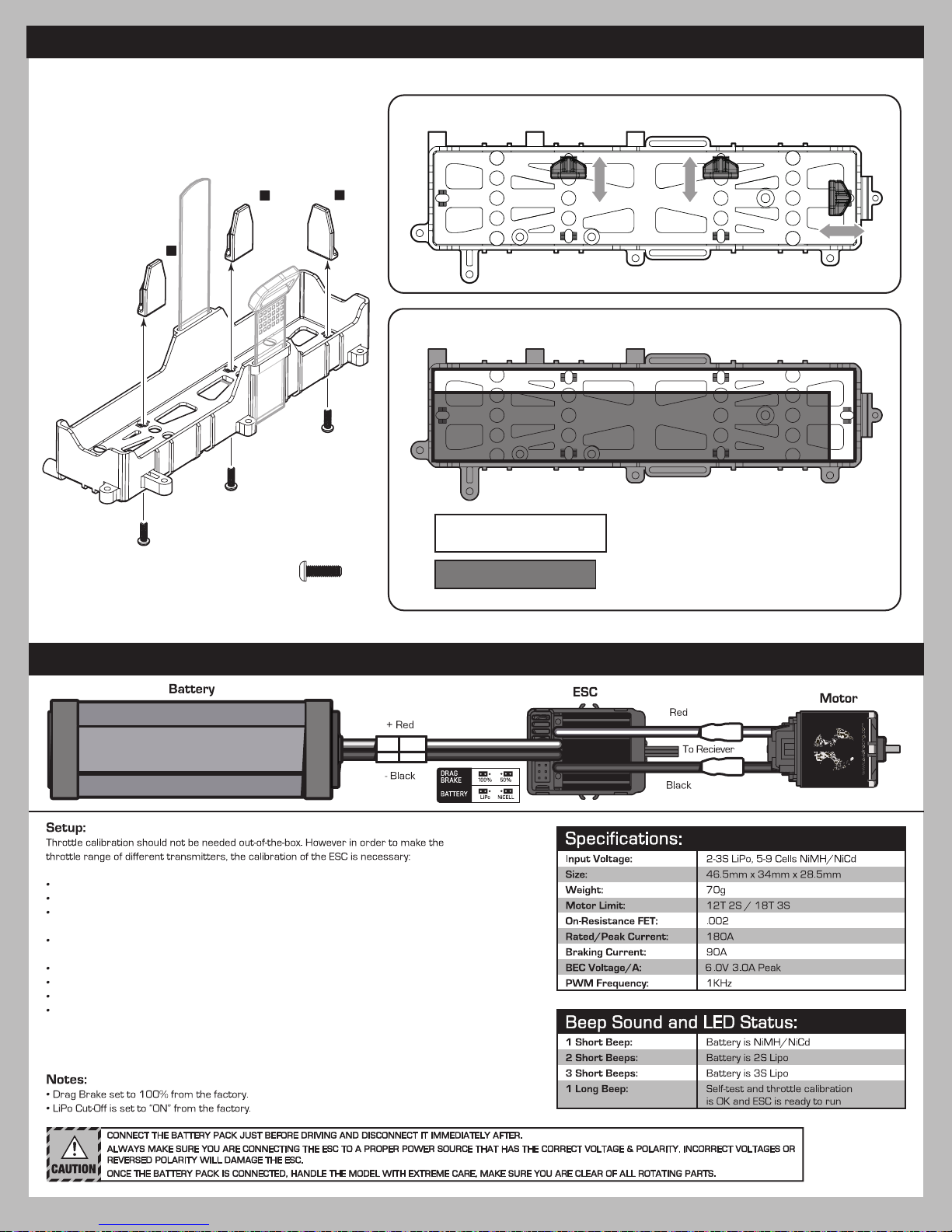

AE-5 Forward/Reverse ESC w/ Drag Brake
Mount the ESC in an area that is well ventilated and isolated from vibration and shock.
Connect the ESC motor wires to the motor red-red & black-black.
Plug the receiver with into the throttle channel on the receiver. The black negative wire should be
towards the outside of the receiver.
Before plugging the battery into the ESC, make sure your transmitter is on and the throttle trim is set at
zero.
Connect the battery to the ESC, this will turn on the ESC.
Test forward and reverse control using the transmitter.
To calibrate the ESC, make sure the transmitter is on and the throttle control is at neutral.
Connect the battery to the ESC and wait 3 seconds to let the ESC initiate a self-test and automatic
throttle calibration.
When the ESC is ready to run a long beep sound will be emitted from the motor.
Always disconnect the battery when the vehicle is not in use.
Battery Tray
Adjust to the appropriate range.
Suitable battery size.
5.75” x 1.2” (147mm x 32mm)
5.44” x .94” (138mm x 24mm)
AX31373
AX31373
AX31373
AX31388 3
AX31388 3AX31388 3
AX31373
M2.6x8mm x3

9
NOTES
Spur
12
13
14
15
16
17
18
56
45.50
42.00
39.00
36.40
34.13
32.12
30.33
60
48.75
45.00
41.79
39.00
36.56
30.559
30.956
2016 SCX10 Spur/Pinion Gear Ratio Chart - AX Transmission

10
AXA0286
AX31390 4
AX31390 4
AX31390 4
AX31390 4
AX31393 3

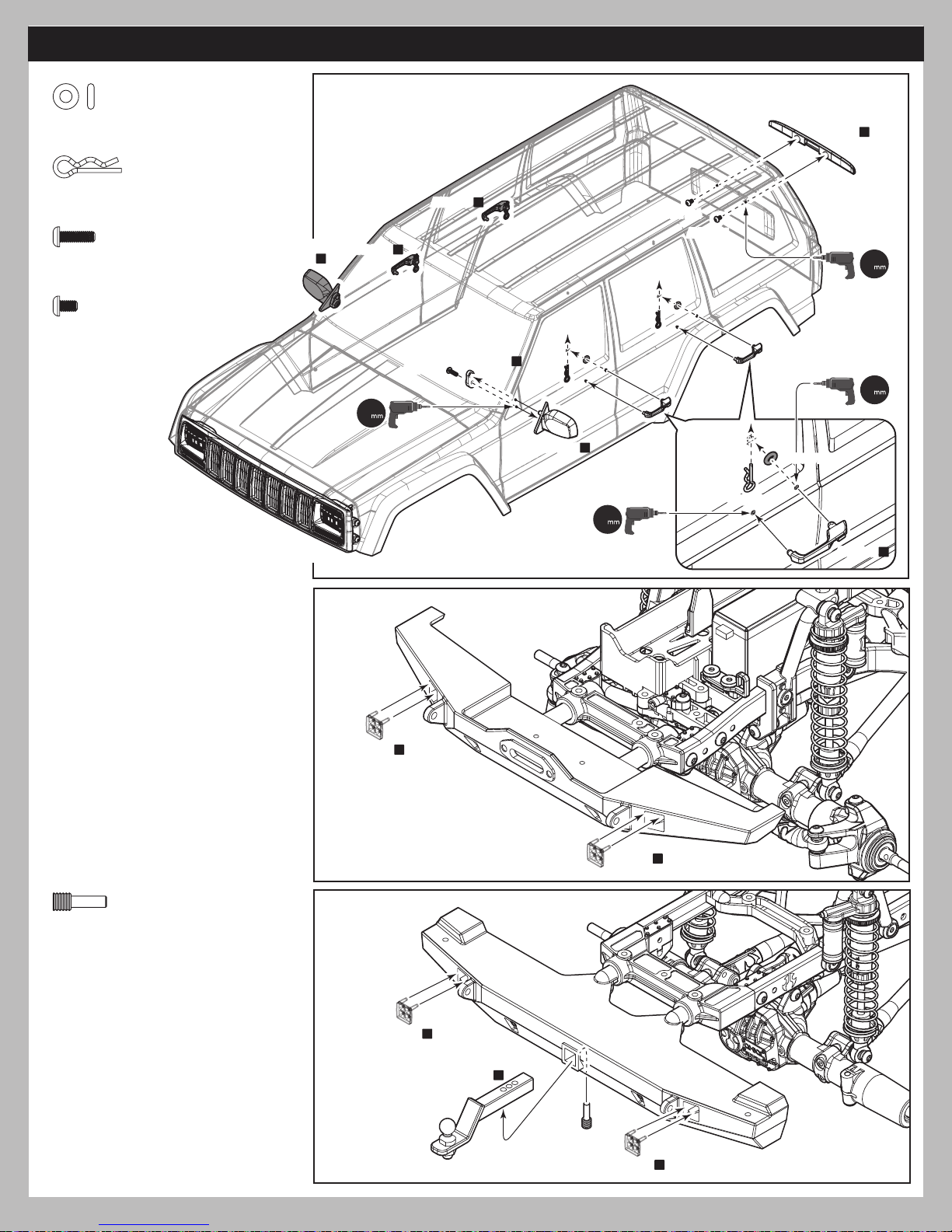

Details Install
Front
Rear
3
3
3
2
AXA0286
M4x2.5x13mm
x1
AXA1179
2.5x1.5mm
x4
AX31374
3mm Body Clip x4
AX31373
M2.6x8mm x2
AX31194
M2.6x4mm
x2
AX31373
AX31374
AXA1179
AX31194
AX31389 8
AX31389 4
AX31389 3AX31389 6
AX31389 6
AX31389 5
AX31389 7
AX31194

11

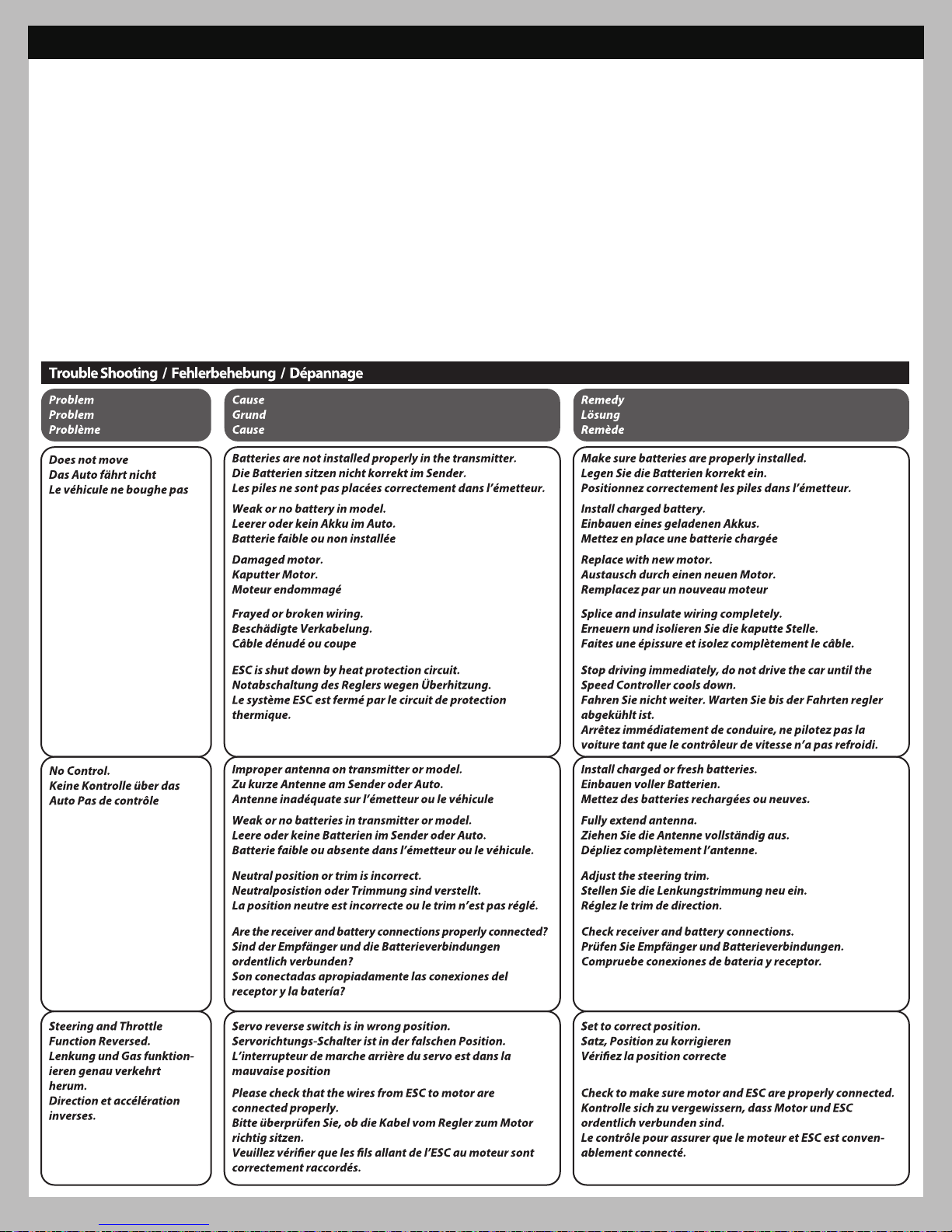

AXIAL LIMITED WARRANTY
Your Axial product is warranted to be free of defects in materials and workmanship when new in the factory sealed box. This warranty does not cover damages due to normal wear and tear,
users' failure to perform routine maintenance, error of assembly or installation, modications or addition of aftermarket parts or option parts. This warranty lasts as long as the original
purchaser owns the product and is not transferable (verified by dated itemized sales receipt accompanied with product). In the event of a defect under this warranty, Axial will, at
our discretion, repair or replace the product, provided our inspection indicates that an original defect exists. Axial provides a 10-day warranty from the date of purchase on electronics
(i.e. servo, esc, radio). Axial reserves the right to replace any product which is no longer available with a product of comparable value and function. If Axial determines the repair is not
covered under warranty guidelines, there could be a charge applied for the repair and return shipping charges. Note: Purchasing products from unauthorized distributors may void warranty
and prevent support and service.
INTERNATIONAL CUSTOMER WARRANTY
Please return product to the dealer where the purchase was made. If your Axial product purchase was made through an on-line retailer, any warranty issues must be taken care of by that
retailer. Axial assumes no responsibility for Axial products sold internationally by on-line retailers.
REPAIR
For warranty repair, please contact Axial Customer Service at (877) 64-AXIAL (877-642-9425).
HOURS AVAILABLE:
8:00 am - 5:00 pm Monday through Friday, Central Time.
Warranty Info

12
AX80018
Hardware Parts Tree x2
AX80006
Servo Set x1
AX80078
Transmission Spur Gear Cover x1
AX80009
Transmission Set x1
AX80030
61-90mm
Shock Body x2
AX80029
Shock Cap Parts Tree x4
AX31114
WB8-HD Driveshaft x2
AX31186
M4 Rod End Set x3
AX8079
Wheel Cap x1
AX31379
SCX10 II Skid Plates x1
AX31415
1.9 Method Mesh Wheel
26mm wide
x4
AX31027
Spur Gear 32P 56T x1
AX80032
10mm Shock Parts Tree x1
AX31385
SCX10 II Side Plates x1
AX31380
SCX10 II Shock Hoops x1
AX31418
SCX10 II Chassis Rails x1
AX31381
AR44
Steering Knuckles
x1
AX31383
AR44
Straight Axle adapters x1
AX31382
AR44 Knuckle Carrier x1
AX31401
AR44 Axle Housing x2
AX31384
AR44 Differential
Cover and Link Mounts (Red) x2

13

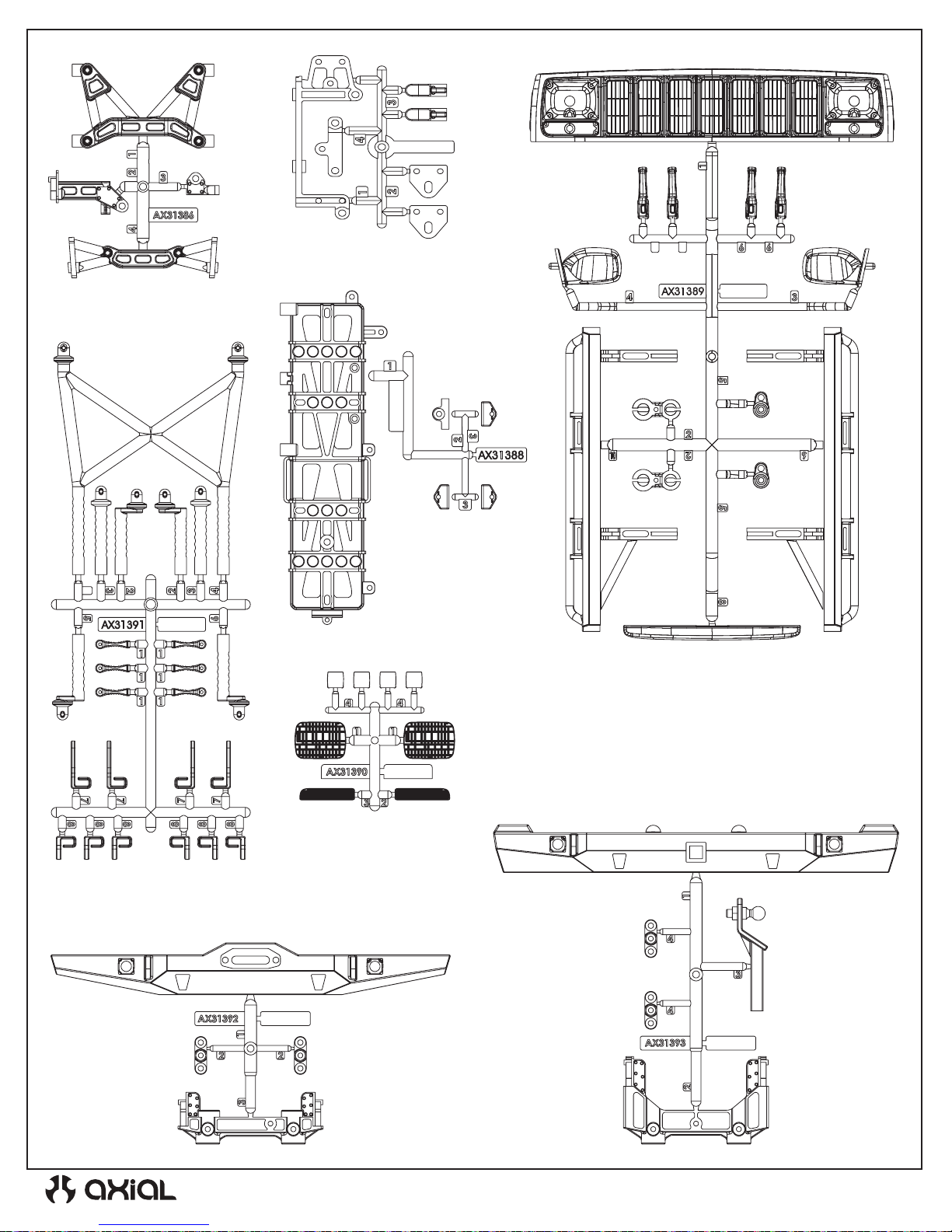

AX31388
SCX10 II Battery Tray x1
AX31389
2000 Jeep® Cherokee Exterior Details x1
AX31390
Headlight and Turn Signal Lenses x1
AX31386
SCX10 II Frame Braces x1
AX31387
SCX10 II Servo Mounts x1
AX31392
JJCROffroad Vanguard
Front Bumper x1
AX31393
JCROffroad Vanguard
Rear Bumper x1
AX31391
SCX10 II Body Posts x1

14
AX30146
Shock Shaft 3x50mm x4
AX30413
Slipper spring 8.5x12 x1
x1
AX30427
Narrow 12mm Aluminum Hub x4
AX31083
Radio Box Seals x1
A
Pad
X31068
Slipper x2
AX31148 x4
WB8-HD Driveshaft Coupler Set
AX31026
Slipper Plate x2
AX31145
Spring 12.5x60mm 2.63 lbs/in - (Yellow) x2
AX31441
Spring 12.5x60mm1.13lbs/in - (White) x2
AX31404
AR44 Differential Locker x2
AX31405
Heavy Duty Bevel Gear Set
30T/8T x2
AX30724
Pinion Gear 32P 13T x1 AX31180
Aluminum Spur Gear Spacert x1
AX30491
AX10 RTR Motor Plate x1
AX30435
Steel Outdrive Shaft x1
AX80010
Gear Set 52T/28T x1
AX31149
Slipper Drive Gear Shaft 5x54.50mm x1
AX31468
M4x80mm Steel Links x2
AX31473
M4x92mm Steel Links x1
AX31469
M4x103mm Steel Links x2
AX31474
M4x114mm Steel Links x2
AX31470
M4x124.5mm Steel Link x2
AX31467
M4x128mm Steel Links x1
AX31408
AR44 Straight Axle Shaft 5x106mm x2
AX31402
AR44 Universal Axle Set x2

15
AXA013
M2x6mm Hex Socket Cap Head x9
AXA014
M2x8mmHex Socket Cap Head x6
AXA1070
Washer 3x6x0.5mm x2
AXA087
M3x16mm Hex Socket Cap Head x4
AXA1221
Bearing 5x11x4mm x8
AXA1218
Bearing 5x10x4mm x4
AXA1230
Bearing 10x15x4mm x2
AXA1045
M4 Nylon Lock Nut x5
AXA1059
6mm Body Clip x4
AXA1392
E2 e-clip x8
AXA1179
O-Ring 2.5x1.5mm x8
AXA1163
O-Ring 7x1mm x4
x4
AXA180
M3x3mm Set Screw
AXA117
M3x15mm Hex Socket Button Head x18
AXA0113
M3x6mm Hex Socket Button Head x2
AXA119
M3x20mm Hex Socket Button Head x1
AXA120
M3x25mm Hex Socket Button Head x2
AXA114
M3x8mm Hex Socket Button Head x4
AXA115
M3x10mm Hex Socket Button Head x8
AXA144
M3x8mm Hex Socket Flat Head x4
AX31120
M3x10mm Hex Socket Flat Head x6
AX31398
M2.6x12mm Hex Socket Cap Head x8
AX31399
M2.6x18mm Hex Socket Cap Head x8
AXA0109
M3x10mm Oversized Flat Hex Socket
x10
AX30162
Pin 1.5x8mm x1
AX30163
Pin 2x10mm x4
AXA118
M3x18mm Hex Socket Button Head x3
AXA291
M4x4mm Set Screw x1
AXA148
M3x18mm Hex Socket Flat Head x4
AXA146
M3x12mm Hex Socket Flat Head x8
AX31028
PIN 2.0 x11 x4
A XA0286
Screw Shaft M4x12mm x12
AX31373
M2.6x8mm Hex Socket Button Head x5
AX31280
M2.6x6mm Hex Socket Button Head x4
AX31372
M2.6x8mm Hex Socket Flat Head x1
AX31403
Shoulder Screw M3x4.5x10mm x4
AXA083
M3x6mm Hex Socket Cap Head x2
AXA1053
M3 Nylon Lock Nut x2
AX30190
PIN 2.0 x11 x1
AXA1225
Bearing 8x16x5mm x2
AXA088
M3x20mm Hex Socket Cap Head x1
AXA088
M3x25mm Hex Socket Cap Head x3
AXA143
M3x6mm Hex Socket Flat Head x1
AXA0414
M2.6×10mm Hex Socket Tapping Flat Head x3
AXA0437
M3x15mm Hex Socket Tapping Button Head x2
AX31406
Bearing 7x14x3.5mm x4
AX31407
Bearing 5x14x5mm x2

16
AX31402
AX31402

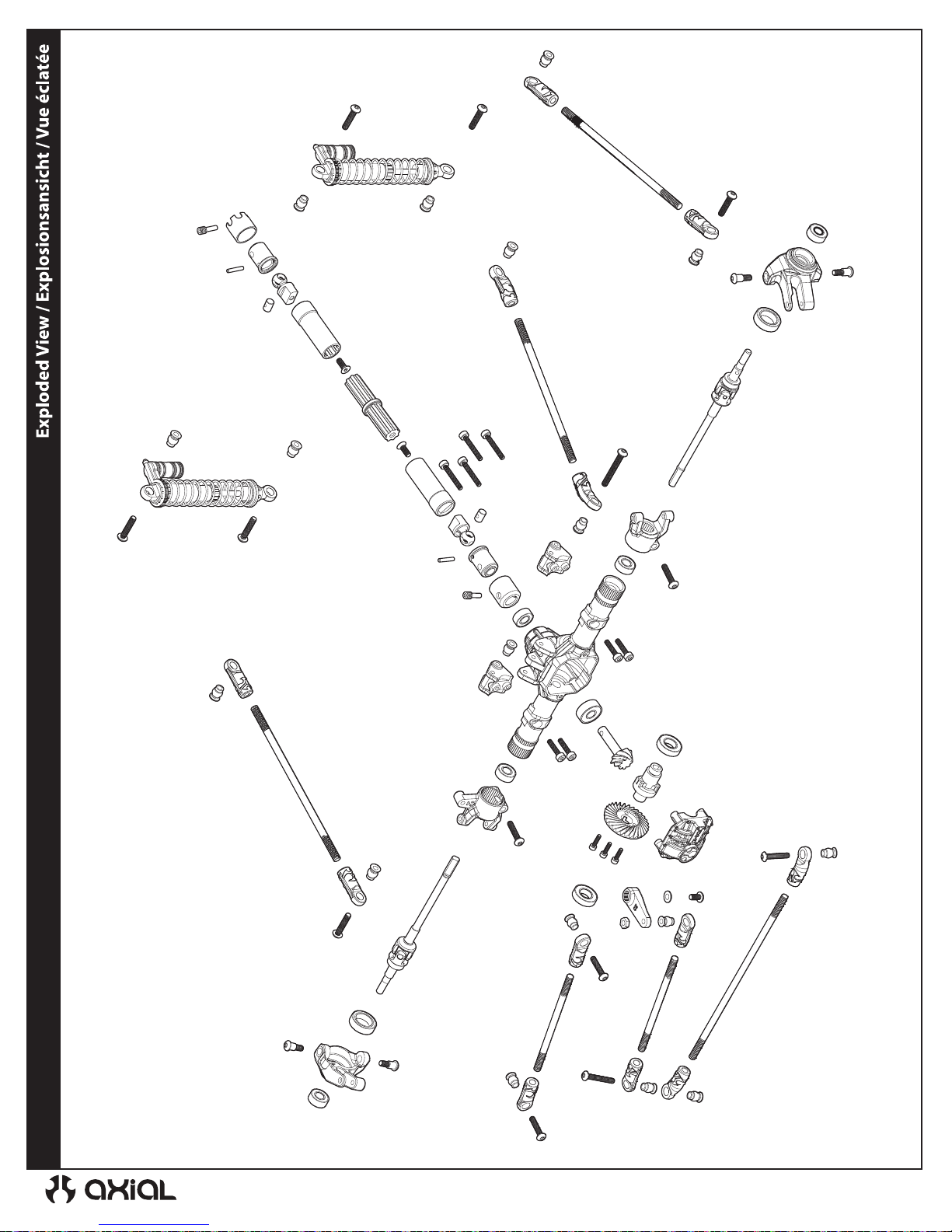

Front Axle
AX80018
AX80018
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31468
AX31467
AX31469
AX31469
AX31473
AX31468
AX31186
AX31186
AX31028
AX31028
AX80018
AX80018
AX80018
AXA0286
AXA0286
AX31148
AX31148
AX31148
AX31148 AX31148
AX80018
AX31405
AX31066
AX31066
AX31066
AX31405
AX31404
AX31407
AX31406
AX31406
AX31384
AX31384
AX31381
AXA1230
AXA1230
AX31403
AX31403
AX31423
AX31381
AX31382
AX31382
AX31398
AX31398
AX31398
AX31398
AX31397
AX31384
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80006
AX80018
AX80018
AX31403
AX31403
AXA117
AXA113
AXA1070
AXA117
AXA117
AXA1052
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AXA120
AXA117
AXA119
AXA1221
AXA1221
AXA1221
AXA1221
AXA1221
AX31401
AX31399
AX31399
AX31399
AX31399
AXA144
AXA144
AX31114
AX31114
AX31114
AX31114

17

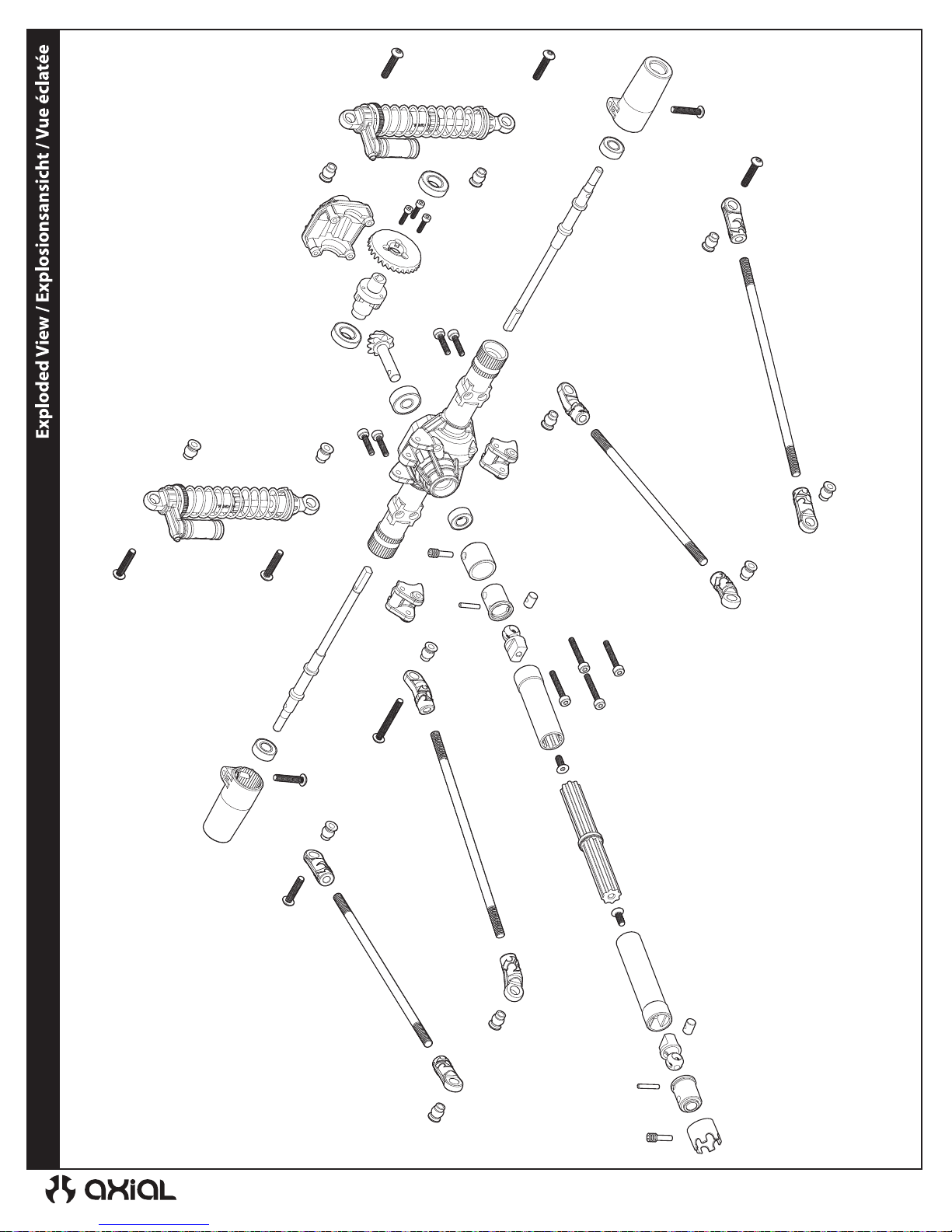

Rear Axle
AX31470
AX31470
AX31474
AX31474
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31186
AX31407
AX31406
AX31406
AXA144
AXA144
AX80018
AX80018 AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AX80018
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AXA117
AX31405
AX31405
AX31404 AX31066
AX31066
AX31066
AX31383
AXA1221
AXA1221
AXA0286
AX31408
AX31383
AXA1221
AX31408
AX31384
AX31384
AX31148
AX31148
AX31148
AX31148
AX31148
AX31148
AX31114
AX31114
AX31114
AX31114
AX31114
AX31028
AX31028
AXA0286 AX31399
AX31398
AX31398
AX31398
AX31398
AX31399 AX31399
AX31399
AXA120
AX31384

18
Transmission
AX31068
AX31027
AX31027
AX80078
AX80078
AX80078
AXA1045
AX31068
AX31026
AX30435
AX80010
AX80009
AX80009
AX80009
AX80010
AXA1218
AXA1053 AXA1225
AXA1218
AXA013
AXA089
AXA089
AXA089
AXA089
AXA013
AXA083
AXA1070
AX30724
AXA1070
AXA291
AX30491
AX31312
AXA083 AXA013
AX30190
AX31149
AX30162
AXA1218
AXA1218
AXA1225
AX30435
AX30394
AX31180
AX31026
AX30413
AXA0414
AXA0414
AXA0414

19
Chassis
AX31418
AX31379
AX31388
AX31380
AX31380
AX31380
AX31380
AX31386
AX31386
AX31386 AX31387
AX31387
AX31388
AXA115
AXA113
AX31388
AX31388
AX31388
AX31392
AX31373
AX31373
AX31373
AX31372
AX31391
AX31391
AX31391
AX31391
AX31391
AX31392
AX31418
AXA0109
AXA0109
AXA0109
AXA0109
AXA115
AXA146
AXA146
AX31120
AX31120
AX31120
AX31120
AX31120
AX31120
AXA118
AXA118
AXA118
AXA114
AXA114
AXA087
AXA087
AXA087
AXA087
AXA114
AXA114
AXA115
AXA115
AXA146
AXA146
AXA146
AXA146
AXA113
AXA0286
AXA0286
AXA0286
AXA0286

20
AXA0286
AXA0286
AXA0286
AXA0286
AXA0286
AX31389
AX31385
AX31389
AX31385
AXA0109
AXA0109
AXA0109
AXA0109
AX31392
AX31393
AX31393
AX31385
AX31083
AX31083
AXA148
AXA148
AXA148
AXA148
AX31390
AX31390
AX31390
AX31390
AXA115
AXA115
AX31373
AXA115
AXA115
AX31373
Chassis
