1.1 General Description
The DSH-146 series is a Digital Signage computer which is
equipped with 46-inch 450nits high brightness and Full HD
(1920x1080p) TFT-LCD. The system supports superior Intel○R
Core 2 Duo processor. Powered by Intel®GM/GL45 +ICH9M-E
core logic chipset, this panel computer has the best processor
performance. The DSH series is designed for specific outdoor
applications. It has been approved front bezel IP65 and complete
system IP3X. There is an extension slot of miniPCIe, which can
implement WiFi into the system. Also, there is a model with touch
solution, DSH-146R is built in infrared touch screen. DSH146 has
high reliability and easy maintain engine box, it is more user-
friendly Digital Signage computer to ensure customer’s project
success and suited for digital signage applications.
¾Full HD TFT LCD
The DSH-146 is a Full HD Digital Signage computer. The resolution is
1920 x 1080 which is ideal to display complex graphics and high
definition images, and it is suited by each kind of digital signage
application.

DSH-146 User’s Manual
Introduction
2
NOTE Due to protecting LCD, we suggest to use DSH-146 in the
upright position.
¾Spill and dust resistant
The DSH-146 has design front bezel by IP65 water and dust proof,
also the entire system is dust protected by IP3X. Therefore the
system can apply to every environment under water drip and dust
damages.
¾Low power consumption
The DSH-146 series has specific sensor detect of backlight,
environmental illumination. You can easy to save the power
consumption by backlight adjustment.
¾Easy maintenance
The DSH-146 series has pluggable engine box design; you can
change HDD, DRAM and CPU configurations more easily.
1.2 Specifications
1.2.1 Main CPU Board
zCPU
Intel○RCoreTM 2 Duo / C-M Penryn Processor with
667/800/1067MHz FSB support
zSystem Chipset
GM/GL45+ ICH9M-E
zBIOS
AMI○RBIOS

DSH-146 User’s Manual
Introduction 3
zSystem Memory
Two 204-pin DDR3 SO-DIMM socket
Maximum memory up to 8GB
Supports DDR3 800/1066 memory
1.2.2 I/O System
zStandard I/O
One VGA
One DVI-D
Four USB ports 2.0 compliant
zEthernet
One WG82567LM Gigabit Ethernet
Support for RJ-45 connector with status indicator LED.
zAudio
Realtek High Definition codec audio
S/PDIF-out
1.2.3 System Specification
z46” TFT LCD
Brightness - 450 cd/m2
Resolution - 1920 x 1080
zDisk drive housing:
One 2.5” SATA drive
zNet Weight
43.7 Kg
zDimension (Main Body Size)
1091x 635 x 121 mm
zOperation Temperature
0℃to 40℃

DSH-146 User’s Manual
Introduction
4
NOTE All specifications and images are subject to change without
notice.

DSH-146 User’s Manual
Introduction 5
1.3 Dimensions

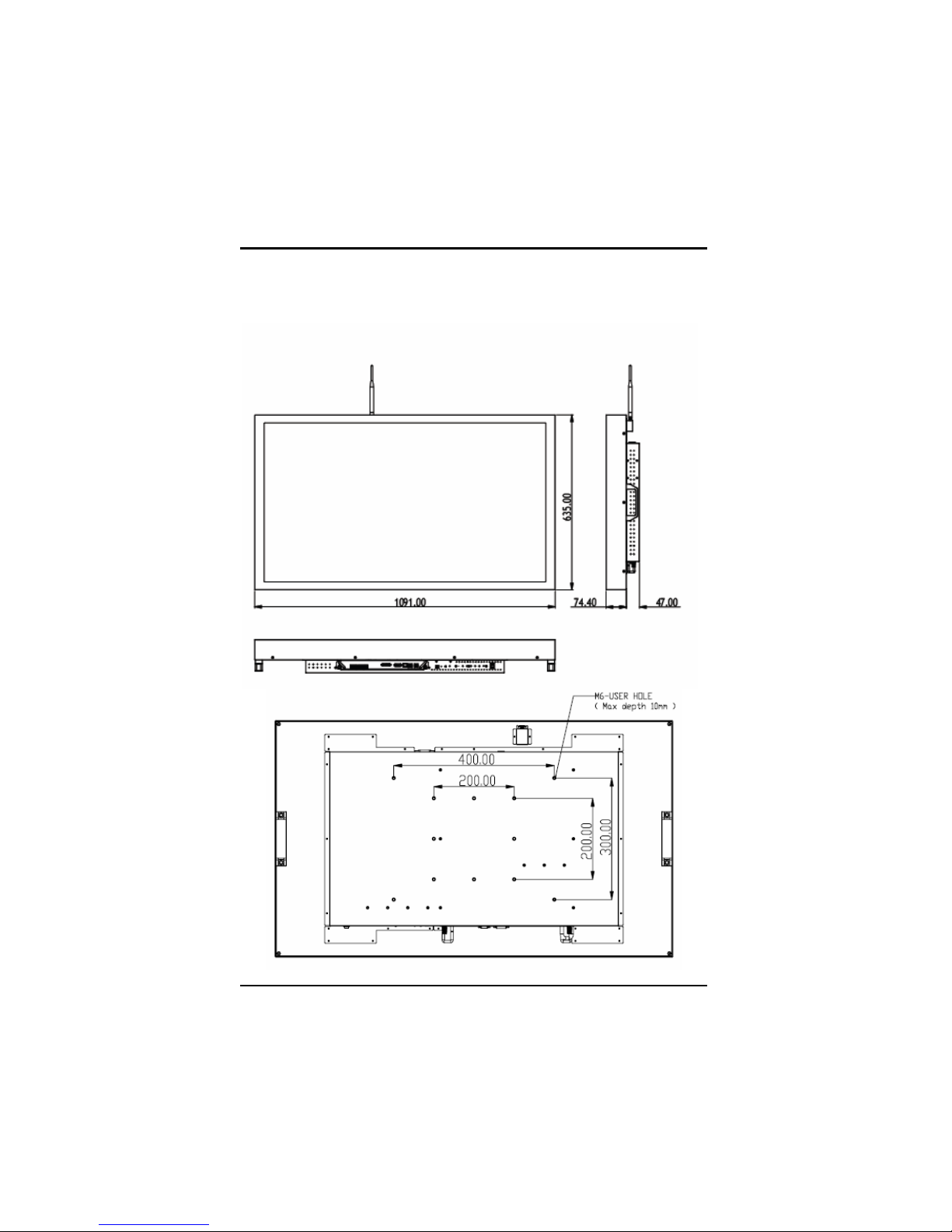

This diagram shows you dimensions and outlines of the DSH-146.

DSH-146 User’s Manual
Introduction
6
1.4 I/O Outlets

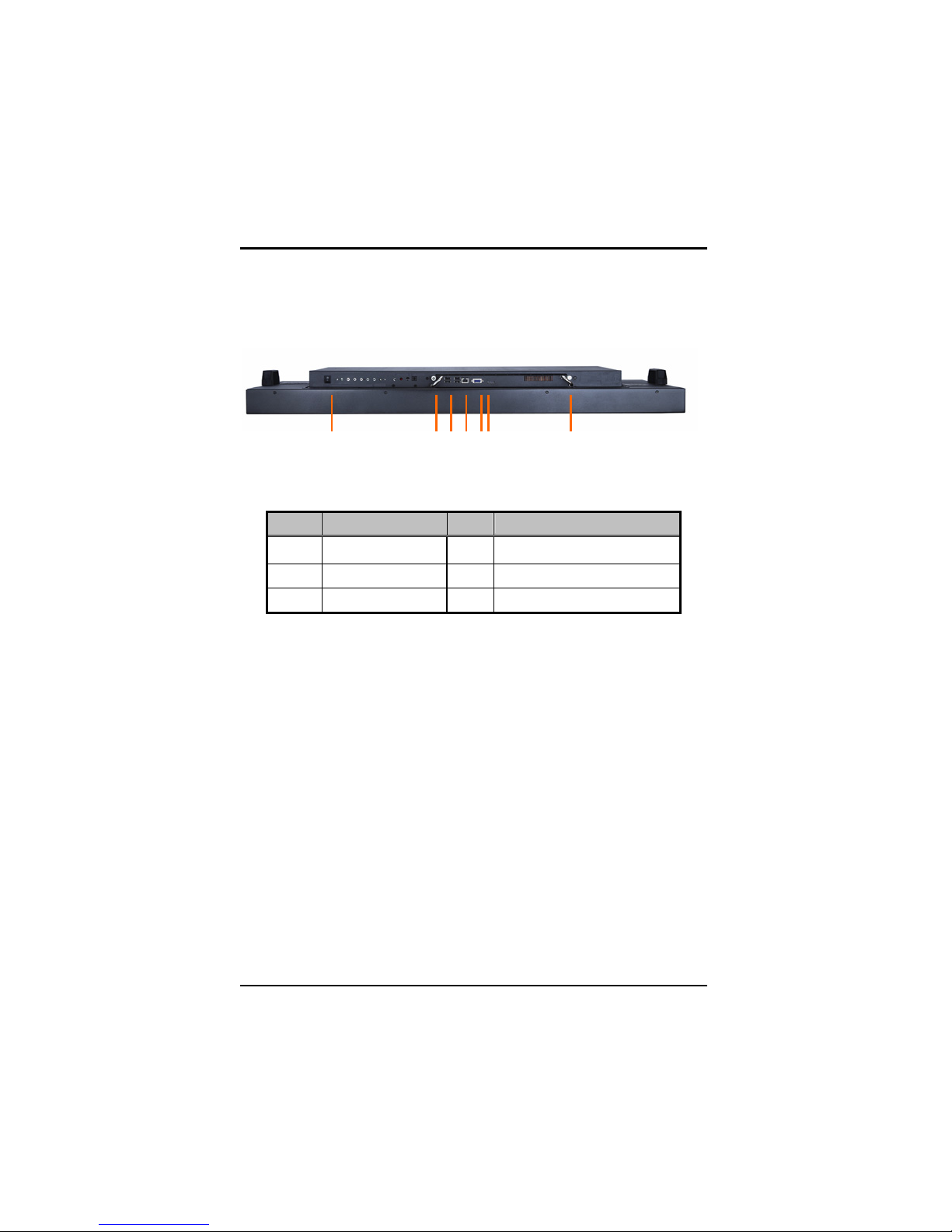

The following figures show you the locations of the DSH-146 Series I/O
outlets.
No. Connector No. Connector
1 Power switch 2 Slot in holder
3 4 x USB 4 LAN
5 VGA 6 DVI
1 2 3 4 56 2

DSH-146 User’s Manual
Introduction 7
1.5 Package List
When you receive the DSH-146, the bundled package should contain the
following items:
zDSH-146 device x 1
zPower cord x 1
zCD x 1 (For Drivers)
If you can not find the package or any items are missing, please contact
AXIOMTEK distributors immediately.

DSH-146 User’s Manual
Hardware Installation
8
CHAPTER 2
HARDWARE INSTALLATION
The DSH-146 Series are convenient for your various hardware
configurations, such as HDD (Hard Disk Drive), Memory Module.
The chapter 2 will show you how to install the hardware. It includes:
CPU, Hard disk Drive and DRAM Installation
Mounting Method
2.1 Slot in engine box
The DSH-146 Series offers a convenient drive bay module for users to
install DRAM, CPU and HDD. Please follow the steps:
Step 1 Turn off the system, and unplug the power cord.

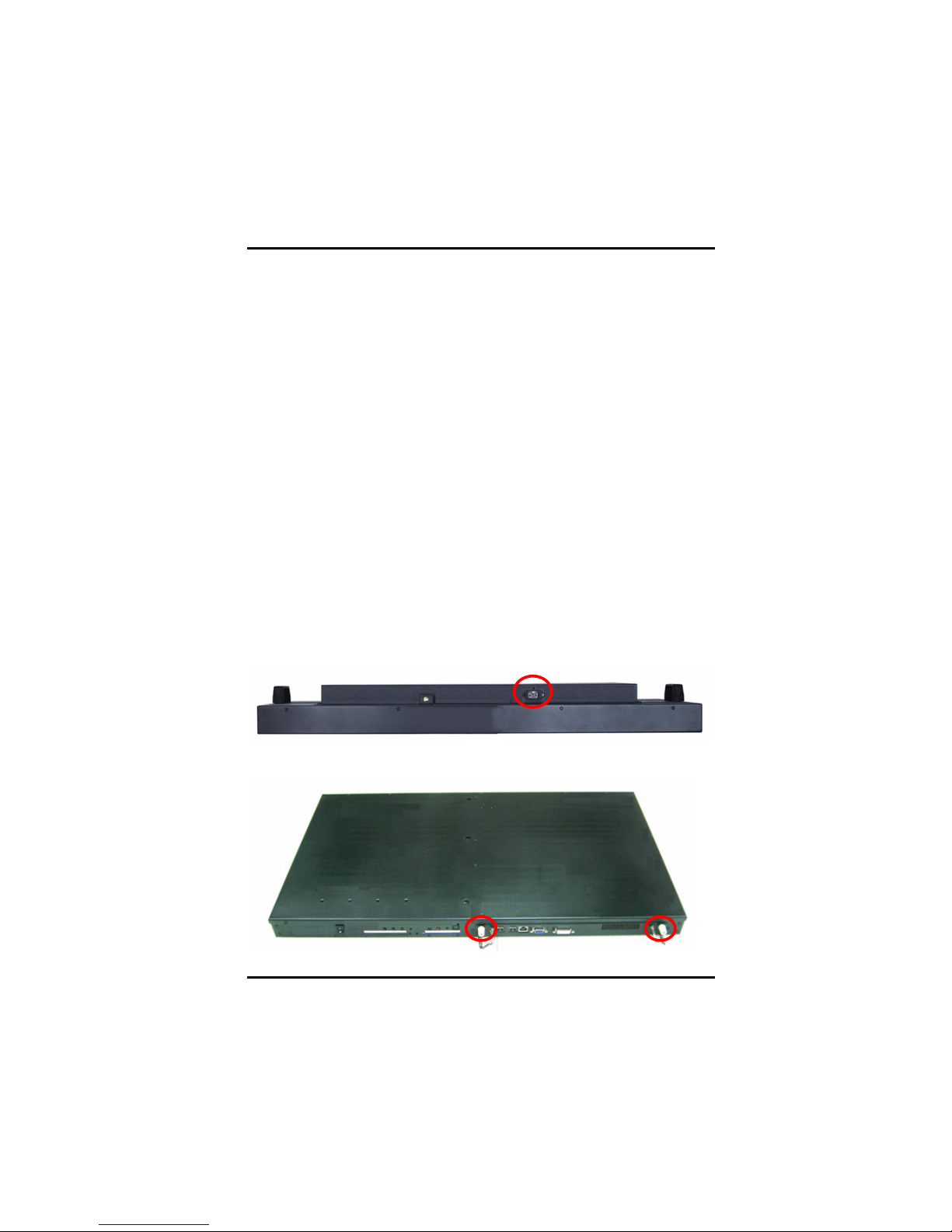

Step 2 Loosen the screws as illustrated.

DSH-146 User’s Manual
Hardware Installation 9

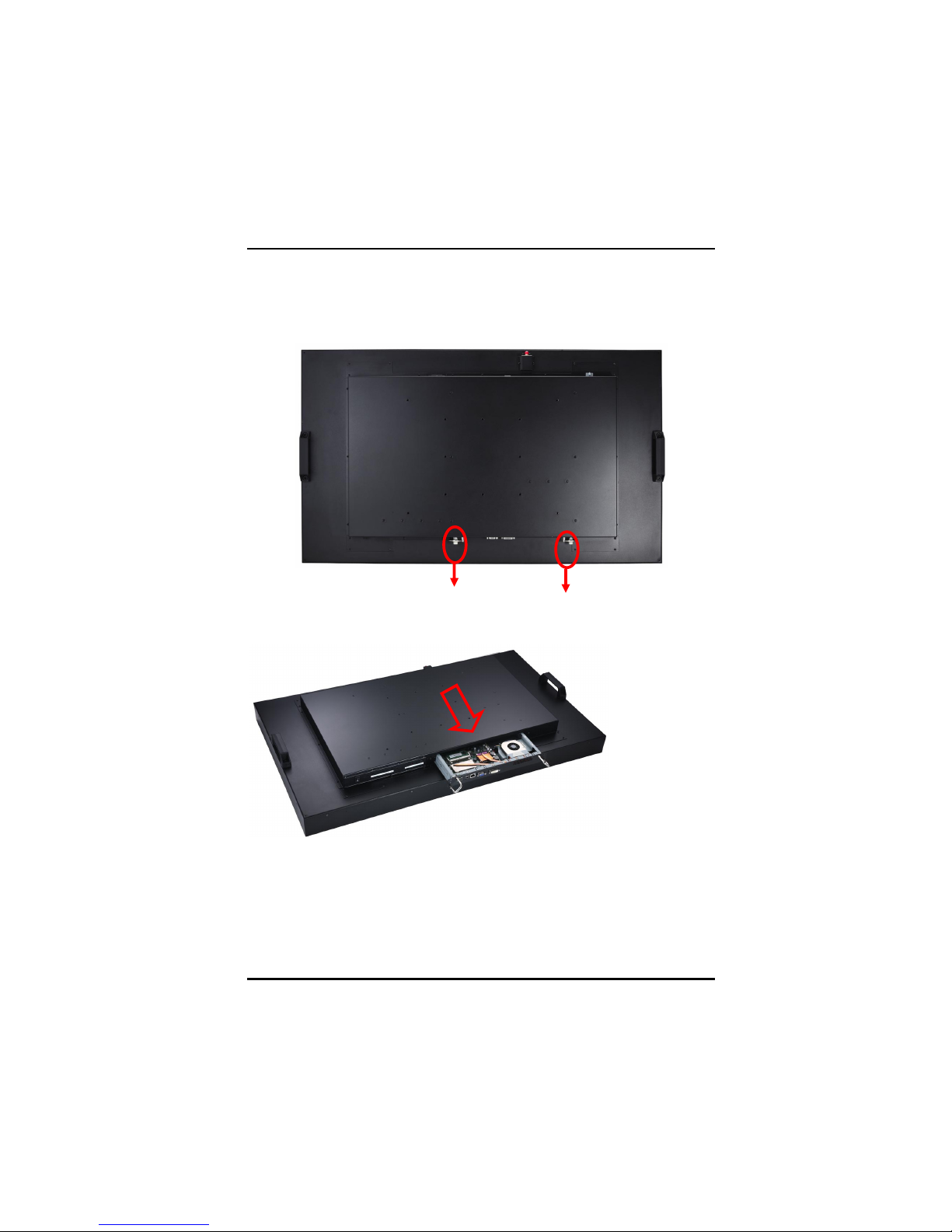

Step 3 Pull out the engine box via the rings as marked.

DSH-146 User’s Manual
Hardware Installation
10
Step 4 Loosen the screws as illustration and then pull out fan
connector.
Step 5 Remove the heat-pipe and the cooler.

DSH-146 User’s Manual
Hardware Installation 11

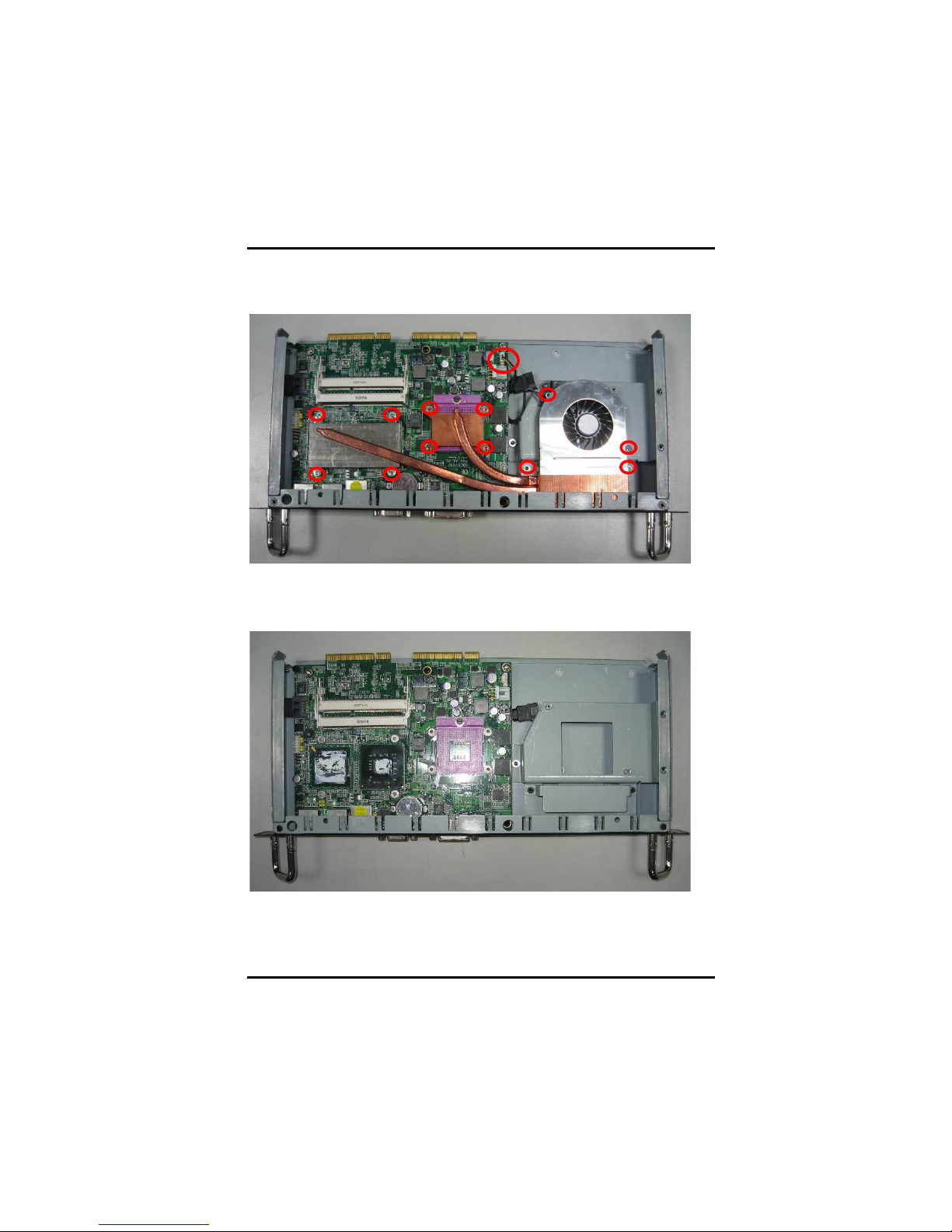

Step 6 Install CPU and DRAM module. Put CPU and turn on the latch
as mark. Place the memory module into the socket and press it
firmly down until it is fully located. The socket latches are
levered upwards and clipped on to the edges of the DIMM. If
you would only use one piece DRAM, please install first slot.
First
Seco
n
d

DSH-146 User’s Manual
Hardware Installation
12
Step 7 Install the HDD Drive. Locate and fasten screws as mark and
plug in power cable.
Step 8 Plug in SATA connector.
Table of contents
Other AXIOMTEK Digital Signage manuals

AXIOMTEK
AXIOMTEK OPS883 Series User manual

AXIOMTEK
AXIOMTEK OFP215 Series User manual

AXIOMTEK
AXIOMTEK OPS500 Series User manual

AXIOMTEK
AXIOMTEK DSP500-523 Series User manual

AXIOMTEK
AXIOMTEK OPS885 Series User manual

AXIOMTEK
AXIOMTEK DSA-132 Series User manual

AXIOMTEK
AXIOMTEK DSP511 Series User manual

AXIOMTEK
AXIOMTEK DSP500-523 Series User manual
