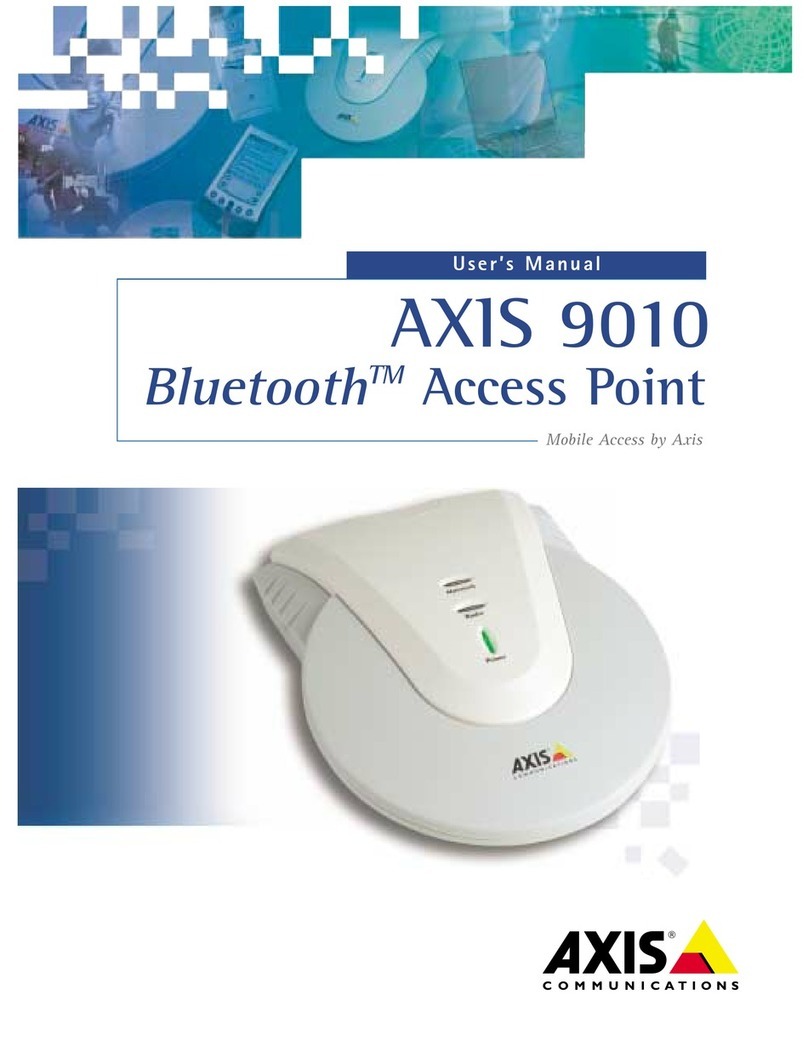

Axis 9010 Owner's manual

The Bluetooth Access Point from Axis is part of a family of
network access solutions that create Local Mobile Networks
(LMN) of high speed wireless connectivity. The AXIS 9010
provides a communications link to local networks and the
Internet for mobile devices equipped with
Bluetooth wireless
technology. Axis offers solutions that can scale up from
stand alone network access devices to larger, more advanced
systems for creating mobile networks and services.
Instant, Easy Connectivity
The AXIS 9010 allows mobile users to connect without
delay when they are located in a defined Local Mobile
Network area.
Supports a Wide Range of Devices
The Bluetooth Access Points supports devices equipped with
Bluetooth wireless technology, including PDAs, mobile phones,
laptop computers, Web pads and emerging application specific
devices.
Mobile Access by Axis
AXIS 9010
BluetoothTM Access Point
Low-Cost, High-Speed Networ Access
Bluetooth operates at unlicensed radio frequencies enabling
wireless communications without the cost of going through
a mobile carrier.
A Secure System, Easy to Install and Manage
The AXIS 9010 incorporates built in intelligence for
providing security, quick installation and configuration
management.
Internet
Mobile
Phone
Laptop
PDA
Ethernet
Local
Networ

©2002 Axis Communications AB. Axis is a registered trademark, and ThinServer is a trademark of Axis Communications AB.
Bluetooth is a trademark owned b the
Bluetooth SIG, Inc. All other compan names and products are trademarks or registered trademarks of
their respective companies. We reserve the right to introduce modifications without notice.
Technical Specification - AXIS 9010
Bluetooth Access Point
General Overview
•Point to multipoint, high power Bluetooth
wireless connectivity
•Ethernet/Fast Ethernet interface for access to
the LAN and the Internet
•Support for Dynamic Host Configuration
Protocol (DHCP) for server and client IP
address management
•Built in Web server for remote configuration
and management
•Device management using Simple Network
Management Protocol (SNMP) version 1 and 3
•Authentication, authorization and accounting
options using the RADIUS protocol
•Support for WAP over Bluetooth
•Embedded Linux operating system for
maximum reliability
•High performance 100 MIPS RISC processor
Bluetooth Specification
•Class 1 radio configuration
•Adjustable output power
•Internal antenna
•RF specifications
Frequency range: 2.402 to 2.480 GHz
Double sided IF bandwidth: 1 MHz
•Profile
LAN Access Profile
•Clients
All clients with support for Bluetooth LAN
Access Profile e.g. mobile phones, Pocket
PCs, PDAs and laptops
•Protocol stack
Baseband Link Manager, Link Controller and
Host Controller Interface
Axis developed stack for SDP, L2CAP,
RFCOMM
Supporte Protocols
•TCP/IP, HTTP, FTP, ARP, DHCP, PPP, PAP,
RADIUS, SNMP
IP A ress Assignment
•Server IP address assignment
DHCP or proprietary arp ping method
•Client IP address assignment
DHCP, RADIUS, manually specified range or
masquerading
Built-in Web Server
•Configuration Wizard
•System information on Bluetooth clients
•Status report and support information
•Online context sensitive help
RADIUS
•Robust authentication, authorization and
accounting options to local or remote servers
•Conforms to RFC 2865 and 2866
•TCP/IP address assignment
SNMP Management
•SNMP version 1 and 3
•Encrypted data transfers with SNMP v3
•Support for MIB II and Axis private MIB
•Monitor devices with industry standard
management tools
Software Up ates
•Flash memory for easy software updates
•Remote upgrades over the network using FTP
or AXIS ThinWizard
•Automated update of multiple units using
AXIS ThinWizard
Network
•RJ45 connector (Category 5 twisted pair
cable)
•10baseT Ethernet or 100baseTX Fast Ethernet,
auto sensing
Har ware
•Axis ETRAX 100LX, 32 bit RISC, 100 MIPS CPU
•16 Mbyte DRAM, 2 Mbyte Flash
Power Supply
•External power supply: maximum 400 mA at
12 VDC
•Internal power supply: 3.3 V
•Power consumption: 2.5 W
Dimensions / Weight
•Height: 50 mm
•Width: 143 mm
•Length: 178 mm
•Weight: 295 grams
•Operating temperature range: +5 to +40°C,
20 80% RHG non condensing humidity
•Indoor use only
More Information
For more information visit our website: www.axis.com
19095/EN/R2/0201
