Axor Citterio Select 39863 7 Series User manual

INSTALLATION
ZH ⁄ 用户手册 ⁄ 组装说明 02
EN ⁄ Instructions for use ⁄ assembly instructions 03
Lesezeichen
中文 02
English 03
AXOR Citterio Select
39861X X 7
AXOR Citterio Select
39863XX7

02ZH
安装 (参见第页 04)
安全技巧
装配时为避免挤压和切割受伤，必须戴上手套。
冷热水管间过大的压力差必须予以平衡。
安装提示
⁄ 安装前必须检查产品是否受到运输损害。 安装后将不认可运输损害或表面
损伤。
⁄ 管道和阀门必须根据通用标准进行安装、冲洗和检查。
⁄ 请遵守当地国家现行的安装规定。
⁄ 首次调试时和维护作业之后，管接头中的空气可能产生噪音。大约使用管
接头 15 次后噪音消失。
技术参数
工作压强： 最大 1 MPa
推荐工作压强： 0,1 - 0,5 MPa
测试压强： 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
热水温度： 最大 60°C
热力消毒: 70°C ⁄ 4 分钟
该产品专为饮用水设计！
符号说明
请勿使用含有乙酸的硅胶！
调节 (参见第页 06)
热水温度调节。如果使用即热式喷头，则不建议安装热水阀门。
保养 (参见第页 08)
单向阀必须在符合国家或当地的法律的情况下按照EN 806-5定期检查
(至少一年一次) 。
大小 (参见第页 07)
流量示意图 (参见第页 07)
备用零件 (参见第页 10)
XX = 颜色代码
00 = 镀铬
14 = Brushed Bronze
34 = Brushed Black Chrome
清洗 (参见第页 09)
操作 (参见第页 08)
⁄ 汉斯格雅建议，清晨或在水流长时间停滞后，前半升水不作饮用水
使用。
⁄ 通过手柄打开阀门时出水口可能流出少量水。
⁄ 抬起把手打开龙头，并调节需要的水温。通过位于正面出水口的调
节钮可以暂时停止水流。长时间不使用时，例如夜晚或房屋空置，
则必须将把手完全关闭。
问题 原因 补救
⁄龙头不灵活 ⁄ 阀芯损坏，结垢 ⁄ 更换阀芯
⁄龙头滴水 ⁄ 阀芯损坏 ⁄ 更换阀芯
⁄水从龙头出水嘴流出 ⁄ O形环损坏 ⁄ 更换O形环
⁄水从螺纹底座中流出 ⁄ 连接软管没有完全旋入基体 ⁄ 用手拧紧连接软管
⁄ 连接软管的O形环损坏 ⁄ 更换O形环
⁄热水温度过低 ⁄ 温度限制器设置错误 ⁄ 设置温度限制器
⁄更换龙头后，在打开可调龙头时流量减少 ⁄ 安装了错误的可调龙头 ⁄ 更换可调龙头 (#98463000)
⁄调节按钮不好用 ⁄ 调节按钮脏污 ⁄ 清洁调节按钮，给 O 形环 _3w 上油 (参见第页 10)

03 EN
ASSEMBLY (see page 04)
SAFETY NOTES
Gloves should be worn during installation to prevent crushing and cutting injuries.
The hot and cold supplies must be of equal pressures.
INSTALLATION INSTRUCTIONS
⁄ Prior to installation, inspect the product for transport damages. After it has been
installed, no transport or surface damage will be honoured.
⁄ The pipes and the fixture must be installed, flushed and tested as per the applicable
standards.
⁄ The plumbing codes applicable in the respective countries must be observed.
⁄ During initial start-up and after servicing, air in the fittings can cause noise. After
switching the jet on and off about 15 times, the noise will stop.
TECHNICAL DATA
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: 70°C ⁄ 4 min
The product is exclusively designed for drinking water!
SYMBOL DESCRIPTION
Do not use silicone containing acetic acid!
ADJUSTMENT (see page 06)
To adjust the hot water limiter. Using a hot water limiter in combination with a
continuous flow water heater is not recommended.
MAINTENANCE (see page 08)
The check valves must be checked regularly according to EN 806-5 in
accordance with national or regional regulations (at least once a year).
DIMENSIONS (see page 07)
FLOW DIAGRAM (see page 07)
SPARE PARTS (see page 10)
XX = Colors
00 = Chrome Plated
14 = Brushed Bronze
34 = Brushed Black Chrome
CLEANING (see page 09)
OPERATION (see page 08)
⁄ Hansgrohe recommends not to use as drinking water the first half liter of
water drawn in the morning or after a prolonged period of non-use.
⁄ Minor leaking may occur briefly at the spout when opening the fitting via
the lever.
⁄ Use the lever to open the tap and set the desired temperature. The water
flow can be paused by pressing the Select button on the face side of the
spout. When the tap is not used for a longer period of time, f.e. when
retiring at night or leaving the house, it must be closed completely by
means of the lever.
FAULT CAUSE REMEDY
⁄ Mixer stiff ⁄ Cartridge defective, calcified ⁄ Exchange cartridge
⁄ Mixer dripping ⁄ Cartridge defective ⁄ Exchange cartridge
⁄ Water escaping in area of swivel spout ⁄ O-ring defective ⁄ Exchange O-ring
⁄ Water escaping at the threaded base ⁄ connection hoses not completely screwed into basic body ⁄ Tighten connection hoses by hand
⁄ O-ring at the connection hose defective. ⁄ Exchange O-ring
⁄ Hot water temperature too low ⁄ Hot water limiter incorrectly set ⁄ Set hot water limiter
⁄ Low flow with Select valve after valve replacement ⁄ Improper Select valve installed ⁄ Replace Select valve (#98463000)
⁄ Select button stiff ⁄ Select button soiled ⁄ Clean Select button and grease _3w O-ring
(see page 10)

04
SW 24 mm
(4 Nm)
1.
2.
SW 10 mm
SW 19 mm
(4 Nm)
3.
max. 37 mm
1a 2
(3 Nm)
max. 60 mm
1b
150°
110°
6a
6b
4
150°
75° 75°
45°
105°
45°
105°
24 x 15°
5
6a
3
MontageMontage

05
24 x 15°
6b
110° 55° 55°
25° 85°
25°
85°
110°
SW 17 mm
SW 12 mm
1.
2.
789
11
1.
> 2 min
2.
12
13
80
CLICK
10
Montage

0,3 MPa
60 °C 10 °C
06
65
3
4
36°C
38°C
43°C
60°C
55°C
50°C
1 2
1.
2.
SW 3 mm
4 x
1.
2.
SW 3 mm
(5 Nm)
Justierung

07
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912151821242730
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
AXOR Citterio Select 230
39861XX7
AXOR Citterio Select 230
39861XX7
AXOR Citterio Select 230
39863XX7
AXOR Citterio Select 230
39863XX7
103
28Ø
220
153
193
4°
234
342
230
219
64Ø
180
99
69
133
225
max. 60
840
Ø 34
ca. 500
G 1/2
103
28Ø
220
153
193
4°
234
342
230
219
64Ø
180
99
69
133
225
max. 60
840
Ø 34
ca. 500
G1/2
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912151821242730
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
Maße ⁄ Durchflussdiagramm

08
SW 10 mm
SW 19 mm
(4 Nm)
SW 10 mm SW 19 mm
123
123
4 5
1.
2.
开 ⁄ open 热 ⁄ hot
冷 ⁄ cold 关 ⁄ close
开 ⁄ open
关 ⁄ close
Wartung ⁄ Bedienung
39861X X 7
39861XX7 ⁄ 39863XX7

09

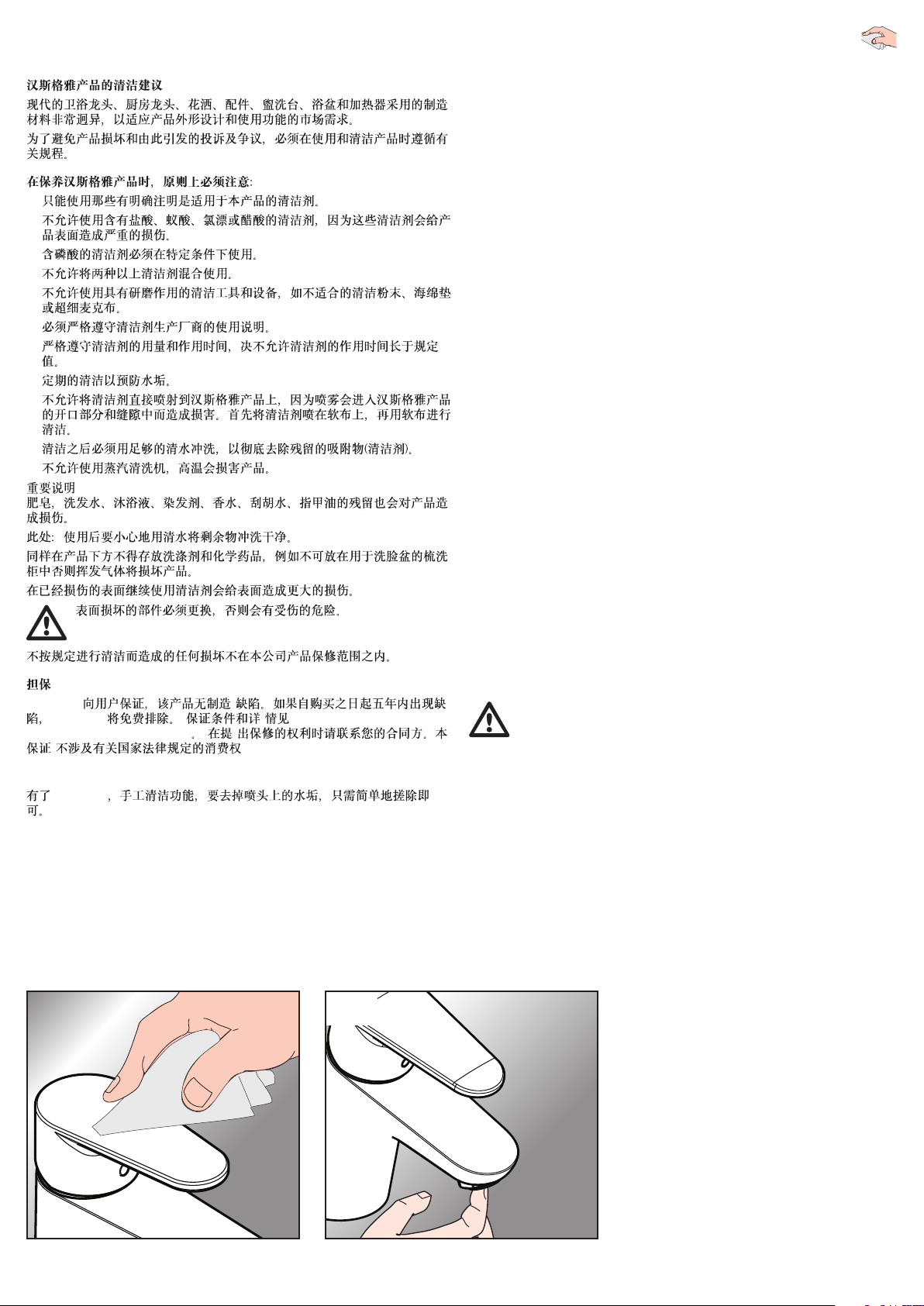

CLEANING RECOMMENDATION FOR HANSGROHE PROD-
UCTS
Today, modern sanitary and kitchen tapware, showers, accessories, washstands, tubs
and radiators consist of very different materials to comply with the needs of the market
with regard to design and functionality.
To avoid damage and reclamations, it is necessary to consider certain criteria when
cleaning.
WITH REGARD TO CARING FOR THE HANSGROHE PROD-
UCTS, THE FOLLOWING MUST IN PRINCIPLE BE HEEDED:
⁄ Only use cleaning material which is explicitly provided for this type of application.
⁄ Never use cleaning materials, which contain hydrochloric acid, formic acid, chlorin
e
pale lye or acetic acid, as they cause considerable damage.
⁄ Phosphorus acidic cleaners are only conditionally applicable.
⁄ Mixing cleaning agents is not permitted, generally.
⁄ Never use cleaning materials or appliances with an abrasive effect, such as
unsuitable cleaning powders, sponge pads or micro fibre cloths.
⁄ The instructions of the cleaning agent manufacturers have to be followed absolutely.
⁄ Cleaning has to be carried out with a specified cleaner dosage, contact time,
object-related and adapted to the needs.
⁄ The building up of calcifications has to be removed by cleaning regulary.
⁄ When using spray cleaners, spray the cleaning solution onto a soft cloth or sponge,
never directly onto the Hansgrohe products, as the atomised spray could enter
openings and gaps in the Hansgrohe products and cause damage.
⁄ After cleaning rinse thoroughly with clean water to remove any cleaner residue.
⁄ The use of steam cleaners is not permitted. The high temperatures can damage the
products.
Important
Residues of toiletries such as liquid soaps, shampoos and shower gels, hair dyes,
perfumes, aftershave and nail varnish can also cause damage.
Here too: Carefully rinse with water after use to remove residues.
Likewise, do not store any cleaning agents or chemicals under the products, for
example in a vanity unit, as the vapours may damage the products.
The damage of already damaged surfaces will deteriorate under the effect of the
cleansers.
Components with damaged surfaces must be exchanged, otherwise there
could be an injury danger.
Damage caused by improper treatment will not be covered by our guarantee.
WARRANTY
Hansgrohe guarantees to the consumer that this product is free of production faults. If
evertheless any defect is detected within 5 years from date of purchase, Hansgrohe
will
remedy this defect free of charge. You will find the conditions and details of this
guarantee at www.hansgrohe-int.com/guarantee. Please contact your contracting
party to claim your rights under this guarantee. This guarantee does not affect the
customer‘s rights under the respective national legislation.
QUICKCLEAN
The QuickClean cleaning function only needs a small manual rub over to remove the
lime scale from the spray channels.
⁄
⁄
⁄
⁄
⁄
⁄
⁄
⁄
⁄
⁄
⁄
Hansgr
ohe
Hansgrohe
www
.hansgrohe-int.com/guarantee
QUICK
CLEAN
QuickClean
QUICK
CLEAN
Reinigung

10
98463000
95962000
(19 x1, 5)
92566XX0
97523000
92569000
97825000
92568000
(600 mm)
96456000
95291000
93395000
95372000
(900 mm)
97548000
92500000
95049000
96099000
92567000 92570XX7
(39861XX7)
92583XX0
98112000
(8x2)
98211000
(21x2, 5)
98422000
(7x1, 5)
96456000
92730000
95008000
96461000
98193000
(32x2)
98603XX0
96338000
92961XX0
39891XX0
96029000
(M6x10)
98365000
(110°⁄150°)
97827000
(8x1, 75)
AXOR Citterio Select 230
39861XX7 ⁄ 39863XX7
(18,5x8x2)
92566XX0
98201000
(14x1,5)
92567000
98463000
93342007
95910000
93410X X7
(39863XX7)
Armaturenfett
Grease
䀵滑油
Armaturenfett
Grease
䀵滑油
Serviceteile

11

12

13

14

15

AXOR ⁄ Hansgrohe SE
Auestraße 5–9
77761 Schiltach
Deutschland
[e-mail]
axor-design.com
07⁄ 2 021 9.02968.54
