Ayrton COBRA ULTRA BEAM User manual

User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS

1
CONTENTS
1. SAFETY INSTRUCTIONS 2
2. FEATURES 5
3. FIXTURE OVERVIEW 7
4. DIMENSIONAL DRAWINGS 8
5. INSTALLATION INSTRUCTIONS 12
6. DMX-512 CONTROL CONNECTION 15
7. DMX-512 CONNECTION WITH DMX TERMINATOR 15
8. DEVICE DMX START ADDRESS SELECTION 16
9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM 16
10. DISPLAY 18
11. DMX PROTOCOL 39
12. ERROR MESSAGES 50
13. CLEANING AND MAINTENANCE 51
!
!
!
!
!
!
!
!
!

2
1. SAFETY INSTRUCTIONS
1.1. IMPORTANT SAFETY WARNING
This device has left the factory in perfect condition.In order to maintain this condition and to
ensure safe operation，it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
In order to install，operate，and maintain the lighting fixture safely and correctly we suggest that
the installation and operation be carried out by qualified technicians and these instructions be
carefully followed.
The light source of this product is made of laser diodes. It complies with the related safety
standard and classified as:
Class 1 Laser product (IEC 60825-1:2014)
RG3 (IEC 62471:2006)
Laser projectors shall not be delivered to any other party under an agreement of sale，lease，or loan
unless and until the recipient demonstrates that they have a variance in effect at the time of delivery
that permits them to produce laser light shows incorporating such projector(s).
No direct exposure to the beam shall be permitted.
Operators shall control access to the beam within the hazard distance or install the product at a height
that will prevent eye exposure within the hazard distance.
RISK GROUP 3
WARNING: Possibly hazardous optical radiation emitted from this product.
Do not look at operating lamp source. Eye injury may result.
CAUTION!
HIGH VOLTAGE. RISK OF SEVERE OR FATAL ELECTRIC SHOCK
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY FIXTURE
COVERS
CAUTION!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE. SENSITIVE PERSONS
MAY SUFFER AN EPILEPTIC SHOCK
CAUTION!
NEVER TOUCH THE DEVICE DURING OPERATION! COVERS MAY BE HOT
CAUTION!
THE LUMINAIRE SHOULD BE POSITIONED SO THAT PROLONGED
STARING INTO THE LUMINAIRE AT A DISTANCE CLOSER THAN 58.3 M IS
NOT EXPECTED

3
CAUTION!
Warning：Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE：This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Important:
Damage caused by the disregard of this user manual is not subject to warranty.The
dealer and manufacturer will not accept liability for any resulting defects or problems.
•If the device has been exposed to temperature changes due to environmental conditions，
do not power on immediately.The resulting condensation could damage the device.Leave
the device powered off until it has reached room temperature.
•Ensure the sealing rubber covers of powerCON and XLR connectors are fitted properly
when the device is not in use，to avoid water ingress.
•This device falls under protection-class I.Therefore，it is essential that the device be
earthed.
•If either lenses or display are damaged (damage may include cracks or gashes in the
material) they must be replaced.
•Electrical connections，such as replacing the power plug，must be performed by a
qualified person.
•Make sure that the available voltage is not higher than that which is stated in this manual.
•Make sure the power cord is never crushed or damaged by sharp edges.If this should be
the case，replacement of the cable must be done by an authorized dealer.
•If the external flexible power cord of this device is damaged，it shall be exclusively
replaced by the manufacturer or their service agent or a similar qualified person in order
to avoid injury.
•When the device is not in use or before performing maintenance，always disconnect the
device from the mains.Only handle the power cord from the plug.Never pull the plug out
of a socket by tugging the power cord.
•When powered on for the first time，some smoke or smell may occur.This is caused by
coating on metal parts when heated and is normal.If you are concerned，please contact
your distributor.
•Do not focus the beam onto flammable surfaces.The minimum distance between the
exiting lens of the device and the illuminated surface must be :
Min 25 m distance to the illuminated surface (narrowest zoom with full power)
Min 15 m distance to the illuminated surface (narrowest zoom with 78% intensity)
Min 8 m distance to the illuminated surface (narrowest zoom with 51% intensity)
•According to IEC62471-5, the distance from RG3 to RG1 is 45 meters.
Please be aware that damage caused by any modifications to the device are not subject to
warranty.Keep away from children and non-professionals.

4
1.2. GENERAL GUIDELINES
•This device is a lighting effect for professional use on stages，in discotheques，theatres，
etc.the device was designed for outdoor use.
•Scanning，projection，or reflection of laser and collateral radiation into audience or other
accessible uncontrolled areas shall not be permitted except for diffuse reflections produced by
the atmosphere，added atmospheric scattering media, and target screens.
•Laser radiation levels in excess of the limits of Class I shall not be permitted at any point less
than 3.0 meters above any surface upon which persons other than operators，performers，or
employees are permitted to stand or 2.5 meters below or in lateral separation from any place
where such persons are permitted to be. Operators，performers，and employees shall not be
required or allowed to view radiation above the limits of Class I or be exposed to radiation
above Class IIIa.
•All laser light shows shall be under the direct and personal control of trained，competent
operator(s). The operator(s) shall：
(1)、Be an employee of the variance holder who will be responsible for the training and the
conduct of the operator；
(2)、Be located where all beam paths can be directly observed at all times；
(3)、Immediately terminate the emission of light show radiation in the event of any unsafe
condition；or for outdoor shows，upon request by any air traffic control officials.
•The projection system shall be securely mounted or immobilized to prevent unintended
movement or misalignment. Beam masking will be provided as an inherent part of the system
design to prevent overfilling of screens，beam stops，targets，etc.
•This fixture is only allowed to be operated within the maximum alternating current as
stated in the technical specifications in section 2 of this manual.
•Handle the device with care，avoid shaking or using force when installing or maintaining
the device.
•If you use the quick lock cam when rigging the device，make sure the quick lock fasteners
are located in the quick lock holes correctly and securely.
•Operate the device only after having familiarized yourself with its functions.Do not
permit operation by persons not qualified for operating the device.Most damage isthe
result of unprofessional operation.
•Please use the original packaging if the device is to be transported.
•The applicable temperature for the device is between -20°C to 45°C.Do not use the device
outside of this temperature range.(Note：When the temperature detected by laser source
between -20°C to 0°C，it need to wait some minutes for the heater to heat up the
temperature to be above 0°C before lighting on.)
For safety reasons，please be aware that all modifications to the device are forbidden.
If this device is operated in any way different to the ones described in this manual，the
product may suffer damage and the warranty becomes void.Furthermore，any other
operation may lead to short-circuits，burns，electric shocks etc.

5
2. FEATURES
POWER SUPPLY
•AC100-240V~，50/60Hz
•Power Consumption：480W
LIGHT SOURCE
•Laser：260W, White, Color Temperature 9000 ~ 10000K
•Extremely long Life：>12,000H
MOVEMENT
•Pan movement：infinite rotation
•Tilt movement：infinite rotation
•Advanced moving system：fast，stable and quite，auto x-y repositioning
COLORS
•CMY + CTO color mixing，uniform，linear and speed can be adjustable
•1 Color wheel：27 dichroic filters + open，indexable
GOBOS
•Rotating gobo wheel：12 interchangeable，rotating，and indexable，gobo+open
•“Slot in & out”gobo wheel system
•Fix gobo wheel：79 + open，with different speed gobo shaking and gobo indexing
FEATURES
•3 Control channel modes：35/33/45 channels
•2 Operation modes：DMX-512，Master / Slave mode
•Strobe effect with 1-25 flashes per second and pulse effect
•8 Rotating Prisms：6-facet circular (2), 8-facet circular, 16-facet circular, 4-facet linear (2),
6-facet linear (2)
•Animation effect：can make special dynamic effect
•Focus：Motorized focus
•Frost：2 frost filters
•Dimmer：0%~100% full range dimming
DISPLAY
•Advanced and convenient full –color LCD
•Pan and Tilt homing bypass：long press the center button to lock pan / tilt homing
•Can be changed 180° reverse to fit for different installation position
SOFTWARE
Upgrades：fast and convenient through DMX cable with DMX-512 controller
Reset DMX address，reset can all be done by the DMX controller
Running time of fixture on display for reference

6
OTHER SPEC
Input signal isolation：guarantees stable signal transmission without interference
Advanced RDM function
WEIGHT
Net weight: 33 kg

7

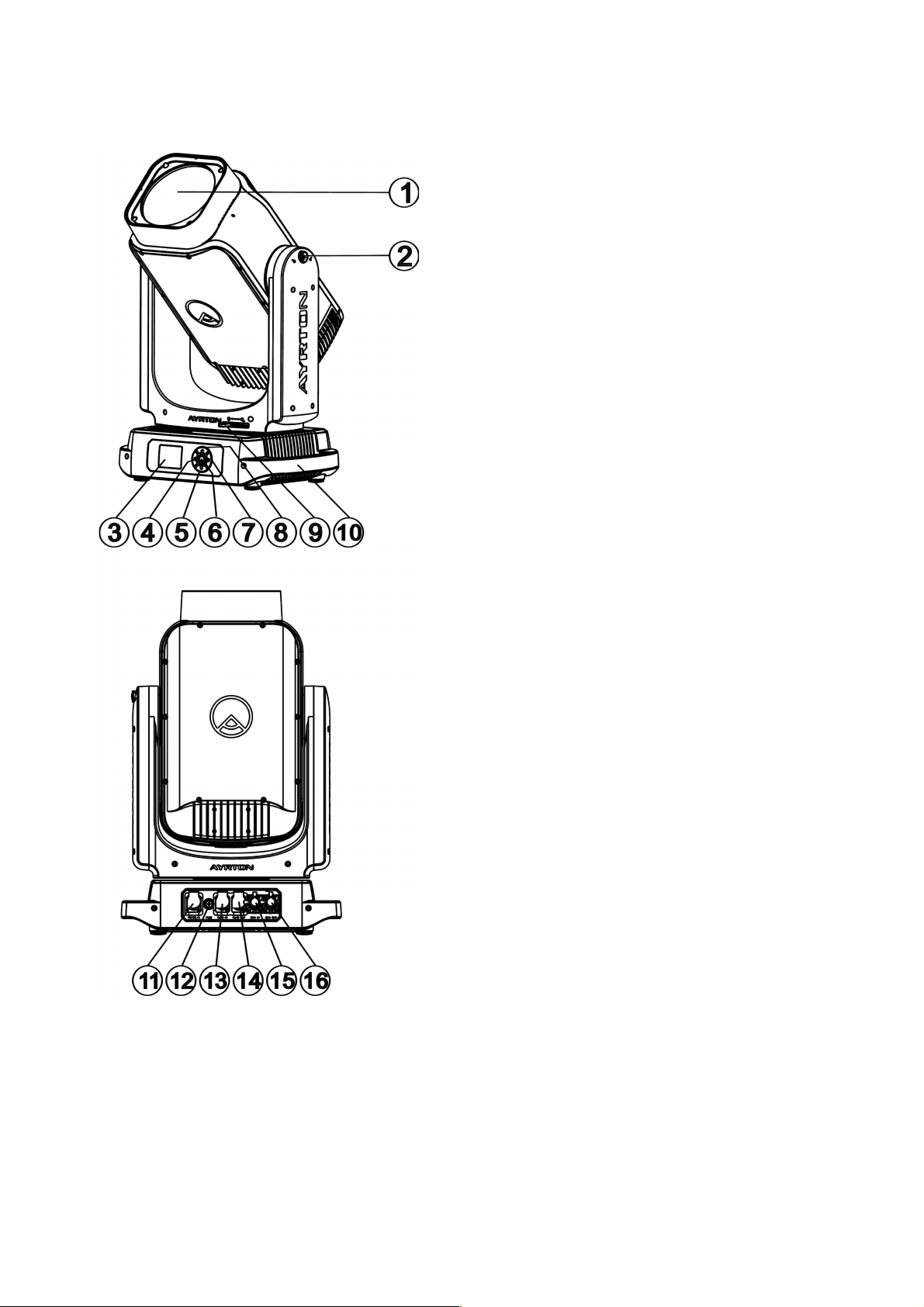

3. FIXTURE OVERVIEW
1) Front Lens
2) Tilt Lock
3) Display
4) Lef-button
5) Down-button
6) Center-button
7) Right-button
8) Up-button
9) Pan Lock
10) Handle
11) Power In
12) Fuse
13) RJ45 In
14) RJ45 Out
15) DMX In
16) DMX Out

8
4. DIMENSIONAL DRAWINGS
4.1. Fixture Dimension

9
4.2. Color wheel
Outer Ring Color
：
1. Green
2. Orange
3. Blue
4. Red
5. Pink
6. Medium Yellow
7. Deep purple
8.Velvet green
9. Amber
10. Light blue
11. Light red
12. Follies pink
13. Yellow
14. Slate blue
15. Dark Green
16. Dark amber
17.Medium Blue
18.Magical magenta
19.Oklahoma yellow
Inner Ring Color
：
20. Congo blue
21. UV
22. Minus Green 1/4
23. Minus Green 1/2
24. CTB 1/4
25. CTB 1/2
26. CTB
27. Light Amber

10

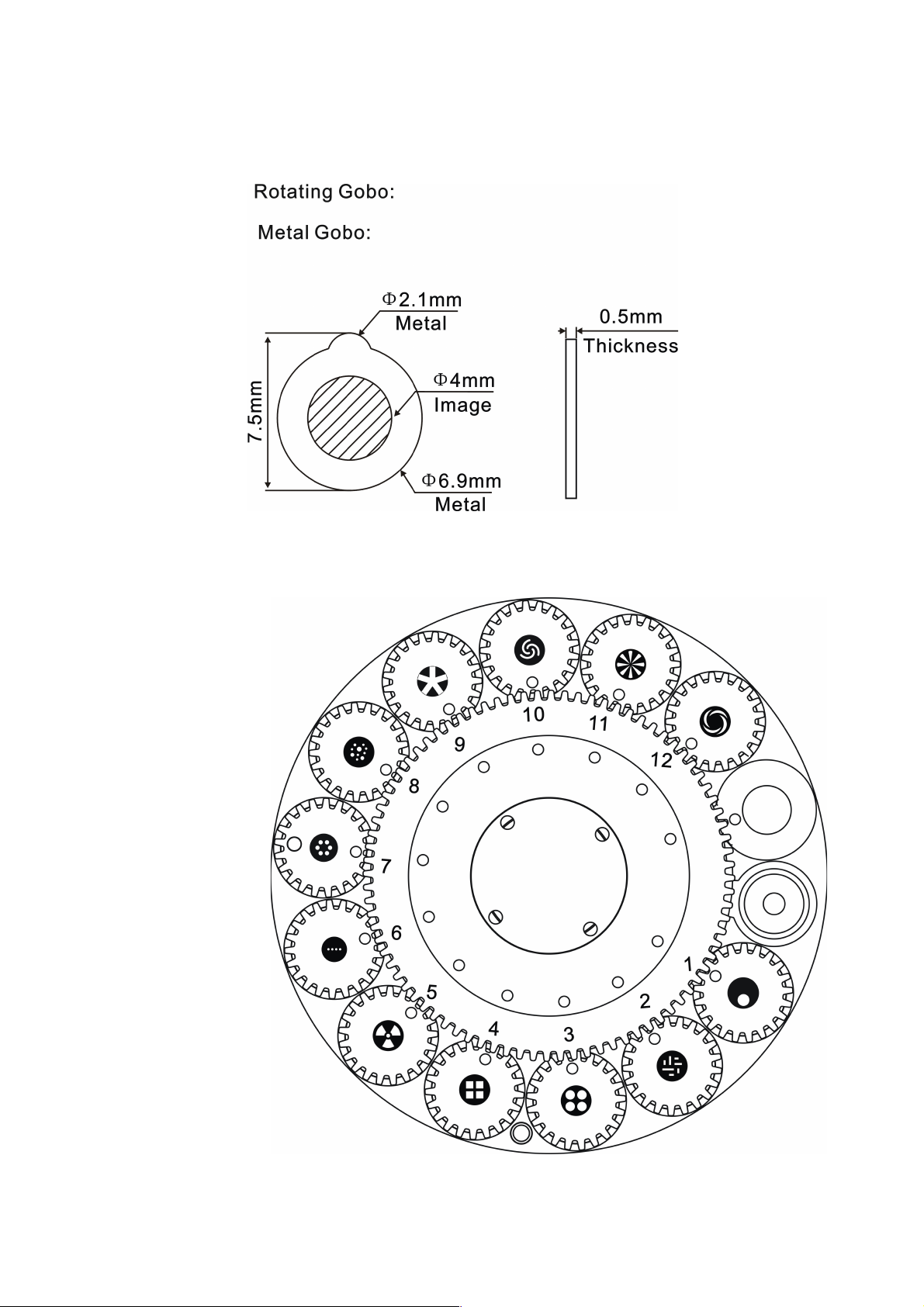

4.3. Gobo Filter Dimension

11
4.4. Fix Gobo Wheel Dimension

12
5. INSTALLATION INSTRUCTIONS
5.1. Rigging the device
CAUTION!
PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING THE
INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A
QUALIFIED PERSON.
•The applicable temperature for the lighting is between -20°C to 45°C. Do not use the
lighting under or above the temperature.
•The installation of the effect has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
•The installation must always be secured with a secondary safety attachment，e.g.an
appropriate safety rope.
•Never stand directly below the device when mounting，removing or servicing the fixture.
•The operator has to make sure the safety relating and machine technical installations are
approved by an expert before taking the device into operation for the first time.
•These installations have to be approved by a skilled person once a year.
•Overhead mounting requires extensive experience，including amongst others calculating
working load limits，installation material being used，and periodic safety inspection of all
installation material and the device.If you lack these qualifications，do not attempt the
installation yourself.Improper installation can result in bodily injury.

13

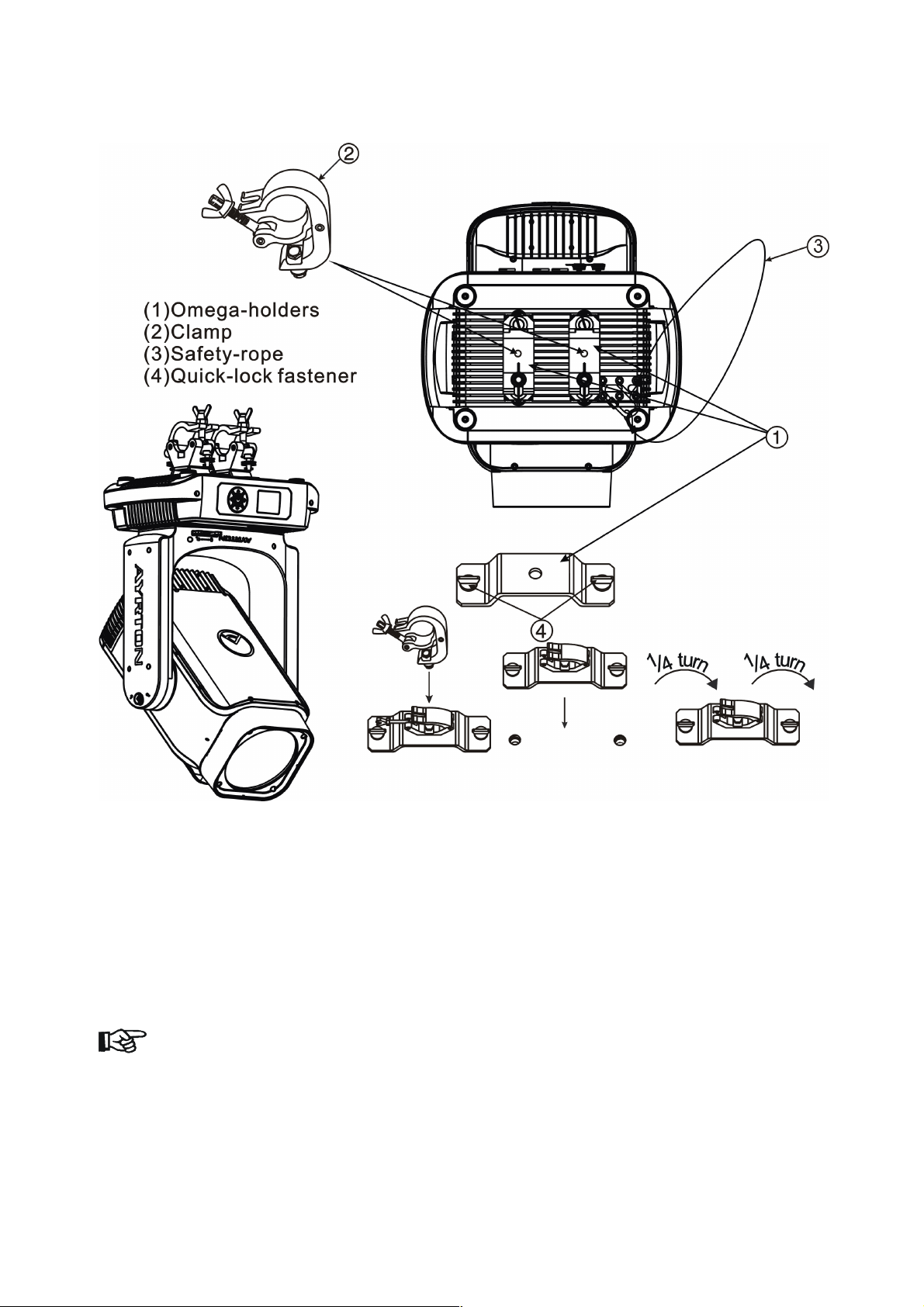

5.2. Rigging using the omega brackets
•Fix the clamp to the bracket by tightening the M12 nut and boltto the bracket through the
Ф13 hole in the middle of the bracket.
•Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device.Tighten the quick-lock fasteners fully clockwise.
•Install the second Omega holder.
•Pull the safety cable through the holes on the bottom of the base and over the trussing
system or another suitable rigging point. Insert the end into the carabiner and tighten the
safety screw.
Important：
This step is very important to ensure safe rigging of the fixture.

14
5.3. RIGGING DRAWINGS
•Be sure this fixture is kept at least 0.1m away from any flammable materials (decoration
etc.).
•Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
•Rig the projector high enough to provide clearance for people who may walk beneath the
beam path or establishing a restricted access area that extends beyond the beam hazard
distance.
•While fixed installation at locations other than cinema theaters should be installed at a height
not lower than 3 m vertically. The lowest tip of the Hazard Zone should be no lower than 3 m
measured vertically above the floor. Horizontal clearance to the Hazard Zone should be 2.5 m
measured horizontally. Any human access to the Hazard Zone, if applicable, is to be restricted
by barriers. The fixed installation should be performed by authorized installers, who are
trained to perform installations in accordance with the manufacturer’s instructions.
Important：
Overhead rigging requires extensive experience，including (but not limited to)
calculating working load limits，specifying installation/ rigging materials，and periodic
safety inspection of all installation material as well as the device.If you lack these
qualifications，do not attempt therigging of this device yourself.Improper installation/
rigging can result in serious bodily injury.

15

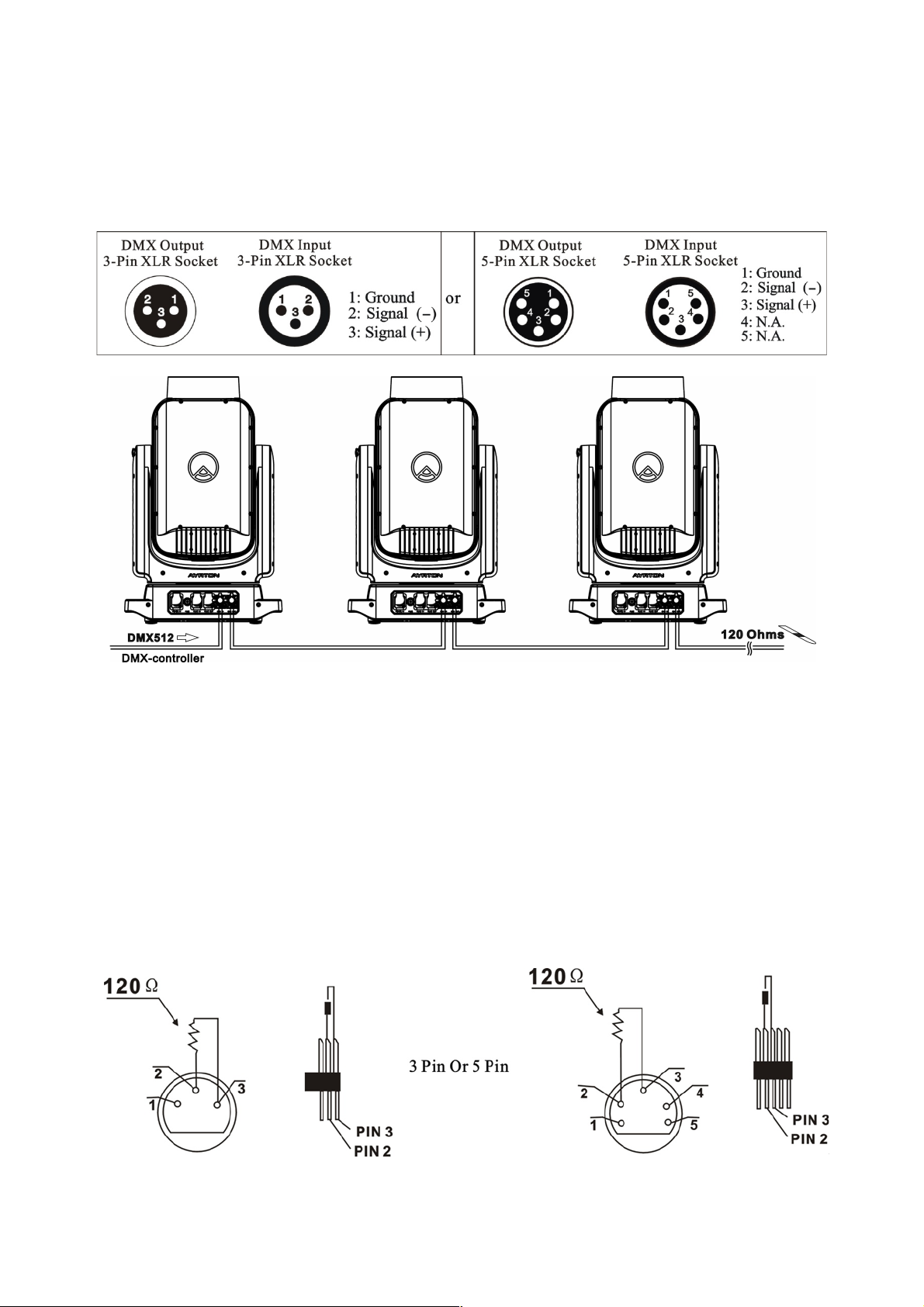

6. DMX-512 CONTROL CONNECTION
Connect the provided male side of the XLR cable to the femaleXLR output of your controller and
the female side of the XLR cable to the male XLR input of the device.You can connect
multipledevices together in a serial fashion.The cable needed should be two core，screened cable
with XLR input and output connectors.Please refer to the diagram below.
Address 1 Address 36 Address 71
7. DMX-512 CONNECTION WITH DMX TERMINATOR
For installations where the DMX cable has to run over a long distance or is in an electrically
noisy environment，such as in a discotheque，it is recommended to use a DMX terminator.This
helps in preventing corruption of the digital control signal caused by electrical noise.The DMX
terminator is an XLR plug with a 120 Ωresistor connected between pins 2 and 3，which is then
plugged into the output (female) XLR socket of the last fixture in the chain.Please see
illustrations below.

16
8. DEVICE DMX START ADDRESS SELECTION
All fixtures should be given a DMX starting address when using a DMX signal，so that the
correct fixture responds to the correct control signals.This digital starting address is the channel
number from which the fixture starts to“listen”to the digital control information sent out from the
DMX controller.The allocation of this starting address is achieved by setting the correct address
number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures，or set different
addresses for each fixture individually.
If you set the same address on all devices，all the devices will start to“listen”to the same control
signal from the same channel number.In other words，changing the settings of one channel will
affect all the fixtures simultaneously.
If you set a different address，each unit will start to“listen”to the channel number you have set，
based on the quantity of control channels of the unit.That means changing the settings of one
channel will affect only the selected device.
In the case of the LED moving head，in 35 channel mode，you should set the starting address of
the first unit to 1，the second unit to 36(35 + 1)，the third unit to 71 (35 + 36)，and so on.
9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS
SYSTEM
9.1 Equipments：
DMX 512 controller，wireless transmitter，and the fixtures with wireless receiver.
9.2 Message from the LED indicator：
1) Rapid flashing red/Green：logging in to a transmitter.
2) Slow flashing Red/Green：Logged on a transmitter and the DMX line is idle (No DMX is
connected to transmitter).
3) Solid Green：Logged on to a transmitter and receiving DMX data.
4) Solid Red：Not logged on to a transmitter (free).
9.3 WDMX in the menu of the fixture：
On a fixture installed with wireless system，in order to switch between wireless control system
and traditional DMX control (with cable)，a new menu WDMX is added to the display board.
ON：(Activate WDMX)
1) When the fixture is on power，and the WDMX is activated to ON status，but did not
connect to the controller and did not log in to the transmitter，the fixture will search for the
DMX signal source.If the fixture is connected to the DMX controller it can be controlled by
DMX controller；if it is log in to the wireless transmitter，it can be controlled by the
Transmitter.
2) When the fixture is power off, and the WDMX is in ON status，if the fixture is connected
to DMX controller.After the fixture is power on，it can be controlled only by the DMX
controller which connected.The fixture can log in the wireless transmitter，and receive only
radio signal from transmitter，but not DMX from the transmitter.

17
OFF：(De-activate WDMX)
In this status，wireless system is not activated，so the fixture can not log in the transmitter.
REST：(reset WDMX memory)
Can remove the fixture from the connection with the transmitter，the fixture become free and
ready to log in any transmitter.
9.4 Setup the wireless system：
1) Connect the transmitter with the DMX controller.
2) To make the fixture installed with wireless receiver log in to the transmitter.
a) Initially，the indicator on the receiver fixture should be in Solid red.
b) Press and hold the configuration button on transmitter for less than 3 seconds the
red/green LEDs on the transmitter and the receiver fixture will flash rapidly for about
5~ 10 seconds while the system goes through its setup procedure.
c) Once the receiver fixture is logged in to the transmitter (T1)，the fixture with wireless
receiver will keep the memory，even if restart the power，this unit will log in the
transmitter (T1) automatically.
3) Use the DMX 512 to control the fixture
9.5 Remove the receivers from transmitter (T1) and to log in to another transmitter (T2) ：
Case 1：Remove a receiver：
a) On the control board of the fixture，enter menu to activated the function of REST；
b) The LED for wireless on the fixture should turn to Solid red; the receiver can log out from
the transmitter (T1)；
c) press the configuration button on transmitter (T2) for less than 3 second，then the fixture
will start to connect with the transmitter (T2).
Case 2：Remove all receivers from a transmitter (T1) to log in to T2：
a) Press and hold the configuration button on the T1 as least 5 seconds，can clear the
connection with all the fixtures；
b) All the red/green LEDs on the receiver fixtures will turn to Solid red to indicate that the
receivers are unassigned and removed from the transmitter (T1)；
c) Press and hold the configuration button on the T2 less then less than 3 second，the fixtures
will connect with the T2.
PS：
1. Please log the receivers out from the transmitter after every job，so that the receivers are in
free un assigned state and ready to be assigned to a transmitter.
2. Do not connect the fixture which is under the communication of wireless system to the
DMX controller，otherwise it will cause interference from the DMX controller.

18
10. DISPLAY
The Display offers buttons features：you can set the starting address，run the pre-programmed
program or reset the device.
The main menu is accessed by double clicking -button until the display starts
flashing.Browse through the menu by pressing the -button，-button，-button or
- button.
Press for 2 seconds in order to exit menu，double click for confirm. After accessing
the edit mode，the unit will automatically exit to the main menu after 15 seconds from the last
button press.
When the unit is powered on，if no data signal is connected after 1 minute，then the display will
switch off automatically.
Default settings shaded
Address
Address
DMX address:001-XXX
:
DMX address setting
Mode
User Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Edit User ModeA
:
Max channel
PAN
:
Preset User modes A,B,C
:
Options
Status
No DMX Mode
Sun protection
Pan Reverse
Tilt Reverse
Pan Degree
Tilt Degree
Feedback
Init PAN
Init TILT
Prerig INIT
Reset Mode
Pan/Tilt Spd
CMY Spd
CTO Control
Zoom/Focus Spd
Hibernation
DMX Output
Close/Hold/Auto
ON/OFF
ON/OFF
ON/OFF
630/540
270/540
ON/OFF
ON/OFF
ON/OFF
ON/OFF
Fast /All Rot Gobos
Medium/Fast/Slow
Slow/Fast
Color Wheel/Separate Ch
Fast/Medium/Slow
OFF , 01M~99M
ON/OFF
Hold if no DMX
Sun protection movement
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Tilt Degree
Movement Feedback
Init PAN
Init TILT
Prerig INIT
Reset Mode
Movement Speed
CMY Spd
CTO Control
Zoom/Focus Spd
Stand by Mode
Ethernet to DMX

19
Service PIN
Service PIN
Set Ip
Set Mask Ip
DHCP
Cross Load SW
Clr Laser Timer
Clr Error Info
Password=XXX
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
ON/OFF
ON/OFF
ON/OFF
ON/OFF
Service Password”=050”
Set Ip
Set Mask Ip
DHCP
Cross Load SW
Clr Laser Timer
Clr Error Info
Fans Control
Fans Speed
Auto
Stage
Silence
Super Silence
Fans Speed select
Constant Fans
ON/OFF
Constant Fans
Disp.Setting
Shutoff Time
Flip Display
Key Lock
DispFlash
02~60m05m
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
DispFlash
Signal Select
DMX
WDMX
Art-Net
sACN
DMX
WDMX
Art-Net
sACN
Temp. C/F
Celsius
Fahrenheit
Temperature switch
between /
Initial Pos.
PAN =XXX
Initial effect position
Wireless DMX
Activate WDMX
Rest WDMX
Activate WDMX
Rest WDMX
Dim Curve
Square Law
Linear
Dim Curve
Refresh Select
1.2K
2.4K
16K
25K
Refresh Select
Prism Mode
Simple/Full
Prism Mode
Reset P/T Fade
ON/OFF
Reset P/T Fade
Illumination Limit
25m Distance /15m Distance/8m Distance
Illumination Limit
Trigger
DMX Value Disp.
Set To Slave
Auto Program
PAN……
Slave1,Slave2,Slave3
Master / Alone
DMX Value Disp.
Set To Slave
Auto Program
ResetDefault
ON/OFF
Restore factory set.
Reset User set
Address
DMX address:001-XXX
:
DMX address setting
Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
