Ayrton Mistral User manual

User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
AYRTON – 2 rue VItruve – 91140 Villebon sur Yvette – FRANCE
www.ayrton.eu

CONTENTS
1.!SAFETY INSTRUCTIONS! 2!
2.!FEATURES! 4!
3.!FIXTURE OVERVIEW! 6!
4.!DIMENSIONAL DRAWINGS! 7!
5.!INSTALLATION INSTRUCTIONS! 8!
6.!DMX-512 CONTROL CONNECTION!11!
7.!DMX-512 CONNECTION WITH DMX TERMINATOR!11!
8.!DEVICE DMX START ADDRESS SELECTION!12!
9.!DISPLAY!12!
10.!DMX!PROTOCOL!25!
11.!ERROR MESSAGES!30!
12.!CLEANING!AND!MAINTENANCE!32!
!
!
!
!
!
!
!
!
!
!
!

1. SAFETY INSTRUCTIONS
1.1. IMPORTANT SAFETY WARNING
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure safe operation，it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
In order to install，operate，and maintain the lighting fixture safely and correctly we suggest that
the installation and operation be carried out by qualified technicians and these instructions be
carefully followed.
CAUTION!
HIGH VOLTAGE. RISK OF SEVERE OR FATAL ELECTRIC SHOCK
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY FIXTURE
COVERS
CAUTION!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE. SENSITIVE PERSONS
MAY SUFFER AN EPILEPTIC SHOCK
CAUTION!
NEVER TOUCH THE DEVICE DURING OPERATION! COVERS MAY BE HOT
Important:
Damage caused by the disregard of this user manual is not subject to warranty. The
dealer and manufacturer will not accept liability for any resulting defects or problems.
•If the device has been exposed to temperature changes due to environmental conditions，
do not power on immediately. The resulting condensation could damage the device.Leave
the device powered off until it has reached room temperature.
•This device falls under protection-class I. Therefore，it is essential that the device be
earthed.
•If either lenses or display are damaged (damage may include cracks or gashes in the
material) they must be replaced.
•Electrical connections，such as replacing the power plug，must be performed by a
qualified person.
•Make sure that the available voltage is not higher than that which is stated at the end of
this manual.
•Make sure the power cord is never crushed or damaged by sharp edges.If this should be
the case，replacement of the cable must be done by an authorized dealer.
•If the external flexible power cord of this device is damaged，it shall be exclusively
replaced by the manufacturer or their service agent or a similar qualified person in order
to avoid injury.
•When the device is not in use or before performing maintenance，always disconnect the

device from the mains.Only handle the power cord from the plug.Never pull the plug out
of a socket by tugging the power cord.
•When powered on for the first time，some smoke or smell may occur.This is caused by
coating on metal parts when heated and is normal.If you are concerned，please contact
your distributor.
•Do not focus the beam onto flammable surfaces.The minimum distance between the
exiting lens of the device and the illuminated surface must be greater than 1.5 meter.
Please be aware that damages caused by any modifications to the device are not subject to
warranty. Keep away from children and non-professionals.
1.2. GENERAL GUIDELINES
•This device is a lighting effect for professional use on stages，in discotheques，theatres，
etc. This device was designed for indoor use.
•This fixture is only allowed to be operated within the maximum alternating current as
stated in the technical specifications in section 2 of this manual.
•Handle the device with care，avoid shaking or using force when installing or maintaining
the device.
•If you use the quick lock cam when rigging the device，make sure the quick lock fasteners
are located in the quick lock holes correctly and securely.
•Operate the device only after having familiarized yourself with its functions. Do not
permit operation by persons not qualified for operating the device. Most damages are the
result of unprofessional operation.
•Please use the original packaging if the device is to be transported.
•The applicable temperature for the device is between -10°C to 45°C. Do not use the
device outside of this temperature range.
•The light source of this luminaire is not replaceable; when the light source reaches its end
of life the whole luminaire shall be replaced.
For safety reasons，please be aware that all modifications to the device are forbidden.
If this device is operated in any way different to the ones described in this manual，the
product may suffer damage and the warranty becomes void. Furthermore，any other
operation may lead to short-circuits，burns，electric shocks etc.

2. FEATURES
POWER SUPPLY
•AC100-240V~，50/60Hz
•Power Consumption：400W
LIGHT SOURCE
•LED：White LED，8000K Color Temperature
•Extremely long Life：>50,000H
MOVEMENT
•Pan movement：540º/630ºOptional (16 bit)
•Tilt movement：270º(16 bit)
•Advanced moving system：fast，stable and quite，auto x-y repositioning
COLORS
•CMY color mixing，uniform，linear and speed can be adjustable
•1 Color wheel：7 dichroic filters + open，indexable，rainbow effect
GOBOS : Gobo size: Diameter 25mm – image 20mm
•Rotating gobo wheel：7 interchangeable，rotating，and indexable，gobo+open
•“Slot in & out”gobo wheel system.
•Fix gobo wheel：9 + open，with different speed gobo shaking and gobo indexing
FEATURES
•3 Control channel modes：28/26/39 channels
•2 Operation modes：DMX-512，Master / Slave mode
•Strobe effect with 1-25 flashes per second and pulse effect
•Zoom：Zoom adjustment from small to big (6,7° to 53°)
•Animation wheel：can make special dynamic flame or water effect
•Focus：Motorized focus
•Prism : 5 facet Prism
•Stepless frost：0%~100% linear change frost
•Stepless iris：5%~100% linear change iris，pulse iris effect
•Dimmer：0%~100% full range dimming
DISPLAY
•Advanced and convenient full –color LCD，with rechargeable battery (optional)
•Can be changed 180° reverse to fit for different installation position
SOFTWARE
8 pre-installed programs available upon selection
Upgrades：fast and convenient through DMX cable with DMX-512 controller
Reset via DMX address, reset can all be done by the DMX controller
Running time of fixture on display for reference

OTHER SPEC
Input signal isolation：guarantees stable signal transmission without interference
Advanced RDM function
WEIGHT
Net weight: 19 kg

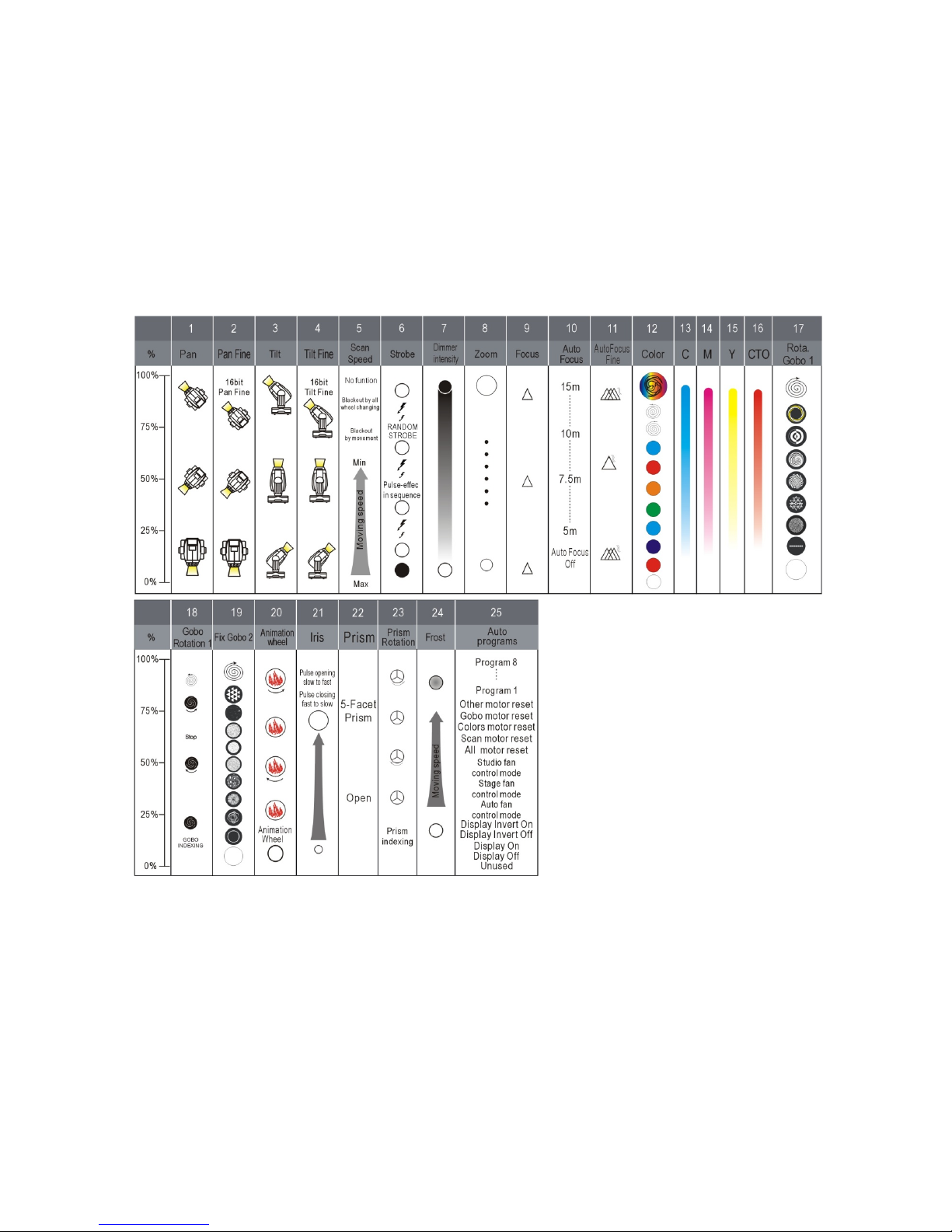

DMX CHANNEL CHART

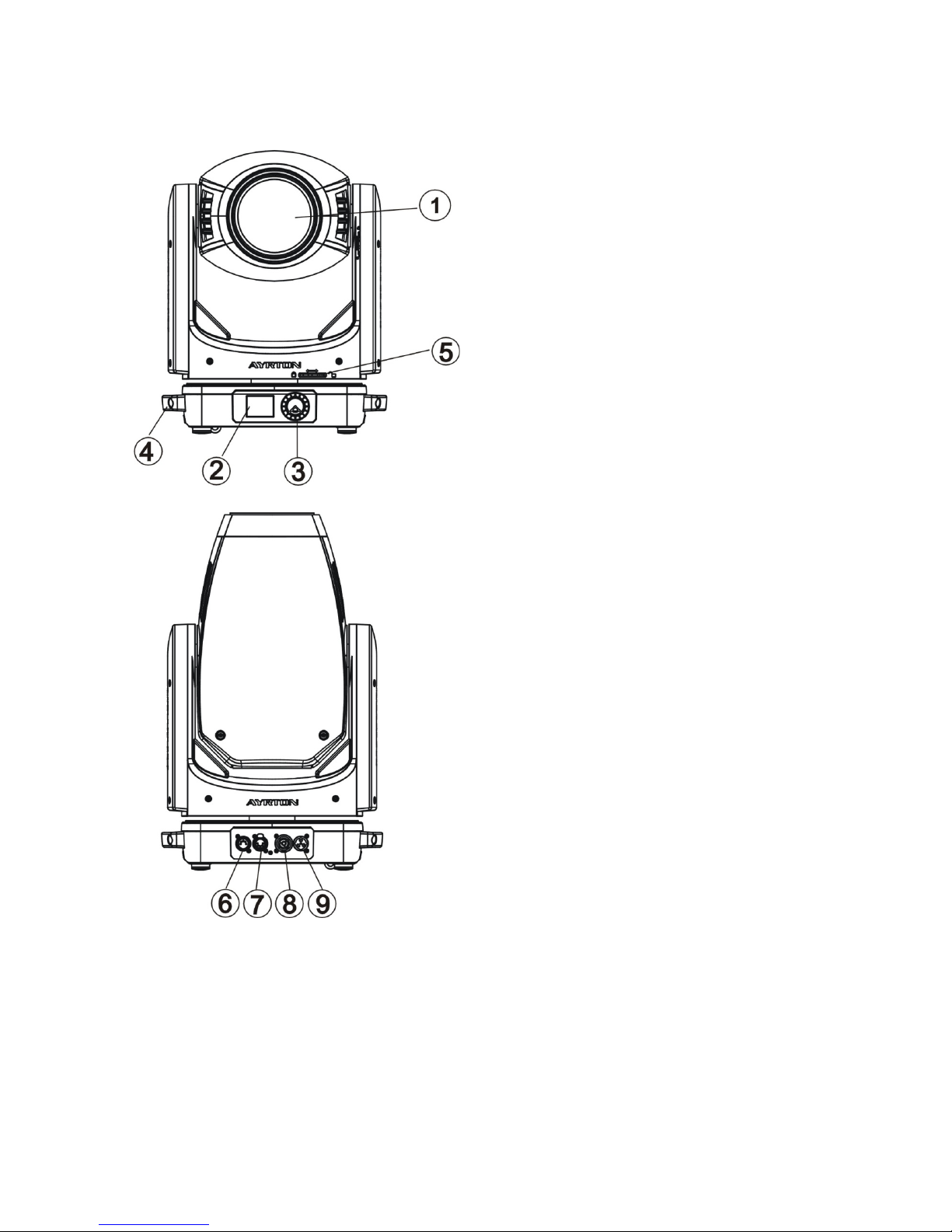

3. FIXTURE OVERVIEW
1) LED Assembly
2) Display
3) Jog wheel
4) Handle
5) Lock button
6) DMX Out
7) DMX In
8) Power Out
9) Power In

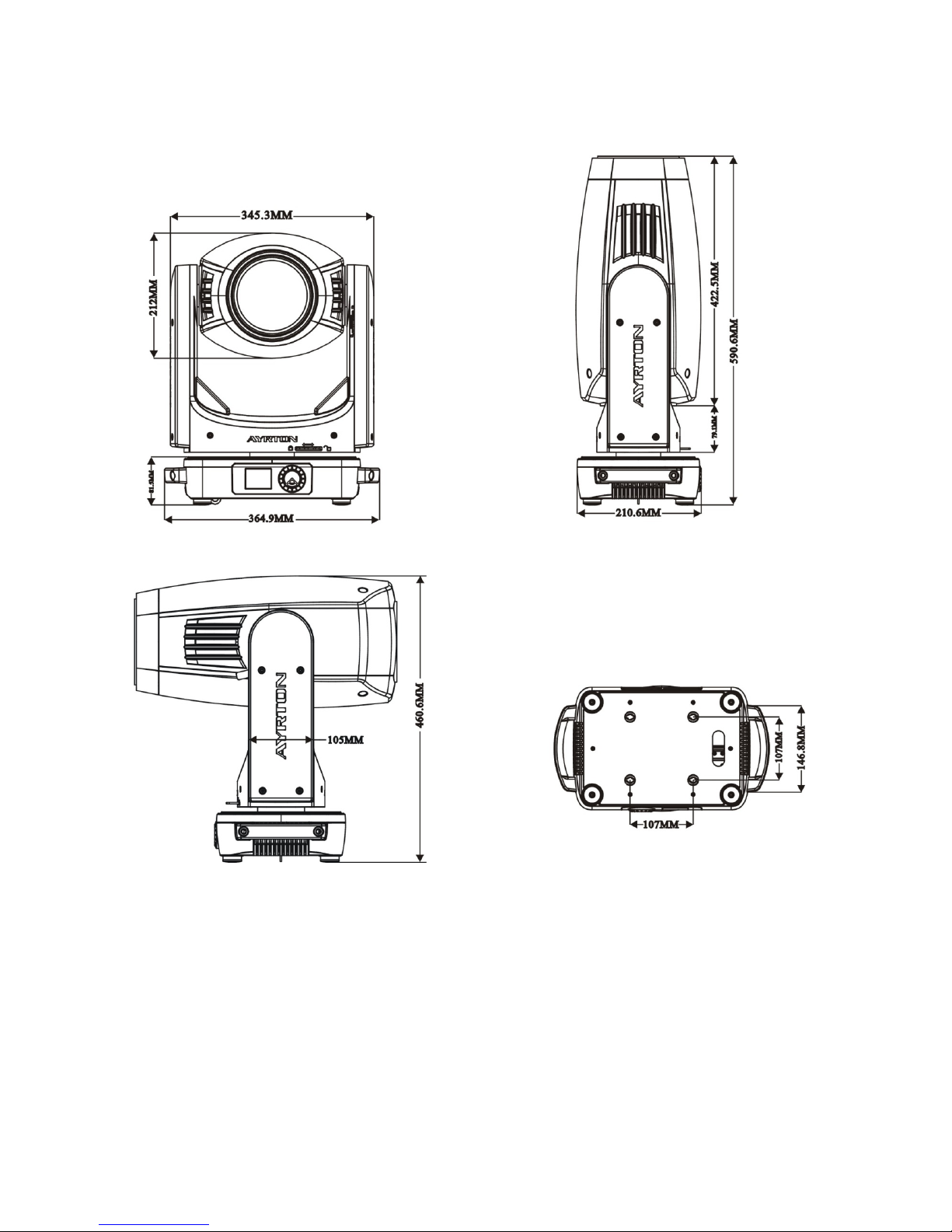

4. DIMENSIONAL DRAWINGS

5. INSTALLATION INSTRUCTIONS
5.1. Rigging the device
CAUTION!
PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING
INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A
QUALIFIED PERSON.
•The applicable temperature for this unit is between -10°C to 45°C. Do not use the unit
under or above the temperature.
•The installation of the unit has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
•The installation must always be secured with a secondary safety attachment，e.g.an
appropriate safety cable.
•Never stand directly below the device when mounting，removing or servicing the fixture.
•The operator has to make sure the safety relating and machine technical installations are
approved by an expert before taking the device into operation for the first time.
•These installations have to be approved by a skilled person once a year.
•Overhead mounting requires extensive experience，including amongst others calculating
working load limits，installation material being used，and periodic safety inspection of all
installation material and the device.If you lack these qualifications，do not attempt the
installation yourself.Improper installation can result in bodily injury.

5.2. Rigging using the omega brackets
•Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the
Ф13 hole in the middle of the bracket.
•Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device. Tighten the quick-lock fasteners fully clockwise.
•Install the second Omega holder.
•Pull the safety cable through the holes on the bottom of the base and over the trussing
system or another suitable rigging point. Insert the end into the carabiner and tighten the
safety screw.
Important：
This step is very important to ensure safe rigging of the fixture.

5.3. RIGGING DRAWINGS
•Be sure this fixture is kept at least 2 m away from any flammable materials (decoration
etc.).
•Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Important：
Overhead rigging requires extensive experience，including (but not limited to)
calculating working load limits，specifying installation/ rigging materials，and periodic
safety inspection of all installation material as well as the device.If you lack these
qualifications，do not attempt the rigging of this device yourself.Improper installation/
rigging can result in serious bodily injury.

6. DMX-512 CONTROL CONNECTION
Connect the provided male side of the XLR cable to the female XLR output of your controller
and the female side of the XLR cable to the male XLR input of the device.You can connect
multiple devices together in a serial fashion.The cable needed should be two core，screened cable
with XLR input and output connectors.Please refer to the diagram below.
Address 79 Address 40 Address 1
7. DMX-512 CONNECTION WITH DMX TERMINATOR
For installations where the DMX cable has to run over a long distance or is in an electrically
noisy environment，such as in a discotheque，it is recommended to use a DMX terminator.This
helps in preventing corruption of the digital control signal caused by electrical noise.The DMX
terminator is an XLR plug with a 120 Ωresistor connected between pins 2 and 3，which is then
plugged into the output (female) XLR socket of the last fixture in the chain.Please see
illustrations below.

8. DEVICE DMX START ADDRESS SELECTION
All fixtures should be given a DMX starting address when using a DMX signal，so that the
correct fixture responds to the correct control signals.This digital starting address is the channel
number from which the fixture starts to“listen”to the digital control information sent out from the
DMX controller.The allocation of this starting address is achieved by setting the correct address
number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures，or set different
addresses for each fixture individually.
If you set the same address on all devices，all the devices will start to“listen”to the same control
signal from the same channel number.In other words，changing the settings of one channel will
affect all the fixtures simultaneously.
If you set a different address，each unit will start to“listen”to the channel number you have set，
based on the quantity of control channels of the unit.That means changing the settings of one
channel will affect only the selected device.
In the case of the LED moving head，in 39 channel mode，you should set the starting address of
the first unit to 1，the second unit to 40 (39 + 1)，the third unit to 79 (39 + 40)，and so on.
9. DISPLAY
The Display offers jog wheel features：you can set the starting address，run the pre-programmed
program or reset the device.
The main menu is accessed by double clicking the jog wheel until the display starts flashing.
Browse through the menu by turning jog wheel clockwise or counterclockwise.
Press the Jog wheel 2 times in order to select the desired menu, double click the Jog wheel for
confirm. After accessing the edit mode，the unit will automatically exit to the main menu after 15
seconds from the last button press. Clockwise is positive direction while counterclockwise is
opposite direction. Press the jog wheel for 2 seconds to exit menus.
When the unit is powered on，if no data signal is connected after 1 minute，then the display will
switch off automatically. The Display does not need external power to operate in case there is
battery，hold down the jog wheel for seconds and the Display will turn on by using the unit’s
battery.
PS：No response when quick press the jog wheel.

CAUTION!
THE BATTERY MUST BE A LI-ION RECHARGEABLE BATTERY,
THE SPECIFICATION IS AS FOLLOWING:
Default settings shaded
Add
ress
Set Dmx Address
A001~AXXX
DMX address setting
Mode
User Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change channel
numbers
Edit User ModeA
:
Max channel
PAN
:
Preset User modes A,B,C
:
Options
Status
No DMX Mode
Pan Reverse
Tilt Reverse
Pan Degree
Feedback
Pan/Tilt Spd
Hibernation
Close/Hold/Auto
ON/OFF
ON/OFF
630/540
ON/OFF
Speed 1~ 4
OFF , 01M~99M
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback
Movement Speed
Stand by Mode
Service PIN
Service PIN
Cross Load SW
Password=XXX
ON/OFF
Service password is 050
Upload SW tio other units
Fans Control
Head Control
Auto
Stage
Studio
Fans Speed select
Disp.Setting
Shutoff Time
Flip Display
Key Lock
DispFlash
02~60m 05m
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
DispFlash
Signal Select
DMX
WDMX
DMX
WDMX
Temp. C/F
Celsius
Fahrenheit
Temperature switch between
C°/F°
Initial Pos.
PAN =XXX
Initial effect position
Wireless DMX
Activate WDMX
Act&Data Out
Activate WDMX
Act&Data Out

Rest WDMX
Rest WDMX
Refresh Select
1.2K
2.4K
16K
Refresh Select
Trigger
DMX Value Disp.
Set To Slave
Auto Program
PAN……
Slave1, Slave2,
Slave3
Master / Alone
DMX Value Disp.
Set To Slave
Auto Program
ResetDefault
ON/OFF
Restore factory set.
Info
Time Info.
Current Time
Ttl Life Hrs
Last Run Hrs
Timer PIN
Clr Last Run
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
Password=XXX
ON/OFF
Temp. Info
Head Temp.
XXX℃/℉
Software Ver
V1.0……
Software version
Test
Home
All
Pan&Tilt
Color
Gobo
Other
Reset All
Reset Pan&Tilt
Reset Color
Reset Gobo
Reset Other
Test Channel
PAN ……
Test function
Manual Ctrl.
PAN =XXX
:
Fine adjustment of the lamp
Calibration
-Password-
PAN
:
Password “050”
Calibrate and adjust the effects to
standard/right position
Preset
Select Prog.
Prog. Part 1 = Program 1 ~ 10 Program 1
Prog. Part 2 = Program 1 ~ 10 Program 2
Prog. Part 3 = Program 1 ~ 10 Program 3
Select programs to be run
Edit Prog.
Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit Scenes
Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
--Fade Time--
--Secne Time--
Input By Outside
Save and automatically return
manual scenes edit
Scenes Input
XX~XX
Scenes Input

9.1. Address
9.1.1. Set DMX Address
With this function，you can adjust the desired DMX-address via the Display.
1. Double click jog wheel to access main menu.
2. The display will show“ADDRESS”.
3. Doulbe click Jog wheel then display“Set DMX Address”.
4. Turn the jog wheel clockwise then display“A001~AXXX”.
5. Doulbe click Jog wheel to confirm
6. Long click the jog wheel to exit menu–“Set DMX Address”，then back to main menu .
9.2. Users Mode
9.2.1. User Mode
With this function，you can choose the User mode from Standard, Basic or Extended mode.
1．Double click jog wheel to access main menu，turn the jog wheel clockwise to display
“USERS MODE”.
2．Double click to edit.
3．Turn the jog wheel clockwise to display“User mode”，double click to edit.
4．When in“Stand Mode”， turn the jog wheel to select“Basic mode”,”Extended mode”，
“User Mode A”，“User Mode B”and“User Mode C”.
5．Double click to confirm
6．Long press to exit –“User Mode”， then back to main menu by long press.
9.2.2. Edit User Mode
With this function，you can adjust the rest user defined channel order.
1．Double click jog wheel to access“USERS MODE”menu，turn the jog wheel until
display“Edit User”.
2．Double click to access“Edit User”menu.
3．Set up“Max Channel=xxx”and select channel value.
4．Set up“Mode B”and“Mode C”by the same way.
5．Long click the jog wheel to exit menu – “Edit User”， then back to main menu by long
click again.
9.3. Options
9.3.1. Status Settings
No DMX Status
With this function，if DMX signal is lost，unit will close its shutter or keep the last DMX
values received，the default is hold.
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，turn the jog wheel to select “Status”.
4. Double click to access“Status”menu，The display will show“No DMX Status”.
5. Double click to access“No DMX Status”， The display will show “Hold”，Turn the
jog wheel to select“Close”，“ Auto”.
6. Double click to confirm
7. Long click the jog wheel to exit menu –“Status”，then back to main menu by long click
again.

Pan Reverse
With this function you can reverse the Pan-movement.
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，turn the jog wheel to select “Status”.
4. Double click to access“Status”menu，The display will show“Pan Reverse”.
5. Double click to access“Pan Reverse”， The display will show “OFF”，Turn the jog
wheel to select“NO”.
6. Double click to confirm
7. Long click the jog wheel to exit menu –“Status”，then back to main menu by long click
again.
Tilt Reverse
With this function you can reverse the Tilt-movement.
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，turn the jog wheel to select “Status”.
4. Double click to access“Status”menu，The display will show“Tilt Reverse”.
5. Double click to access“Tilt Reverse”， The display will show “OFF”，Turn the jog
wheel to select“NO”.
6. Double click to confirm
7. Long click the jog wheel to exit menu –“Status”，then back to main menu by long click
again.
Pan Degree
With this function，you can select pan degree for 630 or 540.
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，
4. Turn the jog wheel to select “Status”.
5. Double click to access“Status”menu，The display will show“Pan Degree”.
6. Double click to access “Pan Degree”，The display will show “540”，Turn the jog
wheel to select“630”.
7. Double click to confirm
8. Long click to exit menu –“Status”，then back to main menu by long click again.
Feedback
With this function, pan movement or tilt movement feedback can be activated or
deactivated
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，turn the jog wheel to select “Status”.
4. Double click to access“Status”menu，The display will show“Feedback”.
5. Double click to access“Feedback”，The display will show “ON”，Turn the jog wheel
to select“OFF”.
6. Double click to confirm
7. Long click the jog wheel to exit the menu，then back to main menu by long click again.

Pan/Tilt Spd
With this function，you can select scan mode from 1 to 4.
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，turn the jog wheel to select “Status”.
4. Double click to access“Status”menu，The display will show“Pan/Tilt Spd”.
5. Double click to access“Pan/Tilt Spd”，The display will show “Speed 1”，Turn the jog
wheel to select“Speed 1”，“ Speed 2”，“ Speed 3”，“ Speed 4”.
6. Double click to confirm
7. Long click the jog wheel to exit the menu –“Status”，then back to main menu by long
click again.
Hibernation：Standby mode
The device and step motors will be power off if the fixture stay without DMX signal for 15
mins (Factory default). Fixture will perform a reset once DMX signal back again.
1. Double click jog wheel to access main menu.
2. Turn the jog wheel clockwise then display“Options”.
3. Double click to access“Options”，turn the jog wheel to select “Status”.
4. Double click to access“Status”menu，The display will show“Hibernation”.
5. Double click to access“Hibernation”，The display will show “OFF”，Turn the jog
wheel to select“01M”，“02M”. . . “99M”.
6. Double click to confirm
7. Long click the jog wheel to exit menu –“Status”，then back to main menu by long click
again.
9.3.2. Service PIN
Password
Password for this function is 050.
Cross Load SW
With this function you can set the fans speed mode between Auto, Stage, Studio and
Silence.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Service PIN”.
4．Double click to access“Service PIN”menu，The display will show“CrossLoad SW”.
5．Double click to access “CrossLoad SW”，The display will show “CrossLoad SW”
6．Double click to confirm and wait until process is done
7．Long click the jog wheel to back to exit menu
9.3.3. Fans Control
Head Control
With this function you can set the fans speed mode between Auto, Stage, Studio and
Silence.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Fans Control”.

4．Double click to access“Fans Control”menu，The display will show“Head Control”.
5．Double click to access “Head Control”，The display will show “Auto”，Turn the jog
wheel to select“Stage”，“Studio”or “Silence”.
6．Double click to confirm
7．Long click the jog wheel to back to exit menu –“Fans Control”，then back to main
menu by long click again.
9.3.4. Display Setting
Shut off Time
With this function you can shut off the LCD display after 2 to 60 minutes. Default is 5
minutes.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Display Setting”.
4．Double click to access“Display Setting”menu.The display will show“Shut off Time”.
5．Double click to access“Shut off Time”，The display will show “05m”，Turn the jog
wheel to select“02~60m”.
6．Double click to confirm
7．Long click the jog wheel to back to last button press –“Display Setting”，then back to
main menu by long click again.
Flip Display
With this function you can flip the display by 180°.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Display Setting”.
4．Double click to access“Display Setting”menu，The display will show“Flip Display”.
5．Double click to access“Flip Display”，The display will show “OFF”，Turn the jog
wheel to select“ON”.
6．Double click to confirm
7．Long click the jog wheel to exit menu –“Display Setting”，then back to main menu by
long click again.
Key Lock
With this function you can activate the automatic key lock function. When activated，jog
wheel will be locked automatically after 15 seconds. Press the jog wheel for 10 seconds to
unlock.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”， turn the jog wheel to select “Display Setting”.
4．Double click to access“Display Setting”menu，The display will show“Key Lock”.
5．Double click to access “Key Lock”，The display will show “OFF”， Turn the jog wheel
to select“ON”.
6．Double click to confirm
7．Long click to exit menu –“Display Setting”，then back to main menu by long click
again.

DispFlash
Display will flash if no DMX is detected when this function is activated. This function is
disabled as default.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Display Setting”.
4．Double click to access“Display Setting”menu，The display will show“DispFlash”.
5．Double click to access“DispFlash”，The display will show “OFF”，Turn the jog wheel
to select“ON”.
6．Double click to confirm
7．Long click the jog wheel to exit menu –“Display Setting”，then back to main menu by
long click again.
9.3.5. Signal Select
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Signal Select”.
4．Double click to access“Signal Select”，The display will show “DMX”，Turn the jog
wheel to select“DMX”，“WDMX”.
5．Double click to confirm
6．Long click the jog wheel to exit menu –“Signal Select”，then back to main menu by
long click again.
9.3.6. Temperature C/F
With this function you can display the temperature in Celsius or Fahrenheit.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Temperature C/ F”.
4．Double click to access“Temperature C/ F”，The display will show “Celsius”，Turn the
jog wheel to select“Fahrenheit”.
5．Double click to conform
6．Long click the jog wheel to exit menu –“Temperature C/ F”，then back to main menu
by long click again.
9.3.7. Initial Pos.
With this function you can display initial effect position.
1．Double click jog wheel to access main menu.
2．Turn the jog wheel clockwise then display“Options”.
3．Double click to access“Options”，turn the jog wheel to select “Initial Pos.”.
4．Double click to access “Initial Pos.”，The display will show “PAN=XXX”.
5．Long click the jog wheel to exit menu –“Initial Pos.”，then back to main menu by long
click again.
9.3.8. Wireless DMX
From factory，this projector is prepared for wireless data transmission (W-DMX) . If you wish
to de-activate W-DMX control，you can select the function“De-activate WDMX”by turning the
encoder. With the function“rest”，you can log out the projector from the wireless sender.
1. Double click jog wheel to access main menu.
