Ayrton GHIBLI User manual

Ghibli Preliminary Manual
Manuel d’utilisation
KEEP THIS MANUAL FOR FUTURE NEEDS

GHIBLI&Preliminary&User&Manual&
CONTENTS
1.!SAFETY INSTRUCTIONS! 1!
2.!FEATURES! 4!
3.!FIXTURE OVERVIEW! 6!
4.!DIMENSIONAL DRAWINGS! 7!
5.!INSTALLATION INSTRUCTIONS! 8!
6.!DMX-512 CONTROL CONNECTION!11!
7.!DMX-512 CONNECTION WITH DMX TERMINATOR!11!
8.!DEVICE DMX START ADDRESS SELECTION!12!
9.!OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM!12!
10.!DISPLAY!14!
11.!DMX!PROTOCOL!27!
12.!ERROR MESSAGES!33!
13.!CLEANING!AND!MAINTENANCE!36!
!
!
!
!
!
!
!
!
!
!
!
1. SAFETY INSTRUCTIONS
1.1. IMPORTANT SAFETY WARNING
This device has left the factory in perfect condition.In order to maintain this condition and to
ensure safe operation，it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.

GHIBLI&Preliminary&User&Manual&
In order to install，operate，and maintain the lighting fixture safely and correctly we suggest that
the installation and operation be carried out by qualified technicians and these instructions be
carefully followed.
CAUTION!
HIGH VOLTAGE. RISK OF SEVERE OR FATAL ELECTRIC SHOCK
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY FIXTURE
COVERS
CAUTION!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE. SENSITIVE PERSONS
MAY SUFFER AN EPILEPTIC SHOCK
CAUTION!
NEVER TOUCH THE DEVICE DURING OPERATION! COVERS MAY BE HOT
Important:
Damage caused by the disregard of this user manual is not subject to warranty.The
dealer and manufacturer will not accept liability for any resulting defects or problems.
•If the device has been exposed to temperature changes due to environmental conditions，
do not power on immediately.The resulting condensation could damage the device.Leave
the device powered off until it has reached room temperature.
•Ensure the sealing rubber covers of oower CON and XLR connectors are fitted properly
when the device is not in use，to avoid water ingress.
•This device falls under protection-class I.Therefore，it is essential that the device be
earthed.
•If either lenses or display are damaged (damage may include cracks or gashes in the
material) they must be replaced.
•Electrical connections，such as replacing the power plug，must be performed by a
qualified person.
•Make sure that the available voltage is not higher than that which is stated at the end of
this manual.
•Make sure the power cord is never crushed or damaged by sharp edges.If this should be
the case，replacement of the cable must be done by an authorized dealer.
•If the external flexible power cord of this device is damaged，it shall be exclusively
replaced by the manufacturer or their service agent or a similar qualified person in order
to avoid injury.
•When the device is not in use or before performing maintenance，always disconnect the
device from the mains.Only handle the power cord from the plug.Never pull the plug out
of a socket by tugging the power cord.
•When powered on for the first time，some smoke or smell may occur.This is caused by
coating on metal parts when heated and is normal.If you are concerned，please contact

GHIBLI&Preliminary&User&Manual&
your distributor.
•Do not focus the beam onto flammable surfaces.The minimum distance between the
exiting lens of the device and the illuminated surface must be greater than 2 meter.
Please be aware that damage caused by any modifications to the device are not subject to
warranty.Keep away from children and non-professionals.
1.2. GENERAL GUIDELINES
•This device is a lighting effect for professional use on stages，in discotheques，theatres，
etc.the device was designed for indoor use.
•This fixture is only allowed to be operated within the maximum alternating current as
stated in the technical specifications in section 2 of this manual.
•Handle the device with care，avoid shaking or using force when installing or maintaining
the device.
•If you use the quick lock cam when rigging the device，make sure the quick lock fasteners
are located in the quick lock holes correctly and securely.
•Operate the device only after having familiarized yourself with its functions.Do not
permit operation by persons not qualified for operating the device.Most damage is the
result of unprofessional operation.
•Please use the original packaging if the device is to be transported.
•The applicable temperature for the device is between -10°C to 45°C.Do not use the
device outside of this temperature range.
•The light source of this luminaire is not replaceable; when the light source reaches its end
of life the whole luminaire shall be replaced.
For safety reasons，please be aware that all modifications to the device are forbidden.
If this device is operated in any way different to the ones described in this manual，the
product may suffer damage and the warranty becomes void.Furthermore，any other
operation may lead to short-circuits，burns，electric shocks etc.

GHIBLI&Preliminary&User&Manual&
2. FEATURES
POWER SUPPLY
•AC100-240V~，50/60Hz
•Power Consumption：900W
LIGHT SOURCE
•White LED 620W, 8000±350K Color temperature
•Extremely long Life：>50,000H
MOVEMENT
•Pan movement：540º/630ºOptional (16 bit)
•Tilt movement：270º(16 bit)
•Advanced moving system：fast，stable and quite，auto x-y repositioning
COLORS
•CMY color mixing，uniform，linear and speed can be adjustable
•1 Color wheel：6 dichroic filters + open，indexable，rainbow effect
GOBOS
•Rotating gobo wheel：7 interchangeable，rotating，and indexable，gobo + open
•“Slot in & out”gobo wheel system
•Fix gobo wheel：8 + open，with different speed gobo shaking and gobo indexing
FEATURES
•3 Control channel modes：38/36/58 channels
•2 Operation modes：DMX-512，Master / Slave mode
•Strobe effect with 1-25 flashes per second and pulse effect
•Rotating prism：16 prism Macros
•Animation wheel：can make special dynamic flame or water effect
•Focus：Motorized focus
•Stepless frost：0%~100% linear change frost
•Stepless iris：5%~100% linear change iris，pulse iris effect
•Dimmer：0%~100% full range dimming
DISPLAY
•Advanced and convenient full –color LCD, with rechargeable battery(optional)
•Can be changed 180° reverse to fit for different installation position
SOFTWARE
7 pre-installed programs available upon selection
Upgrades：fast and convenient through DMX cable with DMX-512 controller
Reset DMX address，remote lamp control，reset can all be done by the DMX controller
Running time of fixture on display for reference
OTHER SPEC

GHIBLI&Preliminary&User&Manual&
Input signal isolation：guarantees stable signal transmission without interference
Advanced RDM function
WEIGHT
Net weight: 35,6kg

GHIBLI&Preliminary&User&Manual&

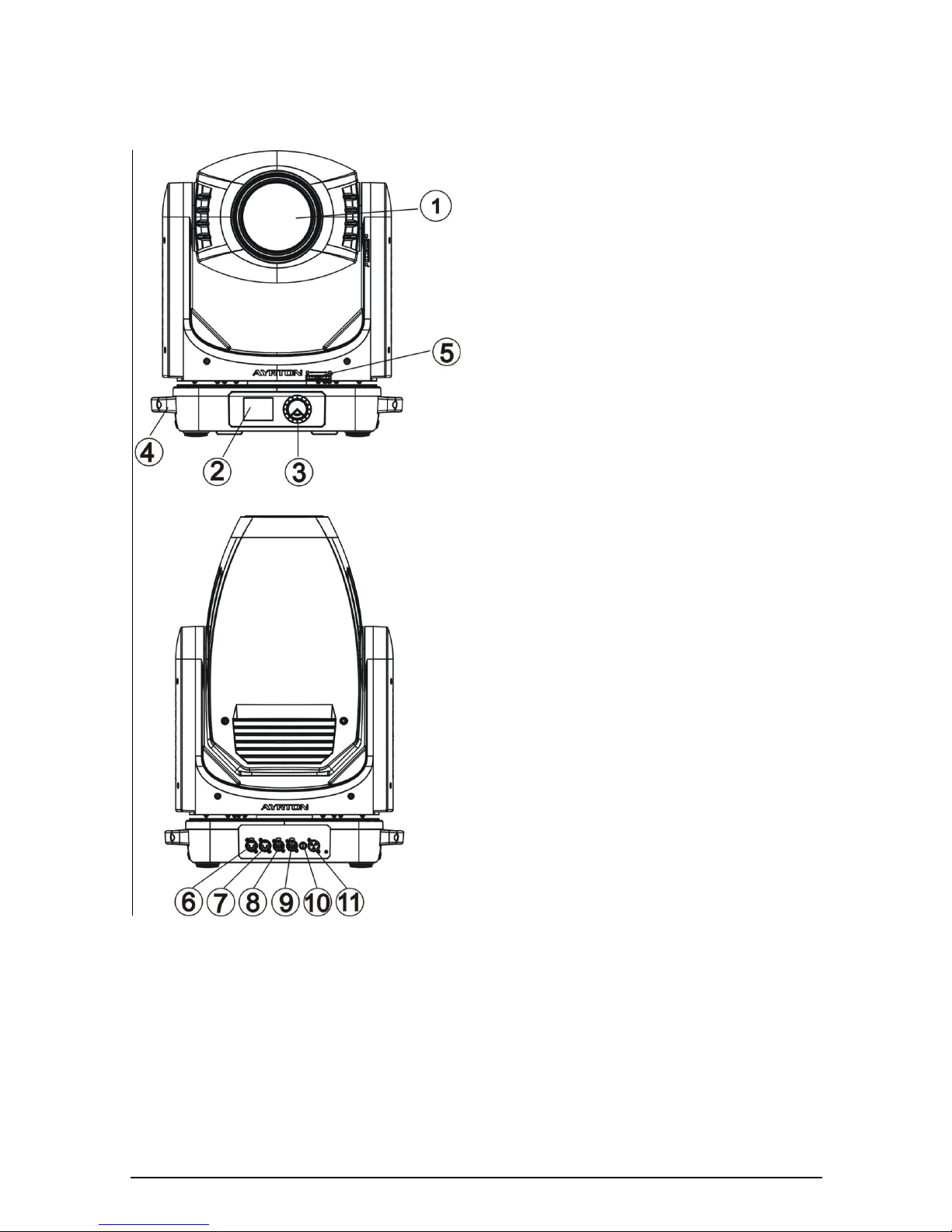

3. FIXTURE OVERVIEW
1) Lens
2) Display
3) Rotary knob
4) Handle
5) Pan Lock
6) DMX Out
7) DMX In
8) RJ45 Out
9) RJ45 In
10) Fuse
11) Power In

GHIBLI&Preliminary&User&Manual&

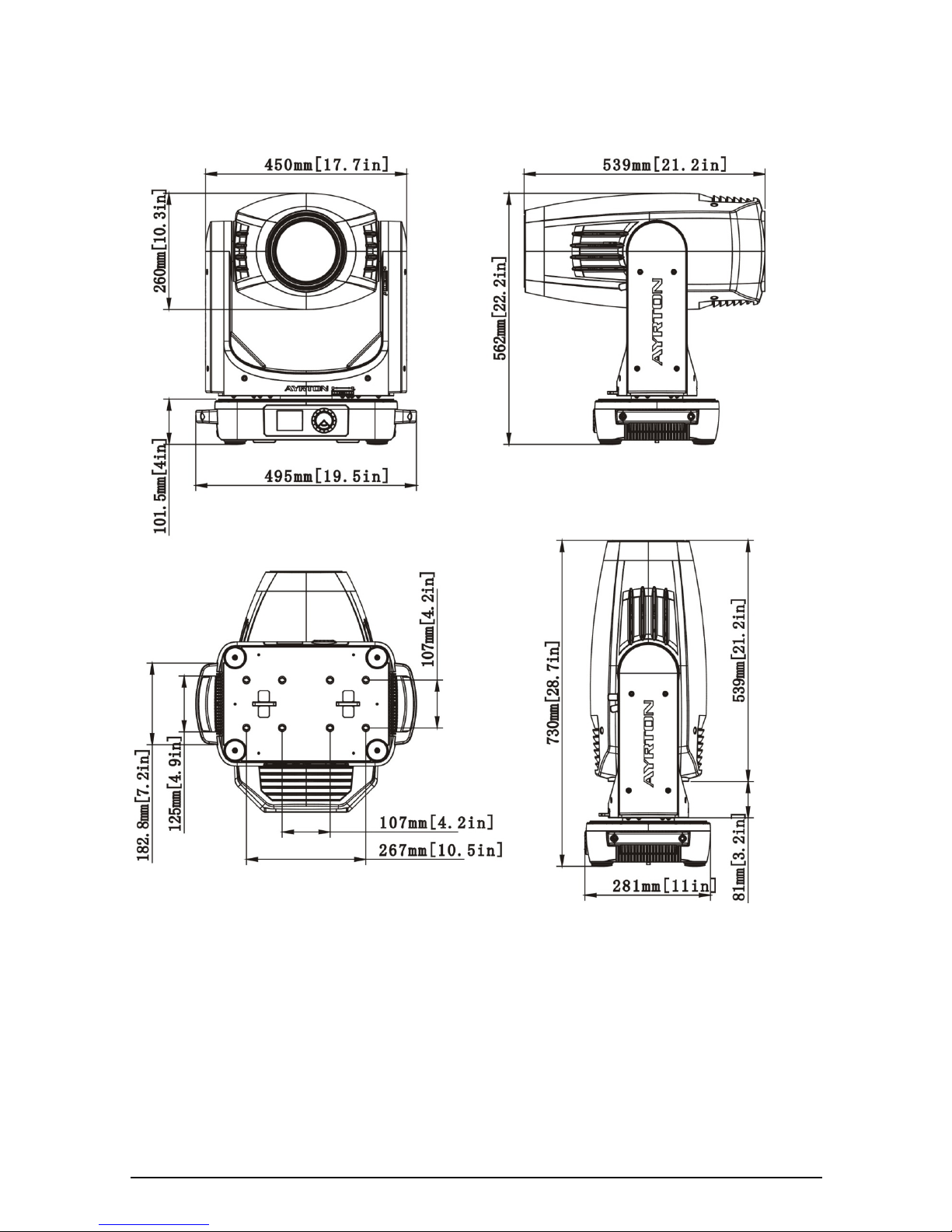

4. DIMENSIONAL DRAWINGS

GHIBLI&Preliminary&User&Manual&
5. INSTALLATION INSTRUCTIONS
5.1. Rigging the device
CAUTION!
PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING
INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A
QUALIFIED PERSON.
•The applicable temperature for the lighting is between -10°C to 45°C. Do not use the
lighting under or above the temperature.
•The installation of the effect has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
•The installation must always be secured with a secondary safety attachment，e.g.an
appropriate safety rope.
•Never stand directly below the device when mounting，removing or servicing the fixture.
•The operator has to make sure the safety relating and machine technical installations are
approved by an expert before taking the device into operation for the first time.
•These installations have to be approved by a skilled person once a year.
•Overhead mounting requires extensive experience，including amongst others calculating
working load limits，installation material being used，and periodic safety inspection of all
installation material and the device.If you lack these qualifications，do not attempt the
installation yourself.Improper installation can result in bodily injury.

GHIBLI&Preliminary&User&Manual&
5.2. Rigging using the omega brackets
•Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the
Ф13 hole in the middle of the bracket.
•Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device.Tighten the quick-lock fasteners fully clockwise.
•Install the second Omega holder.
•Pull the safety cable through the holes on the bottom of the base and over the trussing
system or another suitable rigging point. Insert the end into the carabiner and tighten the
safety screw.
Important：
This step is very important to ensure safe rigging of the fixture.

GHIBLI&Preliminary&User&Manual&
5.3. RIGGING DRAWINGS
•Be sure this fixture is kept at least 0.1 m away from any flammable materials (decoration
etc.).
•Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Important：
Overhead rigging requires extensive experience，including (but not limited to)
calculating working load limits，specifying installation/ rigging materials，and periodic
safety inspection of all installation material as well as the device.If you lack these
qualifications，do not attempt the rigging of this device yourself.Improper installation/
rigging can result in serious bodily injury.

GHIBLI&Preliminary&User&Manual&

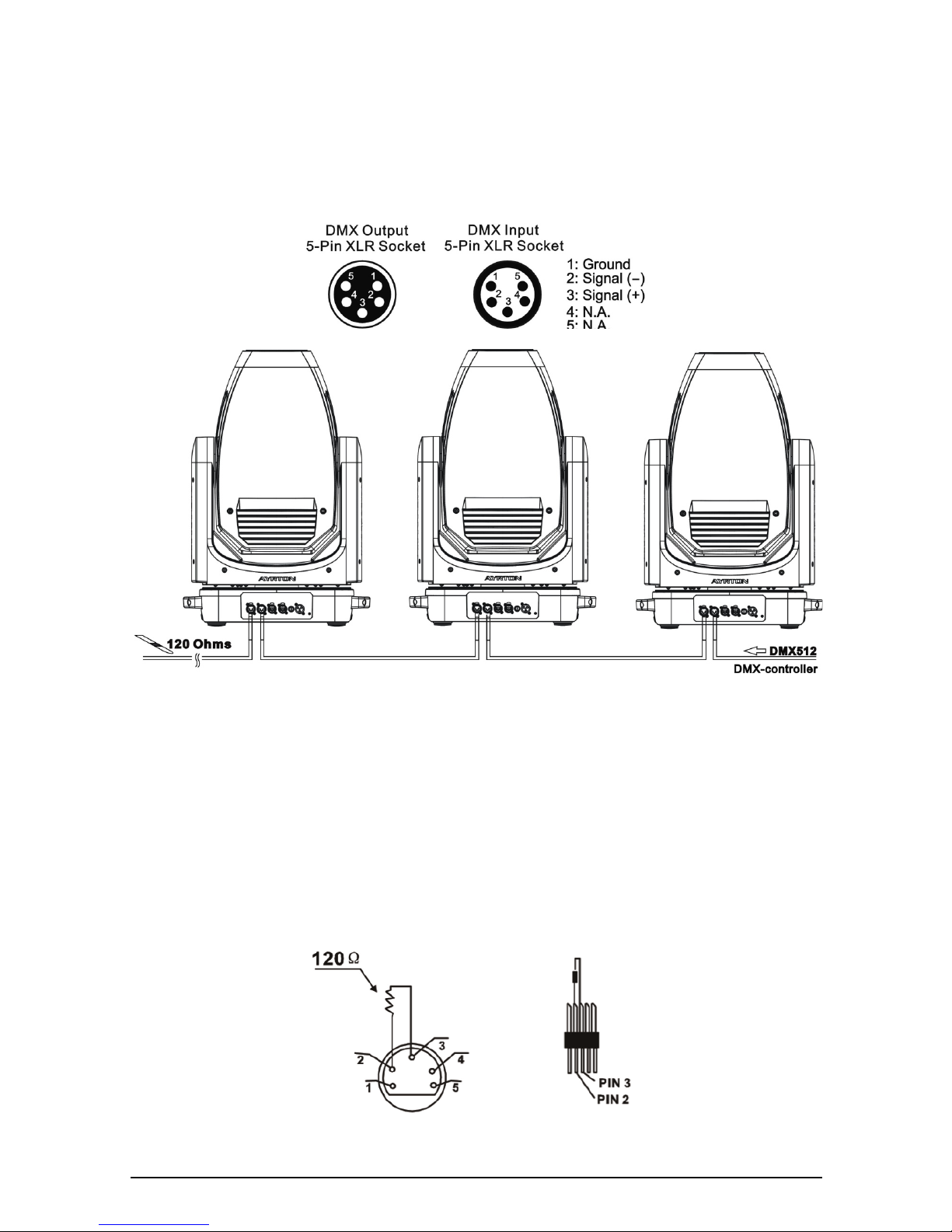

6. DMX-512 CONTROL CONNECTION
Connect the provided male side of the XLR cable to the female XLR output of your controller
and the female side of the XLR cable to the male XLR input of the device.You can connect
multiple devices together in a serial fashion.The cable needed should be two core，screened cable
with XLR input and output connectors.Please refer to the diagram below.
Address 117 Address 59 Address 1
7. DMX-512 CONNECTION WITH DMX TERMINATOR
For installations where the DMX cable has to run over a long distance or is in an electrically
noisy environment，such as in a discotheque，it is recommended to use a DMX terminator.This
helps in preventing corruption of the digital control signal caused by electrical noise.The DMX
terminator is an XLR plug with a 120 Ωresistor connected between pins 2 and 3，which is then
plugged into the output (female) XLR socket of the last fixture in the chain.Please see
illustrations below.

GHIBLI&Preliminary&User&Manual&
8. DEVICE DMX START ADDRESS SELECTION
All fixtures should be given a DMX starting address when using a DMX signal，so that the
correct fixture responds to the correct control signals.This digital starting address is the channel
number from which the fixture starts to“listen”to the digital control information sent out from the
DMX controller.The allocation of this starting address is achieved by setting the correct address
number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures，or set different
addresses for each fixture individually.
If you set the same address on all devices，all the devices will start to“listen”to the same control
signal from the same channel number.In other words，changing the settings of one channel will
affect all the fixtures simultaneously.
If you set a different address，each unit will start to“listen”to the channel number you have set，
based on the quantity of control channels of the unit.That means changing the settings of one
channel will affect only the selected device.
In the case of the LED moving head，in 58 channel mode，you should set the starting address of
the first unit to 1，the second unit to 59 (58 + 1)，the third unit to 117 (58+ 59)，and so on.
9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS
SYSTEM
9.1 Equipments：
DMX 512 controller，wireless transmitter，and the fixtures with wireless receiver.
9.2 Message from the LED indicator：
1) Rapid flashing red/Green：logging in to a transmitter.
2) Slow flashing Red/Green：Logged on a transmitter and the DMX line is idle（No DMX is
connected to transmitter）.
3) Solid Green：Logged on to a transmitter and receiving DMX data.
4) Solid Red：Not logged on to a transmitter（free）.
9.3 WDMX in the menu of the fixture：
On a fixture installed with wireless system，in order to switch between wireless control system
and traditional DMX control（with cable），a new menu WDMX is added to the display board.
ON：（Activate WDMX）
1) When the fixture is on power，and the WDMX is activated to ON status，but did not
connect to the controller and did not log in to the transmitter，the fixture will search for the
DMX signal source.If the fixture is connected to the DMX controller it can be controlled by
DMX controller；if it is log in to the wireless transmitter，it can be controlled by the
Transmitter.
2) When the fixture is power off, and the WDMX is in ON status，if the fixture is connected
to DMX controller.After the fixture is power on，it can be controlled only by the DMX

GHIBLI&Preliminary&User&Manual&
controller which connected.The fixture can log in the wireless transmitter，and receive only
radio signal from transmitter，but not DMX from the transmitter.
OFF：（De-activate WDMX）
In this status，wireless system is not activated，so the fixture can not log in the transmitter.
REST：（reset WDMX memory）
Can remove the fixture from the connection with the transmitter，the fixture become free and
ready to log in any transmitter.
9.4 Setup the wireless system：
1) Connect the transmitter with the DMX controller.
2) To make the fixture installed with wireless receiver log in to the transmitter.
a) Initially，the indicator on the receiver fixture should be in Solid red.
b) Press and hold the configuration button on transmitter for less than 3 seconds the
red/green LEDs on the transmitter and the receiver fixture will flash rapidly for about
5~ 10 seconds while the system goes through its setup procedure.
c) Once the receiver fixture is logged in to the transmitter（T1），the fixture with wireless
receiver will keep the memory，even if restart the power，this unit will log in the
transmitter（T1）automatically.
3) Use the DMX 512 to control the fixture
9.5 Remove the receivers from transmitter（T1）and to log in to another transmitter（T2）：
Case 1：Remove a receiver：
a) On the control board of the fixture，enter menu to activated the function of REST；
b) The LED for wireless on the fixture should turn to Solid red; the receiver can log out from
the transmitter（T1）；
c) press the configuration button on transmitter（T2）for less than 3 second，then the fixture
will start to connect with the transmitter（T2）.
Case 2：Remove all receivers from a transmitter（T1）to log in to T2：
a) Press and hold the configuration button on the T1 as least 5 seconds，can clear the
connection with all the fixtures；
b) All the red/green LEDs on the receiver fixtures will turn to Solid red to indicate that the
receivers are unassigned and removed from the transmitter（T1）；
c) Press and hold the configuration button on the T2 less then less than 3 second，the fixtures
will connect with the T2.
PS：
1. Please log the receivers out from the transmitter after every job，so that the receivers are in
free un assigned state and ready to be assigned to a transmitter.
2. Do not connect the fixture which is under the communication of wireless system to the
DMX controller，otherwise it will cause interference from the DMX controller.

GHIBLI&Preliminary&User&Manual&
10. DISPLAY
The Display offers Rotary knob features ：you can set the starting address ，run the
pre-programmed program or reset the device.
The main menu is accessed by double clicking the rotary knob .
Browse through the menu by turning rotary knob clockwise or counterclockwise.
Double click in order to select the desired menu and press and hold Rotary knob for exit
menu.After accessing the edit mode，the unit will automatically exit to the main menu after 15
seconds from the last button press.
When the unit is powered on，if no data signal is connected after 1 minute，then the display will
switch off automatically.The Display does not need external power to operate in case there is
battery，hold down the rotary knob for seconds and the Display will turn on by using the unit’s
battery.
PS：No response when quick press the rotary knob.
Default settings shaded
Address
Address
DMX address:001-XXX
:
DMX address setting
Users Mode
User Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Edit User
Max channel
PAN
:
Preset User modes A,B,C
:
Options
Status
No DMX Mode
Pan Reverse
Tilt Reverse
Pan Degree
Feedback
Pan/Tilt Spd
Hibernation
Art-Net to DMX
Close/Hold/Auto
ON/OFF
ON/OFF
630/540
ON/OFF
Speed 1~ 4
OFF , 01M~99M
ON/OFF
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback
Movement Speed
Stand by Mode
Art-Net to DMX
Service PIN
Service PIN
RDM UID
Set Ip
Cross Laod Soft
Password=XXX
xxx.xxx.xxx.xxx
OFF, ON
Service Password”=050”
Set Ip

GHIBLI&Preliminary&User&Manual&
Fans Control
Head Control
Auto
Stage
Studio
Silence
Fans Speed select
Disp.Setting
Shutoff Time
Flip Display
Key Lock
DispFlash
02~60m 05m
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
DispFlash
Signal Select
DMX
WDMX
Art—Net
sACN
DMX
WDMX
Art-Net
sACN
Flip Pixel
ON/OFF
Flip Pixel
Temp. C/F
Celsius
Fahrenheit
Temperature switch
between /℉
Initial Pos.
PAN =XXX
Initial effect position
Wireless DMX
Activate WDMX
Act&Data Out
Rest WDMX
Activate WDMX
Act&Data Out
Rest WDMX
Dim Curve
Square Law
Linear
Refresh Rate
1,2K
2,4K
16K
PWM Frequency
Trigger
DMX Value Disp.
Set To Slave
Auto Program
PAN……
Slave1,Slave2,Slave3
Master / Alone
DMX Value Disp.
Set To Slave
Auto Program
ResetDefault
ON/OFF
Restore factory set.
Info
Time Info.
Current Time
Ttl Life Hrs
Last Run Hrs
Timer PIN
Clr Last Run
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
Password=XXX
ON/OFF
Temp. Info
Head Temp.
XXX℃/℉
Software Ver
V1.0……
Software version
Network
IP,Mask,Mac
Network
Test
Home
All
Pan&Tilt
Color
Gobo
Other
Reset All
Reset Pan&Tilt
Reset Color
Reset Gobo
Reset Others
Test Channel
PAN ……
Test function
Manual Ctrl.
PAN =XXX
:
Fine adjustment of the
lamp

GHIBLI&Preliminary&User&Manual&
Calibration
-Password-
PAN
:
Password “050”
Calbrate and adjust the
effects to standard/right
position
Preset
Select Prog.
Prog. Part 1 = Program 1 ~ 10 Program 1
Prog. Part 2 = Program 1 ~ 10 Program 2
Prog. Part 3 = Program 1 ~ 10 Program 3
Select programs to be run
Edit Prog.
Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit Scenes
Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
--Fade Time--
--Secne Time--
Input By Outside
Save and automatically
return manual scenes edit
Scenes Input
XX~XX
Scenes Input
10.1. Address
10.1.1. Set DMX Address
With this function，you can adjust the DMX address and ArtNet univers via the Display.
1. Double clicking rotary knob to access main menu.
2. The display will show“ADDRESS”.
3. Double click;“Set DMX Address”should be displayed.
4. Turn the rotary knob clockwise then display“A001~AXXX”.
5. Double click to confirm ; “Set DMX Address”， then back to main menu by long click.
10.2.Users Mode
10.2.1. User Mode
With this function，you can create user defined channel orders.
1．Double clicking rotary knob to access main menu，turn the rotary knob clockwise to
display“USERS MODE”.
2．Double click to edit.
3．Turn the rotary knob clockwise to display“User mode”， double click to edit.
4．When in“Stand Mode”， turn the rotary knob to select“Basic mode”，“Ext mode”，
“User Mode A”，“User Mode B”and“User Mode C”.
5．Double click to confirm – then back to main menu by long click.
10.2.2. Edit User Mode
With this function，you can adjust the rest user defined channel order.
1．Double clicking rotary knob to access“USERS MODE”menu，turn the rotary knob until
display“Edit User”.
2．Double click to enter“Edit User”menu.
3．Set up“Max Channel=xxx”and select channel value.
4．Set up“Mode B”and“Mode C”by the same way.
5．Double click to confirm – “Edit User”， then back to main menu by long click.

GHIBLI&Preliminary&User&Manual&
10.3.Options
10.3.1. Status Settings
No DMX Status
With this function，when the drive is not DMX signal，it runs automatism，close，hold and
music，the default is hold.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu，The display will show“No DMX Status”.
5. Double click to access“No DMX Status”， The display will show “Hold”，Turn the
rotary knob to select“Close”，“ Auto”.
6. Double click to confirm，then back to main menu by long click.
Pan Reverse
With this function you can reverse the Pan-movement.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access “Status”menu，The display will show“Pan Reverse”.
5. Double click to access“Pan Reverse”， The display will show “OFF”，Turn the rotary
knob to select“NO”.
6. Double click to confirm，then back to main menu by long click.
Tilt Reverse
With this function you can reverse the Tilt-movement.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu，The display will show“Tilt Reverse”.
5. Double click to access“Tilt Reverse”， The display will show “OFF”，Turn the rotary
knob to select“NO”.
6. Double click to confirm，then back to main menu by long click.
Pan Degree
With this function，you can select pan degree for 630 or 540.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu，The display will show“Pan Degree”.
5. Double click to access“Pan Degree”，The display will show “540”，Turn the rotary
knob to select“630”.
6. Double click to confirm，then back to main menu by long click.
Feedback
With this function，you can feedback switch of pan movement or tilt movement.

GHIBLI&Preliminary&User&Manual&
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu，The display will show“Feedback”.
5. Double click to access“Feedback”，The display will show “ON”，Turn the rotary knob
to select“OFF”.
6. Double click to confirm，then back to main menu by long click.
Pan/Tilt Spd
With this function，you can select scan mode from 1 to 4.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu. The display will show“Pan/Tilt Spd”.
5. Double click to access“Pan/Tilt Spd”，The display will show “Speed 1”，Turn the
rotary knob to select“Speed 1”，“ Speed 2”，“ Speed 3”，“ Speed 4”.
6. Double click to confirm，then back to main menu by long click.
Hibernation：Standby mode
The device and step motors will be power off if the fixture stay without DMX signal for 15
mins (Factory default).And the fixture will be reset before working once it receive DMX
signal again.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu，The display will show“Hibernation”.
5. Double click to access“Hibernation”，The display will show “OFF”，Turn the rotary
knob to select“01M”，“02M”. . . “99M”.
6. Double click to confirm，then back to main menu by long click.
Art-Net to DMX
With this function，you can use the Ghibli as an Art-Net node.
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Status”.
4. Double click to access“Status”menu，The display will show“Art-Net to DMX”.
5. Double click to access“Art-Net to DMX”， The display will show “OFF”，Turn the
rotary knob to select“ON”.
6. Double click to confirm，then back to main menu by long click.
10.3.2. Service PIN
Password
The Password for this function is“050”.
Set IP
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.

GHIBLI&Preliminary&User&Manual&
3. Pressing the rotary knob 2 seconds to access“Options”，turn the rotary knob to select
“Service PIN”.
4. Pressing the rotary knob 2 seconds to access“Service PIN”menu，The display will show
“Set IP”.
5. Pressing the rotary knob 2 seconds to access“Set IP”，The display will show
“XXX.XXX.XXX.XXX”.
6. Double click the rotary knob to back to last button press –“Service PIN”，then back to
main menu by double click again.
Cross Load SW
With this function, it is possible to use one Ghibli to upload its current firmware relase to
Other Ghiblis
1. Double clicking rotary knob to access main menu.
2. Turn the rotary knob clockwise then display“Options”.
3. Double click to access“Options”，turn the rotary knob to select “Service PIN”.
4. Double click to access“Service PIN”menu. Enter the password 050
5. Choose “Cross Load SW”.
6. Double click to access“Cross Load SW”. Firmware will be uploaded to connected
units
7. Double click the rotary knob to confirm，then back to main menu by long click.
10.3.3. Fans Control
Head Control
With this function you can set the speed of the running fans.The selections have Auto、
Stage and Studio.
1．Double clicking rotary knob to access main menu.
2．Turn the rotary knob clockwise then display“Options”.
3．Double click to access“Options”，turn the rotary knob to select “Fans Control”.
4．Double click to access“Fans Control”menu.
5．Turn the rotary knob to select “Auto”, “Stage”，“Studio”or “Silence”
6．Double click the rotary knob to confirm，then back to main menu by long click.
10.3.4. Display Setting
Shut off Time
With this function you can shut off the LCD display after 2 to 60 minutes. Default is 5
minutes.
1．Double click rotary knob to access main menu.
2．Turn the rotary knob clockwise then display“Options”.
3．Double click to access“Options”，turn the rotary knob to select “Display Setting”.
4．Double click to access “Display Setting”menu. The display will show“Shut off
Time”.
5．Double click to access“Shut off Time”，The display will show“05m”，Turn the rotary
knob to select“02~60m”.
6．Double click the rotary knob to confirm，then back to main menu by long click.
