Azdome GS65H User manual

Content guide:
1.Product structure
2. Keys and function
3.Charging/Power on
4.Operation Mode
5.Menu setting
6.Product specification
7.GPS player software installation
8.FAQ&Common Troubleshooting

- 1 -

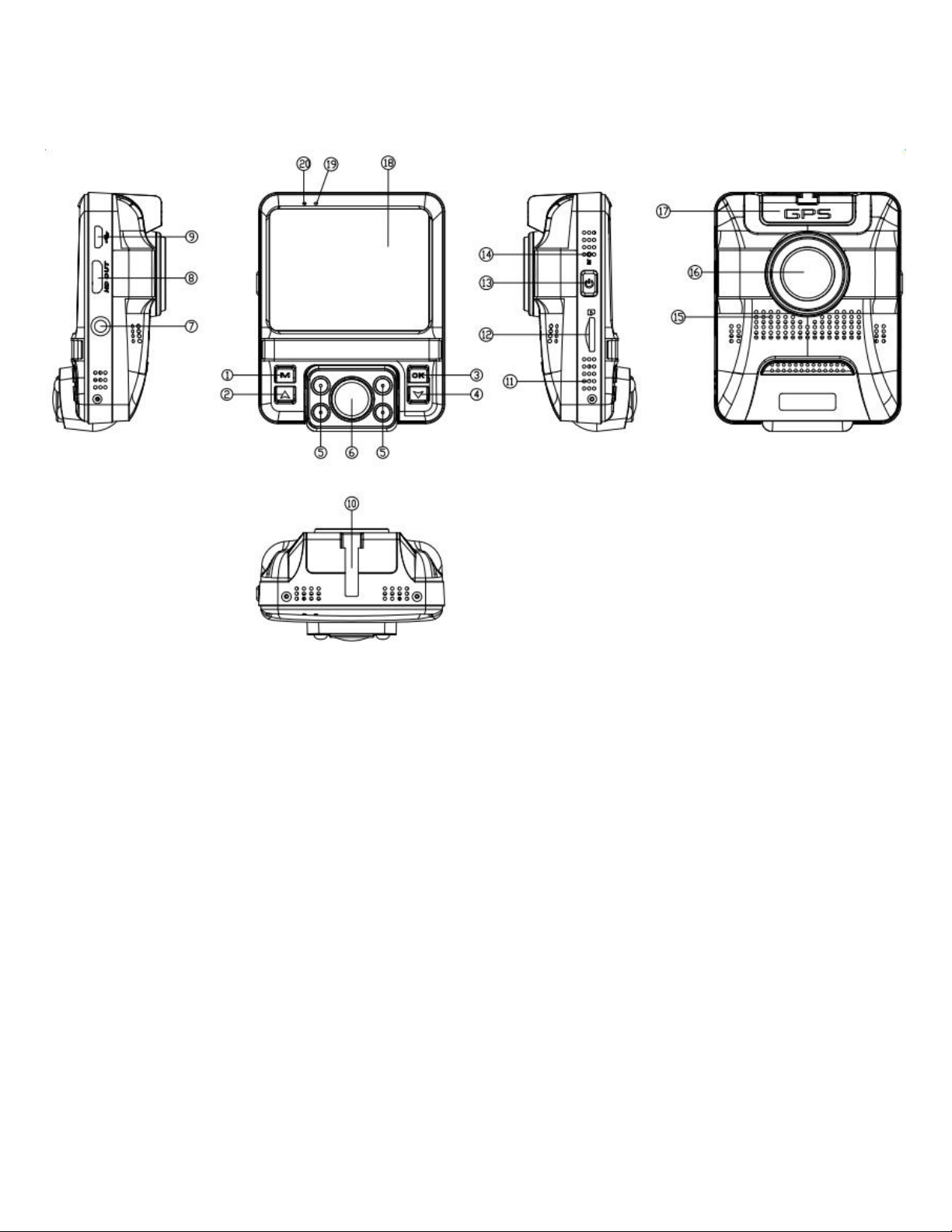

1. Product structure
1）Menu/Mode
2）Up
3) OK
4）Down
5）IR lights
6）Rear camera
7）TV OUT
8）HDMI port
9）USB port
10）Holder
11)MIC
12）Card Slot
13）Power
14）Reset
15）Speaker
16）front camera
17) GPS
18)LCD
19)Switch on light
20)Charge light

- 2 -
2. Product keys and function
Key
Function
Instruction
Power
Turn on/Turn
off/Switch on or off
screen
1.Turn on：Short press Power to turn on and indicator
lighted
2.Turn off：Long press Power to turn off and indicator off
Reset
Reset
When device crashes, short press to reboot
OK
Start/Stop recording
Confirm setting
Take photo/Playback
1.Video mode：short press to start recording, short press
again to stop recording
2.Menu mode：confirm setting
3.Photo mode：short press to take photo, long press OK
key to switch to dual record mode
4. Playback mode: short press to playback files
Menu/
Mode（M）
Long press ：Switch
between
Record/Take
photo/Playback mode
Short press： Bring up
dash cam setting
menu
1.Video mode：short press to reach video settings
2.Photo mode：short press to reach photo settings
3.Playback mode ：short press to switch to playback
settings
4.Video mode ：long press to switch between video
mode/Photo mode/Playback mode
5.Menu setting mode：short press to switch the setting list
6.In the process of video record, short press M key to lock
the video
UP
Up/
Mute record switch/
1.Menu mode：short press to select the previous option
2.Playback mode: select the previous file

- 3 -
IR lights switch
3.Video mode: short press to turn on/off audio recording
4.Photo mode：short press to zoom in the image
5.Long press to turn on/off IR lights
Down
Down/front and rear
camera switch
1.Menu mode：short press to select the next option
2.Playback mode:select the next file
3.Photo mode：zoom out the image
4.Video mode：short press to switch to different recording
mode of lens
TF card slot
TF card slot
The side with logo faces front camera and insert the card
HDMI
HDMI output
Connect HDMI to media device to watch video/photo
Holder bracket
Install bracket
Connecting bracket to the dash cam
USB port
car charger /storage
/charging
1 Replay video/photo and charge the dash cam by
connecting it to a PC with a USB cable
2 If dash cam is connected to a car cigarette lighter
charger,it will automatically start recording and charging.
TV port
TV OUT
Replay video/photo and charge the dash cam by
connecting it to a TV with a connection cable
3. Charging/Power on
1.Charging:
(1)Car charger connect to the car cigarette lighter
(2)Connect USB cable to PC for charging
Choose PC Camera for charging and Mass Storage for downloading the files.

- 4 -
2.Operating instruction
On/Off automatically：If connected to the car cigarette lighter, the dash cam will start recording video
automatically when the car starts up.It will also power off automatically when the engine is powered off
Tips:
(1) The vehicle power connected to the cigarette lighter
(2)The vehicle starts on /shuts down, the cigarette lighter socket must have reminders of
electrifying/outage
Attention: For very few vehicles the cigarette lighter have no outage reminder when the vehicles shut
down; if there is no reminder of electrifying/outage, then the dash cam can’t achieve auto power on/off, if
so please consult 4’S shops or vehicle beauty shops to modify the problem.
3. Before connecting charger, operate instructions by hand:
(1) Charge by connecting the portable power via USB cable
Car DVR are mainly used when it is charged, the full built-in battery could maintain about 30 minutes for
standby, if you need to use it for a long time, you must connect the device to cigarette charger or a mobile
power at home.
4. Operation Mode:
Video Mode:
In the video mode, there is a video recording icon shown on the top left corner of the LCD; short press OK
button to start recording, the red video indication light will start to flash. Short press OK button again to
stop recording.
Video recording process:
Power on——enter video mode——short press OK button to record——short press OK button again to

- 5 -
stop recording. (Note: Camera will start and record automatically when plug in car charger under power
off situation)
Photo Mode:
The dash cam will be in video mode when it is initially powered on, long press [Menu] button to switch to
photo mode, there is a photo icon shown on the top left corner of the LCD, short press OK button to take
a photo,LCD screen flashing indicates the photo taking process is finished
Photo taking process:
Power on——press ok to stop recording if dash cam starts recording automatically——long press M
button to switch to the photo mode——press OK button to take photos.
Video/Photo Playback
Long press M button twice to switch to playback mode, the playback icon will show on the LCD top left
corner:
1 Short press up/down button to select the file section(Video/Photo)
2 Short press menu button to see the file options: Delete /Protect /Slide Show
3 Enter the playback mode, then short press OK to playback Video/Photo
Attention:When dash cam is recording video,user needs to press OK to stop the recording before
switching to playback mode.
Playback process: Power on——press ok to stop recording if dash cam starts recording——long press M
button twice to switch to the playback mode——press up/down button to enter the section and press M
button to choose options—— press OK to play the file
5：Menu setting
Video setting
After power on the dash cam will enter into the video mode, short press M button one time to switch to the

- 6 -
video setting, the blue video icon will be shown on the LCD top left corner, the settings which show in
menu as below:
1. Resolution,Dual Record,Loop Recording,Timelapse Record
2. WDR, GPS Stamp,Speed Unit,Exposure
3. Motion Detection, Record Audio, Date Stamp, G-sensor
4.Parking Guard
Short press up/down to switch the setting options, short press OK button to enter the setting, short press
up/down button to modify the setting, and short press OK button to confirm the modification.
Video resolution:
Dual：1080P1440×1080 /720P 1280×720
Front camera：1080 FHD 1920×1080/720P 1280×720/WVGA 848×480/ VGA 640×480
Dual Record: Off/On
Loop Recording：Off/1min/3min/5min
Timelapse Record: Off/100ms/200ms/500ms
WDR:Off/On
GPS stamp：Off/On
Speed Unit：KM/H and MPH
EV exposure："+2.0","+5/3","+4/3","+1.0","+2/3","+1/3","+0.0","-1/3","-2/3","-1.0","-4/3","-5/3","-2.0"totally
13 level. (default value +0.0）
Motion Detection：On/Off
Record Audio：Off/On
Date Stamp：Off/On
G-sensor: Off/High/Medium/Low
Parking Guard ：Off/On

- 7 -
System setting
After powered on the dash cam will enter the video mode, short press M button one time to switch to the
video setting, short press M button again to enter system setting, the blue video icon will be shown on the
LCD top left corner.
Here are settings below:
(1) Date/Time, Auto Power Off, Beep Sound, Language
(2) Screen Saver,IR LED,Timezone Setting,TV Mode
(3) Frequency, Mirror Image, Storage Space, Car plate
(4) Format,Default Setting, Version
PS:
1.Short press up/down to switch the setting options
2.short press OK button to enter the setting, short press up/down button to modify the setting
3.short press OK button to confirm the modification. Press menu button to exit when you don’t want to
confirm the modification.
Date/Time ：setting Y/M/D and time, press OK to enter, press up/down to choose and OK to
confirm.Press M to save and exit.
Auto Power off：off/3 min/5 min/10 min.
Beep Sound：Off/On
Language：English/Chinese etc.
Screen Saver:off/1min/3min/5min
IR LED：Day Mode/Night Mode/Auto
Timezone Setting ：UTC/GMT+1:00 to UTC/GMT+12:00, UTC/GMT+0:00, UTC/GMT-1:00 to
UTC/GMT-12:00

- 8 -
TV Mode: NTSC/PAL
Frequency: 50Hz/60Hz
Mirror Image: Off/On
Storage Space：Total/Free/Event/Movie/Picture/Other
Car Plate：province abbreviation/license plate number
Format：Cancel/OK
Default Setting: Cancel/OK
Version：to see the details of camera version
Photo setting：
After powered on the dash cam will enter into the video mode, long press M button to switch to the photo
mode, the photo icon will be shown on the LCD top right corner, short press M button one time to switch
to photo menu.
Press Up /Down to select the settings, and press OK to enter, short press up/down to modify the setting
and press OK to confirm the modification.
（PS: please stop recording before long pressing OK to enter into photo setting
Capture Mode: Single/2s Timer/5s Timer /10s Timer
Resolution：1.3M 1280x960/VGA 640x480/
2MHD(1920x1080 )/3M(2048x1536)/5M(2592x1944)/8M(3264x2448)/10M(3648x2736)/12M(4032x3024)
Sequence：on/off
Quality：Fine/Normal/commonly
Sharpness：Strong/Normal/Soft
White Balance：Auto/Daylight/Cloudy/Tungsten/Fluorescent
Color：Color/Black & White/Sepia

- 9 -
ISO：Auto/100/200/400
Exposure: "+2.0","+1.7","+1.3","+1.0","+0.7","+0.3","0.0","-0.3","-0.7","-1.0","-1.3","-1.7","-2.0" Total 13
level.（Default value 0.0）
Anti-Shaking：on/off
Date Stamp：off/Date/Date and Time
Playback setting：
After powered on, long press M button twice to switch to playback setting, the playback icon will be shown
on the LCD top right corner, press M button one time to enter setting, there are 3 setting options : Delete,
Protect, Slide Show.
Delete：
Delete Current/ Delete All
Protect：
Lock Current/Unlock Current/Lock All/Unlock All
Slide show：
2s/5s/8s
6：Product specification:
Product feature
Dual channel，built in GPS
G-sensor
Built-in(to save files in emergency, and won’t be deleted when collisions
happen)
LCD screen
2.4 inch
Lens
Front 150-degree wide angle lens
Rear 130-degree wide angle lens
Photo resolution
VGA/1.3M/2MHD/3M/5M/8M/10M/12M

- 10 -
Video resolution
Front 1080P/Rear 720P
Aperture
Front camera F=1.8/Rear camera F=2.2
Language
English,Simplified Chinese etc.
Video resolution
Dual channel: Front 1080P 1440x1080 / Rear:720P 1280x720
Single front camera：1080 FHD 1920x1080/720P 1280x720/WVGA
848x480/ VGA 640x480
Video format
H.264，MOV
Color
Color/Black & White/Sepia
Shooting mode
Loop recording, no leak seconds
Auto turn on/off
Support turn on while vehicle starts, and turn off while vehicle engine shuts
off
Motion detection
Support
Year/Month/Day/Hour/Min
Support
Photo format
JPG
Micro SD card
TF card（Class 10 or above，Max support 64G）
Microphone
Support
Speaker
Built in
GPS
Built in GPS
Power interface
5V 1.5A
Sensor
Novatek96655+Sony IMX323
Battery
Built-in Li-ion Battery
Parking mode
Support
Working temperature
-20°C to 60°C

- 11 -

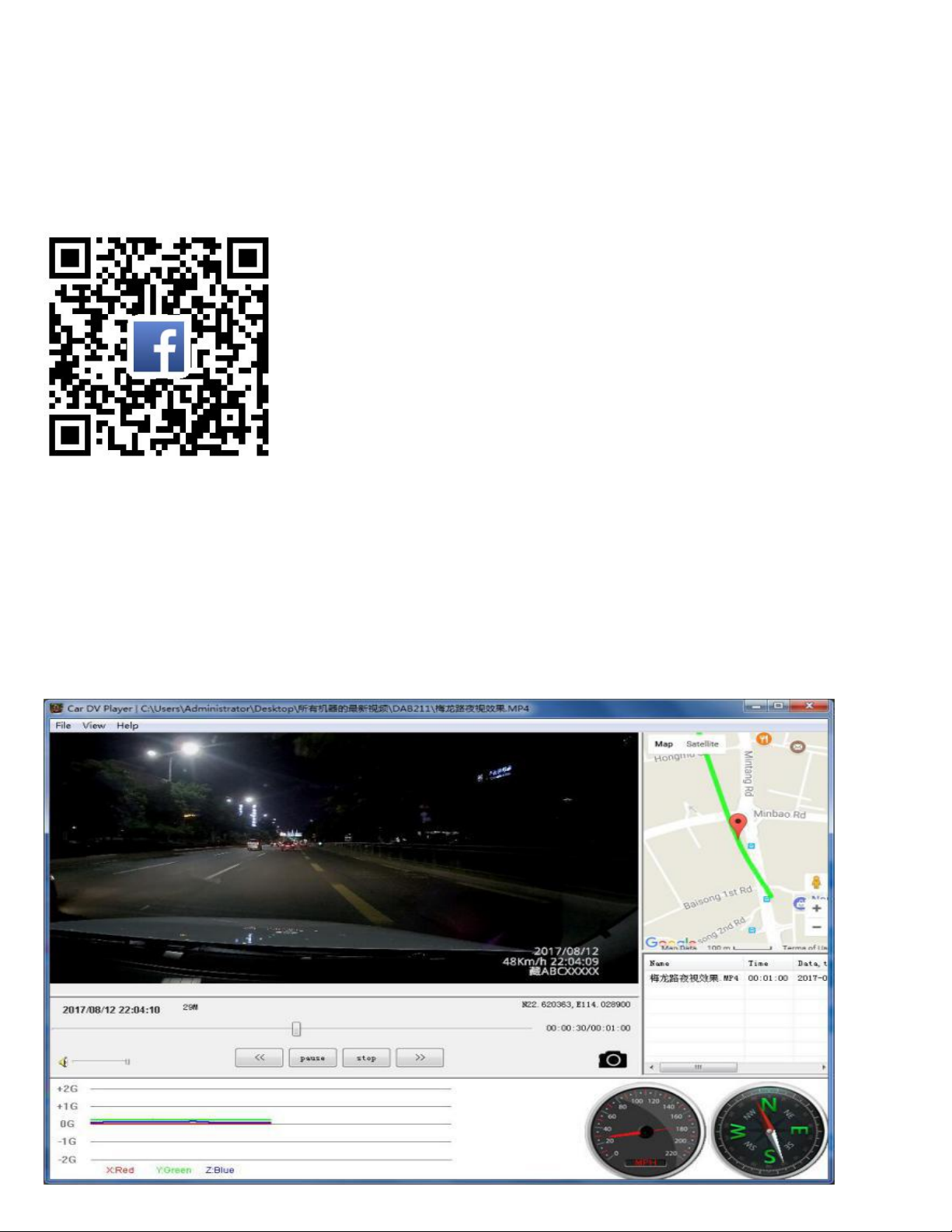

7.GPS player software installation
If you need the GPS information, the professional player must be installed firstly.
Please install the file on our website www.azdome.hk, you can find the file in the Support Page. You can
also like our Facebook Page to get the file.
2. Download the file ( Windows version and Mac version ) to computer and install.
Using the player software:
（1）Please open the specified GPS player and install it for the first use.
（2）Click File –Open to choose the file which you want to play, click to start play.

- 12 -
Attention of using GPS Player
If the Google Map can’t be normally loaded by GPS Player, please try the following operations:
1. Run GPS Player as the administrator(right click on the GPS Player, then choose running as the
Administrator)
2. Upgrade the Internet Explorer Ipanel to IE 10 or above
3.If the GPS player still can’t work, please contact us at [email protected]
8. FAQ
Under normal operating conditions, if there are problems with the device, please refer to the following
methods to solve.
Cannot take picture and record
Please check whether there is enough space for TF card, or if it is locked.
Stop automatically while recording
Due to the huge amount of HD video data, please use high-speed C10 TF card with SDHC compatible,
there will be a mark of C10 on the TF card.
There is “wrong file” shown on LCD when replay the photo/video
Uncompleted files because of TF card storage error, please format your TF card.
Fuzzy image
please check if the lens are coated with dust or fingerprints, please clean the lens before shooting.
Dark image when shooting the scene of sky or water
It will have an impact by the exposure setting which will cause a big difference between the scene. Please
adjust the “EV” in the menu setting.
Horizontal stripes interference in the image
Please set the frequency 60HZ or 50HZ according to the local power supply.
Hang off
Please reset to recover when device hangs off.

- 13 -
Common Troubleshooting
Tips: This system supports 8-64G MicroSD card in storage, in order to ensure recording normally, please
use name brand cards, such as Kingston, SanDisk, Samsung and so on. Since the recording system
have to read and write data fast, please use the Class 10 high-speed card.While the system is working,
please do not insert or pull out the TF card, in order to avoid the memory card damage.
1. Dash cam do not power on after car engine start: Please check whether the power connection is good.
2. It can not record a normal video after the boot : Please check whether TF card is inserted，or you need
to format the TF card once; If TF card is damaged, please insert new card.
3. It crashes and other abnormal case: please press the RESET button to reset dash cam.
4. Video blur: Please check whether lens is clean, please wipe the lens and front windshield!
5. It can not start by pressing the power button: Please check the connection and power.
6.APP picture is not smooth or can not be achieved: try to close some background App, or keep the
phone near the dash cam; or close APP and restart.
