B-K lighting ArtiStar GU10 Setup guide

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
RELEASED
1-26-17
REFERENCE NUMBER
INS131800
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
ArtiStar™ GU10
Standard Anchor Base Installation
Hot Surface
Warning High Voltage
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
NEEDED
FOR
INSTALLATION:
By Others
3/16” and 5/64” Allen Wrench
Waterproof Wire Connectors
Drill bit and Drill
Mounting Hardware
Anchor Base
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
ArtiStar™
Knuckle
Mounting
System

ArtiStar™ GU10
Anchor Base Installation
5. Make two line voltage connections using
proper wire connectors (By Others). Connect
incoming ground wire to ground wire provided
in fixture body. See wiring diagram.
6. Place fixture onto mounted anchor base and
press straight down until the two pieces are
flush with each other.
WIRING DIAGRAM
LINE
FIXTURE
COM
GROUND
LINE
COM
GROUND
RELEASED
1-26-17
REFERENCE NUMBER
INS131800
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
1. Study anchor base plan. Prepare mounting
surface for anchor base.
2. Use 5/64” Allen wrench loosen three (3) #8-32
stainless steel set screws (do not remove set
screws from fixture base). Remove anchor base
from bottom of fixture.
3. Pull branch circuit wiring necessary for
installation (By Others). Feed branch circuit
wiring through anchor base.
4. Secure anchor base to solid surface (i.e. wood,
concrete) using appropriate hardware for
specific surface.
Fixture Installation
7. Use 3/16” Allen wrench to slightly loosen
¼”-28 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purposes. Use 5/64” Allen wrench to loosen
the three (3) #8-32 stainless steel set screws
on anchor base. Rotate fixture at base and aim
fixture to desired horizontal location.
8. Tighten the three (3) #8-32 stainless steel set
screws on anchor base and ¼”-28 stainless
steel locking screw at the knuckle to secure all
aiming positions.
PROJECT:
TYPE:
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
Seal base to surface as per NEC.

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
RELEASED
1-26-17
REFERENCE NUMBER
INS131800.2
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
ARTISTAR™ GU10
Power Pipe™ Installation
Hot Surface
Warning High Voltage
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
NEEDED
FOR
INSTALLATION:
By Others
3/16” and 5/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Phillips Screws
Stability
Flange™
Power Pipe™
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
Integral Driver
Housing
ArtiStar™
Knuckle
Mounting
System
A. Determine Soil Type by referencing
DIG-IT Guide. Prep soil according to
DIG-IT Guide.
Soil Prep
B. Excavate a hole to the necessary
dimensions for fixture placement and
conduit runs.
Conduit
trench 18”
Dia.

ARTISTAR™ GU10
Power Pipe™ Installation
6. Make watertight connections using waterproof
wire connectors (By Others). Connect incoming
ground wire to ground wire provided in fixture
body. See wiring diagram.
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
WIRING DIAGRAM
LINE
FIXTURE
COM
GROUND
LINE
COM
GROUND
RELEASED
1-26-17
REFERENCE NUMBER
INS131800.2
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
PROJECT:
TYPE:
Finished grade
Pea gravel or sand
Concrete
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
4. Back fill with pea gravel or sand prior to pour.
Finished grade
Pea gravel or sand
Concrete
Finished grade
Finished grade
Stability Flange Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
5. Pour concrete (By Others).
Label on Power Pipe™ indicates installation
depth with finished grade.
Finished grade
Pea gravel or sand
Concrete
Finished grade
Finished grade
Stability Flange Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
3. Pull primary branch circuit wiring to Power
Pipe™. Allow for additional length to make
connections to fixture leads and for future
service. Place Power Pipe™ in hole.
Finished grade
Pea gravel or sand
Concrete
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
Pea gravel or sand
Finished grade
Pea gravel or sand
Concrete or Soil
Finished grade
LINE 12V
FIXTURE
COM
Remote
Transformer
(by others)
COM
Finished grade Optional
Stability Flange
2. Slide Stability Flange onto Power Pipe™. Use
optional Stability Flange to aid in installation of
Power Pipe™.
1. Excavate trench according to designed lighting
plan. Dig hole a minimum of 18” deep and 10”
wide to accommodate Power Pipe™ at desired
fixture location(s).
Power Pipe™ Mounting Option
8. Tighten three (3) #8-32 stainless steel round
head Phillips screws at base and 1/4”-28
stainless steel black oxide socket head screw at
the knuckle to secure all aiming positions.
7. Insert wires and connectors into fixture base
and attach to Power Pipe™. To aim fixture,
use 3/16” Allen wrench to slightly loosen ¼”-28
stainless steel black oxide socket head screw at
the knuckle for vertical aiming purposes. Use
Phillips screwdriver to loosen the three (3) #8-32
stainless steel round head Phillips screws. Rotate
fixture to aim to desired horizontal location.

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
RELEASED
1-26-17
REFERENCE NUMBER
INS131800.1
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
ARTISTAR™ GU10
Wall Mount Installation
Hot Surface
Warning High Voltage
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
TOOLS
NEEDED:
By Others
3/16”, 1/8” and 5/64” Allen Wrench
Waterproof Wire Connectors
Mounting Hardware
Canopy
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
ArtiStar™
Knuckle
Mounting
System

ArtiStar™ GU10
Wall Mount Installation
RELEASED
1-26-17
REFERENCE NUMBER
INS131800.1
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Fixture Installation
Phase 1 - Rough In
Installation of Back box
1. Install Conduit and Junction Box (By Others)
to be used with this product.
2. Install junction box so that front face is flush
with finished wall or ceiling.
3. Connect box to conduit and pull wires for
connections (See Wiring diagram).
Additional Info
• Please follow National and Local electrical codes for your area.
• Suitable for through wire
• Suitable for installation into combustible materials.
• Rated for 90° C.
• Junction box, universal mounting ring screws, box mounting hardware
and gaskets (By Others)
1. Install universal mounting ring (supplied with
fixture) to junction box using appropriate
hardware (By Others). Align canopy mounting
holes to final mounting position.
Phase 2 - Finish Installation of Fixture
WIRING DIAGRAM
LINE
FIXTURE
COM
GROUND
LINE
COM
GROUND
2. Make watertight connections using
waterproof wire connectors (By Others).
Connect incoming ground wire to ground
wire provided in fixture body. See wiring
diagram.
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
4. Use 3/16” Allen wrench to slightly loosen
¼”-28 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purposes. Use 5/64” Allen wrench to loosen
the three (3) #8-32 stainless steel set screws.
Rotate to aim fixture to desired horizontal
location.
5. Tighten the three (3) #8-32 stainless steel set
screws and 1/4”-28 stainless steel black oxide
socket head cap screw at the knuckle to secure
all aiming positions.
3. Use 1/8” Allen wrench to mount fixture with two
(2) #10-24 hex screws to installed back box. Do not
over tighten.

RELEASED
1-30-17
REFERENCE NUMBER
INS-2098-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Warning Hot Surface
TOOLS
NEEDED:
By Others
3/16” & 5/64” Allen wrench
ArtiStar™ Mounting System
Standard Adjustment
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, O-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
ArtiStar™ Knuckle - Standard Anchor Base Option
1. Use 5/64” Allen wrench to loosen (3) #8-32 stainless
steel set screws on fixture base. Rotate fixture at base
and aim fixture to desired horizontal location.
2. Use 3/16” Allen wrench to slightly loosen ¼”-28
stainless steel black oxide socket head cap screw at
the knuckle for vertical aiming purposes.
3. Tighten the three (3) #8-32 screws on base with
appropriate tool for mounting method and stainless
steel locking screw at the knuckle to secure all
aiming positions.
Phillips Screwdriver
ArtiStar™ Knuckle - Wall Mount Option
2. Use 3/16” Allen wrench to slightly loosen ¼”-28
stainless steel black oxide socket head cap screw at
the knuckle for vertical aiming purposes.
3. Tighten the three (3) #8-32 screws on base with
appropriate tool for mounting method and stainless
steel locking screw at the knuckle to secure all
aiming positions.
1. Use 5/64” Allen wrench to loosen (3) #8-32 stainless
steel set screws on fixture base. Rotate fixture at
base and aim fixture to desired horizontal location.

RELEASED
1-30-17
REFERENCE NUMBER
INS-2098-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
ArtiStar™ Mounting System
Standard Adjustment
ArtiStar™ Knuckle - Power Pipe™ Option
2. Use 3/16” Allen wrench to slightly loosen ¼”-28
stainless steel black oxide socket head cap screw at
the knuckle for vertical aiming purposes.
3. Tighten the three (3) #8-32 screws on base with
appropriate tool for mounting method and stainless
steel locking screw at the knuckle to secure all
aiming positions.
1. Use Phillips screwdriver to loosen (3) #8-32 stainless
steel round head Phillips screws at base. Rotate
fixture at base and aim fixture to desired horizontal
location.
PROJECT:
TYPE:

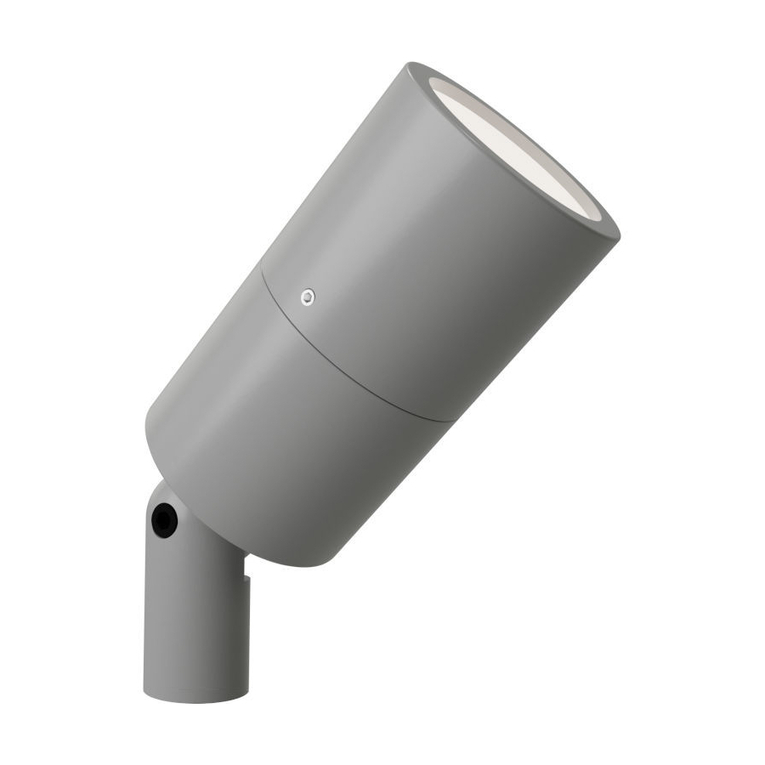

LAMP INSTALLATION OR RE-LAMPING IF REQUIRED FOR GU10 HALOGEN LAMPS (HALOGEN LAMPS ONLY)
1. Use 5/64” Allen wrench to loosen #8-32 stainless
set screws and remove cap.
3. Place cap on fixture and tighten set screw.
Tighten screw to 1/2 in-lbs. Top of screws
should sit flush with fixture cap.
Warning: Do not over tighten set screw.
Doing so will compromise O Ring seal and
will void warranty.
2. Firmly insert lamp pins into socket, twist gently until
lamp locks into place to make connection.
Do not exceed the maximum wattage listed
on the fixture label before installing. Halogen
Lamps Only.
RELEASED
8-18-17
REFERENCE NUMBER
INS-000010
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Warning Hot Surface
TOOLS
NEEDED:
By Others
5/64” Allen wrench
GU10
Lamp Installation
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, O-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
