Backyard Discovery 6411 User manual

Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
Made in China
Features the fastening system.
Register your new pergola swing on-line @
www.swingsetsonline.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.
•• Owner's Manual
•• Frequently Asked Questions
•• Assembly Instructions
•• arranty Information
P
PP
Pe
ee
er
rr
rg
gg
go
oo
ol
ll
la
aa
a S
SS
Sw
ww
wi
ii
in
nn
ng
gg
g
M
MM
Mo
oo
od
dd
de
ee
el
ll
l:
::
: #
##
#6
66
64
44
41
11
11
11
1
INS-06411-11 BRS 03/31/11

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:
1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
PLEASE READ THIS BEFORE STARTING ASSEMBLY
POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE
STOP
PARE
Missing A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for this item.
If you have assembly questions or if you need parts,
whether they are missing or damaged
Call Toll-Free Help Line or visit www.swingsetsonline.com
¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!
La tienda donde realizó la compra no almacena piezas de este prod cto.
Si tiene preg ntas sobre el ensamblaje o si necesita piezas debido a q e
faltan o están dañadas
llame gratis a la línea de ay da
1-800-856-4445
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND
SAFETY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE STRUCTURE.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-856-4445 OR VISIT www.swi gsetso li e.com
• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.
• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA ESTRUCTURA.
• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.
• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS
PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.
• MANTÉNGASE ALEJADO DE LOS NIÑOS MENORES A LA EDAD RECOMENDADA.
• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL 1-800-856-4445 O VISITE www.swi gsetso li e.com

Owner’s Manual Outdoor Product
Manual del Propietario del producto para exteriores
OWNER OP-2010 Rev. 2/8/2011
Dear Customer:
Estimado cliente:
Please read entire booklet completely before beginning the assembly process.
Lea este folleto completamente antes de comenzar el proceso de ensamblaje.
Structures are not intended for public use. The Company does not warranty any of its
residential structures subjected to commercial use such as: Recreational Park, or any
similar Commercial Application.
Las estructuras no están diseñadas para uso público. La empresa no garantiza ninguna
de sus estructuras residenciales que estén sujetas a uso comercial tales como: Parques
recreativos o cualquier otra aplicación comercial similar.
Please follow all recommendations below. Failure to do so may result in the warranty being
void and/or safety violations that could result in serious injury. This manual contains
helpful information concerning Assembly Preparation, Installation Procedure, and Required
Maintenance. Always keep safety in mind as your structure is being built.
Siga todas las recomendaciones que se mencionan a continuación. No hacerlo puede
ocasionar que se anule la garantía y/o las violaciones a la seguridad podrían resultar en
lesiones graves. Este manual contiene información útil referente a la preparación para el
ensamblaje, el procedimiento de instalación y los requisitos de mantenimiento. Siempre
conserve en mente la seguridad a medida que construye la estructura.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A
SAFE PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE
YOU WITH THE MOST EFFICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US
WITH THE PART NUMBERS WHEN ORDERING PARTS.
CONSERVE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA. MANTÉNGALAS EN
UN LUGAR SEGURO DONDE PUEDA REFERIRSE A ELLAS SEGÚN SEA NECESARIO.
PARA PROPORCIONARLE UN SERVICIO MÁS EFICAZ, ES NECESARIO QUE
SUMINISTRE EL(LOS) NÚMERO(S) DE PIEZA(S) CUANDO PIDA REPUESTOS.
For Your Records:
Para sus archivos:
Please take time and fill out the information below. This information will be needed for warranty
issues.
Por favor tómese el tiempo de llenar la información que se encuentra a continuación. Esta
información será necesaria para lo referente a la garantía.
Where Purchased: ______________
Lugar donde lo compró: ______________
Date of Purchase: ________________
Fecha de compra: ______________
Installation Date: _______________
Fecha de instalación: ______________
Installed by: ______________________
Instalado por: ______________
Staple Receipt Here
Engrape el recibo aquí

Owner’s Manual Outdoor Product
Manual del Propietario del producto para exteriores
OWNER OP-2010 Rev. 2/8/2011
Maintenance Instructions:
Instrucciones de mantenimiento:
1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not
so tight that you crack the wood) It is particularly important that this procedure be followed at the
beginning of each season.
Revise todas las tuercas y pernos dos veces al mes durante la estación de uso y apriete según
sea necesario. (Pero no apriete tanto que raje la madera). Es particularmente importante que
siga este procedimiento al comienzo de cada estación.
2. Oil all metallic moving parts monthly during the usage period.
Engrase todas las partes móviles metálicas mensualmente durante el período de uso.
3. Check all coverings for bolts and sharp edges twice monthly during usage season to be certain
they are in place. Replace when necessary. It is especially important to do this at the beginning
of each new season.
Revise todos los capuchones de pernos y bordes afilados dos veces al mes durante la estación
de uso para cerciorase de que estén en su lugar. Reemplace cuando sea necesario. Es
especialmente importante hacer esto al comienzo de cada nueva estación.
4. For rusted areas on metallic members such as hinges, brackets, etc. sand and repaint, using a
non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
Para las áreas oxidadas en elementos metálicos como las bisagras, soportes etc., lije y repinte
utilizando una pintura que no tenga base de plomo y cumpla con los requisitos del Título 16 CRF
Parte 1303.
5. Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season causing
splinters to appear. Light sanding may be necessary to maintain a safe environment. Treating
your Product with protection (sealant) after sanding will help prevent severe checking/splitting and
other weather damage.
Inspeccione las piezas de madera mensualmente. Las fibras de la madera a veces se levantan
en la estación seca ocasionando que aparezcan astillas. Es posible que necesite lijar
ligeramente para mantener un ambiente de juego seguro. Tratar el producto con un protector
(sellador) después de lijar ayudará a evitar fisuras/astillas y otros daños ocasionados por el
clima.
6. We have applied a water-based stain to your unit. This is done for color only. Once or twice a
year, depending on your climate conditions, you must apply some type of protection (sealant) to
the wood of your unit. Prior to the application of sealant, lightly sand any “rough” spots on your
set. Please note this is a requirement of your warranty.
Hemos aplicado un tinte translúcido a base de agua a su unidad. Esto se hace por el color
únicamente. Una o dos veces al año, dependiendo de las condiciones del clima, deberá aplicar
algún tipo de protección (sellador) a la madera de su unidad. Antes de la aplicación del sellador,
lije ligeramente cualquier punto “áspero” de la unidad. Tome nota que este es un requisito de su
garantía.

Outdoor Product Assembly Manual FAQs:
1. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar
wood which is naturally bug resistant, decay and rot resistant. To help ensure your
family’s safety, our wood is completely chemical free and we do not use pressure-
treated wood. The stain we use is a top coat using a water-based product that is for
appearance only.
2. How often should the product be stained? Backyard Discovery recommends the
product be stained once each year. A water or oil based stain can be used at the
customer’s discretion.
3. Why does it seem that my product is developing cracks? Wood is a natural material;
no two pieces are exactly alike. Each piece has its own characteristics and
personality and reacts differently to environmental changes. When any wood
product is exposed to the elements, it develops “wood checks”. A check is the radial
separation of the wood fibers running with the grain of the wood. These are caused
by the varying temperature and moisture conditions. A check is not a crack – it does
not affect the strength or durability of the wood or structural integrity of the product.
4. Do Backyard Discovery products come with a warranty? Yes. All Backyard
Discovery products carry a 1-year replacement warranty on all parts for
manufacturer’s defect. Our wood carries a 5 year pro-rated warranty on rot and
decay as well. Please see warranty details for more information.
5. What is the best way to get started assembling the product? Backyard Discovery
recommends taking all the parts out of the boxes and arranging them by part
number before you begin any assembly. This will not only allow faster assembly, but
will also identify any parts that may be missing or damaged so they can be replaced
before assembly. If parts are missing or need replacement, go to
www.swingsetsonline.com/support.aspx and follow the prompts to order them. Next,
read the assembly manual and get the tools ready for the job as recommended in
the manual. If the assembly manual is lost or misplaced a new one can be printed
from Backyard Discovery’s website: www.swingsetsonline.com .
6. The 2”x4” boards do not measure 2”x 4”. Why not? In the U.S. it is common practice
to describe lumber dimensions using the rough cut sizes from the sawmill and not
the finished dimensions. Retailers, home stores, etc. all use this accepted practice
for describing lumber dimensions. However, Backyard Discovery products are
designed and constructed using the actual dimensions so everything fits properly
and remains so during the life of the product.
For more information and frequently asked questions, please refer to our website at
www.swingsetsonline.com .

Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products.
These tools are not included in the outdoor product purchase.)
(Level 24") (Open End Wrenches 1/2")
(Square)
(Tape Measure)
(Drive Ratchet, 1/2" STD
Sockets & 1/2" Deep Sockets) (Claw Hammer)
(Cordless Drill or Electric Drill) (3/16", 5/16", 3/8" & 1/8" Drill Bits)
(Drill Attachments: Phillips
Head & Socket Driver)
(An Adult w/ an Adult Helper)
(Phillips & Straight
Blade Screw Drivers) (Rubber Mallet - Optional)
Ladder

I
II
Im
mm
mp
pp
po
oo
or
rr
rt
tt
ta
aa
an
nn
nt
tt
t A
AA
As
ss
ss
ss
se
ee
em
mm
mb
bb
bl
ll
ly
yy
y N
NN
No
oo
ot
tt
te
ee
es
ss
s
1) While assembling unit, take time before and after each phase to make sure structure is level.
If structure is not level, assembly will be difficult and improper assembly may result. Extra care
must be taken to insure the structure is square.
2) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
3) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
4) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
5) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.
B
BB
Ba
aa
as
ss
si
ii
ic
cc
c S
SS
Se
ee
et
tt
tu
uu
up
pp
p D
DD
Di
ii
im
mm
me
ee
en
nn
ns
ss
si
ii
io
oo
on
nn
ns
ss
s
Place the pergola swing on level ground, not less than 6 ft [2 m] from any structure or obstruction
suchas a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
8'-5/32"
[2.48M]
6'-15/32"
[2.13m]
15/32"
[.14M]
1'-21/64"
[.40M]
4'-29/32"
[1.49M]
WEIGHT LIMIT: 450 lbs.

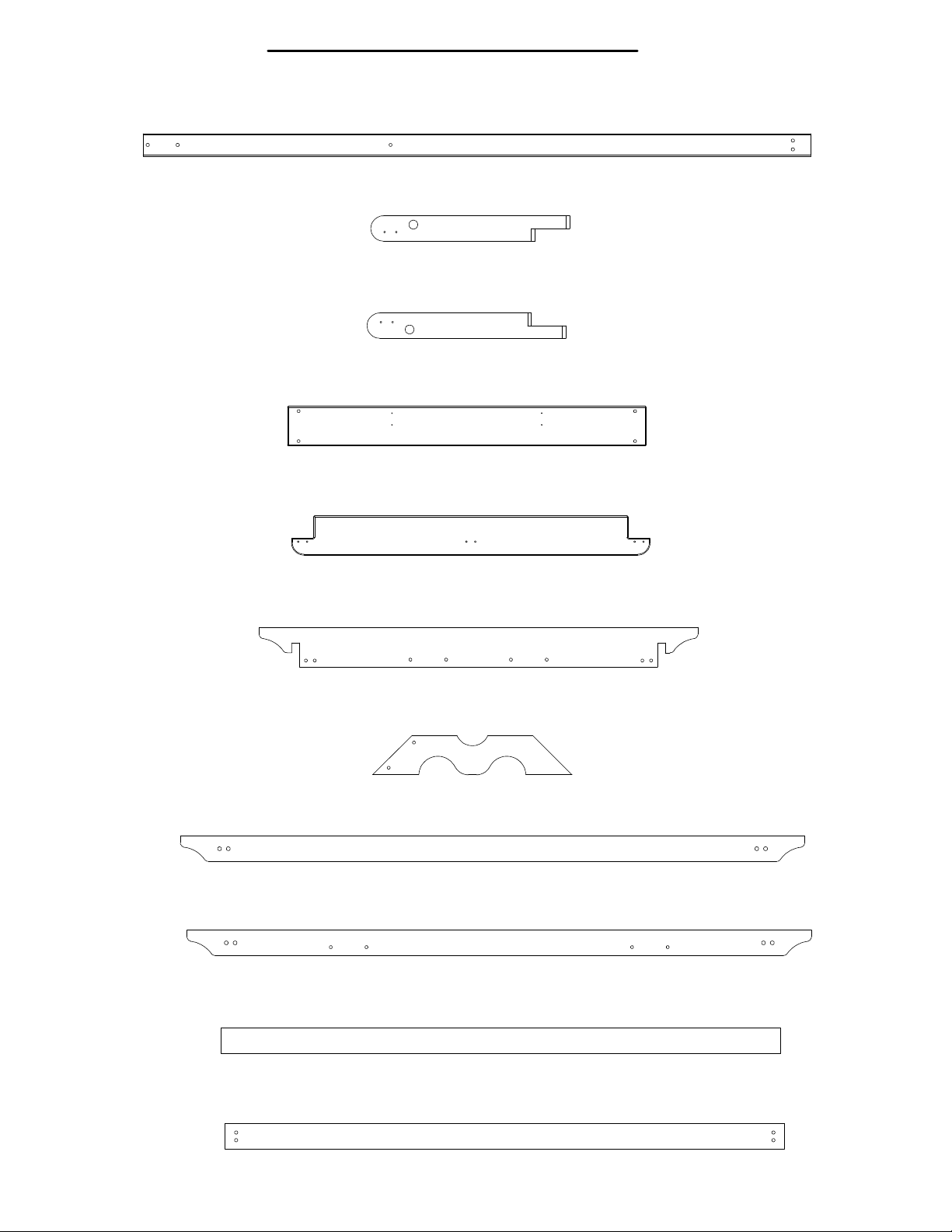

Parts Identification
ood Components
(NOT TO SCALE)
B1 - POST - W101671
3"x3"x89 1/2" (76x76x2274)
(4)
E1 - SWING RAIL - W101724
1 3/8"x3 3/8"x26 5/8" (36x86x677)
(1)
E2 - SWING RAIL - W101725
1 3/8"x3 3/8"x26 5/8" (36x86x677)
(1)
G1 - GROUND BOARD - W101673
1"x5 1/4"x48 1/8" (24x134x1222)
(2)
G3 - PERGOLA BEAM - W101679
1"x5 1/4"x58 7/8" (24x134x1495)
(2)
G2 - RAIL - W101678
1"x5 1/4"x48 1/8" (24x134x1222)
(2)
G4 - CORNER SUPPORT - W101711
1"x5 1/4"x26 3/4" (24x134x679)
(6)
H1 - BEAM SUPPORT - W101716
1"x3 3/8"x83 3/4" (24x86x2127)
(1)
H2 - BEAM SUPPORT - W101691
1"x3 3/8"x83 3/4" (24x86x2127)
(1)
H3 - FLOOR SUPPORT - W101674
1"x3 3/8"x75" (24x86x1906)
(2)
H4 - GROUND BOARD - W101672
3 3/8"x1"x75" (86x24x1906)
(2)

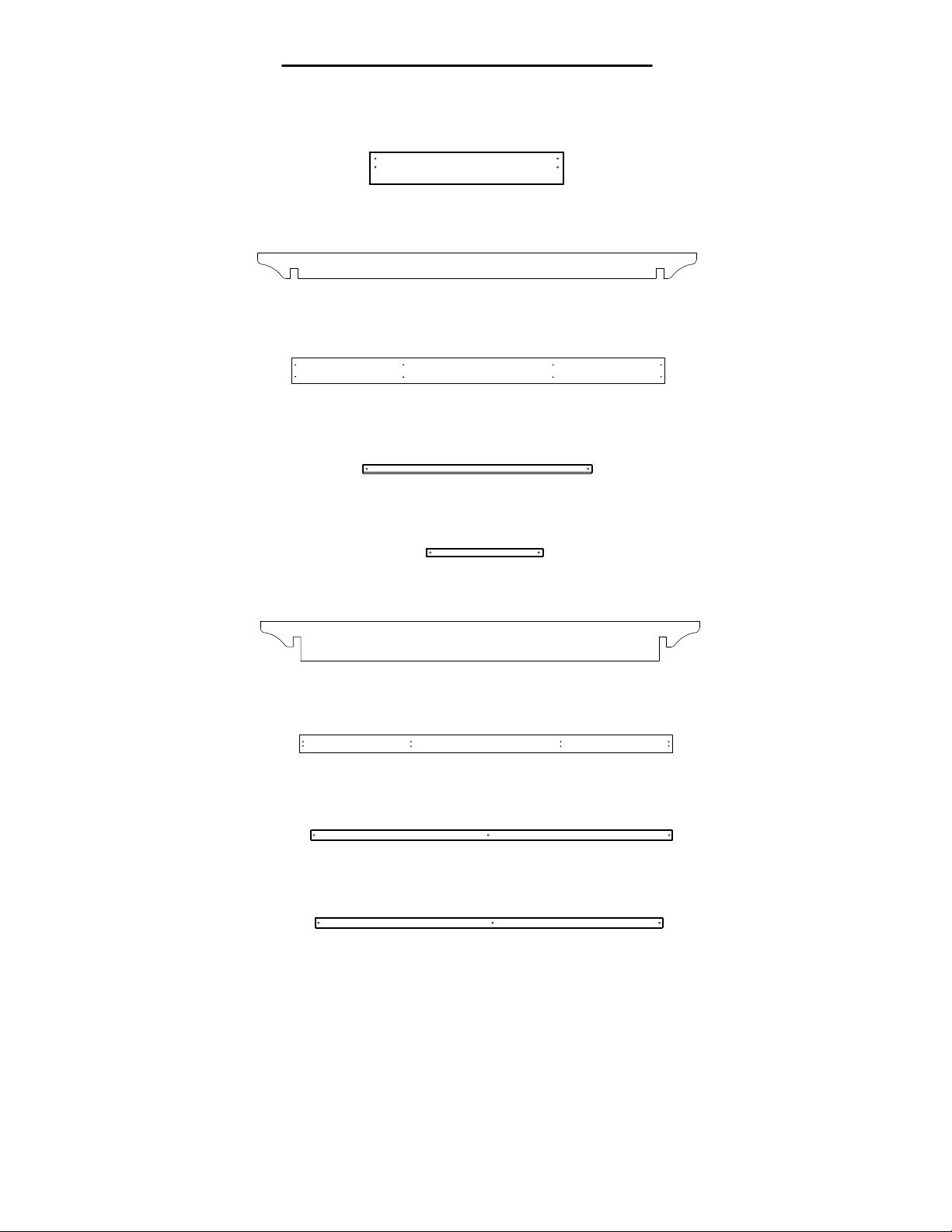

Parts Identification
Wood Components
(NOT TO SCALE)
H5 - RAIL SUPPORT - W101710
1"x3 3/8"x48 1/8" (24x86x1222)
(2)
H6 - SWING BACK SUPPORT - W101729
5/8"x3 3/8"x46 3/4" (16x86x1186)
(1)
H7 - SWING SEAT SUPPORT - W101728
5/8"x3 3/8"x44 3/4" (16x86x1138)
(1)
H8 - FLOOR BOARD - W101675
5/8"x3"x42 1/8" (16x76x1070)
(2)
H10 - SWING SUPPORT - W101722
1"x3 3/8"x24 3/4" (24x86x630)
(1)
H11 - SWING SUPPORT - W101719
1"x3 3/8"x21 3/4" (24x86x552)
(2)
H12 - SWING SUPPORT - W101720
1"x3 3/8"x21 3/4" (24x86x552)
(1)
H13 - SWING RAIL SUPPORT - W101723
1"x3 3/8"x13" (24x86x330)
(2)
H14 - FLOOR BOARD SUPPORT - W101702
1"x3 3/8"x3" (24x86x76)
(4)
H9 - SWING SUPPORT - W101721
1"x3 3/8"x24 3/4" (24x86x630)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
L1 - INLET SUPPORT - W101715
5/8"x4 3/8"x26 1/8" (16x112x664)
(4)
M1 - PERGOLA BEAM - W101693
5/8"x3 3/8"x58 7/8" (16x86x1495)
(4)
M2 - FLOOR BOARD - W101676
5/8"x3 3/8"x50" (16x86x1270)
(19)
S1 - INLET - W101677
5/8"x1 1/8"x30 7/8" (15x30x784)
(12)
S2 - INLET - W101714
5/8"x1 1/8"x15 3/4" (15x30x400)
(4)
SB1 - PERGOLA SWING BEAM - W101713
2"x5 1/4"x58 7/8" (50x134x1495)
(2)
T1 - FLOOR BOARD - W101703
5/8"x2 3/8"x50" (16x60x1270)
(1)
T2 - SWING BACK BOARD - W101727
1"x1 3/8"x48 5/8" (24x36x1234)
(10)
T3 - SWING SEAT BOARD - W101726
1"x1 3/8"x46 3/4" (24x36x1186)
(12)

Parts Identification
Hardware
AB - LAG SCREW WH 5/16x3 - H100029
(8)
BG - T-NUT 5/16 - H100074
(34)
H - BOLT WH 5/16x1-1/2 - H100010
(10)
AD - WASHER LOCK EXT 12x19 - H100031
(34)
AC - WASHER LOCK EXT 8x19 - H100030
(76)
D - NUT BARREL WH 5/16x7/8 - H100005
(10)
E - NUT BARREL WH 5/16x1-3/4 - H100007
(30)
J - BOLT WH 5/16x1-3/4 - H100011
(12)
M - BOLT WH 5/16x2-1/2 - H100014
(20)
R - BOLT WH 5/16x3-1/2 - H100018
(8)
S - BOLT WH 5/16x3-3/4 - H100019
(12)
LD - LAG SCREW WH 1/4x2 - H100146
(6)
CY - SCREW PWH 8x5/8 - H100128
(5)
AH - BOLT HEX 5/16x1-1/2 - H100041
(6)
BX - WASHER SPLIT 5/16 - H100095
(4)
CA - WASHER FLAT 11x25 - H100102
(4)
RS - BOLT HEX 5/16x5-1/2 - H100168
(4)

Parts Identification
Hardware
BR - SCREW PFH 8x1-1/8" - H100088
(32)
BP - SCREW PFH 8x1-1/2" - H100086
(4)
BW - SCREW PFH 8x3 - H100092
(8)
CJ - NUT LOCK 5/16 - H100110
(8)
BZ - SWING HANGER QUICK LINK - H100099
(2)
- T-40 Torx Driver - A100042
(2)
- T-40 Wrench - A100041
(2)
CE - WASHER FLAT 9x18 - H100106
(10)
BT - SCREW PFH 8x2-1/2 - H100090
(28)
CK - SCREW PFH 8x2 - H100111
(198)
KV - WASHER LOCK EXT 6x15 - H100138
(6)
- T-30 Torx Driver - A100147
(2)
- T-30 Wrench - H100114
(2)
CD - WASHER FLAT 8x27 - H100105
(2)
BS - SCREW PFH 8x1-3/4" - H100089
(83)
CB - WASHER SAFETY 17x30 - H100103
(2)

Parts Identification
A
AA
Ac
cc
cc
cc
ce
ee
es
ss
ss
ss
so
oo
or
rr
ri
ii
ie
ee
es
ss
s
FA - QUICK LINK
-A100069
(4)
KD - PLASTIC GROUND STAKE BROWN
-A100179
(4)
MX - BYL ID PLATE MEDIUM WITHOUT
AGES
-A100240
(1)
PN - CHAIN SUPPORT PLATE - A100222
(2)
(2) QW - CHAIN ASSEMBLY - A100288
RC - CHAIN SUPPORT BRACKET - A100297
(2)

Frame Assembly
Phase 1
Phase Notes
• Assemble with hardware as shown.
Hardware needed:
• (8) E - NUT BARREL WH 5/16x1-3/4 - H100007
• (8) AD - WASHER LOCK EXT 12x19 - H100031
• (4) AC - WASHER LOCK EXT 8x19 - H100030
• (4) M - BOLT WH 5/16x2-1/2 - H100014
• (4) R - BOLT WH 5/16x3-1/2 - H100018
Parts needed:
• (2) B1 - POST - W101671
• (1) H1 - BEAM SUPPORT - W101716
• (1) H4 - GROUND BOARD - W101672
• (2) H14 - FLOOR BOARD SUPPORT - W101702
Step 1: Attach 'H1' Beam Support to
'B1' Post using hardware 'E' Nut Barrel,
'AD' Washers and 'M' Bolt, as shown.
H14
B1
H4
R
AC
AC
AD
E
AD
H4
B1
H14
B1
H1
H1
B1
Step 2: Attach 'H4' Ground Board and
'H14' Floor Ground Support to 'B1' Post
using hardware 'E' Nut Barrel, 'AD' &
'AC' Washers and 'R' Bolt, as shown.
Note: It is vital that the structure
be level before and after each
phase of assembly.
These two outside surfaces should
flush when installing any 'H14' Floor
Board Support.
AD
E
M
Enlarge holes located in
'H14' floor board support
using a 7/16" drill bit for
ease of assembly.

Frame Assembly
Phase 2
Phase Notes
• Assemble with hardware as shown.
B1
H2
H2
B1
B1
H4
R
AC
AC
H4
B1
H14
AD
AD
EH14
Parts needed:
• (2) B1 - POST - W101671
• (1) H2 - BEAM SUPPORT - W101691
• (1) H4 - GROUND BOARD - W101672
• (2) H14 - FLOOR BOARD SUPPORT - W101702
Hardware needed:
• (8) E - NUT BARREL WH 5/16x1-3/4 - H100007
• (8) AD - WASHER LOCK EXT 12x19 - H100031
• (4) AC - WASHER LOCK EXT 8x19 - H100030
• (4) M - BOLT WH 5/16x2-1/2 - H100014
• (4) R - BOLT WH 5/16x3-1/2 - H100018
Step 1: Attach 'H2' Beam Support to
'B1' Post using hardware 'E' Nut Barrel,
'AD' Washers and 'M' Bolt, as shown.
Step 2: Attach 'H4' Ground Board and
'H14' Floor Board Support to 'B1' Post
using hardware 'E' Nut Barrel, 'AD' &
'AC' Washers and 'R' Bolt, as shown.
Note: It is vital that the structure
be level before and after each
phase of assembly.
These two outside surfaces should
flush when installing any 'H14' Floor
Board Support.
E
AD
Enlarge holes located in
'H14' floor board support
using a 7/16" drill bit for
ease of assembly.

Frame Assembly
Phase 3
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) G3 - PERGOLA BEAM - W101679
• (2) H5 - RAIL SUPPORT - W101710
• (2) G1 - GROUND BOARD - W101673
Step 3: Pre-drill & attach 'G3' Pergola
Beam to 'B1' Post using Barrel Nuts 'E',
Washers 'AD' and Bolt 'M', as shown.
G3
B1
B1
H5
G1
G1
H5
G3
B1
B1
S
AC
AC
B1
BG
G1
SAC
BG
AB
AC
G3
B1
Hardware needed:
• (8) E - NUT BARREL WH 5/16x1-3/4 - H100007
• (8) AD - WASHER LOCK EXT 12x19 - H100031
• (16) AC - WASHER LOCK EXT 8x19 - H100030
• (8) M - BOLT WH 5/16x2-1/2 - H100014
• (12) S - BOLT WH 5/16x3-3/4 - H100019
• (12) BG - T-NUT 5/16 - H100074
• (4) AB - LAG SCREW WH 5/16x3 - H100029
H2
H1
Step 4: Pre-drill & attach 'G3' Pergola
Beam to 'H1' & 'H2' Beam Supports
using Lag Screw 'AB' and Washers
'AC', as shown.°
Step 2: Attach 'H5' Rail Support to 'B1'
Post using T-Nuts 'BG', Washers 'AC'
and Bolt 'S', as shown.
Step 1: Attach 'G1' Ground Board to
'B1' Post using T-Nuts 'BG', Washers
'AC' and Bolt 'S', as shown.
Note: It is vital that the structure
be level before and after each
phase of assembly.
The pilot holes should be
located toward the ground.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
E
AD
M

Phase Notes
• Assemble with hardware as shown.
Frame Assembly
Phase 4
Step 1: Pre-drill & Attach 'H3' Floor
Support to 'G1' Ground Board with
screws 'BT', as shown.
Parts needed:
• (2) H3 - FLOOR SUPPORT - W101674
Hardware needed:
• (8) BT - SCREW PFH 8x2-1/2 - H100090
H3
G1
BT
H3
G1
G1
Note: It is vital that the structure
be level before and after each
phase of assembly.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.

Frame Assembly
Phase 5
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) H8 - FLOOR BOARD - W101675
• (1) T1 - FLOOR BOARD - W101703
• (19) M2 - FLOOR BOARD - W101676
Hardware needed:
• (176) CK - SCREW PFH 8x2 - H100111
Step 1: Attach 'H8' Floor Board to 'H14'
Floor Board Support & 'H3' Floor
Support using Screws 'CK', as shown.
H8
CK
M2
CK
CK
H8
H4
CK
Note: It is vital that the structure
be level before and after each
phase of assembly.
Step 2: Attach 'T1' Floor Board to 'H4'
Ground Board & 'H3' Floor Support
using Screws 'CK', as shown.
Step 3: Attach 'M2' Floor Board to 'H4'
Ground Board & 'H3' Floor Support
using Screws 'CK', as shown.
T1

Frame Assembly

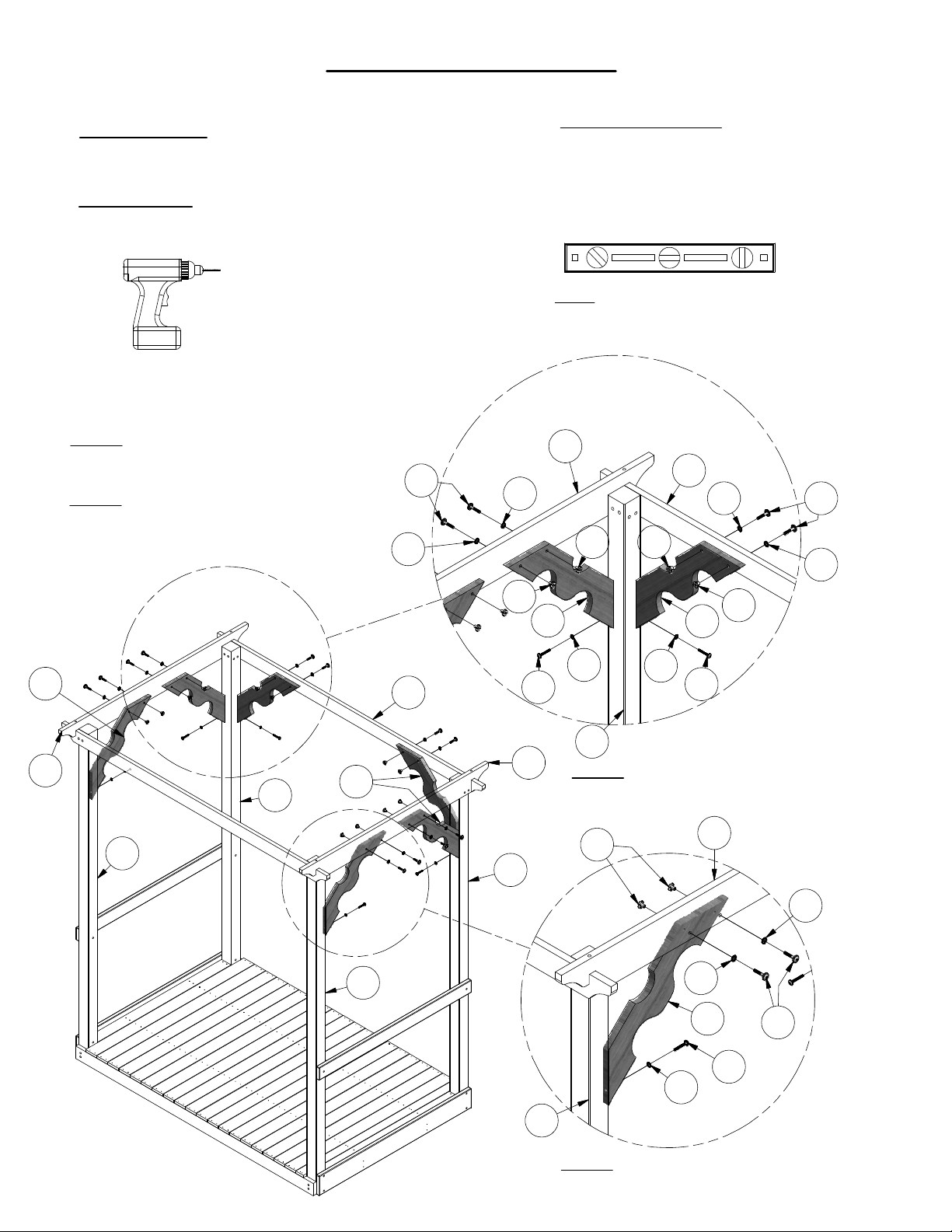

Phase 6
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (6) G4 - CORNER SUPPORT - W101711
Hardware needed:
• (12) J - BOLT WH 5/16x1-3/4 - H100011
• (12) AC - WASHER LOCK EXT 8x19 - H100030
• (12) BG - T-NUT 5/16 - H100074
• (6) LD - LAG SCREW WH 1/4x2 - H100146
• (6) KV - WASHER LOCK EXT 8x15 - H100138
Step 1: Attach 'G4' Corner Support to
'G3' Pergola Beam using T-Nuts 'BG',
Washers 'AC', and Bolts 'J', as shown.
G3
H2
B1
G4 G4
AC
AC
J
AC
AC
J
BG
BGBG
BG
KV
LD
KV
LD
BG
LD
KV
G4
AC
AC
J
G3
B1
G4
G3
B1
B1
H2
B1
B1
G3
G4
Note: It is vital that the structure
be level before and after each
phase of assembly.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
Step 2: Attach 'G4' Corner Support to
'B1' Post using Lag Screws 'LD' &
Washers 'KV', as shown. Repeat this
process for the remaining 'G4' Corner
Supports.
Step 3: Attach 'G4' Corner Support to
'H2' Beam Support using T-Nuts 'BG',
Washers 'AC', and Bolts 'J', as shown.
Step 4: Attach 'G4' Corner Support to
'G3' Pergola Beam using T-Nuts 'BG',
Washers 'AC', and Bolts 'J', as shown.

Frame Assembly
Phase 7
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (4) L1 - INLET SUPPORT - W101715
Hardware needed:
• (16) BT - SCREW PFH 8x2-1/2 - H100090
Step 1: Attach 'L1' Inlet Support to
'B1' Post using 'BT' Screws, as
shown.
L1
B1
H5
BT
L1
B1
B1
L1
B1
B1
H5
H5
L1
L1
G1
G1
Note: It is vital that the structure
be level before and after each
phase of assembly.
