SERVING CART
OUTDOOR PRODUCT
MODEL: # 1706828
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
1-800-856-4445
Made in China
INS-1706828-A-SERVING CART-ENG 1/11/17
Features the fastening system.
Register your new (Outdoor Product) on-line @
www.backyarddiscovery.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:
1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
2 - DESCRIPCIÓN DE LA PIEZA QUE SE ENCUENTRA EN LA LISTA DE PIEZAS
PLEASE READ THIS BEFORE STARTING ASSEMBLY
POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE
STOP
PARE
Missing A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for this item.
If you have assembly questions or if you need parts,
whether they are missing or damaged
Call Toll-Free Help Line or visit www.swingsetsonline.com
¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!
La tienda donde realizó la compra no almacena piezas de este prod cto.
Si tiene preg ntas sobre el ensamblaje o si necesita piezas debido a q e
faltan o están dañadas
llame gratis a la línea de ay da
1-800-856-4445
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND
SAFETY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE STRUCTURE.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-856-4445 OR VISIT www.swi gsetso li e.com
• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.
• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA ESTRUCTURA.
• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.
• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS
PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.
• MANTÉNGASE ALEJADO DE LOS NIÑOS MENORES A LA EDAD RECOMENDADA.
• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL 1-800-856-4445 O VISITE www.swi gsetso li e.com

Owner’s Manual Outdoor Product
ENG OWNER OP-2012
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
Structures are not intended for public use. The Company does not warranty any of its
residential structures subjected to commercial use such as: Recreational Park, or any
similar Commercial Application.
Please follow all recommendations below. ailure to do so may result in the warranty
being void and/or safety violations that could result in serious injury. This manual
contains helpful information concerning Assembly Preparation, Installation Procedure,
and Required aintenance. Always keep safety in mind as your structure is being built.
PLEASE RETAIN THESE INSTRUCTIONS OR UTURE RE ERENCE. KEEP THEM IN A SA E
PLACE WHERE YOU CAN RE ER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU
WITH THE MOST E ICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE
PART NUMBERS WHEN ORDERING PARTS.
or Your Records:
Please take time and fill out the information below. This information will be needed for
warranty issues.
Where Purchased: ______________
Date of Purchase: ________________
Installation Date: _______________
Installed by: ______________________

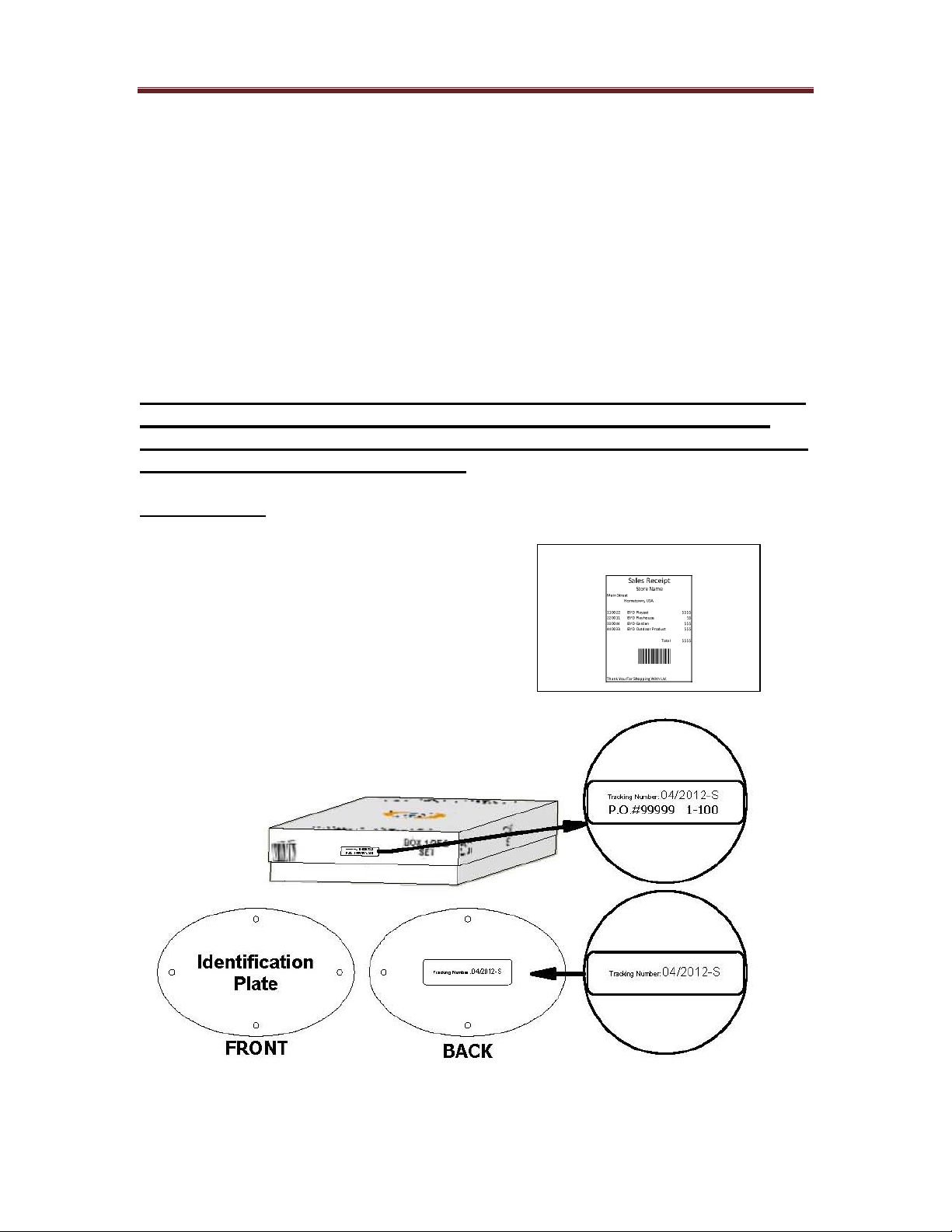

Tracking Number Reference Label
Tracking ID number on the carton and back of the ID plate are included for
tracking purposes associated with warranty claims.
Staple Receipt Here

Owner’s Manual Outdoor Product
ENG OWNER OP-2012
Maintenance Instructions:
1. Check all nuts and bolts twice monthly during the usage season and tighten as required.
(But not so tight that you crack the wood) It is particularly important that this
procedure be followed at the beginning of each season.
2. Oil all metallic moving parts monthly during the usage period.
3. Check all coverings for bolts and sharp edges twice monthly during usage season to be
certain they are in place. Replace when necessary. It is especially important to do this
at the beginning of each new season.
4. For rusted areas on metallic members such as hinges, brackets, etc. sand and repaint,
using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
5. Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sanding may be necessary to maintain a safe
environment. Treating your Product with protection (sealant) after sanding will help
prevent severe checking/splitting and other weather damage.
6. We have applied a waterborne translucent stain to your unit. This is done for color only.
Once or twice a year, depending on your climate conditions, you must apply some type
of protection (sealant) to the wood of your unit. Prior to the application of sealant,
lightly sand any “rough” spots on your set. Please note this is a requirement of your
warranty.

Outdoor Product Assembly Manual FAQs:
1. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar
wood which is naturally bug resistant, decay and rot resistant. To help ensure your
family’s safety, our wood is completely chemical free and we do not use pressure-
treated wood. The stain we use is a top coat using a water-based product that is for
appearance only.
2. How often should the product be stained? Backyard Discovery recommends the
product be stained once each year. A water or oil based stain can be used at the
customer’s discretion.
3. Why does it seem that my product is developing cracks? Wood is a natural material;
no two pieces are exactly alike. Each piece has its own characteristics and
personality and reacts differently to environmental changes. When any wood
product is exposed to the elements, it develops “wood checks”. A check is the radial
separation of the wood fibers running with the grain of the wood. These are caused
by the varying temperature and moisture conditions. A check is not a crack – it does
not affect the strength or durability of the wood or structural integrity of the product.
4. Do Backyard Discovery products come with a warranty? Yes. All Backyard
Discovery products carry a 1-year replacement warranty on all parts for
manufacturer’s defect. Our wood carries a 5 year pro-rated warranty on rot and
decay as well. Please see warranty details for more information.
5. What is the best way to get started assembling the product? Backyard Discovery
recommends taking all the parts out of the boxes and arranging them by part
number before you begin any assembly. This will not only allow faster assembly, but
will also identify any parts that may be missing or damaged so they can be replaced
before assembly. If parts are missing or need replacement, go to
www.backyarddiscovery.com/support.aspx and follow the prompts to order them.
Next, read the assembly manual and get the tools ready for the job as
recommended in the manual. If the assembly manual is lost or misplaced a new one
can be printed from Backyard Discovery’s website: www.backyarddiscovery.com .
6. The 2”x4” boards do not measure 2”x 4”. Why not? In the U.S. it is common practice
to describe lumber dimensions using the rough cut sizes from the saw mill and not
the finished dimensions. Retailers, home stores, etc. all use this accepted practice
for describing lumber dimensions. However, Backyard Discovery products are
designed and constructed using the actual dimensions so everything fits properly
and remains so during the life of the product.
For more information and frequently asked questions, please refer to our website at
www.backyarddiscovery.com .

(Tape Measure)
(An Adult w/ an Adult Helper)
(Phillips Screw Driver)
(Drill Attachments: Phillips Head)
Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products. These tools are
not included with the outdoor product purchase.)

Important Assembly Notes
1) While assembling unit, take time before and after each step to make sure unit is level. If unit is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
ensure the unit is square.
2) Pay close attention to the ITEMS NEEDED FOR EACH STEP. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by step.
3) Pay close attention to make sure you are using the correct hardware in the correct step. Using
incorrect hardware may result in improper assembly.
4) Read each of the steps thoroughly. The written steps may include important information not
shown in the illustrations.

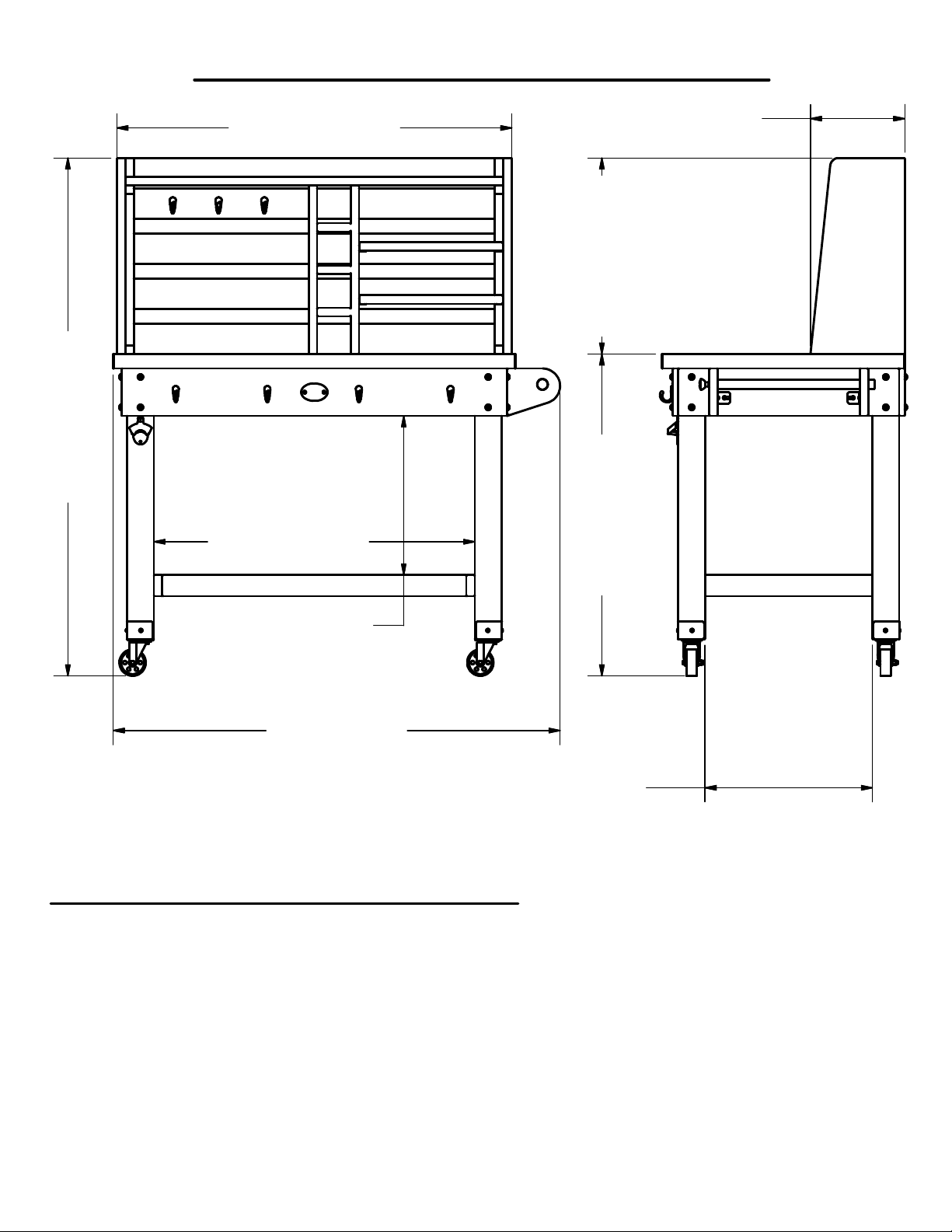

Basic Setup Dimensions
573/4in[1467mm]
35 7/8 in [912 mm] 21 7/8 in [556 mm]
50 in [1269 mm]
44 1/8 in [1121 mm] 10 9/16 in [268 mm]
35 7/8 in [911 mm]
17 3/4 in [451 mm]
18 11/16 in [475 mm]

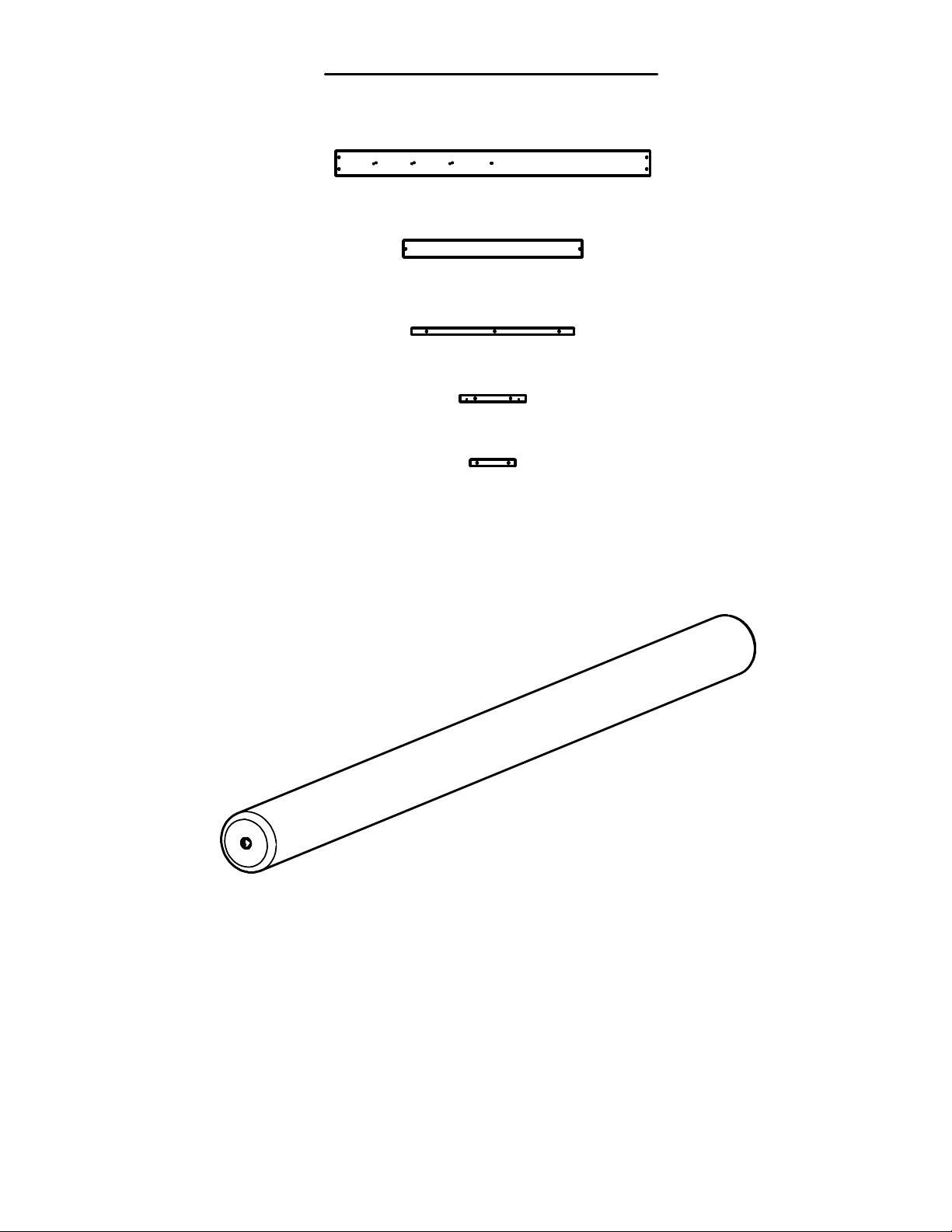

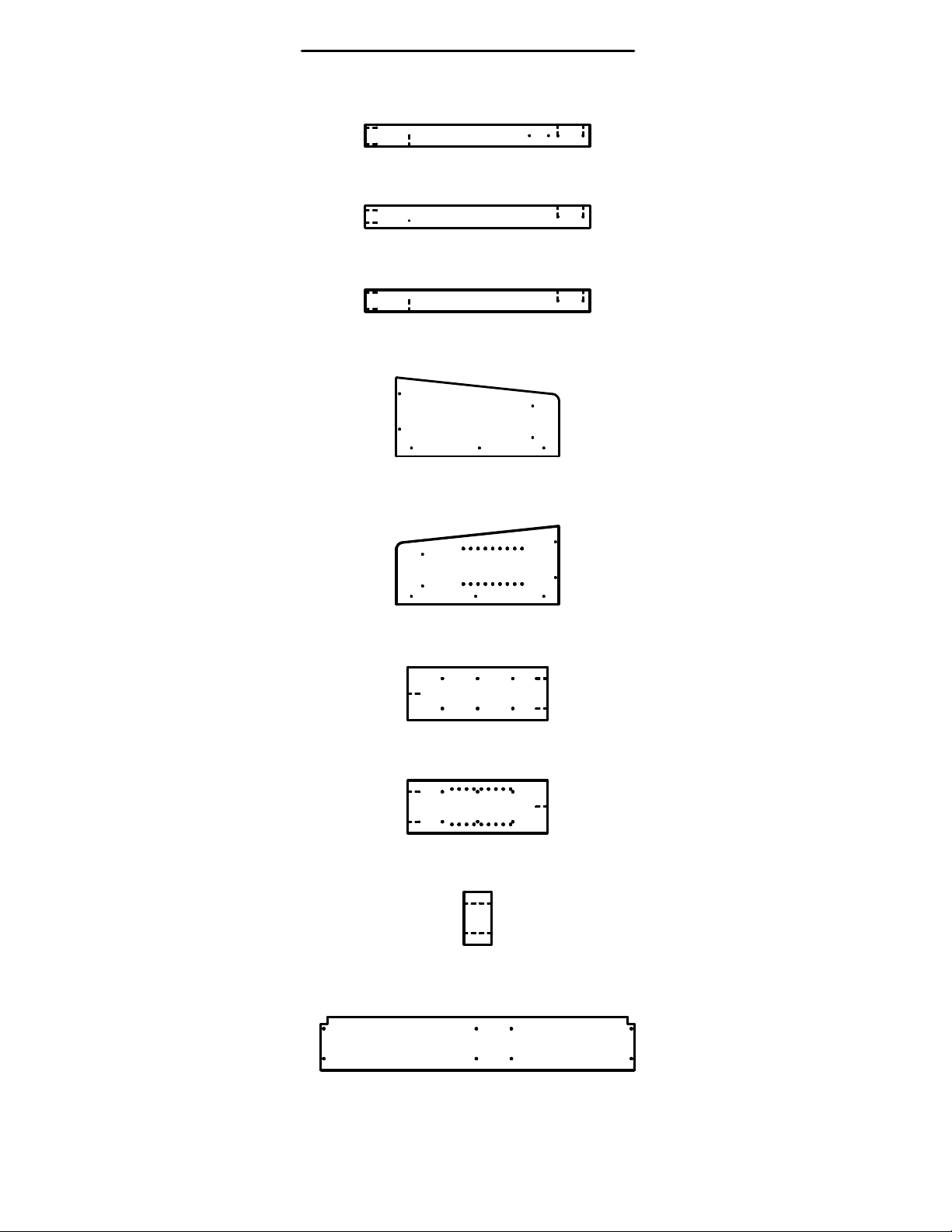

Parts Identification
Wood Components
(NOT TO SCALE)
B1 - FRONT LEFT UPRIGHT - W4L06977
3"x3"x30 1/4" (76x76x767)
(1)
B2 - UNIVERSAL UPRIGHT - W4L06978
3"x3"x30 1/4" (76x76x767)
(2)
B3 - REAR RIGHT UPRIGHT - W4L06979
3"x3"x30 1/4" (76x76x767)
(1)
FP1 - LEFT HUTCH UPRIGHT - W4L06987
1"x10 1/2"x21 7/8" (24x268x555)
(1)
FP2 - RIGHT HUTCH UPRIGHT - W4L06988
1"x10 1/2"x21 7/8" (24x268x555)
(1)
FP3 - LEFT CENTER HUTCH UPRIGHT - W4L06994
1"x7 1/8"x18 3/4" (24x182x477)
(1)
FP4 - RIGHT CENTER HUTCH UPRIGHT - W4L06995
1"x7 1/8"x18 3/4" (24x182x477)
(1)
FP5 - CENTER HUTCH SHELF - W4L06996
1"x7 1/8"x3 3/4" (24x182x95)
(3)
FP6 - HUTCH TOP SHELF - W4L06998
1"x7 1/8"x42 1/4" (24x182x1072)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
FP7 - HUTCH ADJUSTABLE SHELF - W4L06999
1"x7 1/8"x16" (24x182x407)
(2)
G1 - LEFT DISPENSER UPRIGHT - W4L07000
1"x5 1/4"x5 7/8" (24x134x150)
(1)
G2 - RIGHT DISPENSER UPRIGHT - W4L07001
1"x5 1/4"x5 7/8" (24x134x150)
(1)
J1 - SHELF END RAIL - W4L06980
1"x2 3/8"x24 5/8" (24x60x627)
(2)
J2 - SHELF SIDE RAIL - W4L06981
1"x2 3/8"x34" (24x60x863)
(2)
K1 - FRONT SKIRT - W4L06983
5/8"x5 1/4"x43 1/8" (16x134x1095)
(1)
K2 - REAR SKIRT - W4L06984
5/8"x5 1/4"x43 1/8" (16x134x1095)
(1)
K3 - LEFT SKIRT - W4L06985
5/8"x5 1/4"x24 5/8" (16x134x627)
(1)
K4 - RIGHT SKIRT - W4L06986
5/8"x5 1/4"x24 5/8" (16x134x627)
(1)
M1 - BACK BOARD - W4L06991
5/8"x3 3/8"x42 1/4" (16x86x1072)
(3)
M2 - BACK BOARD - W4L06992
5/8"x3 3/8"x42 1/4" (16x86x1072)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
M3 - BACK BOARD - W4L06993
5/8"x3 3/8"x42 1/4" (16x86x1072)
(1)
N1 - SHELF SLAT - W4L06982
5/8"x2 3/8"x24" (16x60x610)
(9)
S1 - VERTICAL BLOCK - W4L06989
1"x1"x21 7/8" (24x24x555)
(2)
S2 - HORIZONTAL BLOCK - W4L06990
1"x1"x8 7/8" (24x24x225)
(2)
S3 - HORIZONTAL BLOCK - W4L06997
1"x1"x6 1/8" (24x24x155)
(2)
(1) TR1 - TOWEL ROD - W2A01972
1 1/8"x18 1/8" (28x460)

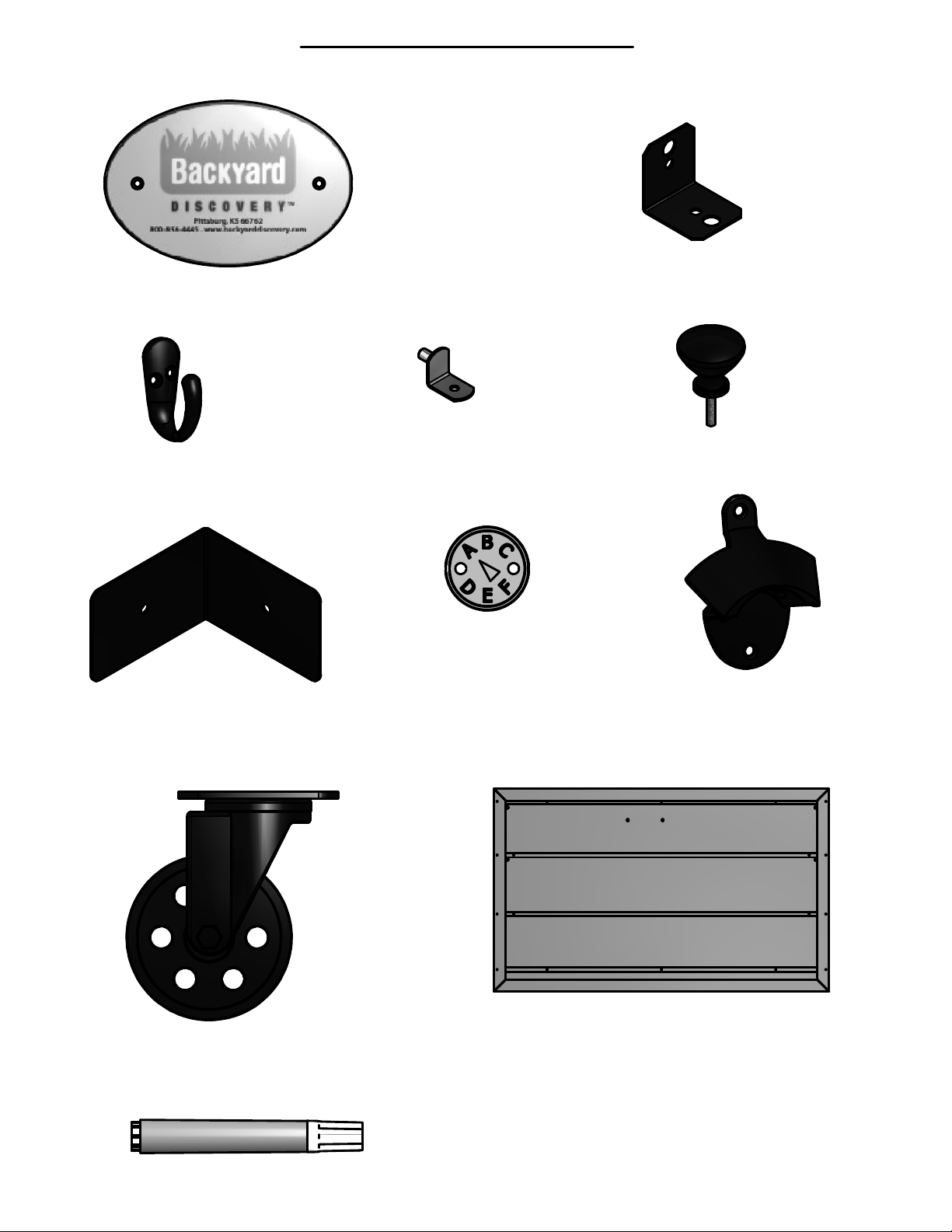

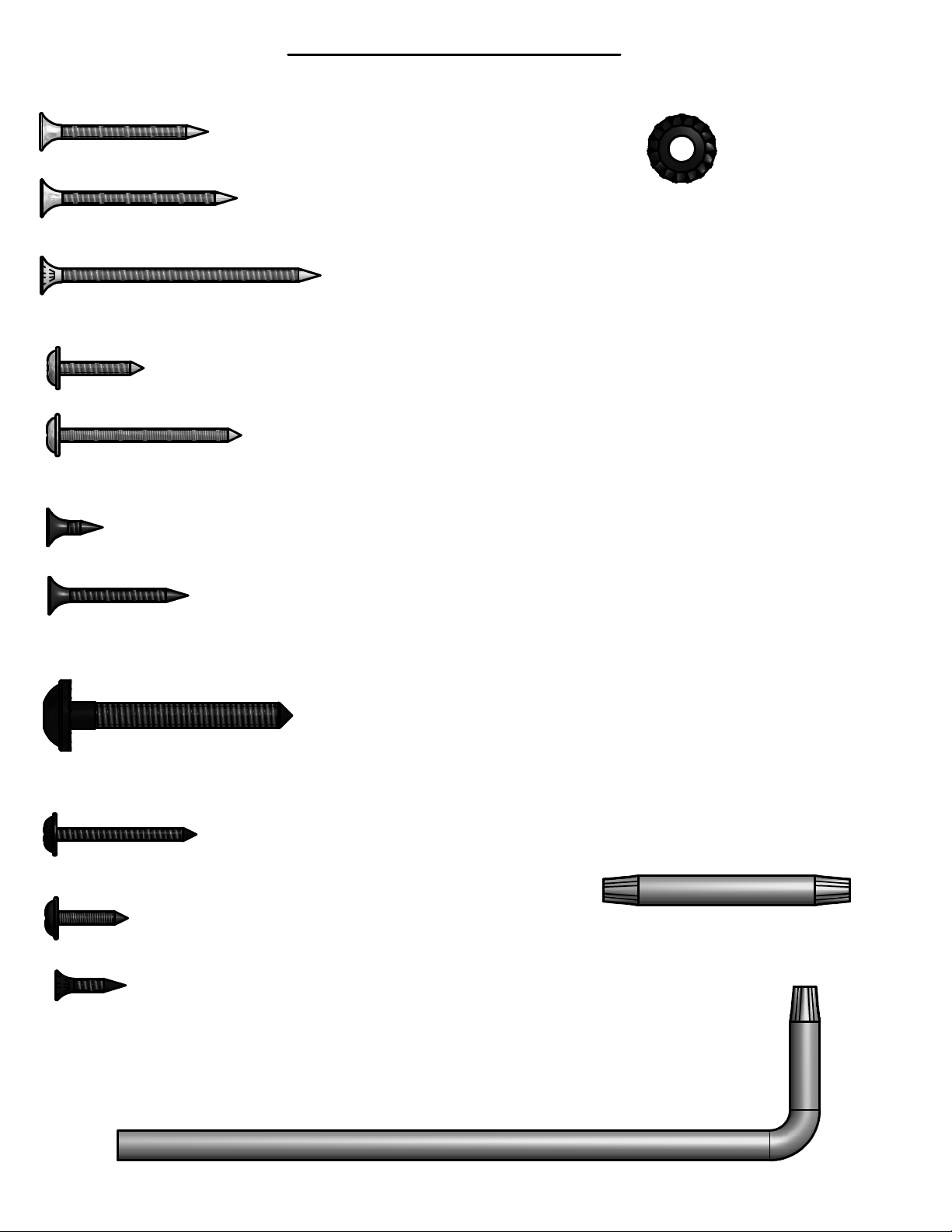

Parts Identification
Hardware
BP - SCREW PFH 8x1 1/2 - H100086
(47)
BS - SCREW PFH 8x1 3/4 - H100089
(46)
TV - SCREW PWH 8x1-5/8 - H100181
(2)
BC - SCREW PWH 8x3/4 - H100070
(4)
VV - SCREW PWH 8x5/8 BLK - H100202
(41)
VW - SCREW PFH 8x1/2 BLK - H100203
(2)
- SCREW PFH 8x1 1/4 BLK - H100387
(2)
- WASHER LOCK EXT 6x15 BLK - H100405
(17)
- LAG SCREW WH 1/4x2 BLK - H100487
(22)
- T-30 TORX BIT - H100147
(2)
- T-30 TORX WRENCH - H100114
(2)
BT - SCREW PFH 8x2 1/2 - H100090
(4)
- SCREW PWH 8x1-1/4 BLK - H100536
(17)
- SCREW PFH 6x5/8 BLK - H100624
(15)

Parts Identification
Accessories
(NOT TO SCALE)
- 90° L-BRACKET - BLK - A4M00555
(16)
- SHELF SUPPORT - A4M00648
(8)
- KNOB #8-32 - BLK - A4M00650
(1)
- HOOK - BLK - A4M00651
(7)
- CORNER PLATE - BLK - A4M00652
(4)
- SWIVEL CASTER - A4M00653
(4)
- BOTTLE CAP OPENER - A4M00654
(1)
SQ - "A" REVISION TAG - A100314
(1)
(1) WP1 - STAINLESS STEEL COUNTER TOP - A4M00694
1 5/8"x27 1/8"x45" (41x689x1142)
XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241
(1)
(1)STAIN PEN (BW-2UV) - A6P00173

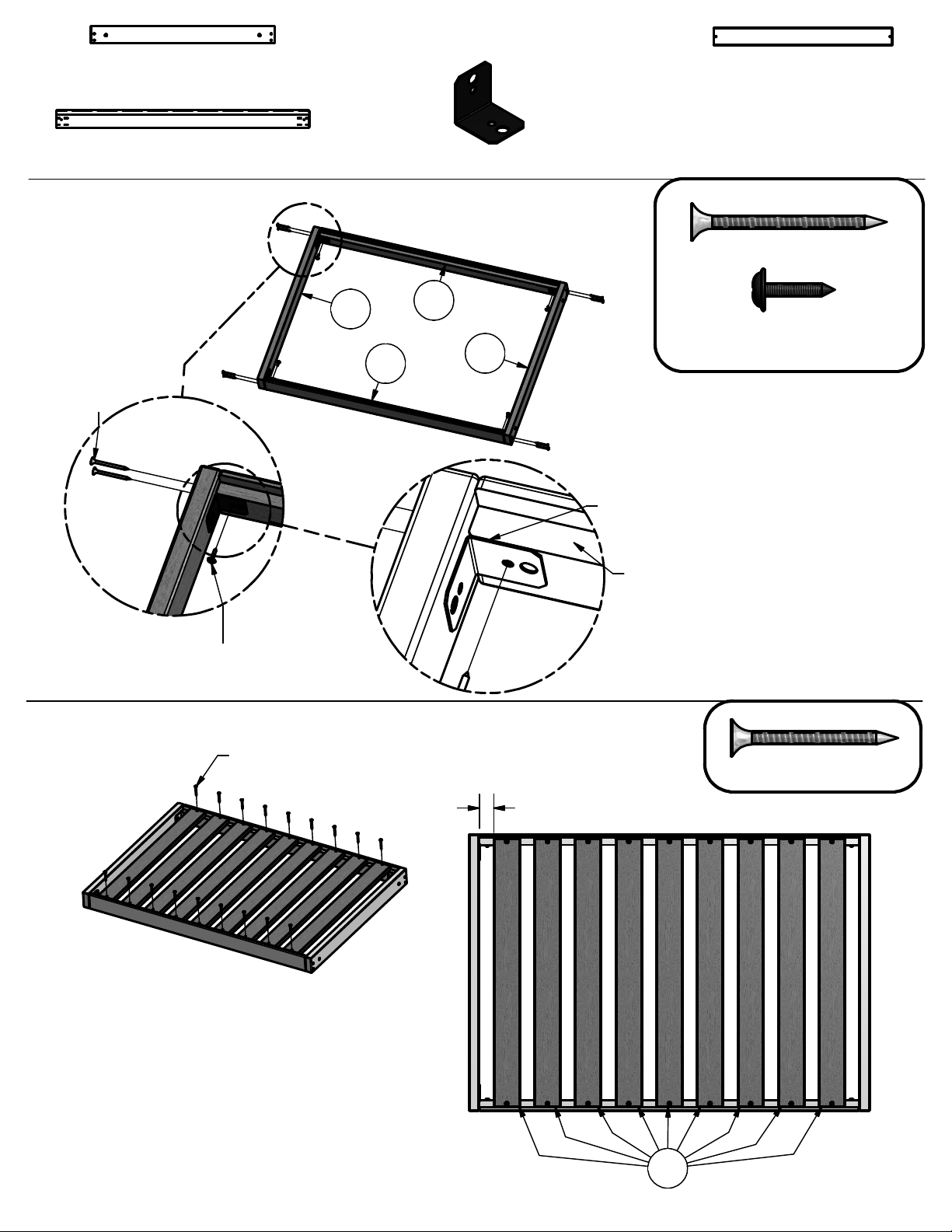

STEP 1
STEP 2
SCREW PFH 8x1 1/2
(18 PLCS)
1 1/4 (10 SPCS)
N1
SCREW PFH 8x1 3/4
(8 PLCS)
J2
J2
J1
J1
J1 - SHELF END RAIL - W4L06980
1"x2 3/8"x24 5/8" (24x60x627)
(2)
J2 - SHELF SIDE RAIL - W4L06981
1"x2 3/8"x34" (24x60x863)
(2)
N1 - SHELF SLAT - W4L06982
5/8"x2 3/8"x24" (16x60x610)
(9)
- 90° L-BRACKET - BLK - A4M00555
(4)
SCREW PFH
8x1 3/4
(8)
SCREW PWH
8x5/8 BLK
(4)
SCREW PFH
8x1 1/2
(18)
NOTE SLOT AND BOARD PLACEMENT.
NOTE BRACKET AND SLOT ARE FLUSH.
SCREW PWH 8x5/8 BLK
(4 PLCS)

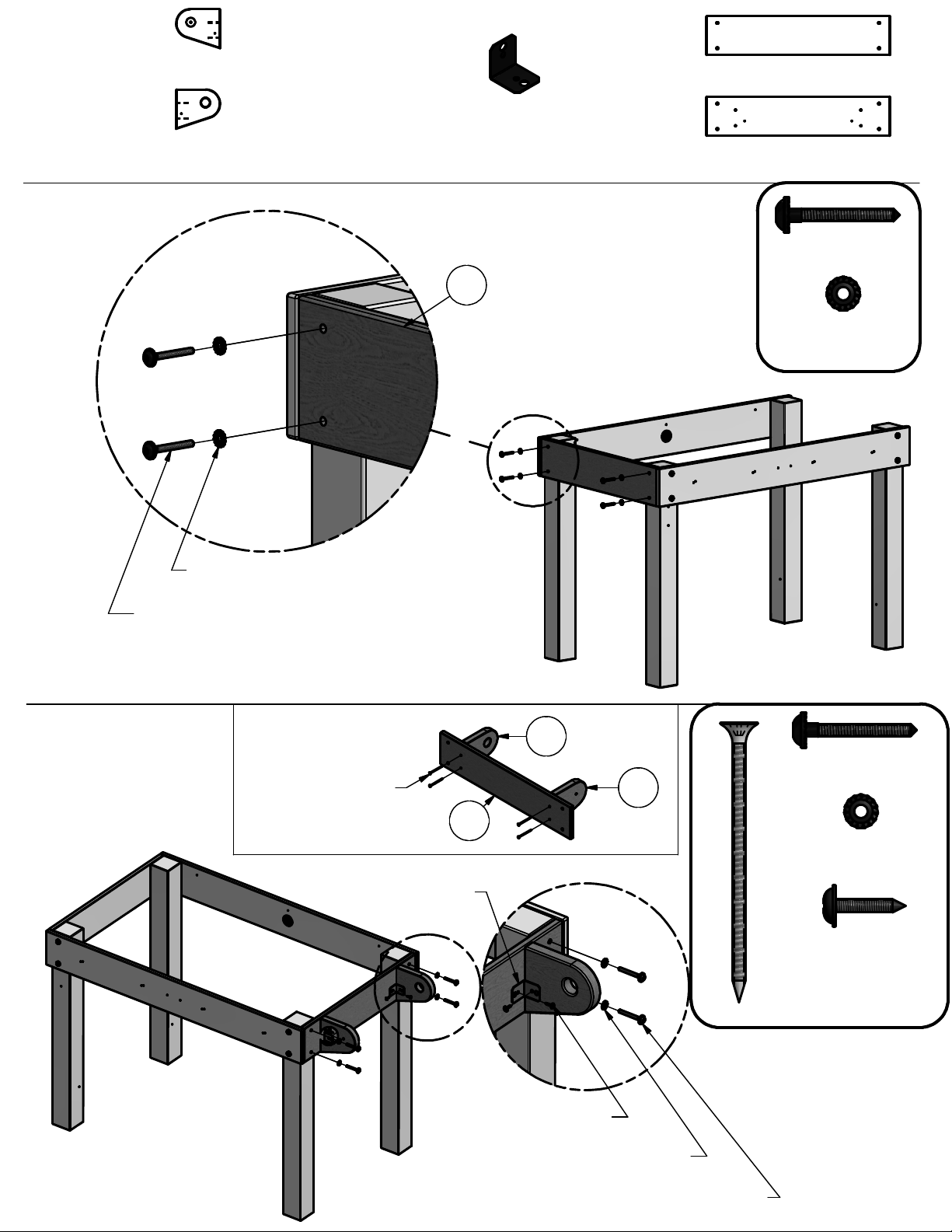

STEP 3
STEP 4
K1
B1
B2
LAG SCREW
WH 1/4x2
BLK
(4)
WASHER
LOCK EXT
6x15 BLK
(4)
LAG SCREW
WH 1/4x2
BLK
(4)
WASHER
LOCK EXT
6x15 BLK
(4)
K2
B2 B3
WASHER LOCK EXT 6x15 BLK
(4 PLCS)
LAG SCREW WH 1/4x2 BLK
(4 PLCS)
WASHER LOCK EXT 6x15 BLK
(4 PLCS)
LAG SCREW WH 1/4x2 BLK
(4 PLCS)
B1 - FRONT LEFT UPRIGHT - W4L06977
3"x3"x30 1/4" (76x76x767)
(1)
B2 - UNIVERSAL UPRIGHT - W4L06978
3"x3"x30 1/4" (76x76x767)
(2)
B3 - REAR RIGHT UPRIGHT - W4L06979
3"x3"x30 1/4" (76x76x767)
(1)
K1 - FRONT SKIRT - W4L06983
5/8"x5 1/4"x43 1/8" (16x134x1095)
(1)
K2 - REAR SKIRT - W4L06984
5/8"x5 1/4"x43 1/8" (16x134x1095)
(1)
SQ - "A" REVISION TAG - A100314
(1)
SCREW PWH
8x5/8 BLK
(2)
NOTE HOLES.
NOTE HOLE PLACEMENT
SCREW PWH 8x5/8 BLK
(2 PLCS)
"A" REVISION TAG

STEP 5
STEP 6
LAG SCREW WH 1/4x2 BLK
(4 PLCS)
WASHER LOCK EXT 6x15 BLK
(4 PLCS)
SCREW PFH 8x2 1/2
(4 PLCS)
LAG SCREW WH 1/4x2 BLK
(4 PLCS)
WASHER LOCK EXT 6x15 BLK
(4 PLCS)
K4
G2
G1
K3
G1 - LEFT DISPENSER UPRIGHT - W4L07000
1"x5 1/4"x5 7/8" (24x134x150)
(1)
G2 - RIGHT DISPENSER UPRIGHT - W4L07001
1"x5 1/4"x5 7/8" (24x134x150)
(1)
K3 - LEFT SKIRT - W4L06985
5/8"x5 1/4"x24 5/8" (16x134x627)
(1)
K4 - RIGHT SKIRT - W4L06986
5/8"x5 1/4"x24 5/8" (16x134x627)
(1)
LAG SCREW
WH 1/4x2
BLK
(4)
WASHER
LOCK EXT
6x15 BLK
(4)
LAG SCREW
WH 1/4x2
BLK
(4)
WASHER
LOCK EXT
6x15 BLK
(4)
- 90° L-BRACKET - BLK - A4M00555
(2)
SCREW PWH 8x5/8 BLK
(4 PLCS)
SCREW PWH
8x5/8 BLK
(4)
90° L-BRACKET - BLK
(2 PLCS)
SCREW PFH
8x2 1/2
(4)

LAG SCREW
WH 1/4x2
BLK
(4)
(1) LOWER SHELF ASSEMBLY
LAG SCREW WH 1/4x2 BLK
(4 PLCS)
LOWER SHELF ASSEMBLY

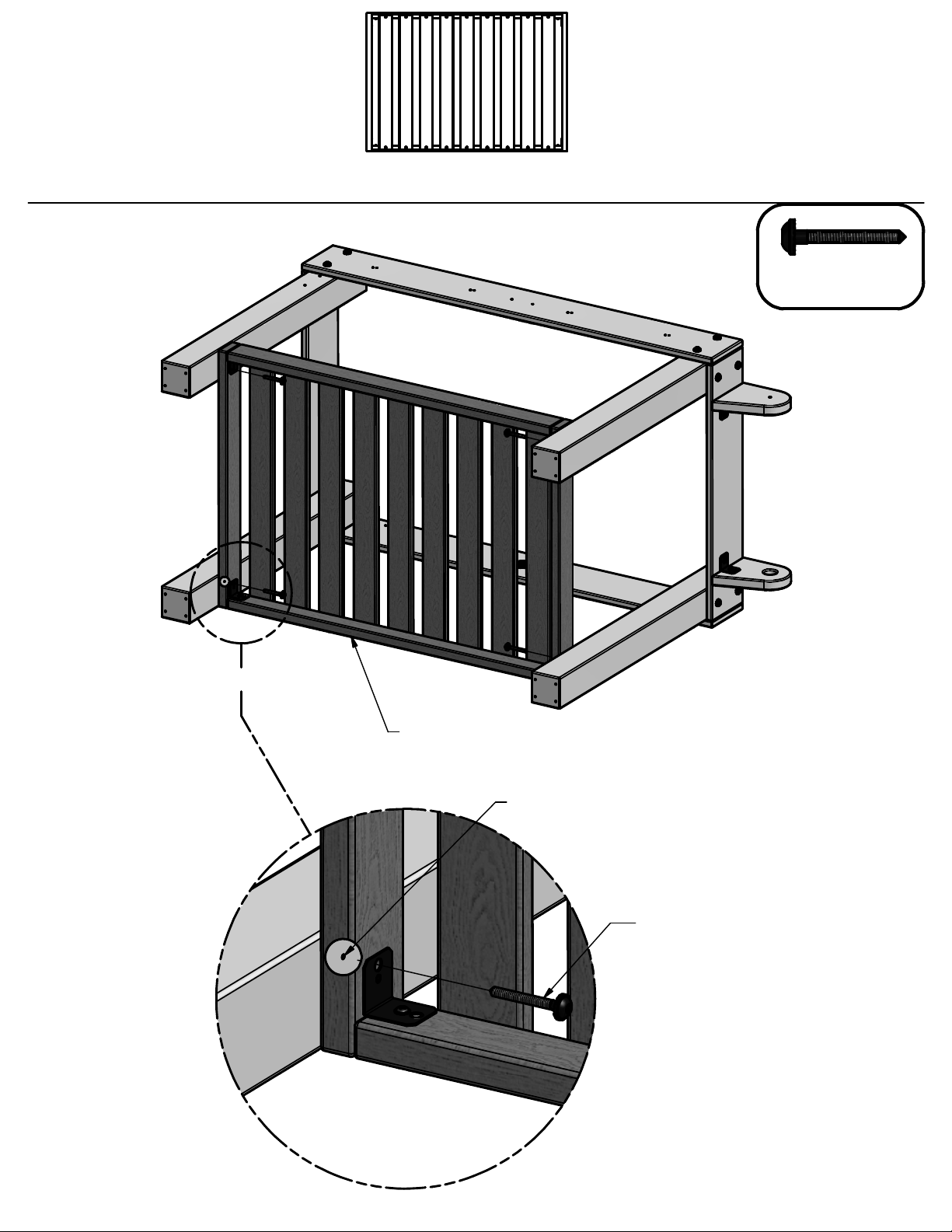

STEP 7
NOTE PILOT HOLE.

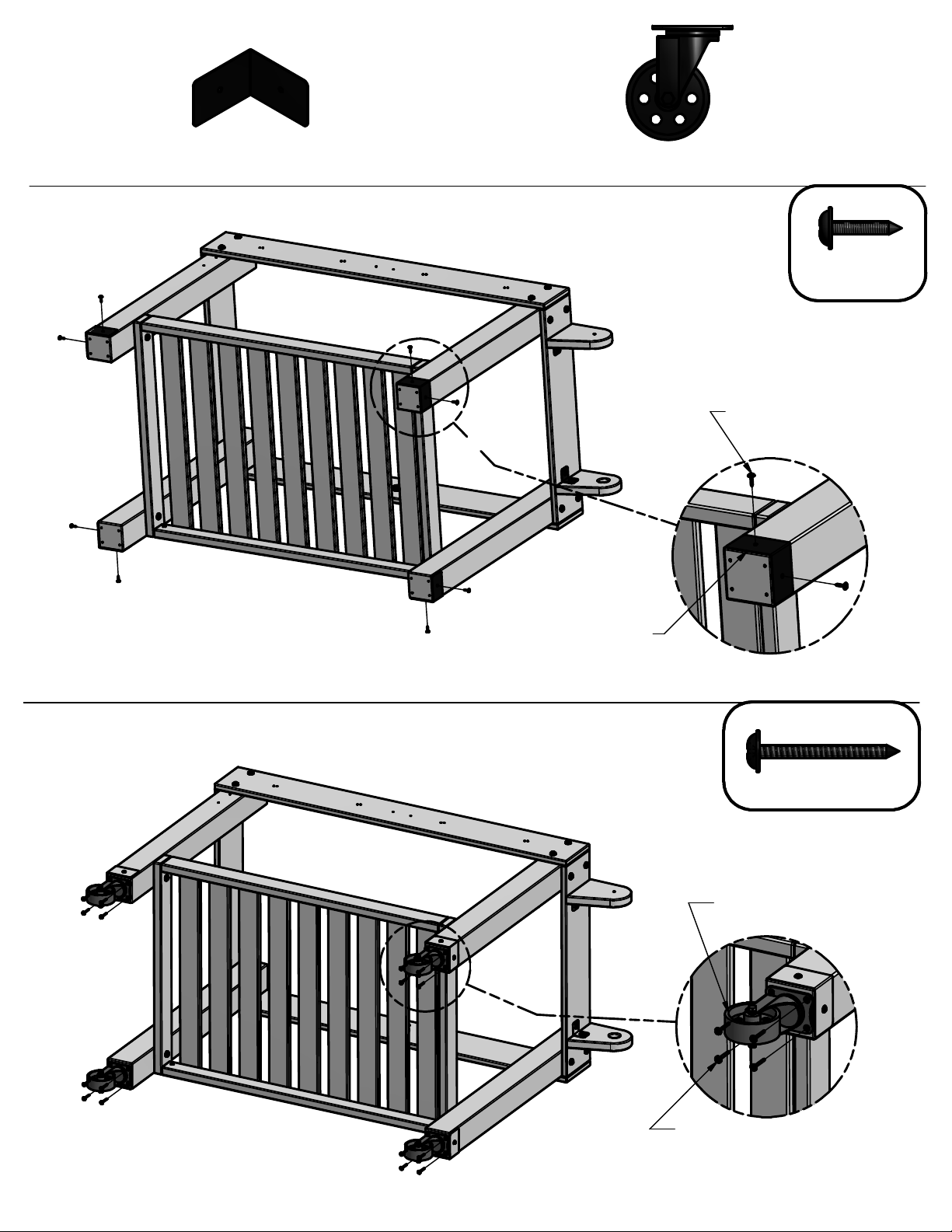

STEP 8
STEP 9
- CORNER PLATE - BLK - A4M00652
(4)
- SWIVEL CASTER - A4M00653
(4)
SCREW PWH 8x5/8 BLK
(8 PLCS)
CORNER PLATE - BLK
(4 PLCS)
SWIVEL CASTER
(4 PLCS)
SCREW PWH 8x1-1/4 BLK
(16 PLCS)
SCREW PWH
8x5/8 BLK
(8)
SCREW PWH
8x1-1/4 BLK
(16)

S1
S3
S2
FP1
S2
S1
S3
FP2
FP1 - LEFT HUTCH UPRIGHT - W4L06987
1"x10 1/2"x21 7/8" (24x268x555)
(1)
FP2 - RIGHT HUTCH UPRIGHT - W4L06988
1"x10 1/2"x21 7/8" (24x268x555)
(1)
S1 - VERTICAL BLOCK - W4L06989
1"x1"x21 7/8" (24x24x555)
(2)
S2 - HORIZONTAL BLOCK - W4L06990
1"x1"x8 7/8" (24x24x225)
(2)
S3 - HORIZONTAL BLOCK - W4L06997
1"x1"x6 1/8" (24x24x155)
(2)

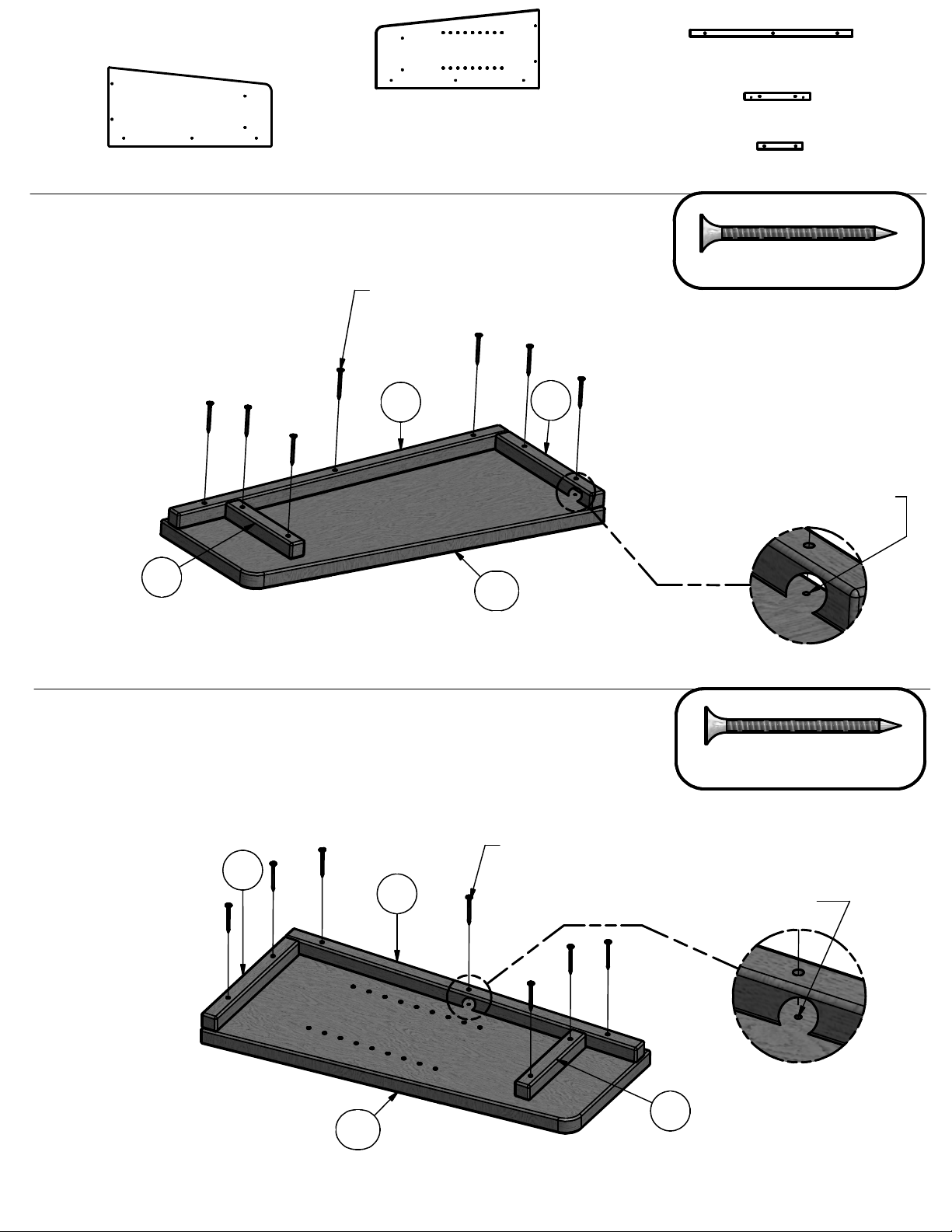

STEP 10
STEP 11
SCREW PFH 8x1 3/4
(7 PLCS)
SCREW PFH 8x1 3/4
(7 PLCS)
SCREW PFH
8x1 3/4
(7)
SCREW PFH
8x1 3/4
(7)
NOTE PILOT HOLES.
NOTE PILOT HOLES.

SCREW PFH 8x1 3/4
(6 PLCS)
SCREW PFH 8x1 3/4
(6 PLCS)
SCREW PFH
8x1 3/4
(12)
FP3
FP4
FP5
FP3 - LEFT CENTER HUTCH UPRIGHT - W4L06994
1"x7 1/8"x18 3/4" (24x182x477)
(1)
FP4 - RIGHT CENTER HUTCH UPRIGHT - W4L06995
1"x7 1/8"x18 3/4" (24x182x477)
(1)
FP5 - CENTER HUTCH SHELF - W4L06996
1"x7 1/8"x3 3/4" (24x182x95)
(3)
STEP 12
NOTE HOLE LOCATIONS
MAKE SURE HOLES ARE ON THE OUTSIDE OF
THE ASSEMBLY WHEN YOU MOUNT BOARDS.

SCREW PWH 8x1-5/8
(2 PLCS)
BOTTOM VIEW
TOP VIEW
SCREW PWH
8x1-5/8
(2)
(1) LEFT HUTCH UPRIGHT
ASSEMBLY
(1) RIGHT HUTCH UPRIGHT
ASSEMBLY
(1) CENTER HUTCH UPRIGHT ASSEMBLY
RIGHT HUTCH UPRIGHT ASSEMBLY
CENTER HUTCH UPRIGHT ASSEMBLY
LEFT HUTCH
UPRIGHT ASSEMBLY
STEP 13
SCREW PWH 8x3/4
(4 PLCS)
SCREW PWH
8x3/4
(4)
STAINLESS STEEL COUNTER TOP
(1) WP1 - STAINLESS STEEL COUNTER TOP - A4M00694
1 5/8"x27 1/8"x45" (41x689x1142)
