Bajaj Dominar 250 BS VI User manual

Owner’s Manual
BS VI

REV. 03.MAR. 2021
DOC. NO. 71120143

WELCOME TO THE DOMINAR CLAN!
You are now the proud owner of the modern masterpiece,
Dominar 250 BS VI. The new Dominar 250 BS VI is
designed to deliver unparalleled technology with superior
performance. This makes your Dominar, unbeatable and
unchallenged on every street.
Before you ride out, please read this Owner’s Manual
carefully and familiarise yourself with the operation
mechanism, controls and maintenance requirements of your
Dominar 250 BS VI. This will ensure you a safe and
trouble free ownership experience.
To keep your bike in perfect running condition and deliver
consistent performance, we have specially programmed the
periodic maintenance services which includes 3 free
services and subsequent paid services, as per the
schedule contained in this booklet. We earnestly advise you
to avail all these services at any of our Bajaj Dealers, who
are well equipped with all necessary facilities, genuine
parts, oil and trained manpower to ensure the best care
for your Dominar. Your ‘Dominar 250 BS VI’ comes with a
warranty of 5 years or 75,000 KMs, whichever occurs
earlier from the date of sale. For details please refer to
“Warranty: Scope & Limits” given in this manual.
Should you require any addition information, feel free to
contact us on
our toll free no.: 1800 233 2453 or
e-mail us at:[email protected] or
visit the Bajaj Auto website www.bajajauto.com
Also, do like our facebook page
www.facebook.com/BajajDominar and subscribe to our
Youtube channel to stay tuned on any new information on
the brand.
Get set to dominate the night!

16. Good Riding Habits 21
17. Safe Riding Tips 22
18. Engine Oil 23
19. Tubeless Tyre & Tyre Pressure 24
20. Battery 25
21. Engine Cooling System / Coolant 26/27
22. Periodic Maintenance Information 28
23. Usage of ‘Luggage straps’ with bungee
cord 29
24. Brake Fluid / Headlamp Care 30
25. Free Service Guidelines 31
26. Periodic Maintenance & Lubrication Chart 32
27. Non Use Maintenance 40
28. Delivery Certificate 41
29. Warranty Scope & Limit 42
30. Battery Warranty Card 45
SAFETY AND WARNING INFORMATION:
Warning: This indicates that a potential hazard or injury to you or
other persons & to the vehicle can happen if advice provided is not
followed.
!
Caution: This indicates that a potential hazard that could result in
vehicle damage. Follow the Advice provided with the caution.
!
NOTICE
The description and illustration in this booklet are not to be taken as binding
on the manufacturers. The essential features of the type described and
illustrated herein remaining unaltered. Bajaj Auto Limited reserves the right to
carry out at any moment without being obliged to bring this booklet upto-date
& to do modifications on the vehicle, parts or accessories as may be
convenient and necessary.
SR. DESCRIPTION Pg. No.
1. Technical Specification 1
2. Identification Data 3
3. Location of Parts 4
4. Steering cum Ignition lock & 5
Cranking ON and OFF duration control 5
5. Fuel Tank Cap & Secondary Speedometer 6
6. Primary Speedometer Details 7
7. Twin Channel ABS System 9
8. Primary Speedometer Setting 10
9. Control Switch RH 12
10. Automatic Headlamp & Lights Operation 13
11. Control Switch LH 14
12. Removal of Pillion & Rider Seat / Tool kit 15
13. Fitment of Rider & Pillion Seat 16
14. Daily Safety Checks 17
15. How to ride your Bike 18
TABLE OF CONTENTS

1
Full 13 liters
Reserve Nil
Dimensions
Length 2156 mm
Width 836 mm
Height 1112 mm
Wheelbase 1453 mm
Ground clearance 157 mm
Tyre Size
Front 100/80-17, 52P Tubeless
Rear 130/70-17, 62P Tubeless
Tyre Pressure
Front 1.75 kgf/ (25 PSI)
2
cm
Rear (Solo) 2 kgf/ (28.4 PSI)
2
cm
Rear (with pillion) 2.25 kgf/ (32 PSI)
2
cm
TECHNICAL SPECIFICATIONS
PARAMETER Dominar 250 BS VI
Engine 4 Stroke, Single Cyl.
Bore x Stroke 72 mm x 61.1 mm
Engine Displacement 248.77 cc
Compression Ratio 11.9:1
Idling Speed 1550 ±100 RPM
Max. Net Power 27 Ps @ 8500 RPM
Max. Net Torque 23.5 Nm at 6500 RPM
Ignition System DC
FI system BOSCH
Spark Plug 2 Nos.
Spark Plug Gap 0.8 ~ 0.9 mm
Lubrication Wet sump forced
Transmission 6 speed constant mesh
Gear Shifting Pattern 1 Down 5 Up
Engine Cooling Water cooling
Starting Aid Electric starter
Front & Rear Brake Disc Brake
Engine
PARAMETER Dominar 250 BS VI
Fuel Tank Capacity

Electrical System 12 Volts DC
Head Lamp LED
Position Lamp LED
Tail /Stop Lamp LED
Side Indicator lamp LED (4nos)
Neutral Indicator LED-GREEN
Hi Beam Indicator LED-BLUE
Turn Signal Indicator LED-GREEN
Speedometer-back light LCD
Fuel Level Indicator LCD Bars
Low Oil Pr. Indicator LED-RED
Malfunction Indicator LED-YELLOW
Coolant Temp. Indicator LED-RED
Low Battery Indicator LED-RED
Bajaj Logo LED-BLUE
RPM Limit LED-ORANGE
Service Reminder LCD
Side Stand Indicator LED-RED
2
PARAMETER Dominar 250 BS VI
Electricals
PARAMETER Dominar 250 BS VI
ABS Indicator LED-YELLOW
Rear No. Plate Lamp LED
Horn 12V
Battery 12V 8Ah VRLA
Vehicle Weight
Vehicle Kerb Weight 180 Kg.
Gross Vehicle Weight : 330 Kg.
NOTE
• All dimensions are under UNLADEN condition.
• Above information is subject to change without any notice.
• This vehicle complies to BS VI standards
• AHO is government regulation.

The Frame and Engine serial numbers are used to register the motorcycle.
They are the unique alpha-numeric codes to identify your particular vehicle from others
of the same model and type.
On Seat Mounting Bracket
(Alpha-Numeric - 17 Digits)
FRAME NUMBER
LOCATION
On LH Side Crankcase Near Gear
Change Lever (Alpha-Numeric - 11 Digits)
ENGINE NUMBER
LOCATION
IDENTIFICATION DATA
3

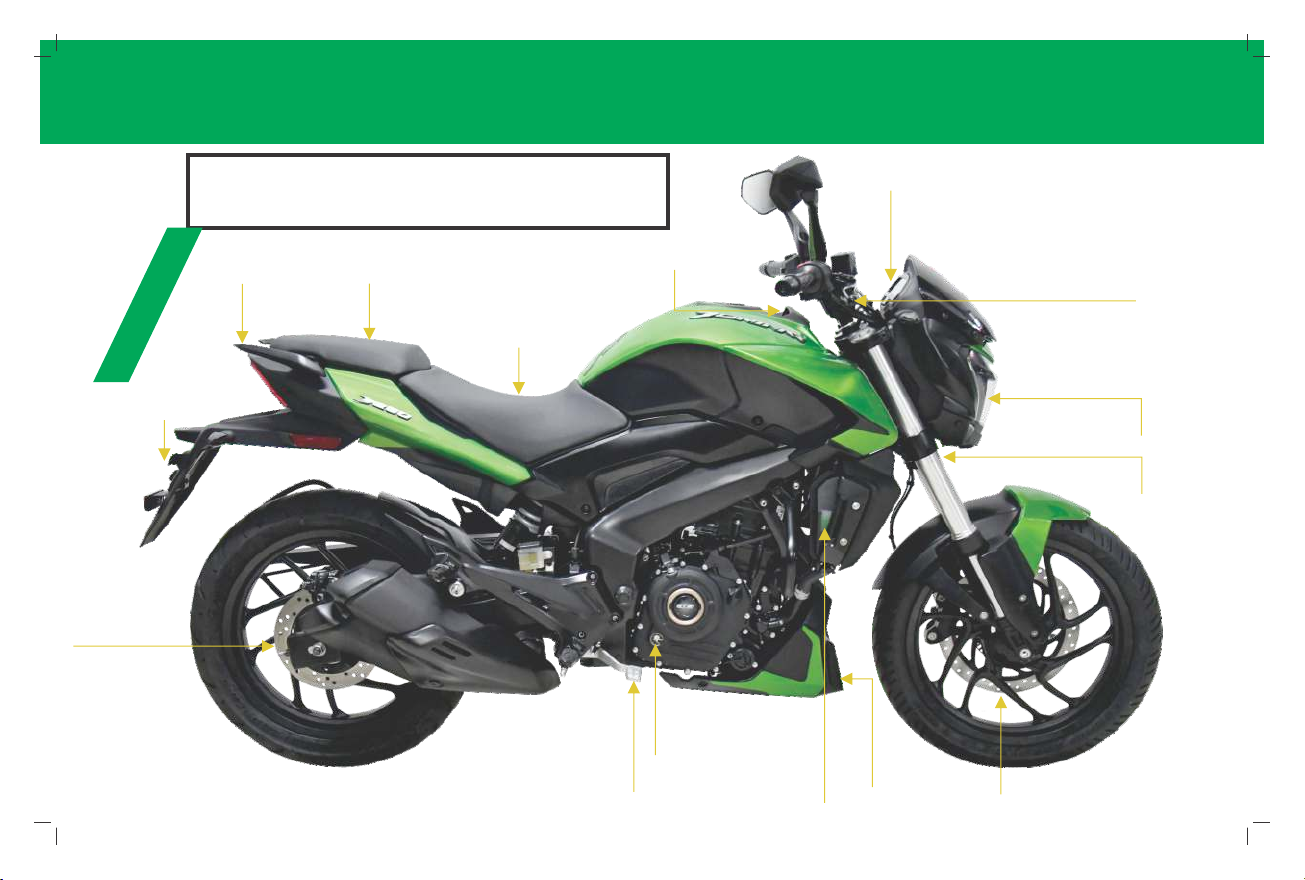

LOCATION OF PARTS
Rider Seat
Front
Brake Lever
Rear
Number plate
Rear
Disc Brake
Oil Inspection
Window
Rear Brake
Pedal Coolant
Inspection Window Front Disc Brake
Front Fork
LED Head
Lamp
Primary
Speedometer
Pillion Seat Secondary
Speedometer
Grab Handle
Belly
pan
4

STEERING CUM
IGNITION LOCK
It has three positions.
To lock the steering, turn the handle bar
to the left side. Turn the handle bar to
the left or right. Push & Rotate the key
to “LOCK” position & remove the key.
Steering locking on handle position left
hand side only.
TO LOCK THE STEERING
Insert the key in steering cum ignition
lock. Push & Rotate it clockwise to
“OFF” or “ON” position.
TO UNLOCK THE STEERING
A common key is used for ‘Steering cum Ignition lock’,
‘Fuel tank cap’ & ‘Rear Seat’
KEY
LOCK: Steering locked. Ignition OFF.
OFF: Steering unlock. Ignition OFF.
ON: Steering unlock. Ignition ON.
5
“Cranking ON and OFF duration” control –
• During Engine crank cycle cranking is allowed only for
fixed duration and in between successive cranks (in
ase engine does not start) here is a cooling off
period.
• Cranking on-off duration control feature to avoid
battery discharge-
- 1st Crank ON (5 sec) & Disable for 2 sec.
- 2nd Crank ON (5 sec) & Disable for 2 sec.
- 3rd Crank ON (5 sec) & Disable for 10 sec.
After a gap of 10 sec cranking cycle continues.
• Starter disabled if side stand down – With side
stand down condition and vehicle in gear, Engine
cranking is disabled through ECU.
• Headlight control on rpm – Headlamp will be turned
ON only at Engine running condition.

123 4 5
67
• To open the fuel tank cap, open the flap. Insert
the key in the lock and turn it clockwise and lift
fuel tank cap.
• To lock the ‘Fuel Tank Cap’ insert the key in the
lock and turn it clockwise and press fuel tank
cap. ‘Click’ sound ensures cap is fully locked.
FUEL TANK CAP
Don't attach metallic ‘Key chain’ as it may
damage paint of petrol tank cover.
PRECAUTION
FUEL TANK CAP & SECONDARY SPEEDOMETER
Speedometer display will work when Ignition switch is in ‘ON’ position.
1. Malfunction Indicator ( ) : It glows whenever any abnormality is
noticed in functioning of FI system components.
2. Low Battery Indicator : It indicates battery needs charging.
3. Bajaj Logo : Bajaj logo flying ‘B’ glows continuously.
4. Hi Beam Indicator : When Headlight is ‘ON’ & Hi beam is selected , Hi
beam indicator will glow.
5. ABS Indicator (Yellow) ( ) : With Ignition switch ON the ABS
indicator glows. When vehicle speed is more than 5 Km/h the ABS
indicator goes OFF, if this indicator glows while vehicle is running, it
means there is problem in ABS.
6. Coolant Temperature Indicator ( ) : It glow when engine coolant
0
Temperature is more than 110 C.
7. Side Stand Indicator : It glows when Side stand is down. Under
condition - side stand down & vehicle is in gear, self start will be
disabled.
ABS
6
In case petrol is spilled out on white/light colour fuel tank,
it is to be immediately cleaned with clean soft cotton cloth
to prevent permanent stain marks on fuel tank.
• There is no fuel cock.
• Always maintain minimum 3 Liter Petrol in fuel tank.
• Do not use adulterated fuel or fuel additives as it will result in
rusting & clogging of Injector, Fuel pump module &
catalytic convertor.

SPEEDOMETER DISPLAY
WILL WORK WHEN IGNITION SWITCH
IS IN ‘ON’ POSITION.
2
3
4
5
6
7
8
1
9
10
12
11
13
14
1. Tachometer Dial: It shows engine speed in
RPM.
2. Service Reminder ( ): ‘Wrench’ symbol glows
when ODO meter reading reaches to set Kms.
It indicates vehicle is due for periodic service.
st
This Icon will flash at:1 : 450 km,
nd rd th
2 : 4450km, 3 : 9450 km, 4 : 14450 km and
subsequently at each 5000 kms. Icon will
continue to glow till it is reset. This icon is to
be reset after service is carried out.
3. Odo meter : The Odometer shows the total
distance that the vehicle has covered.
Odometer can not be reset to ‘Zero’. 7
PRIMARY
SPEEDOMETER DETAILS

After switching ‘ON’ the ignition switch, the following indications will remain ‘ON’ till engine is started.
Coolant Temperature Indicator | Low Battery Indicator | L ow Oil Pressure | Malfunction Indicator
4. Trip Meter : Trip 1 & Trip 2 shows the
distance traveled since it was last reset to
zero. Rolls over to zero after 999.9 km &
continue updating.
5. Mode Button : Mode button used for
changing the mode while selecting & setting
Trip1, Trip2, ODO, Clock & Service reminder.
6. Neutral Indicator : When the transmission
is in Neutral, Neutral indicator will glow.
7. Low Oil Pressure Indicator ( ) : It glows
when engine oil pressure is low.
8. Turn Signal Indicator (LH & RH) : When
Turn signal switch is pushed to Left or Right,
Turn Signal Indicator - LH or RH will flash.
9. Digital Clock : It indicates time in HR : MM
(AM/PM)
10. Fuel Level Indicator: It shows approximate fuel
level in fuel tank.
11. Low Fuel Level Indicator : It blinks incase of
low fuel level (1 bar or less)
12. Speedometer : Vehicle speed will be displayed in
digital form in Km / Hr.
13. Set Button : Set button used for setting Clock
& Service reminder.
14. Engine RPM Limit : It blinks when engine RPM
is more than 9500 RPM.
Within initial 2000Kms running (RUNNING IN period)
• RPM limit indicator blinks @ 6700 to 7000 RPM
• RPM limit indicator continuously glows if RPM
is>7000 km.
Beyond 2000 kms running –
• RPM limit indicator blinks @ 9200 to 9500 RPM
• RPM limit indicator continuously glows if RPM is >
9500 km
8
NOTE

INSTRUCTIONS
Incase, Malfunction indicator, ABS indicator, coolant
temperature indicator, low battery & low engine oil
pressure indicator glows in speedometer, bring the vehicle
to nearest BAL dealership for inspection / repair.
Always maintain a safe distance between you and
objects ahead. Vehicle speeds should always be
reduced during extreme road conditions. The braking
distance for motorcycle equipped with an anti-lock
braking system may be longer than for those
without it on rough road conditions. During these
conditions the vehicle should be driven at reduced
speeds.
When you apply Front brake / Rear brake under
conditions which may lock the wheels, you feel a
corresponding sensation (pulsation) in Front brake
lever / Rear brake pedal. This is normal and it
TWIN CHANNEL
ABS SYSTEM
means your ABS is active.
Also it is recommended to use both front & rear
brakes simultaneously.
Always slow down when cornering. The anti-lock
brake system cannot prevent accidents resulting
from excessive speeds.
If the ABS warning light is ON and stays ON, you
may have a problem with the ABS. In this case,
however, your regular brakes will work normally.
9
Never drive by disconnecting wheel speedo gear cable.

Set
1.
Press mode push
buttonfor less than
2 sec.
Press set push
button for more
than 5 sec.
Mode changes from
‘ODO/TRIP1/TRIP2’
Selected ‘TRIP1/TRIP2’
will reset.
Other TRIP mode will
continue updating.
2.
PRIMARY SPEEDOMETER SETTING
Service
reminder icon
TRIP 1 /
TRIP 2 Mode
• Mode & Set push button is provided for
selecting & resetting ‘ODO/TRIP1/TRIP2’.
TRIP METER RESET
10
‘Wrench’ symbol glows when ODO meter
reading reached to set Kms.
SERVICE REMINDER RESET ( )
This icon will glow at-
1st : 450 Kms 2nd : 4450 Kms
3rd : 9450 Kms 4th : 14450 Kms
& subsequently at each 5000 Kms.
Bring the motorcycle at authorised BAL
dealership for re-setting the service
reminder icon.
NOTE

Clock Set
Mode
• Digital clock indicates
time in HR & MM
separated by colon ‘:’
• It is 12 hour clock.
• Initially ‘:’ will be blinking
• Clock setting is possible
in TRIP 1 mode only.
CLOCK RESET
Auto exit without saving set value.
If engine/vehicle rpm is given then
system will exit from clock set
mode without saving set value.
Press set button for
less than 1 sec.
Set value will be saved
Exit clock setting mode
Digits stop blinking ‘:’ start blinking
Press mode push button
for less than 2 sec.
Press mode & set push
button together for more than
2 sec.
Press mode button for
less than 1 sec.
Press mode & set button
together for more than 2 sec.
Clock set mode is selected &
no editing is carried out for
more than 5 sec.
TRIP1 Mode selected
‘:’ stops blinking
Digits starts blinking
Hour digits will increase.
Minutes digits will increase.
1.
2.
3.
4.
5.
6.
11

Starter button operates the electric starter. It
is recommended to start the engine with the
transmission in neutral.
Vehicle in Gear - Press clutch lever & operate
starter button to start the engine.
B. Starter Button
A. Head Light Switch
It has 2 positions.
Pilot Mode
Headlight Mode
AB C
12
The engine kill switch is used for switching ON
& OFF the engine.
C. Engine Kill Switch
Engine OFF
Engine ON
CONTROL
SWITCH RH

OR
OR
Front Position lamp
Tail Lamp
Rear Number Plate Lamp
Control Switch Illumination
Both speedometer illumination
Headlamp Hi beam &
Low beam will glow.
Any Position
ON ( ) OFF
Any Mode
Any Mode
Low beam
mode ( )
Hi beam
mode ( )
Front Position lamp
Tail Lamp
Rear Number Plate Lamp
Control Switch Illumination
Both speedometer illumination
Headlamp Hi beam
Headlamp Low beam
will also glow.
Started Toward right
(Pilot mode)
Front Position lamp
Tail Lamp
Rear Number Plate Lamp
Control Switch Illumination
Both speedometer illumination
Headlamp low beam
Front Position lamp
Tail Lamp
Rear Number Plate Lamp
Control Switch Illumination
Both speedometer illumination
Headlamp Hi beam & low beam
Headlamp Hi beam will
also glow.
No effect
Toward Left
(Headlight
mode)
OR
Effect if Pass
switch is pressed
The Following
Lights will glow
Low/Hi Beam
Selector Switch
Igntion Switch Engine Light Switch
AUTOMATIC HEADLAMP & LIGHTS OPERATION
13
• Your vehicle has a safety feature which turns ON the headlamp automatically, once the engine is started. This
provides better visibility to other road users.
• While riding, low beam or hi beam mode can be switched ON by operating the low/hi beam selector switch, keeping
the light switch in head light mode.
NOTE

Control Switch LH
LEFT HANDLE BAR SWITCHES
When headlight is ON, High or Low beam can be
selected with this switch. Hi beam indicator
light located on Speedo console will glow when
high beam is selected.
: High Beam : Low beam
D. HIGH / LoW Beam SwITch
When the turn signal knob is pushed to Left ( ) or
Right ( ) respective indicator will start blinking.
To stop blinking push the knob in & release.
E. Turn Signal Switch
F
E
Press the switch to put on Hi Beam
filament of head light. It is used to give
signal to vehicles coming from opposite
side while overtaking.
F. Horn Button
( ) Press button for sounding horn.
G. Pass Switch
14
D E F
G

• Took kit fitment location is provided
below pillion seat assembly.
• Tool kit to be clamped on Pillion seat
assembly by rubber strap.

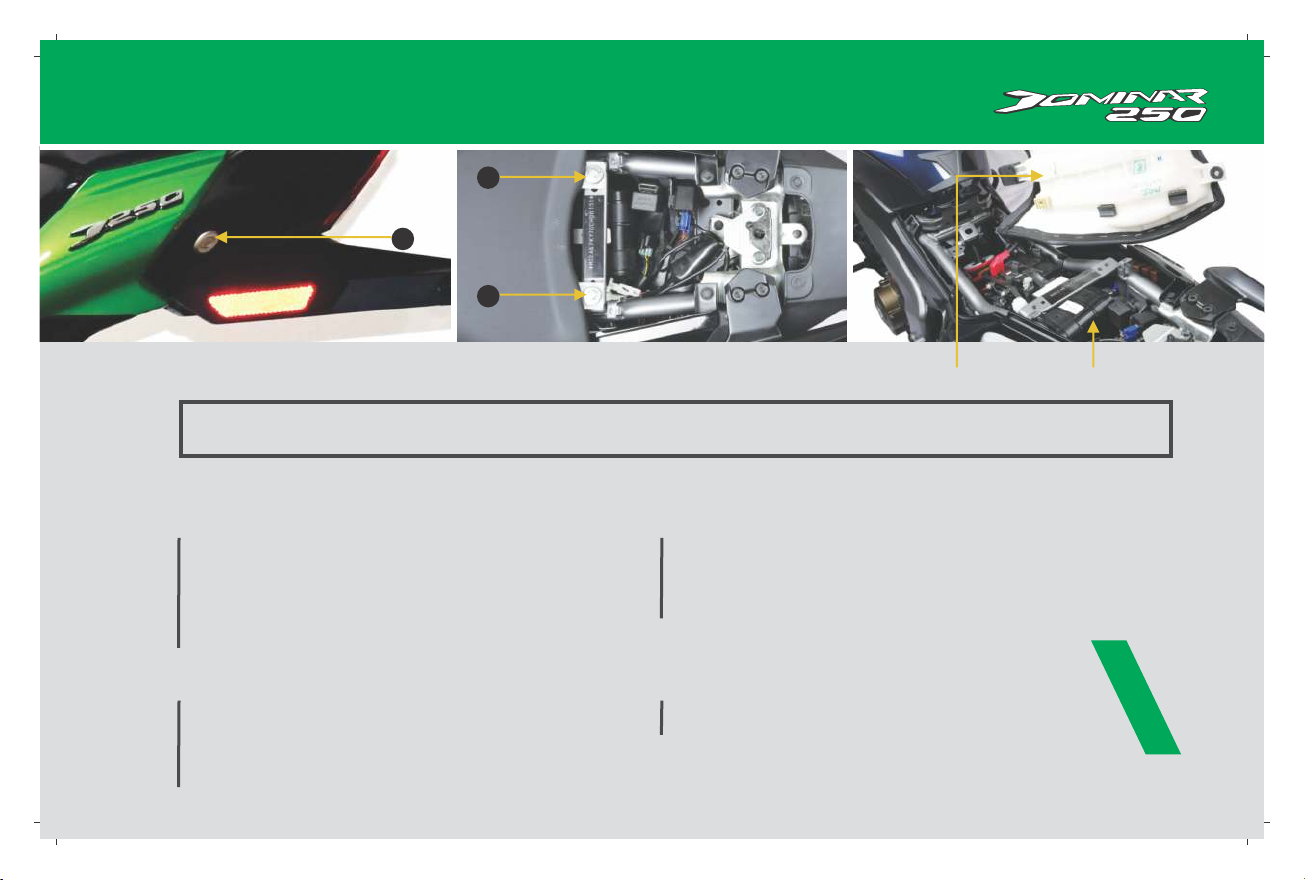

Removal of Pillion & Rider Seat / Tool Kit
Removal of Pillion Seat
• Insert Key into lock (A)
• Turn the key clock wise.
• Lift rear end of ‘Rear seat’
• Pull ‘Pillion seat’ backward side.
• Take out ‘Pillion seat’.
Removal of Rider Seat
• First remove ‘Pillion seat’.
• Remove ‘Rider seat’ mounting bolts (B).
• Pull backward rear end of ‘Rider seat’.
• Take out ‘Rider seat’.
TOOL KIT LOCATION
• It is located on LH side of Seat Cowl
below the ‘Pillion seat’.
First Aid Kit Location
15
Tool KitFirst Aid Kit
B
B
A

Fitment of ‘Rider Seat’
• Match the bracket of ‘Rider seat’ (A)
with slot (B), Ensure availability of rubber
damper of seat center.
• Push ‘Rider seat’ toward petrol tank.
• Match ‘Rider seat’ rear brackets (C)
with the holes (D) provided on chassis.
• Tighten the bolts (E).
Fitment of Rider & Pillion Seat
16
A
BD
C
E

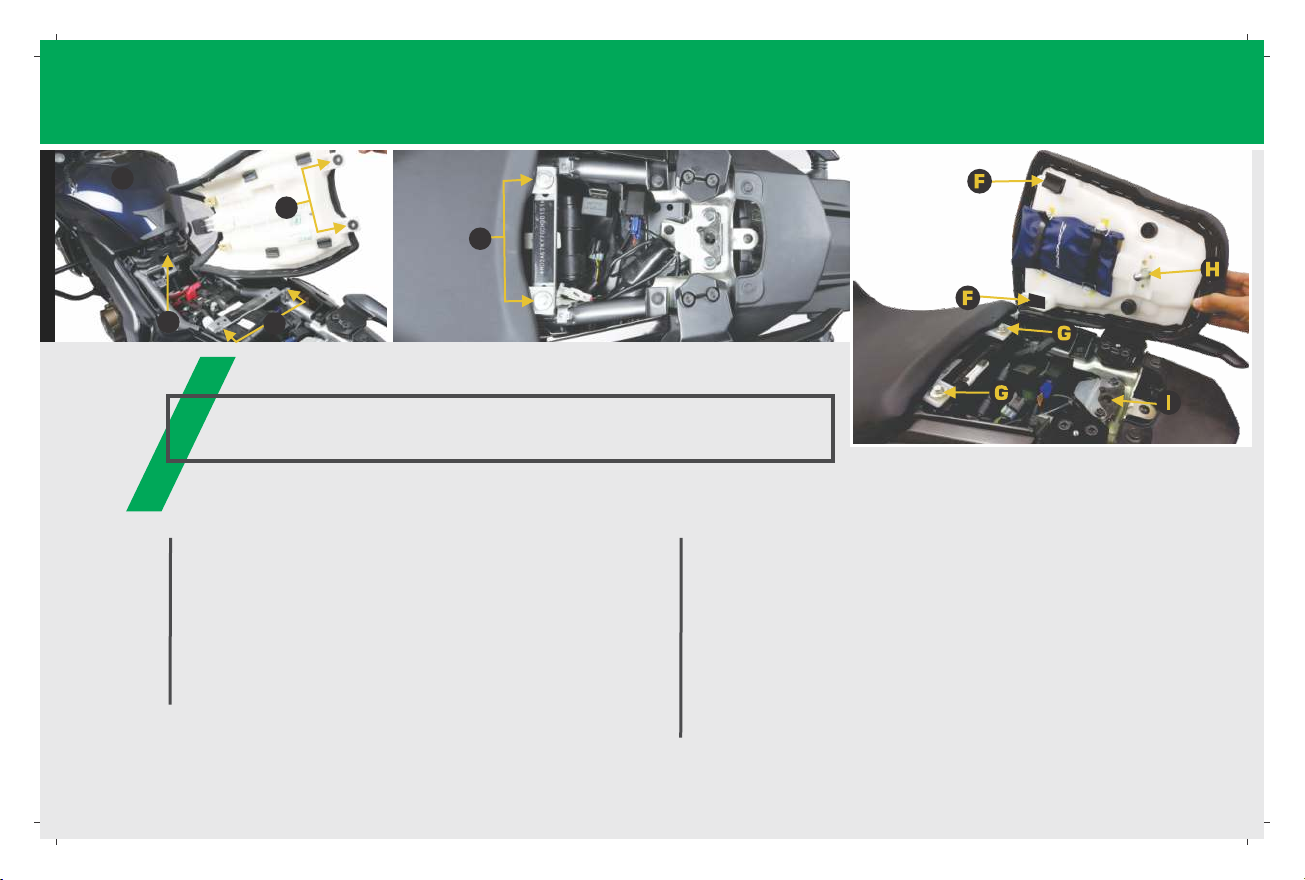

Fitment of ‘Pillion Seat’
• First make sure ‘Rider seat’ is fitted
properly.
• Insure ‘Tool kit’ is located properly.
• Place ‘Pillion seat’ on fitment location.
• Match the bracket of ‘Pillion seat’ (F) with
Hook (G).
• Insert lock rod (H) of seat into seat lock (I).
• Press rear portion of seat from top.
