Bajaj pulsar F250 User manual

O w n e r’s M a n u a l
(E x p o r t s)

71113269
Doc. No.71113269 REV. 01 JUL. 2022
We assure you of a “Distinctly Ahead” Experience with
our product as well as our sevice.
In case of any issues that you wish to bring to our notice,
please get in touch with us.
International Business
Bajaj Auto Limited
Akurdi,Pune 411 035 India
Tel: [phone]
Fax: [phone]
Website:www.globalbajaj.com
CIN: L65993PN2007PLC130076
For faster response please furnish your
Contact no., E-mail & Vehicle details
Contact Us

Welcome to the Pulsar family!
You are now the proud owner of the next generation Pulsar.
It is a superb combination of performance,
superior technology and evocative styling.This makes the
Pulsar you ride, unbeatable and unchallenged
on the road.
Before you ride out, please read this User’s Guide carefully
and familiarize yourself with the operating
mechanism, This will ensure you a safe and
trouble free ownership experience.
To keep Your bike in perfect running condition and deliver
consistent performance, we earnestly advise
you to avail periodic services at any of our Bajaj
Distributers or Bajaj authorized Service Centres, who are
well equipped with all necessary facilities / genuine parts /
oil and trained manpower to ensure the best
care for your Pulsar.
Should you require any additional information, please
approach Bajaj Distributers, with relevant detail like
Registration no. Chassis no, Engine no, Date of purchase,
Kms. run, name of selling Distributor and your
contact numbers.
Finally, may we request you be give your motorcycle proper care
and reguler maintenance, as described in this manual. We are sure
it will offer you a long trouble-free ownership experience.
Visit www.globalbajaj.com to know more about your Pulsar.

Description
1. Technical Specications............................................... 1
2. Identication Data ..................................................... 4
3. Location of Parts ....................................................... 5

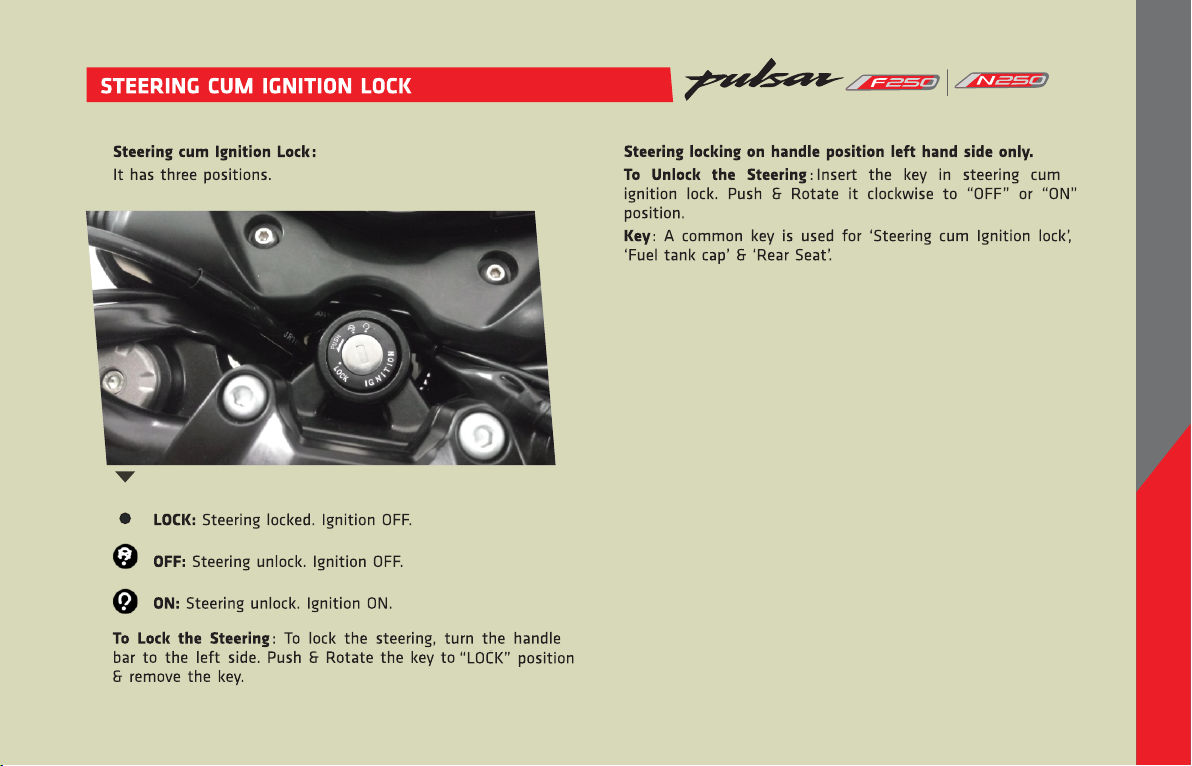

4. Steering cum Ignition lock .......................................... 7
5. Fuel Tank Cap ............................................................ 8
6. Speedometer Details ................................................. 9
7. Speedometer Setting ................................................. 15
8. Control Switches ....................................................... 17
9. Pillion Seat / Tool kit ................................................... 19
10. Rider Seat / Battery / Fitment Of Rider & Pillion Seat.... 20
11. Antilock Braking System (ABS)..................................... 21
12. Daily Safety Checks .................................................. 22
13. How to ride your Bike ............................................... 23
14. Safe Riding Tips ....................................................... 27
15. Engine Oil ................................................................ 28
16. Tubeless Tyre &. Tyre Pressure .................................. 29
17. Battery.................................................................... 30
18. Periodic Maintenance Information .............................. 31
19. Brake Fluid ............................................................... 33
20. Periodic Maintenance & Lubrication Chart.................. 34
21.Non Use Maintenance ............................................... 38
T

Spark Plug Gap 0.8 ~ 0.9 mm
Lubrication Wet sump forced Lubrication
Transmission 5 speed constant mesh
1 Down 4 Up
Gear shifting Pattern
Oil cooled
Engine Cooling
Electric starter
Pulsar F250 & N250 Parameter
1
Starting Aid
Fl System BOSCH
Spark Plug 2 Nos.
Engine 4 Stroke, Single Cylinder
Bore x Stroke 72 mm x 61.17 mm
Engine Displacement 249.07 cc
Compression Ratio 10.3 + 0.3 : 1
Idling Speed 1500 + 100 RPM
Max. Net Power 24.5 PS at 8750 RPM
Max. Net Torque 21.5 Nm at 6500 RPM
Ignition System DC

743 mm
Height F250 - 1143 mm, N250 - 1050 mm
Wheel base 1351 mm
Ground Clearance 165 mm
Front Tyre 100/80-17,52P Tubeless
Front 1.75 Kgf/cm (25 PSI)
2
Rear(Solo) 2 Kgf/cm (28 PSI)
2
Rear(with pillion) 2.25 Kgf/cm (32 PSI)
2
12 Volts DC
Battery 12V 8Ah VRLA
F250 - LED Low Beam 18.4W, High Beam 30.8W ,
N250 - LED Low Beam 22.5W, High Beam 34.5W
Tail / Stop Lamp
Parameter Pulsar F250 & N250
Head Lamp
Dimensions
Full
LED
14 Liters (No Reserve)
Length 1989 mm
Width
Tyre & Tyre Pressure
Rear Tyre 130/70-17,62P Tubeless
Electrical System

LED-Red
LCD
Horn
Rear No. Plate Lamp
Vehicle Kerb Weight
ABS Indicator
Service Reminder
REV Indicator
Parameter
Side Indicator LED-Yellow (4 Nos.)
Neutral Indicator LED-Green
Hi-Beam Indicator LED-Blue
Speedometer Illumination LCD-Blue
Fuel Level Indicator LCD Bars
Malfunction Indicator LED-Yellow
High Engine Oil Temp. Indicator LED-Red
Low Oil Pressure Indicator LED-Red
Low Battery Indicator LED-Red
LED-Amber
Side Stand Indicator
3
Pulsar F250 & N250
LCD
12V DC
12V, 5W Bulb
LED-Yellow
F250 - 164 kg., N250 - 162 kg.
Position Lamp DRL: LED, Integrated in headlamp – F250
DRL: LED, Separate – N250
Note: All dimensions are under UNLADEN condition. Above information is subject to change without any notice.

On RH Side of Steering Tube
The Frame and Engine serial numbers are used to register the motorcycle. They are the unique alpha-numeric
codes to identify your particular vehicle from others of the same model and type.

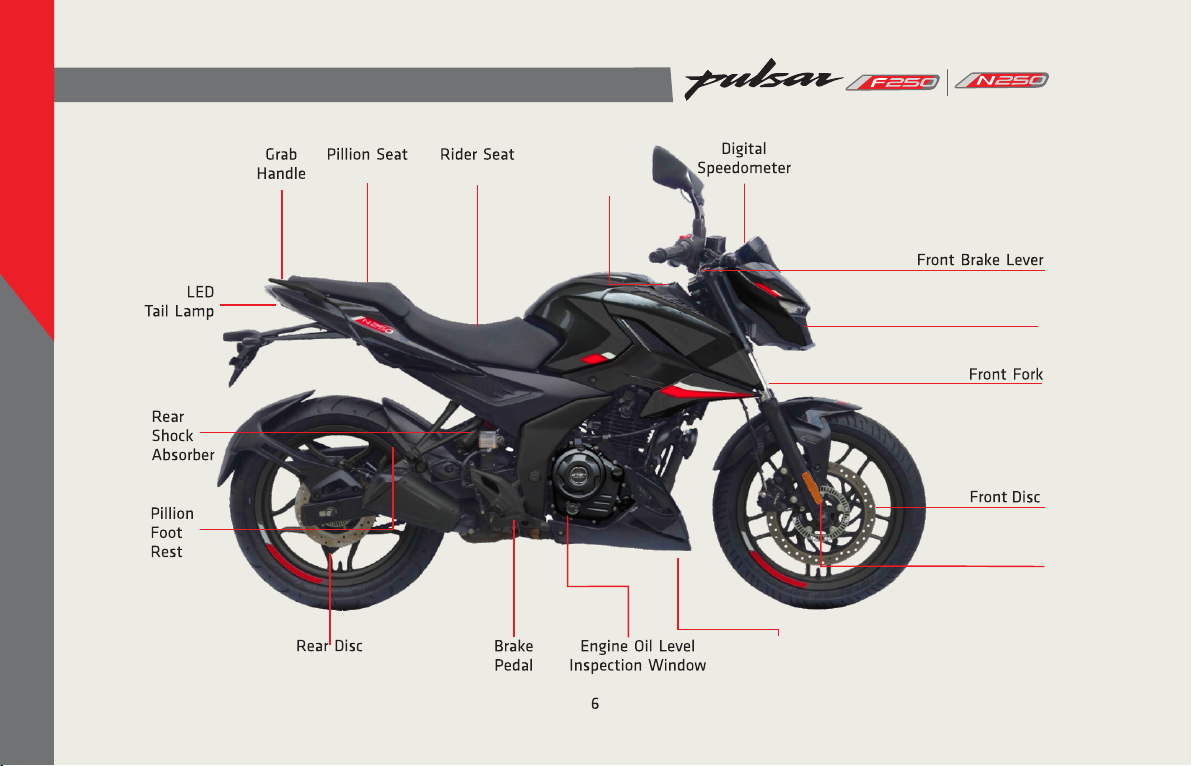

LOCATION OF PARTS - PULSAR F250
5
Belly Pan
Reex
Reector
Mobile
Charging
Socket
LED Head
Lamp
Rear Disc Front Disc
M

LOCATION OF PARTS - PULSAR N250
Belly Pan
Reex
Reector
Mobile
Charging
Socket
LED Head Lamp

7
“Cranking ON and OFF duration” control:
• During Engine crank cycle cranking is allowed only for
xed duration and in between successive cranks (in
case engine does not start) here is a cooling off
period.
• Cranking on-off duration control feature to avoid
battery discharge-
- 1st Crank ON (5 sec) & Disable for 2 sec.
- 2nd Crank ON (5 sec) & Disable for 2 sec.
- 3rd Crank ON (5 sec) & Disable for 10 sec.
After a gap of 10 sec cranking cycle continues.
• Starter disabled if side stand down: It glows when
side stand is down Under condition-side stand down
& vehicle is in gear, self start will be disabled.
• Headlight control on rpm – Headlamp will be turned
ON only at Engine running condition.

SOP to prevent fuel stains on petrol tank
• After petrol relling & before shutting the cap wipe the
spilled petrol from the painted areas around the cap by soft
dry cotton cloth.
• Shut and lock the cap fully.
• This practice needs to be followed to maintain the shine of
color on petrol tank.

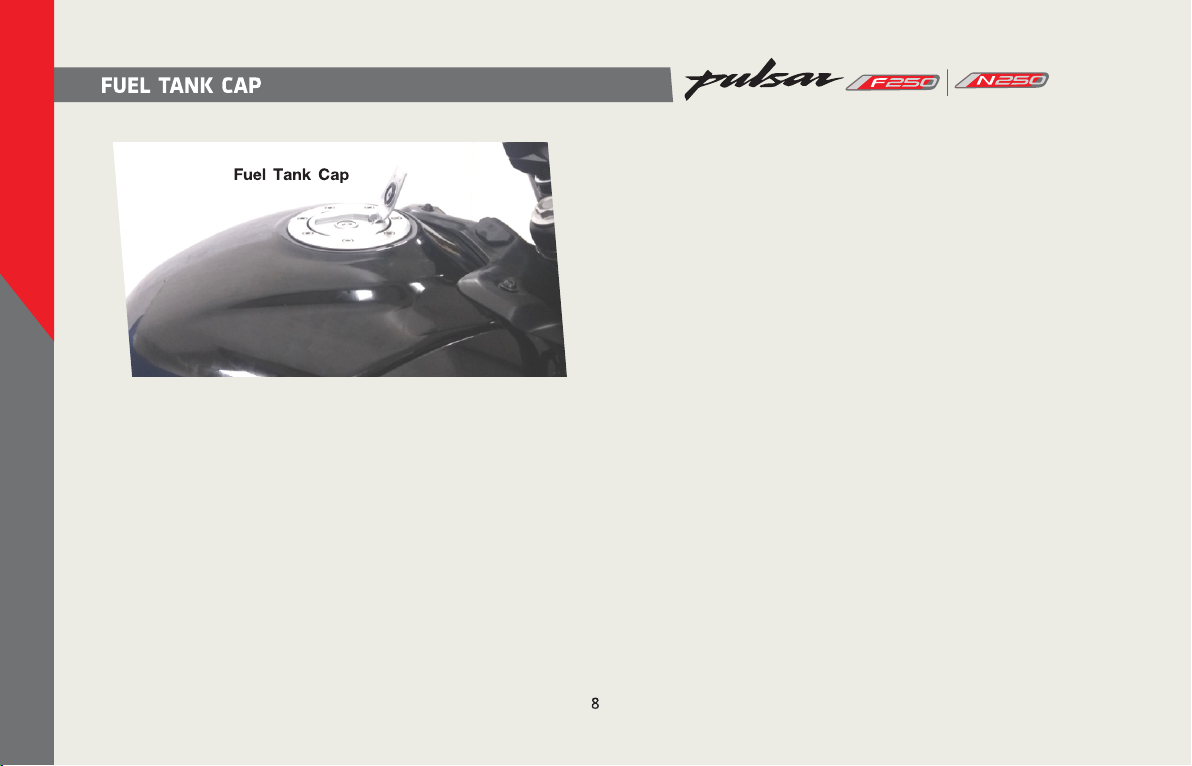

Fuel Tank Cap
• To open the fuel tank cap, open the ap. Insert the
key in the lock & turn it clockwise & lift fuel tank cap.
• To lock the 'Fuel Tank Cap' insert the key in the lock
and turn it clockwise and press fuel tank cap from
top giving thumb pressure on top surface. 'Click'
sound ensures cap is fully locked.
Cautions :
• While operating fuel tank cap do not give pressure on
tank cap ap.
• Don't attach metallic ‘Key Chain’ as it may damage
paint of petrol tank cover.
Glossy Finish Painted Parts Cleaning
Do’s:
· Use Colin or caustic free detergent solution for cleaning.(1
spoon in ½ bucket)
Remove foreign substances like insect remains, road debris
using a soft brush.
· Use microber cleaning cloths Ex.- Muslin cloth for painted
parts cleaning.
· Use recommended 3M polish.
Don’ts:
· Do not use products that are even mildly abrasive, such as
polishes, glazes, or rubbing compounds.
· Do not use mechanical cleaners/polishers.
· Do not use terrycloth or paper towels or shine
enhancement products.
· Do not rub the nish vigorously, this will burnish the paint
nish, causing a permanent shiny spot. Shiny spots cannot
be removed.

9
3
4
5
6
7
8
9
10
2
1
11
12
16
17
18
19
20
21
14/15
13

1.
3. High It glows when Headlight is ON &
High beam is selected with engine running.
9.
High Engine Oil Temp. Indicator
Oil
2.
6.
7.
8.
4.
It glows when side stand is down
Under condition-side stand down & vehicle is in gear,
self start will be disabled.
5.
10.
11.
12.
13.
Trip Meter: Selected Trip meter shows the distance
traveled since it was last reset to zero. Both trip meters
can be reset to zero by pressing the Set button. After
completion of max value of 999.9 Km, selected trip display
will get freezed and will not get set automatically to zero.
14.
15.
16.
0
180 c.
Mode button used for toggling between
different modes e.g. ODO,Trip1,Trip2,DTE and clock setting.
Set button used for toggling between ODO to IFE,
Trip1 to AFE1,Trip2 to AFE2,DTE to distance to next service
and clock setting.
glows
available

11
Gear Indication: It will display gear position from 1 to
5 It will display 0 when vehicle is in neutral position.
21.
18.
17.
Service reminder reset is to be done at zero
vehicle speed & zero engine speed.
19.
20.

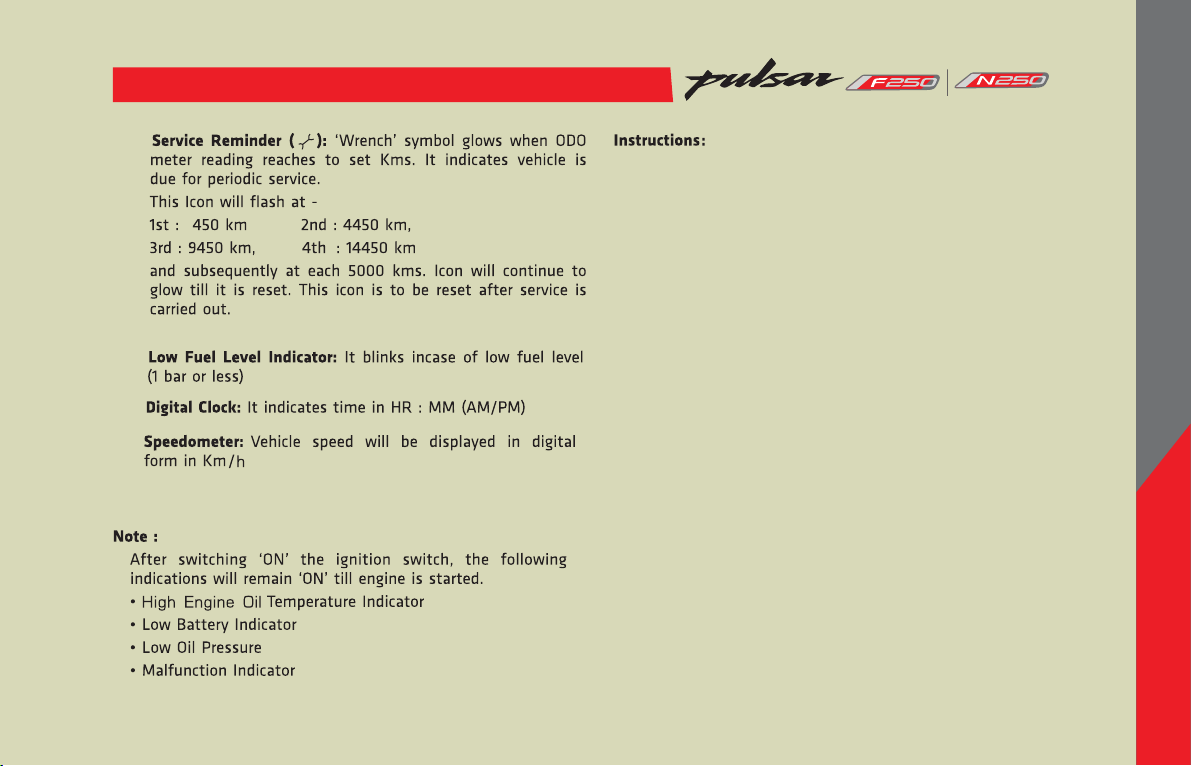

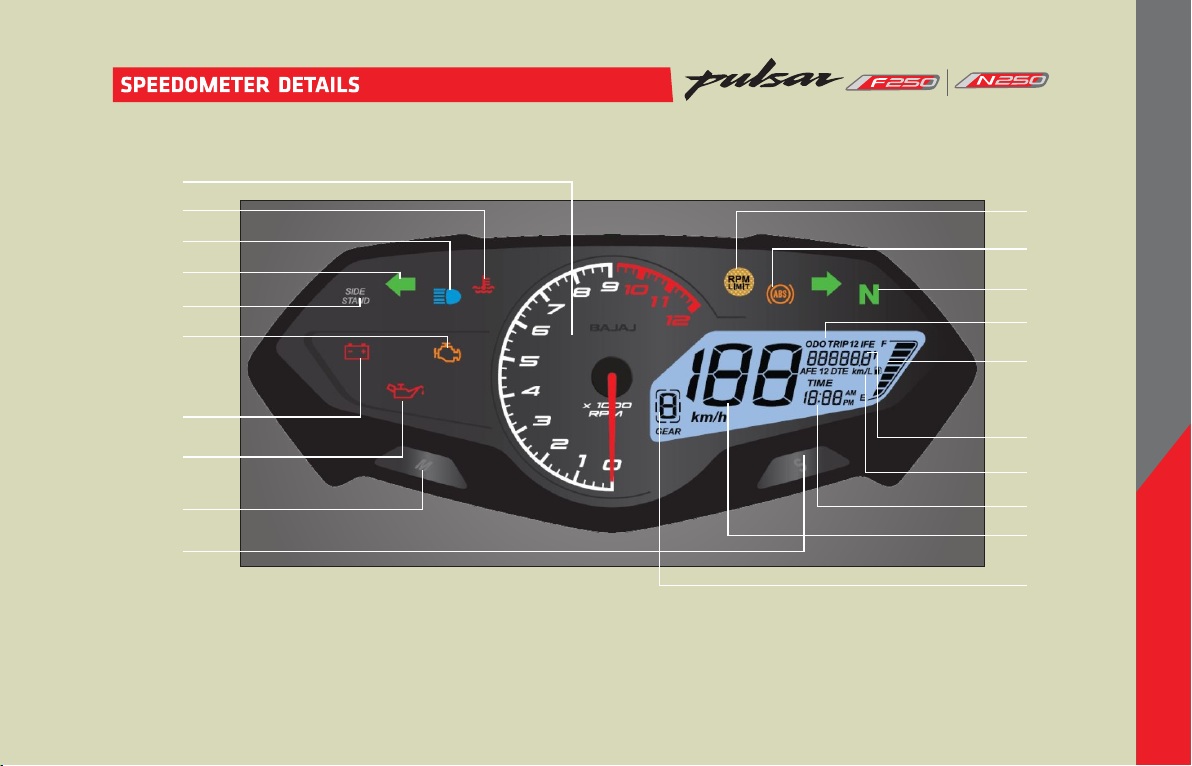

SPEEDOMETER DETAILS
Incase high engine oil temperature indicator, Low battery
indicator, Low oil pressure indicator, Malfunction indicator,
ABS indicator gets ON during vehicle running, bring the
vehicle to nearest BAL authorised workshop for inspection/
repair.

Condition
Ignition switch is ON & Set push button not pressed. Following display will be shown by digital speedometer.
DETAILS - IFE & ODO
1. IFE (Instantaneous Fuel economy): This will indicate
fuel economy in km/L. at any given time. Value will be
displayed only when vehicle speed & Engine RPM is
more than zero.
If vehicle speed is zero then IFE will be displayed
“--km/L”
2. ODO: The Odometer shows the total distance that
the vehicle has travelled.
3. Fuel Level Indicator: Fuel level is shown by digital
LCD bars with (E) empty, (F) full & ( ) fuel tank LCD
symbol.
Low fuel level icon blinks if number of bars on the fuel
gauge are less than 2 bars.
Note:
IFE (Instantaneous fuel economy)/AFE (Average fuel
economy)/DTE (Distance to empty) readings are indicative
& may vary due to driving and road conditions.
123
12

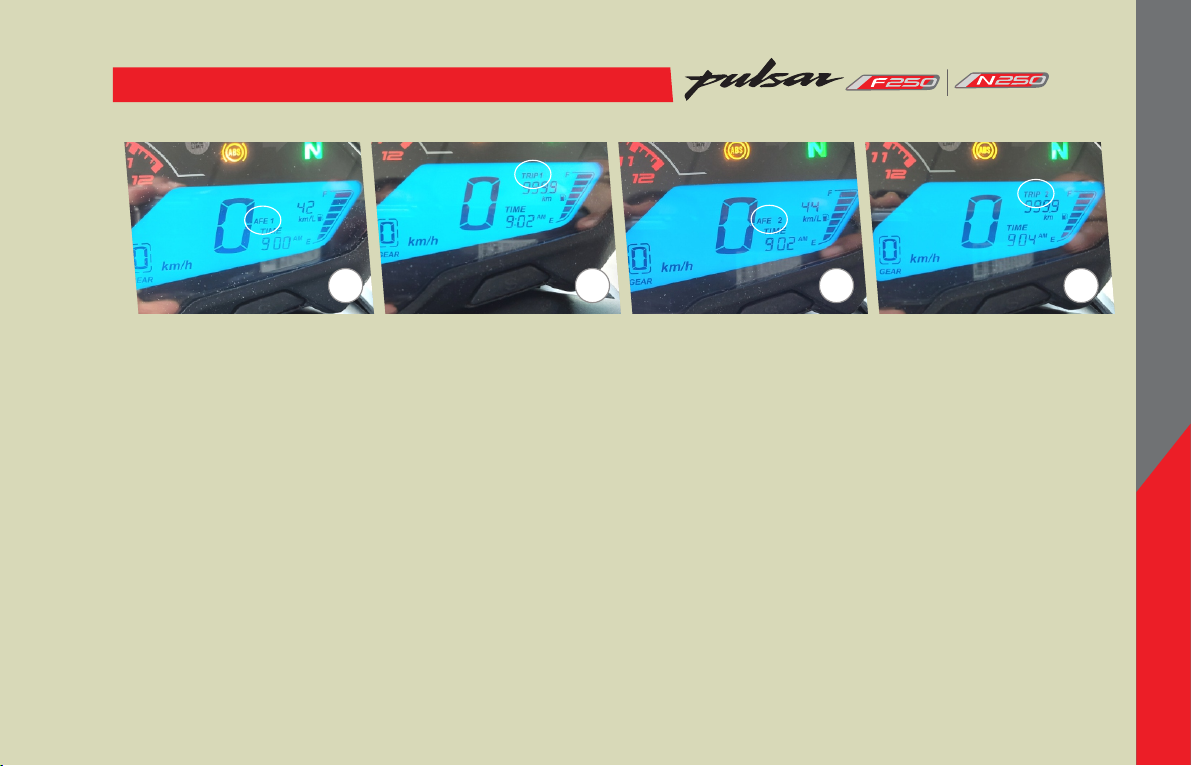

Procedure to set AFE1 & TRIP1:
Ignition switch is ON & Set push button pressed for
less than 1 sec. - TRIP1 mode gets selected &
following display will be shown by digital speedometer
Procedure to set AFE2 & TRIP2:
Ignition switch is ON & Set push button pressed for
less than 1 sec. - TRIP2 mode gets selected &
following display will be shown by digital speedometer
1. AFE1 (Average Fuel economy1): This will indicate
the average fuel economy in km/L in TRIP1 mode.
2. TRIP1: The Trip meter shows the total distance
that the vehicle has travelled in TRIP1 mode. If
TRIP1 is reset, average fuel economy (AFE1) will
reset.
3. AFE2 (Average Fuel economy2): This will indicate
the average fuel economy in km/L. in TRIP2 mode.
4. TRIP2: The Trip meter shows the total distance that
the vehicle has travelled in TRIP2 mode. If TRIP2 is
reset, average fuel economy (AFE2) will reset.
DETAILS - AFE1, TRIP1 / AFE2, TRIP2
Note: AFE will be updated every 60 sec. AFE will be reset if corresponding TRIP1 or TRIP 2 is reset or battery disconnected.
1243
13

DTE & TRIP
Note:
If vehicle is driven by ignoring fuel level display & Tank symbol ( ) blinking after reaching fuel unutilized level DTE will be
shown as ‘--’ Km.
During Petrol Relling:
If petrol lled is more than 1 Litre then DTE will be calculated based on the revised fuel volume.
If petrol lled less than 1 litre then there will be no change in DTE value.
DTE (Distance to empty):
It indicates the estimated distance that the vehicle can travel under current fuel
economy & fuel level condition.
DTE calculation is independent of TRIP and based on AFE for distance covered for last 25
Kms.
Max count of DTE is 990 Km. speedometer will display values in multiple of 10.
TRIP Setting:
If Set button is pressed more than 3 sec.in TRIP1 or TRIP 2 mode, then respective AFE & trip distance will reset to Zero
while DTE will continue to show earlier value.
Note:
After completion of max value of 999.9 Km, selected trip display will get freezed and will not get set automatically to
zero.
However speedometer will continue to calculate and display AFE value.
14

Trip 1/2
Service Reminder
Mode
15
3 sec.
/ Distance to next service’.
1
to next service’.
/ Distance
For entering clock setting mode - press mode & set
button together for 3 sec.

SPEEDOMETER SETTING / MOBILE CHARGER
• The mobile charger will supply output voltage only in
engine running condition.
• Customer to use suitable USB cable for mobile charging.
Caution:
Do not use mobile phone while driving. Momentary
lapse in concentration might result in an accident.
Charger Cap
Charging Socket
Mobile Charger
• Mobile charging socket has been provided on fuel tank cover
• The charger socket has been provided with cap to protect
charger socket from dust & water entry during washing /
during rain.
• Always ensure charger cap is rmly tted on socket when
charger socket is not in use.
16
Press mode & set
button together for
more than 3 sec.
‘:’ stops blinking
Digits HH starts blinking.
Press set button for
1 sec.
HH value will be stored
while MM starts blinking.
HH value will be stored
while MM starts blinking.
Press mode button for
1 sec.
Minute digits will
increase.
Press set button for
1 sec.
HH and MM value will be
stored & AM starts blinking
