Bajaj DOMINAR 400 BS VI User manual

WELCOME TO THE DOMINAR CLAN!
You are now the proud owner of a modern masterpiece,
Dominar 400 BS VI. The new Dominar 400 BS VI is designed
to deliver unparalleled technology with superior performance.
This makes your Dominar, unbeatable and unchallenged on
every terrain.
Before you ride out, please read this Owner's Manual carefully
and familiarise yourself with the operation mechanism,
controls and maintenance requirements of your
Dominar 400 BS VI. This will ensure you a safe and trouble
free ownership experience.
To keep your bike in perfect running condition and deliver
consistent performance, we have specially programmed the
periodic maintenance services which includes 3 free services
and subsequent paid services, as per the schedule contained
in this booklet. We earnestly advise you to avail all these
services at any of our Bajaj Dealers, who
are well equipped with all necessary facilities, genuine
parts, oils and trained manpower to ensure the best care
for your Dominar. Your 'Dominar 400 BS VI' comes with a
warranty of 5 years or 75,000 KMs, whichever occurs
earlier from the date of sale. For details please refer to
"Warranty: Scope & Limits" given in this manual.
Should you require any addition information, feel free to
contact us on helpline numbers given on backside of cover
page or e-mail us at:[email protected] or
visit the Bajai Auto website www.bajajauto.com Also, do
like our Facebook page www.facebook.com/BajajDominar
and subscribe to our YouTube channel to stay tuned on any
new information on the brand.
DON'T HOLD BACK!!

SR.
Technical Specification
Identification Data
Location of Parts
Steering cum Ignition lock
Fuel Tank Cap & Secondary Speedometer
Primary Speedometer Details
Twin Channel ABS System
Speedometer Functionality Details
Secondary Speedometer Setting
Control Switch RH
Automatic Headlamp & Lights Operation
Control Switch LH
Removal of Pillion & Rider Seat / Tool kit
Fitment of Rider & Pillion Seat
Daily Safety Checks
How to ride your Bike
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
Good Riding Habits
Safe Riding Tips & Monsoon Care
Engine Oil
Tubeless Tyre&Tyre Pressure
Battery
Engine Cooling System
Coolant
Periodic Maintenance Information
Brake Fluid / Headlamp Care
Usage of luggage straps with bungee cord
Free Service Guidelines
Periodic Maintenance & Lubrication Chart
Non Use Maintenance
Delivery Certificate
Warranty Scope & Limit
Battery Warranty Card
DESCRIPTION PG. NO. SR. DESCRIPTION PG. NO.
SAFETY AND WARNING INFORMATION:
Warning: This indicates that a potential hazard or injury to
you or other persons & to the vehicle can happen if advice
provided is not followed.
Caution: This indicates that a potential hazard that could
result in vehicle damage. Follow the Advice provided with the
caution.
The description and illustration in this booklet are not to
be taken as binding on the manufacturers. The essential
features of the type described and illustrated herein
remaining unaltered. Bajaj Auto Limited reserves the right
to carry out at any moment without being obliged to bring
this booklet upto-date & to do modifications on the
vehicle, parts or accessories as may be convenient and
necessary.
1
3.
4
5
6
7
8
9
17
19
20
21
22
23
24
25
28
29
30
31
32
33
34
35
37
38
39
40
48
49
50
53

Engine 4 Stroke, Single Cylinder
Bore x Stroke 89 mm x 60 mm
Engine Displacement 373.27 cc
Compression Ratio 12 : 1
Idling Speed 1680 +/- 100 RPM
Max. Net Power 40 PS at 8800 RPM
Max. Net Torque 35 Nm at 6500 RPM
Ignition System DC
Fl System BOSCH
Spark Plug 3 Nos.
Spark Plug Gap 0.8 ~ 0.9 mm
Lubrication Wet sump forced Lubrication
Transmission 6 speed constant mesh
Gear shifting Pattern 1 Down 5 Up
Engine Cooling Liquid cooled
Starting Aid Self
Front & Rear Brake Disc
Parameter
Fuel Tank Capacity
Full 13 Liters (No Reserve)
Dimensions
Length 2156 mm
Width 836 mm
Height 1112 mm
Wheel base 1453 mm
Ground Clearance 157 mm
Tyre Size Front 110/70-R17, Tubeless
Tyre Size Rear 150/60-R17, Tubeless
Tyre Pressure
Front 2.04 Kgf/cm (28.5 PSI)
2
Rear (Solo) 2.25 Kgf/ (32 PSI)
2
cm
Rear (with pillion) 2.25 Kgf/cm (32 PSI)
2
Electrical System 12 Volts DC
Battery 12V 8Ah VRLA
Head Lamp LED
Dominar 400 BS VI Parameter Dominar 400 BS VI

Parameter
Position Lamp LED
Tail / Stop Lamp LED
Side Indicator LED
Neutral Indicator LED
Hi-Beam Indicator LED
Turn Signal Indicator LED
Speedometer Illumination LCD
Fuel Level Indicator LCD Bar
Malfunction Indicator LED
Low oil pressure Indicator Alarm message
Coolant Temp. Indicator LED
Low Battery Indicator Alarm message
Bajaj Logo Display in DOT matrix
REV Indicator LED-Orange
Service Reminder Alarm message
Side Stand Indicator Alarm message
ABS Indicator LED
Rear No. Plate Lamp LED
Parameter
Horn 12V DC
Vehicle Kerb Weight 187 kg.
Vehicle Gross Weight 337 kg.
NOTES
• All dimensions are under UNLADEN condition.
• Above information is subject to change without any notice.
• This vehicle complies to BS VI standards.
• AHO is government regulation.
Dominar 400 BS VI Dominar 400 BS VI

IDENTIFICATION DATA
The Frame and Engine serial numbers are used to
register the motorcycle.
They are the unique alpha-numeric codes to
identify your particular vehicle from others of the
same model and type.
FRAME NUMBER
LOCATION
On Seat Mounting Bracket
(Alpha-Numeric - 17 Digits)
FRAME NUMBER
LOCATION
On LH Side Crankcase Near Gear
Change Lever (Alpha-Numeric - 11 Digits)

Reex Reector
Belly Pan

STEERING CUM IGNITION LOCK
STEERING CUM IGNITION LOCK
LOCK: Steering locked. Ignition OFF.
OFF: Steering unlock. Ignition OFF.
ON: Steering unlock. Ignition ON.
TO LOCK THE STEERING
To lock the steering, turn the handle bar to the left side.
Turn the handle bar to the left or right.
Push & Rotate the key to "LOCK" position
& remove the key.
Steering locking on handle position left hand side
only.
TO UNLOCK THE STEERING
Insert the key in steering cum ignition lock. Push
&Rotate it clockwise to "OFF" or "ON" position.
KEY
A common key is used for 'Steering cum Ignion lock'.
'Fuel tank cap' & 'Rear Seat'

FUEL TANK CAP & SECONDARY SPEEDOMETER
Speedometer display will work when lonicion switch is in 'ON' position
FUEL TANK CAP
• To open the fuel tank cap, open the ap. Insert the key in
the lock and turn it clockwise and lift fuel tank cap.
• To lock the 'Fuel Tank Cap' insert the key in the lock and turn
it clockwise and press fuel tank cap. 'Click' sound ensures
cap is fully locked.
PRECAUTION
Don't attach metallic 'Key chain' as it may damage paint of
petrol tank cover.
1. Odometer : The Odometer shows the total distance that
the vehicle has covered.Odometercan not be reset to 'Zero'.
Range 0 to 9.99.999 km.
2. Trip Meter : Trip 1 & Trip 2 shows the distance traveled
since it was last reset to zero. Rolls over to zero after
999.9 km & continue updating.
3. Mode Button: Mode button used for changing the mode
while selecting & setting Trip1, Trip2, ODD, INFO. Clock &
Service reminder.
4. Set Button: Set button used for setting Clock & Service
reminder. On pressing set button display in primary
speedometer scrolls.
5. Digital Clock: It indicates time in HR: MM (AM/PM)
6. Gear indication: It will display gear position from 1 to 6. It
will display 0 when vehicle is in neutral position.
• There is no fuel cock.
• Always maintain minimum 3 Liter Petrol in fuel tank.
• Do not use adulterated fuel or fuel additives as it will result in
rusting & clogging of Injector, Fuel pump module & catalytic
Convertor.

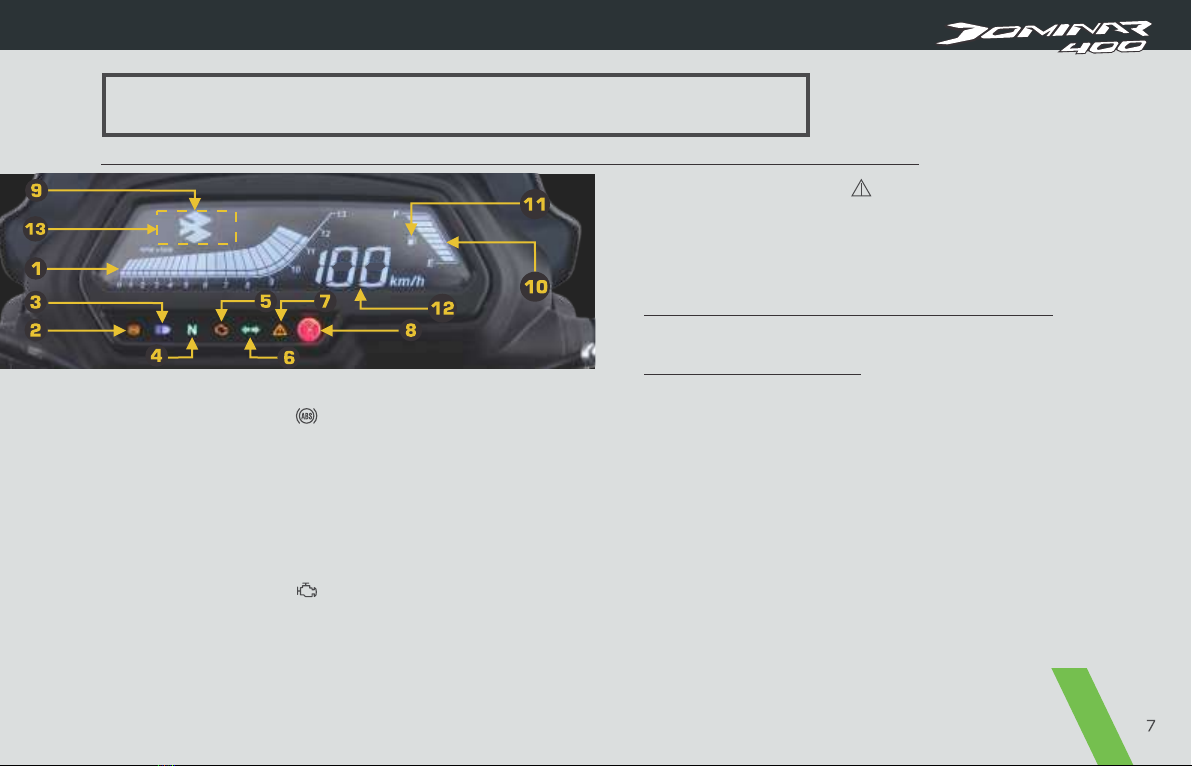

PRIMARY SPEEDOMETER DETAILS
SPEEDOMETER DISPLAY WILL WORK WHEN IGNITION SWITCH IS IN 'ON' POSITION.
1. Tachometer Dial: It shows engine speed in RPM.
2. ABS Indicator (Yellow) (( ) ): With Ignition switch ON the
ABS indicator glows. When vehicle speed is more than 5
Km/hr, the ABS indicator goes OFF, if this indicator glows
while vehicle is running, it means there is problem in ABS.
3. Hi Beam Indicator: When Headlight is 'ON' &Hi beam or 'PASS'
is selected then Hi beam indicator will glow.
4. Neutral Indicator: When the transmission is in Neutral,
Neutral indicator will glow - 'N' in primary speedometer & 0
will be displayed in secondary speedometer.
5. Malfunction Indicator ( ):It glows whenever any abnormality
is noticed in functioning of Fl system components.
6. Turn Signal Indicator (LH & RH) : When Turn signal switch is
pushed to Left or Right. Turn Signal Indicator - LH or RH will
ash.
7. Generic Alarm Indicator ( ): It remains continuously ON if
alarm message = 1, it blinks if alarm messages are
more than 1.
8. Engine RPM Limit Indicator: It reminds rider to drive in safe
engine RPM.
Within initial 2000Kms running (RUNNING IN period)
• RPM limit indicator blinks @ 6700 to 7000 RPM
• RPM limit indicator continuously glows if RPM is>7000 km.
Beyond 2000 kms running –
• RPM limit indicator blinks @ 9200 to 9500 RPM
• RPM limit indicator continuously glows if RPM is > 9500 km
9. Bajaj Logo: Bajaj logo ying 'B' glows with ignition 'ON'
10.Fuel Level Indicator: It shows approximate fuel level in
fuel tank.
11. Low Fuel Level Indicator :
Fuel bar = 1 - Bar 1 glows steady & low fuel symbol blinks
Fuel bar = < 1 - Bar 1 & low fuel symbol both blinks Fuel bar
= 2 - Low fuel symbol glows steady
12. Speedometer: Vehicle speed will be displayed in digital form
in km/h.
13. Alarm / information messages will be displayed on Primary
speedometer in Dot Matrix format.

TWIN CHANNEL ABS SYSTEM
• Never drive by disconnecting wheel speedo gear cable.
•
