Baker Hughes Panametrics oxy.IQ User manual

panametrics.com BH024C11 EN G
oxy.IQ
Panametrics Oxygen Transmitter
User’s Manual

panametrics.com
Copyright 2023 Baker Hughes company.
This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries
in one or more countries. All third-party product and company names are trademarks of their respective
holders.
oxy.IQ
Panametrics Oxygen Transmitter
User’s Manual
BH024C11 EN G
April 2023

ii
[no content intended for this page]

oxy.IQ User’s Manual iii
Preface
Services
Panametrics provides customers with an experienced staff of customer support personnel ready to respond to
technical inquiries, as well as other remote and on-site support needs. To complement our broad portfolio of
industry- leading solutions, we offer several types of flexible and scalable support services including: training,
product repairs, extended warranties, service agreements and more. Please visit
https://www.bakerhughes.com/panametrics/panametrics-services for more details.
Information Paragraphs
Note: These paragraphs provide additional information about the topic which is helpful but is not essential to
proper completion of the task.
IMPORTANT: These paragraphs provide emphasis to instructions that are essential to proper setup of the equipment.
Failure to follow these instructions carefully may cause unreliable performance.
Safety Issues
Auxiliary Equipment
Local Safety Standards
The user must make sure that he operates all auxiliary equipment in accordance with local codes, standards,
regulations, or laws applicable to safety.
WARNING! Indicates a potentially hazardous situation which can result in serious personal injury
or death, if it is not avoided.
CAUTION! Indicates a potentially hazardous situation which can result in minor or moderate
injury to personnel or damage to the equipment, if it is not avoided.
WARNING! It is the responsibility of the user to make sure all local, county, state and national
codes, regulations, rules and laws related to safety and safe operating conditions are
met for each installation.
Attention European Customers! To meet CE marking requirements for all units intended for use in the
EU, all electrical cables must be installed as described in this manual.

Preface
iv oxy.IQ User’s Manual
Working Area
Qualification of Personnel
Make sure that all personnel have manufacturer-approved training applicable to the auxiliary equipment.
Personal Safety Equipment
Make sure that operators and maintenance personnel have all safety equipment applicable to the auxiliary
equipment. Examples include safety glasses, protective headgear, safety shoes, etc.
Unauthorized Operation
Make sure that unauthorized personnel cannot gain access to the operation of the equipment.
Environmental Compliance
Waste Electrical and Electronic Equipment (WEEE) Directive
Panametrics is an active participant in Europe’s Waste Electrical and Electronic Equipment (WEEE) take-back
initiative, directive 2012/19/EC.
The equipment that you bought has required the extraction and use of natural resources for its production. It may
contain hazardous substances that could impact health and the environment.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the
natural resources, we encourage you to use the appropriate take-back systems. Those systems will reuse or recycle
most of the materials of your end life equipment in a sound way.
The crossed-out wheeled bin symbol invites you to use those systems.
If you need more information on the collection, reuse and recycling systems, please contact your local or regional
waste administration.
RoHS
The oxy.IQ fully complies with RoHS regulations (directive 2011/65/EU).
WARNING! Auxiliary equipment may have both manual and automatic modes of operation. As
equipment can move suddenly and without warning, do not enter the work cell of this
equipment during automatic operation, and do not enter the work envelope of this
equipment during manual operation. If you do, serious injury can result.
WARNING! Make sure that power to the auxiliary equipment is turned OFF and locked out before
you perform maintenance procedures on the equipment.

oxy.IQ User’s Manual v
Contents
Chapter 1. Features and Capabilities ................................................................................................................................1
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Hazardous Location Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.5 Sample Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 2. Installation ..........................................................................................................................................................5
2.1 Mounting the oxy.IQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Wiring the oxy.IQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 Longer Cable Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Installing an Oxygen Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 3. Initial Setup and Operation............................................................................................................................9
3.1 The oxy.IQ Display and Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 The oxy.IQ Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Adjusting and Calibrating the oxy.IQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.1 Selecting the Output Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2 Trimming the Analog Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2.1 Preparing to Trim the Analog Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2.2 Trimming the Analog Output Low (4 mA) End. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2.3 Trimming the Analog Output High (20 mA) End. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.2.4 Completing the Trim Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.3 Air Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.3.1 Calibrating a New Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.3.2 Recalibrating an Existing Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.3.4 Span Gas Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Chapter 4. User Programming ......................................................................................................................................... 13
4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.2 The Calibration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.2.1 Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.2.2 Span Gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.2.3 Sensor Life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.3 The Display Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3.1 Select the O2 Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3.2 Display the Sensor Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3.3 Adjust the Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.4 The Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4.1 Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4.2 Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4.3 Error Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4.4 Error Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 5. The Service Menu .............................................................................................................................................17
5.1 Menu Map and Service Passcode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5.2 Entering the Service Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5.2.1 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter 6. Specifications................................................................................................................................................... 19
6.1 Intrinsically Safe (IS) Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1.1 Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1.2 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1.3 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2 Non-incendive (div 2) and general purpose installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.1 Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2.2 Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents
vi oxy.IQ User’s Manual
6.3 All Installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.3.1 Process Wetted Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.3.2 User-Selectable Measurement Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.3.3 Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.3.4 Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.5 Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.6 Linearity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.7 O2 Sensor Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.8 Sample Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.9 Atmospheric Pressure Effect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.10 Process Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.11 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.12 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.13 Sample Flow Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.14 Electrical Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3.15 European Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.4 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.5 Product label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Appendix A. Outline and Installation Drawings ..........................................................................................................23
Appendix B. Menu Maps ......................................................................................................................................................31
Appendix C. Order String....................................................................................................................................................33
Appendix D. Certification and safety statements..................................................................................................... 35
Appendix E. Cell Models......................................................................................................................................................39
E.1 Oxygen Sensors Chemical Compatibility Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
E.1 Oxygen Concentration Range of Different Cell Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Index....................................................................................................................................................................................... 45

oxy.IQ User’s Manual 1
Chapter 1. Features and Capabilities
Chapter 1. Features and Capabilities
1.1 Introduction
The oxy.IQ Panametrics Oxygen Transmitter (see Figure 1 below) is a highly reliable and cost-effective two-wire,
loop-powered transmitter with a linearized 4 to 20 mA output. It measures oxygen content in ten ppm ranges
(10, 20, 50, 100, 200, 500, 1000, 2000, 5000 and 10000 ppm) and eight percentage ranges (1, 2, 5, 10, 21, 25, 50 and 100%).
All ranges are user-selectable. This compact transmitter uses proven sensor technology to accurately measure O2in
a variety of gases, even in hazardous (classified) locations.
Figure 1: oxy.IQ
1.2 Hazardous Location Certifications
When equipped with an optional Zener barrier or galvanic isolator, the oxy.IQ can be mounted in a hazardous
(classified) location. The oxy.IQ with intrinsically safe option is certified to USA, Canadian, ATEX, and international
IECEx IS requirements. The standard oxy.IQ is certified to USA, Canadian, EU ATEX and International IECEx div2/Zone 2
non-incendive requirements.
1.3 Applications
Some typical applications for the oxy.IQ Panametrics oxygen transmitter include the following:
• Glove box purge and leak detection
• Natural gas
• Semiconductor wafer machines
• Coating process machines
• Membrane air separators
• Inert welding gases
• Pure gaseous hydrocarbon streams
• Process monitoring of gaseous monomers
• Heat treating and bright annealing

Chapter 1. Features and Capabilities
2oxy.IQ User’s Manual
1.4 Features
The oxy.IQ oxygen sensor is an advanced galvanic fuel cell that provides superior performance, accuracy, stability
and long life. The cell’s innovative design eliminates the potential for negative signal output and reduces sources of
contamination. The different types of cells used with the oxy.IQ are listed in Table 1 below. Refer to Table 6 on page 41
for the concentration ranges for each type of cell.
The cell is unaffected by other background gases or hydrocarbons and is compatible with acidic gases (OX-2 and
OX-4 cells). Recovery from air at low ppm levels takes just a few minutes. Because the cell is self-contained, minimal
maintenance is required. There is no electrolyte to change and no electrodes to clean. Refer to Appendix E: Cell
Models, for more information on the different cell models compatible with oxy.IQ.
The oxy.IQ offers the following features:
• Two-wire, loop-powered, 4 to 20 mA transmitter
• Display with keypad
• Intrinsically-safe option
• Proven galvanic fuel cell O2sensor technology
• User-selectable ranges for ppm and percent oxygen
• User-friendly and intuitive user interface with diagnostics
• Microprocessor-based, all-digital technology for reliable operation
• Low maintenance, economical and compact
• Sensor failure output error
• Sensor lifetime indication
• NAMUR error indication
Table 1: Types of cells used with the oxy.IQ
Ordering part no. Recommended for
OX-1 Low range ppm measurement, standard background gases
OX-2 Low range ppm measurement, acid background gases
OX-3 Percent measurement, standard background gases
OX-4 Percent measurement, acid background gases
OX-5 Low/mid-range ppm measurement, standard background gases

oxy.IQ User’s Manual 3
Chapter 1. Features and Capabilities
1.5 Sample Systems
In addition to the standard features and options, Panametrics offers a full line of sample handling systems for a
variety of applications. If needed, Panametrics can design and build a sample conditioning system to meet unique
application requirements. Please contact Panametrics for details. Table 2 below lists some background gases that
can interfere with the oxygen sensor.
Table 2: Oxygen Sensor Interference Gases
Gas
OX-1 & 5 ppm OX-2 ppm OX-3 % OX-4 %
Cont. Cont. Cont. Int. (1) Cont. Int.
H2S <5 ppm <10 ppm 0.0005 % 0.01 % 0.001 % 0.1 %
SO3<10 ppm <10 ppm 0.01 % 0.1 % 0.01 % 0.1 %
SO2<10 ppm (3) 0.01 % 0.1 % (3) (3)
HCl <1000 ppm (3) 0.1 % 1.0 % (3) (3)
HCN <1000 ppm (3) 0.1 % 1.0 % (3) (3)
CO2<1000 ppm (3) 0.1 % 20 & (3) (3)
NO2(2) (2) (2) (2) (2) (2)
Cl2(2) (2) (2) (2) (2) (2)
Cont. = Continuous, Int. = Intermittent
(1)Recommended maximum exposure 30 minutes, followed by flushing with ambient air for an equal period.
(2)Minimal effect on sensor performance, but produces signal interference of 1:2 ratio for ppm levels only (e.g.,
100 ppm NO2looks like 200 ppm O2).
(3)Minimal effect on sensor performance

Chapter 1. Features and Capabilities
4oxy.IQ User’s Manual
[no content intended for this page]

oxy.IQ User’s Manual 5
Chapter 2. Installation
Chapter 2. Installation
2.1 Mounting the oxy.IQ
To install the oxy.IQ into the process or sample system, refer to Figure 9 on page 24 or Figure 2 below and proceed to
the next page.

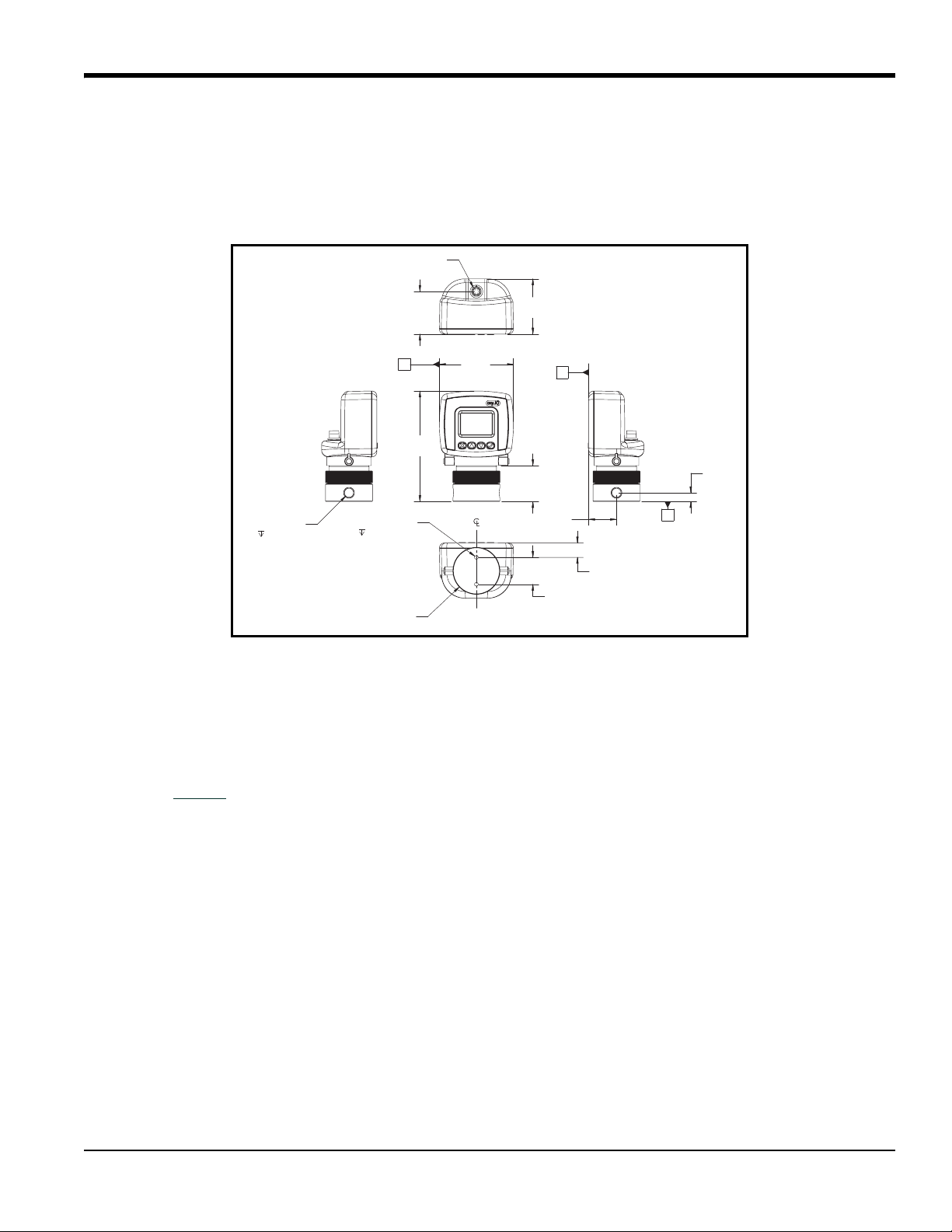

Figure 2: Outline and Installation Drawing
Note: To avoid collecting condensate that may damage the oxygen sensor, mount the oxy.IQ in an upright
position, with the sensor manifold below the electronics module.
Install the oxy.IQ by completing the following steps:
1. Remove the oxy.IQ and the separately-packaged oxygen sensor (see Figure 3 below) from the shipping
container. Keep the shipping container and packaging material for possible future use.
IMPORTANT: DO NOT open the oxygen sensor package until you are ready to install the sensor.
Connector
1.58
[40.3]
2.05
[52.1]
BC
2.75
[69.8]
4.10
[104.2]
1.33
[33.9]
A
0.32
[8.25]
1.03
[26.27]
0.53
[13.57]
1.00
[25.40]
2X
1/8-27NPT-2B
.27 [6.9]
2X
8-32 UNC-2B
.51 [12.9] MAX
Ø1.75
[44.3]
Note: All dimensions are inches [mm].

Chapter 2. Installation
6oxy.IQ User’s Manual
Figure 3: Packaged Oxygen Sensor
2. Remove the sensor manifold by unscrewing it from the blue knurled nut on the sensor base at the bottom of the
electronics module.
IMPORTANT: The maximum operating sample pressure for the oxy.IQ is 10 psig except when the ambient air adapter
is used for the sample manifold. The burst pressure of the sample manifold is 200 psig for all bases
except the ISO KF-40 flange adapter. Since this option is designed for a vacuum flange it cannot handle
sample pressure greater than 20 psig. Be sure the sample conditioning system is designed to maintain
the oxy.IQ pressure below these limits, and that the oxy.IQ outlet is vented to atmosphere during
operation and calibration.
3. Using PTFE tape as a sealant, connect the sample gas inlet and outlet to the 1/8” NPT ports on the sensor manifold
(see Figure 4 below). Either port may be used as the inlet or the outlet, as the direction of flow does not matter.
Figure 4: Sensor Manifold Installation
Sample Inlet Sample Outlet
Sensor Manifold
PTFE Tape

oxy.IQ User’s Manual 7
Chapter 2. Installation
2.2 Wiring the oxy.IQ
To wire the oxy.IQ, refer to Figure 14 on page 28, then proceed as follows:
1. Attach the appropriate cable to the oxy.IQ (see Figure 5 below). Be sure to align the white arrow on the cable
connector with the white arrow on the oxy.IQ connector, and then push the top of the cable connector straight
down onto the mating connector on the rear of the electronics module until you hear it click into place.
IMPORTANT: Do not rotate the cable connector during installation (it is not threaded) and do not hold the connector
by its bottom section while pushing it down into place.
Figure 5: oxy.IQ Cable and Connector
2. Connect the flying lead end of the cable as shown in the wiring diagram, according to one of the following
conditions:
•No Zener barrier or galvanic isolator: For use in non-hazardous areas or div 2 hazardous areas.
•With Zener barrier or galvanic isolator: Required for use in hazardous areas.
IMPORTANT: To remove the cable from the oxy.IQ electronics module, simply pull straight up on the lower section of
the cable connector as close to the oxy.IQ body as possible. Do not pull on the cable or the upper portion
of the cable connector, and do not try to unscrew the cable connector.
2.2.1 Longer Cable Lengths
Panametrics offers cables in 2 m and 10 m standard lengths. Longer cable lengths may be used with the oxy.IQ, but
these are not available from Panametrics. If you require a longer cable, refer to the following figures for the required
cable specifications and construct your own cable for splicing onto the standard Panametrics cable:
• Standard cable: figure 10 and figure 11.
• IS cable: figure 12 and figure 13.
WARNING! For IS (Intrinsically Safe) applications, the oxy.IQ must be installed with a zener barrier
(see the top of Figure 14 on page 28). Also, for installations in a hazardous location, the
blue IS cable (p/n 704-1318-02, 10) must be used.
Cable connector Alignment arrow
Std. cable
Blank label
oxyIQ

Chapter 2. Installation
8oxy.IQ User’s Manual
2.3 Installing an Oxygen Sensor
To install a new or replacement oxygen sensor in the oxy.IQ, refer to figure 6 below and complete the following steps:

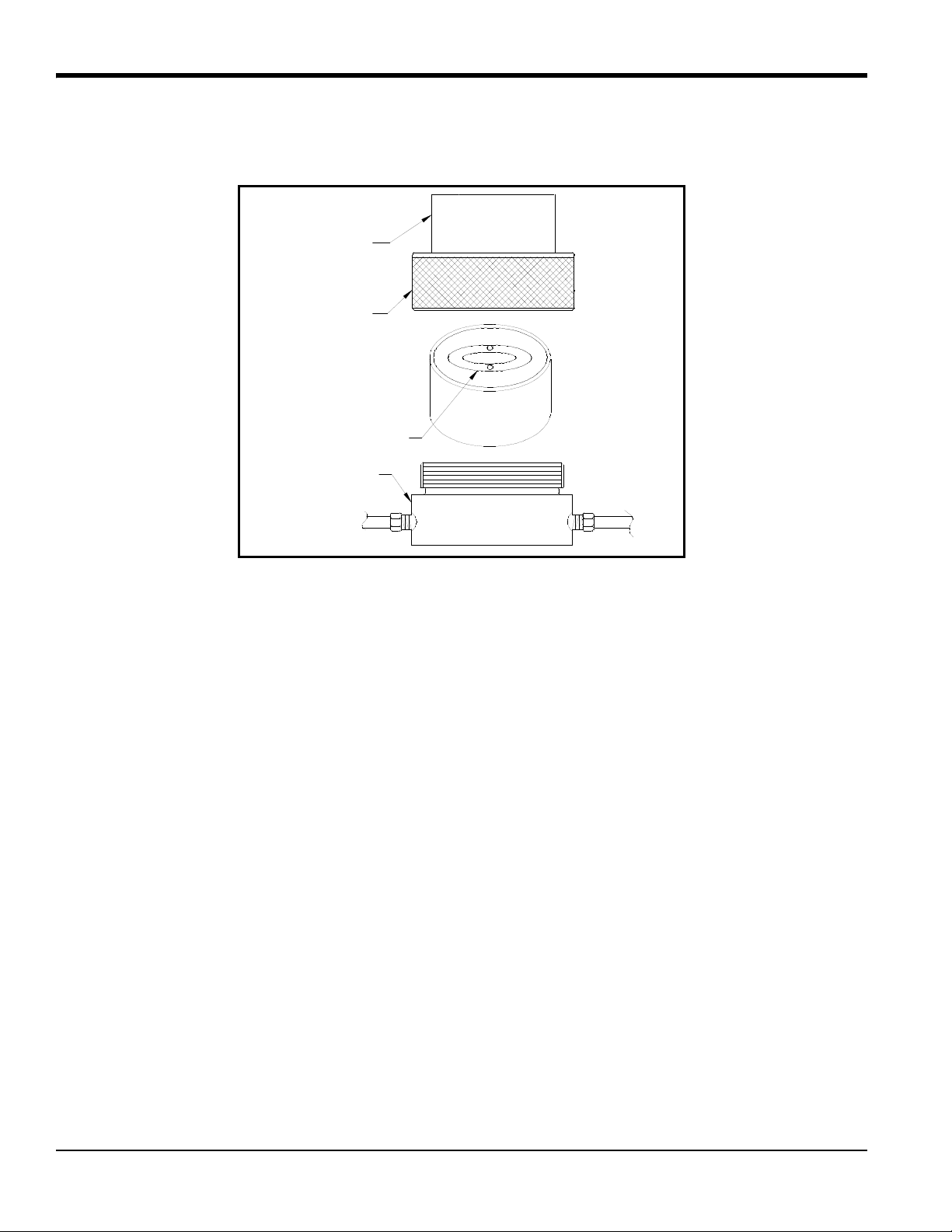

Figure 6: Oxygen Sensor Installation
1. Disconnect the power from the oxy.IQ.
2. Loosen the blue knurled nut and remove the oxy.IQ electronics module from the sensor manifold. If a previous
oxygen sensor is already in place, remove and discard it.
3. Apply power to the unit. The screen will display “INITIALIZING PLEASE WAIT” for a few seconds before it begins to
display measurement data.
Note: Before continuing with the installation, become familiar with the procedures for programming and
calibrating the oxy.IQ discussed in Chapter 3, Initial Setup and Operation.
4. Trim the 4-20 mA analog output and set the range to 0-25% oxygen.
5. Open the airtight package (see figure 3) and remove the oxygen sensor from the package. To maintain the
oxygen sensor’s energy level, remove the red grounding tab and immediately install the sensor in the oxy.IQ
6. Orient the sensor so that its gold-plated electrodes are facing the spring-loaded contact pins in the sensor base
(see figure 6). Firmly press the oxygen sensor into the sensor base at the bottom of the oxy.IQ electronics module.
7. Perform an air calibration on the new oxygen sensor at this time. On the 0-25% oxygen scale, a properly
calibrated oxygen sensor shows a reading of 20.9% on the display and generates a current of 17.4 mA at the 4-20
mA analog output terminals.
8. Using the blue knurled nut, attach the oxy.IQ electronics module with the calibrated oxygen sensor to the sensor
manifold. Rotate the display as desired and then hand-tighten the blue knurled nut.
IMPORTANT: Make sure that the o-ring on the top of the sensor manifold is in place and undamaged. If necessary,
contact Panametrics for a replacement.
9. Begin the flow of the process gas. The analog output reading will drop as the oxygen sensor adjusts to the
reduced oxygen level. During this time, reset the range as required.
10. For improved accuracy in the ppm oxygen ranges, a span gas calibration should now be performed (see “span
gas calibration”).
IMPORTANT: Sensor life is dependent on the application. High oxygen concentrations and contaminants such as
acidic gases will shorten the sensor life.
Oxygen Sensor Ring
Knurled Nut
Sensor Base
Sensor Manifold

oxy.IQ User’s Manual 9
Chapter 3. Initial Setup and Operation
Chapter 3. Initial Setup and Operation
3.1 The oxy.IQ Display and Keypad
All programming of the oxy.IQ is done via the front panel keypad and display, as illustrated below.

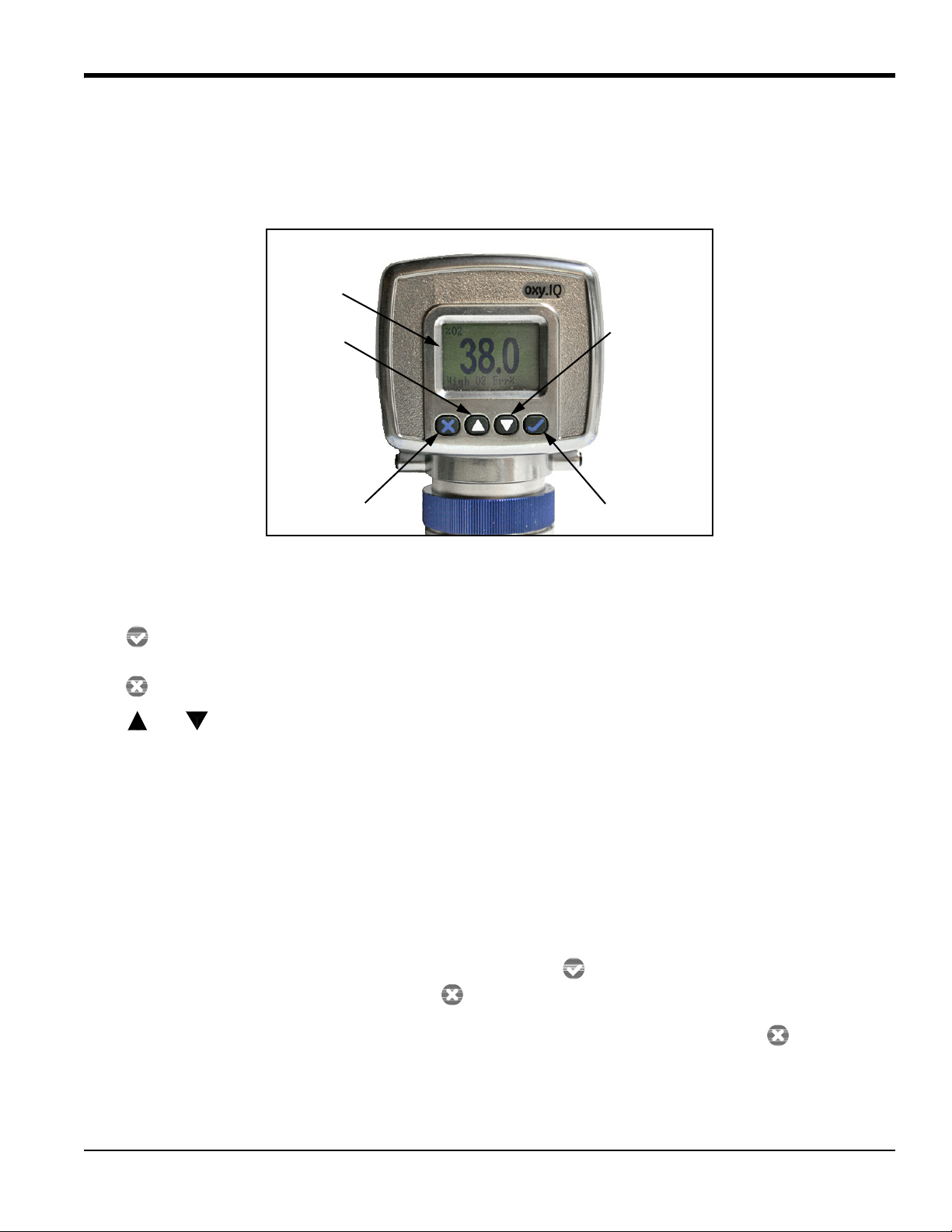

Figure 7: oxy.IQ Display and Keypad
The front panel components perform the following functions:
•Display - Data measurements and the programming menus and options are shown on the LCD display screen.
•Enter - While in measurement mode, press this key to enter the Main Menu. While in the Main Menu, press
this key to save an entry and advance to the next screen.
•Cancel - While in the Main Menu, press this key to cancel an entry and to return to the previous screen.
• and Keys - In the Main Menu, use these keys to move the cursor between rows one row at a time in the
direction indicated.
3.2 The oxy.IQ Menu Map
As an aid in navigating through the main menu, a complete menu map of the user program is shown in figure 16.
Refer to this figure as needed while programming the oxy.IQ.
• The oxy.IQ main menu consists of the following submenus:
• Calibration menu (no passcode required)
• Display menu (no passcode required)
• Output menu (no passcode required)
• Service menu (factory service passcode required)
To enter the Main Menu from normal display mode, simply press the Enter key at any time. To leave the Main
Menu and return to measurement mode, press the Cancel key.
Note: Depending on how deep you are in the menu structure, it may be necessary to press the Cancel key
more than once to return all the way back to measurement mode.
Down Arrow
Up Arrow
Display
EnterCancel

Chapter 3. Initial Setup and Operation
10 oxy.IQ User’s Manual
3.3 Adjusting and Calibrating the oxy.IQ
Upon startup, the following five-step adjustment and calibration procedure must be performed on the oxy.IQ:
1. Select the desired output range.
2. Trim the low (4 mA) and high (20 mA) analog outputs.
3. Upon installation of a new oxygen sensor, calibrate the unit with air for either a ppm or % sensor.
4. For ppm sensors only, purge the sensor with a low ppm oxygen gas.
5. For all subsequent calibrations, use a span gas that is appropriate for the sensor and range selected.
3.3.1 Selecting the Output Range
To select the desired measurement range, complete the following steps:
1. Press the Enter key to enter the Main Menu.
2. Press the key twice and then press the Enter key to enter the Output menu.
3. Press the Enter key to select the Range menu option.
4. Use the and keys to scroll through the available options, as listed in Table 3 below.
5. After selecting the desired output range, press the Enter key to save the selection. Then, press the Cancel
key to return to the Output menu.
3.3.2 Trimming the Analog Output
To trim the analog output, calibrate the low (4 mA) end of the output then the high (20 mA) end of the output.
IMPORTANT: The 4 mA and 20 mA adjustments interact with each other. Therefore, recheck the trim after the
procedure has been completed.
3.3.2.1 Preparing to Trim the Analog Output
Prepare to trim the analog output as follows:
1. Connect an ammeter in series with the positive oxy.IQ power supply lead, to monitor the analog output current.
2. Press the Enter key to enter the Main Menu.
3. Press the key twice and then press the Enter key to enter the Output menu.
4. Press the key and then press the Enter key to enter the Trim menu.
3.3.2.2 Trimming the Analog Output Low (4 mA) End
1. Press the Enter key to enter the 4 mA Trim menu, and the analog output is driven to about 4 mA.
2. Use the and keys to adjust the analog output up or down, until it equals 4.00 ± 0.01 mA.
3. Press the Enter key to save the trim adjustment and return to the Trim menu.
Table 3: Available Output Ranges
Units Span Value
% O21, 2, 5, 10, 21, 25, 50, 100
ppm O210, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000

oxy.IQ User’s Manual 11
Chapter 3. Initial Setup and Operation
3.3.2.3 Trimming the Analog Output High (20 mA) End
1. Press the key and then press the Enter key to enter the 20 mA Trim menu, and the analog output is driven
to about 20 mA.
2. Use the and keys to adjust the analog output up or down, until it equals 20.00 ± 0.01 mA.
3. Press the Enter key to save the trim adjustment and return to the Trim menu.
3.3.2.4 Completing the Trim Procedure
1. Repeat both the low (4 mA) end and high (20 mA) end analog output trimming steps until no further trimming
adjustments are required.
2. Press the Cancel key twice to return to the Main Menu.
3.3.3 Air Calibration
An air calibration is always recommended upon installation of a new oxygen sensor. However, because of the
non-linearity of the oxygen sensor, a span gas calibration (see the next section) should also be performed to ensure
more accurate readings in the ppm ranges.
To perform an air calibration, complete the following steps:
1. Press the Enter key to enter the Main Menu.
2. Press the Enter key to enter the Calibration menu.
3. Press the Enter key to select the Air menu option.
Proceed to the appropriate section, depending on whether you are calibrating a new sensor or recalibrating an
existing sensor.
3.3.3.1 Calibrating a New Sensor
For a new sensor, continue the air calibration procedure as follows:
1. Press the key and then press the Enter key to select the YES menu option.
2. Press the Enter key to acknowledge that you are resetting the sensor lifetime clock.
3. As instructed, remove the sensor manifold to expose the new oxygen sensor to ambient air for about two
minutes. Then, press the Enter key to continue.
4. A message indicating that the calibration is in progress will be displayed, and then the calibration data will be
shown. At that time, press the Enter key to save the calibration data and return to measurement mode.
Note: Asecond calibration of the new sensor should be performed within 1-2 days of the first calibration.
CAUTION! The useful life of ppm sensors will be extended by minimizing exposure of the sensor to
air.

Chapter 3. Initial Setup and Operation
12 oxy.IQ User’s Manual
3.3.3.2 Recalibrating an Existing Sensor
For an existing sensor, continue the air calibration procedure as follows:
1. Press the Enter key to select the NO menu option.
2. As instructed, remove the sensor manifold to expose the oxygen sensor to ambient air for about two minutes.
Then, press the Enter key to continue.
3. A message indicating that the calibration is in progress will be displayed, and then the calibration data will be
shown. At that time, press the Enter key to save the calibration data and return to measurement mode.
3.3.4 Span Gas Calibration
Before beginning the span gas calibration, make sure the oxy.IQ is indicating an O2level less than the span gas value,
to ensure an accurate calibration. Then, start the flow of the span gas to the sensor. For accurate calibration, the
span gas should have an oxygen content of 70-90% of the range being calibrated.
To perform the span calibration, complete the following steps:
1. Use the equation below to calculate the expected mA output that corresponds to the known oxygen content of
the span gas:
For example, if the span gas contains 80 ppm oxygen and the 0-100 ppm range is being calibrated, the analog
output should equal 4 + 16 x (80/100) = 16.8 mA.
2. If you have not done so already, start the flow of span gas to the sensor and allow both the 4-20 mA output
reading and the display reading to stabilize.
3. After the reading has stabilized, press the Enter key to enter the Main Menu.
4. Press the Enter key to enter the Calibration menu.
5. Press the key and then press the Enter key to select the Span Gas menu option.
6. Press the and keys until the measurement agrees with the span calibration gas value.
7. Confirm that the reading on the display has stabilized, and press the
Enter key to save the calibration. Then, press the Cancel key twice to return to measurement mode.
4.0 16.0 Span Gas ppm
Full Range ppm
----------------------------
+mA Output=
