DigitalFlow™ XGM868i Startup Guide 1
Chapter 1. Installation
Chapter 1. Installation
1.1 Introduction
To ensure safe and reliable operation of the Model XGM868i Ultrasonic Flow Transmitter, the system must be installed
in accordance with the guidelines established by Panametrics engineers. Those guidelines, which are explained in
detail in this chapter, include the following specific topics:
• Unpacking the Model XGM868i system
• Selecting suitable sites for the electronics enclosure and the flowcell/transducers
• Installing the flowcell/transducers
Note: See the enclosed Transducer Installation Guide for detailed instructions on transducer installation.
• Installing optional temperature and pressure transmitters
• Installing the electronics enclosure
• Wiring the electronics enclosure
WARNING! The Model XGM868i flow transmitter can measure the flow rate of many gases, some of which are
potentially hazardous. In such cases, the importance of proper safety practices cannot be
overemphasized.
Be sure to follow all applicable local safety codes and regulations for installing electrical equipment
and working with hazardous gases or flow conditions. Consult company safety personnel or local
safety authorities to verify the safety of any procedure or practice.
WARNING! To meet CE Mark requirements, all cables must be installed as described in Appendix A,
CE Mark Compliance .
1.2 Unpacking
Carefully remove the electronics enclosure, the transducers, and the cables from the shipping containers. Before
discarding any of the packing materials, account for all components and documentation listed on the packing slip.
The discarding of an important item along with the packing materials is all too common. If anything is missing or
damaged, contact the factory immediately for assistance.

Chapter 1. Installation
2 DigitalFlow™ XGM868i Startup Guide
1.3 Site Considerations
Because the relative location of the flowcell and the electronics enclosure is important, use the guidelines in this
section to plan the XGM868i installation. Figure 1 shows a typical XGM868i enclosure and spoolpiece ready for
insertion into a process line.
Figure 1: A Typical Model XGM868i System
1.3.1 Electronics Enclosure Location
The standard Model XGM868i electronics enclosure is a powder-coated, cast-aluminum, Type-7/4X explosion-proof
enclosure; an optional stainless-steel enclosure is available. Typically, the enclosure is mounted as close as possible
to the transducers. When choosing a site, make sure the location permits easy access to the electronics enclosure for
programming, maintenance and service.
Note: For compliance with the European Union’s Low Voltage Directive (2006/95/EC), this unit requires an external
power disconnect device such as a switch or circuit breaker. The disconnect device must be marked as such,
clearly visible, directly accessible, and located within 1.8 m (6 ft) of the Model XGM868i.

DigitalFlow™ XGM868i Startup Guide 3
Chapter 1. Installation
1.3.2 Flowcell Location
The pipeline flowcell consists of the flow rate transducers and any pressure and/or temperature transducers
employed as part of the flow measurement system. Ideally, choose a section of pipe with unlimited access to the
flowcell; for example, a long stretch of pipe that is above ground. However, if the flowcell is to be mounted on an
underground pipe, dig a pit around the pipe to facilitate installation of the transducers.
1.3.3 Transducer Location
For a given fluid and pipe, the Model XGM868i’s accuracy depends primarily on the location and alignment of the
transducers. In addition to accessibility, when planning for transducer location, adhere to the following guidelines:
1. Locate the transducers so that there are at least 20 pipe diameters of straight, undisturbed flow upstream and 10
pipe diameters of straight, undisturbed flow downstream from the measurement point. To ensure undisturbed
flow, avoid sources of turbulence in the fluid such as valves, flanges, expansions and elbows; and dips or low
spots in which condensed liquid may collect.
2. Because condensate or sediment at the bottom of the pipe may cause attenuation of the ultrasonic signal,
locate the transducers on the side of a horizontal pipe, when possible. If limited pipe access necessitates
top-mounted transducers and the sound beam path includes a reflection, shift the transducers to at least 10° off
top dead center. This will minimize the influence of any sediment on the reflected ultrasonic signals.
1.3.4 Cable Lengths
Locate the electronics enclosure as close as possible to the flowcell/transducers, preferably directly on the flowcell.
However, the factory can supply transducer cables up to 1,000 ft (300 m) in length for remote location of the
electronics enclosure. If longer cables are required, consult the factory for assistance.
1.3.5 Temperature and Pressure Transmitters
When installing temperature and/or pressure transmitters in the flowcell, locate them downstream of the
transducers. These transmitters should be positioned no closer to the Model XGM868i transducers than 2 pipe
diameters and no further away from the transducers than 20 pipe diameters.
1.3.6 Transducer Cables
When installing the transducer cables, always observe established standard practices for the installation of electrical
cables. Specifically, do not route transducer cables alongside high-amperage AC power lines or any other cables
that could cause electrical interference. Also, protect the transducer cables and connections from the weather and
corrosive atmospheres.
Note: When using non-Panametrics cables to connect the flow rate transducers to the Model XGM868i electronics
enclosure, the cables must have electrical characteristics identical to the Panametrics cables. Type RG62 a/u
coaxial cable should be used, and each cable must be the same length (within ±4 in.).

Chapter 1. Installation
4 DigitalFlow™ XGM868i Startup Guide
1.4 Installing a Flowcell
A flowcell is the section of pipe where the transducers are mounted. It can be created either by mounting the
transducers on the existing pipeline or by mounting them on a spoolpiece. A spoolpiece is a separately
manufactured pipe section, matched to the existing pipe, which contains ports for mounting the transducers. This
approach allows the transducers to be aligned and calibrated before inserting the spoolpiece into the pipeline.
Figure 1 on page 2 shows a typical Model XGM868i spoolpiece, with a mounting bracket to hold the electronics
enclosure. For detailed instructions on installing the transducers and/or spoolpiece, refer to the supplied drawings
and the enclosed Panametrics Gas Transducer Installation Guide (916-049).
1.5 Installing Temperature and Pressure Transmitters
Optional temperature and pressure transmitters may be installed near the ultrasonic transducer ports as part of the
flowcell. Be sure to observe the siting requirements given earlier in this chapter. These transmitters should send a
0/4-20 mA signal to the Model XGM868i. In turn, the Model XGM868i must be fitted with a suitable option card to
process the signals and to provide the required 24 VDC power to the transmitters. Any desired transmitters or sensors
may be used, but they must have an accuracy equal to 0.5% of the reading or better.
Note: Resistive Thermal Devices (RTDs) are a good choice for measuring the temperature.
Typically, a 1/2” or 3/4” NPT female threaded port is used to mount the transmitters on the flowcell. If the pipeline is
insulated, the coupling may need to be extended to provide convenient access. Of course, other types of mounting
ports, including flanged ports, may be used for the transmitters.
Figure 2 shows a typical mounting arrangement for the pressure and temperature transmitters. The temperature
sensor should protrude 1/4 to 1/2 way into the pipe.

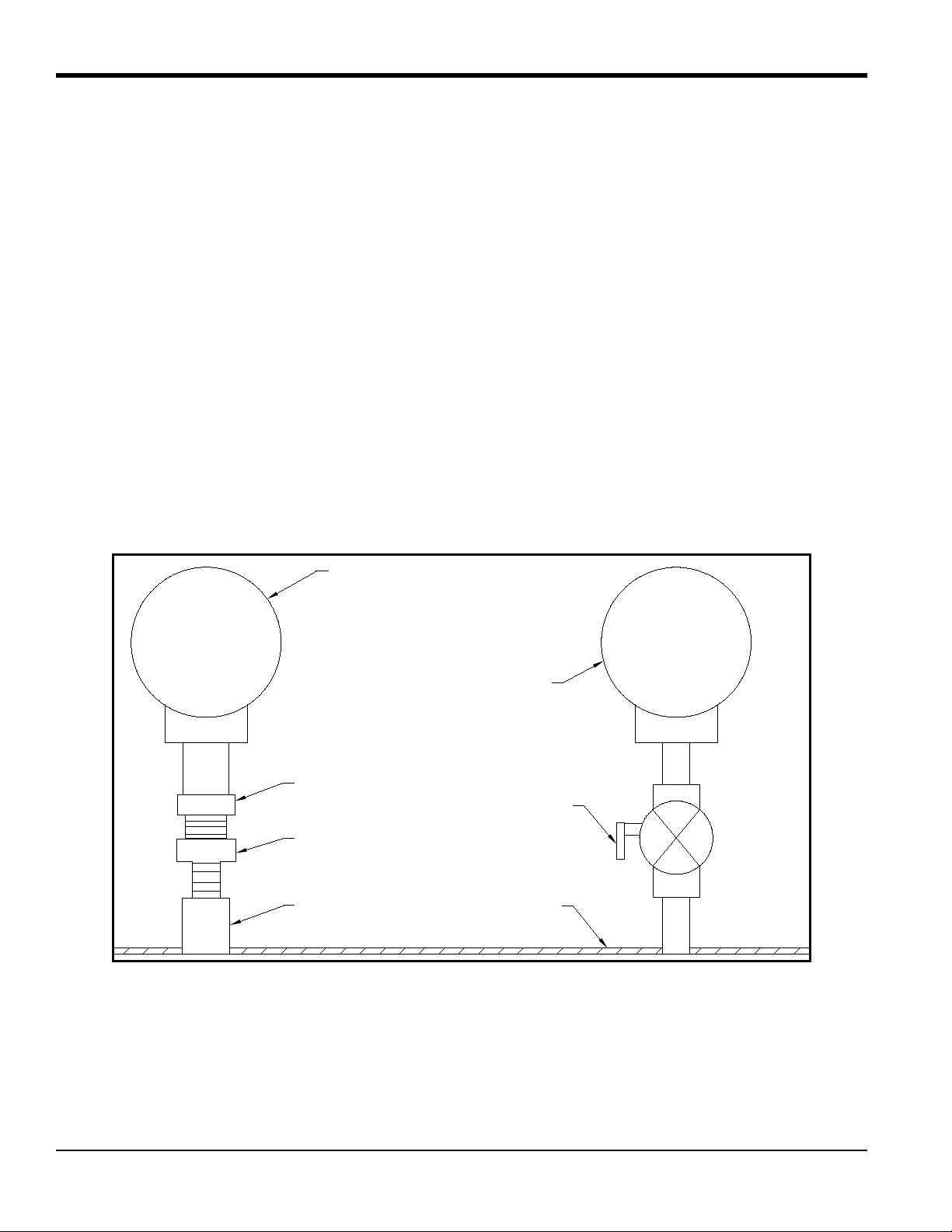

Figure 2: Typical Temperature/Pressure Transmitter Mounting
1.6 Mounting the XGM868i Electronics Enclosure
The standard Model XGM868i electronics package is housed in a Type-4X weather-resistant enclosure suitable for
indoor or outdoor use. Refer to Figure 8 on page 23 for the mounting dimensions and the weight of this enclosure.
Temperature Transmitter
RTD
Thermowell
Coupling
Pressure Transmitter
Isolation Valve
Flowcell Wall

DigitalFlow™ XGM868i Startup Guide 5
Chapter 1. Installation
The Model XGM868i electronics enclosure is fitted with a mounting boss that has a single 3/4” NPTF threaded hole at
its center and four 1/4-20 tapped holes at its corners. By using this mounting boss, the electronics enclosure may be
mounted by any of the typical techniques shown in Figure 10 on page 25.
WARNING! Proper grounding of the XGM868i chassis is required to prevent the possibility of electric shock. See
Figure 10 on page 25 for the location of the chassis grounding screw.
IMPORTANT: Since the IREX keys do not work properly in direct sunlight, be sure to position the XGM868i with an
optional sunshield or out of direct sunlight.
1.7 Making the Electrical Connections
This section contains instructions for making all the necessary electrical connections to the Model XGM868i flow
transmitter. Refer to Figure 10 on page 25 for a complete wiring diagram.
Except for the power connector, all electrical connectors are stored on their terminal blocks during shipment and
may be removed from the enclosure for more convenient wiring. Simply, feed the cables through the conduit holes on
the side of the enclosure, attach the wires to the appropriate connectors and plug the connectors back onto their
terminal blocks.
WARNING! To meet CE Mark requirements, all cables must be installed as described in Appendix A,
CE Mark Compliance .
Refer to Figure 3 on page 6 and prepare the Model XGM868i for wiring by completing the following steps:

Chapter 1. Installation
6 DigitalFlow™ XGM868i Startup Guide
1.7 Making the Electrical Connections (cont.)
WARNING! Always disconnect the line power from the Model XGM868i before removing either the front cover or
the rear cover. This is especially important in a hazardous environment.
1. Disconnect any existing power line from its source.
2. Loosen the set screw on the rear cover.
3. Place a rod or long screwdriver across the cover in the slots provided, and rotate the cover counterclockwise until
it comes free from the enclosure.
4. Install any required cable clamps in the appropriate conduit holes around the side of the enclosure.
5. Note the labels inside the rear cover to assist in wiring the power and option card connections. Also, Figure 11 on
page 26 shows the rear cover option card labels for every available option card configuration.
Proceed to the appropriate section of this chapter to make the desired wiring connections.

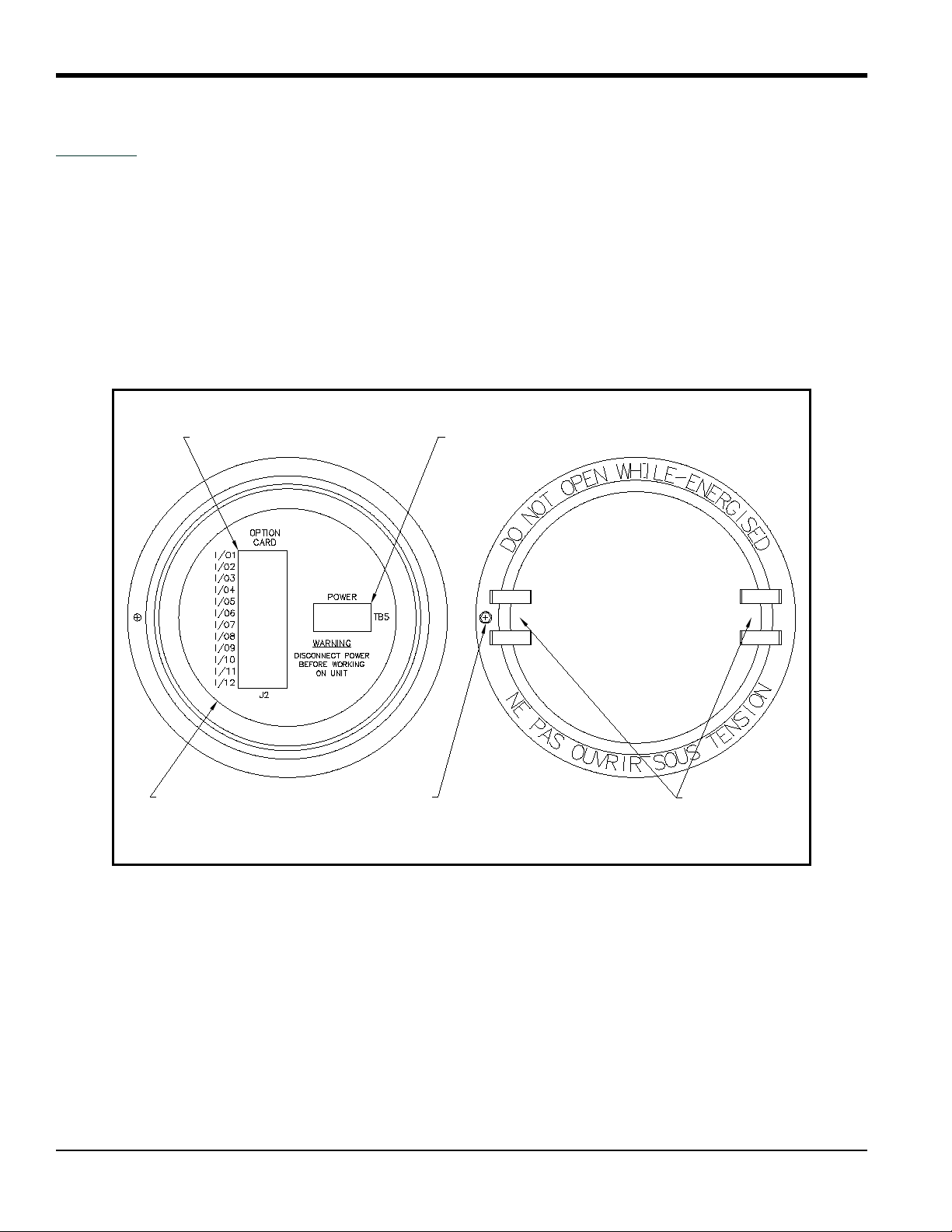

Figure 3: Rear Cover with Connection Labels
Power ConnectionsOption Card Connections
Wiring Label Slots Set Screw
Inside View
Outside View

DigitalFlow™ XGM868i Startup Guide 7
Chapter 1. Installation
1.7.1 Wiring the Line Power
The Model XGM868i may be ordered for operation with power inputs of 100-120 VAC, 220-240 VAC, or 12-28 VDC. The
label on the side of the electronics enclosure lists the meter’s required line voltage and power rating. The fuse size is
listed in Chapter 4, Specifications. Be sure to connect the meter only to the specified line voltage.
Note: For compliance with the European Union’s Low Voltage Directive (2006/95/EC), this unit requires an external
power disconnect device such as a switch or circuit breaker. The disconnect device must be marked as such,
clearly visible, directly accessible, and located within 1.8 m (6 ft) of the Model XGM868i.
Note: Only use Class 2 Rated Power supply for line power connection to DC instrument.
Refer to Figure 10 on page 25 to locate terminal block TB5 and connect the line power as follows:
WARNING! Improper connection of the line power leads or connecting the meter to the incorrect line voltage
may damage the unit. It may also result in hazardous voltages at the flowcell and associated piping
as well as within the electronics enclosure.
1. Prepare the line power leads by trimming the line and neutral AC power leads (or the positive and negative DC
power leads) to a length 0.5 in. (1 cm) shorter than the ground lead. This ensures that the ground lead is the last to
detach if the power cable is forcibly disconnected from the meter.
2. Install a suitable cable clamp in the conduit hole indicated in Figure 10 on page 25. If possible, avoid using the
other conduit holes for this purpose, to minimize any interference in the circuitry from the AC power line.
WARNING! To meet CE Mark requirements, all cables must be installed as described in Appendix A,
CE Mark Compliance .
3. Strip 1/4 in. of insulation from the end of each of the three power line leads.
4. Route the cable through the conduit hole and connect the line power leads to terminal block TB5, using the pin
number assignments shown in Figure 10 on page 25.
5. Leaving a bit of slack, secure the power line with the cable clamp.
WARNING! Make sure both covers, with their o-ring seals, are installed and the set screws tightened before
applying power in a hazardous environment.
CAUTION! The transducers must be properly wired before applying power to the meter.
Proceed to the next section to continue the initial wiring of the Model XGM868i flow transmitter.

Chapter 1. Installation
8 DigitalFlow™ XGM868i Startup Guide
1.7.2 Wiring the Transducers
Before wiring the XGM868i transducers, complete the following steps:
• disconnect the main power from the electronics enclosure
• remove the rear cover and install all required cable clamps
Based on the location of the electronics enclosure, proceed to the appropriate sub-section for detailed instructions.
1.7.2.1 Flowcell-Mounted Enclosure
For an electronics enclosure mounted directly on the flowcell, wire the transducers as follows:
WARNING! Before connecting the transducers, take them to a safe area and discharge any static buildup by
shorting the center conductor of the transducer cables to the metal shield on the cable connector.
Note: For transducer frequencies below 2 MHz, the cable lengths given for a pair of transducers must be within 4 in.
(10 cm) of each other. If the transducer frequency exceeds 2 MHz, the cable lengths must be within 0.5 in. (1.25
cm) of each other.
1. Locate the CH1 transducer cables and connect them to the two CH1 transducers in the flowcell. Feed the free ends
of the cables through the selected conduit hole in the electronics enclosure.
2. Refer to the wiring diagram in Figure 10 on page 25 and connect the transducer cables to terminal block J3. Then,
secure the cable clamp.
Note: The RED cable leads are the SIG(+) leads and the BLACK cable leads are the RTN(-) leads.
WARNING! To meet CE Mark requirements, all cables must be installed as described in Appendix A,
CE Mark Compliance .
3. For a 2-Channel XGM868i, repeat steps 1-2 to connect the CH2 transducers to terminal block J4. It is not required
that both channels of a 2-Channel unit be connected.
4. If wiring of the unit has been completed, reinstall the rear cover on the enclosure and tighten the set screw.
Note: A channel must be activated before it can begin taking measurements. See Chapter 2, Initial Setup, for
instructions.

DigitalFlow™ XGM868i Startup Guide 9
Chapter 1. Installation
1.7.2.2 Remote-Mounted Enclosure
For a remote mounted enclosure, refer to the wiring diagram in Figure 10 on page 25 and the remote transducer
wiring in Figure 12 on page 27, and complete the following steps:
WARNING! Before connecting the transducers, take them to a safe area and discharge any static buildup by
shorting the center conductor of the transducer cables to the metal shield on the cable connector.
1. Using the pair of coaxial cables with BNC to BNC connectors supplied by the factory (or equivalent cables),
connect both CH1 transducers to the preamplifier.
CAUTION! As part of maintaining the FM/CSA environmental rating (TYPE 4) on the remote preamplifier, thread
sealant is required on all conduit entries.
2. If an optional lightning protector is being installed, connect it to the preamplifier as shown.
3. Using the supplied coaxial cables with BNC to flying lead connectors (or equivalent cables), route the cables
through one of the conduit holes in the electronics enclosure and connect the preamplifier to terminal block J3.
Secure the cable clamp.
Note: The RED cable leads are the SIG(+) leads and the BLACK cable leads are the RTN(-) leads.
WARNING! To meet CE Mark requirements, all cables must be installed as described in Appendix A,
CE Mark Compliance .
4. For a 2-Channel XGM868i, repeat steps 3-5 to connect the CH2 transducers to terminal block J4 in the electronics
enclosure. It is not required that both channels of a 2-Channel unit be connected.
5. If wiring of the unit has been completed, reinstall the rear cover on the enclosure and tighten the set screw.
Note: A channel must be activated before it can begin taking measurements. See Chapter 2, Initial Setup, for
instructions.
Proceed to the next section to continue the initial wiring of the unit.

Chapter 1. Installation
10 DigitalFlow™ XGM868i Startup Guide
1.7.3 Wiring Std 0/4-20 mA Analog Outputs
The standard configuration of the Model XGM868i flow transmitter includes two isolated 0/4-20 mA analog outputs
(designated as outputs 1 and 2). Connections to these outputs may be made with standard twisted-pair wiring, but
the current loop impedance for these circuits must not exceed 600 ohms.
To wire the analog outputs, complete the following steps:
1. Disconnect the main power and remove the rear cover.
2. Install the required cable clamp in the chosen conduit hole on the side of the electronics enclosure.
3. Refer to Figure 10 on page 25 for the location of terminal block J1 and wire the analog outputs as shown. Secure
the cable clamp.
Note: Analog outputs 1 and 2 in the wiring diagram correspond to analog outputs A and B in Slot 0 in the XGM868i
software.
WARNING! To meet CE Mark requirements, all cables must be installed as described in Appendix A,
CE Mark Compliance .
4. If wiring of the unit has been completed, reinstall the rear cover on the enclosure and tighten the set screw.
WARNING! Make sure both covers, with their o-ring seals, are installed and the set screws tightened before
applying power in a hazardous environment.
Note: Prior to use, the analog outputs must be set up and calibrated. See Chapter 1, Calibration, of the Service
Manual for detailed instructions.
Proceed to the next section to continue the initial wiring of the unit.
