OPERATION MANUAL
SUPERDECK SERIES GAS DECK OVENS

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
Series:
Y600 and Y800
FLOOR MODEL GAS DECK OVENS
All gas operated Bakers Pride®deck ovens are intended
for use with the type of gas specified on the rating plate
and for installation will be in accordance with National
Fuel Gas Code ANSI Z223.1 (latest edition).
Please retain this manual for future references.
This equipment is design engineered for commercial
use only.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicinity
of this or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
CAUTION
Instructions to be followed in the event the user
smells gas must be posted in a prominent location
in the kitchen area. This information shall be
obtained from the local gas supplier.
NOTICE
BAKERS PRIDE OVEN COMPANY, LLC.
1307 N. Watters Rd., Suite 180
Allen, TX 75013
Phone: [phone] | Fax: [phone] | www.bakerspride.com
P/N U4282A REV B 03/2021
IMPORTANT INSTRUCTIONS: After the gas
supply has been connected to your unit, it is
extremely important to check piping for possible
leaks. To do this, use soap and water solution or
solutions that are expressly made for this purpose.
DO NOT USE matches, candles, flames, or other
sources of ignition since these methods are
extremely dangerous. Post in a prominent location
instructions to be followed in the event you smell
gas. Obtain these instructions from your local gas
supplier.
WARNING
Only Pizza or Bread can have direct contact with
Fibrament decks. All other food products must
be placed in a pan or container to avoid direct
contact with ceramic decks.
NOTICE
California Residents Only
WARNING: This product can expose you to
chemicals including chromium which is known to
the State of California to cause cancer and birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
WARNING

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
TABLE OF CONTENTS
1
INSTALLATION INSTRUCTIONS 2
RECEIVING 2
CLEARANCES 2
ASSEMBLING THE STAND 3
INSTALLATION WITH CASTERS 4
PIZZA DECKS 4
(A) THREE DECK INSTALLATION 4
(B) FIVE DECK INSTALLATION 4
GAS AND ELECTRIC CONNECTIONS 5
FLUE CONNECTION-VENTILATION 6
(A) UNDER VENTILATION HOOD 6
(B) DIRECT VENTING 6
MAIN BURNER SAFETY PILOT OPERATION 6
(A) PILOT BURNER LIGHTING PROCEDURE 7
(B) PILOT BURNER FLAME ADJUSTMENTS 7
BURNER OPERATION 7
(A) MAIN BURNER 7
(B) AERATION &BY-PASSFLAME ADJUSTMENT 7
THERMOSTAT CALIBRATION 7
FLAME DIVERTERS 7
OPERATING INSTRUCTIONS 8
LIGHTING PROCEDURE 8
BREAKING IN 8
BAKING 8
RECOMMENDED OPERATING PROCEDURE 8
HELPFUL HINTS 9
CLEANING AND MAINTENANCE 9
OVEN EXTERIOR 9
CONTROL PANEL 9
FLUE VENT 10
OVEN INTERIOR 10
(A) BAKING CHAMBER 10
(B) BAKING DECKS 10
(C) BURNER COMPARTMENT 10
TROUBLESHOOTING CHART 11
EXPLODED VIEWS & PARTS LISTS 12
WIRING DIAGRAMS 16
WARRANTY 17
EN 437
Gas Cat. Gas and Supply Pressures Designated European Market = u
A
TB ED KF IF RG RD EI EI TL UN LP TE SS EG B
I2H G20 @ 20mbar u uu uu uuuu
I2L G25 @ 25mbar u
I2E G20 @ 20mbar u u
I2E+ G20/25 @ 20/25mbar u u
For North America:
TYPE OF GAS MANIFOLD PRESSURE
Natural 3.5” Water Column
LP 10” Water Column
Models Covered:
MODEL BTU/HR KW MODEL BTU/HR KW
Y-600 120,000 35.15
Y-800 120,000 35.15
LP Gas models are not available for European Community Countries.

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
2
INSTALLATION INSTRUCTIONS
Receiving:
Read the notice on the outside carton regarding damage
in transit. Damage discovered after opening crate(s)/
carton(s) is ‘CONCEALED DAMAGE’ and the carrier
must be notified immediately to send an inspector and
also to furnish forms for the consignee’s claim.
When the oven arrives, it should consist of:
a) A crate or carton containing your new oven.
b) A carton containing 4 legs with mounting hardware.
c) A strapped skid containing baking decks.
Place the oven and parts as close as possible to the area
of final installation before uncrating.
In MASSACHUSETTS: All gas products must be
installed by a “Massachusetts” licensed plumber
or gas fitter. Ventilation hoods must be installed in
accordance with NFPA-96, current edition, with
interlocks as described in that standard.
WARNING
Installation must conform with local codes and/
or with the latest edition of the ANS Z-223.1
National Fuel Gas Code in USA (CAN/CGA-B
149.1 or 2 Installation Code in Canada).
WARNING
This appliance must be installed by a competent
person in accordance with the rules in force. In
the U.K. Corgi registered installers (including the
regions of British Gas) undertake to work to safe
and satisfactory standards. This appliance must
be installed in accordance with the current Gas
Safety (Installation and Use) Regulations and the
relevant Building Regulations/lEE Regulations.
Detailed recommendations are contained in the
British Standard Codes Of Practice BS 6172, BS
5440:Part 2 and BS 6891.
WARNING
Clearances:
Combustible
Construction
Non-Combustible
Construction
Minimum Clearance from: Left
Side
3” (75mm) 0”
Minimum Clearance from: Right
Side
1” (25mm) 2”
Minimum Clearance from: Rear 3” (75mm) 2” (51mm)
Set Up:
The oven must be installed in a well-ventilated area.
Your oven is packed standing on its back. Leave it on
its back while unpacking. The skid may be left under
the oven for convenience in further handling. Unpack
carefully to avoid damage to the oven. If concealed
damage is found, follow the instructions detailed in
Receiving Section.
Keep the area around the oven free and clear of
combustible materials. Do not store any materials on
top of or under any oven. The provision of an adequate
air supply to your oven for ventilation and proper gas
combustion is essential. As a minimum, observe the
clearances detailed in Section 2. Provide adequate
ventilation and make up air in accordance with local
codes.
Fit the flue diverter supplied (See Fig.1) into the hole
located at top near the left rear of the oven and secure
with screws for installing the oven under a ventilation
hood. For Direct Venting, Optional Draft Hood (Fig.
2) must be placed into the hole. Direct Venting not
available for European Community Countries. Local
inspectors and ventilation specialists should be
consulted to make sure that the installation of the
hood conforms to the local codes and requirements
(See Fig. 3). In UK ventilation requirements as
detailed in BS 5440 should be followed.
Access to the bottom front door and left side control
panel is for day to day operation of the oven and for
servicing. Make these areas are kept unobstructed for
easy access.
Flue Diverter
(For use w/
Collection
Hood)
Figure 1
Draft Hood
(For use
w/Direct
Venting)
Figure 2

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
3
INSTALLATION INSTRUCTIONS
Assembling The Stand:
Legs are shipped in a separate carton complete with
mounting bolts.
a) Bolt four legs to the four of the stand using the
supplied 3/8-16 x 3/4 bolts, flat washers, and lock
washers. (See Fig. 4).
b) Bolt side braces and rear brace to legs using
supplied 3/8-16 x 3/4 bolts, lock washer, and flat
washer. (See Fig. 5).
c) Using proper lifting equipment, lower the oven
from its back to its bottom. Lift the unit and set on
stand. (See Fig.6).
d) Move the oven to its final location keeping the
minimum clearances from the back of the oven
to the wall. This clearance is necessary for safe
operation and to provide proper air-flow to the
burner chamber.

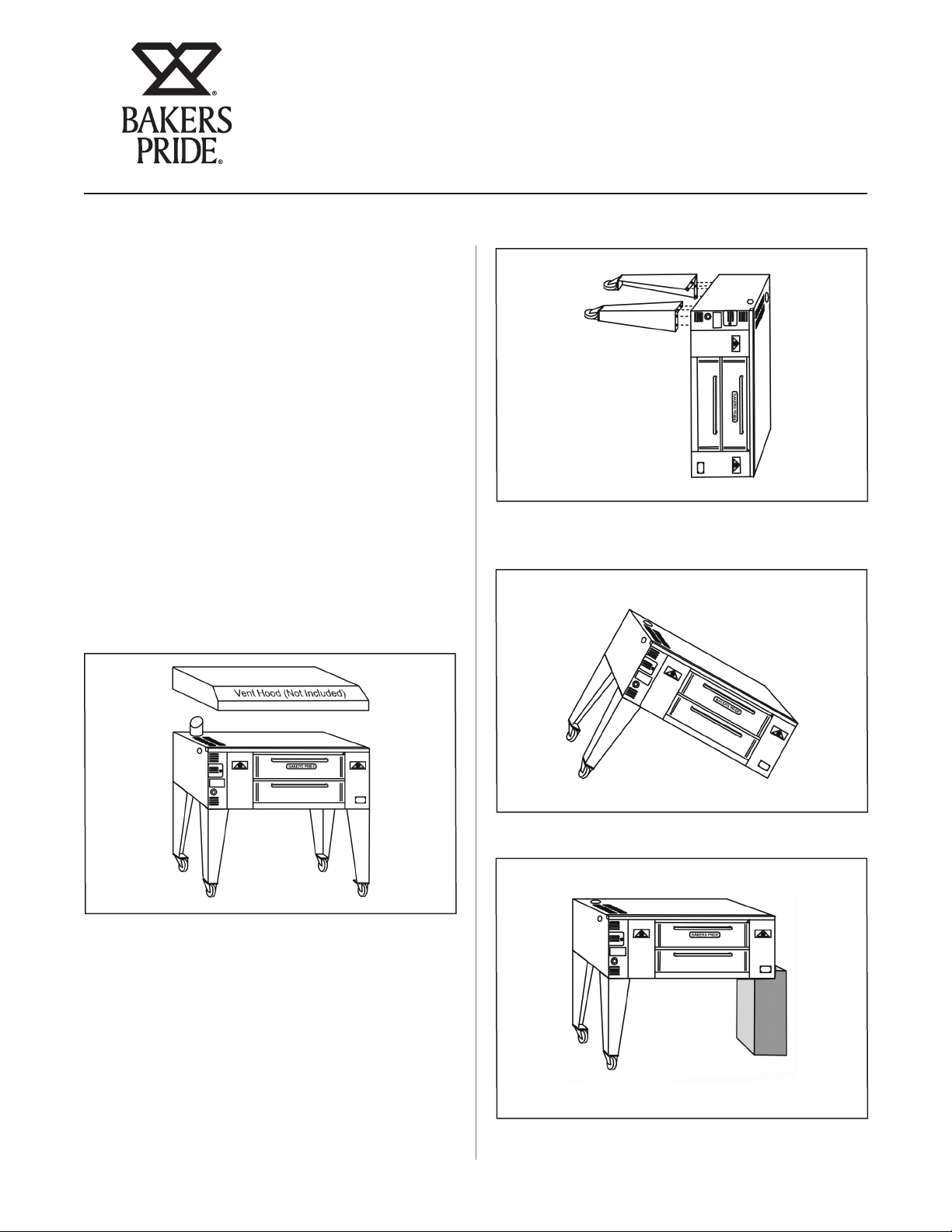

Figure 3
Figure 4
Figure 5
Figure 6

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
4
INSTALLATION INSTRUCTIONS
Installation With Casters (Optional):
Four Casters (two with wheel brakes) and the mounting
hardware is packed and included in the shipment if
ordered. Install casters with wheel brakes on the front of
the unit.
Installation should be made with a connector that
complies with the latest edition of the Standard
for Connectors for Movable Gas Appliances ANSI
Z21.69 in the USA (CAN CGA-6.16 in Canada)
and a quick disconnect device that complies
with the latest edition of the Standard for Quick
Disconnect Devices for use with gas fuel ANSI
Z21.41 in the USA (CAN CGA 1-6.9 in Canada)
and adequate means must be provided to limit
the movement of the appliance without depending
on the connector and any quick disconnect device
or its associated piping.
NOTICE
The restraint should be attached to the rear legs of the
oven on which casters are mounted. lf disconnection of
the restraint is necessary to move the oven for servicing
needs, the restraint should be reconnected after the
appliance has been returned to its originally installed
position.
Pizza Deck:
(a)Remove all packing material, samples, shims, etc.
from the baking chamber leaving the two metal
hearth liner sheets on the baking chamber floor.
Make sure that the two metal hearth liner sheets
cover the entire bottom of the chamber.
(b) Depending on the model, three or five slabs of
the Pizza Deck are provided with the oven. This
material is heavy, and fragile, and should be
handled carefully.
A. Three Deck Installation:
(a) Slide one deck into the baking chamber and
push it as far as possible to one side.
(b) Slide the second deck into the baking chamber
on the side opposite to the first deck.
(c) Slide the third deck into the center section.
(d) Use metal shims to level the decks.
(e) Use wedges in the back and on the sides of the
deck if the decks are loose. The three decks
should be tight against each other with no gap
between them (See Fig. 7).
(f) Put the hearth trim in place between the deck
and the door.
DO NOT install the baking stones until you have
read the pre-drying instructions. Failure to pre-dry
the stones can result in severe damage to your
oven and void the manufacturer’s warranty.
WARNING

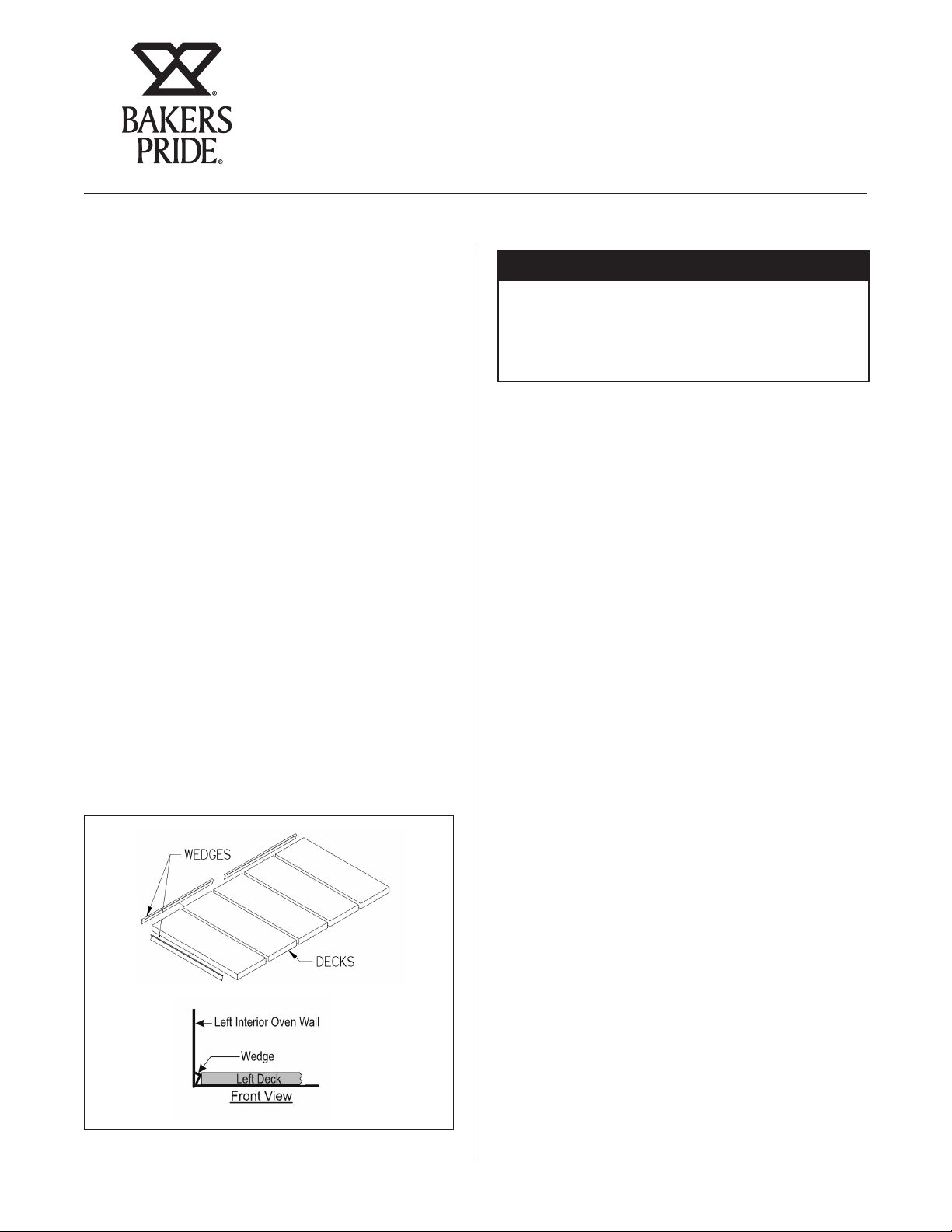

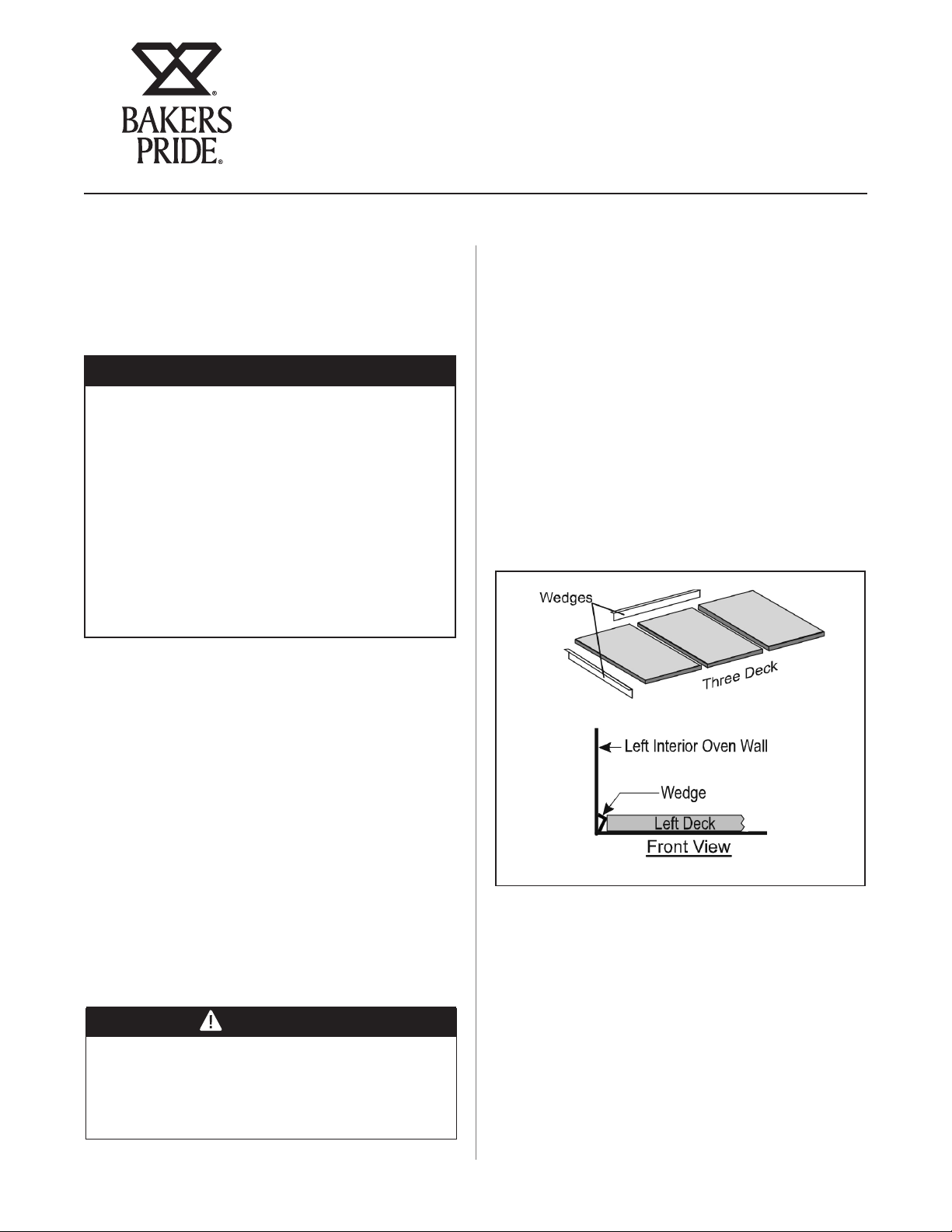

Figure 7
B. Five Deck Installation:
(a) Slide one deck into the baking chamber and
push it as far as possible to one side.
(b) Slide the second deck into the baking
chamber on the side opposite to the first deck.
(c) Slide the third and the fourth decks in the
same as the first two decks.
(d) Slide the fifth deck into the center section.

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
5
INSTALLATION INSTRUCTIONS
(e) To minimize warpage and extend the life of
the Fibrament Stones, they must be pre-dried
before use.
(1) KEEP THE OVEN DOOR CLOSED DURING
THE ENTIRE PRE-DRYING PROCESS.
(2) Let the baking stones adjust to room
temperature before beginning.
(3) Preheat the stones with the pilot burner on
for 1 hour.
(4) Increase the temperature to below 300°F
to maintain a flame height of less than a
1/4”). Maintain this setting for 3 hours
(5) After 3 hours increase temperature to
300°F for 1 hour, then 400°F for 1 hour,
and then 500°F for 1 hour.
(6) DO NOT ALTER THIS PROCESS, failure to
properly pre dry stones can cause warping,
cracking, or shattering with explosive
force.
(f) Use metal shims as needed to level the decks.
(g) Use wedges in the back and on the sides of
the deck if the slabs are loose. The five decks
should be tight against each other with no gap
between them (See Fig. 8).
(h) Put the hearth trim in place between the deck
and the door.
Gas and Electric Connections:
Propane gas units are not available in the European
Community Countries.
(a) The appliance when installed must be electrically
grounded in accordance with local codes and/or
the latest edition of the National Electric Code
ANSI/NFPA 70 in USA (Canadian Electric Code
CSAC22.2 in Canada).
(b) In Europe, appliance must be connected by an
earthing cable to all other units in the complete
installation and thence to an independent earth
connection in compliance with EN 60335-1 and/
or local codes.
(c) The ovens should not be installed on the same line
with space heaters, boilers or other gas equipment
with high intermittent demand.
(d) Use a pipe joint compound that is resistant to the
action of liquefied petroleum gases when making
gas connections.
(e) For Propane gas, use at least 1/2” (13 mm) pipe
or tubing with a 5/8” (16 mm) inside diameter.
For Natural gas, use 3/4” (19 mm) pipe.
(f) The appliance must be isolated from the gas
supply piping system by closing its manual shut-
off valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psig (3.45kpa).
(g) The appliance and its shut-off valve must be
disconnected from the gas supply piping system
during any pressure testing of that system attest
pressures in excess of 1/2” psig (3.45kpa).
Figure 8
If the side wedges are pushed in too tight, the
heat controls, operated by the black knobs,
located on the front of the oven, will not slide
freely.
NOTICE

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
6
INSTALLATION INSTRUCTIONS
(h) The gas pressure regulator is part of the
combination valve and is adjusted to yield a
pressure of 3.5”water column (9mbar) for Natural
Gas. If the oven is ordered for use on Propane Gas,
the pressure regulator in the combination valve
is preset at the factory to yield a pressure of 10”
water column (25 mbar). Units for use on Propane
Gas are not available for European Community
Countries.
(i) A separate shut-off valve for each oven must be
provided. It should be as close as possible to the
place where the gas supply line goes into the oven.
It must be located such that it is easily accessible.
(j) When stacking with another oven, two shut-off
valves, one for each of the two ovens, must be
provided.
Do not put a damper in the flue and do not
connect a blower directly to the flue.
NOTICE
Flue Diverter
(For use w/
Collection
Hood)
Figure 1
Draft Hood
(For use
w/Direct
Venting)
Figure 2
Figure 3
Main Burner Safety Pilot Operation:
The purpose of the safety pilot system is to lock the
gas supply to the main burner at the safety valve, if for
any reason the pilot burner is not lit. Oven should be
re-lighted by following the steps given below. However,
in normal service, the pilot flame stays lit indefinitely,
day and night or weekends. This prolongs the life of the
safety valve.
The safety pilot valve is in effect a two-stage control.
After initial lighting, the pilot burner stays on without the
gas cock dial being held pressed in. After 1-2 minutes,
the valve opens fully to let the gas flow past the safety
pilot valve into the burner system.
After the Gas Supply has been connected, it is
extremely important to check all the piping for
leaks. Use a soap and water solution or a product
expressly made for this purpose. Do not use
Matches, Candles or a flame etc to check leaks
since these methods are extremely dangerous.
WARNING
Flue Connection - Ventilation:
(A) Installation Under Ventilation Hood (Standard):
If the oven is installed under a collection hood,
use the flue diverter (Fig. 1) supplied. Local
inspectors and ventilation and environmental
specialists should be consulted so that the design
and the installation of the hood conforms to the
local/ municipal codes (see Fig. 3).
(B) Direct Venting (Optional) Not Available For European
Community Countries:
If direct venting, it is necessary to install a draft
hood (Fig. 2). The flue pipe from the draft hood
must not run downwards at any point from the
oven to the final outlet. It should always slant
slightly upwards. For best results it should rise
straight up.
If the flue runs directly to the free air outside the
building, use a wind deflector or a UL listed vent cap at
the end of the flue pipe. Termination of the vent must
be at least 2 feet above the highest part of the roof
within 10 feet (Ref: American Gas Association Catalog
No.Xh0474).

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
7
INSTALLATION INSTRUCTIONS
Pilot Burner Lighting Procedure:
(a) Turn the red handle on gas shut off valve to ‘OFF’
(horizontal) position.
(b) Wait for five minutes to allow gas, which may
have accumulated in the burner compartment, to
escape.
(c) Depress “RED” button on pilot safety valve and
light Pilot Burner. Hold in pressed position for
about 1/2 minute (30 seconds), and release
the “RED” button. The Pilot Burner should now
remain lit.
If Pilot Burner fails to ignite or does not remain lit, repeat
the steps (a) through (c).

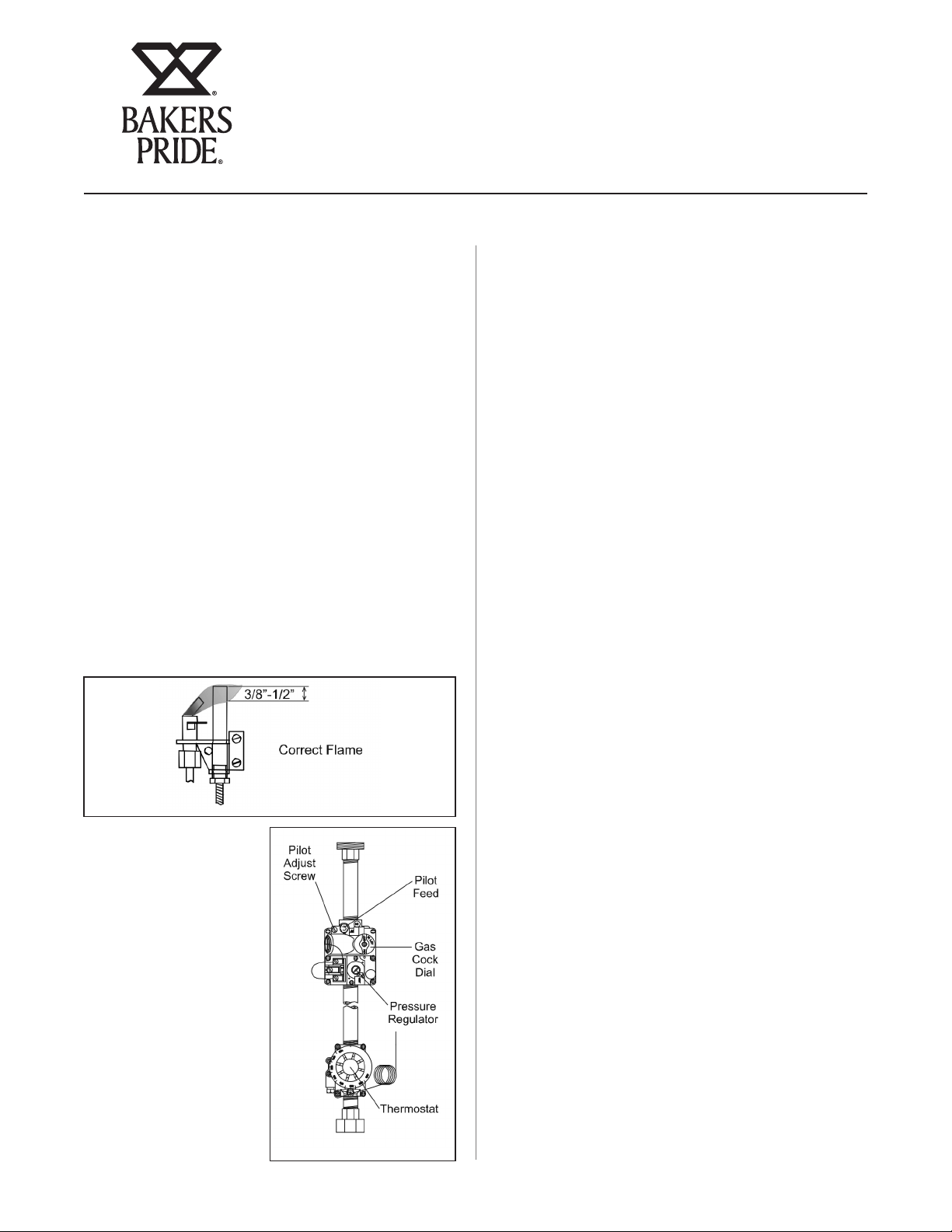

Pilot Burner Flame Adjustment:
It is important to have the correct Pilot Burner Flame
size as shown in Fig. 10. If necessary, adjust the Pilot
Burner Flame by turning Pilot Adjust Screw (See Fig.
11) clockwise to reduce or counterclockwise to increase.
Figure 10
Figure 11
Burner Operation:
(A) Main Burner:
After the pilot burner is ignited, when heat is
desired, turn gas cock dial to ‘ON’() position and
set the thermostat dial to the desired temperature.
The oven burner flame should always have a blue
appearance. That indicates a good mixture of gas
and air. When using LP gas, the flame will have a
blueyellow appearance.
Should the Burner fail to light, check to see if
there is a problem with the gas supply. lf there are
other appliances on the same line, shut them off
temporarily and see if the burner comes back on,
or it fluctuates as other gas appliances are turned
on and off. That would indicate overloading of the
gas supply lines or a faulty gas pressure regulator.
Contact an authorized Service Agency or your local
Gas Supply Company.
(B) Aeration And By-Pass Flame Adjustment:
Flame and air mixer adjustments and the By-Pass
Flame adjustment for the Main Burner are done at
the factory. These adjustments are sealed before
the oven leaves the factory. Contact an authorized
Service Agency if you need help.
Thermostat Calibration:
No attempt should be made to calibrate the thermostat
because it is accurately calibrated and sealed by the
manufacturer. Contact an authorized Service Agency if
you need help.
Flame Diverters:
Flame diverters distribute the heat evenly below the
baking deck. They must be in good condition and
properly placed above the burners in the burner
chamber in order to be effective. Damaged or
improperly installed flame diverters adversely affect
the oven performance. Make sure that the ‘V’ shaped
diverters are pushed all the way to the back of the oven
as far as they will go. Check them periodically and
replace them as necessary.

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
8
OPERATING INSTRUCTIONS
Lighting Procedure:
(a) Light the Main Burner following the instructions in
Lighting Section of the Installation Instructions.
(b) Keep the Push/Pull Slides fully open.
Breaking In:
It is important to break-in, to dry out the deck and the
insulation, before baking in a new oven:
(a) Set the thermostat at least 50°F (10°C) lower than
your baking temperature.
(b) Pre-heat the oven for 1 to 3 hours before use.
(c) After pre-heating, raise the temperature to your
baking temperature.
(d) Experiment baking until you get the feel of the
oven and the speed of the bake.
Only Pizza and Bread Products can have direct
contact with Fibrament Decks. All other food
products must be placed in a pan or containers to
avoid direct contact with Fibrament Decks.
NOTICE
If gas odor is detected at any time, immediately
shut-off the gas supply valve for the oven. Do
not permit any open flames in the area of the
oven. Immediately contact an authorized Service
Agency or your local Gas Supply Company.
WARNING
Initial heating of the oven must be done in a
well ventilated area as it may generate smoke
or fumes. Over exposure to smoke or fumes may
cause nausea or dizziness.
CAUTION
Baking:
Pizza can be baked on the deck, on a screen or
in a pan. When you determine the combination of
ingredients and temperature that gives the right bake for
your crust, sauce, and cheese combination, and your
customer’s taste, mark and keep it.
Deck baking refers to baking Pizza directly on the deck.
Generally it is a thin product that requires temperature
of at least 550°F (290°C).
Screen baking refers to baking Pizza on a screen. The
screen lifts the Pizza off the deck. The screen may
be removed near the end of the bake time to give the
bottom of the Pizza crispier crust and a darker color.
Bake temperatures range from 500°F (260°C) to 550°F
(290°C).
Pan baking refers to baking Pizza in pans. Crusts can
be thick or thin and toppings range from light to heavy.
Baking temperatures for pan baking range from 450°F
(235ºC) to 500ºF (260ºC).
Recommended Operating Procedure:
It is very important that at the end of day’s operation, the
gas cock dial of the Main Burner is turned to the pilot
position, leaving only the pilot burner ‘ON’ overnight.
Keep the Pizza Push/Pull slides fully open.
Pre-heating:
(a) Turn the gas cock dial of the main burner to the
‘ON’ position.
(b) Preheat the oven for 1 to 3 hours at 50°F (10°C)
lower than your baking temperature, with Push/
Pull Slides fully open.
Baking:
(a) After pre-heating, raise the thermostat setting to
your baking temperature.
(b) Check the bottom color of the Pie and close the
push/pull slides partially (halfway) after the 4th or
5th bake to maintain the desired color.
When slow or idling, open the push/pull slides
fully and set the thermostat at least 50°F (10°C)
lower than your baking temperature.

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
9
OPERATING INSTRUCTIONS
Helpful Hints:
(a) An instructions plate is attached behind the
damper knobs indicating how to set the oven for
more top or bottom heat. Opening the dampers
allow more heat to enter the baking chamber from
the combustion/burner compartment. Closing the
dampers keep more heat in the combustion/burner
compartment to keep the baking deck hotter.
(b) If the oven is up to Pizza baking temperature
and has not been used for a while, there is a
tendency for the baking deck to get hotter. In
this condition, when you put in one Pizza, TURN
THE THERMOSTAT UP, so that the main burner
flame is burning at its fullest, providing the extra
heat needed to balance the bottom heat. The
thermostat should be turned down back to the
normal setting as soon as you have baked the
Pizza.
(c) Frequently scrape and brush off decks to remove
burnt residue which can cause an ‘off’ flavor and
bake times to increase.
(d) Heavily topped Pizza or Pan Pizza requires
lower bake temperatures and longer bake times
as compared to a regular thin Pizza with light
toppings.
(e) Bubbles in fresh dough indicate under proofed
or cold product. Allow the dough balls to proof
to double in size and warm temperature before
baking.
(f) Any type of Pan or Screen may be used in this
oven. When choosing pans, be sure to pick a pan
which is closest in height of your product. Dark
color pans and screens transfer heat better than
light colored aluminum pans or screens. They
must be seasoned before use.
CLEANING AND MAINTENANCE
This appliance must be serviced by an Authorized
Service Technician only. Disconnect the power supply
before cleaning or servicing the oven.
Regular and thorough cleaning will help to keep the
ovens operating properly. If service is required, contact
an Authorized Service Agency, your dealer or the
factory to obtain a qualified technician for the required
maintenance/service.
Oven Exterior:
(a) Deposits of baked-on splatter and grease, or
discoloration may be removed with the stainless
steel cleaner or by using any commercial cleaner
recommended for stainless steel. RINSE WELL
(b) A thin coat of light oil will add to the appearance
of the oven.
Apply stainless steel cleanser only when the oven
is cold. Always rub with the grains and apply very
light pressure.
NOTICE
Painted Surfaces:
(a) Washing with mild soap and water solution is
adequate to keep the painted surfaces clean.
(b) Apply a thin coat of oil to protect and enhance the
finish.
Control Panel:
Every six months (more frequently if the oven is used
heavily) the bottom door spring mechanism and all
moving parts must be inspected for wear.
Do not apply grease to spring lever shoulder bolt,
spring roller or the door rod and the door pin.
They have a self-lubricating insert that will be
damaged if lubricated.
NOTICE

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
10
CLEANING AND MAINTENANCE
Flue Vent:
Ventilation system must be inspected every six months
and maintained clean and free of obstructions.
Oven Interior:
Clean the oven interior only when the oven is cold. Use
only the detergent solutions and cleaners that meet the
national and / or local codes.
(A) Baking Chamber:
Clean the ceiling and the walls of the baking
chamber with a mild soap and water solution.
Do not use oven cleaners, caustic solutions or
mechanical means as they will damage the interior
aluminized surface.
(B) Baking Decks:
The baking decks are heavy and fragile. They
should be handled carefully. The baking decks
should be cleaned by using a long-handled scraper
and stiff wire brush. At the end of each day, turn
the thermostat up to its maximum setting and let
the oven sit at that temperature for at least 1/2
hour. This will burn off the food spilled onto the
baking decks during day’s production and turn it
into ash. This ash can be brushed off the next day
before turning the oven on. The baking decks
should be scraped and brushed during the day
also to help keep them clean. To remove excessive
crumbs or carbon, the baking decks and the oven
cavity may vacuumed when the oven is cold. Do
not use water or other liquids on the baking decks
as that may cause them to crack. After long use,
heavily soiled baking decks may be cleaned by
turning over after scraping down and brushing off.
This will burn off the heavily soiled side of the
baking decks. This procedure may be repeated
as needed.
(C) Burner Compartment:
Vacuum out any carbon, crumbs or residue in the
burner compartment and all around the doors. The
holes and louvers on the outer surfaces of the oven
must be kept free of obstructions to allow free
movement of air into the controls and for proper
combustion. The burner ports and crossover holes
should be kept free of carbon and other deposits.

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
11
CLEANING AND MAINTENANCE
Troubleshooting Chart
PROBLEM PROBABLE CAUSE REMEDY
No Pilot Light Gas valve feeding oven may be in the closed
position
Turn gas valve on. Relight pilot.
Main Burner(s) do not light Gas valve feeding oven may be in the closed
position
Turn gas valve on. Relight pilot.
Thermopile may not be positioned in pilot flame. Ensure that the tip of thermopile is in pilot flame.
Thermopile may be defective Call local authorized Bakers Pride Service Agent.
Oven too Hot Thermostat set too high. Lower the thermostat setting and see if flame
reduces in size. Allow several hours for heat to
regulate.
Thermostat may be defective Call local authorized Bakers Pride Service Agent.
Bottom of pies are undercooked If the same area of the deck is used repeatedly,
the deck temperature in that area will be reduced.
Rotate pies to unused areas of the bake deck that
are hotter and will cook the bottoms faster.
Micro slides are open too much. Close micro-slides (pull out) until desired
combination is reached. This will help decrease
top heat
Bottom of pies burn before
toppings are cooked
Deck temperature too hot - especially during slow
periods.
Reduce thermostat setting by 50° - 75° below
normal bake temperature. When decks cool begin
cooking and immediately increase the thermostat
setting by 50° - 75°.
Micro slides are closed too much Open micro slides (push-in) to increase top heat.
Oven was left “ON” overnight Oven must be turned to “Pilot” position overnight.
It should not be left on a high temperature setting.
Exhaust fan too powerful. Reduce fan speed.
Pies cook Unevenly Area’s adjacent to oven walls are generally hotter. Rotate pies (180°), once during each bake or keep
to the center of oven.
Oven does not turn On or Off on
time. (Ovens equipped w/auto oven
starter only)
Power cord not plugged in. Plug unit in.
Electrical outlet fuse/circuit breaker is tripped. Replace fuse or reset circuit breaker.
Timer incorrectly set. Reset Timer.
Unit takes too long to reach temp. Gas volume or gas pressure may be inadequate. Contact gas supplier.
Call local authorized Bakers Pride Service Agent.

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
12
EXPLODED VIEWS & PARTS LISTS

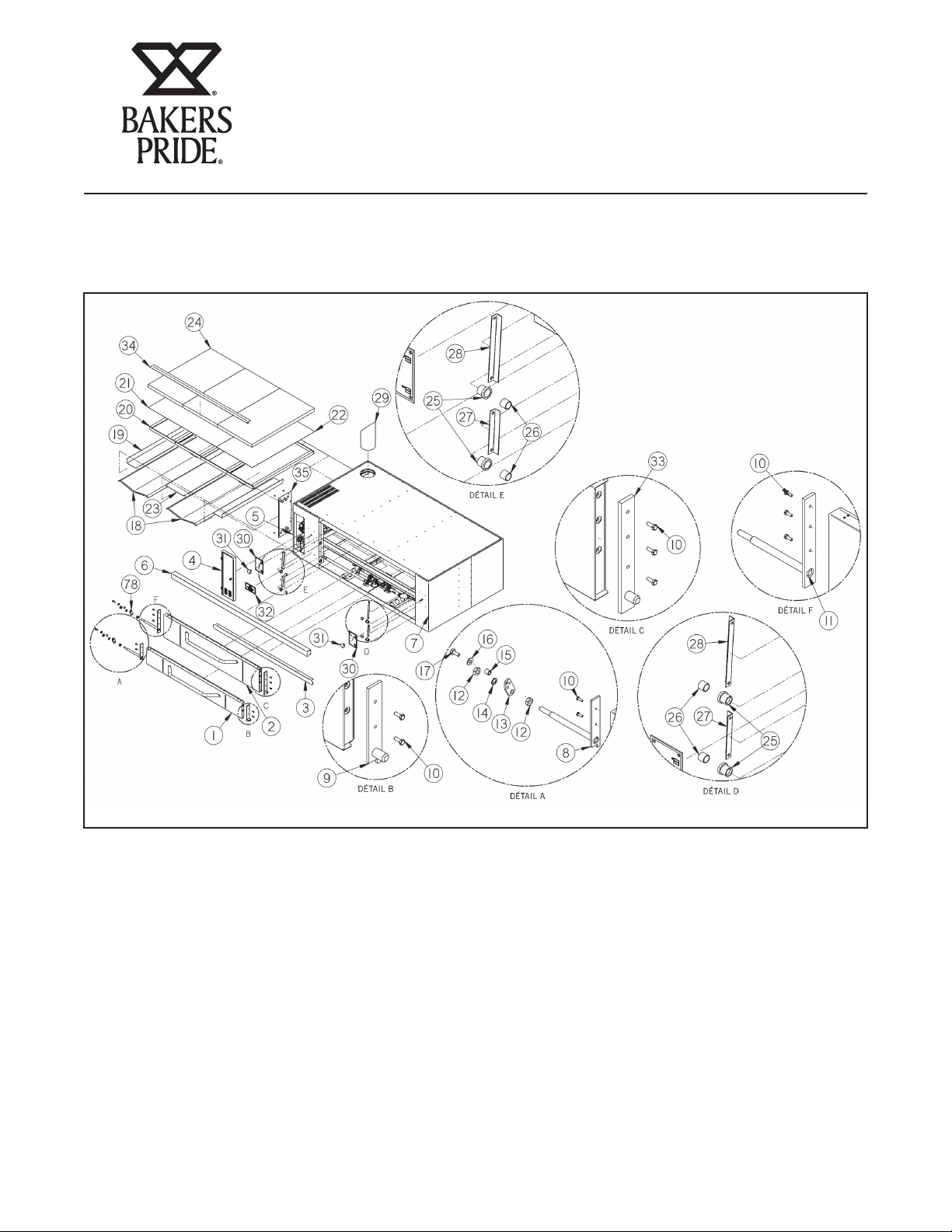

Exploded View – Y600/Y800

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
13
EXPLODED VIEWS & PARTS LISTS

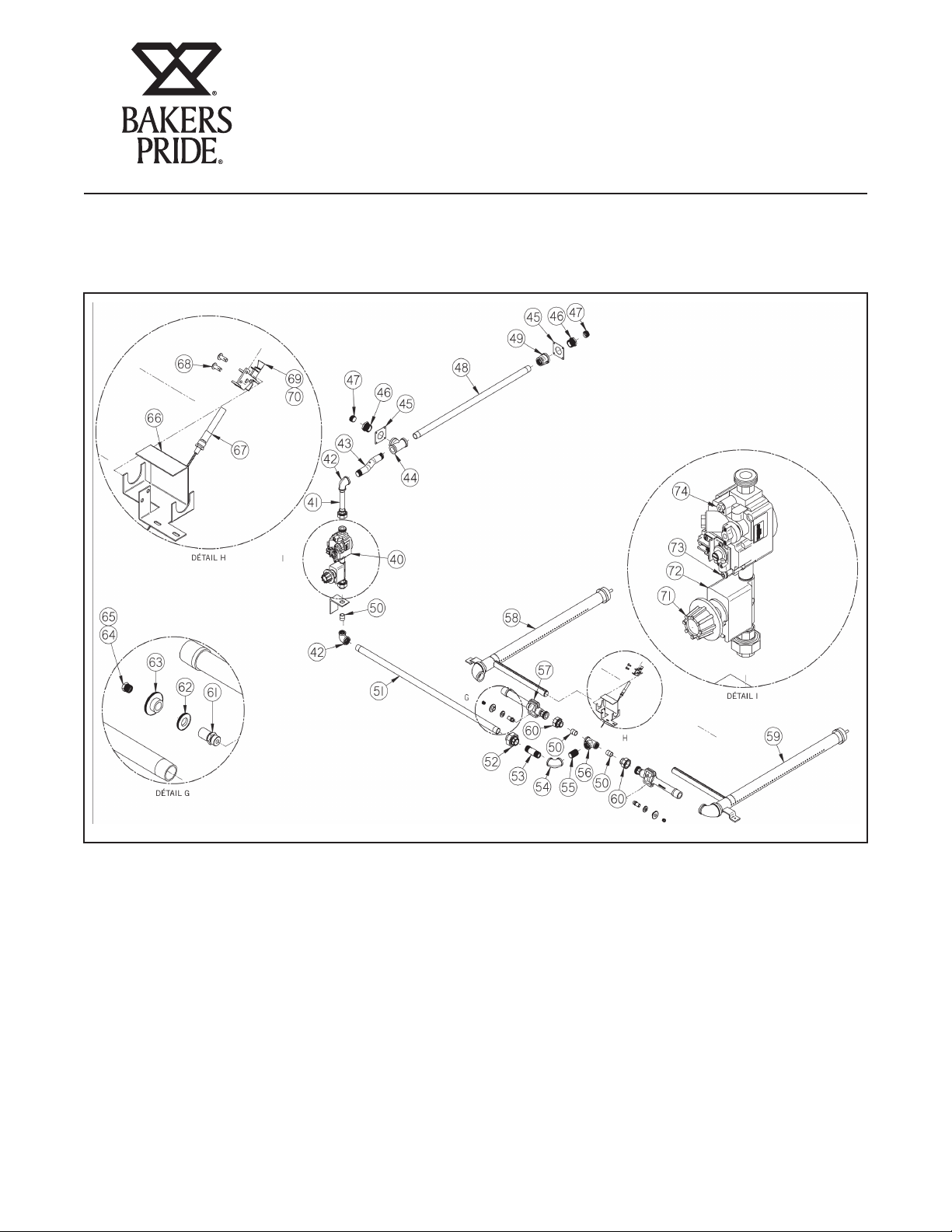

Exploded View – Y600/Y800 Controls/Burners

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
14
EXPLODED VIEWS & PARTS LISTS
Parts List – Y600
ITEM PART # QTY DESCRIPTION
1 21910330 1 ASSY, BOTTOM DOOR Y600/800
2 21910331 1 ASSY, TOP DOOR Y600/800
3 A8057K 1 BOTTOM TRIM
4 A4980T 1 CONTROL PANEL SLEEVE, SS
5 21910188 1 PANEL, FRONT CONTROL SIDE
6 A8056K 1 TOP TRIM
7 21910189 1 PANEL, FRONT RT SIDE
8 21910332 1 WELDMENT, LOWER DOOR ARM LT
9 21910316 1 WELDMENT, LOWER DOOR ARM RT
10 Q2025A 10 BOLT, 1/4-20 X 3/4 HEX HD ZINC
11 21910310 1 WELDMENT, TOP DOOR ARM LEFT
12 Q2401A 2 NUT, HEX 9/16-18
13 S3276A 1 DOOR SPRING ARM, 2.78” BOTTOM
14 Q3007A 1 WASHER, 9/16 SPLIT LOCK
15 S3007A 2 BUSHING ASSY, PTFE 5/.63 X .56
16 Q3010A 4 WASHER, 3/8-7/16 X 1” X 5/64 FLAT
17 Q2301A 1 BOLT, 3/8-16 X 9/32 X 1 SHOULDER
18 A3079K 2 FLAME DIVERTER SLIDE (35”)
19 A8035K 2 HANGER, FLAME DIVIDER
20 A8030T 4 FRAME ASM, HEARTH SUPPORT
21 A4132Z 1 HEARTH LINER SHEET, 36 X 39.25
22 A4133Z 1 HEARTH LINER SHEET, 36 X 20.75
23 A8036K 1 HANGER, FLAME DIVIDER CENTER
24 T1381A 3 STONE HEARTH, AWMCO 36” X 20” X 2”
25 S3134A 5 BUSHING, .81/.88 ID X 1 X 1.25 OD
26 S3133A 5 SLEEVE, DURALON .75 ID X .88 OD
27 A8017K 2 ANGLE, DOOR JAM BOTTOM
28 A8016K 2 ANGLE, DOOR JAM
29 R3115A 1 FLUE DEFLECTER
30 U1356A 2 PUSH-PULL PLATE
31 S1005A 2 KNOB, PUSH-PULL 3/8-16 BLK
32 8808902 1 NAMEPLATE, BAKERS PRIDE, DECK OVENS
33 21910312 1 WELDMENT, TOP DOOR ARM RIGHT
34 A8061K 1 COVER, HEARTH TRIM
35 A8082K 1 COVER FRONT LEFT ACCESS DOOR
36 S1004Y* 1 LEG, 30” [SET OF 4]
37 S1120Y* 1 LEG & CASTER 30” [SET OF 4]
38 S1003Y* 1 LEG, 16” [SET OF 4]
39 S1119Y* 1 LEG & CASTER 16” [SET OF 4]
40 M1242P 1 CONTROL ASSY, Y600
41 N5014A 1 NIPPLE, 1/2” X 5”, BLK PIPE
42 N3021A 2 REDUCING ELBOW, 3/4” X 1/2” 90° BLKSTL
ITEM PART # QTY DESCRIPTION
43 N5232A 1 NIPPLE, 3/4” X 6-3/4” BLK PIPE, 3/4
OFFSET
44 N3002A 1 TEE, 3/4” X 3/4” X 1”, BLK PIPE REDUCING
45 K1332B 2 BACK COVER PATCH, SS
46 N3008A 2 BUSHING, 1” X 3/4” REDUCING, BLK PIPE
47 N3022A 2 PLUG, 3/4” STEEL PIPE, W/1/2” SQ
REECESS
48 N5217P 1 NIPPLE, 3/4” X 27-3/4”, BLK PIPE
49 N3007A 1 COUPLIING, 1”X3/4” REDUCING, BLK PIPE
50 N5009A 6 NIPPLE, 1/2” X 15/16”, BLK PIPE
51 N 5231P 1 NIPPLE, 3/4” X 34-1/4”, BLK PIPE
52 00235 2 3/4” BLK STL UNION
53 N5218A 1 NIPPLE, 3/4” X 3” BLK STL
54 N3004A 1 ELBOW, 3/4” 90 ° BLK STL
55 N5213A 1 NIPPLE, 3/4” X 1-1/2” BLK STL
56 N3012A 1 REDUCING TEE, 1/2” X 1/2” X 3/4” BLK STL
57 L5001A 2 INSPIRATOR, #3 BLK
58 L5121T 1 BURNER ASSY, LH
59 L5122T 1 BURNER ASSY, RH
60 N3009A 4 1/2” BLK STL UNION
61 R3004A 2 SPUD HOLDER #3
62 R3006A 2 LOCKING DISK, SPUD
63 R3005A 2 ADJUSTING DISK #3 SPUD
64 R3117P 2 ORIFICE, #25 NAT, #3 SPUD
65 R3129P* 2 ORIFICE, #43 LP, #3 SPUD
66 A4143K 1 PILOT MOUNTING BRACKET
67 M1265A 1 THERMOPILE, Q313
68 Q1401A 2 SCREW, 10-32 X 1/2” PAN HD
69 M1220A 1 PILOT BURNER NAT
70 M1245A *1 PILOT BURNER LP
71 S1056A 1 KNOB, THERMOSTAT, 650 “F”, GAS BLACK
72 M1005A 1 THERMOSTAT, 650°F, FDTH
73 N3068P 1 PRESSURE TAP ASSY
74 M1242P 1 CONTROL ASSY BMVR NAT
75 M1248P* 1 CONTROL ASSY BMVR LP
76 A8006K* 1 BRICK LINED SUPPORT BRACE
77 T1375A* 7 BAKING DECK, CERAMIC
78 S3275A 1 DOOR SPRING ARM, 2.78”
* INDICATES NOT SHOWN

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
15
CLEANING AND MAINTENANCE
Parts List – Y800
ITEM PART # QTY DESCRIPTION
1 21910330 1 ASSY, BOTTOM DOOR Y600/800
2 21910331 1 ASSY, TOP DOOR Y600/800
3 A8057K 1 BOTTOM TRIM
4 A4980T 1 CONTROL PANEL SLEEVE, SS
5 21910288 1 PANEL, FRONT CONTROL SIDE
6 A8056K 1 TOP TRIM
7 21910289 1 PANEL, FRONT RT SIDE
8 21910332 1 WELDMENT, LOWER DOOR ARM LT
9 21910316 1 WELDMENT, LOWER DOOR ARM RT
10 Q2025A 10 BOLT, 1/4-20 X 3/4 HEX HD ZINC
11 21910310 1 WELDMENT, TOP DOOR ARM LEFT
12 Q2401A 2 NUT, HEX 9/16-18
13 S3276A 1 DOOR SPRING ARM, 2.78” BOTTOM
14 Q3007A 1 WASHER, 9/16 SPLIT LOCK
15 S3007A 2 BUSHING ASSY, PTFE .5/.63 X .56
16 Q3010A 4 WASHER, 3/8-7/16 X 1” X 5/64 FLAT
17 Q2301A 1 BOLT, 3/8-16 X 9/32 X 1 SHOULDER
18 A3079K 2 FLAME DIVERTER SLIDE (35”)
19 A8035K 2 HANGER, FLAME DIVIDER
20 A8030T 4 FRAME ASM, HEARTH SUPPORT
21 A4132Z 1 HEARTH LINER SHEET, 36 X 39.25
22 A4133Z 1 HEARTH LINER SHEET, 36 X 20.75
23 A8036K 1 HANGER, FLAME DIVIDER CENTER
24 T1381A 3 STONE HEARTH, AWMCO 36” X 20” X 2”
25 S3134A 5 BUSHING, .81/.88 ID X 1 X 1.25 OD
26 S3133A 5 SLEEVE, DURALON .75 ID X .88 OD
27 A8017K 2 ANGLE, DOOR JAM BOTTOM
28 A8016K 2 ANGLE, DOOR JAM
29 R3115A 1 FLUE DEFLECTER
30 U1356A 2 PUSH-PULL PLATE
31 S1005A 2 KNOB, PUSH-PULL 3/8-16 BLK
32 8808902 1 NAMEPLATE, BAKERS PRIDE, DECK OVENS
33 21910312 1 WELDMENT, TOP DOOR ARM RIGHT
34 A8061K 1 COVER, HEARTH TRIM
35 A8082K 1 COVER FRONT LEFT ACCESS DOOR
36 S1004Y* 1 LEG, 30” [SET OF 4]
37 S1120Y* 1 LEG & CASTER 30” [SET OF 4]
38 S1003Y* 1 LEG, 16” [SET OF 4]
39 S1119Y* 1 LEG & CASTER 16” [SET OF 4]
40 M1242P 1 CONTROL ASSY, Y600
41 N5014A 1 NIPPLE, 1/2” X 5”, BLK PIPE
42 N3021A 2 REDUCING ELBOW, 3/4” X 1/2” 90° BLKSTL
ITEM PART # QTY DESCRIPTION
43 N5232A 1 NIPPLE, 3/4” X 6-3/4” BLK PIPE, 3/4 OFFSET
44 N3002A 1 TEE, 3/4” X 3/4” X 1”, BLK PIPE REDUCING
45 K1332B 2 BACK COVER PATCH, SS [
46 N3008A 2 BUSHING, 1” X 3/4” REDUCING, BLK PIPE
47 N3022A 2 PLUG, 3/4” STEEL PIPE, W/1/2” SQ REECESS
48 N5252A 1 NIPPLE, 3/4” X 36”, BLK PIPE
49 N3007A 1 COUPLIING, 1/X3/4” REDUCING, BLK PIPE
50 N5009A 6 NIPPLE, 1/2” X 15/16”, BLK PIPE
51 N5220P 1 NIPPLE, 3/4” X 37-1/4”, BLK PIPE
52 300235 2 3/4” BLK STL UNION
53 N5218A 1 NIPPLE, 3/4” X 3” BLK STL
54 N3004A 1 ELBOW, 3/4” 90° BLK STL
55 N5213A 1 NIPPLE, 3/4” X 1-1/2” BLK STL
56 N3012A 1 REDUCING TEE, 1/2” X 1/2” X 3/4” BLK STL
57 L5001A 2 INSPIRATOR, #3 BLK
58 L5124T 1 BURNER ASSY, LH
59 L5125T 1 BURNER ASSY, RH
60 N3009A 4 1/2” BLK STL UNION
61 R3004A 2 SPUD HOLDER #3
62 R3006A 2 LOCKING DISK, SPUD
63 R3005A 2 ADJUSTING DISK #3 SPUD
64 R3117P 2 ORIFICE, #25 NAT, #3 SPUD
65 R3129P* 2 ORIFICE, #43 LP, #3 SPUD
66 A4143K 1 PILOT MOUNTING BRACKET
67 M1265A 1 THERMOPILE, Q313
68 Q1401A 2 SCREW, 10-32 X 1/2” PAN HD
69 M1220A 1 PILOT BURNER NAT
70 M1245A * 1 PILOT BURNER LP
71 S1056A 1 KNOB, THERMOSTAT, 650 “F”, GAS BLACK
72 M1005A 1 THERMOSTAT, 650°F, FDTH
73 N3068P 1 PRESSURE TAP ASSY
74 M1242P 1 CONTROL ASSY BMVR NAT
75 M1248P* 1 CONTROL ASSY BMVR LP
76 A8006K* 1 BRICK LINED SUPPORT BRACE
77 T1375A* 8 BAKING DECK, CERAMIC
78 S3275A 1 DOOR SPRING ARM, 2.78”
* INDICATES NOT SHOWN

FLOOR MODEL GAS DECK OVEN OPERATION MANUAL
16

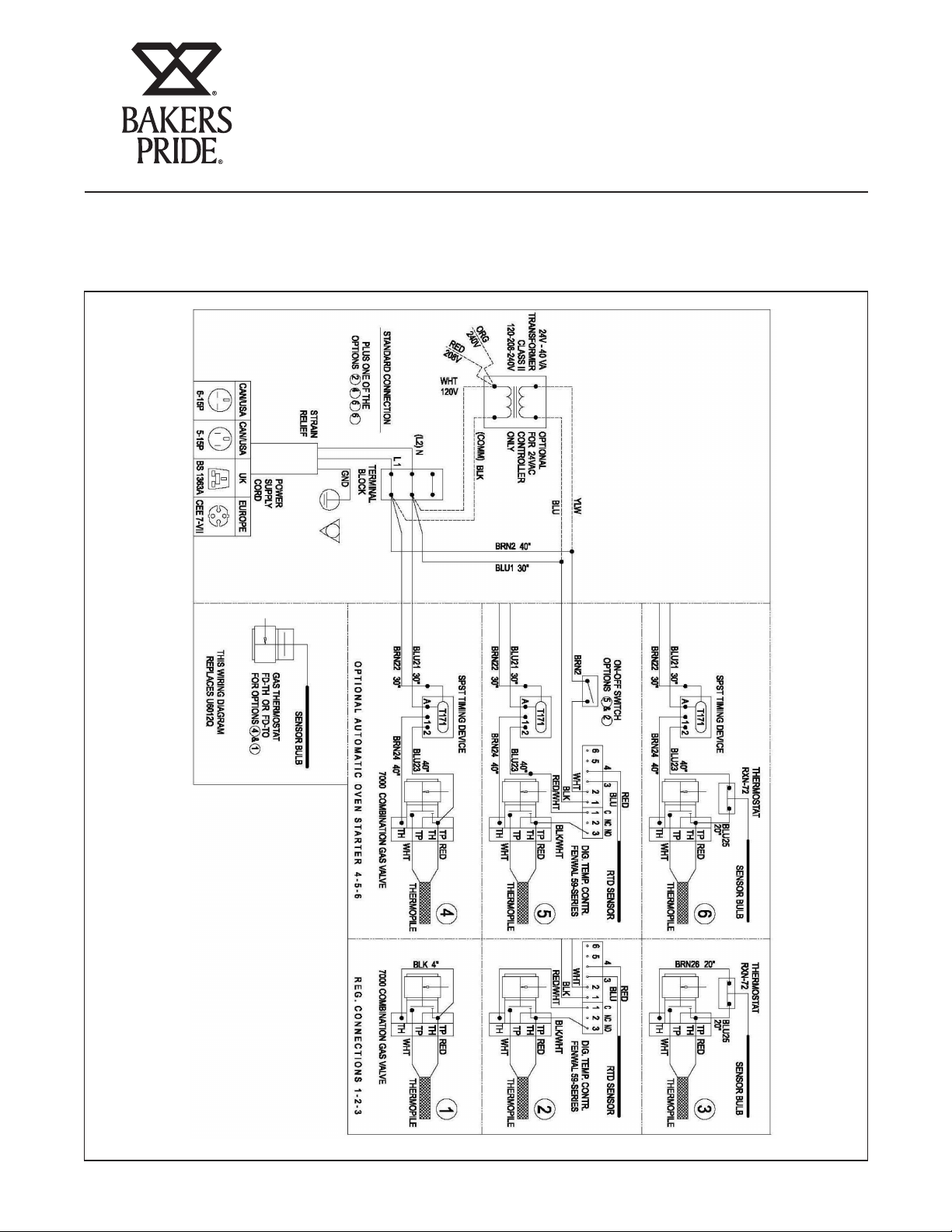

WIRING DIAGRAM
Wiring Diagram – Gas Oven Series – 120V, 208, OR 230V, 1PH –Auto Starter Option

17
CONVEYOR OVEN SERVICE MANUAL
BAKERS PRIDE LIMITED WARRANTY
WHAT IS COVERED This warranty covers defects in material and workmanship under normal use, and applies only to the original purchaser
providing that:
• The equipment has not been accidentally or intentionally damaged, altered or misused;
• The equipment is properly installed, adjusted, operated and maintained in accordance with National
and local codes and in accordance with the installation instruction provided with the product;
• The serial number rating plate affixed to the equipment has not been defaced or removed.
WHO IS COVERED This warranty is extended to the original purchaser and applies only to equipment purchased for use in the U.S.A.
COVERAGE PERIOD Cyclone Convection Ovens: BCO Models: One (1) Year limited parts and labor; (1) Year limited door warranty.
GDCO Models: Two (2) Year limited parts and labor; (2) Year limited door warranty.
CO11 Models: Two (2) Year limited parts and labor; (5) Year limited door warranty.
All Other Products: One (1) Year limited parts and labor. Warranty period begins the date of dealer invoice to customer
or ninety (90) days after shipment date from Bakers Pride - whichever comes first.
WARRANTY This warranty covers on-site labor, parts and reasonable travel time and travel expenses of the authorized service
COVERAGE Representative up to (100) miles, round trip, and (2) hours travel time. The purchaser, however, shall be responsible
for all expenses related to travel, including time, mileage and shipping expenses on smaller counter models that may be
carried into a Factory Authorized Service Center, including the following models: PX-14, PX-16, P18, P22S, P24S, PD-4,
PDC, WS Series and BK-18.
EXCEPTIONS All removable parts in Bakers Pride®cooking equipment, including but not limited to: Burners, Grates, Radiants, Stones
and Valves, are covered for a period of SIX MONTHS. All Ceramic Baking Decks are covered for a period of THREE
MONTHS. The installation of these replacement decks is the responsibility of the purchaser. The extended Cyclone door
warranty years 3 through 5 is a parts only warranty and does not include labor, travel, mileage or any other charges.
EXCLUSIONS • Negligence or acts of God,
• Failures caused by erratic voltages or gas supplies,
• Thermostat calibrations after (30) days from
equipment installation date,
• Unauthorized repair by anyone other than a Bakers
Pride Factory Authorized Service Center,
• Air and Gas adjustments,
• Damage in shipment,
• Light bulbs,
• Alteration, misuse or improper installation,
• Glass doors and door adjustments,
• Thermostats and safety valves with broken capillary
tubes,
• Fuses,
• Char-broiler work decks and cutting boards,
• Tightening of conveyor chains,
• Adjustments to burner flames and cleaning of pilot
burners,
• Tightening of screws or fasteners,
• Accessories — spatulas, forks, steak turners, grate
lifters, oven brushes, scrapers, peels. etc.,
• Freight — other than normal UPS charges,
• Ordinary wear and tear.
INSTALLATION Leveling and installation of decks as well as proper installation and check out of all new equipment —per appropriate
installation and use materials — is the responsibility of the dealer or installer, not the manufacturer.
REPLACEMENT PARTS Bakers Pride genuine Factory OEM parts receive a (90) day materials warranty effective from the date of installation by a
Bakers Pride Factory Authorized Service Center.
This Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. Bakers Pride
shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit.
The repair or replacement of proven defective parts shall constitute a fulfillment of all obligations under the terms of this warranty.
Form #U4177A 1/07

18
NOTES
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or
Parts, this information is required.
Model Number Serial Number Date Purchased
