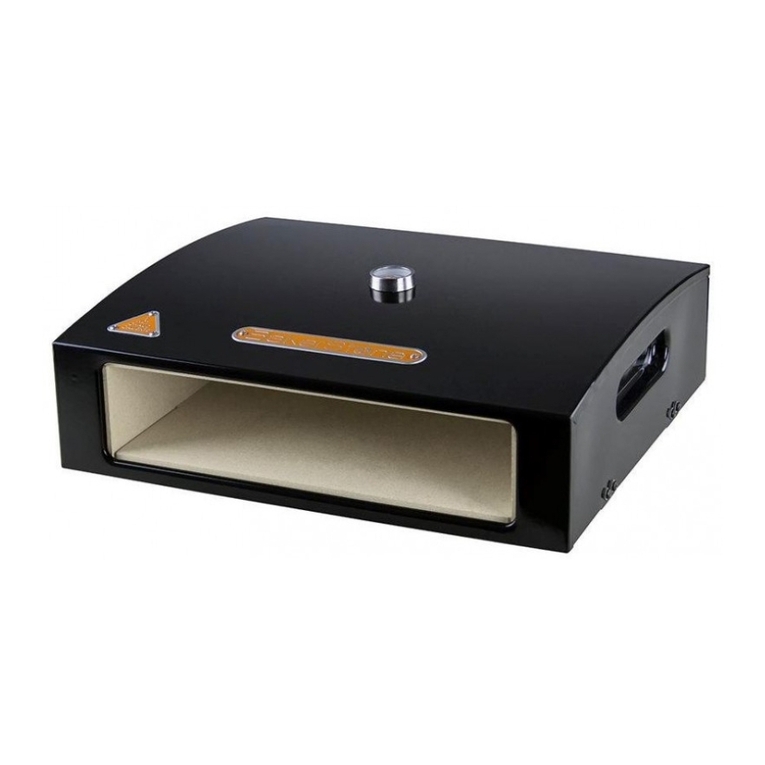

BakerStone B-AJLXX-O-000 User manual

Portable Gas
Pizza Oven Box
Wood fired performance at home
Product Guide
Model B-AJLXX-O-000/B-AJLBD-O-000/B-AJLNX-O-000/
B-AJLNBD-O-000/ B-JLNXX-O-000
Important, Retain for Future Reference: Read Carefully
WARNING: This product guide contains important information necessary for the proper assembly
and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the appliance.
Follow all warnings and instructions when using the appliance.
Follow all leak-check procedures in the Product Guide before using the appliance.
This appliance is for outdoor use only.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from appliance
and immediately call your fire department.
1. Never operate this appliance unattended
2. Never operate this appliance within 10 ft（3.0 m）of
any structure, combustible material or other gas
cylinder.
3. Never operate this appliance within 25 ft（7.5 m）of
any flammable liquid.
4. If a fire should occur, keep away from the
appliance and immediately call your fire
department. Do not attempt to extinguish
an oil or grease fire with water.
Failure to follow these instructions could result in fire, explosion
or burn hazard which could cause property damage, personal
injury or death.
Failure to follow these instructions could result in fire or explosion
which could cause property damage, personal injury or death.
DANGER
！
！
DANGER

1
Safety precaution - read before using the appliance.
The installation of this appliance must conform with local codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquefied Petroleum
Gas, ANSI/NFPA 58; or National Gas and Propane Installation Code, CSA B149.1; Propane Storage
and Handling, CSA B149.2; or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192; and
Recreational Vehicle Code, CSA Z240 RV Series, as applicable.
This appliance shall be used only outdoors, and shall not be used inside a building, garage or any
other enclosed area.
This appliance is not intended to be used in or on a recreational vehicle or boat.
While using this appliance maintain a minimum clearance from sides and back of at least 24” (61m)
between appliance and any combustible material or construction. Do not use this appliance under
overhead combustible surfaces.
Clean and inspect the supply hose and regulator before each use of the appliance. If there is
evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to using the appliance.
Only the included hose or a replacement supplied by the manufacturer shall be used with appliance.
The appliance is only to be fueled by a LP (liquid propane) gas cylinder measuring 12” (30.5cm)
diameter and 18” (45.7cm) high with a 20lb. (9.1kg). The gas cylinder (tank) must incorporate a Type I
cylinder valve and an over filling protection device (OPD).
The LP gas cylinder must be constructed and marked in accordance with specifications of the U.S.
Dept. of Transportation (DOT). In Canada, the LP gas cylinder must meet the National Standard of
Canada Can CSA-B339, Cylinders, spheres and Tubes for Transportation of Dangerous Goods and
Commission.
Do not unhook or replace the LP Gas Cylinder while the appliance is in use.
Before each use and after replacing the LP gas cylinder perform a leak check at all connections and
fittings. Do not use on an open flame to check for leaks.
Keep the fuel supply hose away from any heated surface(s).
This appliance is not intended for commercial use.
The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to
properly assembly or safety operates the appliance.
In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire
department. A Type BC or ABC fire extinguisher may, in some circumstances contain and/or
extinguish the fire.
Do not leave the appliance unattended. Keep children and pets away from the appliance at all times.

2
Do not move the appliance when in use.
This appliance is not intended for and should never be used as a heater.
This appliance will be not during and after use. Use insulated oven mitts or gloves for protection
from hot surfaces or splatter from cooking liquids.
Do not touch the appliance until it has completely cooled. The black metal housing can reach
temperatures of 400℉（200℃）+/- during use.
Use only appropriate bake-ware or utensils while baking and cleaning the appliance. Do not use
plastic, silicone or glass.
Do not allow food other than Pizza or Bread Dough to contact the stones. Any foods that contain fat,
oil or butter (meats, items coated with olive oil, cookies, biscuits, etc.) should not contact the stones
directly. These items should be baked in metal baking pan, on a metal baking sheet or in a cast-iron
skillet as the stones will absorb the fat, oil and butter which can cause smoking, odors, staining, and
can impart rancid flavors to items that you bake in the future.
Stones are fragile and can break if dropped. The appliance becomes extremely hot, do not touch the
stones or any other part of the appliance while it is in use.
To clean stones, heat the appliance for 15 minutes after food is cooked and scrape off any remaining
residue. Do not use any cleaning agents or other liquids to clean the stones.
Do not place gasoline, alcohol, wood products, charcoal or any other combustible material (unless
BakerStone approved) in the baking chamber.
Remove any appliance cover and place at least 10 feet (3 Meters) from appliance before use.
Do not alter or change the gas valve orifices.
This appliance requires regular cleaning of major components and more detailed cleaning of burner
system after prolonged period of storage. Insects and/or insect nests may prevent safe usage and
proper performance of the appliance.
Only use the pressure regulator and hose included with this appliance.
Do not alter or install as a built in appliance.
The use of alcohol, prescription, or non-prescription drugs may impair the consumer’s ability to
properly assemble or safely operate the appliance.

3
Prop 65 warnings:
Propane Warning
WARNING: Fuels used in liquefied propane gas appliances, and the products of combustion of such
fuels, can expose you to chemicals including benzene, which is known to the State of California to cause
cancer and cause birth defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
DEHP Warning
WARNING:This product can expose you to chemicals including Di (2-ethylhexyl) phthalate (DEHP),
which is known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information, go to www.P65Warnings.ca.gov.
DINP Warning
WARNING: This product can expose you to chemicals including Diisononyl phthalate, which are
known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Wash your hands after handling this product.

4
TableofContents Page
What is in the package........................................................................................................................................................... 5
Assembly of the Pizza Oven Box......................................................................................................................................... 6
LP Gas Cylinder (tank) Requirements................................................................................................................................. 8
LP gas cylinder connection................................................................................................................................................... 9
LP Gas Leak Test.................................................................................................................................................................. 10
Pre-Use Safety Checks........................................................................................................................................................ 11
LP Gas Cylinder Placement................................................................................................................................................ 12
Lighting Instructions.............................................................................................................................................................. 12
How To Use............................................................................................................................................................................ 13
How to use the Pizza Oven Box................................................................................................................................. 13
How to use the Griddle ................................................................................................................................................ 13
Griddle Seasoning Instructions........................................................................................................................................... 14
Routine Care & Cleaning..................................................................................................................................................... 14
Cleaning Your Griddle:......................................................................................................................................................... 15
Periodic Care & Cleaning of Burner System .................................................................................................................... 15
Storing Your Griddle and Pizza Box................................................................................................................................... 17
Customer Service................................................................................................................................................................. 17
Customer Service Parts Identifier....................................................................................................................................... 18
Warranty................................................................................................................................................................................. 19
Frequently Asked Questions............................................................................................................................................... 20
Disclaimer.............................................................................................................................................................................. 20

5
What is in the package
Before assembling your Pizza Oven Box, ensure that all parts below are included.
Model B-AJLXX-O-000 B-AJLBD-O-000 B-AJLNX-O-000
Parts included A, E,F,G,H,I,J A, E,F,G,H,I,J,L,M,N,O A, E,F,G,H,I,J,K
Model B-AJLNBD-O-000 B-JLNXX-O-000
Parts included A, E,F,G,H,I,J,K, L,M,N,O J, K
Ax1
Housing
Bx1
Back Panel
(installed in part A)
Cx2
Stone Supports
(installed in part A)
Dx4
Stone Support Brackets
(installed in part A)
Ex1
Top Stone
Fx1
Base Stone
Gx2
Side Stones
Hx1
Rear Stone
Ix1
Match lighter
Jx1
Firebox Assembly
Kx1
Griddle
Tool required for assembly,
not included:
#2 Philips Head Screwdriver
Lx1
Pizza Turner Handle
Mx1
Pizza Turner Body
Nx2
Countersunk Screw
Ox1
Wood Peel
Having a question? Please do not return this product to the store.
Contact us first! 1-855-657-6836 or email [e-mail]

6
Assembly of the Pizza Oven Box
Step 1. Carefully invert the housing (A) onto a clean, soft surface. Note: failure
to follow this instruction may result in scratches or dents on the pizza oven.
Step 2. Remove the STONE SUPPORTS (C) SCREW and WASHES
Step 3. Identify the TOP STONE (E), this is the largest stone in the box. NOTE:
there is one notch on each side of this stone.
Step 4. Gently fit the TOP STONE (E) into the HOUSING (A).
NOTE: The probe of the gauge will be centered in the hole in the top stone
once installed.
Step 5. Identify the REAR STONE (H). Fit the REAR STONE into the back of the
housing, behind the TOP STONE (E) and in front of the BACK PANEL (B).
Step 6. Identify the 2 SIDE STONES (G). Fit the 2 SIDE STONES into the notches
of the TOP STONE (E).
D
A
C
C
D
A

7
Step 7. Fit the remaining BASE STONE (F) into the notches of the 2 SIDE
STONES (G).
Step 8. Place the STONE SUPPORTS (C) across the HOUSING (A) and secure
with SCREWS and WASHERS. Adjust the Stone Support Brackets (D) to the
suitable place.
Step 9. Turn the Pizza Oven Box cover and carefully place on FIRBOX (K).
NOTICE: remove all stickers before placing on FIREBOX.
NOTE: Before using your Pizza Oven Box for the first time, wipe the base
stone with a damp cloth to remove any packaging debris.
Step 10. Remove the screw on the right of control panel, then install the
match lighter(I), and tighten the screw.
Pizza Turner Assembly
Step 1. The Pizza Turner requires assembly prior to use. Locate the PIZZA
TURNER HANDLE (L) and PIZZA TURNER BODY (M) in the Accessory Kit box.
D
A
C
C
D
A
I

8
Step 2. Insert the PIZZA TURNER BODY (M) into the PIZZA TURNER HANDLE
(L). Ensure the holes in the PIZZA TURNER BODY (M) line up with the holes in
the PIZZA TURNER HANDLE (L).
Step 3. Install the two COUNTERSUNK SCREWS (N) into the bottom side of the
PIZZA TURNER HANDLE (L), tighten until snug.
LP Gas Cylinder (tank) Requirements
The appliance is only to be fueled by an LP (liquid propane) gas cylinder measuring 12” (30.5cm)
diameter and 18” (45.7cm) high with a 20lb. (9.1kg) capacity. The gas cylinder (tank) must
incorporate a Type 1 cylinder valve and an over filling protection device (OPD).
The LP cylinder must be constructed and marked in accordance with specification of the U.S. Dept.
of Transportation (DOT). In Canada, the LP gas cylinder must meet the National Standard of Canada,
Can CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and
Commission.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
The gas cylinder must have:
-A shut off valve terminating in a Type 1 gas cylinder valve outlet.
-A Type 1 valve that prevents gas flow until a positive seal is obtained.
-An arrangement for vapor withdrawal. The gas cylinder must be kept in the upright position at all
times.
-A collar to protect the shut-off valve.
-A safety relief device that has direct communication with the vapor space of the gas cylinder.
-A listed over filling prevention device (OPD).
This appliance is not intended to be used with natural gas.
Appliance Installation Requirements
This appliance must be installed in accordance to the following codes:
-National Fuel Gas Code ANSI Z223.1 NFPA 54
-Natural Gas and Propane Installation Code : CAN/CGA B149.1
-Propane installation Code : CAN/CGA B149.2 (Canada)
LP Gas Cylinder (tank) Filling Requirements:
-LP gas cylinder should only be filled by a qualified licensed LP gas dealer.

9
-New LP gas cylinders must be purged prior to filling.
-DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled LP gas cylinders can create
a dangerous condition. Over-filled LP gas cylinders can build-up pressure and cause the relief valve
to expel propane gas vapors. The vapor is combustible and if it comes in contact with a spark
source or flame an explosion causing severe burns, bodily harm, or death could occur.
-Always use a protective cylinder cap when grill is not connected to the gas cylinder.
-Inspect the LP gas cylinder valve rubber seal for cracks, wear or deterioration prior to use. A
damaged rubber seal can cause a gas leak, possibly resulting in an explosion, fire or severe bodily
harm.
Spare LP Gas Cylinder
-Do not store a spare LP gas cylinder under or near the appliance.
LP gas cylinder connection
Figure-1
Burner Control Knob
Step 1. Ensure the LP cylinder used conforms to the requirements
listed on the previous page. Also inspect the LP gas cylinder valve
rubber seal for deterioration such as cracks, deformation or tears.
Step 2. Inspect the LP gas cylinder valve to ensure the threads
match that of the included hose and regulator.
Step 3. Ensure all the burner control knobs are in the OFF position.
See Figure-1, Burner Control Knob.
Step 4. Thread the included hose and regulator onto the LP gas
cylinder. Turn the coupling fastener clockwise by hand until it stops.
WARNING: Do not use tools to tighten the coupling fastener.
WARNING:
The pressure regulator and hose assembly supplied with the appliance must be used. Replacement
pressure regulators and hose assemblies shall be those specified by the appliance manufacturer.
Storage of this appliance indoors is permissible only if the cylinder is disconnected and removed
from the appliance.

10
Cylinder must be stored outdoors out of the reach of children and shall not be stored in a building,
garage, or any other enclosed area.
Only use this appliance outdoors in a well-ventilated area.
Never operate this appliance with 10 ft. (3.0m) of any structure, combustible material or other gas
cylinder.
Do not use this appliance under overhead combustible construction.
Do not place or use this appliance on a combustible surface.
This appliance becomes hot, do not place on any surface which cannot withstand high temperatures
without deforming or being damaged.
This appliance becomes hot, do not place on any surface which cannot withstand high temperature
without deforming or being damaged.
This appliance is not to be installed in or on boats or recreational vehicles.
Failure to follow these instructions could result in fire, explosion or burn hazard which could cause
property damage, personal injury or death.
LP Gas Leak Test
Before first use and after each time the LP gas cylinder is reconnected or changed the LP gas Leak
Test must be performed.
Do not use an open flame to check for leaks.
Do not smoke or be in the presence of any ignition sources while performing a leak test.
Perform leak test outdoors in a well-ventilated area.
Step 1. Prepare a soapy water solution of water and detergent.
Step 2. After connecting the appliance to the LP gas cylinder, slowly
open the valve completely [see Figure-3].

11
Step 3. Listen for any hissing sounds. WARNING: If hissing sounds
are present turn off the gas valve and contact a licensed gas repair
specialist.
Step 4. Spray a mild soapy water solution on all gas connections.
Inspect all connections for the growing presence of bubbles [see
Figure-4]. These bubbles represent a leak. If a leak is present, turn off
the gas, tighten the fitting and test again with the soapy water
solution. WARNING: If bubbles remain present turn off the gas valve
and contact a licensed gas repair specialist.
Pre-Use Safety Checks
Before first use and after each time the LP gas cylinder is reconnected or changed the LP gas Leak
Test must be performed.
Check all components for proper assembly and function.
Ensure folding legs are rotated to their fully open position [see Figure-5].
Legs folded
(OK for storage and transport only) Legs open / Unfolded
Figure-5
Place the appliance outdoors on a secure, stable, non-combustible, and level surface.
Ensure all surfaces including firebox and grease tray are clean prior to each use of the Pizza Oven
Box.
WARNING: Failure to follow these instructions could result in fire, explosion or burn hazard which
could cause property damage, personal injury or death.

12
LP Gas Cylinder Placement
Figure-6
Ensure the LP Gas Cylinder is placed at least 24in (61cm) away from
the appliance on a level and stable table surface [see Figure-6].
Take care to place the LP Gas Cylinder where it will not present a strip
hazard.
WARNING: Read and follow all instructions and warning listed on prior
pages before attempting to use the appliance.
Lighting Instructions
Figure-7
Step 1 Check that the control knob is in the position.
Step 2 Turn on the gas tank valve.
Step 3 Press and turn the knob slowly to position. The burner should
light within three attempts.
Step 4 If burner does not light, turn the knob to , wait 5 minutes and
then repeat step 3.
Step 5 Once burner is lit, adjust the flame as desired between and .
MATCH LIGHTING
If the appliance does not light using the stops above a match may be used to light the appliance.
Figure-8
Step 1. Turn on the gas tank valve.
Step 2. Attach a match to the lighting rod and light the match.
Step 3. Insert the match through the side of the firebox towards the
burner [see Figure-8] and immediately turn the burners to .
Step 4. Burner should light immediately. If the burner does not light,
turn off the burners and gas valve on the tank wait 5 minutes before
trying again.
HOW TO TURN OFF APPLIANCE:
Step 1. Step 1 Rotate control knob to position [see Figure-7].
Step 2. Turn off the gas supply.
WARNING: Turn off and disconnect gas supply when not in use.

13
How To Use
WARNING: Please completely read all safety precautions at the beginning of and throughout this
guide before using the appliance. The appliance becomes extremely hot and can cause burns.
Failure to follow precautions when using the Pizza Oven Box can result in serious injury and / or
property damage.
How to use the Pizza Oven Box
Figure-9
Temperature Range Indicator
Step 1. Ignite the appliance according to the instructions on the
previous page.
Step 2. Set the burners to HIGH and preheat the Pizza Oven Box for
15-20 minutes.
Step 3. Adjust the burner setting on the appliance to obtain the desired
temperature range for the foods that are being baked. NOTE: It will
take 15 minutes for the temperature range indicator to function [see
Figure-9].
For pizza and roasting meats and vegetables, adjust the heat so that
the indicator reads in the baking zone.
Step 4. Dust a wooden Pizza Peel with flour (approximately 2 Tbsp. of
flour) and spread around board to evenly coat the entire peel. Then,
holding the peel at a 45 degree angle over a sink, gently tap the peel to
remove the excess flour. NOTE: This will ensure that the pizza does
not stick to the peel when launching the pizza into the Pizza Oven Box.
Figure-10
Step 5. Place a hand-stretched or rolled-out pizza dough on the floured
Pizza Peel. Create your pizza using your favorite sauce and toppings
[see Figure-10].
How to use the Griddle
FIRST TIME CLEANING GRIDDLE COOKING SURFACE:
Our Griddles are pre-treated with cooking oil to prevent rust and
damage during shipping. For first time use, wash griddle with hot
soapy water.
THIS IS THE ONLY TIME YOU SHOULD USE SOAP ON THE GRIDDLE
COOKING SURFACE.

14
Rinse and dry completely. Proceed with seasoning instructions.
(Please reference the Griddle Seasoning Instruction).
After cleaning, put it on the firebox. Light the burner and then adjust
to the required temperature, then enjoy your cooking.
Griddle Seasoning Instructions
For best results, we recommended seasoning the griddle before cooking on griddle top.
STEP 1 Make sure griddle is wiped clean of debris.
STEP 2 Ignite griddle by following lighting instruction. Turn all knobs to set burners to high. Wait for
approximately 10–15 minutes until your griddle top starts to discolor.
STEP 3 Pour a light amount of cooking oil on griddle top. Any cooking oil will work. The amount of
oil used depends on the size of griddle.
STEP 4 Use cooking tongs or heat resistant gloves to hold folded paper towels. Spread the cooking
oil over surface of griddle top using the paper towels. Be sure to cover every part of griddle top,
including corners and sides.
STEP 5 Once your griddle is covered with a thin layer of oil, allow griddle to heat on high. Smoking
will occur as the oil begins to bond with the surface of griddle top, creating a stick-resistant surface.
STEP 6 When griddle top has stopped smoking and there isn't a noticeable amount of sheen, repeat
steps 3–5 at least three times.
After repeating the seasoning steps, griddle may not appear to be completely black. To achieve a
dark surface, start cooking on your griddle. This will create a nicely seasoned griddle.
Follow proper griddle storing practices to maintain seasoned cooking surface.
PLEASE NOTE: Our griddle tops are pre-treated with soy oil as a protective coating. This coating
may leave a discoloration on the griddle top. This is normal and will not affect the seasoning
process.
Routine Care & Cleaning
Let the appliance cool completely before cleaning surfaces other than the stone baking chamber.
Do not use household cleaners or liquids on stones.
Do not use household cleaners on metal housing.
Wipe outer housing with a soft damp cloth only when completely cooled.

15
After baking your final pizza, you can clean the Pizza Oven Box by letting the burners remain on high
for approx. 15 minutes. Any residue should burn off and debris can be pushed to the back of the
oven.
After allowing the appliance to completely cool, remove the grease cup [see Figure-11] and wipe
clean all residue.
Grease Cup Figure-12
Figure-11
If excess food or debris fell into the rear vent of the oven, remove the completely cooled Pizza Oven
Box from the appliance and wipe clean the firebox [see Figure-18] of the appliance.
Darkening of the stone from ingredients or excess flour will occur over time and will not affect
baking performance of the Pizza Oven Box.
NOTE: Do not allow food other than Pizza or Bread Bough to contact the stones. Any foods that
contain fat, oil or butter (meats, items coated with olive oil, cookies, biscuits, etc.) should not
contact the stone directly. These items should be baked in a metal baking pan, on a metal baking
sheet or in a cast-iron skillet as the stones will absorb the fat, oil and butter which can cause
smoking, odors, staining, and can impart rancid flavors to items that you bake in the future.
Cleaning Your Griddle:
STEP 1 To clean griddle after each use, cool griddle below 300℉. Scrape food debris with spatula or
straight metal scraper.
STEP 2 Wipe down griddle surface with paper towel.
STEP 3 Apply a small amount of water onto first section with a bottle and then scrape the water and
debris toward the grease trap.
NOTE: DO NOT USE MORE THAN TWO TABLESPOONS OF WATER AT A TIME.
STEP 4 Wipe again with a paper towel and dry completely.
STEP 5 Apply thin coat of cooking oil to maintain seasoning and protect the griddle.
Periodic Care & Cleaning of Burner System
This appliance will periodically require more detailed cleaning after continued storage of 3 months
or more. Periodically check and clean burner/venturi tube for insects and insect nests. WARNING: A
clogged tube can lead to a fire beneath the appliance.

16
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable
vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Step 1. Working with a completely cooled appliance, turn off the LP
gas cylinder valve and disconnect the LP gas cylinder from the
appliance.
Figure-13
Step 2. Remove the Pizza Oven Box or griddle from the top of the
appliance [see Figure-13].
fasteners
Figure-14
Step 3. Locate the fasteners attaching the Burners to the Burner
Support bracket. Remove these fasteners [see Figure-14].
Figure-15
Step 4. Lift the Burners up and towards the rear of the appliance to
remove slowly, taking care not to damage the gas valves. The gas
valves are hidden between the firebox and control knobs. The
burners should come out freely [see Figure-15]. Then disconnect
the ignition wire from ignitor.
Step 6. Clean the outside surfaces with a stiff brush to remove any
debris or dirt.
Step 7. Clean the inside of the Burners by inserting a stiff wire or
small bottle brush into the inlet of the Burner. Compressed air may
also be used to clean the burners by blowing air into the inlet
portion of the burner and the air will flow out of the venture holes.
Step 8. Reconnect the ignitor wire and replace the burners by
carefully inserting the Burners back into the firebox, taking care to
avoid damaging the gas valves and orifices when installing.

17
Step 9. After reassembly the appliance, perform a leak test
according to the instructions in this guide. Before placing the
Pizza Oven Box or other cooktop on the firebox inspect the burner
flames for proper combustion.
Figure-16
Step 10. Light the appliance according to the instructions provided
in this guide and look at the flame emitting from the burners. A
blue flame should emit consistently from each venture hole on the
burners [see Figure-16]. The tips of the flame may occasionally
flicker yellow while burning.
Step 11. Turn off the appliance according to the instructions
provided in this guide.
Figure-17
Step 12. With the appliance off and cool the touch, place the Pizza
Oven Box and other cooktop on top of the firebox [see Figure-17].
Step 13. To inspect the flame with the Pizza Oven Box in place, first
ignite the burners according to the instructions provided in this
guide.
Figure-18
Step 14. Once the burners have ignited, look through the match
light hole in the side of the firebox to ensure the burners are lit
[see Figure-18].
Storing Your Griddle and Pizza Box
Store griddle and pizza box inside the cabinet.
In order to extend and maintain the life and condition of your appliance, we strongly recommend that the unit be
covered when left outside for any length of time, especially during the winter months.
Customer Service
For general inquiries, please email us at suppo[email protected] or call [phone].
For North American customer service needs, such as obtaining replacement parts and warranty claims, please email
us at [e-mail] or call [phone].
CAUTION: The gas pressure regulator provided with this appliance must be used. Replace only with regulator Model
Number TYQ-18A.

18
Customer Service Parts Identifier
Please use the below diagram and legend on the following pages to identify replacement
parts when contacting our customer service team.
KEY PART# DESCRIPTION QTY KEY PART# DESCRIPTION QTY
1. BG279B-1 Housing assembly 1 8 BG326-3 Ignition Electrode 1
1.1 BG279B-1.1 Temperature Gauge 1 9 BG326-4 Firebox Housing Assembly 1
1.2 BG279B-1.2 Housing assembly(without
temperature gauge) 1 10 BG326-5 Control panel assembly 1
2 BG279B-2 Stone Support Bracket 4 11 BG281-10 Control panel Bracket 2
3 BG279B-4 Stone supports 2 12 BG326-6 Grease cup 1
4 BG279B-5 Housing Back Panel 1 13 BG281-17 Knob Bezel 1
5 BG279B-6 Complete Stone
Assembly 1 14 BG281-18 Control Knob 1
5.1 BG279B-6.1 Top Stone 1 15 BG326-7 Valve and Manifold
Assembly 1
5.2 BG279B-6.2 Rear Stone 1 16 BG326-8 Folding Leg Assembly 2
5.3 BG279B-6.3 Side Stone 2 17 BG281-21 Leg Attachment Bracket 4
5.4 BG279B-6.4 Base Stone 1 18 BG281-13 Hose/Regulator 1
6 BG326-1 Griddle 1 19 BG281-23 Rubber Pad 4
7 BG326-2 Burner Assembly 1 20 BG281-22 Match lighter 1
6
7
8
9
10
11
12
13
14
15
16
17
19
18
20
1.2
3
4
5.1
5.2
5.3
5.4
1.1
2
1
5

19
Warranty
Please read carefully:
This appliance is covered by/under a limited warranty for manufacturing defects for a period of 12 months from the date
of purchase. This warranty applies only to the original purchaser using this product in a residential and non-commercial
setting. This warranty applies only to items sold in original packaging, at the authorized retail location, and does not
relate to items sold that have been opened, used as floor samples or demonstration, or models sold ”as is”.
When you open the package:
Consult the Product Guide to ensure that there are no missing or damaged parts. Within 14 calendar days from the
date of purchase, any missing parts or damages must be reported to BakerStone. NOTE: Slight chips or scratches in
the stones are not considered damages and do not affect the performance of the appliance.
Claims for defects or missing items must be accompanied by the original or an acceptable copy of the sales receipt and
photographs must be taken to support any and all claims submitted.
Here is what the warranty does not include:
Merchandise that has sustained weather damage. 
Broken stones occurring or reported more than 14 days after purchase. 
Any damage to the appliance resulting from being used in a manner other than its intended purpose. 
Damages resulting from use in a commercial or institutional organization. 
Failures, defects, damages caused by, failure to follow the instructions, abuse, neglect, inclement weather and/or
acts of nature. 
Reasonable wear and tear of enameled finishes.
Discoloration of the stone baking chamber.
Discoloration or yellowing of any stainless steel components.
Damage caused by bleach, ammonia, and/or other abrasive cleaners.
Rusting as a result of scratches or broken enameled surfaces.
Failure, discoloration or any and all damages that result from the appliance being used with disregard to any and
all warnings listed in the Product Guide.
Damages caused to the appliance by dirty, grease laden firebox or burners that are clogged, corroded or otherwise
damaged and therefore are likely to misfire or otherwise malfunction.
Damages resulting from the use of the appliance when it has not been properly maintained. A properly maintained
appliance includes, but is not limited to, clean grease trap and firebox, and properly functioning burners, valves
and regulator.
Consequential damages.
Any damages to an item resulting from placing it on a hot appliance.
Damage to any item resulting from attempting to use the appliance indoor.
