Ballistic Linehaul R247 User manual

Ballistic User Guide
1
LINEHAUL R247

Ballistic User Guide
2
Ballistic User Guide
3
LINEHAUL R247
MAIN FEATURES _____________________________ 4
Dual SIM 4
Auto idle 4
GETTING STARTED ___________________________ 5
Turning the phone on and off 5
Inserting Internal SIM and battery
(prior to installation) 5
Inserting External SIM 5
Switching SIMs 5
Making calls 6
Receiving calls 6
Call Options 6
Sound options 8
Power off 8
Ignition Sense 8
Network Coverage 8

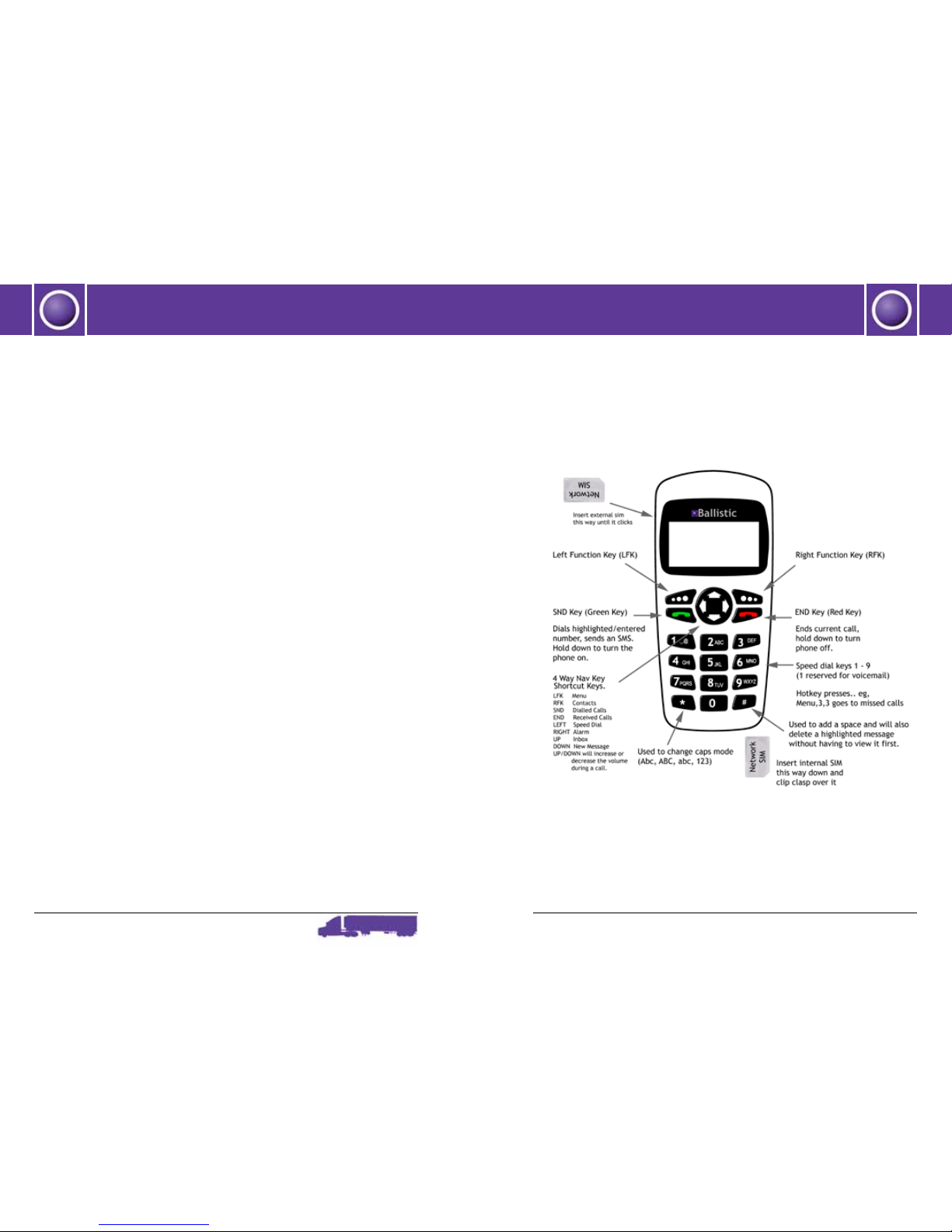

USING THE KEYPAD __________________________ 9
Keypad 10
Function Keys 10
Navigation keys 11
Ready mode / Shortcut keys 11
Icons 12
MENU MAP ________________________________ 13
CONTACTS ________________________________ 15
Contacts List 15
Adding a new entry 15
Speed dialling 16
Deleting entries 16
Copying entries 16
Contacts Statistic 16
MESSAGES ________________________________ 17
View inbox 19
New Message 19
Voicemail 20
Outbox/Drafts/Sent/Archive 20
Messages full 21
Delete 21
CALL REGISTER ____________________________ 22
Call List options 23
Call Statistics 23
ALARMS __________________________________ 24
SETTINGS MAP _____________________________ 25
SETTINGS _________________________________ 28
Call Diversion 29
CONTACT US _______________________________ 38
SOFTWARE UPDATES ________________________ 38
WARRANTIES ______________________________ 39
TROUBLESHOOTING ________________________ 39
CHEAT SHEETS _____________________________ 41
INDEX ____________________________________ 45
Glossary 47
WIRING GUIDE FOR INSTALLERS _______________ 48
TABLE OF CONTENTS TABLE OF CONTENTS
TABLE OF CONTENTS TABLE OF CONTENTS

Ballistic User Guide
4
Ballistic User Guide
5
LINEHAUL R247
GETTING STARTED
Turning the phone on and off
To turn the phone on, hold down the green (SND) key for 2 secs until
you see the screen light up. The red (END) can also turn the phone on.
To turn the phone off, hold down the red (END) key for 2 secs until you
see the goodbye… screen.
Inserting Internal SIM and battery – prior to installation
Remove the lower back cover (unscrew the 2 screws holding the cover
on) to locate the SIM holder.
Flip open the SIM holder and place the SIM in, network logo facing
up, notched corner facing the bottom right corner as per diagram 1.
Ensure the holder clips over the SIM cleanly.
Insert the battery – this provides smooth power to the phone whilst
the engine is starting.
Reattach the back and install on the dash.
Note: For dangerous goods vehicles, it is ok to not use the internal
battery.
Inserting External SIM (diagram 2)
With the phone powered off: Hold the phone facing up and locate the
slot on the left side of the phone and insert the SIM as per diagram 2;
ie gold contacts facing down and notched corner in rst.
To remove from this slot: With the phone powered off, press on the
SIM and the SIM will spring out for removal.
MAIN FEATURES
•Dual SIM capability
• Ability to change screen backlight and keypad brightness
independently of each other in both the active and idle modes.
• Multiple alarms – 8 in total
• Multiple size fonts - small, medium and large
• Big Buttons
• Loud,clear audio
Fixed in-vehicle:
• Network barring option to allow/bar incoming and outgoing calls
(Network dependent)
• SMS barring option to allow/bar incoming and outgoing SMS
(Network dependent)
• Fixed in-vehicle installation has an optional accessory privacy
handset
DUAL SIM
The installer can put the eet SIM as the internal SIM prior to mounting
on the dash. The driver can put a personal SIM in the external slot –
Use Menu,6 to swap between SIMs.
Note: Only one SIM can be in use at any time so it is necessary to
swap SIMs to check for calls or messages on the other SIM.
AUTO IDLE
The phone default is to have auto idle ON.
The level of idle brightness for the keypad and screen can be changed
via Menu,5,4,2,1.
The level of active brightness for the keypad and screen can be
changed via Menu,5,4,2,2 and Menu,5,4,2,3.
Diagram 1 Diagram 2
Inserting
internal
SIM
Inserting
external
SIM
MAIN FEATURES GETTING STARTED

Ballistic User Guide
6
Ballistic User Guide
7
LINEHAUL R247
Switching SIMs
From the Ready Menu, LFK to Menu and scroll to Swap SIM.
Privacy Warning: Any time SIMs are switched or removed, the Messages
and Call Register Folders will remain as is. To ensure private messages
are not read, delete prior to removing or swapping SIMs.
Making calls
To make a call from the Ready screen, just enter the numbers using
the keypad and use the SND key to dial or refer to the Contacts List for
dialling a number from Contacts.
Receiving calls
To receive/answer a call, use either the LFK or SND key to answer.
To set any key to answer (other than the END key), go to Settings/
Calls/ In Call Setup/ Answer Key.
The optional privacy handset cannot be used to answer a call.Switch
to it once the call has been answered.
Call Options
During any call, the following options are available:
Hold/Resume, Mute/Unmute, New Call, End Call, Menu
Hold/Resume call
Using this will mean the other party cannot hear anything from the
microphone on your phone.
Use this to have an in-person conversation with someone which the
phone caller cannot hear or in order to dial a new number. Resume
will continue the call as normal.
Mute/Unmute call
Use this to mute a call (ie the other party cannot hear anything from
your microphone). This option will then become Unmute in the Options
list to enable the call to continue as normal.
New Call
Using this when on a call will put the rst call on hold and allow you to
dial a 2nd number.
Volume Adjustment
The Up and Down keys can be used whilst the phone is ringing or
dialling to adjust the ring volume temporarily. To permanently alter
the volume, go to Settings.
The audio volume can only be set by using the Up and Down keys
whilst on a call. The value is retained (ie not changeable in Settings).
Call Waiting
If Call Waiting is active, an alert will sound if there is another
incoming call whilst you are already on a call. You will then be able to
hold the rst call in order to answer the 2nd call. See Settings/In Call
Set-up to see whether the call waiting option is set to active or not.
If Call Waiting is not set, the 2nd call will go to another number as per
the number set in the Settings /Call Diversion menu.
The RFK will enable switching between the 2 calls.
Note: Only 1 call can be active at a time- it is not possible to join the
calls (ie Conference Calls).
GETTING STARTED GETTING STARTED

Ballistic User Guide
8
Ballistic User Guide
9
LINEHAUL R247
Sound options
Calls can be conducted via the hands free speaker only or by using a
privacy handset (optional accessory). The privacy handset cannot be
used to answer a call. Switch to it once the call has been answered.
Power off
The phone should be wired to the battery and ignition, with this set
up the phone will power up and down via ignition sense. The default
power down safety timer is set to 120 Mins. If the phone’s power and
ignition sense wires are both wired to constant power the phone will
remain on and must be powered down manually. This also means it
must be powered on manually.
Ignition Sense
The phone will detect when the vehicle is started if wired to ignition
and will automatically turn on the phone. The phone will shut down
when the vehicle is turned off. If the Safety Timer setting has been
selected it will remain on for the duration selected -see Settings/Car
Settings/Safety Timer.
Network Coverage
The xed in-vehicle phone requires a compatible external antenna to
be connected at installation time. A quad or penta band antenna that
covers the 850/900/1800/1900/2100 mHz bands is preferred. For
those that still have an 850 mHz CDMA antenna, this will be suitable
for the Linehaul.
GETTING STARTED
USING THE KEYPAD
GETTING STARTED
