Baltimore Aircoil Company S1500E User manual

R ACC S1500E v00 EN
Options & accessories
Open cooling towers
S1500E
INSTALLATION INSTRUCTIONS

2WWW.BALTIMOREAIRCOIL.EU
Notes

3
WWW.BALTIMOREAIRCOIL.EU
Table of contents
4 Safety precautions
5 Bottom water outlet / Equalizer / Remote Sump
Internal sliding service platform
7 Accesstollpack
8 Internal service platform
Internal ladder only
9 External ladder and railing on top of hot water basin
9 Ladder
10 Handrail
10 Discharge attenuation
10 Single discharge atttenuation
11 Double discharge attenuation
11 Intake attenuation
11 Singlestackunit
12 Doublestackunit
13 Motor davit
14 Shipped loose fan cowl
15 Further assistance and information
Page

4WWW.BALTIMOREAIRCOIL.EU
Safety Precautions
Allelectrical,mechanicalandrotatingmachineryconstituteapotentialhazard,particularlyforthosenot
familiarwithitsdesign,constructionandoperation.Accordingly,adequatesafeguards(includinguseof
protectiveenclosureswherenecessary)shouldbetakenwiththisequipmentbothtosafeguardthepublic
(includingminors)frominjuryandtopreventdamagetotheequipment,itsassociatedsystemandthe
premises.Ifthereisdoubtaboutsafeandproperrigging,installation,operationormaintenanceprocedures,
contacttheequipmentmanufacturerorhisrepresentativeforadvice.
Whenworkingonoperatingequipment,beawarethatsomepartsmayhaveanelevatedtemperature.Any
operationsonelevatedlevelhavetobeexecutedwithextracaretopreventaccidents.
AUTHORIZED PERSONNEL
Theoperation,maintenanceandrepairofthisequipmentshouldbeundertakenonlybypersonnelauthorizedandqualiedtodoso.All
suchpersonnelshouldbethoroughlyfamiliarwiththeequipment,theassociatedsystemsandcontrolsandtheproceduressetforthinthis
andotherrelevantmanuals.Propercare,proceduresandtoolsmustbeusedinhandling,lifting,installing,operatingandrepairingthis
equipmenttopreventpersonalinjuryand/orpropertydamage.
MECHANICAL SAFETY
MechanicalsafetyoftheequipmentisinaccordancewiththerequirementsoftheEUmachinerydirective.
Dependinguponsiteconditionsitalsomaybenecessarytoinstallitemssuchasbottomscreens,ladders,safetycages,stairways,access
platforms,handrailsandtoeboardsforthesafetyandconvenienceoftheauthorizedserviceandmaintenancepersonnel.Atnotimethis
equipmentshouldbeoperatedwithoutallfanscreens,accesspanelsandaccessdoorsinplace.Whentheequipmentisoperatedwitha
variablefanspeedcontroldevice,stepsmustbetakentoavoidoperatingatorneartothefan’s«criticalspeed».
FormoreinformationconsultyourlocalBACBalticarerepresentative.(www.baltimoreaircoil.eu)
ELECTRICAL SAFETY
Eachfanandpumpmotorassociatedwiththisequipmentshouldbeinstalledwithalockabledisconnectswitchlocatedwithinsightofthe
equipment.Noserviceworkshouldbeperformedonornearthefans,motor,drivesorinsidetheequipmentunlessfanandpumpmotors,
heatersetc.areelectricallyisolated.
LIFTING
CAUTION
FAILURETOUSEDESIGNATEDLIFTINGPOINTSCANRESULTINADROPPEDLOADCAUSINGSEVEREINJURY,DEATHAND/
ORPROPERTYDAMAGE.LIFTSMUSTBEPERFORMEDBYQUALIFIEDRIGGERSFOLLOWINGBACPUBLISHEDRIGGING
INSTRUCTIONSANDGENERALLYACCEPTEDLIFTINGPRACTICES.THEUSEOFSUPPLEMENTALSAFETYSLINGSMAYALSOBE
REQUIREDIFTHELIFTCIRCUMSTANCESWARRANTITSUSE,ASDETERMINEDBYTHERIGGINGCONTRACTOR.
LOCATION
Allcoolingequipmentshouldbelocatedasfarawayaspossiblefromoccupiedareas,openwindowsorairintakestobuildings.
CAUTION
EACHUNITSHOULDBELOCATEDANDPOSITIONEDTOPREVENTTHEINTRODUCTIONOFDISCHARGEAIRINTOTHE
VENTILATIONSYSTEMSOFTHEBUILDINGONWHICHTHEUNITISLOCATEDORTHOSEOFADJACENTBUILDINGS.
FordetailedrecommendationsonBACequipmentlayout,pleaseseetheBACApplicationHandbookEUEdition,
theBACwebsite:www.baltimoreaircoil.euorcontactyourlocalBAC-BalticareRepresentative.
LOCAL REGULATIONS
Installationandoperationofcoolingequipmentmaybesubjectoflocalregulations,suchasestablishmentofriskanalysis.Ensure
regulatoryrequirementsareconsistentlymet.

5
WWW.BALTIMOREAIRCOIL.EU
Back-upplateisfactoryinstalled Alignrubbergasketandbottomconnection.
InstallM8hardware
Pre-installedplatformbaseandladder
Bottom water outlet / Equalizer / Remote sump
Thebottomconnectioninstallation,istypicalforallbottomoutlets,equalizerandremotesump
connections.Bottomconnectionpartsareshippedloose.
Internal sliding service platform
Theslidingplatformbaseandplatformladderisfactoryinstalled.Thehandrailsystemrequireseld
installation.Thehandrailverticalpostsdropintopre-installedbracketsinaspecicconguration
dependingonthesizeoftheunit.

6WWW.BALTIMOREAIRCOIL.EU

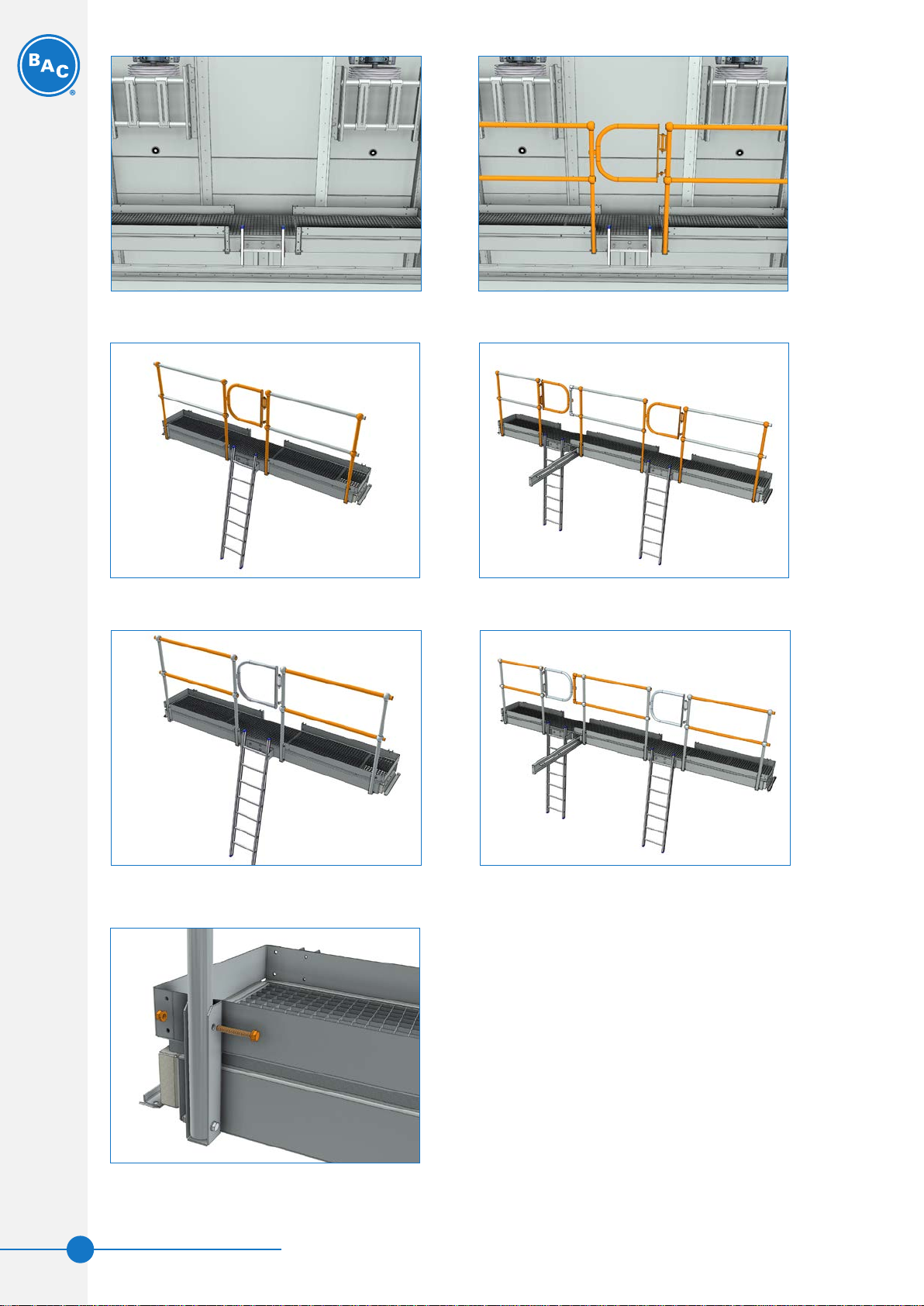

Drophandrailverticalpostsintothepre-installedbrackets
Handrailcongurationdependingonunitsize
Slideinthehorizontaltubesintotheverticalposts,securewithhardwareinstalledinverticalpost
SecuretheverticalpostsineachbracketusingM12
boltsprovided.Gateispre-weldedtooneofthevertical
posts.

7
WWW.BALTIMOREAIRCOIL.EU

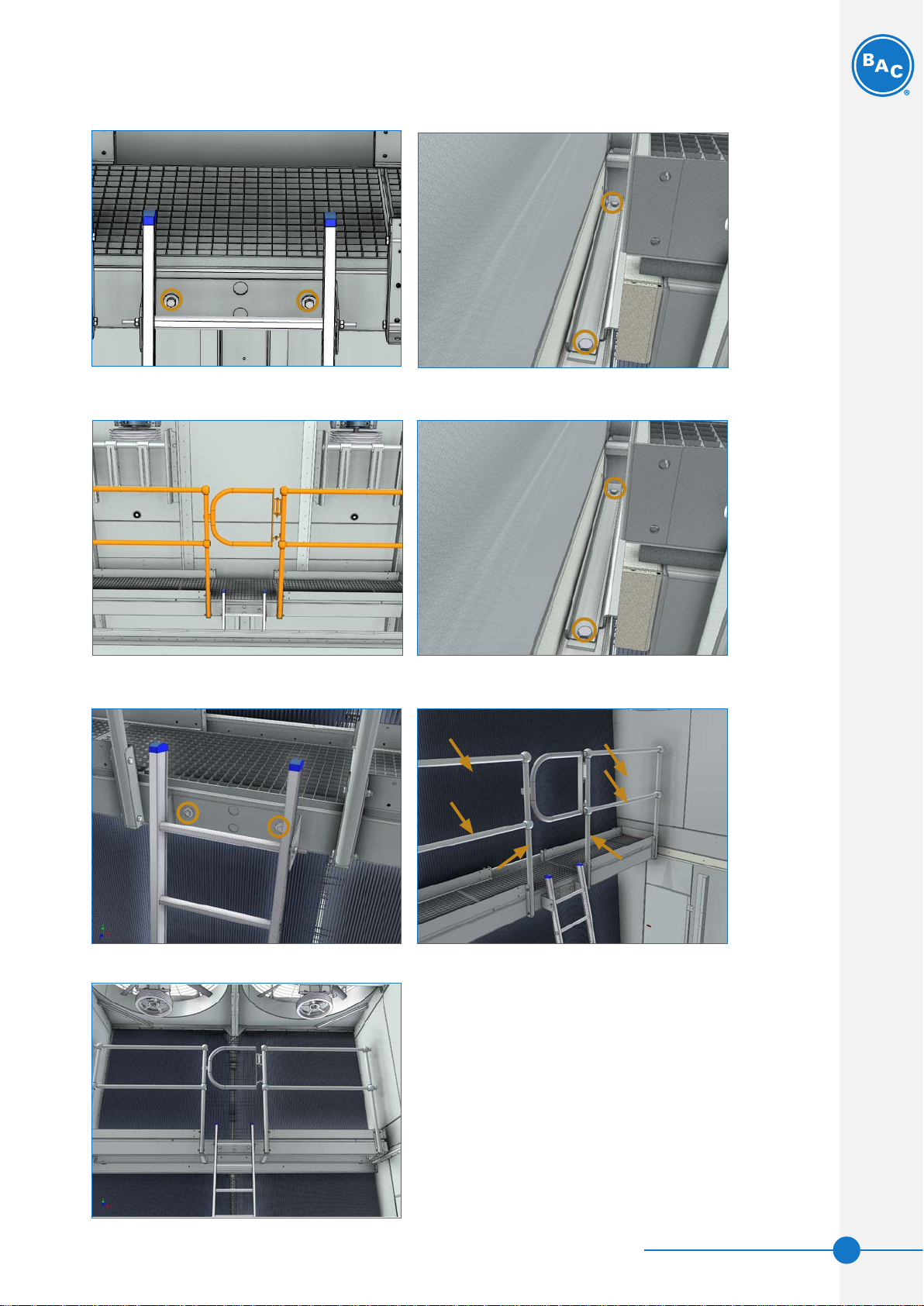

Access to ll pack
TheInternalSlidingPlatformcanbeusedtoaccessthellpack,followthenextstepstomovethesliding
platformtothellside.
Remove the access ladder by removing the two M12
bolts.
Remove the M10 securing hardware on each side of the
platform.
Removethehandrailandverticalposts. Slidetheplatformtothellsideandsecureagainwith
M10harware.
AssembleaccessladderwithtwoM12bolts. Installtheverticalpostsandhandrail.
Nowtheplatformcanbeusedtoaccessthellpack.

8
WWW.BALTIMOREAIRCOIL.EU
Pushupwardsononesideofthegridto
open
Slidethegridsideways. Makesurethegridissecuredbyslidingit
totheendposition(lockinplace).
Dependingonmodeltheinternalladderissuppliedintwoparts.Onlyinthiscase,slidethetwohalfladders
intothepre-installedU-channels.
Internal service platform (full area)
(only for S15E xxxx-11xE and S15E xxxx-12xE units)
InstallboltsM10 Lifttheladderintoplaceanddropthepre-weldedbolts
intothemountingholesintheuppersupportchannel.
Nofurtherfasteningisrequired.
Note:Theladdercanalsobeorientedtowardsthellpack(similarprocedure).
Internal ladder only
TheInternalServicePlatform(fullarea)andaccessladderisfactoryinstalled,noeldinstallationisrequired.
Theplatformcanbeaccessedbyopeningtheslidinggrid.
Caution
Always close the sliding grid when standing on the platform.

9
WWW.BALTIMOREAIRCOIL.EU
External ladder and railing on top of hot water basin
Theexternalserviceladder,cageandthehandrailareshippedloose.
Unitwithinstalledladderandrailing
Externalladderbracketsarefactoryinstalled. Lifttheladderandcageintoplace.
FastenladderbracketswithM12hardware.
Ladder
BOTTOM MIDDLE TOP

10 WWW.BALTIMOREAIRCOIL.EU
Allchannelsandbracketsarefactoryinstalled. Installallverticalposts.
Slideinhandrailsandtightenwithsetscrews.
Handrail
Tighten with M10 hardware
Discharge attenuation
Single discharge attenuation
Lift single discharge attenuator onto the
pre-installedfancowls.
Alignthe4L-bracketswithpre-installed
plates.
FastenwithM10hardware.

11
WWW.BALTIMOREAIRCOIL.EU
Double discharge attenuation
Lift double discharge attenuator onto
thepre-installedfancowls.
Alignthe4L-bracketswithpre-installed
plates.
FastenwithM10hardware.
Intake attenuation
Single stack unit
Lifttheintakeattenuatorontothesteelorconcretesupportstructure.
Theshippingstrapdiagonalscanberemovedafter
installation
Makesuretheintakeattenuatorattachmentholesline
upwiththeunitholes.Securewithtappers.

12 WWW.BALTIMOREAIRCOIL.EU
Double stack unit
Liftthelowerintakeattenuatorontothesteelorconcretesupportstructure.Makesure
theintakeattenuatorattachmentholeslineupwiththeunitholes.
Lifttheupperintakeattenuatorontothe
lowerintakeattenuator.Makesurethe
intakeattenuatorattachmentholeslineup
withtheunitholes.
Securewithtappers.
Securewithtappers. Theshippingstrapdiagonalscanbe
removed after installation
Note:formodelS15Exx18-xxE,theintakeattenuatorconsistsoftwosectionsforasinglestack
unitandfoursectionsforadoublestackunit.Thesesectionsneedtobefastenedinthemiddle
pre-installedchannelsatairintake.

13
WWW.BALTIMOREAIRCOIL.EU
Motor davit
Motordavitsupportbracketsarepre-installedinthe
factory.Thedavitsocketisshippedloose.
Installonebolt&nutfacingupondoorsideofthesocket.
FastendavitsocketwithM10hardwaretopreinstalled
brackets.
Attachthedavitsocketateachmotorlocation.
Hookontobottomangeoffandeckandsecuresocketto
pre-installedbracketsonunit.
Thehookplateisprovidedtosupportweightofsocket
duringinstallationonly.
Slideindavitarm.

14 WWW.BALTIMOREAIRCOIL.EU
Shipped loose fan cowl
(only on single stack units with WQ fan)
Liftasinglefancowlwithfanguardontothetwofactoryinstalledfancowls.Eachfan
shouldhavestackop3cowlsontopofeachother.
Aligntheholepatternandtightenwith
tappers

15
WWW.BALTIMOREAIRCOIL.EU
Further assistance & information
BALTICARE
BAChasestablishedaspecializedindependenttotalcarecompanycalledBalticare.TheBACBalticare
offeringinvolvesallelementsrequiredtoensureasafeandefcientoperationofyourevaporative
coolingproducts.Fromafullrangeofriskassessmenttoselectivewatertreatment,training,testing,
recordkeepingandannualsystemoverview.Formoredetails,contactBACBalticareatwww.balticare.
comoryoucanalsocontactyourlocalBACrepresentativeforfurtherinformationandspecicassistance
atwww.BaltimoreAircoil.eu.
MORE INFORMATION
REFERENCE LITERATURE
• Eurovent9-5(6)RecommendedCodeofPracticetokeepyourCoolingSystemefcientandsafe
Eurovent/Cecomaf,2002,30p.
• GuidedesBonnesPratiques,LegionellaetToursAéroréfrigérantes.Ministèresdel’Emploietdela
Solidarité,Ministèredel’EconomiedesFinancesetdel’Industrie,Ministèredel’Environnement,Juin
2001,54p.
• VoorkomLegionellose.MinsterievandeVlaamseGemeenschap.December2002,77p.
• Legionnaires’Disease.TheControlofLegionellaBacteriainWaterSystems.Health&Safety
Commission.2000,62p.
• HygienischeAnforderungenanraumlufttechnischeAnlagen.VDI6022.
INTERESTING WEB SITES
www.BaltimoreAircoil.eu;
www.Balticare.com;
www.eurovent-certication.com;
www.ewgli.org;
www.ashrae.org;
www.uniclima.org;
www.aicvf.org;
www.hse.gov.uk
