BALZER FIELD FLOATER 6 User manual

County Rd. 27, Box 458, Mountain Lake, MN 56159www.balzerinc.com 800.795.8551
FIELD FLOATER 6
USER MANUAL
UM-GC
April 10, 2015
ECR: 101408R

Serial Number:
Date of Purchase:
Purchased From:
Dealer’s Address:
Dealer’s Telephone:

Field Floater 6 Grain Cart User Manual
Company Statements. . . . . . . . . . . . . . . . . . . 1
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . .1
To the Purchaser . . . . . . . . . . . . . . . . . . . . . .1
Warranty Manufacture . . . . . . . . . . . . . . . . . . .1
Certificate of General Equipment Warranty . . . . . . . .1
Liability for Delays . . . . . . . . . . . . . . . . . . . . .2
Contact Information . . . . . . . . . . . . . . . . . . . .2
Warranty Registration . . . . . . . . . . . . . . . . . . .3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mandatory Safety Shutdown Procedure . . . . . . . . . .6
Additional Safety Reminders . . . . . . . . . . . . . . . .7
Personal Safety. . . . . . . . . . . . . . . . . . . . . . .7
Towing Safety. . . . . . . . . . . . . . . . . . . . . . . .7
Operation Safety . . . . . . . . . . . . . . . . . . . . . .8
Vertical Auger Safety . . . . . . . . . . . . . . . . . . . .8
Hydraulic System Safety . . . . . . . . . . . . . . . . . .9
PTO Operation Safety . . . . . . . . . . . . . . . . . . .9
Safety Signs and Decals . . . . . . . . . . . . . . . . . 10
Technical Data . . . . . . . . . . . . . . . . . . . . . .11
Specifications . . . . . . . . . . . . . . . . . . . . . .12
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 13
Operation . . . . . . . . . . . . . . . . . . . . . . . . .15
Pre-Operation Checks . . . . . . . . . . . . . . . . . . 16
Hydraulic Hose Color Markings . . . . . . . . . . . . . 16
Attaching to Tractor . . . . . . . . . . . . . . . . . . .16
Initial Start Up . . . . . . . . . . . . . . . . . . . . . .17
In-Field Procedure . . . . . . . . . . . . . . . . . . . . 17
PTO Drive System . . . . . . . . . . . . . . . . . . . .18
Jack Storage . . . . . . . . . . . . . . . . . . . . . . . 18
Independent Cross Axle Steering System . . . . . . . . 19
Suspension Hydraulics. . . . . . . . . . . . . . . . . . 19
Suspension Limits . . . . . . . . . . . . . . . . . . . . 22
Braking System. . . . . . . . . . . . . . . . . . . . . . 22
Brake Operation . . . . . . . . . . . . . . . . . . . 22
Brake Fluid Level Check . . . . . . . . . . . . . .22
Joystick Control System . . . . . . . . . . . . . . . . . 22
Unloading Grain Cart. . . . . . . . . . . . . . . . . . . 26
Running Lights . . . . . . . . . . . . . . . . . . . . . . 27
Grain Cart Weigh System . . . . . . . . . . . . . . . .27
Grain Cart Weigh System Operation. . . . . . . . . . . 30
Front Panel Controls. . . . . . . . . . . . . . . . . 30
Quick Start Up and Use . . . . . . . . . . . . . . . 31
Optional Roll Top Cover . . . . . . . . . . . . . . . . .32
Closing Roll Top Cover . . . . . . . . . . . . . . .32
Opening Roll Top Cover . . . . . . . . . . . . . . . 33
Maintenance . . . . . . . . . . . . . . . . . . . . . . .35
Daily and Before Start of Season . . . . . . . . . . . .36
Every 40 Hours of Operation. . . . . . . . . . . . . . . 38
End of Season/Preparing for Storage . . . . . . . . . . 38
Steering System Lubrication . . . . . . . . . . . . . . . 38
Hub Lubrication . . . . . . . . . . . . . . . . . . . . .38
Hitch Lubrication . . . . . . . . . . . . . . . . . . . . . 38
PTO Shaft Lubrication Specifications . . . . . . . . . .39
Suspension Height Adjustment . . . . . . . . . . . . .40
Steering Axle Toe Adjustment . . . . . . . . . . . . . . 40
Brake System. . . . . . . . . . . . . . . . . . . . . . . 43
Adding Brake Fluid . . . . . . . . . . . . . . . . .43
Bleeding the Brake System . . . . . . . . . . . . . 44
Automatic Oiler . . . . . . . . . . . . . . . . . . . . . . 45
Before Start of Season . . . . . . . . . . . . . . .45
Daily Maintenance Checks . . . . . . . . . . . . .45
End of Season/Preparing for Storage. . . . . . . . 45
Auger Drive System . . . . . . . . . . . . . . . . . . .46
Troubleshooting . . . . . . . . . . . . . . . . . . . . .49
Steering Not Working Correctly . . . . . . . . . . . . .50
Backing Up and Steering Not Locked Straight . . . . .50
Hydraulic Controls Not Working Properly . . . . . . . . 50
Brakes Not Working Properly . . . . . . . . . . . . . .50
PTO Not Working. . . . . . . . . . . . . . . . . . . . . 50
Automatic Oiler Not Working. . . . . . . . . . . . . . . 51
Abnormal Auger Vibrations When Unloading . . . . . . 52
Upper Vertical Auger “Slams” Open . . . . . . . . . . . 53
Joystick Will Not Work . . . . . . . . . . . . . . . . . . 53
Host Indicator Not Working/Error Codes . . . . . . . .53
Scale Indicator Not Working/Error Codes . . . . . . . . 54
Weigh System Programming . . . . . . . . . . . . . . .57
Using Memory Locations. . . . . . . . . . . . . . . . . 58
Naming a Memory Location. . . . . . . . . . . . . 58
Storing to a Memory Location. . . . . . . . . . . . 59
Remove Weight from Memory Location . . . . . .60
Recall a Memory Location. . . . . . . . . . . . . . 60
Export a Memory Location to USB . . . . . . . . . 61
Export All Memory Locations to USB . . . . . . . . 61
Clear a Memory Location . . . . . . . . . . . . . . 62
Host Indicator Programming . . . . . . . . . . . . . . . 62
Menu System Selection . . . . . . . . . . . . . . . 62
Main Menu System . . . . . . . . . . . . . . . . .63
Clear All Memory Locations . . . . . . . . . . . . . 63
Set Time and Date. . . . . . . . . . . . . . . . . . 64
Set Display Backlight . . . . . . . . . . . . . . . . 65
Set Weighing Units . . . . . . . . . . . . . . . . .65
Adjust Average Rate. . . . . . . . . . . . . . . . . 65
Set Auto Power Off for Host Indicator. . . . . . . . 66
Set Hold Enable for Host Indicator . . . . . . . . . 66
Set Print Continuous for Data Output . . . . . . . . 66
Set RS232 Port Baud Rate . . . . . . . . . . . . .67
Calibration Menu System . . . . . . . . . . . . . . 67
Set for Read Only Mode. . . . . . . . . . . . . . . 68
Set Radio Enable . . . . . . . . . . . . . . . . . .68
Set Radio Channel . . . . . . . . . . . . . . . . .68
Set Radio Channel Network ID . . . . . . . . . . . 69
Set Radio Channel Encryption Key . . . . . . . . . 69
Reset Radio to Default Settings . . . . . . . . . . . 69
Scale Indicator Programming . . . . . . . . . . . . . .70
Menu System Selection . . . . . . . . . . . . . . . 71
Main Menu System . . . . . . . . . . . . . . . . .71
Set Display Backlight . . . . . . . . . . . . . . . . 71
Set Weighing Units . . . . . . . . . . . . . . . . .71
Adjust Average Rate. . . . . . . . . . . . . . . . . 71
Set Auto Power Off for Scale Indicator . . . . . . . 72
Set Hold Enable for Scale Indicator. . . . . . . . . 72
Set RS232 Port Baud Rate . . . . . . . . . . . . .72
Calibration Menu System . . . . . . . . . . . . . . 72
Set Radio Enable . . . . . . . . . . . . . . . . . .72
Set Radio Channel . . . . . . . . . . . . . . . . .72
Set Radio Channel Network ID . . . . . . . . . . . 72
Set Radio Channel Encryption Key . . . . . . . . . 73
Reset Radio to Default Settings . . . . . . . . . . . 73
Set for Weigh Unit Changeable in Main Menu . . .73
Set Auto Zero Tracking . . . . . . . . . . . . . . .73
Set Graduation Size . . . . . . . . . . . . . . . . . 73
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . .75
INDEX

1Field Floater 6 Grain Cart User Manual
COMPANY STATEMENTS
Accuracy
Balzer Incorporated is dedicated to providing the most reliable and durable agricultural related products available. We have
made every attempt to provide the most accurate and readily understandable information on our equipment. Due to our
continuing efforts to produce the best products available, updates and improvements to our equipment may precede updates
to this and other manuals. Therefore, the contents of this manual are based on the information in effect at the time of publication
and are subject to change without notice.
It is the policy of Balzer Incorporated to constantly improve its products whenever it is practical to do so. Therefore, Balzer
Incorporated reserves the right to redesign or change its equipment or component parts thereof without incurring the obligation
to install or furnish such changes on equipment manufactured prior to date of redesign or change.
To the Purchaser
This is the safety alert symbol. It is used to alert the operator to an instruction concerning the personal safety and
risk factor of this equipment. Always observe and heed these very important instructions to promote a safe operation
with good preventive maintenance habits.
This Balzer product is designed and manufactured to provide years of dependable service when used for the
purpose for which it is intended, and when properly maintained.
NEVER OPERATE THIS EQUIPMENT AT SPEEDS OVER 2O MPH.
NEVER OPERATE THIS EQUIPMENT UNTIL USER FULLY UNDERSTANDS THE COMPLETE CONTENTS OF THIS
MANUAL. FOR OWNERS WHO DO NOT OPERATE THIS EQUIPMENT, IT IS THE OWNER’S RESPONSIBILITY TO
ENSURE ALL USERS ARE PROPERLY INSTRUCTED AND FULLY AWARE OF THIS MANUAL’S CONTENTS.
This is important in the safe handing of this equipment and promoting an efficient operation. If there are any questions about
areas in this manual, it is important to contact your dealer for clarification.
This machine is warranted as stated below. Registration of this equipment is to be completed online as soon as possible. This
will provide a ready reference to help you in securing warranty and in answering questions that you may have at some later
date.
Operating instructions and parts manuals are shipped with this machine. If parts of these manuals are missing or become
unreadable, contact your dealer for a replacement manual.
The serial number and identification tag is located to the front of the frame. Please refer to these numbers when parts or
warranty communication is necessary.
Warranty Manufacture
The Dealer or Distributor understands and agrees the Manufacturer extends only the following Warranty to customers. In
the event a Dealer or Distributor extends any additional warranty (such as by enlarging the scope or period of warranty or
undertaking a warranty of merchantability or fitness for any particular purpose) or any other obligation whatsoever, the Dealer
or Distributor shall: (1) be solely responsible therefore; (2) have no recourse against the Manufacturer thereof; and (3) defend,
indemnify, and hold the Manufacturer harmless against any claim or cause of action whatsoever arising out of, or occasioned
by, the Dealer’s or Distributor’s extension of said additional warranty or obligation.
Certificate of General Equipment Warranty
Balzer Inc. warrants new Products sold by it to be free from defects in material and/or workmanship for a period of one (1) year
after the date of delivery to the first user and is subject to the following conditions:
1. Balzer Inc.’s obligation and liability under this Warranty is expressly limited to repairing or replacing at Balzer Inc.’s
option any parts which, upon inspection by Balzer Inc., to have been defective in material or workmanship. Such parts
shall be provided at no cost to the user and shall be delivered to the business establishment of the authorized Balzer
Inc. dealer or distributor of the Product during that dealer’s or distributor’s regular working hours.
2. This Warranty shall NOT apply to component parts or accessories of Products not manufactured by Balzer Inc.
and which carry the warranty of the manufacturer thereof, or to normal maintenance (such as tune-up) or normal
maintenance parts (such as oil filters).
3. Replacement or repair parts installed in this Product covered by this Warranty are warranted only for the remainder of
this Warranty if such parts replaced were original components of said Product.

2Field Floater 6 Grain Cart User Manual
BALZER INC. MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND MAKES NO WARRANTY OF MERCHANTABILITY
OR FITNESS FOR ANY PARTICULAR PURPOSE.
Balzer Inc.’s obligation under this Warranty shall not include any transportation charges, cost of installation, duty taxes, or
any other charges whatsoever, or any liability for direct, indirect, incidental, or consequential damage or delay. If requested by
Balzer Inc., products or parts for which a warranty claim is made are to be returned transportation prepaid to Balzer Inc. This
Warranty shall become void under, but not limited to, any of the following conditions: any improper use, including operation
after discovery of defective or worn parts, operation beyond rated capacity, or operation for a use other than this Product’s
intended design; substitution of parts not approved by Balzer Inc.; or modifications or repairs by others that are done in a
manner as determined by the judgment or Balzer Inc. to have adversely affected the material or workmanship of this Product.
NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE THIS WARRANTY IN ANY WAY OR GRANT ANY OTHER
WARRANTY UNLESS SUCH CHANGE IS MADE IN WRITING AND SIGNED BY AN OFFICER OF BALZER INC. AT ITS HOME
OFFICE.
Liability for Delays
No liability shall attach to Manufacturer direct or indirect for incidental or consequential damages or expenses due to loss,
damage, detention of, or delay in delivery of Products resulting from acts or delays beyond its control.
Contact Information
Telephone Numbers Toll-Free: [phone]
[phone]
Outside North America: [phone]
Fax: [phone]
Mailing/Shipping Balzer Inc.
County Road 27 East
PO Box 458
Mountain Lake, MN 56159
Website www.balzerinc.com
Certificate of General Equipment Warranty (Continued)
COMPANY STATEMENTS

3Field Floater 6 Grain Cart User Manual
Warranty Registration
As of June 1, 2014, all warranty registration must be completed online to be valid. Registering online is fast and easy.
If you are viewing this manual on a device connected to the Internet, click here:
Go to the Balzer website at www.balzerinc.com
and click on “Parts and Service”.
Then, on the right side of the website, click on the
“Register Now” button under “Warranty Registration”.
Complete the online form and click “Submit”.
Balzer Inc. is committed to our customers and their privacy. Balzer Inc. will only use the information you give us to provide
prompt warranty claims and services to you. Balzer Inc. uses appropriate safeguards which reasonably and appropriately
protect the information that Balzer Inc. creates, receives, maintains, or transmits on behalf of our customers. Any personally
identifiable information obtained will not be sold, rented, shared, or made available to third parties.
COMPANY STATEMENTS

4Field Floater 6 Grain Cart User Manual

Field Floater 6 Grain Cart User Manual 5
Safety

6Field Floater 6 Grain Cart User Manual
SAFETY
The following Safety Alert Symbols mean ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! They stress an
attitude of “HEADS UP FOR SAFETY” and can be found throughout this manual and on the equipment itself.
BEFORE YOU ATTEMPT TO OPERATE, MAINTAIN, OR SERVICE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
SAFETY INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES, WORKS WITH, OR
OTHERWISE USES THIS EQUIPMENT IS FAMILIAR WITH THESE SAFETY PRECAUTIONS.
Our company ALWAYS takes operator safety into consideration when designing its machinery, guards, and exposed moving
parts for operator protection. However, some areas can NOT be guarded or shielded in order to assure proper operation. In
addition to this manual, decals on the machine warn of further danger and should be read and observed closely.
READ and FOLLOW the instructions on all decals.
REMEMBER it is the owner’s responsibility for communicating all information on the safe use and proper maintenance of this
machine! This includes providing understandable interpretation of these instructions for operators who are not fluent in reading
or understanding English.
CAUTION
CAUTION indicates a potentially hazardous
situation which if not avoided may result in minor
to moderate injury or minor to moderate damage
to the machine.
DANGER
DANGER indicates an imminently hazardous
situation which if not avoided will result in serious
injury or death or irreparable damage to the
machine.
WARNING
WARNING indicates a potentially hazardous
situation which if not avoided may result in serious
injury or death or moderate to severe damage to
the machine.
Mandatory Safety Shutdown Procedure
BEFORE cleaning, adjusting, lubricating, or servicing this equipment:
1. Remove the ignition key from the power unit engine.
2. Make sure ALL movement throughout this equipment has ceased! ONLY when you have taken these precautions can
you be sure it is safe to proceed. Failure to follow the above procedure may lead to serious injury or death.
3. Properly attach the jack to this equipment and raise up to transfer weight to the jack.
4. Keep the hitch pin attached to help prevent this equipment from moving.
5. Disconnect the PTO shaft from the power unit.

7Field Floater 6 Grain Cart User Manual
Additional Safety Reminders
USER/OPERATOR SAFETY PRACTICES are included in this manual and are intended to promote SAFE OPERATION of this
equipment.
These guidelines do not preclude the use of good judgment, care, and common sense as may be indicated by the particular
job site work conditions.
It is essential that all operators be physically and mentally free of any mind altering drugs and chemicals and thoroughly
trained in the safe operation of this equipment. Such training should be presented completely to all new operators and NOT
condensed for those claiming previous experience.
FOR ILLUSTRATION PURPOSES ONLY some photographs and images in this manual may show doors, guards, and shields
open or removed. BE SURE all doors, guards, and shields are in their proper operating positions BEFORE operating this
equipment. NEVER operate this equipment with any guards or shields damaged or not in place. REPLACE any damaged or
missing guards and shields.
KEEP HANDS AND FEET AWAY FROM ALL MOVING PARTS!
The operator MUST know the capabilities and work applications for this equipment and operate it at speeds slow enough to
ensure complete control at all times. When working on uneven ground or near the edge of roadbeds there is no substitute for
good judgment and only operators with sufficient experience should attempt such work.
NEVER assume everyone is as safety conscious at you are.
Personal Safety
NEVER allow minors and/or any unqualified personnel to operate or be near this equipment unless properly supervised.
NEVER allow anyone to ride on this equipment at any time.
NEVER leave this equipment running unattended.
NEVER wear loose or torn clothing while working around moving parts.
NEVER step on the PTO drive shaft at any time.
ALWAYS wear appropriate personal safety equipment and gear as called for by the job or working conditions.
ALWAYS be aware of pinch point areas on this equipment.
ALWAYS keep hands, feet, hair, and clothing away from moving parts.
ALWAYS stop and disengage the PTO and shut off the tractor before doing any adjusting or servicing to this equipment.
Towing Safety
THE MAXIMUM SPEED FOR TOWING THIS EQUIPMENT IS 20 MPH.
Observe the recommended maximum road speed limit, local speed limit, or maximum recommended towing speed whichever
is the lesser speed.
ALWAYS MOVE THIS EQUIPMENT WITH A FARM TRACTOR ONLY.
Always engage power steering (on equipment with steering capabilities) before turning with a load.
DO NOT DISENGAGE power steering (on equipment with steering capabilities) before the turning process is completed.
Tractor must be heavy and powerful enough and have adequate braking power for the towed load.
STOPPING DISTANCE increases with speed and weight of towed loads and on slopes. Towed loads, with or without brakes,
which are too heavy for the tractor or are towed too fast can cause loss of control. Consider the total weight of all equipment
and the load.
Use additional caution when towing loads under adverse surface conditions (ice, mud, loose gravel, etc.), turning, or slopes.
DO NOT ATTACH safety chain to any point higher than the drawbar.
SAFETY

8Field Floater 6 Grain Cart User Manual
Operation Safety
Before each tow check the electrical connection, tail lights, brake lights, and turn signals. Damaged lights or improper electrical
connection between the tractor and this equipment will result in inoperable lights and/or inoperable electric brakes.
Do not operate on public roads after dark without warning lights. Be alert and avoid loose, soft, or icy surface conditions which
could cause tipping or loss of control.
Be sure the rear of this equipment has a visible and clean “Slow Moving Vehicle” emblem properly displayed. If towing at
speeds less than 20 MPH on any public roadway at night, proper warning and running lights are necessary as required by state
law! MAXIMUM TOWING SPEED IS 20 MPH.
DO NOT pull this equipment without having safety chains securing this equipment to the tractor. Refer to local transportation
laws for regulation on safety chain use.
The tractor must be of sufficient size to maintain vehicle stability when this equipment is fully loaded. Never use a tractor that
is not recommended for this equipment’s application.
ALWAYS use a hitch pin which has a safety clip pin!
Check braking system oil level and braking capacity with a full load before operating or moving this equipment.
Check the wheel lug bolts and lug nuts daily and tighten as needed.
Replace any parts showing signs of excessive wear, cracking, or likelihood of failure with original equipment service parts.
Be familiar with all valves, doors, gates, and hydraulic controls.
BEFORE USE make sure this equipment does NOT have any foreign objects or materials which can cause equipment damage
or personal injury.
NEVER ENTER THIS EQUIPMENT UNLESS ABSOLUTELY NECESSARY! If entry is necessary, take proper safety precautions
to include but not limited to:
• Additional person on site and on the outside near the point of entry
• Safety harness and ropes where appropriate or required by law
• Proper life support system where appropriate or required by law
• Mechanical and electrical power disconnected
• Contacting your Balzer dealer for more information before entering
Check that the PTO slides freely, is not damaged, and is properly secured to the tractor and this equipment. Make sure there
is approximately 1/3 overlap of engagement.
When possible, travel straight up or down a slope. Avoid traveling along side of hills, ditches, or other sloped surfaces. Slow
down prior to going down any steep grade. Never take tractor out of gear when going up or down a hill.
Always check the job site for hazardous terrain (including loose, soft, or icy surfaces), obstructions, or bystanders.
Do not exceed the maximum weight carrying capacity of the equipment or the tractor manufacturer’s maximum towing capacity,
whichever is the lesser weight. If you have any questions, contact your Balzer dealer.
Do not stand in front, behind, or along side this equipment when it is in operation or in motion.
When parking this equipment, securely block the wheels before unhitching from the tractor.
Vertical Auger Safety
The vertical auger on this unit can extend upward and outward away from the unit. Before extending the vertical auger, check
surrounding area, including above the unit, for any electrical power sources or lines. Electrocution can result if unit comes into
contact with electrical power sources.
Before moving this unit, make sure vertical auger is properly retracted. Moving this unit with the vertical auger extended can
result in damage to the unit, other equipment, or buildings. It could also create an unbalanced load which could lead to the
unit rolling onto its side.
SAFETY
DANGER ELECTROCUTION can result if unit comes into contact
with electrical power sources or lines. Check overhead
and surrounding areas to make sure unit is clear of
any possible electrical source contact.

9Field Floater 6 Grain Cart User Manual
Hydraulic System Safety
DO NOT smoke when working on hydraulic systems.
NEVER use your hand to search for hydraulic fluid leaks. Escaping fluid under pressure can be invisible and can penetrate the
skin causing serious injury and other health hazards. Escaping fluid can also be extremely hot causing severe burns.
Use a scrap piece of cardboard to check for leaks.
IF ANY FLUID IS INJECTED INTO YOUR SKIN, SEEK MEDICAL ATTENTION IMMEDIATELY! Notify medical staff that there
is an injection injury with hydraulic fluid. Injected fluid must be surgically removed by a doctor familiar with this type of injury
or gangrene may result.
DO NOT attempt to loosen or disconnect any lines, hoses, or fittings without first relieving hydraulic circuit pressure. Be careful
not to touch any hydraulic components recently in operation because they can be extremely hot.
ALWAYS replace hydraulic components with manufacturer recommended replacement parts. Improperly rated components
may result in system failure and/or injuries.
Contact your local Balzer dealer to order replacement parts.
PTO Operation Safety
Do not wear loose fitting clothing or have long, free-hanging hair when operating the PTO (Power Take Off) or near ANY rotating
equipment.
Never exceed the recommended operating speed (PTO and drive) for the particular equipment in use.
When operating stationary PTO driven equipment, always apply the tractor’s parking brake lock and block the rear wheels front
and back.
SAFETY
WARNING PTO mounted drive shafts must only be used for their
intended purpose.
DANGER DO NOT operate PTO without all guards in place and
in safe operating condition.

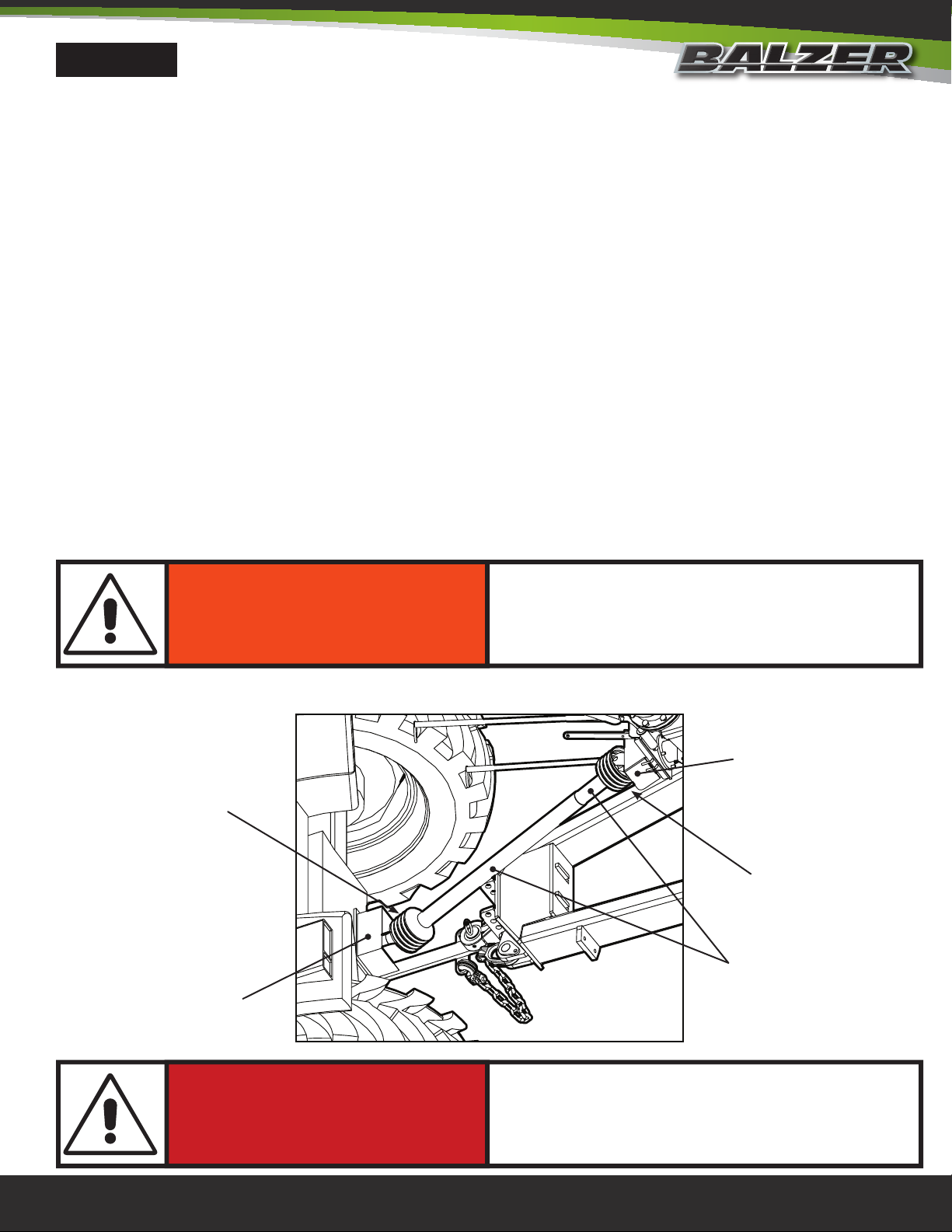

FIGURE 1
End Cone and Guard Chain
Tractor Master Shield
End Cone and Guard Chain
Implement Safety Shield
Telescoping Section Sleeves

10 Field Floater 6 Grain Cart User Manual
To avoid injury, do not clean, adjust, unclog, or service PTO driven equipment when the tractor engine is running.
When finished with the operation of PTO driven equipment, shift the PTO control to neutral, shut off the engine, remove the key,
and wait until the PTO stops before exiting the tractor.
Implement input drivelines, clutches, and freewheels are designed for specific machine types and power requirements.
They must not be replaced by any shaft other than that recommended by the implement manufacturer. Note the Operating
Instructions from both the tractor manufacturer and the implement manufacturer. Ensure the implement driveline is securely
connected at both ends.
Only use a completely guarded drive system (Figure 1). PTO drive systems with complete guarding include: the tractor master
shield, the implement driveline guard (end cones, telescoping section sleeves, guard chain), and the implement safety shield.
These safety devices must be installed at all times.
If any component of the guarding system has been removed for any reason, it must be repaired or replaced prior to operation
of the machine.
Safety Signs and Decals
Safety signs or decals provide very important information and instructions
designed to alert you to dangers and hazards which can be present during
operation of this equipment. These safety signs and decals MUST be read,
understood, and followed to be effective.
Replacement of Safety Signs and Decals
Safety signs and decals must be kept clean and readable. If they become
unreadable for any reason, they must be replaced with an identical
replacement sign or decal. Safety signs and decals must also be replaced
if damaged when repairing this equipment or if not included with the
replacement part.
Application of Safety Decals
Surface preparation is very important for the safety decals to properly adhere.
Grease, oil, and dirt must be removed and the surface must be smooth and
dry. After wiping the surface clean, use an ammonia-free window cleaner to
provide the best surface for decal adherence.
Most decals have a split backing which is meant to be removed from the split
outward. To apply decals, follow these steps:
1. Position the decal in the proper location and hold firmly over the
largest portion of the backing.
2. Use one hand to hold the decal in position. With the other hand,
carefully roll the loose end over and peel the backing outward.
When the backing is removed as shown in Figure 3 and with even
and gradual pulling, the decal will roll onto the surface smooth and
wrinkle free,
3. With the smallest portion of the decal attached, the repeat Step 2 for
the other half of the decal.
When the decal has been attached in place, use a cloth or soft paper towel
to burnish the decal onto the cleaned surface. Work gently from the middle
outwards to avoid creating any wrinkles and to remove any air bubbles.
PTO Operation Safety (Continued)
FIGURE 2
Do NOT pain t over, cover, or remove th is decal
37284
Do NOT pa int over, cover, or remove t his decal 11231
Do NOT pa int over, cover, or remove t his decal 11233
Do NOT pain t over, cover, or remove th is decal
6030 6
Do NOT pain t over, cover, or remove th is decal
6082 9
FIGURE 3
SAFETY

Field Floater 6 Grain Cart User Manual 11
Technical Data

12 Field Floater 6 Grain Cart User Manual
TECHNICAL DATA
Specifications
Dimensions
See”Dimensions” on Page 12
Tire Pressure
28L X 26 R3 26 PSI
(180 kPa)
28LR26 R3 54 PSI
(372 kPa)
30.5 X 32 R1 33 PSI
(228 kPa)
30.5 X 32 R3 33 PSI
(228 kPa)
30.5LR32 R1 52 PSI
(359 kPa)
30.5LR32 R3 52 PSI
(359 kPa)
850/50 30.5 37 PSI
(256 kPa)
900/60 32 R1 35 PSI
(241 kPa)
Lug Nuts Torque to 450 FT/LBS
Brake Type Disc
Hydraulic Operating Pressure Up to 3000 PSI
(20.68 MPa)
Electrical System 12 VDC
Electrical Connection 7-Way Receptacle
Maximum Tow Speed 20 MPH
(32 KPH)
TRACTOR REQUIREMENTS
Tractor Horsepower
1450 Bushel 250 hp
1700 Bushel 250 hp
2200 Bushel 300 hp
PTO Horsepower
Minimum 200 hp
PTO Speed 1000 RPM
Drawbar Max. Vertical Load 4,100 lbs (CAT-3)
(1860 kgs)
Drawbar Clevis Pin Diameter 2”
(5 cm)
PTO to Drawbar Distance 16” to 20”
(40 cm to 50 cm)
Drawbar to Ground Height Distance 15” to 22”
(38 cm to 56 cm)
Tractor Hydraulic Flow
PTO 10 GPM
(37.8 LPM)
Hydraulic Control Block 10 GPM
(37.8 LPM)
Tractor Hydraulic Pressure Up to 3,000 PSI
(20.68 MPa)
Tractor Hydraulic Outlets Min: 1 / Max: 2
Electrical Connection 7-pin Round
FIGURE 4

13Field Floater 6 Grain Cart User Manual
TECHNICAL DATA
Dimensions
Field Floater 6 Grain Carts
Specification 1450 (Tandem) 1450 (Tridem) 1700 2200
Overall
Length
34’ 11 3/8”
(1065 cm)
34’ 11 3/8”
(1065 cm)
34’ 11 3/8”
(1065 cm)
34’ 11 3/8”
(1065 cm)
Overall
Width*
24’ 7 1/8”
(750 cm)
24’ 7 1/8”
(750 cm)
24’ 7 1/8”
(750 cm)
24’ 7 1/8”
(750 cm)
Overall
Height**
18’ 1 3/4”
(553 cm)
18’ 1 3/4”
(553 cm)
18’ 1 3/4”
(553 cm)
18’ 1 3/4”
(553 cm)
Maximum OH
Clearance**
22’ 7 5/8”
(690 cm)
22’ 7 5/8”
(690 cm)
22’ 7 5/8”
(690 cm)
22’ 7 5/8”
(690 cm)
Travel Width* 15’ 9”
(480 cm)
15’ 9”
(480 cm)
15’ 9”
(480 cm)
15’ 9”
(480 cm)
Travel
Height**
13’ 0”
(344 cm)
13’ 0”
(344 cm)
13’ 0”
(375 cm)
13’ 11 3/4”
(426 cm)
Bin Length 26’ 5 7/8”
(807 cm)
26’ 5 7/8”
(807 cm)
26’ 5 7/8”
(807 cm)
26’ 5 7/8”
(807 cm)
Bin Width 15’ 2 1/2”
(464 cm)
15’ 2 1/2”
(464 cm)
15’ 2 1/2”
(464 cm)
15’ 2 1/2”
(464 cm)
Bin Height 7’ 5 3/8”
(227 cm)
7’ 5 3/8”
(227 cm)
8’ 5 7/8”
(259 cm)
10’ 1 7/8”
(310 cm)
Wheel Base 86”
(218 cm)
172”
(437 cm)
172”
(437 cm)
172”
(437 cm)
Ground
Clearance*
19”
(48 cm)
19”
(48 cm)
19”
(48 cm)
19”
(48cm)
Capacity 1450 Bushels 1450 Bushels 1700 Bushels 2200 Bushels
Empty Weight ~30,000 lbs
(~13600 kgs)
~34,000 lbs
(~15425 kgs)
~34,300 lbs
(~15560 kgs)
~35,000 lbs
(15880 kgs)
* This dimension does not include the increase in width
due to the light kit since this can vary depending on the
overall width of the tractor pulling this machine.
** This dimension can vary depending on the tire size
used on this machine.
FIGURE 5
Bin Width
Travel Width
Overall Width
Wheel Base (Tandem)
Overall Length
Bin Length
Bin Height
Maximum Overhead Clearance
Travel Height
Overall Height
Wheel Base (Tridem)

14 Field Floater 6 Grain Cart User Manual

Field Floater 6 Grain Cart User Manual 15

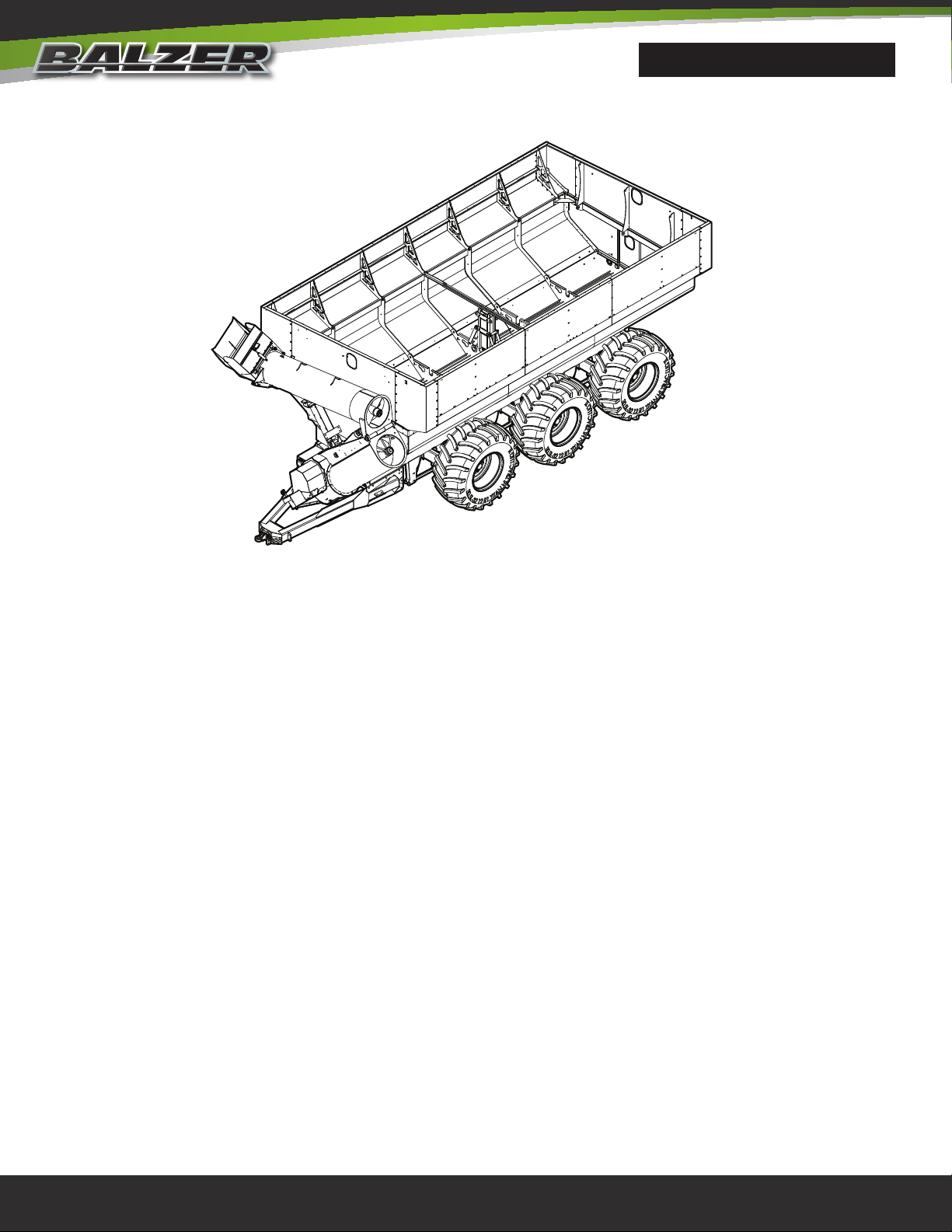

Operation

16 Field Floater 6 Grain Cart User Manual
OPERATION
Pre-Operation Checks
Make sure all safety shields are in place and properly secured.
Make sure all moving components are free of solid, hard, or frozen material or other obstructions.
Make sure the tractor drawbar matches the standards shown in the Drawbar Adjustment diagram (Figure 6).
Hydraulic Hose Color Markings
Each hydraulic hose will have either one (1) color code stripe indicating it as a Return line or two (2) color code stripes
indicating it is a Pressure line. The exception is for the Hydraulic Motor Zero Return line which has two stripes but only one of
each color. The following color codes denote the operational purpose of the hydraulic hose lines.
RED - Brakes ORANGE - Hydraulic Manifold
Attaching to Tractor
Attach the tractor’s drawbar to the hitch using a properly sized hitch pin. The hitch pin should have a safety retainer to keep it
from dislodging itself from the hitch.
Attach the safety chain to the drawbar of the tractor. Attaching the safety chain to a
point higher than the drawbar can lead to a potential rollover causing serious injury or
death (Figure 7).
Crank the trailer jack down to slowly place pressure on the drawbar. After the weight
has been transferred to the tractor’s drawbar and is no longer being supported by the
jack, remove the jack and secure it in its storage location.
Check the tractor’s Power Take Off (PTO) for any damage, that it slides freely, and is
the proper size and connection for the PTO shaft on the tank.
Attach the PTO shaft to the tractor securely as required by its locking mechanism. The
PTO should have approximately 1/3 overlap.
WARNING Improper PTO Length may damage the unit.
8” to 13”
15” to 22”
FIGURE 6
Suggested drawbar adjustments for PTO shaft size and speed.
DANGER Attaching the safety chain to any point higher than
the drawbar can cause tractor to rollover should this
machine become unhitched from the tractor. Tractor
rollover can cause serious injury or death!
1
1
/
2
S
e
c
o
n
d
s
3
/
4
S
e
c
o
n
d
s
Point of No
Return
FIGURE 7
