B&D Easylifter User manual

2
Introduction 2-7
Safety rule review........................................................2
Preparing your garage door ........................................3
Tools needed...............................................................3
Planning ..................................................................4-5
Carton inventory ..........................................................6
Hardware inventory .....................................................7
Assembly 8-10

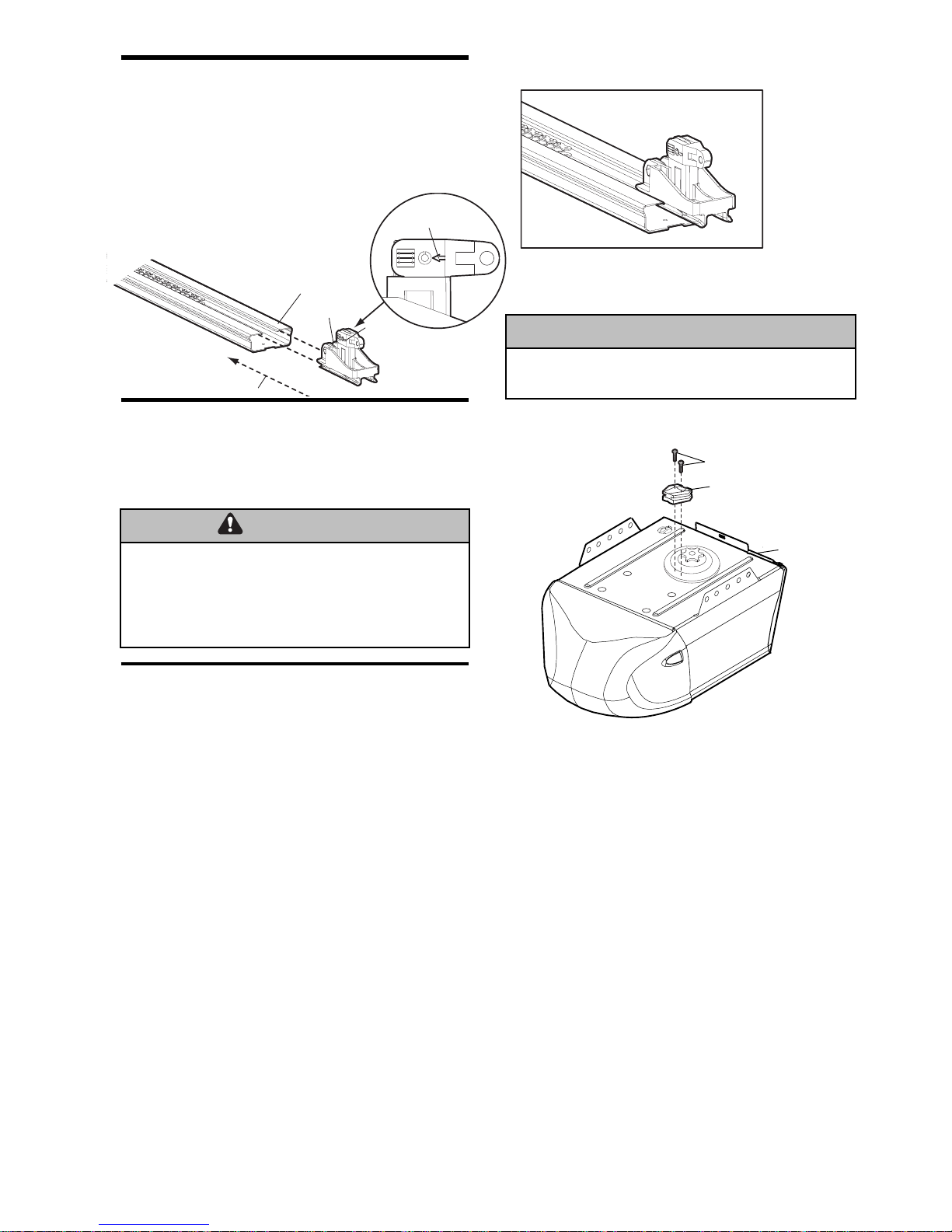

Assemble the rail & attach the chain pulley bracket ...8
Install the trolley ..........................................................9
Fasten rail to motor unit ..............................................9
Install chain & attach chain spreader.....................9-10
Install the chain noise reduction pads.......................10
Installation 11-24
Installation safety instructions....................................11

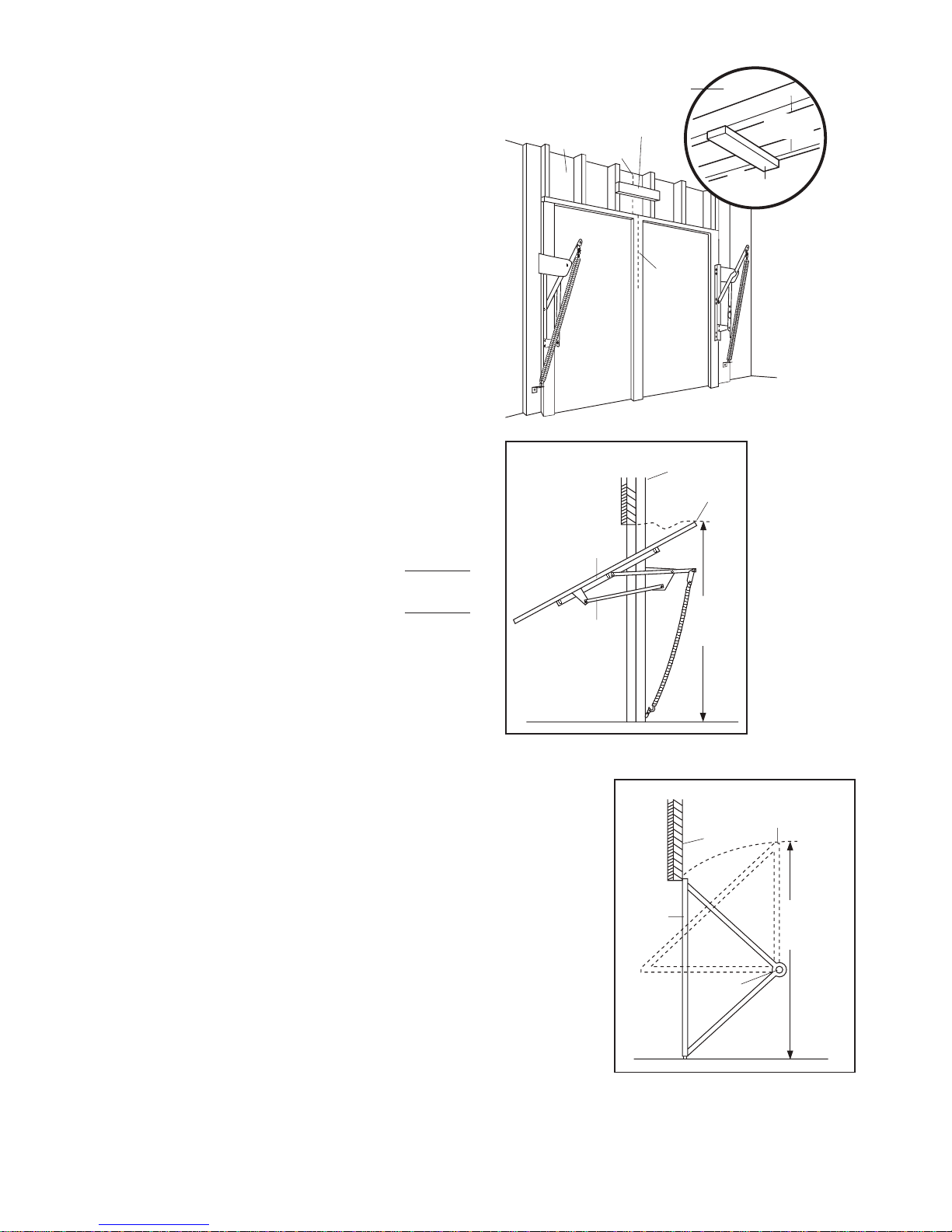

Determine the header bracket location................12-13
Install the header bracket..........................................14
Attach the rail to the header bracket.........................15
Position the opener ..............................................15-16
Hang the opener ..................................................16-17
Install the door control...............................................17
Install the remote control wall mount (optional) ........17
Wiring instructions for optional accessories..............18
Install the light globe .................................................19
Attach the emergency release rope and handle .......19
Connect electric power..............................................19
Installing the safety infra-red safety sensors.............20
Fasten the door bracket.......................................21-22
Connect door arm to trolley .................................23-24
Adjustment Section 25-27
Adjust the travel limits ...............................................25
Adjust the force .........................................................26
Test the safety reverse system .................................27
Testing the safety infra-red safety sensors ...............27
Operation 28-30
Operation safety instructions.....................................28
Using your garage door opener ................................28
To open the door manually........................................29
Care of your opener ..................................................29
Troubleshooting.........................................................30
Programming 31
To code a hand-held remote control .........................31
To erase all codes .....................................................31
Multi-function remotes ...............................................31
Warranty 32
TABLE OF CONTENTS
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the corresponding instructions. The
hazard may come from something mechanical or
from electric shock. Read the instructions carefully.
When you see this Signal Word on the following
pages it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the corresponding
instructions. Read them carefully.
Mechanical
INTRODUCTION
Safety Rule Review
WARNINGWARNING
CAUTION WARNING
WARNING
WARNINGWARNING
CAUTION WARNING
WARNING
WARNING
CAUTIONCAUTION WARNING
WARNING
Electrical
This garage door opener is designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the warnings, safety instructions and instructions contained in
this manual.

3
Pliers
Wire Cutters Claw Hammer
Hack Saw
Screwdriver
Adjustable End Wrenc
h
Locking pliers
13mm, 11mm, and 6mm
Sockets and Wrench
Drill
Tape Measure
2
1
Stepladder
Pencil
8mm, 5mm, and
4mm Drill Bits
Carpenter's
Level
To avoid damage to the garage door and opener, disable
locks before installing and operating the opener. Use a wood
screw or nail to hold locks in the "open" (unlocked) position.
Operation at other than 230V/50 Hz will cause opener
malfunction and damage.
To prevent possible SERIOUS INJURY OR DEATH:
• Always call for professional B&D garage door service
if garage door binds, sticks, or is out of balance. An
unbalanced garage door might not reverse when required.
• NEVER try to loosen, move, or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all of
which are under EXTREME tension.
• Disable ALL locks and remove all ropes connected to
garage door before installing and operating garage door
opener to avoid entanglement.
• This unit should not be installed in a damp or wet space.
• The door must not extend over public byway during
operation.
• This product is provided with a power supply cord of special
design which, if damaged, must be replaced by a power
supply cord of the same type; such a power supply cord
may be obtained from you local B&D distributor and
must be fitted by a specialist.
Preparing your garage door
• Disable locks. Insert wood screws or nails to keep
them unlocked.
• Remove any ropes connected to garage door.
TESTING YOUR DOOR
Before you begin, complete the following test to
make sure your door is balanced and is not sticking
or binding:
• Lift the door about halfway as shown. Release the
door. It should stay in place, supported entirely by
its springs.
• Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call for
professional garage door service.
Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated.
SECTIONAL DOOR
Sectional Door
One-Piece Door
WARNINGWARNING
CAUTION WARNING
WARNING
WARNING
CAUTION
CAUTION WARNING
WARNING
114A3231

4
Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials and/or
hardware not included in the carton.
• Installation Step 1 – Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 – Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
B&D recommends the use of safety infra-red
beam sensors on all installations of automatic
garage door openers.
• Installation Step 10:
– Depending upon garage construction, extension
brackets or wood blocks may be needed to install
the infra-red safety sensors.
– Alternate floor mounting of the safety infra-red
beam sensors will require hardware not provided.
• Do you have an access door in addition to the
garage door? If not, a B&D Emergency Access
Access Device is required (B&D Part# 59009).
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 11).
• The opener is normally installed at the center of
the door. If there is a torsion spring or center
bearing plate in the way of the header bracket or
door bracket area, the opener may be installed
within 300mm to the left or right of the door center.
See Installation Steps 1 and 11.
• Look at the garage door where it meets the floor. It
must close on the floor all the way across.
Otherwise, the safety reverse system may not work
properly. See Adjustment Step 3. Floor or door
should be repaired.
Safety Reversing Sensor (IR Beam)
Support bracket &
fastening hardware
is required.
Seepage 17.
— — — — — — — —
Door
Centre
Header Wall
Safety
Reversing
Sensor
Gap between floor and bottom of
door must not exceed6mm.
FINISHED CEILING
Extension Spring
Torsion Spring Access
Door
OR
Motor Unit
Header
Sleeve Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
esaeleR
Rope & Handle
Door
Bracket
Garage
Door
Curved
Door
Arm
Garage
Door
Spring
Header
Wall
CLOSED POSITION
Rail Assembly
Sectional Door Installation
Horizontal and vertical reinforcement is
needed for lightweight garage doors
(fibreglass steel, aluminium, door with
glass panels, etc.)
SEE PAGE 21 FOR DETAILS

5
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, you can
refer to the information relating to sectional doors
in Installation Step 11.
• Depending on your door’s construction, you may
need additional mounting hardware for the door
bracket (Step 11).
• The gap between the bottom of the garage door
and the floor cannot exceed 6mm. Otherwise, the
safety reverse system may not work properly. See
Adjustment Step 3. The floor or the door should be
repaired.
Access
Door
Gapbetween floor
and bottom of door
must not exceed6mm.
Safety
Reversing Sensor
Safety
Reversing Sensor
Safety Reversing Sensor
FINISHED CEILING
Support br
acket
& fastening
hardware is required
.
See
page 17.
Safety
Reversing
Sensor
Gap between floor and bottom
of door must not exceed 6mm
Header
Wall
Access Door
CLOSED POSITION
One-Piece Door without Track
CLOSED POSITION
Header
Sleeve Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope &
Handle
Door Bracket
Curved
Door
Arm
Header
Wall
Rail
Garage
Door
Chain
One-Piece Door with Track
Header
Bracket
Header Sleeve Bracket
Door
Bracket
Straight
Door
Arm
Curved
Door Arm
Trolley
Emergency
Release
Rope & Handle
liaR
Garage
Door
Header
Wall
CLOSED POSITION

6
Your garage door opener is packaged in two cartons
which contains the motor unit and the parts illustrated
below. If anything is missing, carefully check the
packing material. Parts may be stuck in the foam.
Hardware for assembly and installation is shown on
the next page. Save the carton and packing material
until installation and adjustment is complete.
Carton Inventory
Straight Do
or
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
Chain
Hanging Brackets
1-Function Remote
Control Transmitter (2)
Remote Control
Transmitter Visor Clip (2)
Light Lens (1)
Rail
Centre
Section
Chain Spreader with Screws
and Washers
Trolley
Inner Trolley
4-Piece Rail
Door Bracket
Rail Straps
Header Bracket
Header Sleeve Bracket
Light globe
Remote Control
Wall Mount Bracket
Chain Noise
Reduction Pads

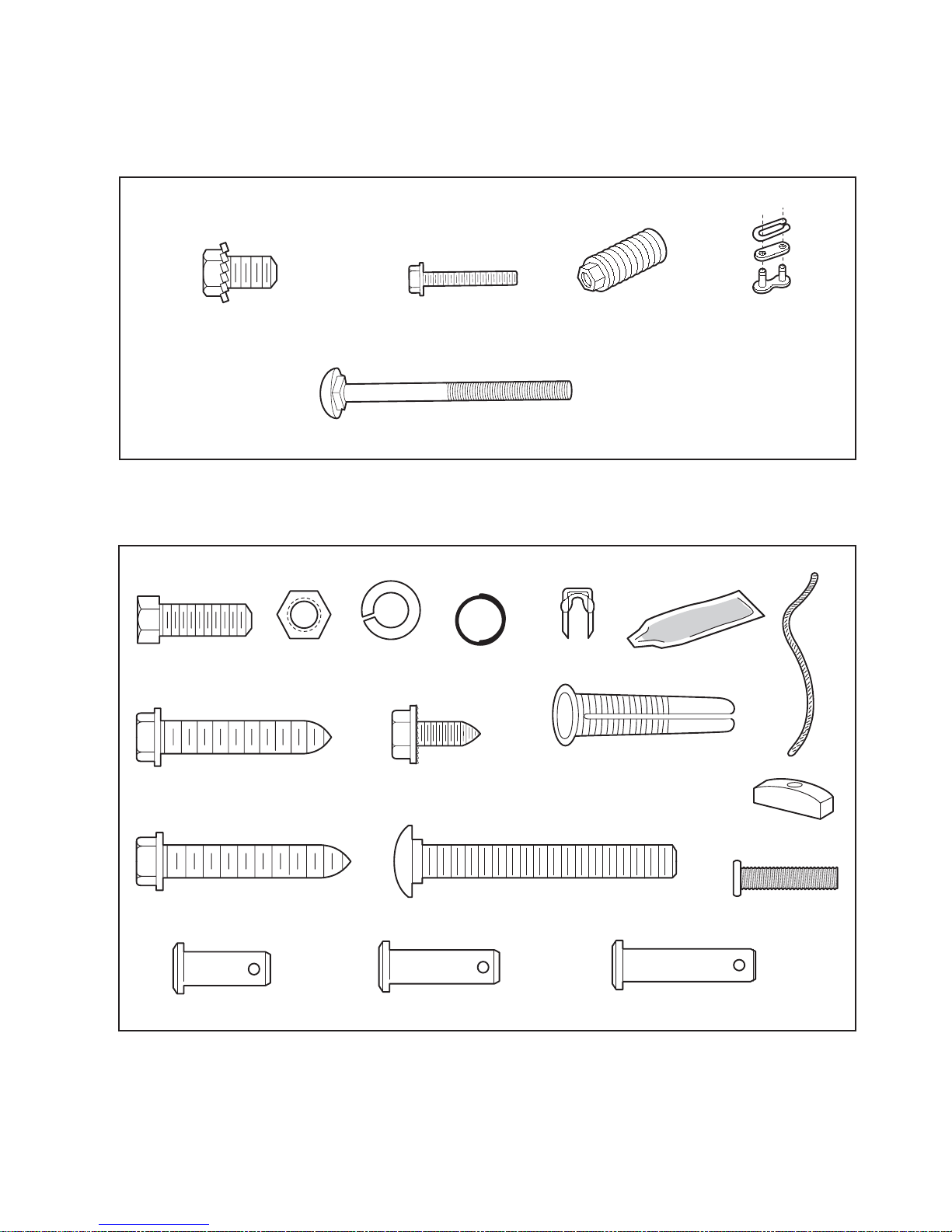

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
7
Spring /Trolley Nut (1) Master
Link (2)
ASSEMBLY
INSTALLATION
NOTICE
Handle
Rope
Lock Washer
8mm (7)
Hex Screw
8mm x 20mm (4)
Nut
8mm (7)
Carriage Bolt
8mm x 65mm (2)
Screw (2)
Washered Screw 25mm (4)
(mounted in opener)
Anchors
8mm x 40mm (6)
Insulated
Staples Rail Grease
Carriage bolt (1)
Stop Bolt (1)
Ring Fastener (4)
Sheet Metal Screw
8mm x 13mm(2)
Lag Screw
8mm x 45mm (2)
Lag Screw
8mm x 40mm (4)
Clevis Pin
8mm x 32mm (1)
Clevis Pin
8mm x 13mm (2) Clevis Pin
8mm x 25mm(2)

8
ASSEMBLY STEP 1
Assemble the Rail
NOTE: If your opener came with a one piece rail,
proceed to Assembly step 2, page 9.
Grease inside edges of rail brace sections. Place rail
pieces on flat surface for assembly. All four rail
sections are interchangeable. Slide rail braces onto
rail section. Connect rail by sliding rail brace onto
next rail section. Tap rail assembly on piece of wood
until rail sections are flush. Repeat with remaining
rail sections.
Install the Chain
Remove chain from carton and lay chain out on floor
(do not allow chain to twist). Push pins of master link
bar through chain link and hole in back end of trolley.
Push cap over pins and onto notches. Slide clip-on
spring over cap and onto pin notches until both pins
are securely locked in place.
Insert Chain into Rail & Assemble
Header Sleeve
Slide pulley bracket and inner trolley into back
(opener end) of rail assembly, be sure to insert pulley
bracket as shown with arrow pointing toward front
(header end) of rail. Push bracket toward front
(header end ) of rail. Insert carriage bolt through
header sleeve bracket. Loosely thread spring nut
onto carriage bolt. Insert carriage bolt of header
sleeve assembly into bold cut out in pulley bracket.
Slide header sleeve assembly on to front (header
end) of rail.
Spring Trolley Nut
Carriage Bolt
HARDWARE SHOWN ACTUAL SIZE
Rail Piece
Rail Brace
Rail assembly
Piece of Wood
Rail
Piece
Grease
Pulley
Bracket
Carriage Bolt
Header Sleeve
Bracket
Front (Header End)
of Rail
Back
(Opener End)
of Rail
Assembly
Pulley
Bracket
Inner
Trolley
Arrow
RAIL ASSEMBLY
Spring
Cap
Back End of Trolley
Master Link Bar
Chain Link
INSTALLING THE CHAIN
Spring Nut
Header Sleeve
Bracket
Carriage B
olt

Outer Trolley
Arrow
Arrow
Rail Assembly
Towards Door
9
ASSEMBLY STEP 3
Attach Chain Spreader
Attach chain spreader to opener with phillips pan
head screws.
Chain Spreader
Phillips Pan Head Screws
Opener
To avoid serious damage to opener, ONLY use screws
mounted in top of motor unit.
ASSEMBLY STEP 2
Attach Trolley to Rail
Slide outer trolley into rail assembly, be sure arrow
on trolley is heading in direction of door is heading in
direction of door. Slide outer trolley down rail until it
engages with inner trolley.
WARNING
CAUTIONCAUTION WARNING
WARNING
ASSEMBLY STEP 4
Fasten Rail to Opener & Install Chain
Remove four washered bolts from top of opener. Place
rail on opener, flush with stops on top of opener. Wrap
chain around slot in spreader and over sprocket. Push
idler pulley bracket assembly toward front of the rail to
eliminate excess slack in chain. Align bolt holes on
brackets with bolt holes on opener. Secure brackets to
opener with previously removed bolts . Tighten bolts
securely. The opener sprocket teeth must engage
the chain. Insert bolt into trolley stop bolt hole secure
with lock washer and nut.
CAUTION: Use only those bolts mounted in the
top of opener. Use of any other bolts will cause
serious damage to opener.
Set Chain Tension
Thread spring nut on carriage bolt unit finger tight.
Insert a screwdriver tip into one of the slots of the nut
ring and brace it firmly against the header sleeve.
Place an open end wrench on the square end of the
spring nut, slightly rotate nut about 1/4 turn clockwise
until nut ring is released against header sleeve. This
sets spring to optimum chain tension. chain may slip
off sprocket if chain is too loose. If chain does slip re-
tighten spring nut by turing nut clockwise 1/2 turn.
Do NOT overtighten chain.
To avoid possible SERIOUS INJURY to fingers from moving
garage door opener:
• ALWAYS keep hand clear of sprocket while operating
opener.
• Securely attach chain spreader before operating.
WARNINGWARNING
CAUTION WARNING
WARNING

Bolt
?
T
rolley Stop
Bolt Hole
Lock
Washer Nut
Bolt Nut
Lock Washer
Washered Bolt
Sprocket
2
Stops
4
Sprocket
Spreader
Stops
Spreader
Screwdriver
Tip
Nut Ring
Wrench
Spring Nut
Header Sleeve
FASTEN RAIL TO OPENER
SET CHAIN TENSION
10
114mm
114mm
1. Clean and remove grease from
rail in areas where pads will be
installed.
2. With chain tensioned lift up the
chain and place noise reduction
pads under the chain in orientation
shown.
3. Install with adhesive side down
allowing pad to stick to rail.
ASSEMBLY STEP 5
Install Chain Noise Reduction Pads
(optional)
HARDWARE SHOWN
ACTUALSIZE
Spring/Trolley N
ut
Nut Ring
Trolley
25mm
BEFORE
S
quare
E
nd Nut Ring
32mm
AFTER RELEASE
Trolley
Square
End

11
IMPORTANT INSTALLATION INSTRUCTIONS
1. READ AND FOLLOW ALL INSTALLATION
WARNINGS AND INSTRUCTIONS.
2. Install garage door opener only on properly balanced
and lubricated garage door. An improperly balanced
door may not reverse when required and could result
in severe injury or death.
3. All repairs to cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician before installing opener.
4. Disable all locks and remove all ropes connected to
garage door before installing opener to avoid
entanglement.
5. Install garage door opener 2.1m or more above floor.
6. Mount emergency release handle 1.8m feet above
floor.
7. NEVER connect garage door opener to power source
until instructed to do so.
8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught
in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight of the garage door
• out of reach of children at minimum height of 1.5m
• away from all moving parts of the door.
10. Place entrapment warning label on wall next to
garage door control.
11. Place manual release/safety reverse test label in
plain view on inside of garage door.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a 40mm
high object on the floor.
To reduce the risk of severe injury or death:
WARNING
CAUTION WARNINGWARNING
WARNING
INSTALLATION

12
INSTALLATION STEP 1
Determine the Header Bracket
Location
Installation procedures vary according to garage door
types. Follow the instructions which apply to your
door.
SECTIONAL DOOR
AND ONE-PIECE DOOR WITH TRACK
1. Close the door and mark the inside vertical
centreline of the garage door.
2. Extend the line onto the header wall above the
door.
NOTE: You can fasten the header bracket within
300mm of the left or right of the door center only if a
torsion spring or centre bearing plate is in the way; or
you can attach it to the ceiling (see page 14) when
clearance is minimal. (It may be mounted on the wall
upside down if necessary, to gain approximately
12mm.)
If you need to install the header bracket on a 40mm
reinforcement board (on wall or ceiling), use lag
screws (not provided) to securely fasten the 40mm
reinforcement board to structural supports as shown
here and on page 13. If installing into masonry, use
concrete anchors.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 50mm above the high point. This
height will provide travel clearance for the top edge
of the door.
Proceed to Step 2, page 14.
One-piece
door with
horizontal
track
Header Wall
Ceiling
Track
Highest Point
of Travel
Door
50mm
Sectional door
with curved
track
Door
Track
Header Wall
Highest Point
of Travel
50mm
Vertical
Centreline
Finished
Ceiling
Vertical
Centreline
Header
Wall
40mm
Reinforcement
Board Structural
Supports
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to structural
support on header wall or ceiling, otherwise garage door
might not reverse when required. DO NOT install header
bracket over drywall.
• Concrete anchors MUST be used if mounting header
bracket or 40mm reinforcement board into masonry.
• NEVER try to loosen, move or adjust garage door, springs,
cables, pulleys, brackets, or their hardware, all of which are
under EXTREME tension.
• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door might not reverse when required.
WARNING

13
Header
Wall Vertical
Centreline
Vertical
Centreline
of Garage
Door
40mm
tnemecrofnieR
Board
Unfinished
Ceiling
Structural
Supports
40mm
tnemecrofnieR
Board
ONE-PIECE DOOR WITHOUT TRACK
1. Close the door and mark the inside vertical
centreline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a
40mm reinforcement board (on wall or ceiling), use
lag screws (not provided) to securely fasten the
40mm reinforcement board to structural supports
as shown. If installing into masonry, use concrete
anchors (not provided).
2. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 200mm to the remainder.
(See Example).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
If the total number of millimeters exceeds the
height available in your garage, use the
maximum height possible, or refer to page 14
for ceiling installation.
Door
Highest Point
of Travel
Header Wall
Pivot
Distance
Floor
One-piece door without track:
pivot hardware
Header Wall
Highest Point
of Travel
Door
Floor
Distance
Jamb
Hardware
One-piece door without track:
jamb hardware
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ................ 2300mm
Actual height of door....................................-2100mm
Remainder.................................................... 200mm
Add............................................................... +200mm
Bracket height on header wall ..................... =400mm
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 14.
OPTIONAL CEILING
MOUNT FOR
HEADER BRACKET

14
INSTALLATION STEP 2
Install the Header Bracket
WALL HEADER BRACKET INSTALLATION
• Centre the bracket on the vertical guideline with the
bottom edge of the bracket on the horizontal line
(with the arrow pointing toward the ceiling).
• Mark all of the bracket holes. Drill 4.5mm (3/16")
pilot holes and fasten the bracket with wood
screws. For concrete mount, use concrete anchors
provided.
Lag Screw
8mm x 40mm
Anchors
8mm x 40mm
HARDWARE SHOWN ACTUAL SIZE
Bracket Holes
Bracket Holes
50mm
(2")
25mm
Board
Header
Wall
Vertical
Centreline
Lag Screws
8mm x 40mm
Header
Bracket
Highest Point of
Garage Door Travel
Vertical
Centreline
Garage
Door
UP
CEILING MOUNT ONLY
Ceiling Mounting Holes
T
henail hole is for
p
ositioning only.
You must use lag screws
t
o mount the header bracket
UP
Lag Screws
8mm x 40mm
Garage Door
Vertical Centreline
Header Wall
Finished Ceiling
Header
Bracket
15cm Maximum
Vertical
Centreline
Door
Spring
CEILING HEADER BRACKET INSTALLATION
• Extend vertical guideline onto the ceiling.
• Centre the bracket on the vertical mark no more
than 150mm (6") from the wall. Make sure the
arrow is pointing toward the wall.
• Mark all of the bracket holes (5). Drill 4.5mm (3/16")
pilot holes and fasten the bracket with wood
screws. For concrete ceiling mount, use concrete
anchors provided.

15
Ring fastener (2)
Temporary Support
Garage Door
Header Wall
Header Bracket
Header
Sleeve
Bracket
Clevis PIn
8mm x 13mm (2)
Ring Fastener
Ring Fastener
Clevis Pin
8mm x 13mm
Clevis Pin
8mm x 13mm
Header Sleeve
Bracket
Rail
HARDWARE SHOWN
ACTUAL SIZE
INSTALLATION STEP 3
Attach the Rail to the Header Bracket
• Position opener on garage floor below the header bracket. Use packing material to protect the cover. Raise
rail until holes in the header sleeve and holes in the header bracket align. Join with clevis pins. Insert ring
fasteners to secure.
NOTE: To enable the rail to clear sectional door springs, it may be necessary to lift opener onto a temporary
support. The opener must either be secured to a support or held firmly in place by another person.
INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK
A 25 mm board laid flat is convenient for setting an ideal door-to-rail distance.
• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.
• Open the door all the way and place a 25mm board laid flat on the top section beneath the rail.
• If the top section or panel hits the trolley when you raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the outer trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is completed.
To prevent damage to garage door, rest garage door opener
rail on 25mm board or equivalent placed on top section of
door.
WARNING
CAUTIONCAUTION WARNING
WARNING
Trolley
Release Arm
ENGAGED RELEASED

16
Top of Motor Unit
Header
Bracket
Top of door
ONE-PIECE DOOR WITHOUT TRACK
• With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 50mm above this point.
25mm
Board laid flat
Rail
Door
INSTALLATION STEP 5
Hang the Opener
The opener must be securely fastened to a
structural support of the garage.
Two representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings,
(Figure 2) attach a sturdy metal bracket (not supplied)
to a structural support before installing the opener.
1. On each side of opener measure the distance from
the opener to the structural support (or ceiling).
2. Cut both pieces of the hanging bracket to required
lengths. Flatten one end of each bracket and bend
or twist to fit the fastening angles. Do not bend at
the bracket holes. Drill 4.5mm (3/16") pilot holes in
the structural supports (or ceiling). Attach flattened
ends of brackets to supports with wood screws.
3. Lift opener and fasten to hanging brackets with
screw, lock washer and nut. Check to make sure
rail is centred over the door.
4. Remove 25mm (1") board. Operate door manually.
If door hits the rail, raise header bracket.
5. Use rail grease and lubricate inside surface of rail.
Hex Screw
8mm x 20mm Nut 8mm Lock Washer 8mm
Lag Screw
8mm x 45mm
HARDWARE SHOWN ACTUAL SIZE
To avoid possible SERIOUS INJURY from a falling garage
door opener, fasten it SECURELY to structural supports of
the garage. Concrete anchors MUST be used if installing any
brackets into masonry.
WARNING
Measure
Distance
Structural
Supports
Lock Washer 8m
m
Screw 8mm
Nut 8mm
1
Lag Screws
8mm x 45mm
Figure 1
Bracket
(Not Provided)
FINISHED CEILING
Lock Washer 8mm
Screw 8mm
Nut 8mm
Hidden
Support
Lag Screws
8mm x 45mm
Figure 2

17
INSTALLATION STEP 6
Remote Control Wall Mount
1. Locate wall mount bracket at least 1.5m above the
floor.
2. Attach to the wall with 2 x ø 3.5 max flat head
screws (not provided).
3. Slide remote control onto wall mount bracket.
NOTE: Tightening the wall mount screws will reduce
clearance between bracket and wall.
Bell Wire
WHT
-2
RED
-1
Lighted Door
Control Button
Terminal Screws
Lighted Door
Control Button
Bell Wire
Screw 6ABx1-1/2”
Lighted Door Control Button Drywall Anchors
Insulated
Staples
Install the door control (optional)
Note: Wired Push button door control not provided
in standard kit.
Locate the door control within sight of the door at a
minimum height of 1.5m where small children
cannot reach, and away from all moving parts of
the door and door hardware.
1. Strip 6mm of insulation from one end of the bell
wire. Connect it to the two screw terminals on the
back of the door control by color: white wire to 2
and white/red wire to 1.
2. Fasten the Lighted Door Control Button securely
with 6ABx1-1/2” screws. If installing into drywall,
drill 4mm holes and use the anchors provided.
3. Run the bell wire up the wall and across the
ceiling to the opener. Use insulated staples to
secure the wire in several places. Do not pierce
wire with a staple, creating a short or open circuit.
4. Receiver terminals are located on the back panel
of the opener.
5. Strip 11mm of insulation from the end of the bell
wire and insert in wire trap: white to 2 and
white/red to 1.
6. Permanently attach the entrapment warning label
to the wall near the door control, and the manual
release/safety reverse test in a prominent location
on the inside of the garage door.
HARDWARE SHOWN ACTUAL SIZE

18
WIRING INSTRUCTIONS FOR
ACCESSORIES
• Place entrapment warning label on the inside of
door as a reminder of safe operating procedures.
Place the manual release/safety reverse test
label in plain view on the inside of the garage
door.
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing door
control.
To prevent possible SERIOUS INJURY or DEATH from a
closing garage door:
• Install door control within sight of garage door, out of reach of
children at a minimum height of 1.5m, and away from all
moving parts of door.
• NEVER permit children to operate or play with door control
push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.
WARNING
CAUTION
WARNING
WARNING
WARNING
KEY SWITCH MODEL 059009
To opener terminal: white to 2; white/red to 1.
SAFETY INFRA-RED REVERSING SENSOR
MODEL 062153
To opener terminal screws: white to 2; Black to 3.
DOOR CONTROL PANEL 062159
To opener terminal: white to 2; white/red to 1.
INSTALLATION STEP 7
Install the Light
• Press the release tabs on both sides of lens. Gently
rotate lens back and downward until the lens hinge
is in the fully open position. Do not remove the
lens. Install a 40 watt maximum (socket size E27),
light globe in the socket as shown.
• The light will turn on and remain lit for 2-1/2
minutes when power is connected. After 2-1/2
minutes it will turn off.
• Reverse the procedure to close the lens.
Replace burned out globes with rough service
light globes.
Release tabs
of lens
40W Max
L
ight Bulb
Socket

19
Overhand
Knot
Emergency
Release Handle
Trolley Release Arm
NOTICE
Rope
T
rolley
• To prevent possible SERIOUS INJURY or DEATH from a
falling garage door:
– If possible, use emergency release handle to disengage
trolley ONLY when garage door is CLOSED. Weak or
broken springs or unbalanced door could result in an
open door falling rapidly and/or unexpectedly.
– NEVER use emergency release handle unless garage
doorway is clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope knot
becomes untied, you could fall.
WARNINGWARNING
CAUTION WARNING
WARNING
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 25mm from the end of the rope to prevent
slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolley.
• Adjust rope length so the handle is 1.8m above
the floor. Secure with an overhand knot.
If it is necessary to cut the rope, heat seal the cut
end with a match or lighter to prevent unraveling.
INSTALLATION STEP 9
Connect Electric Power
To avoid installation difficulties, do not run the opener
at this time.
Connect the operator to a mains which is properly
earthed according to the wiring instruction tag
attached to the power supply cord (and as specified
by local code).
To prevent possible SERIOUS INJURY or DEATH from
electrocution or fire:
• Be sure power is not connected to the opener, and
disconnect power to circuit BEFORE removing cover to
establish permanent wiring connection.
• Garage door installation and wiring MUST be in compliance
with all local electrical and building codes.
• NEVER use an extension cord, 2-wire adapter, or change
plug in any way to make it fit outlet. Be sure the opener is
earthed.
WARNINGWARNING
CAUTION WARNING
WARNING
