B&D Smart Pro User manual

www.bnd.com.au
Sectional Door Opener
installation instructions
Smart Pro
These instructions are intended for professional garage door
opener installers.
All references are taken from inside looking out.
DOC# 161072_00
RELEASED: 22/02/21
Smart Pro SDO-9

2
Smart Pro installation instructions
Contents
1. Installation Safety Warnings! 3
2. Before you Begin 4
3. Tools Required 4
4. Kit Contents 5
5. Position 5
6. Fit the Opener 6
7. Bracket Position 7
8. Perforated Angle 8
9. Mounting Brackets and Arms 8
10. Safety Beam Kit 9
10.1 Inserting batteries into receiver and transmitter 9
10.1 Assemble the Mounting Bracket 9
10.2 Mounting the Bracket 9
10.3 Aligning the Transmitter and Receiver 9
11. Specifications 10

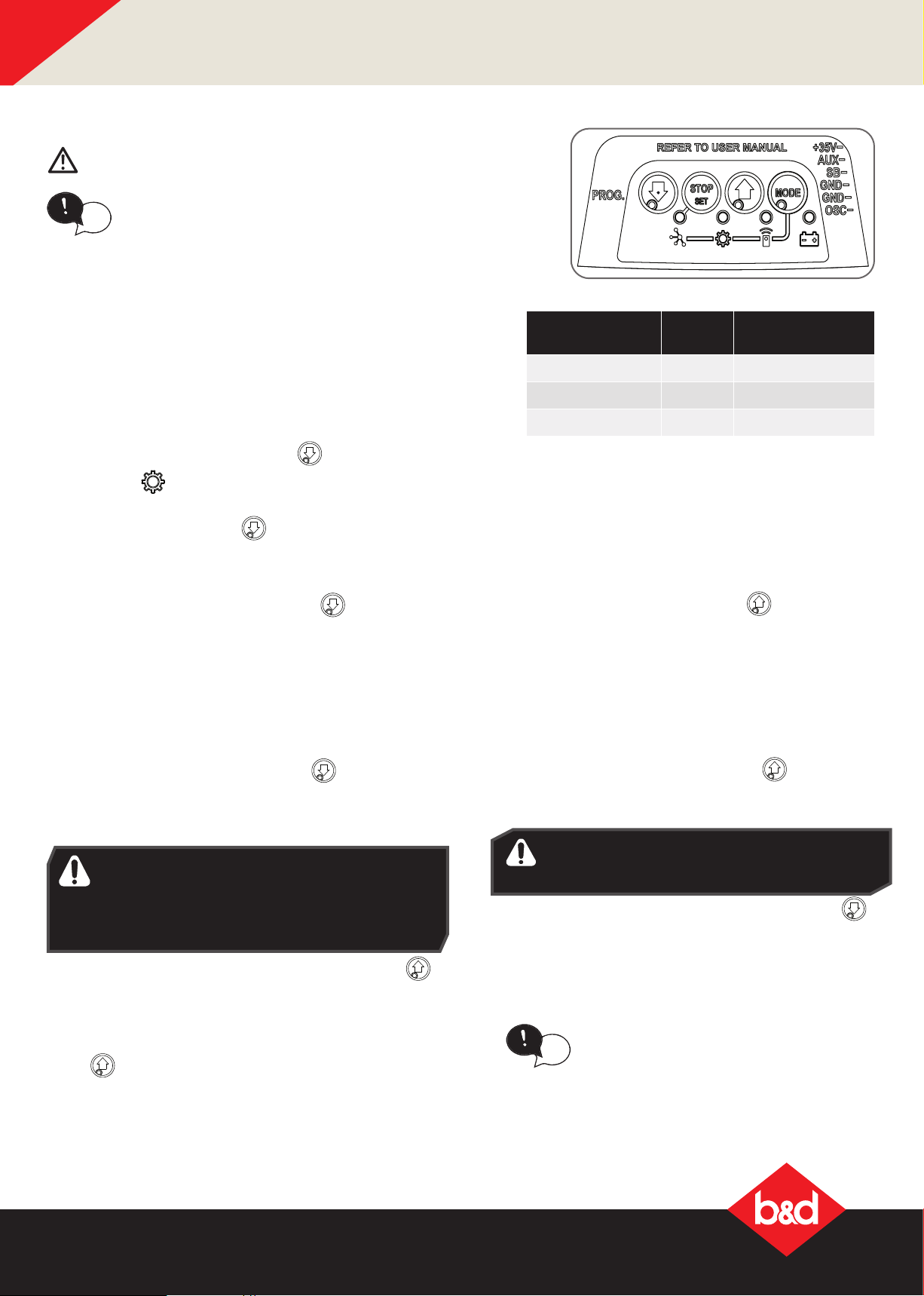

12. Setting Limits 11
12.1 Set the Limit Positions and adjust drive speed: 11
12.2 Clearing the Door Limit Positions 12
12.3 Re-proling the Door 12
12.4 Controller memory reset 12
13. Safety Testing 13
13.1 Test the Close Cycle 13
13.2 Testing the Open Cycle 13
13.3 Test the Manual Door Operation 13
13.4 Test the Battery Backup 13
14. Auto-Close & Accessories 14
14.1 Auto-Close 14
14.2 Terminal Block 14
14.3 Connecting or Disconnecting Accessories 14
Installation Instructions
Home Owner Instructions
WARNING! IMPORTANT SAFETY INSTRUCTIONS
FOLLOW ALL INSTRUCTIONS SINCE INCORRECT INSTALLATION CAN LEAD TO SEVERE INJURY.
•before installing the drive, remove all unnecessary ropes or chains and disable any equipment, such as locks, not needed for
powered operation;
•before installing the drive, check that the door is in good mechanical condition, correctly balanced and opens and closes
properly;
•install the actuating member for the manual release at a height less than 1,8 m;
•install any xed control at a height of at least 1,5 m and within sight of the door but away from moving parts;
•permanently x the labels warning against entrapment in a prominent place or near any xed controls;
•permanently x the label concerning the manual release adjacent to its actuating member;
•after installation, ensure that the mechanism is properly adjusted and that the drive reverses when the door contacts a 40 mm
high object placed on the oor.
•necessary information for the safe handling of a drive weighing more than 20 kg.This information shall describe how to use the
handling means, such as hooks and ropes;
•the drive must not be used with a door incorporating a wicket door (unless the drive cannot be operated with the wicket door
open);
•after installation, ensure that parts of the door do not extend over public footpaths or roads.
•vertical doors and gates need an anti-drop feature or device;
•information if a hazardous part of the drive is intended to be installed at a height of at least 2.5 m above oor level or other
access level;
•except for horizontally moving pedestrian doors, ensure that entrapment due to the opening
movement of the driven part is avoided
15. Coding a Transmitter 15
15.1 Storing the Transmitter Code 15
15.2 Remotely Coding Transmitters 15
15.3 Erasing All Transmitter Codes 15
15.4 Vacation Mode 15
15.5 Installation of the Wall Mounted Transmitter 15
16. Smart Phone Control 16
17. Home Owner Safety Warnings! 17
18. Opener Safety & Security 18
18.1 Your Door CAN NOT be used when: 18
18.2 Your Door CAN be used when: 18
18.3 To Disengage the Opener: 18
18.4 To Re-Engage the Opener: 18
19. Operating your Opener 18
20. User Operating Controls 19
21. Troubleshooting 20
22. After Installation Care 22
22.1 Service Checklist 22
22.2 Battery Replacement 23
22.3 Battery Disposal 23
22.4 Warranty 23
23. Appendix 24
A - Status Indication during Operating Mode. 24
B - Adjustment Mode Instructions 25
C - Adjusting Force Margins 26
D - Battery Functions 26
E - Setting the PET mode position 26
F - Setting up Tilt Door 26
G - Setting Limits via Transmitter 27

3
Smart Pro installation instructions
1. Installation Safety Warnings!
WARNING! • The door may operate unexpectedly, therefore do not allow anything to stay in the path
of the door.
• When operating the manual release while the door is open, the door may fall rapidly
due to weak or broken springs, or due to being improperly balanced.
• The drive must not be used with a door incorporating a wicket door, unless the drive
cannot be operated with the wicket door open.
• The drive is intended to be installed at least 2.5m above the oor.
• Do not disengage the opener to manual operation with children/persons or any objects
including motor vehicles within the doorway.
• If the door is closing and is unable to re-open when obstructed, discontinue use. Do not
use a door with faulty obstruction sensing
• When using auto close mode, a Photo Electric beam must be tted correctly and tested
for operation at regular intervals. Extreme caution is recommended when using auto
close mode. All safety rules must be followed.
ELECTROCUTION! • Place opener in protected area so that it does not get wet.
• Do not spray with water .
• Disconnect the power cord from mains power before making any repairs or removing
covers. Only experienced service personnel should remove covers from the opener.
• If the power supply cord is damaged, it must be replaced by an Automatic Technology
service agent or suitably qualied person.
• Connect the opener to a properly earthed general purpose 240V mains power outlet
installed by a qualied electrical contractor.
CAUTION:
Emergency Access • If garage has no pedestrian entrance door, an emergency access device should be
installed.This accessory allows manual operation of the garage door from outside in
case of power failure.
Muscular strain • Practice correct lifting techniques (carton weighs approx 9kgs)
• Practice correct liting techniques when required to lift the door as per installation instructions.
Fall from ladder • Ensure ladder is the correct type for job.
• Ensure ladder is on at rm ground that will take the weight without the legs sinking.
• Ensure user has 3 points of contact while on ladder.
Crush injury from
unsecured door
• Place a 2 metre exclusion zone around area under the door while it is unsecured.
• Follow the installation instructions
Garage Door • Examine the door installation, in particular, springs and mountings for signs of wear, damage
and imbalance.
• The garage door must be well balanced. Sticking or binding doors must be repaired by a
qualied garage door installer prior to installation of the opener.
• Remove or disengage all garage door locks and mechanisms prior to installation of the
opener.
Entanglement • Never plug in and operate opener prior to installation.
• Keep hands and loose clothing clear of door and guides at all times.
Entrapment under
operating door
• DO NOT operate the opener unless the garage door is in full view and free from objects
such as cars and children/people. Make sure that the door has nished moving before
entering or leaving the garage
• In order for the opener to sense an object obstructing the door way, some force must
be exerted on the object. As a result the object, door and/or person may suffer minor
damage or injury.
• Ensure the garage door is in good working order by undertaking regular servicing.
• Install the optional wall transmitter in a location where the garage door is visible, but out
of the reach of children at a height of at least 1.5m.
• Photo Electric beams must be installed if the closing force at the bottom edge of the door
exceeds 400N (40kg)
This automatic garage door opener is designed and tested to offer safe service provided it is installed and
operated in strict accordance with the following safety warnings. Failure to comply with the following instructions
may result in death, serious personal injury or property damage.

4
Smart Pro installation instructions
3.Tools Required
2. Before you Begin
2.2 Test the following before commencing installation:
a. The door MUST BE in good operating condition.
b. Manually move the door up and down, the door should move freely
without binding or sticking. When the door is fully closed it should raise
itself by 10cm off the oor. Retension door if necessary.
c. The maximum force required to move the door should not exceed 20kg.
d. Lift the door to about halfway. When released, the door should stay in
place.
DIY
DO NOT DO IT YOURSELF:
If any of the above door requirements are not met,
DO NOT attempt to x yourself. Please contact a
garage door professional. (P) 13 62 63
2.1 Examine the conditions in the garage:
a. Look at the ceiling:
i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural
support.You will need to locate the structural beams in the ceiling which are generally 400mm apart.
ii. does it have exposed beams? The opener is mounted to a perforated angle which must be securely fastened
to a structural support like the exposed beams. You may need to install a 40mm thick board (not supplied)
between structural supports.
b. Look at the wall above the garage door.
i. Is it brick? The wall bracket MUST be securely fastened to the wall with suitable screws and ensure it does not
Screwdrivers
Adjustable End Wrench
Sockets and Wrench
Pencil
Drill
2 x Screws
(M6 x 20mm)
Stepladder
Perforated Angle
Metal pieces
(32 x 32 x 1.5mm) x 1200mm length
4 x Screws
(M8 x 20mm)
4 x Bolts and Nuts
(M8)
Drill Bits
Pliers
Hack saw
Tape Measure
Level
move.
ii. Is it timber? The wall bracket MUST be securely fastened to a structural
support.You may need to install a 40mm thick board (not supplied)
between structural supports to fasten the wall bracket to.

5
Smart Pro installation instructions
4. Kit Contents
4
5
6
7
8
9
10
11
12
13
14
17
16
1
2
3
15
18
1. 1 x SDO drive unit
2. 1 x Wall mount transmitter
3. 2 x Transmitters
4. 1 x Bent arm door attachment
5. 1 x Straight arm door attachment
6. 1 x Wall bracket TS01
7. 1 x Door bracket Locator
8. 1 x Door bracket
9. 3 x Pin Snap SSP 8 ZNU 31080
10. 2 x Hex Head screw M8x25
11. 1 x Pin 0890
12. 2 x Clevis Pin 0829
13. 2 x Hex Serration ange nut M8
14. 4 x Hex ange screw ‘S’ M4 x 10
15. 1 x Battery kit
16. 1 x Wireless PE Beam Kit
PLUS
17. 2 x Track Bracket
18. 1 x Track
10.00°
min
MINIMUM HEAD
ROOM FOR
RAIL 57mm
DOORS HIGHEST
POINT
3156mm*
3374mm
150mm
353mm
Rail no Extension Kit 3156mm
Rail + 1 Extension Kit 4146mm
Rail + 2 Extension Kits 4936mm
* Rail refers to 3160 rail
170mm
17
1
18
5
4
6
7
12
8
14
11 9
13
10
5. Position
Perforated
Angle
The Opener:
a. MUST BE installed in a dry position, protected from weather.
b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener.
c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling.
d. Use the diagram below as a reference when completing the installation.
129
9
16 Placed on both sides of door, with
the beam 100mm above oor level.

6
Smart Pro installation instructions
6. Fit the Opener
6.3 Secure C-Rail to Opener:
a. Remove the Opener from the box, taking care of antenna (if tted).
b. Locate and insert the shaft of drive unit 1into the C-Rail’s 18 sprocket.
c. Fix the two track brackets 17 with four (4) M4 x 8 screws 14 supplied in accessory pack.
d. Place drive unit back in packing box for protection.
Locate shaft into
the sprocket
18
1
14 WARNING!
DO NOT use tek screws
to afx rail. Only use
the screws provided,
and x these into the
threaded holes in the
chassis.
Drilling additional
holes through chassis
could damage
internal components
17
6.1 Connecting the Battery Backup
a. Remove the screw and open the cover to the batteries.
b. Connect the coupling blue harness 2A to the red plus
terminal A+ on Battery A, then connect coupling blue
harness 2B to the black minus terminal B- on Battery B.
c. Connect the coupling black wire 4A to the black minus
terminal A- on Battery A, then connect coupling red
wire 4B to the red plus terminal B+ on Battery B.
d. Close the cover, securing with screw and reconnect
power.
NOTE: Batteries may take up to 24 hours to charge fully after
initial installation.
6.2 LED Battery indicator
WARNING! After Step (c) the opener may become
active (even when power is off). This is a result of a
residual charge in the batteries.
Battery LED Battery Status
OFF Not Fitted / Not used
ON Charged
Blink every 2 sec In use
Flashing Charging
Rapid Flashing Battery Fault
2A
A
B
2B
A+
B-
4A
4B
A-
B+

7
Smart Pro installation instructions
7. Bracket Position
7.1 Wall Bracket Position:
a. Determine the centre of the door and mark this point with a line on the
wall above.
b. Raise the door and nd the highest point of travel of the rst (top) door
panel.
60mm
Level
WARNING! The Opener must be securely fastened to structural
supports, otherwise opener failure may ensue causing serious
personal injury and / or property damage.
DO NOT DO IT YOURSELF: If sufcient structural support can
not be found, contact a door profressional for installation.
DIY
c. Using step ladder and a level, transfer this height to the wall above the
door and mark a line 60mm above it, across the centre line.
7.2 Mounting the Wall Bracket:
a. Draw two lines extending 21.5mm from each side of the centre point.
b. Centre the wall bracket 6over the intersection of these two lines. Mark
centres for at least two holes and ensure it is into a solid mounting point.
c. Drill holes in the wall with an appropriate bit.
d. Secure to the wall using:
i. IF CONCRETE OR BRICK:
8mm (5/6”) loxins/dynabolts.
ii. IF TIMBER:
wood screw #20 or similar (min. 50mm).
7.3 Attach the Track to the Wall Bracket
a. Leave the drive unit in its packing box on the oor for protection and lift
the other end of the C-Rail.
b. Attach the pre-assembled track 18 to the wall bracket 6with the 90mm
long pin 11 and secure with the supplied pin snap 9.
18
11
9
6
6

8
Smart Pro installation instructions
8. Perforated Angle
8.1 Attach Perforated Angle or equivalent
a. Measure across the ceiling from the centre point 3177mm (+/- 150mm) to nd a supporting beam.
b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the
perforated angle to a supporting beam using diagrams shown below.
c. Raise the drive unit to the ceiling mounted perforated angle and secure with M8x20mm screws and nuts
(not supplied). Strips should not extend more than 18mm below centre of drive unit mounting holes.
d. To prevent moisture on the C-rail running into the powerhead it is recommended a strip of silicon sealant is placed
across the top of the C-rail just before the opener.
Ceiling Beams that run towards the door requires:
1 x perforated L shape metal strip and
2 x shorter perforate L shape metal drop down strips..
Ceiling Beams that run parallel to the door requires:
2 x perforated L shape metal strips and
2 x shorter perforate L shape metal drop down strips..
(Not supplied)
9. Mounting Brackets and Arms
9.1 Mounting the Door Bracket:
a. The door bracket locator 7is placed over the door
bracket 8, on the door’s centre line one-third down the
top panel and mounted using M6 or equivalent screws
(not supplied),
b. STEEL DOORS ONLY: Bracket can be welded in place.
NOTE: If in doubt about the door’s strength, reinforcement
may be added to the door’s frame where necessary. Door
damage may occur if the bracket is installed on a panel
with insufcient strength. The opener’s warranty does not
cover damage caused to the door and/or door panels.
8
7
9.2 Attaching the Arms
a. Assemble the bent arm 4(connecting to the door) to the
right side of the straight arm 5with bolts 10 and nuts 13
supplied in the accessory pack. Connect the straight arm
5to the shuttle with a clevis pin 12 and a pin snap 9.Always use both bent and straight arms.
b. Connect the assembled arm to the bracket with clevis pin 12 and pin snap 9.
The angle “A” must be more than 10°.
7
12
9
4
13
6
10
9
12
8
5
A
Straighten the antenna on the opener, by pulling
straight down to ensure optimal reception.
tip

9
Smart Pro installation instructions
10. Safety Beam Kit
10.1 Inserting batteries into receiver and transmitter
a. Insert two (2) C-Type batteries into the Receiver (RX) and the Transmitter (TX) by removing the front cover.
b. Put cover back on Transmitter and Receiver and secure with four (4) M6 x 25 screws (black).
WARNING! The Opener must be tted with Safety Beams if:
• the closing force at the bottom edge of the door exceeds 400N (40kg) and/or;
• the opener has a smart device tted to operate the door, when not in line-of-sight.
4
15
2
3
5
Right side
bracket
CAUTION! The Safety Beam must be installed and connected before the travel limits are set.
65mm
100mm
TX
Sun or Shade
Receiver
RESET LED
Apply pressure here Pull covers apart
10.1 Assemble the Mounting Bracket
a. Attach the PE 2000TS Bracket 1to the Safety Beam Transmitter
(TX) using four (4) M3 x 5 Taptite screws 4.
b. Connect the mounting bracket 3to the adjustment bracket 2
with two (2) of the M5 x 10 Pan Head Screws 5.
c. Repeat steps (a) and (b) to assemble the Safety Beam Receiver
(RX).
d. Mount the receiver on the side of the doorway in shade and the
transmitter on the other side in line with the receiver.The mounting
surface should be rigid. Afx with a minimum of four (4) screws
(not supplied).
10.2 Mounting the Bracket
The transmitter and receiver need to be placed in line of sight, with
the beam 100mm above the ground level (as per AS/NZS 60335-
2-95:2020). This can be achieved by ensuring the bottom of the
receiver and transmitter are 65mm above ground level.They should
also be placed as close as possible to the door opening with the
receiver (RX) in shade and the transmitter (TX) in sun or shade.
Assembling Flush Mounting Kit (for minimum sideroom applications)
a. Attached the transmitter (TX) and receiver (RX) to the two (2)
PEB4-W1 Bracket 1with the four (4) M3 x 8 Taptite screws “P” 4.
b. Ensure to take note of the ATA recommendation in step (d) above
and x the TX and RX to the wall or rigid surface using the two (2)
6.9 x 25 plastic wall plugs (if wall) and two (2) M6 x 25 self tapping
screws.
10.3 Aligning the Transmitter and Receiver
a. Power up the opener with the safety beams connected.
b. The LED on the receiver and transmitter will light up and icker.
indicating communication is being established between each
unit and the base station.This can take up to 60secs. Lights will:
(i) Stay on solid = When communication is established but limits are not set.
(i) Go out = When communication is established and limits are set.
b. The opener beam alignment feature can be used to align beams via the beeper
and main light as a guide;
(i) bright = aligned
(i) dull and Beeper sound = not aligned or blocked.
When the beams are aligned, continue with Section 12 Setting Limits.

10
Smart Pro installation instructions
11. Specications
Technical Specications Controll-A-Door® Smart Pro
SDO-9
Rated voltage range: 230V - 240V
Rated frequency: 50Hz / 60Hz
Rated power input: 225W
Door opening:
Maximum Door Weight:
Door must be well balanced and able to be operated by
hand, as per warranty conditions and AS/NZS 4505:2012
300kg*
Minimum headroom 57mm
Rated Operating Time 4 mins
Rated Temp +5oC to +40oC
Short Term Peak force: 1400N
Door travel speed (mm/sec) 125mm
Rated load 450N
Nominal force 200N (20kg)
Receiver type Multi-frequency UHF
Receiver code storage capacity 64 X 4-button Transmitters
Transmitter battery CR2032 (3 Volts)
Courtesy light 2 x LED (Light Emitting Diodes)
Network connectivity Network ready
(Smart hub already installed)
* Gross door weight, including all ttings
Note: During the open and close cycles, intermittent operations may occur in areas which experience very strong
winds.The strong wind puts extra pressure on the door and tracks which may in turn intermittently trigger the safety
obstruction detection system.
