Construction of the system Introduction advantages of remote system
Product news
Remote sensor system
Compact shape / 12 signals
Connecting to a power supply and the outside control equipment
(PLC) in the output part of the xation side and connect a sensor for
detection to the transmission part of the movable side.When facing a
remote system, the sensor detects wirelessly and ables to transmit
the ON/OFF sensor to the xed park which controls the equipment.
The remote system enables to send power and transmit
the signals without a contact.
It can provide many advantages when a conventional con-
nector, which connects to a moving unit and a xed unit.
And these can be done wirelessly.
Power
Fixed unitMoving unit
Power
Signals
Power
Signals
V A
Max12
signals
DC-3 Wire sensors / Photoelectric sensors
・
・
・
Transmitter Output sensor
P.S
Host device
Power
Signals
○Noneedtodetachaconnector.
 Itcansavethelaborwork.
○Untroubledconditionssuchas
 apinbreaking.
○Reducingofmaintenancecosts.
○ Acurlcordisn'tnecessarybecause
 ofnoextensionparts.
○ Nocabledisconnectiontroubleswith
 acabledeterioration.
■ Compare with a connector
■ Compare with a cable
Combination can be vary according to the placement.
RS12T-TF423A-__
RS12T-TF423A-TP01
RS12E-TF423AN-__
RS12E-TF423AP-__
RS12E-TF423AN-TP02
RS12E-TF423AP-TP02
RS12E-TF423BN-__
RS12E-TF423BP-__
RS12E-TF423BN-TP02
RS12E-TF423BP-TP02
RS12T-TF423B-__
RS12T-TF423B-TP01

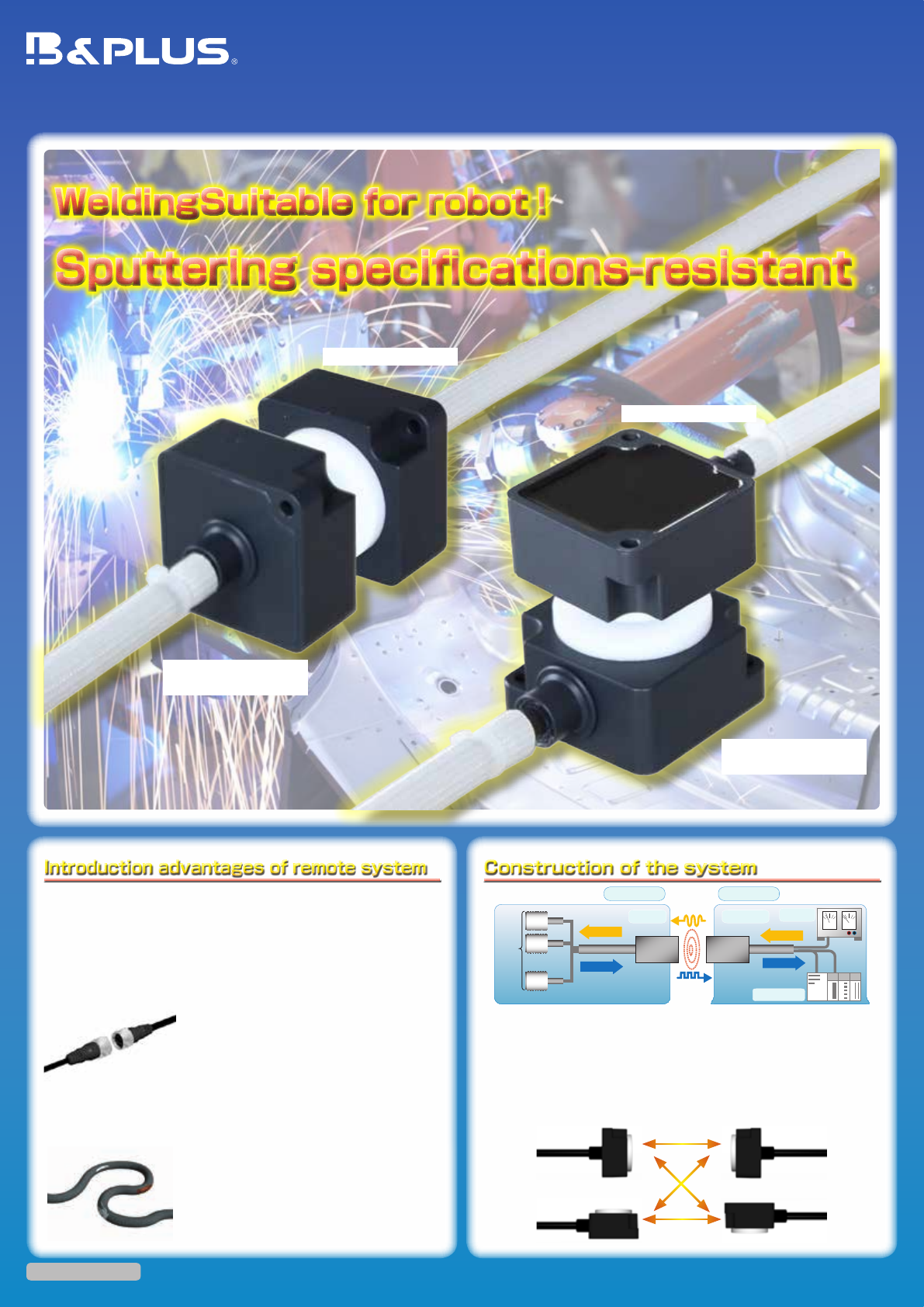

WeldingSuitable for robot！
Sputtering specications-resistant
WeldingSuitable for robot！
Sputtering specications-resistant
OutputsensorTransmitter

Output sensor (standard type)
Type
code
NPN output
RS12E-TF423AN-PU-02
PNP output
RS12E-TF423AP-PU-02
Power supply 24V DC ± 10％ (incl.ripple)
Current consumption ≦ 600mA
No. of output signal 12 signals + 1 signal ( Inzone )
Load current max.50mA（1 signal. ）
Frequency of operation 60Hz
LED (indication) Status LED (Green) , Output LED (Orange)
Operating temperature 0...+50℃
Protection class IP67
Cable
PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Material Active surface: PTFE, Body: Brass +PTFE coat
Weight Body 262 g + Cable 105 g x 2m
Remark
Two Teon coat screw (M4x16) bundling for xation
Output sensor (Cable protection type)
Type
code
NPN output
RS12E-TF423AN-TP-02
PNP output
RS12E-TF423AP-TP-02
Cable PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Protection with the heat-resisting glass network tube
Transmitter (standard type)
Type
code
DC 3-wire
RS12T-TF423A-PU-01
Drive voltage 12V ± 1.5V DC
Drive current ≦ 230 mA
No. of Input signals 12 signals
Operating distance 2...4mm
Center o󱐯set ± 3mm
Drive current 230 mA
Operating temperature 0...+50℃
Protection class IP67
Cable
PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Material Active surface: PTFE, Body: Brass +PTFE coat
Weight Body 262 g + Cable 105 g x 1m
Remark
Two Teon coat screw (M4x16) bundling for xation
Transmitter (Cable protection type)
Type
code
DC 3-wire
RS12T-TF423A-TP-01
Cable PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Protection with the heat-resisting glass network tube
Typical diagram (ex: Power Supply voltage 24V Time/Metal non implantation)
RS12T-TF423_-PU / RS12E-TF423_ _-PU
Ｘ：Axis gap (mm)
Y:Operating distance (mm)
X
Y
Installation notes
Type code A B C
RS12T-TF423-PU
30 23 250
RS12E-TF423N_-PU
RS12E-TF423P_-PU
To avoid inuence with the neighborhood metal and the mutual interference
between the product,
Please make sure to have an open distance shown on the list below.
■ Surround Metal ■ Parallel Setting
Supply voltage 12V DC
Total current consumption less than 230 mA
Residual voltage less than 3.5V
Load current ---
Applicable sensor
Please sure to use applicable detec-
tor switch according to the specifi-
cation on left.
*Total current consumption of all
connected sensor.
Transmitter Output sensor
Cable back type
Operating
distance
2...4mm
Size
50 x 50
Y
X
mm
86420
8
7
6
5
4
3
2
1
8642
Operating area
Drive current ≦ 230mA
C
A
B
(mm)
* Possible that only one side, the metal contacts.
RS12E-TF423AN-PU01
RS12E-TF423AP-PU01
RS12E-TF423AN-TP01
RS12E-TF423AP-TP01
10 M4x16（テフロンコート）付属
25
30 12 (2000)
耐熱ガラス網組チューブ
※その他、寸法等は上記と同じ
□40 □50
RS12T-TF423A-PU01
RS12T-TF423A-TP01
10 M4x16（テフロンコート）付属
25
30 12 (1000)
耐熱ガラス網組チューブ
※その他、寸法等は上記と同じ
□40 □50
RS12T-TF423A-PU01
RS12T-TF423A-TP01
10 M4x16（テフロンコート）付属
25
30 12 (1000)
耐熱ガラス 網組チューブ
※その他、寸法等は上記と同じ
□40 □50
RS12E-TF423AN-PU01
RS12E-TF423AP-PU01
RS12E-TF423AN-TP01
RS12E-TF423AP-TP01
10 M4x16（テフロンコート）付属
25
30 12 (2000)
耐熱ガラス 網組チューブ
※その他、寸法等は上記と同じ
□40 □50
Status LED (Green)
Output LED (orange)
Teon coat screw (M4x16) bundling Teon coat screw (M4x16) bundling
Heat-resisting glass tubeHeat-resisting glass tube
Dimensions, such as head sameDimensions, such as head same

Output sensor (standard type)
Type
code
NPN output
RS12E-TF423BN-PU-02
PNP output
RS12E-TF423BP-PU-02
Power supply 24V DC ± 10％ (incl.ripple)
Current consumption ≦ 600mA
No. of output signal 12 signals + 1 signal ( Inzone )
Load current max.50mA（1 signal. ）
Frequency of operation 60Hz
LED (indication) Status LED (Green) , Output LED (Orange)
Operating temperature 0...+50℃
Protection class IP67
Cable
PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Material Active surface: PTFE, Body: Brass +PTFE coat
Weight Body 256 g + Cable 105 g x 2m
Remark
Two Teon coat screw (M4x16) bundling for xation
Output sensor (Cable protection type)
Type
code
NPN output
RS12E-TF423BN-TP-02
PNP output
RS12E-TF423BP-TP-02
Cable PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Protection with the heat-resisting glass network tube
Transmitter (standard type)
Type
code
DC 3-wire
RS12T-TF423B-PU-01
Drive voltage 12V ± 1.5V DC
Drive current ≦ 230 mA
No. of Input signals 12 signals
Operating distance 2...4mm
Center o󱐯set ± 3mm
Drive current 230 mA
Operating temperature 0...+50℃
Protection class IP67
Cable
PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Material Active surface: PTFE, Body: Brass +PTFE coat
Weight Body 256 g + Cable 105 g x 1m
Remark
Two Teon coat screw (M4x16) bundling for xation
Transmitter (Cable protection type)
Type
code
DC 3-wire
RS12T-TF423B-TP-01
Cable PUR / φ8.6 ， 2x0.5mm2 + 13+x0.18mm2
Protection with the heat-resisting glass network tube
Typical diagram (ex: Power Supply voltage 24V Time/Metal non implantation)
RS12T-TF423_-TP / RS12E-TF423_ _-TP
Ｘ：X:Center offset (mm)
Y:Operating distance (mm)
X
Y
Installation notes
Type A B C
RS12T-TF423-TP
30 23 250
RS12E-TF423N_-TP
RS12E-TF423P_-TP
To avoid inuence with the neighborhood metal and the mutual interference
between the product,
Please make sure to have an open distance shown on the list below.
■ Surround Metal ■ Parallel Setting
Supply voltage 12V DC
Total current consumption less than 230 mA
Residual voltage less than 3.5V
Load current ---
Applicable sensor
Transmitter Output sensor
Cable side type
Operating
distance
2...4mm
Size
50 x 50
Operating area
Drive current ≦ 230mA
C
A
B
(mm)
* Possible that only one side, the metal contacts.
RS12E-TF423BN-PU02
RS12E-TF423BP-PU02
RS12E-TF423BN-TP02
RS12E-TF423BP-TP02
10
M4x16（テフロンコート）付属
25 30
12
(2000)
※その他、寸法等は上記と同じ
耐熱ガラス網組チューブ
□40 □50
RS12T-TF423B-PU01
RS12T-TF423B-TP01
10
M4x16（テフロンコート）付属
25 30
12
(1000)
※その他、寸法等は上記と同じ
耐熱ガラス 網組チューブ
□40 □50
RS12T-TF423B-PU01
RS12T-TF423B-TP01
10
M4x16（テフロンコート）付属
25 30
12
(1000)
※その他、寸法等は上記と同じ
耐熱ガラス 網組チューブ
□40 □50
RS12T-TF423B-PU01
RS12T-TF423B-TP01
10
M4x16（テフロンコート）付属
25 30
12
(1000)
※その他、寸法等は上記と同じ
耐熱ガラス網組チューブ
□40 □50
Y
X
mm
86420
8
7
6
5
4
3
2
1
8642
Status LED Output LED
(orange)
Please sure to use applicable detec-
tor switch according to the specifi-
cation on left.
*Total current consumption of all
connected sensor.
Teon coat screw (M4x16) bundling Teon coat screw (M4x16) bundling
Heat-resisting glass tubeHeat-resisting glass tube
Dimensions, such as head sameDimensions, such as head same

BN1517Ae 2015.11
Introduction example
Toolchangeroftherobothand
Weldingprocessofthecar.
Identifyingandverifyingworkpieceonaturntable
Wireless feeding to a robot hand grasp confirmation and
transmit the grasp signal of the sensor to the control side.
There was a trouble such as short-circuiting when positioning
between the points of contact. Trouble getting water on to
the point of contact and breaking down. But by changing to
wireless, it solves these issues.
Welding the car which are placed on the palette at a weld-
ing line.
Install a sensor to conrm the body part
By replacing the connector to remote system, problems
such as defectiveness, disconnection and the sputtering
was solved.
Continuous cycle of Loading, welding and unloading. By using
3 jigs mounted on a turntable turning 120 degree at a time.
Remote system supplies power to 8 proximity switches and
transmits their switching state.
〇 Because it is wireless, the gap of positioning can be large!
〇 Strong in water and oil! - Protection class; IP 67.
〇 Wireless Power Supply 12V/230mA and signal transmits
for 12 points！
Unnecessary for the connector to plug in and out. Saving oper-
ation time by automatizing.
Solving the trouble of disconnection of the steering cableveyor.
Reducing the frequency of maintenance of the sputtering sys-
tem.
Solving the trouble of disconnection of the steering cable.
〇 Possible to continuously rotate the table and work
e󱐯ectively!
Mail ：[email protected]
Web ：http://www.b-plus-kk.com
* Contents is subject to change without notice.
