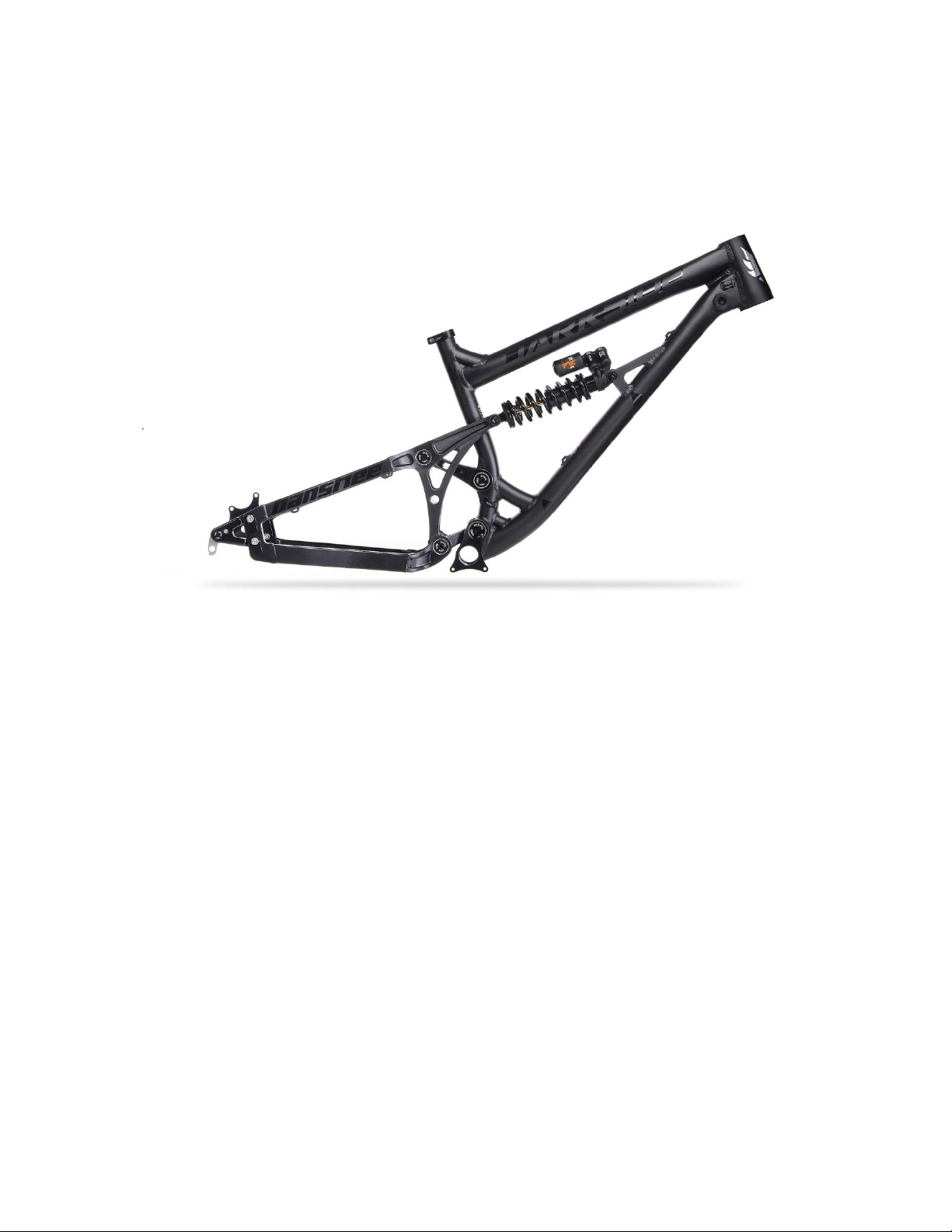

Banshee Darkside User manual

Thank you for choosing to ride the Banshee Darkside. You have chosen one of
the most playful bikes on the planet, and we hope that it inspires confidence on
the track and in the air, while putting a big grin on your face.!
!
This manual is designed to be a simple reference for you to help you look after
your frame properly.!
!

!
!
Torque specs!
!
Torque (Nm)!
Lower Link Pivots!
8!
Top Link Pivots!
8!
Rear Thru Axle!
8!
Rear Thru Axle Lock Nut !
3!
Shock Bolt - Frame side (front) !
10!
Shock Bolt - Swing Arm (rear)!
12!
Derailleur Hanger Bolt!
5!
!
Maintenance schedule!
We recommend following this maintenance schedule to ensure optimal performance. !
Check bolts are tight!
Before every ride!
Clean and re-grease pivot assemblies!
Every 50 hours of riding!
Bearing replacement!
Every 250 hours of riding!
!
If riding in wet or very dusty conditions you should carry out maintenance more regularly
as you see fit. !
!

!
!
Bearing replacement instructions!
!
Tools needed:!
- Allen key set with two 5mm keys!
- Torque wrench!
- Grease!
- Blue Loctite!
- Bearing puller!
- Bearing press!
- Rubber mallet !
!
For the Darkside, a complete bearing replacement will require a total of:!
4 x 6001 2RS (for upper link pivots)!
2 x 6001 2RS (for chainstay pivots)!
2 x 6002 2RS (for pivot above the BB)!
!
For best performance we only recommend using high quality bearings (SKF, FAG, INA)!
!

!
!
1: Remove the shock from the frame using a single 6mm allen key at the rear and two
5mm allen keys at the front.!
!
2: Stuff a rag under the bottom link to prevent damages to the frame.!
!

!

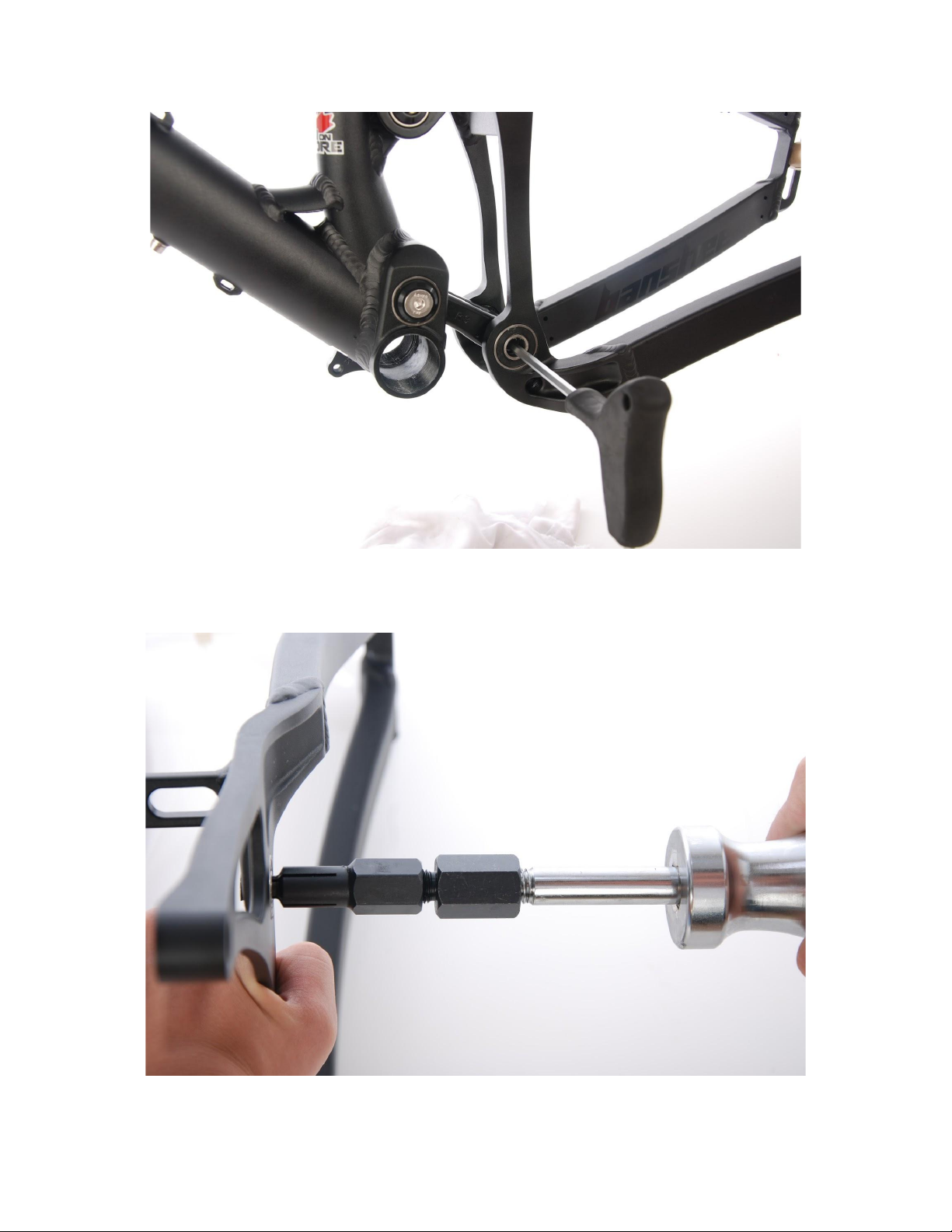

3: Remove the pivot bolt hardware from the frame using appropriate allen keys.!
!
4: Repeat the same process for all pivot axles.!
!

!

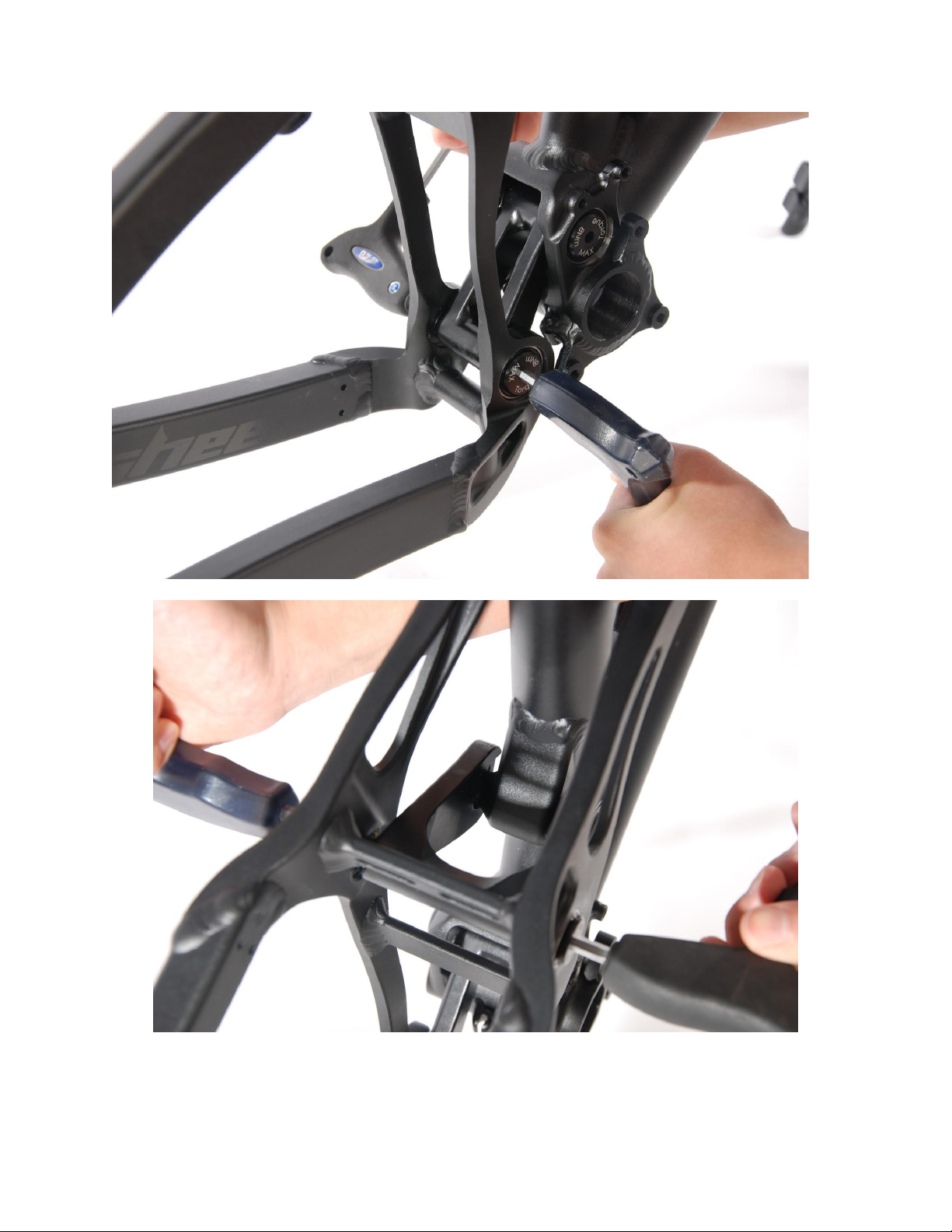

5: Remove the pivot axles by sliding them out of the frame. If an axle is difficult to
remove, use a punch or allen key that fits inside the hollow axle, and tap it out being
careful not to damage axle threads.!
!
!
6: Remove the bearing from the frame with a bearing puller.!
!

!

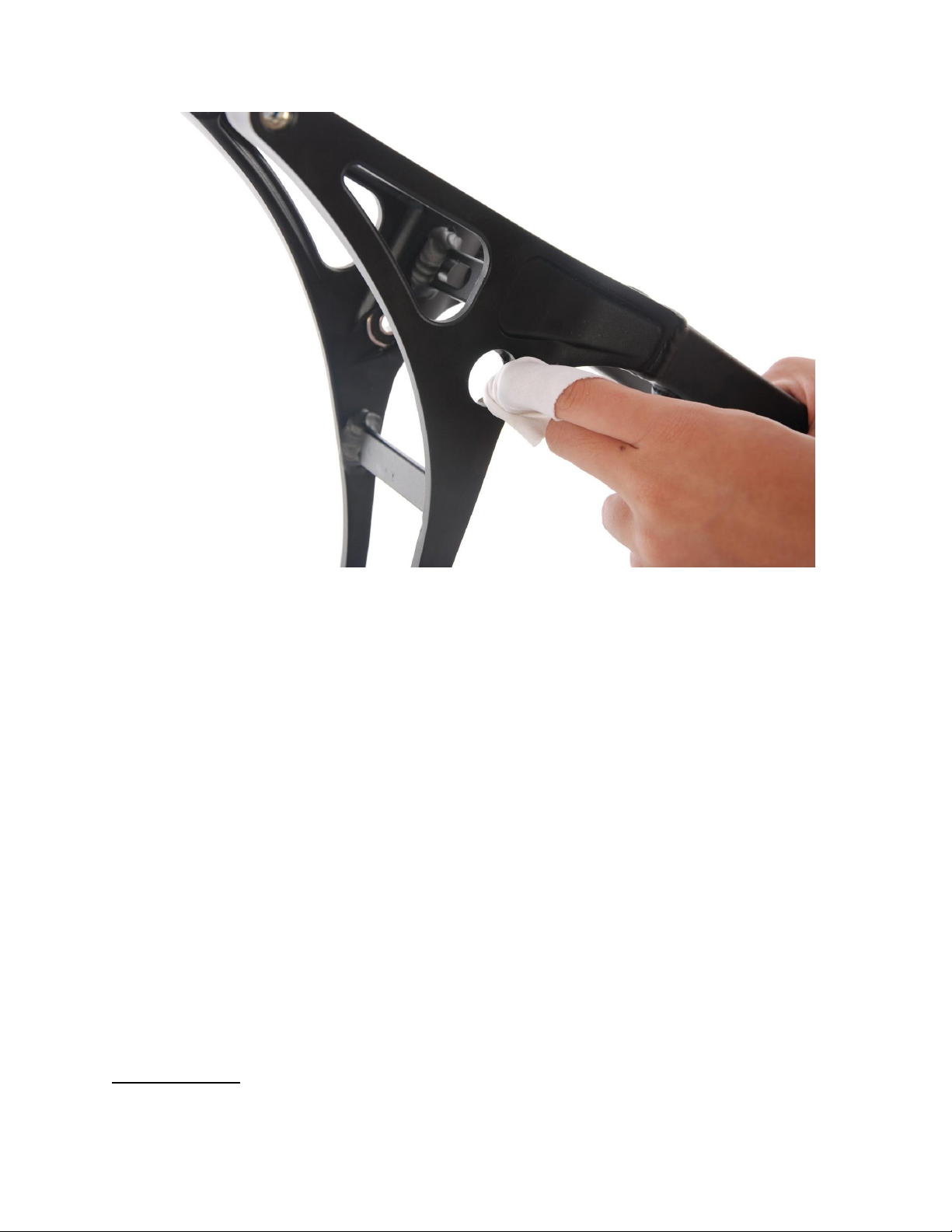

7: Clean and inspect the frame once the bearings are removed.!
!
!
!
!
!
!
!
!
!
!
!
!
Reinstallation:!
!

!
8: Press the bearings into the frame using a bearing press. !
!
⚠Caution: Do NOT press the bearings into the frame without the links in place; doing
so can damage the frame.!
!
Clean and inspect all pivot axles prior to reassembly. If needed, order replacement
axles through Banshee or your local dealer.!
!
The links can fit very tightly in the frames at times, take time and be gentle when
inserting them, and ensure that they are going in straight.!
!

!

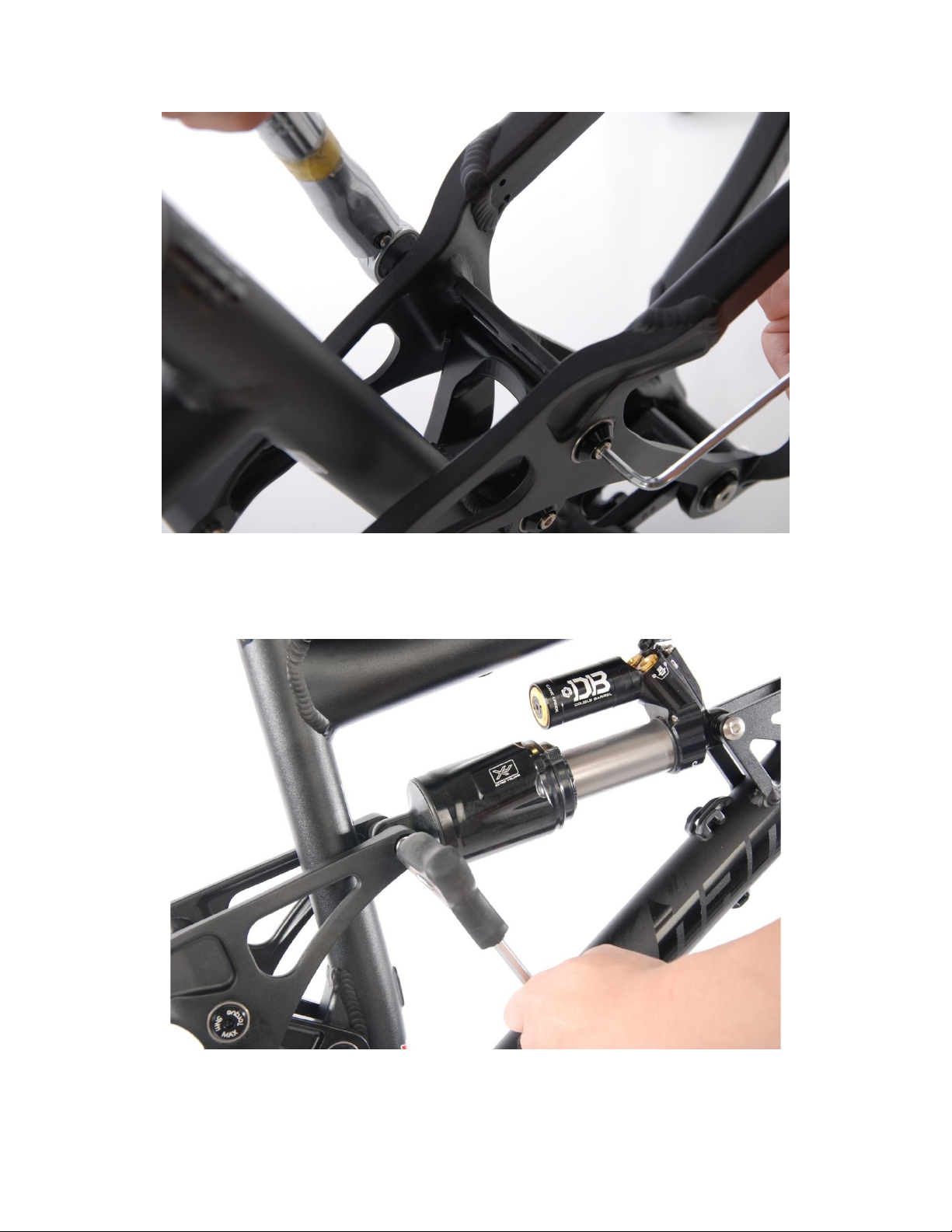

9: Lightly grease the pivot axles and reinsert them into the frame. Prepare the threads of
all axle bolts with blue Loctite. Using two allen keys, tighten the pivot axle bolts. Use a
torque wrench and confirm that it is torqued to no greater than marked on the pivot axle
or bolt being tightened.!
!
!
10: Apply blue Loctite to shock bolts and reinsert the rear shock.!
Dropout kits installation instruction:!

Tools needed:!
- One 6mm allen key!
- One 4mm allen key!
- Torque wrench!
- Blue Loctite!
!
!

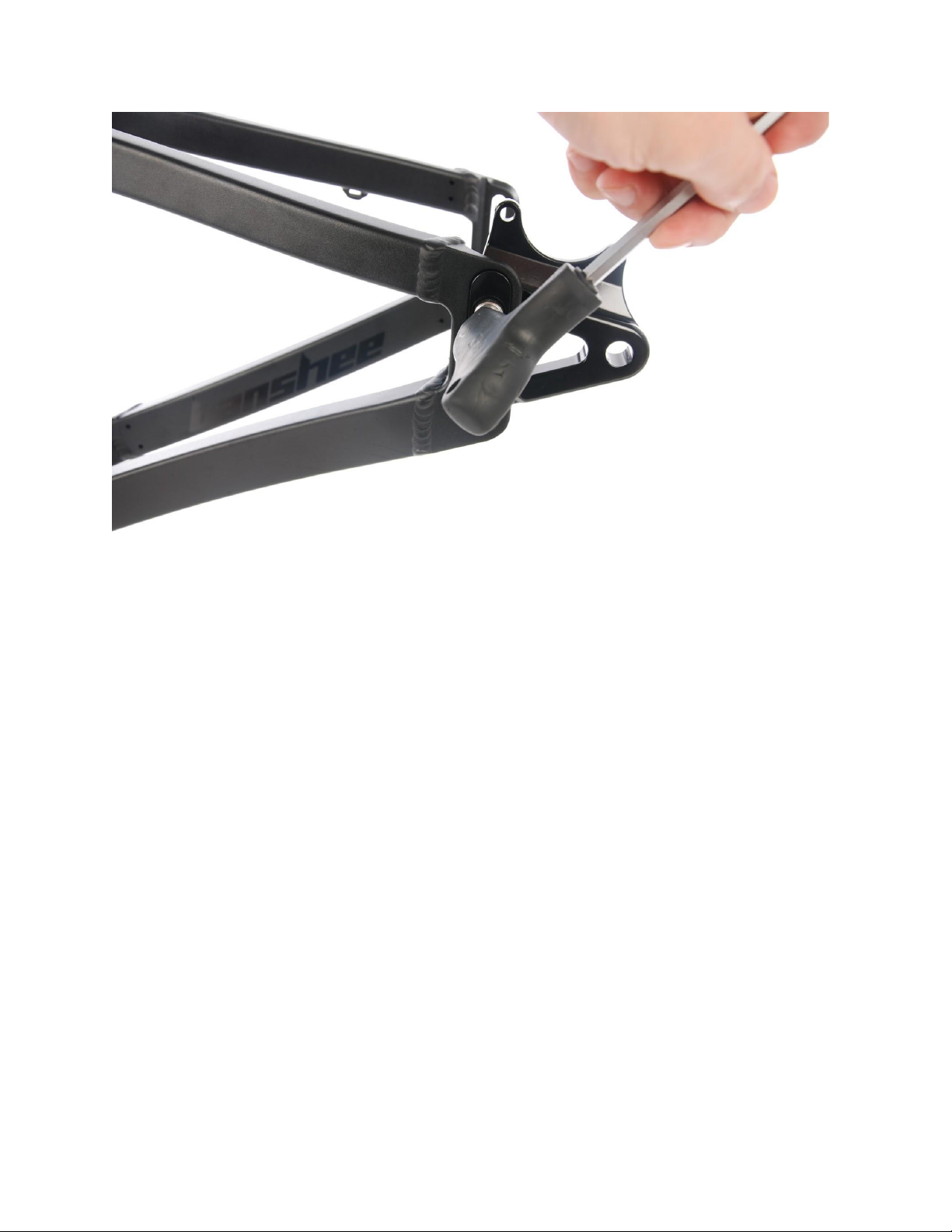

1: Install the derailleur hanger onto the drive side dropout using a 4mm allen key.
Tighten to 5Nm!
!

!
2: Install the flip chips and the dropout bolts onto the rear triangle with the rear axle
loosely in place to ensure good alignment initially. Torque to 12Nm.!
!
For information on which flip chip settings to use refer to the FAQ section on the
Banshee website!
!

!
3: Apply grease to the rear axle and threads. Once wheel is installed, torque axle to
8Nm.!
!
4: Apply a dab of blue loctite to axle lock bolt. Install the rear axle bolt, torque to a
maximum of 3Nm. (this bolt is not structural, it is purely to prevent the axle from working
loose). Be careful not to over-tighten this bolt otherwise it may be damaged.!
Exploded view + parts list!

!
!

Item No.!
Part Number!
Description!
Qty.!
1!
011PCT16020-L-PA!
Front Triangle!
1!
2!
Shown!
Rockshox Vivid Air!
1!
3!
012PCT14020-PA!
Rear Triangle!
1!
4!
540PCTDAR0-LKT-PA!
Top Link!
1!
5!
540PCTDAR0-LKB-PA!
Bottom Link!
1!
6!
63060022RS-FAG!
6002-2RS Bearing!
2!
7!
63060012RS-FAG!
6001-2RS Bearing!
6!
8!
6407528149760-HBL!
Main Pivot Axle!
1!
9!
640752818516-HBL!
Main Pivot Axle Bolt!
1!
10!
620622945-AB!
Compression Washer!
3!
11!
600LI816SSN!
Compression Washer Bolt!
3!
12!
64075221197785-HBL!
Chainstay Pivot Axle!
1!
13!
64075221197615-HBL!
Seat Tube Pivot Axle!
1!
14!
64075221197875-HBL!
Seatstay Pivot Axle!
1!
15!
0A1PCTDAR0-CGH-HB!
ISCG Plate!
1!
16!
555F72FBB!
ODI Fork Bumper!
2!
17!
600SI860SSCPN-912!
Shock Bolt!
1!
18!
600BI612SSN!
Shock Bolt Male!
1!
19!
600BI834ASCR!
Shock Bolt Female!
1!
20!
620W82121CR!
Shock Bolt Washer!
1!
21!
553PCTLEG1-RDH-AN !
Derailleur Hanger!
1!
22!
600SI512SSN-1!
Derailleur Hanger Bolt!
1!
23!
Shown!
Flip Chip!
4!
24!
Shown!
Swappable Dropout!
1!
25!
Shown!
Swappable Dropout Bolt!
4!
26!
Shown!
KS Axle!
1!
27!
Shown!
KS Axle Bolt!
1!
!
Available Dropout Configurations:!
142x12mm!
26"/27.5" Wheel!
150x12mm!
26"/27.5" Wheel!
!
!
Rebuild kits!

Kit Name!
Kit part
numbe
r!
Qt
y!
Part number!
Exploded
view ref!
Description!
!
!
!
!
!
!
Bearing
kit!
SP-
KBRG!
6!
63060012RS-
FAG!
7!
Bearing 6001 2RS!
!
!
2!
63060022RS-
FAG!
6!
Bearing 6002 2RS!
!
!
!
!
!
!
Axle kit!
SP-
KPVT!
1!
64075221197615-
HBL!
13!
ST Axle (front of upper
linkage)!
!
!
1!
64075221197785-
HBL!
12!
CS Axle (rear of lower linkage)!
!
!
1!
64075221197875-
HBL!
14!
SS Axle (rear of upper linkage)!
!
!
1!
6407528149760-
HBL!
8!
Main Axle (front of lower
linkage)!
!
!
1!
640752818516-
HBL!
9!
Main Axle Bolt(front of lower
linkage)!
!
!
3!
600LI816SSN!
11!
Bearing Cup Washer Bolt!
!
!
3!
620622945-AB!
10!
Driveside Compression
Washer!
!
!
!
!
!
!
Shock
Bolt kit!
SP-
KBLT!
1!
600BI612SSN!
18!
Front Shock bolt (male)!
!
!
1!
600BI834ASCR!
19!
Front Shock bolt (female)!
!
!
1!
600SI860SSCPN-
912!
17!
Rear shock bolt!
!
!
!
!
!
!
Bump
stops!
SP-ODI!
2!
555F72FBB!
16!
ODI Fork Bumper!
!
!
!
!
!
!
Dropout
kit
135x10m
m 26"!
DF-
KS135!
!
!
!
!
!
!
1!
554PCTPRI1-
DRLO-1-AB!
!
135DS dropout with threaded
inserts!

!
!
1!
554PCTPRI1-
DRRO-1-AB!
!
135NDS dropout with
threaded inserts!
!
!
2!
550A1777M7075-
SL!
(same as
paradox)!
Derailleur Hanger (/bolt)!
!
!
4!
600SI812SSN!
!
M8x12 dropout bolt (attach
dropout to frame)!
!
!
4!
550PCTPRI0-
DRFB-1-AB!
!
Chip -neutral!
!
!
4!
550PCTPRI0-
DRFB-2-AB!
!
Chip -High / Low!
!
!
!
!
!
!
Dropout
kit
142x12m
m 650-b!
DF-
KS650!
!
!
!
!
!
!
1!
554PCTPRI1-
DRRO-1-AB!
!
142DS dropout with threaded
inserts!
!
!
1!
554PCTPRI1-
DRLO-1-AB!
!
142NDS dropout with
threaded inserts!
!
!
1!
!
!
142x12mm axle!
!
!
1!
!
!
rear axle bolt!
!
!
2!
550A1777M7075-
SL!
!
Derailleur Hanger /bolt!
!
!
4!
600SI812SSN!
!
M8x12 dropout bolt (attach
dropout to frame)!
!
!
4!
550PCTPRI0-
DRFB-1-AB!
!
Chip -neutral!
!
!
4!
550PCTPRI0-
DRFB-2-AB!
!
Chip -High / Low!
!
!
!
!
!
!
Dropout
kit
142x12m
m!
DF-
KS142!
!
!
!
!
!
!
1!
554PCTPRI1-
DRRO-1-AB!
!
142DS dropout with threaded
inserts!
!
!
1!
554PCTPRI1-
DRLO-1-AB!
!
142NDS dropout with
threaded inserts!
!
!
1!
!
!
142x12mm axle!

!
!
1!
!
!
rear axle bolt!
!
!
2!
550A1777M7075-
SL!
!
Derailleur Hanger /bolt!
!
!
4!
600SI812SSN!
!
M8x12 dropout bolt (attach
dropout to frame)!
!
!
4!
550PCTPRI0-
DRFB-1-AB!
!
Chip -neutral!
!
!
4!
550PCTPRI0-
DRFB-2-AB!
!
Chip -High / Low!
!
!
!
!
!
!
Dropout
kit
150x12m
m 650-b!
DF-
KS650-
150!
!
!
!
!
!
!
1!
554PCTPRI1-
DRRO-1-AB!
!
150DS dropout with threaded
inserts!
!
!
1!
554PCTPRI1-
DRLO-1-AB!
!
150NDS dropout with
threaded inserts!
!
!
1!
!
!
150x12mm axle!
!
!
1!
!
!
rear axle bolt!
!
!
1!
550A1777M7075-
SL!
!
Derailleur Hanger /bolt!
!
!
4!
600SI812SSN!
!
M8x12 dropout bolt!
!
!
4!
550PCTPRI0-
DRFB-1-AB!
!
Chip -neutral!
!
!
4!
550PCTPRI0-
DRFB-2-AB!
!
Chip -High / Low!
!
!
!
!
!
!
Dropout
kit
150x12m
m!
DF-
KS150!
!
!
!
!
!
!
1!
554PCTPRI1-
DRRO-1-AB!
!
150DS dropout with threaded
inserts!
!
!
1!
554PCTPRI1-
DRLO-1-AB!
!
150NDS dropout with
threaded inserts!
!
!
1!
!
!
150x12mm axle!
!
!
1!
!
!
rear axle bolt!
!
!
2!
550A1777M7075-
SL!
!
Derailleur Hanger /bolt!
!
!
4!
600SI812SSN!
!
M8x12 dropout bolt!
!
!
4!
550PCTPRI0-
DRFB-1-AB!
!
Chip -neutral!
!
!
4!
550PCTPRI0-
!
Chip -High / Low!

DRFB-2-AB!
!
!
!
!
!
!
142mm
Hanger
Kit!
DF-
HNG142!
!
!
!
!
!
!
2!
553PCTLEG1-
RDH-AN!
!
Derailleur Hanger!
!
!
1!
600SI512SSN-1!
!
Derailleur Hanger Bolt!
!
!
!
!
!
!
135mm
Hanger
Kit!
DF-
VHNG!
2!
550A1777M7075-
SL!
!
Derailleur Hanger (/bolt)!
!
!
!
!
!
!
!
!
!
!
!
!
150mm
axle kit!
SP-
AX150!
!
!
!
!
Axle!
!
!
no part number
listed!
!
150x12mm axle!
nut!
!
!
no part number
listed!
!
rear axle bolt!
!
!
!
!
!
!
142mm
axle kit!
SP-
AX142!
!
!
!
!
Axle!
!
!
no part number
listed!
!
142x12mm axle!
nut!
!
!
no part number
listed!
!
rear axle bolt!
!
!
!
!
!
!
Headset
44/56mm!
DP-
HST56!
!
!
!
Banshee Munro Taper
Headset 44/56 (For Spitfire,
Rune, Prime, Darkside
MY16Legend)!
!
!
!
!
!
!
ISCG
Plate!
SP-
ISCG!
1!
0A1PCTDAR0-
CGH-HB!
!
ISCG Plate!

!
Warranty!
For the warranty related questions and the most up to date warranty information please
go to the Banshee website, or contact Banshee directly. !
