Banshee Legend 650 User manual

Thank you for choosing to ride the Banshee Legend. You have chosen one of the
fastest bikes on the planet, and we hope that it inspires confidence on the track,
and puts a big grin on your face.
This manual is designed to be a simple reference for you to help you look after
your frame properly.
Torque specs
Torque (Nm)
Main Pivot (Above BB)
10
All other linkage pivots
8
Rear Thru Axle
8
Rear Thru Axle Lock Nut
3
Shock Bolt - Frame side (front)
12
Shock Bolt - Swing Arm (rear)
12
Derailleur Hanger Bolt
5
Maintenance schedule
We recommend following this maintenance schedule to ensure optimal performance.
Check bolts are tight
Before every ride
Clean and re-grease pivot assemblies
Every 50 hours of riding
Bearing replacement
Every 250 hours of riding

If riding in wet or very dusty conditions you should carry out maintenance more regularly
as you see fit.
Bearing replacement instructions
For a complete bearing replacement you will need the following fully sealed bearings:
4 x 6001 2RS (for upper link pivots)
2 x 6001 2RS (for chainstay pivots)
2 x 6202 2RS (for pivot above BB)
We only recommend using high quality bearings (SKF, FAG, INA)
We used these bearings as they are very easy and cheap to source from any bearing
shop. But they are also available from our distributors as a kit.
Tools needed:
- One 6mm Allen key
- Two 5mm Allen keys
- One 4mm Allen key
- Torque wrench
- Grease
- Blue Loctite
- Sliding rail bearing puller
- Bearing press
- Rubber mallet (optional)

1: Stuff a rag under the bottom link to prevent damages to the frame. Remove the shock
from the frame using a 6mm Allen key. Then remove the pivot axles using appropriate
Allen keys.
2: Remove all the pivot axles from the frame carefully. If the axle is difficult to remove,
slide a punch or Allen key into the pivot axle and lightly tap it out. Be careful not to
damage the threads.

3: Remove the bearing from the frame with a sliding rail bearing puller.
4: Clean and inspect the frame once the bearings are removed.

Reinstallation:

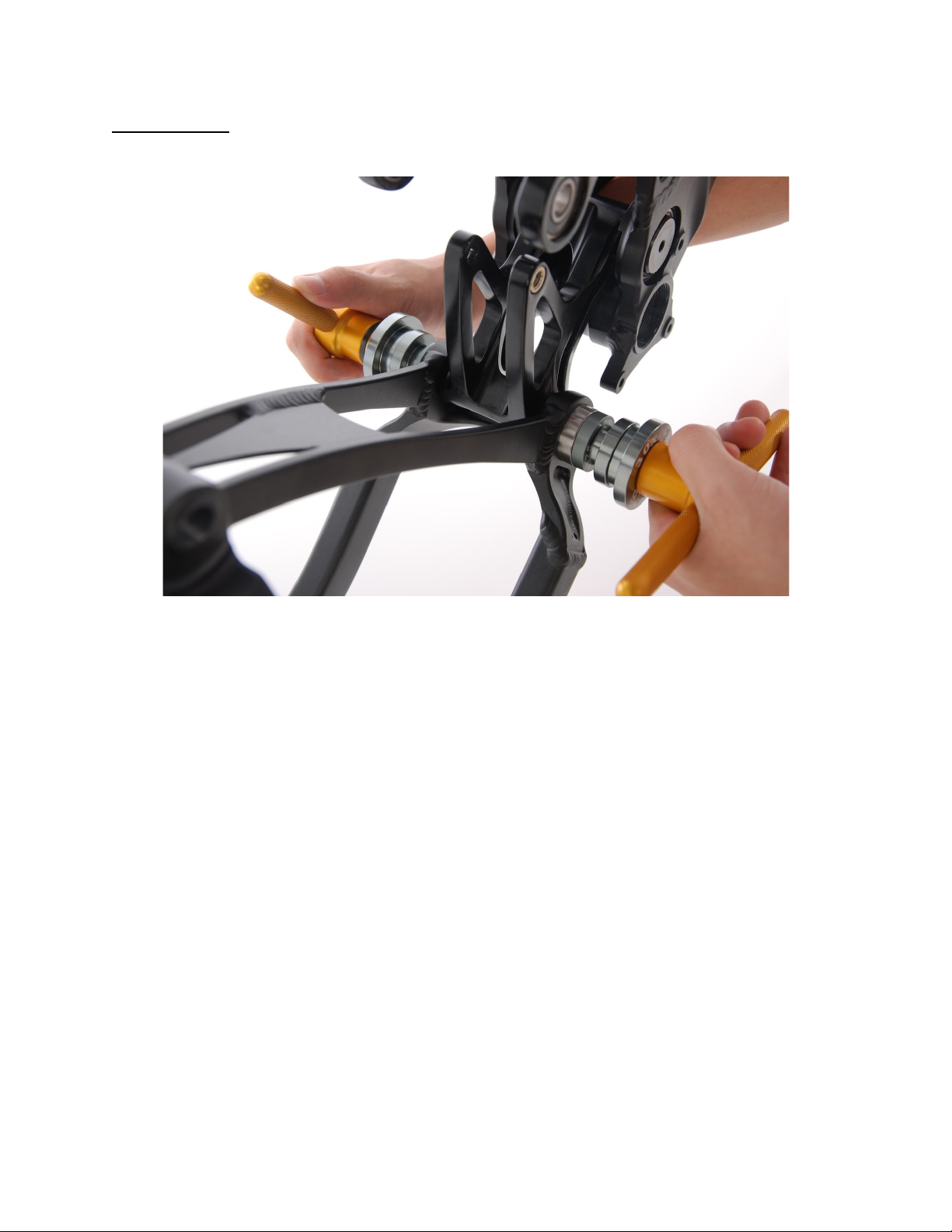

5: Press the bearings into the frame using a bearing press.
⚠Caution: Do NOT press the bearings into the frame without the links in place; doing
so can damage the frame.
Clean and inspect all pivot axles prior to reassembly. If needed, order replacement
axles through Banshee or your local dealer.
The links can fit very tightly in the frames at times, take time and be gentle when
inserting them. Be extra careful to ensure that they are going in straight.

6: Lightly grease the pivot axles and reinsert them into the frame. Prepare the axle bolts
with blue Loctite. Using appropriate sized Allen keys, tighten the pivot axles to torque
etched on the axle / bolt.
7: Apply blue Loctite to shock bolts and reinsert the rear shock.

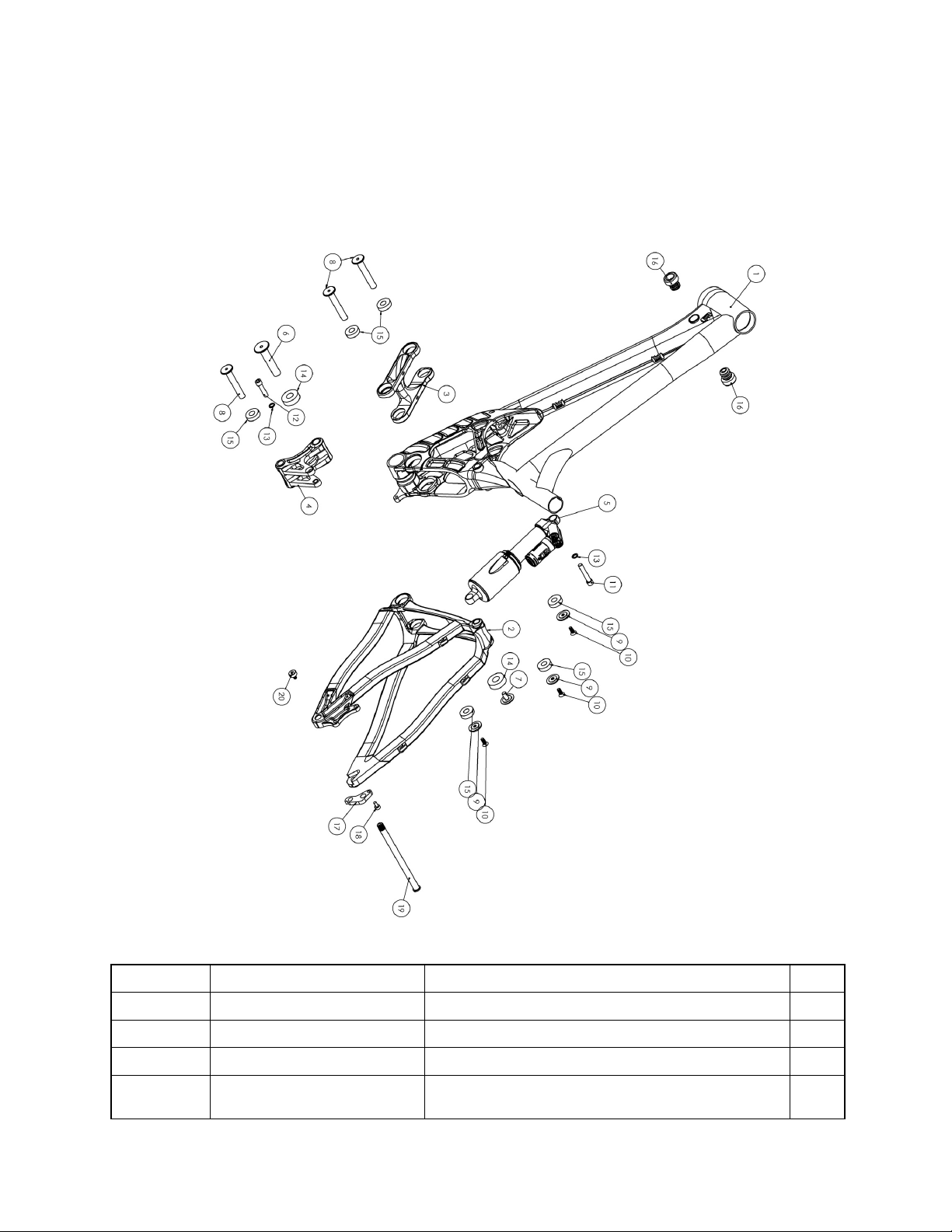

7: Exploded view + parts list
Item No.
Part Number
Description
Qty.
1
011PCT16010-XL-PA
Front Triangle
1
2
012PCT16010-PA
Rear Triangle
1
3
540PCTLEG3-LKT-PA
Upper Link
1
4
540PCTLEG3-LKB-
PAL
Lower Link
1

5
Shown
DB Air Rear Shock
1
6
64075321577-HBLC5
Main Pivot Axle
1
7
640752818516-HBL
Main Pivot Axle Bolt
1
8
64075261279-HBL
Axle (Seat stay, Chainstay, Seat Tube)
3
9
550PCTLEG2-AS-HB
Driveside Compression Washer
3
10
600LI616TI
Compression Washer Bolt
3
11
600SI850ASNIN
Shock Bolt M8X50mm
1
12
600SI835ASCRN
Shock Bolt M8X35mm
1
13
620W82121CRC5
Shock washers
2
14
63062022RS
6202-2RS Bearing
2
15
63060012RS-FAG
6001-2RS Bearing
6
16
555F72FBB
ODI Fork Bumpers
2
17
553PCTLEG1-RDH-AN
Derailleur Hanger
1
18
600SI512SSN-1
Derailleur Hanger Bolt
1
19
640751611951825-
HBL2
KS axle150x12mm
1
20
600SI61075HBL
KS Axle axle bolt
1
Rebuild kits
Kit Name
Kit part
number
Qty
Part number
Exploded
view ref
Description
Bearing
kit
SP-
LBRG
2
63062022RS
14
Bearing 6202 2RS
(Main pivot axle)
6
63060012RS-
FAG
10
Bearing 6001 2RS
Axle kit
SP-
LPVT
1
64075321577-
HBL
6
Legend main pivot
axle
3
64075261279-
HBL
8
Legend CS pivot axle
1
640752818516-
HBL
7
Main pivot Bolt
3
550PCTLEG2-
AS-HB
9
Bearing cap washer

3
600LI616TI
10
Pivot axle bolt
Rear axle
SP-
AX150
1
64075161195182
5-HBL2
19
Rear wheel axle
1
600SI61075HBL
20
Rear wheel axle bolt
Shock
bolt kits
SP-
LBLT
1
600SI850ASNIN
11
shock bolt 50x8mm
1
600SI835ASCRN
12
shock bolt 35x8mm
2
620W82121CRB6
13
Shock bolt washers
Bump
stops
SP-ODI
2
555F72FBB
15
ODI fork bumper
150mm
axle kit
SP-
AX150
Axle
no part number
listed
150x12mm axle
nut
no part number
listed
rear axle bolt
150mm
Hanger
Kit
DF-
HNG150
2
553PCTLEG1-
RDH-AN
Derailleur Hanger
1
600SI512SSN-1
Derailleur Hanger Bolt
Headset
44/56mm
DP-
HST56
Headset Banshee
Munro Taper 44/56
Spitfire, Rune, Prime,
Darkside Legend
Warranty

For the warranty related questions and the most up to date warranty information please
go to the Banshee website, or contact Banshee directly.
