bar Pure Power 12" Whirl-A-Way User manual

WARRANTY
The Surface Cleaning System you have purchased connects directly to
your high pressure hose and pressure washer by means of quick couplers,
operating to a maximum of 4000 PSI. Please note that the 12" Whirl-AWay
connects directly to a 1/4" quick connect coupler.
This Whirl-a-Way is designed to operate with both hot & cold water pressure
washers up to 180°F.
During operation, should you experience a buildup of small stones or other
foreign material within the cover, we recommend that you simply tip the
cleaner on its side at 45° which should expel any foreign materials. This will
give longer wear to your tips and swivel arm, nozzles and brush skirt (if
applicable).
The tips that have been installed on your surface cleaning system permit the
use of your cleaner with a pressure washer producing up to 7 GPM at 4000
PSI. Periodically check the tips to ensure they are not plugged by dirt
particles’ as this can cause the rotary arm to stop spinning, or stripping to be
left on the surface being cleaned.
It is very important when operating your Whirl-a-Way, that you maintain a
continuous motion to ensure an even clean. The factory presets the height
of your rotary head from the ground based on peak performance. If you
choose to lower or raise the height of the head, you may do so by adding or
eliminating the included spacers. Please ensure that your rotary head is
adjusted to maintain a minimum of 1” clearance between the spray tips and
the surface being cleaned. ** Note that lowering the head too far may result
in the rotary arm hitting the surface and damaging it.
While operating your surface cleaning system, please ensure that the nylon
brush skirt remains in contact with the surface being cleaned. Do not
operate on overhead surfaces. We strongly recommend that safety eye
goggles, gloves and work boots be worn when operating this Whirl-a-Way.
OPERATING INSTRUCTIONS
· New bearings greatly reduce friction,
resulting in a greater operating RPM
for improved cleaning performance.
· No greasing or maintenance required
through lifetime
· Tungsten Carbide sealing surfaces
Featuring New HIGH SPEED Rotary Head
No#
Part #
1 DF1002
2 DF1001
3 85.790.034BAR
4 85.419.012BAR
5 85.790.024BAR
Description
PARTS LIST

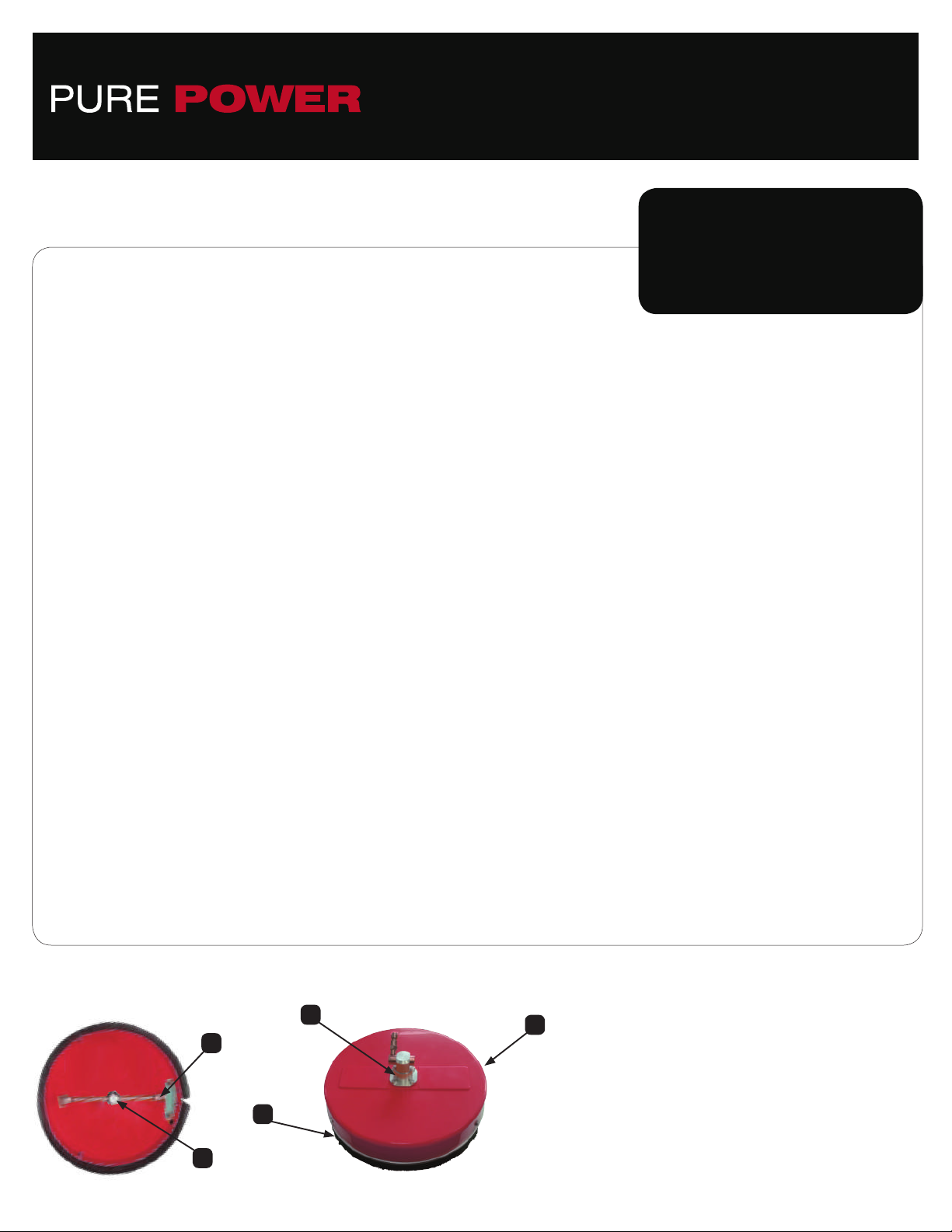

PARTS BREAKDOWN
12” WHIRL-A-WAY OPERATIONS MANUAL
4
5
Keep hands and feet away from the high pressure, high speed rotating arm
that is protected by the plastic cover.
Should your surface cleaner not be used for long periods of time, it is
recommended that you remove the hose from the top of the rotary head and
a vegetable oil be used to lubricate the swivel head’s internal parts. Manually
turn the rotary arm to allow lubrication of all internal parts before storing.
You will quickly find your surface cleaning system a welcome addition to your
pressure washing applications. It is designed to give you a safe and rapid
method for cleaning hard surfaces, and will save you time in comparison to
using a conventional gun and wand. The durability of this surface cleaning
system is enhanced by the way it is handled by the operator. Please take
care to ensure that the Whirl-a-Way is not continuously being swung against
buildings, curbs, etc., which can damage the cover and rotary arms. Also, be
aware that the high speed rotating arm must not come in contact with rigid
protruding objects which can quickly damage or completely break off the
steel arm. Do not apply excessive weight to the Whirl-A-Way cover to prevent
cracks or dents that could interfere with the rotary arm.
The rotary head has a six-month warranty from the date of purchase.
Should you encounter problems with the rotary head within that time period,
simply return the defective part for warranty to the place of purchase.
There is no warranty on the nylon brush ring.
All other components of the surface cleaning system have a 90-day warranty
against manufacturer’s defects only.
3
1
2
ROTATING POLE 12”
NOZZLE,MEG 25 DEG-015
HEAD,ROTARY H.S.FOR 12"&16"WAW
COVER,12"YELLOW MATERIAL
NYLON BRUSH SKIRT,12"WAW

A B
ATTACH TO LONGWAND
USE WITH A SPRAY GUN KIT
The 12" Whirl-A-Way is equipped for use with an
optional spray gun kit .
B
Attach to a longwand for cleaning hard to reach surfaces.
Connect to longwand using the QC fittings on the
longwand and Whirl-A-Way. Ensure the M22 hose is
connected properly before use.
A
USE WITH A GUN AND LANCE
B
Connect to lance using q/c fittings on
the lance and whirl-a-way. Ensure the
M22 hose is connected properly before
use.
SETUP & APPLICATIONS BAR-1200WAWY
A
Rotary Arm doesn't spin :
·Remove, inspect and clean nozzles.
Replace if damage d
·Ensure there is no water leaking from the
bypass port on the rotary head.
TROUBLE SHOOTING
12Leaves stripping:
·Ensure nozzles aren’t damaged or plugged.
·Ensure rotary arms are straight.
12” WHIRL-A-WAY OPERATIONS MANUAL
C
