Barco R9843030 User manual

DVI input Kit for iCon
Installation Manual
R9843030
R5976887/00
29/03/2006

Barco nv Presentations
Noordlaan 5, 8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
PrintedinBelgium

Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of Barco.
Changes
Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Guarantee and Compensation
Barco provides a guarantee relating to perfect manufacturing as partof the legally stipulated termsof guarantee. On receipt, the purchaser
must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco
must be informed immediately in writing of any complaints.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning,
at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement
at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a
reduction in the purchase price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component
of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of Barco.
If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly,
in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are
system failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as
well as normal maintenance are not subject to the guarantee provided by Barco either.
The environmental conditions as well as the servicing and maintenance regulations specified in the this manual must be complied with by
the customer.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.

Table of contents
TABLE OF CONTENTS
1. Safety................................................................................................................ 3
1.1 Safetywarnings...................................................................................................................... 3
2. Kitdescription ..................................................................................................... 5
2.1 Description........................................................................................................................... 5
2.2 kitcontents........................................................................................................................... 5
3. DVI input (re)placement .......................................................................................... 7
3.1 Accessing the input section ......................................................................................................... 7
3.1.1 Removing/installingthecablebasket........................................................................................ 7
3.1.2 Removingthelenscover..................................................................................................... 8
3.1.3 Removingtheinstalledlens.................................................................................................. 8
3.1.4 Removingtherearcover ..................................................................................................... 9
3.1.5 Removingthetopcover ...................................................................................................... 9
3.1.6 Removingthefilterfrontplate................................................................................................10
3.1.7 Removingthefrontplate......................................................................................................11
3.1.8 RemovingtheServer.........................................................................................................13
3.2 ReplacingtheDVIinput.............................................................................................................18
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 1

Table of contents
2R5976887 DVI INPUT KIT FOR ICON 29/03/2006

1. Safety
1. SAFETY
1.1 Safety warnings
WARNING:This procedure is intended for use only by BARCO authorized technicians.
WARNING:Be sure that the projector is powered down and that the power cord is removed from the wall
outlet.
Wait until the projector is cooled down before starting the procedure.
CAUTION:Wear a wrist band which is connected to the ground while handling the electrostatic discharge
sensitive parts.
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 3

1. Safety
4R5976887 DVI INPUT KIT FOR ICON 29/03/2006

2. Kit description
2. KIT DESCRIPTION
Overview
• Description
• kit contents
2.1 Description
Purpose
The DVI input board kit allows to add/replace in a Barco iCon projector :
• 1 DVI input on DVI connector
• 1 RGBHV input on D15 connector
The flexibility of the iCon input section allows to add this input on one of the 4 input slots provided on the backplane (PMP).
The input is automatically detected and the configuration of the input parameters is done at first startup.
2.2 kit contents
Overview
Part description Qty Image
DVI input board 1image 2-3
Fixation nut 1image 2-1
Side screw 1
Front plate 1image 2-2
Front Screw (spacer) 4
Image 2-1
Fixation nut
Image 2-2
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 5

2. Kit description
Image 2-3
6R5976887 DVI INPUT KIT FOR ICON 29/03/2006

3. DVI input (re)placement
3. DVI INPUT (RE)PLACEMENT
Overview
• Accessing the input section
• Replacing the DVI input
Upgrade/replacement
The following procedure illustrates the replacement of a DVI input board. The same operations must be done in case one wants to
add a second DVI input to the projector. Instead of removing (the defective) DVI board one has then to remove the board installed
on the desired layer.
Layer 5 is used for the DVI output and cannot be used to install an input board.
Layer 4 is free and can be used to install an extra input.
3.1 Accessing the input section
Overview
• Removing/installing the cable basket
• Removing the lens cover
• Removing the installed lens
• Removing the rear cover
• Removing the top cover
• Removing the filter front plate
• Removing the front plate
• Removing the Server
3.1.1 Removing/installing the cable basket
Necessary tools
No tools.
How to remove the cable basket ?
1. Press on the top of the cable basket so as to unlock the top part from the projector.
Image 3-1
2. Pull the cable basket so as to free it from the bottom locks.
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 7

3. DVI input (re)placement
How to install the cable basket
1. Place the 2 feet of the cable basket into the 2 bottom locks of the projector.
Image 3-2
2. Bring the basket towards the projector and press on it so as to lock it at the top.
3.1.2 Removing the lens cover
Necessary tools
cross headed screwdriver
How to remove the lens cover ?
1. Loosen the 2 indicated screws.
Image 3-3
2. Open the protective cloth (enlarge the opening) and pull the lens cover gently towards the front of the projector.
3.1.3 Removing the installed lens
How to remove the installed lens ?
1. Disconnect the lens from the motor connection board
2. Support the lens with one hand.
8R5976887 DVI INPUT KIT FOR ICON 29/03/2006

3. DVI input (re)placement
Image 3-4 Image 3-5
Detail of the lens locking handle and pin
3. Pull out the locking pin and flip the lens locking handle to the right (with the index finger) at the same time.
4. Pull the lens gently out of the lens holder.
3.1.4 Removing the rear cover
Necessary tools
cross headed screwdriver.
How to remove the rear cover ?

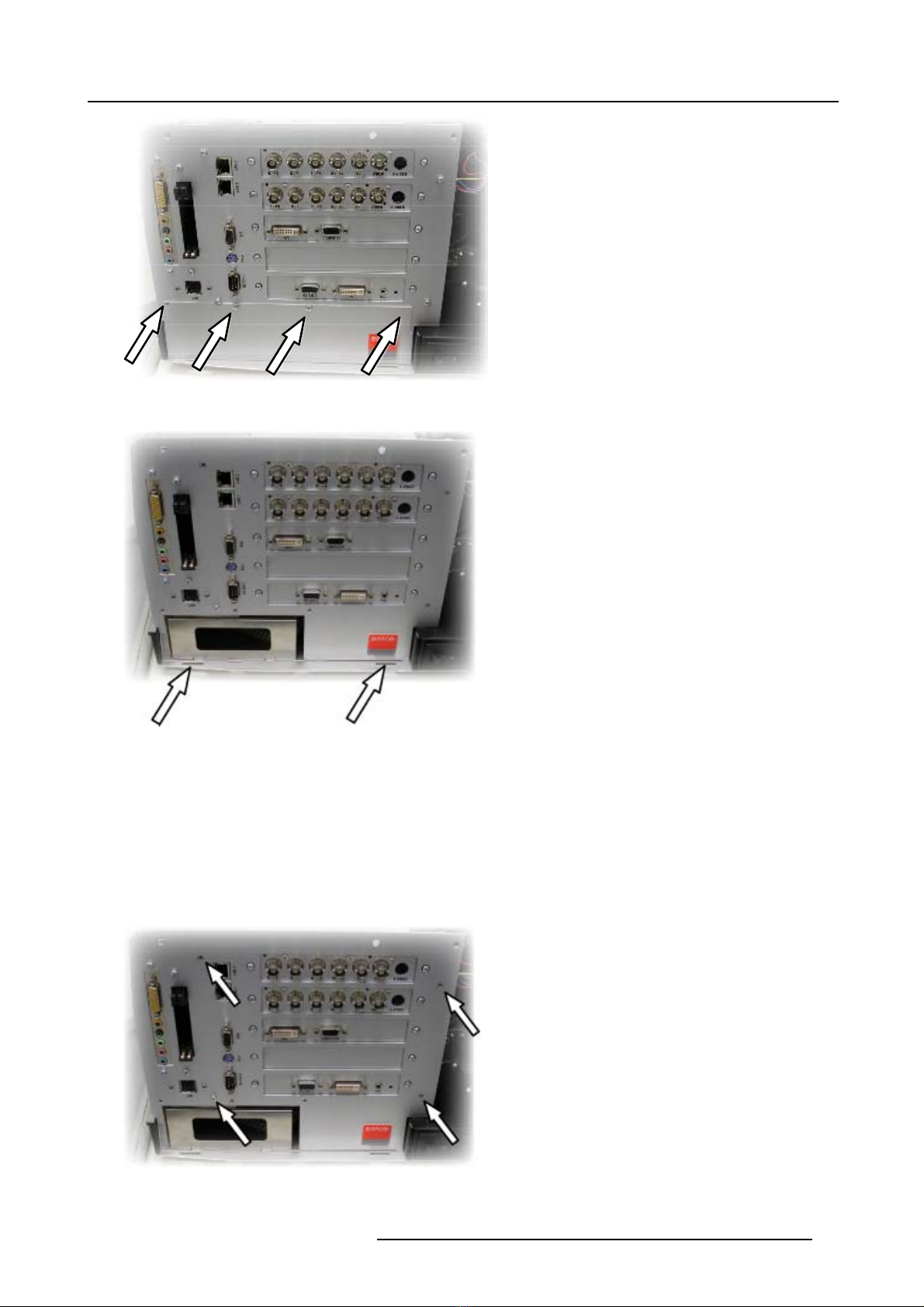

1. Loosen and remove the 2 screws as indicated.
Image 3-6
2.Remove the rear cover
3.1.5 Removing the top cover
Necessary tools
cross headed screwdriver.
How to remove the top cover ?
1. Loosen and remove the 2 rear screws
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 9

3. DVI input (re)placement
Image 3-7
2. Loosen and remove the 2 front screws
Image 3-8
3. Loosen and remove the indicated screw
Image 3-9
4. Remove the top cover and disconnect the local keypad connector.
3.1.6 Removing the filter front plate
Necessary tools
Torx n°10
How to remove the filter front plate
1. Remove the 4 screws fixing the filter front plate
10 R5976887 DVI INPUT KIT FOR ICON 29/03/2006

3. DVI input (re)placement
Image 3-10
2. Remove the plate
Image 3-11
Note: The plate is fixed in 3 holes
3.1.7 Removing the front plate
Necessary tools
•Torxn°10
• nut spinner n°5
How to remove the front plate ?
1. Remove the 4 screws
Image 3-12
2. Remove the 4 screws fixing the VGA and the RS232 connector
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 11

3. DVI input (re)placement
Image 3-13
3. Remove the 2 screws fixing the USB connectors.
Note: the 2 screws are fixed with 2 nuts on the rear of the plate : remove gently the plate forwards to access the nuts.
Image 3-14
Tip: In case one must only access the side screws on the PMP it is not necessary to loosen the USB connector.
4. Remove the plate or flip it to the side in case the USB connector has not been removed.
Image 3-15
Flip front plate in case it must not be removed (USB connection not removed)
When an Audio or other extension module is used on the extra PCI slot, the 2 screws fixing this module should
also be removed.
12 R5976887 DVI INPUT KIT FOR ICON 29/03/2006

3. DVI input (re)placement
3.1.8 Removing the Server
What has to be done ?
Depending on the type of plate 1 piece/2pieces) the removal procedure is slightly different :
1. 1 piece plate : the plate must be removed
Image 3-16
1 piece plate
2. 2 piece plate : remove only the side plate (1) , the server can be slided to the side.
Image 3-17
2 piece plate
1sideplate
2 top plate
How to remove the server ?
1. Remove the HDD adapter from the HD
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 13

3. DVI input (re)placement
Image 3-18
2. If the plate is in one piece
If yes, remove the 4 screws
If no, go to step 8
Image 3-19
3. Push the flat cable and the power cable through the hole.
Image 3-20
Flat cable and power cable (arrows) and cable bundle
4. Remove the wire bundle from cable protection lock.
5. Remove the 6 screws fixing the metallic protection cover.
14 R5976887 DVI INPUT KIT FOR ICON 29/03/2006

3. DVI input (re)placement
Image 3-21
6. Remove the second wire bundle from the lower cable protective lock.
Image 3-22
7. 1 piece plate : Remove the indicated screws to allow the server to be slided to the side.
Image 3-23
R5976887 DVI INPUT KIT FOR ICON 29/03/2006 15

3. DVI input (re)placement
Image 3-24
8. Remove the LVDS connections from the PMP(only in case the server must be completely removed).
Image 3-25
9. Remove the ATX power cable from the power box (only in case the server must be completely removed).
Image 3-26
10.Remove the Ethernet connection and the small connector from the PMP (only if server must be completely removed).
Tip: The small cable is connected on the back of the PMP, access to the connector is made easy by removing the connector
in front of it (only if server must be completely removed).
16 R5976887 DVI INPUT KIT FOR ICON 29/03/2006
