Barco R9849975 User manual

QSD Lenses
Installation Manual
R9849975
R9849980
R9849990
R59770110/00
25/02/2008

Barco nv Simulation Products
Noordlaan 5, B-8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
Printed in Belgium

Changes
Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of Barco.
Guarantee and Compensation
Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser
must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco
must be informed immediately in writing of any complaints.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning,
at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement
at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a
reduction in the purchase price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component
of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of Barco.
If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly,
in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are
system failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as
well as normal maintenance are not subject to the guarantee provided by Barco either.
The environmental conditions as well as the servicing and maintenance regulations specified in the this manual must be complied with by
the customer.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.

Table of contents
TABLE OF CONTENTS
1. Kit description ...................................................................................................... 3
1.1 Kit content ............................................................................................................................ 3
1.2 Lens range . . . ......................................................................................................................... 3
1.3 Domain of application ................................................................................................................ 3
1.4 Lens formulas......................................................................................................................... 3
2. Installing the lens .............................. .................... .................... .................. .......... 5
2.1 Preparations .......................................................................................................................... 5
2.2 Mounting the lens. . . .................................................................................................................. 5
2.3 Connecting the lens .................................................................................................................. 8
3. Adjusting the lens.................................................................................................. 9
3.1 Back focal length adjustment ........................................................................................................ 9
3.2 Shift/Zoom/Focus . . ..................................................................................................................10
Index......................................................................................................................13
R59770110 QSD LENSES 25/02/2008 1

Table of contents
2R59770110 QSD LENSES 25/02/2008

1. Kit description
1. KIT DESCRIPTION
1.1 Kit content
Overview
The delivered kit contains the following parts :
Description Quantity
QSD lens11
TorayseeTM lens cleaning cloth 1
BFL adjust Tool 1
This Installation manual R59770110 1
Table 1 - 1
Kit content
1.2 Lens range
Lens overview
Lens Partnumber
QSD (1.0-1.4 : 1) R9849975
QSD (1.4-2.0 : 1) R9849980
QSD (0.8 : 1) R9849990
Table 1 - 2
Lens range overview
1.3 Domain of application
Where used
The QSD lenses described in this manual are used on the Barco SIM 7 projectors :
• R9011205 : SIM 7D
• R9011200 : SIM 7Q
1.4 Lens formulas
Formulas
Metric Formulas (meter) Inch formulas (inch)
QSD (1.0:1.4:1) PDmin = 0.0299 + 1.026xSW + 0.0047/SW
PDmax = 0.0341 + 1.434xSW + 0.0030/SW
PDmin = 1.1772 + 1.026xSW + 7.285/SW
PDmax = 1.3425 + 1.434xSW + 4.650/SW
QSD (1.4:2.0:1) PDmin = -0.0858 + 1.471xSW + 0.0077/SW
PDmax = -0.0013 + 2.031xSW - 0.0606/SW
PDmin = -3.3779 + 1.471xSW + 11.935/SW
PDmax = -0.0511 + 2.031xSW - 93.930/SW
QSD (0.8:1) PD = 0.0679 + 0.803xSW - 0.0121/SW PD = 2.673 + 0.803xSW - 18.755/SW
Table 1 - 3
Lens formula overview
1. One of the QSD lenses described in “Lens range”
R59770110 QSD LENSES 25/02/2008 3

1. Kit description
Lens program to calculate the projector distance is available on the BARCO web site :
http://www.barco.com/projection_systems/customer_services/lens_program.asp
4R59770110 QSD LENSES 25/02/2008

2. Installing the lens
2. INSTALLING THE LENS
Overview
• Preparations
• Mounting the lens
• Connecting the lens
2.1 Preparations
How to prepare the projector lens holder ?
1. Turn in the 3 Allen screws M4.
Tip: Take care that the screws do not pass through the other side of the flange.
Image 2-1
2. Turn a nut M4 on the Allen screws. Do not fasten yet.
How to prepare the projector ?
1. Ensure the lens shift mechanism on projector is not locked.
2.2 Mounting the lens
What has to be done ?
The lens has to be mounted on the projector’s lens holder. The lens holder has three mounting points i.e. 3 threaded screws
mounted with springs.
R59770110 QSD LENSES 25/02/2008 5

2. Installing the lens

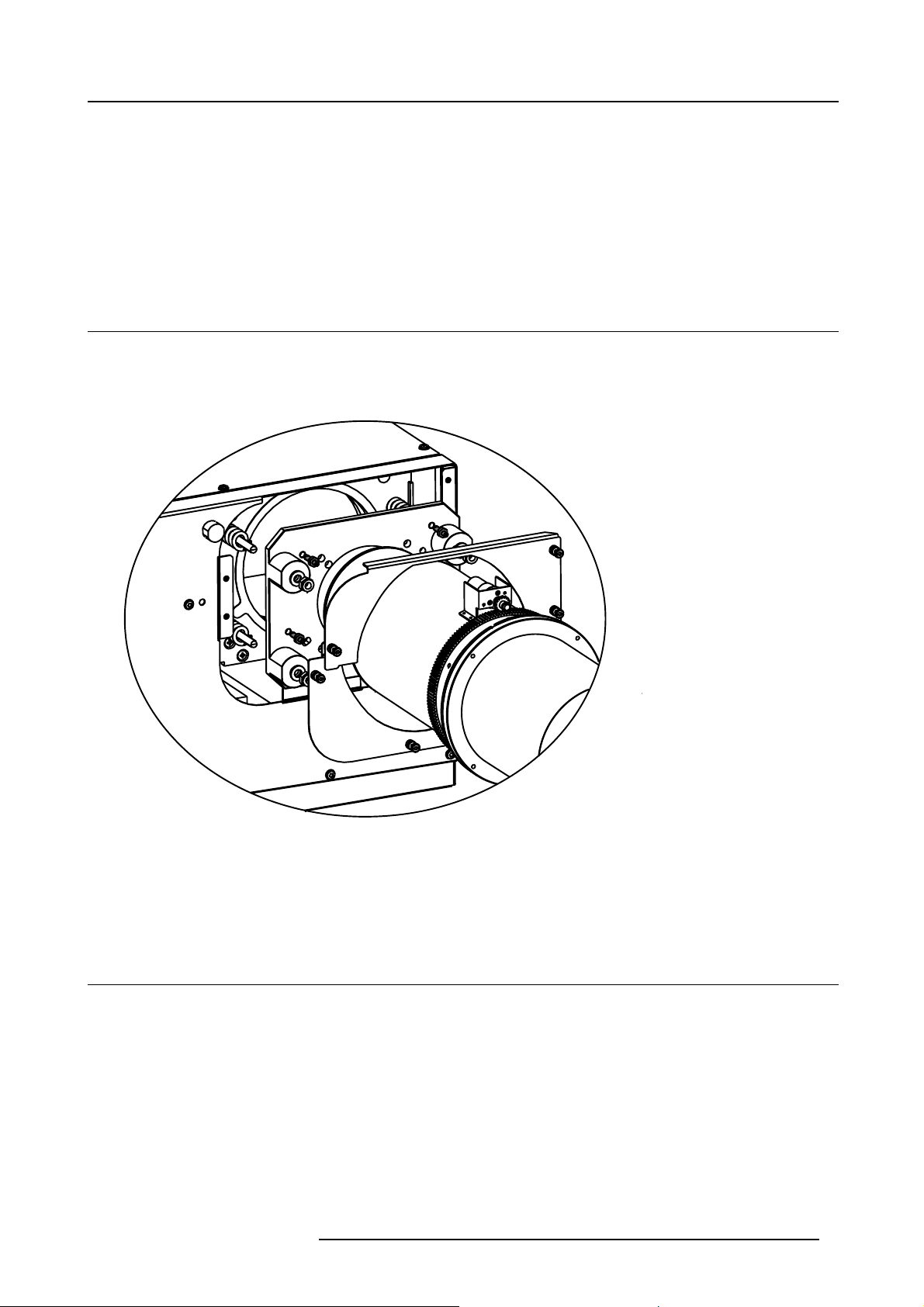

Image 2-2
Lens mounting on the projector’s lens holder : the mounting points are shown.
How to mount the projector ?
1. Slide the lens over the 3 rods.
2. Put a washer (diameter 6.4mm) and a nut M4 on each rod.
Image 2-3
Lens mounting on the projector’s lens holder : washer and nuts.
3. Fix the nuts until the lens flange touches the x-plate at the 3 fixation points (nominal position).
4. Loosen each nut 1 turn to make it possible to start adjusting the lens.
How to put the lens covers?
1. Put the lens bottom cover plate and tighten the 3 screws.
6R59770110 QSD LENSES 25/02/2008

2. Installing the lens

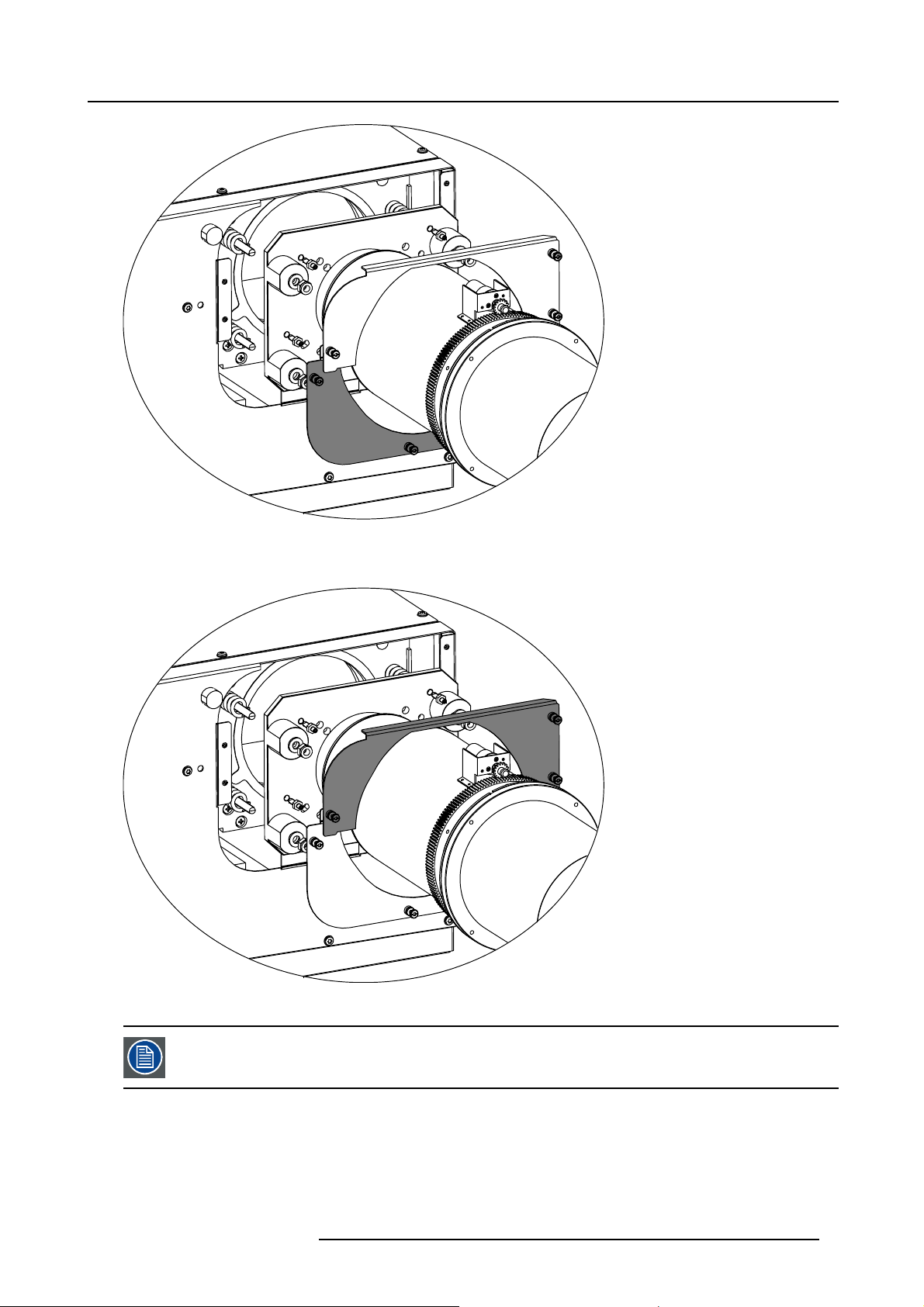

Image 2-4
Lens bottom plate.
2. Do the same for the top plate.
Image 2-5
Lens top plate
Note that the lens is now in its nominal position. The 3 screws allow to adjust the Scheimpflug if necessary.
R59770110 QSD LENSES 25/02/2008 7

2. Installing the lens
2.3 Connecting the lens
What must be done ?
The lens must be connected to the projector to allow the control of the Zoom and Focus and to allow data communication for the
aperture control.
Insure that the lens is always connected to the projector. Not doing this will possibly damage the lens aperture
and will not allow optimal aperture control.
Never change the lens when the projector is ON. Always insure that the projector is in standby or OFF.
How to connect the lens ?
1. Connect the male connector attached to the lens to the female connector located on the front of the projector.
Tip: The side labeled TOP on the male connector must be orientated upwards.
Image 2-6
Projector lens connection.
2. Secure the connection by turning and fastening the locking ring.
8R59770110 QSD LENSES 25/02/2008

3. Adjusting the lens
3. ADJUSTING THE LENS
Overview
• Back focal length adjustment
• Shift/Zoom/Focus
3.1 Back focal length adjustment
What can be done ?
The position of the lens can be adjusted. The lens can be turned inside or outside the projector chassis . By doing that, the back
focal length is adjusted and the focus is set to an optimal value. This adjustment will allow to benefit from the largest adjustment
range for the lens focus (motorized lens focus).
1
1
1
1
2

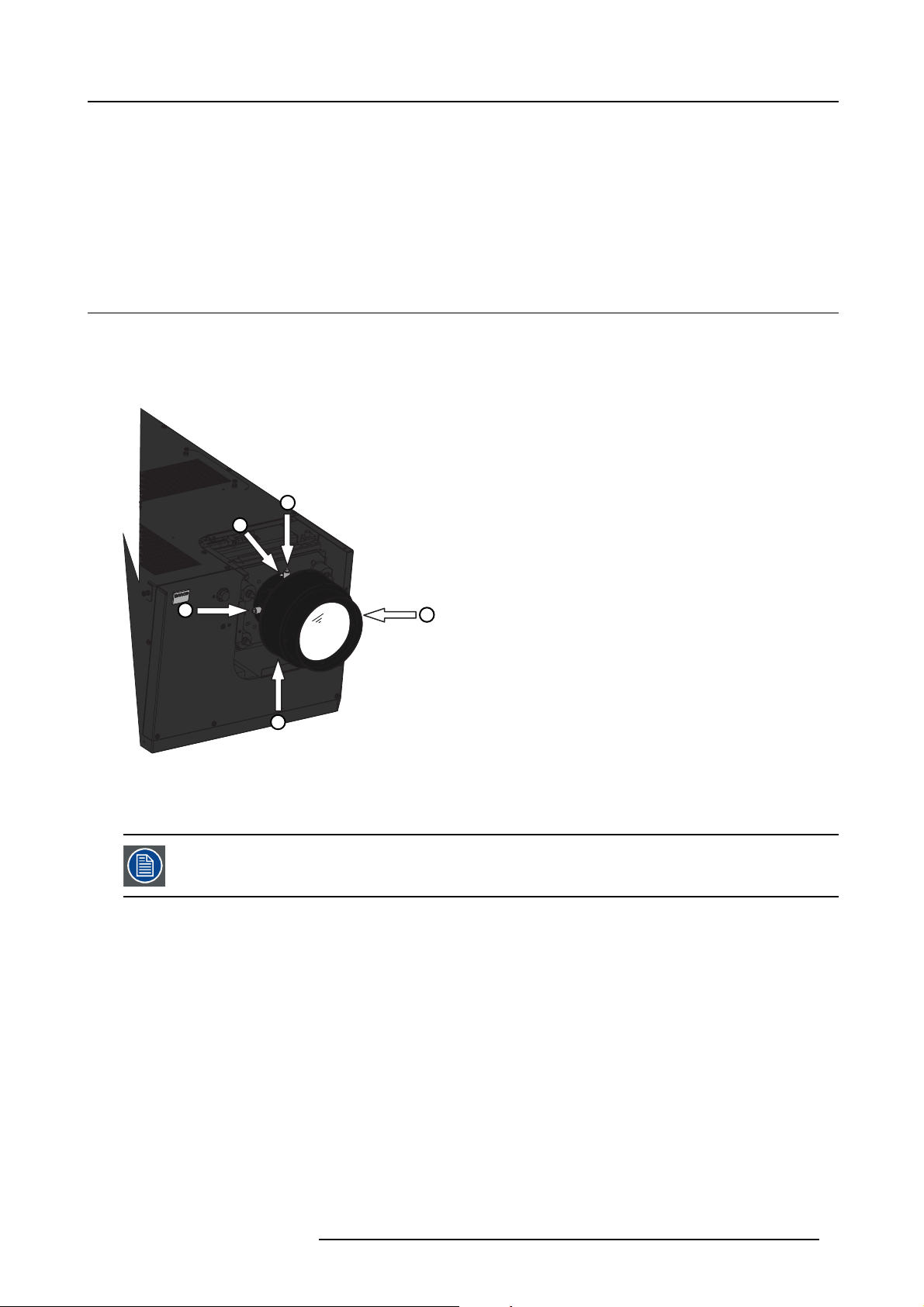

Image 3-1
Back Focal length adjustment.
1 Locking screws
2 Adjustment hole
A wrong back focal length adjustment will not allow optimal focussing.
Necessary tools
• BFL Adjustment tool
• Hexagonal key
How to adjust ?
1. Loosen the 4 screws at the side of the lens.
R59770110 QSD LENSES 25/02/2008 9

3. Adjusting the lens

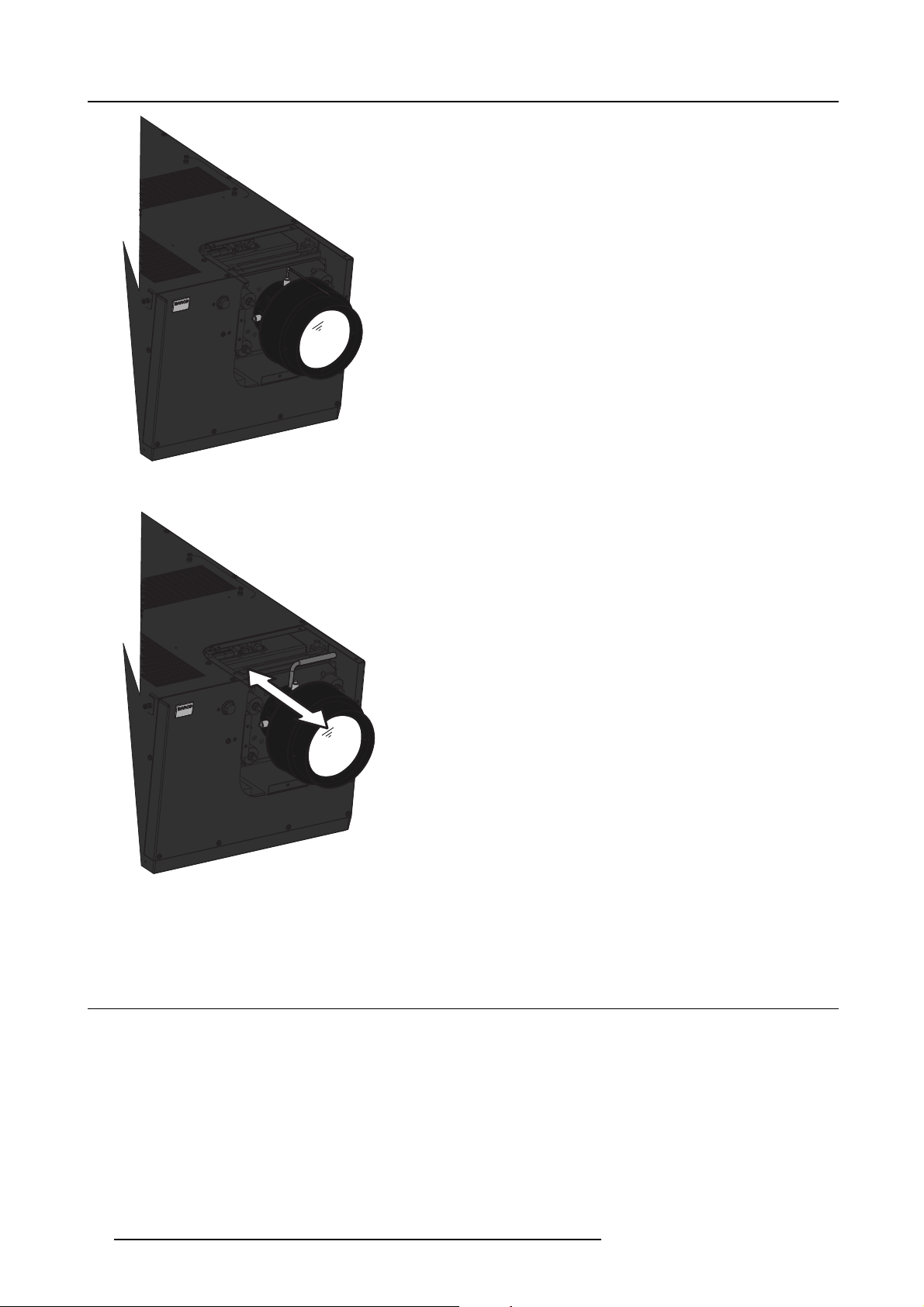

Image 3-2
2. Use the tool in the adjustment hole.
Image 3-3
3. Make sure that the lens stays in focus while zooming.
4. Fix the 4 screws.
3.2 Shift/Zoom/Focus
Description
The shift adjustment is done during the Installation phase.
The other adjustments possible on the lenses are:
• Motorized Zoom
• Motorized Focus : should be done during the installation phase
• ECR (Extended Contrast Ratio) : ECR is done through automatic adjustment of the lens opening (aperture).
How to shift via the RCU (or keypad)
1. Press LENS SHIFT on the RCU
10 R59770110 QSD LENSES 25/02/2008

3. Adjusting the lens
3
1
4
2
LEN S
Z OO M
LEN
S
SH
IF T
LEN
S
F OCUS VO L
CO NTR
BRI G HTN
Image 3-4
2. Use the arrow keys to adjust
90
EN T ER
MEN U BA C K
DI
G
I
Z
OO
M
PH A
SE
PA USE
PI P
L OGO
Image 3-5
How to shift in the projector’s OSD ?
1. Press MENU to activate the Tool bar
2. Press →to select the Installation
3. Press ↓to Pull down the Installation menu
4. Use ↑or ↓to select Lens adjustments...
Image 3-6
5. Press ENTER
A text box appears on the screen, follow the instructions.
Image 3-7 Image 3-8
How to adjust the focus ?
1. Turn the lens focus ring so as to obtain an overall focussed image
R59770110 QSD LENSES 25/02/2008 11

3. Adjusting the lens
The use of a sheet of paper held in front of the screen can be useful to determine the focus plane (position
for best focus)
Unsharp corners in the image can be adjusted with the Sheimpflug adjustment (3 adjustment screws on the
lens holder), see the Installation section
Before adjusting the lens focus, insure that the Back Focal Length is correctly adjusted, "Back focal length
adjustment", page 9
12 R59770110 QSD LENSES 25/02/2008
