J-GIOTTO TOP®
Instruction, Use and Maintenance Manual
CONTROL UNITS
EN-IST-JGIOT360-0122(Translation of the original instructions)

2EN-IST-JGIOT360-0122
MANUAL REVISION DATE

3EN-IST-JGIOT360-0122
INDEX
1 Safety, Warning and Mandatory Signs 5
1.1 Operator training 5
2 Safety 6
2.1 General safety warnings 6
3 Technical data 8
3.1 J-Giotto Top electrical connections 11
4 Checking / Unpacking / Lifting 11
5 Installation of the J-Giotto Top 12
6 J-Giotto Top Pneumatic connections 14
7 Troubleshooting 17
8 Cleaning 18
9 Disposal 19
10 Maintenance 20
10.1 J-Giotto Top Control unit 21
10.2 Disassembly / Assembly of the J-Giotto Top 22
11 CE certificate 26
12 Warranty 27
13 Recommendations 28

4EN-IST-JGIOT360-0122
INTRODUCTION
This “Instruction, Use and Maintenance Manual” has been drawn up expressly for expert
technical personnel. Consequently any information which can easily be deducted from reading
the text and/or examining the illustrations and/or drawings provided herein shall not be the
object of further explanation.
This “Instruction, Use and Maintenance Manual” forms an integral part of the control unit.
Before proceeding with installation, use or maintenance of each type of control unit it is
compulsory to read and understand this manual.
This manual must be kept for all future reference
When using valves in compliance with Directive 2014/34/EU (ATEX) it is mandatory to
consult a specic manual.
It being understood that the essential characteristics of the type of control unit described herein shall
remain the same, the manufacturer reserves the right to amend and/or integrate and/or update the data
and/or information relative to use of the control unit provided in the “Instruction, Use and Maintenance
Manual”, at any time and without prior notice.
The latest, updated version of the "Instruction, Use and Maintenance Manual" is always available at
www.bardiani.com
The manufacturer shall not in any way be held liable for any consequences resulting from a failure
to correctly observe the prescriptions provided in the relative manual concerning installation, use,
maintenance and care of the product.
All rights reserved. It is prohibited, without prior written authorization from the manufacturer, to
totally and/or partially reproduce and/or transmission and/or record any part of this "Instruction,
Use and Maintenance Manual" using any means and/or support, including IT and/or electronic
and/or mechanical and/or paper formats, or by means of any other system to save and/or reuse
it for purposes different to the exclusive use by the purchaser.

5EN-IST-JGIOT360-0122
1 Safety, Warning and Mandatory Signs
1 Safety, Warning and Mandatory Signs
SIGNALS
Pictogram Description Notes
WARNING
General
This tells the person in question that the operation
described involves (when not performed in accordance
with the relative safety regulations) the risk of personal
injury.
OBLIGATION
General
Special instructions must be followed to avoid injury to
persons.
SKILLED
PERSONNEL
Dismantling/Assembling and maintenance operations
must be carried out by expert technicians only.
NOTE Follow the indicated note with care
ELECTRICAL
CONNECTION
Electrical connection to the control unit
ELECTRICAL
DISCONNECTION
Electrical disconnection from the control unit
PNEUMATIC
CONNECTION
Compressed air connection to the control unit
PNEUMATIC
DISCONNECTION
Compressed air disconnection from the control unit.
OPERATING SIGNS
Pictogram Description Notes
1APPLICATION OF
FOODSAFE
GREASE
Use only FOODLUBE HI-TEMP 2 grease or equivalent
1.1 Operator training
All persons who have to work on the valve must be qualified to carry out the relative maintenance
tasks.
They must be informed as to the possible hazards involved and must observe all the safety
instructions set out in this manual.
Allow expert personnel only to work on the electrical components.

6EN-IST-JGIOT360-0122
2 Safety
2 Safety
2.1 General safety warnings
Intended Use
The control unit has been designed to control the pneumatically controlled process valves
manufactured by Bardiani Valvole S.p.A..
It is possible to fit the J-Giotto Top with a maximum of two solenoid valves for controlling the process
valve and up to a maximum of two inductive sensors for controlling the position.
For the electrical connections inside the control unit, there are two different configurations:
• LED terminal block: the LEDs indicate, in the presence of the relative inductive sensor, the status of
the valve: green light = valve open; yellow light = valve closed.
• 10-pole terminal block: no LEDs.
General warnings
• Always read the technical data carefully before machine installation, operation and maintenance.
• The J-Giotto Top must always be installed, operated and maintained by authorized personnel. Said
personnel must know and understand both the unit and the contents of the manual.
• Take care over any separate parts of the J-Giotto Top when removing it from its packaging.
• Always connect the air supply carefully and disconnect it after use.
• Always connect the power supply carefully and disconnect it after use.
• Never touch the moving parts in the J-Giotto Top or valves.
• Always handle detergents with care.
Prohibited use
Use of the control unit is not envisaged:
• for any operations other than those for which it was designed.
WARNING
The machine may not he used inside premises where there is a potentially explosive atmosphere or risk
of fire unless otherwise stated by the manufacturer (in the case of valves certified in accordance with
Directive 2014/34/EU please refer to the ATEX Manual).
WARNING
The control unit contains circuits classified as LOW VOLTAGE LIMITED ENERGY CIRCUIT. For correct use
in North America dimension the protection circuits in accordance with Standard UL508A.
WARNING
Always make sure the electrical and pneumatic connections are NOT active when executing operations
on the J-Giotto Top and that the power supply voltage is only 24 Vdc.

7EN-IST-JGIOT360-0122
2 Safety
WARNING
Under normal circumstances (exposure time, eye pupils, viewing distance) it is assumed that the
LEDs do not present any danger to eyes. In principle, however, please remember that intense
light sources have a high potential of secondary exposure due to their blinding effect. As also
occurs when looking at other bright light sources (such as vehicle high beams), there may be
a temporary reduction in visual acuity and afterimage which can cause irritation, discomfort,
eyesight issues and even injury, depending on the situation.
BARDIANI VALVOLE S.p.A. declines all liability for any
installation, use or maintenance which fails to comply with the
indications provided in this manual!

8EN-IST-JGIOT360-0122
3 Technical data
3 Technical data
CONTROL UNIT TECHNICAL DATA
Weight from 0.24 Kg to 0.42 Kg depending on the configuration
Casing material PA66 + PA6-GF30 (glass fibre reinforced nylon)
Gaskets material NBR / EPDM
Protection class IP67
Air supply and vent connections 1/8” BSP
Air line connections 6 mm / (1/4” ON REQUEST)
Electrical connections 7-pole connector or M12 5-pole connector
Threaded fitting for cable gland PG11 or M20x1.5
Vibrations 1mm amplitude f=10..55Hz
Storage temperature from -10°C to +25°C
Air supply Class 2,4,3 according to ISO 8573-1
SOLENOID VALVE APPLICATION CRITERIA
Single Acting Valves 1 Solenoid valve
Double Acting Valves (1 normally open and 1 normally closed) and Twin-Stop
(2 normally closed)
2 Solenoid valves
SOLENOID VALVE TECHNICAL DATA
Electrical power supply 24 Vdc ±10%
Air pressure supply max. 7bar
min. 6bar
Ambient temperature for solenoid valve
type B
0..+55°c
Ambient temperature for solenoid valve
type S
-10..+50°C
INDUCTIVE SENSOR TECHNICAL DATA
Electrical power supply 24 Vdc
Ambient temperature -10..+70°C
In the event of any doubt, please contact Bardiani Valvole S.p.A.

9EN-IST-JGIOT360-0122
3 Technical data
3.1 J-Giotto Top electrical connections
Solenoid valve 1
1,2 PNP sensors with 1.2 normally closed solenoid valves and 7-pins connector
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
PIN
Connector
(7)
(6)
(4)
(3)
(2)
(1)
(5)
COLOR
Wire
(Blue)
(White)
(Brown)
(Purple)
(Black)
(Red)
(Gray)
Sensor signal
VALVE CLOSED
Solenoid valve 2
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve 1
+24Vdc Solenoid valve 2
+24Vdc Sensors
+24Vdc
Solenoid valve 1
0Vdc
+24Vdc
Solenoid valve 2
Sensor signal
VALVE OPEN
+24Vdc
Sensors
Solenoid valve 1
N.C.
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
+24Vdc
Solenoid valves 0Vdc
PIN
Connector
(2)
(7)
(6)
(4)
(3)
(1)
(5)
COLOR
Wire
(Black)
(Blue)
(White)
(Brown)
(Purple)
(Red)
(Gray)
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valves
+24Vdc Sensors
Solenoid valve 2
N.O.
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
+24Vdc
Sensors
1,2 PNP sensors with 1 normally closed solenoid valves and 5-pins connector
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Solenoid valve
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
+24Vdc
Solenoid valve
0Vdc
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
+24Vdc
Sensors
PIN
Connector
(2)
(4)
(3)
(5)
(1)
COLOR
Wire
(White)
(Black)
(Blue)
(Gray)
(Brown)
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve
+24Vdc Sensors
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
+24Vdc
Solenoid valves
0Vdc
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
PIN
Connector
(2)
(4)
(3)
(5)
(1)
COLOR
Wire
(White)
(Black)
(Blue)
(Gray)
(Brown)
+24Vdc
Sensors
Solenoid valve 1
N.C. Solenoid valve 2
N.O.
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valves
+24Vdc Sensors
1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for doble acting 5-pins connector
1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for doble acting 7-pins connector

10 EN-IST-JGIOT360-0122
3 Technical data
1,2 PNP sensors with 1,2 normally closed solenoid valves
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Solenoid valve 1
Solenoid valve 2
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve 1
+24Vdc Solenoid valve 2
+24Vdc Sensors
1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for double acting
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Solenoid valve 1
Solenoid valve 2
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valves
+24Vdc Sensors
1,2 normally closed solenoid valves and 7-pins connector
+24Vdc Solenoid valve 2
+24Vdc Solenoid valve 1
0Vdc
PIN
Connector
(1)
(2)
(3)
(4)
(5)
(6)
(7)
COLOR
Wire
(Red)
(Black)
(Purple)
(Brown)
(Gray)
(White)
(Blue)
Sensor signal
LOW
+24Vdc
Sensors
+24Vdc
Solenoid valve 1
+24Vdc
Solenoid valve 2
Sensor signal
HIGH
0Vdc
+24Vdc Solenoid valve 2 (Red or White)
+24Vdc Solenoid valve 1 (Red or White)
0Vdc Solenoid valve 2 (Black or Brown)
0Vdc Solenoid valve 1 (Black or Brown)
1,2 normally closed solenoid valves and 5-pins connector
+24Vdc Solenoid valve
0Vdc
+24Vdc Sensors
PIN
Connector
(5)
(3)
(1)
(4)
(2)
COLOR
Wire
(Gray)
(Blue)
(Brown)
(Black)
(White) Sensor signal
LOW
+24Vdc
Sensors
+24Vdc
Solenoid valve
Sensor signal
HIGH
0Vdc
+24Vdc Solenoid valve 2 (Red or White)
+24Vdc Solenoid valve 1 (Red or White)
0Vdc Solenoid valve 2 (Black or Brown)
0Vdc Solenoid valve 1 (Black or Brown)
PLC
PLC

11EN-IST-JGIOT360-0122
4 Checking / Unpacking / Lifting
4 Checking / Unpacking / Lifting
1. CHECK:
-Make sure the control unit shows no signs of damage caused during transport and that it corresponds
with the order;
2. UNPACKING:
The control unit packaging is made up of cardboard, wood and plastic.
The control unit is primarily made from plastic materials. The gaskets are usually made from elastomers.
Disposal must be in compliance with local legislation.
3. VALVE LIFTING:
Exercise caution when lifting the control unit.
.
WARNING!
Before lifting, make sure there are no disassembled or separate parts which could fall off causing injury
to persons and damage to the valve.
4. WAREHOUSING:
Avoid storing the control unit in a damp, dusty, wet or excessively hot place. Avoid areas subjected to
strong vibrations.
The permitted storage temperature is between -10° and + 25°C.

12
114b
114c
25
22
26
114a
1 2
3 4
EN-IST-JGIOT360-0122

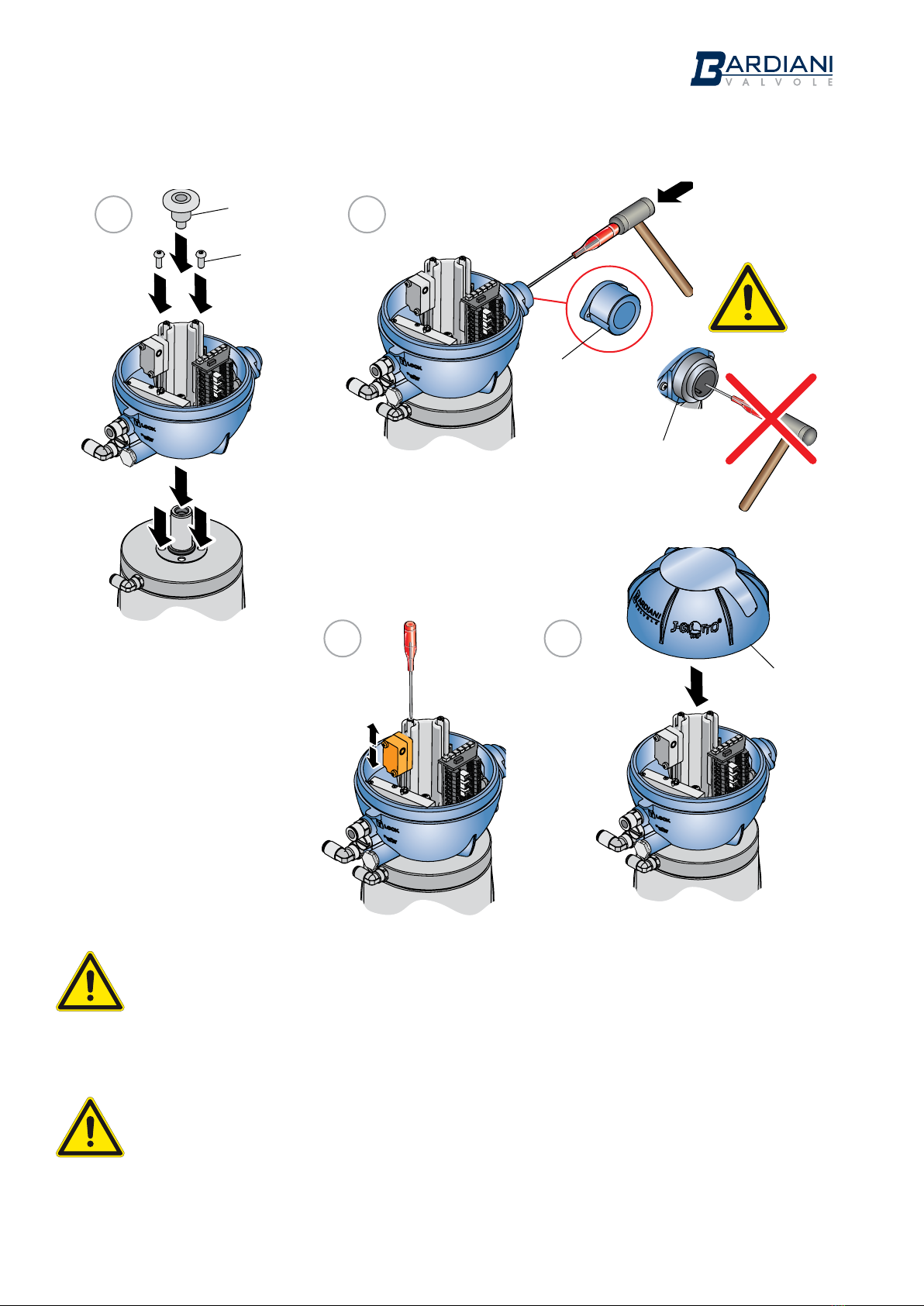

5 Installation of the J-Giotto Top
5 Installation of the J-Giotto Top
WARNING
Always make sure that all wires are connected and securely fastened to the terminals and that the
solenoid valves, solenoid valves support, card and LED terminal block (when present) and any other parts
inside the J-Giotto Top are well assembled and secured.
WARNING
Always make sure that the electrical and pneumatic connections are disconnected when carrying out
operations on the J-Giotto Top.

13EN-IST-JGIOT360-0122
5 Installation of the J-Giotto Top
Valve not activated Valve activated
Sensor position for reading valve status

14
5
EN-IST-JGIOT360-0122

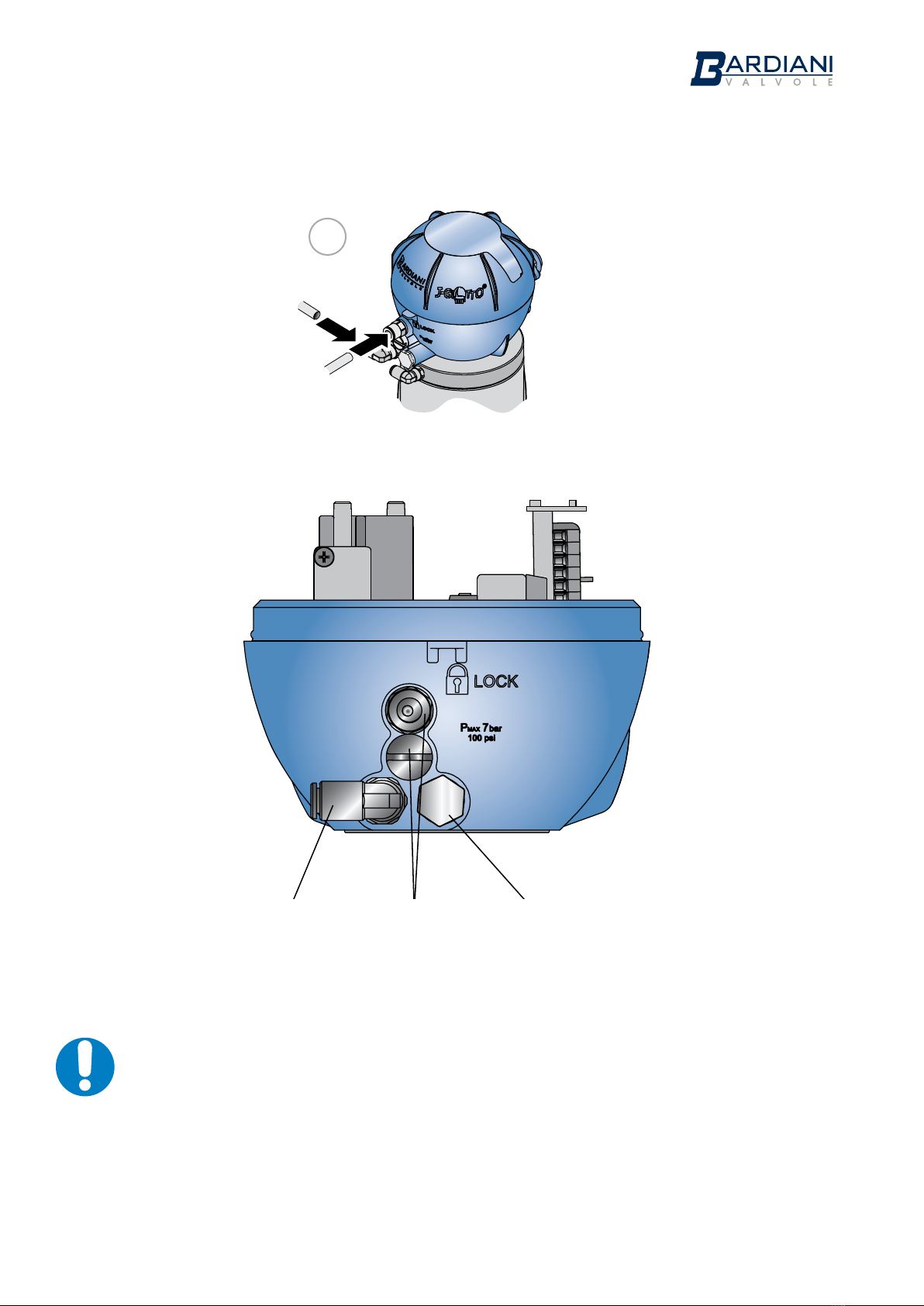

6 J-Giotto Top Pneumatic connections
6 J-Giotto Top Pneumatic connections
Compressed Air
Inlet. Use hose with
an external diameter
of 6 mm. A 1/4" hose
connector can be
supplied on request.
Connections
for air fitting.
Use hose with an external
diameter of 6 mm
Air vent
WARNING
Use only pipes with an external diameter of 6 mm.
Cut these pipes with a suitable cutter to avoid damaging the pipe which could lead to J-Giotto Top
malfunctions.
Select a suitable length of pipe which allows the J-Giotto Top to be removed without unscrewing the
anchoring.

15EN-IST-JGIOT360-0122
6 J-Giotto Top Pneumatic connections

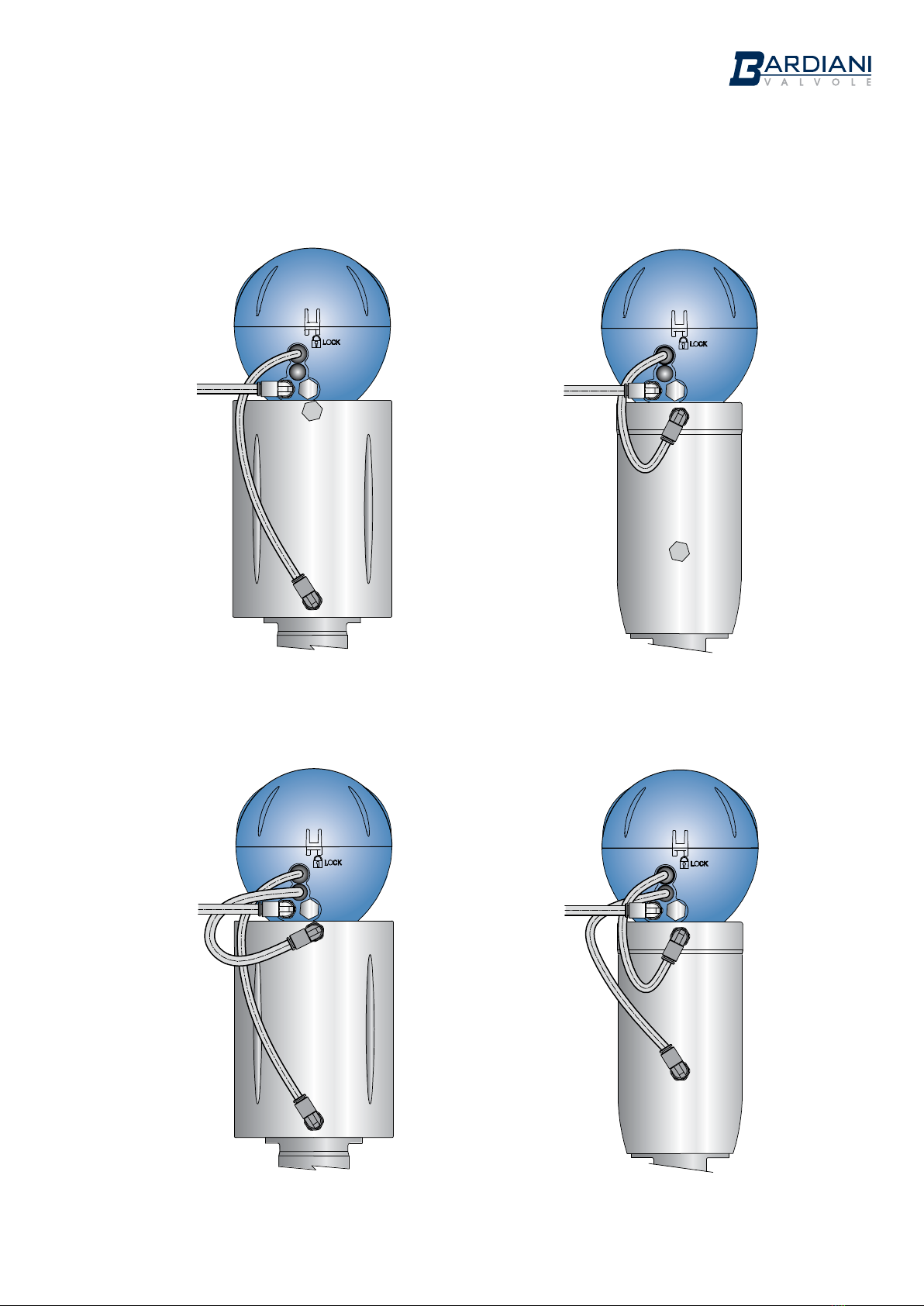

Valve with single acting actuator
Valve with double acting actuator

16 EN-IST-JGIOT360-0122
6 J-Giotto Top Pneumatic connections

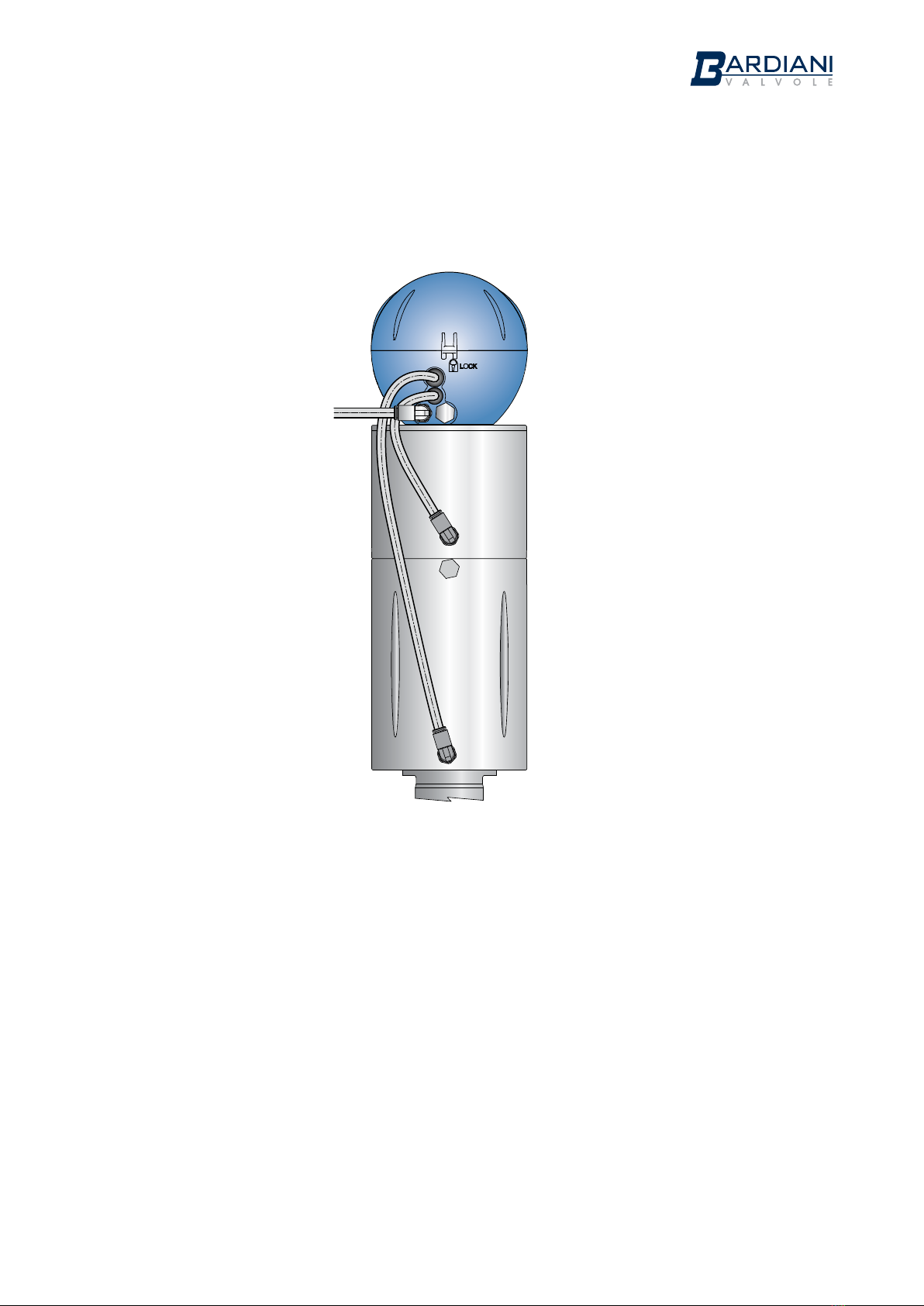

Valve with single acting actuator with Twin Stop

17
OK
OK
EN-IST-JGIOT360-0122
7 Troubleshooting
7 Troubleshooting
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Air leak from solenoid valve support No gaskets or loose fitting Check the sealing capacity of the
gaskets and tighten the screws
Air leaks in safety valve
The LED do not come on
Circuit board
damaged Replace the circuit board
Damaged LEDs
Inductive sensors
not working
Check the sensor connections in
the terminal block and restore if
necessary
The solenoid valve does not activate
Damaged solenoid valve Replace solenoid valve
Circuit board
damaged Replace the circuit board
Air supply pressure
incorrect
Consult the Technical Data section
in the Manual
Solenoid valve support damaged Replace solenoid valve support
Electrical connections not made
properly
Check the connections in the
terminal block on the electrical
board and tighten the screws.
The solenoid valve manual control
has been activated
Reposition the manual control in
the default position, see picture
above.
The inductive sensors are not
working
Inductive sensors
damaged Replace inductive sensors
Electrical connections not made
properly
Check the connections in the
terminal block on the electrical
board and tighten the screws.
Distance between the cam and
the inductive sensors greater than
1.5 mm.
Check the centring of the J-Giotto
and the fastening to the double
guide
The cam is not present Secure the cam and check the
position of the sensors
LED terminal block with red light
Valve open sensor reading
simultaneously with another sensor Check the position of the sensors
Circuit board damaged Replace the circuit board
Sensor damaged Replace the sensor
+ 24Vdc presence on Open and/or
Closed terminals
Check the electrical connections
between the control unit and the
electrical panel

18 EN-IST-JGIOT360-0122
8 Cleaning
8 Cleaning
1. PRECAUTIONS
The system in which the control unit is installed must be cleaned by expert personnel in observance of
the following:
-Use only non-abrasive and non-aggressive detergents compatible with the materials which make up
the control unit.
-Observe the instructions provided by the detergent suppliers and adhere to the recommended
concentrations.
-Always wear protective safety glasses and gloves.
2. CLEANING
If detergents or cleaning agents containing acids or alkaline substances are used, always make sure the
control unit is rinsed immediately with clean water.
Never direct high-pressure jets of water at the control unit.
Pay particular attention to those areas where there are orifices or openings.
Always make sure that the electrical and pneumatic connections are disconnected when carrying out
operations on the control unit.

19EN-IST-JGIOT360-0122
9 Disposal
9 Disposal
At the end of its service life, the device must be recycled in accordance with the legislation in force in the
country of valve use.
Any hazardous residues must be taken into consideration and adequately handled.
The control unit is made up of: elastomers (gaskets), plastic (control unit) and electrical components
(terminal board, solenoid valves, sensors).
Adhere to the following steps before disconnecting the valve and refer to the heading "General
Maintenance".
-Make sure the line on which the valve is installed in is not in use
-Disconnect the air supply
-Disconnect the electrical supply
-Remove the control unit from the valve
-To dismantle the control unit, refer to the heading "Disassembly"

20 EN-IST-JGIOT360-0122
10 Maintenance
10 Maintenance
1. PRECAUTIONS
When used correctly, the control unit does not need any special maintenance.
Any repair work must be carried out by authorized personnel only, making sure that the electrical and
pneumatic power supplies have been disconnected before carrying out any operation on the control unit.
Always make sure that the electrical and pneumatic connections are disconnected when carrying out
operations on the control unit.
2. REPLACING WORN PARTS
Should it be necessary to replace any component of the control unit, contact Bardiani Valvole S.p.A.
to purchase the necessary spare part as the use of any products not supplied by us may compromise
correct valve operation or constitute a hazard for personnel.
WARNING
Each time the casing is open, make sure that the various cables inside it are repositioned where they do
not interfere with cam movement.
2. SPARE PARTS:
Consult the spare parts manual to identify the part which needs replacing.
To request information and order spare parts, contact our After-Sales service
email: [email protected]
Tel: [phone]
