Barron Games Timberman User manual

SKU#: BG-0048TM
Timberman
Instruction Manual
Assembly, Operation, and Care Instructions
Serial #:
Distributed By:
Sales Person:
Technical Service #:
[phone]
V.021017 CPU2

Timberman
Instruction Manual
Inspect Immediately after
Transporting the Product
After receiving the shipment, inspect the product thoroughly to ensure that it has been shipped with
care. Before turning the power on, please check the following:
•Check the cabinet for damage or shifting that may have occurred during shipping. Are there any dented
portions or defects (cuts, etc.) on the external surfaces of the cabinet?
•Are all the legs and adjusters/levelers/feet intact?
•Do the power supply voltage and frequency requirements meet with those of the location (110V/220V)?
•Are all wires linked correctly and securely connected to each other? If coupled in an incorrect manner,
the connection will not be made accurately and it could cause not only irreparable damage to the
machine, but also is a potential fire hazard. DO NOT INSERT CONNECTORS FORCIBLY.
•Check that the all the cables, including power cables, are undamaged. Do power cables or other wires
have any splices, cuts, or dents?
•Have you been provided with all of the associated accessories?
•Can all doors/lids be opened with the accessory keys? Can doors/lids be firmly closed? Does the coin
box key open the coin box(es)?
Package Contents
Open the package and make sure all the items are included:
•One (1) Body Assembly •One (1) Notched Wooden Cover •Plus, the following accessories:
Qty.
Part Name
Illustration
1
Timberman Instruction Manual
4 sets Keys
1 Marquee and 4 mounting screws
1 LED Controller Remote
1 Bill Acceptor Cover
1 Coin Acceptor Cover
2 Metal Mounting Brackets
6 For Bracket - Wood Screws
9 For Bracket - Tapping Screws (only 6 needed)
Note: Parts are subject to change without notice. If any items are missing, please contact your sales representative for
immediate assistance.

Timberman
Instruction Manual
[e-mail] 1 For assistance call: +1.716. 866-0054
Safety Instructions
•This equipment may contain hazardous voltage which can cause electrical
shock. Only qualified personnel* should work inside the equipment.
*Note: Keep reading for a list of qualified personnel.
•To maintain personal safety and the safe operation of this product, read the
entire manual before using it. The following instructions are intended for the
users, operators, and the personnel in charge of the operation of the
machine. Be sure to keep this manual close to the product or in a
convenient place for future reference.
IMPORTANT NOTICES
•This product is intended for indoor use only
•This is NOT a child’s toy; adult supervision is required for children to play this
game. Children under 3ft (roughly 90cm) in height should not approach the
game while it is in use by another player.
•Do not sit, climb, or lean on the unit. Do not place anything, including people,
on the unit.
•Do not drag the product when moving it, as this could damage the legs,
levelers, or machine beyond repair.
•Do not place any food or drinks on the machine.
•This game features flashing lights which may not be suitable for
photosensitive epilepsy.

Timberman
Instruction Manual
[e-mail] 2 For assistance call: +1.716. 866-0054
Definition of Site Maintenance Personnel
or Other Qualified Individuals
Replacing parts, maintenance inspections, and troubleshooting should be carried out by Site
Maintenance Personnel or other Qualified Professionals. This manual includes directions
for potentially dangerous procedures which should only be performed by professionals with
appropriate and specialized knowledge.
The Site Maintenance Personnel or other Qualified Professionals mentioned in this
manual are defined as follows:
•Site Maintenance Personnel: Individuals with experience in maintaining amusement
equipment, vending machines, etc., working under the supervision of the owner and/or
operator of this product. Maintenance Personnel frequently service machines within
amusement facilities or similar premises by carrying out everyday procedures such as:
assembly, maintenance inspections, and replacement of units or replaceable parts.
oActions Approved for Site Maintenance Personnel: Machine assembly, maintenance
inspection, and replacement of units or replaceable parts.
•Other Qualified Professionals: Personnel employed by the amusement equipment
manufacturer. Personnel may also have been involved in design, production, testing, or
maintenance of said amusement equipment. This individual should have either graduated
from a technical school or hold similar qualifications in electrical, electronics, or mechanical
engineering.
oActions Approved for Other Qualified Professionals: Assembly, maintenance,
inspection, and replacement of units or replaceable parts for amusement equipment
and/or vending machines, including repair or adjustments of electrical, electronic, or
mechanical parts.
WARNING
Servicing and maintenance work of the contents herein stated should be performed
by the SERVICEMAN stipulated as per IEC Standard. Those who do not have technical
expertise and knowledge other than the SERVICEMAN are not allowed to perform
the work herein stated. Executing the aforementioned work by such non-technical
personnel can cause serious accidents that may endanger life.

Timberman
Instruction Manual
[e-mail] 3 For assistance call: +1.716. 866-0054
Before Using This Product
Please be sure to read the following before using this machine, in order to ensure the safe operation of
this product. The following instructions are intended for users, operators, and personnel in charge of the
operation and maintenance of the machine. After carefully reading and sufficiently understanding the
warning displays and cautions, please handle the machine appropriately. Be sure to keep this manual for
future reference.
Qualified Personnel: Only personnel who have technical expertise should perform the work stated
herein to avoid hazardous situations. The instructions state that site maintenance personnel should be
the only personnel performing work. Please perform maintenance work in accordance with the stated
instruction; provided instructions for maintenance work are to minimize risk and prevent accidents.
Failing to perform work as stated within the Instruction Manual may potentially be dangerous to both
maintenance personnel and users.
•Be sure to turn off the power before working on the machine. To prevent electric shock, be
sure to turn the power off before carrying out any work that requires direct contact with the interior
of the product. If the work is to be performed in the power-on status, the Instruction Manual will state
to do so.
•Be sure to ground the Earth Terminal. This is not required in the case where a power cord with
earth/ground is used.
•Ensure the power supply used is equipped with an Earth Leakage Breaker. This product does
not incorporate an Earth Leakage Breaker. Using a power supply which is not equipped with an Earth
Leakage Breaker can cause a fire when or if earth leakage occurs.
•Before installing the product, check for electrical specifications; the product must meet
the requirements. Ensure the product is compatible with the power supply voltage and frequency
requirements of the location. Using any electrical specifications that are different from the designated
specifications can cause a fire and/or electric shock.
•Install and operate the product where appropriate lighting is available, allowing warning
and safety labels to be read clearly. To ensure customer safety, labels and printed instructions
describing potentially hazardous situations are applied to places where risk for potential accidents are
increased. If any label is peeled off, apply it again immediately.
Please contact Barron Games Technical Support at 1+716-866-0054 or
email [e-mail] if you need new stickers or parts.
Visit www.BarronGames.com for more information about Barron Games’ Parts and Service Department.

Timberman
Instruction Manual
[e-mail] 4 For assistance call: +1.716. 866-0054
INSTALLATION AND MAINTENANCE SAFETY
This product is an indoor game machine. Do not install it outside. Even
indoors, avoid installing it in the places mentioned below, so as to avoid causing
a fire, electric shock, machine malfunction, or even death. Do not install or
maintain this product in/on/within/near:
•places subject to rain or water leakage, places subject to high humidity, or in
the proximity of an indoor swimming pool, shower, steam room, etc.
•places subject to direct sunlight, places subject to high temperatures, or in the
proximity of heat dispensing units or portable heating devices.
•places filled with inflammable gas, within the vicinity of highly flammable or
volatile chemicals, or other hazardous materials.
•dusty places.
•sloped surfaces.
•places subject to any type of violent impact.
•the vicinity of anti-disaster solutions, such as fire exits and extinguishers.
•places where the operating (ambient) temperature range is not 5°C to 30°C
(41°F to 86°F).
•places near water or spray from water (such as a jet wash, hot tub, or
swimming pool).
To ensure maximum safety for the users and service personnel,
ensure that where the product is operated has sufficient
lighting to allow all safety
labels to be read clearly. Operation
under insufficient lighting is not advised.

Timberman
Instruction Manual
[e-mail] 5 For assistance call: +1.716. 866-0054
ASSEMBLY
Important Notes:
1. Read this Instruction Manual carefully before assembling or playing.
2. Ensure that there is sufficient space to place and shift the product prior to and during assembly.
3. TWO strong adults are recommended to assemble the unit.
4. Inspect and ensure all parts are securely attached before moving.
5. Please Note: Children and pets should be kept away from the assembly area. This product may contain
small parts that could be a potential hazard during assembly for small children or animals.
TOOLS NEEDED
•Timberman Instruction Manual
•
Allen Key Set
•Hand Drill
•
Phillips Head Screw Driver
•Scissors
•Timberman Door Keys
*Note: Please retain the original packaging, so that it may be used for storage or transport later.
Specifications
Rated Power Supply
110V - 240V
Dimensions
46” x 27” x 116”
Weight
331 lbs
Service Area
Approx. 1.5 ft
Play Area
Approx. 3.5 ft
This machine requires extra space for playing and for maintenance, please leave space around the game after installation.

Timberman
Instruction Manual
[e-mail] 6 For assistance call: +1.716. 866-0054
Specifications
1. 42” LED display
2. left speaker
3. right speaker
4. game panel with control buttons - access to buttons
switches can be opened by unlocking clamps accessible
via front service door
5. coin acceptor
6. bill acceptor
7. front service door - accesses coin & bill acceptors,
tickets feeder, counters, and service button
8. ticket dispenser
9. upper back service door – access to display,
speakers and marquee assembly
10. lower back service door – access to main board,
I/O board, power supply, LED controller and wiring
11. power socket
Locate Important Safety Stickers
Instructions that require special attention are indicated by warning signs. Depending on the varying degree of hazard, the terms
used are: NOTE, NOTICE, and WARNING.
•NOTE: A NOTE indicates useful hints or information about product usage
•NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem
•WARNING: A WARNING indicates a potential for product damage or serious personal injury
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High temperature Hazard
This part may cause scalding.
Do not touch. Surface may be hot.
Do Not Touch Hazard
This may be hot or can cause electric shock.
Do not touch.

Timberman
Instruction Manual
[e-mail] 7 For assistance call: +1.716. 866-0054
Assembly – Step A Assemble the Unit
Unpack Timberman and parts from box and remove plastic wrap
There are two L-shaped wood spacers (one on
each side of the cabinet) that are only for
shipping & protection purposes. They both may
be discarded after unboxing.
Do not discard the flat notched board.
There is a wood board that needs to be installed
from underneath the unit (accessed via the rear
opening) with two (2) metal brackets.
To Install the Notched Wooden Board Protector Cover
This wood board protector sits in the space
between the front of the unit and below the
speaker/screen.
It is secured by two (2) metal mounting brackets,
six (6) wood screws and six (6) tapping screws.
1. To begin, you will need the included two (2) metal
mounting brackets and six (6) wood screws. Don’t
panic: extra screws may have been provided.
2. Screw the brackets into the middle of the shorter edge
of the board. Mount the bracket on the side where
the cover edges are rounded.
These screws will be flush with the bracket once
installed.

Timberman
Instruction Manual
[e-mail] 8 For assistance call: +1.716. 866-0054
Assembly – Step A Assemble the Unit
After the brackets have been installed onto the
wood board, insert the side with the cutouts and fit
them into the protruding parts of the cabinet.
•The wood cover may hold without being screwed
into the cabinet; however, we strongly recommend
screwing the cover to the brackets and into the
side of the unit for added stability.
•Utilize the six (6) tapping screws and drill them into
the side of the unit where the bracket meets the
cabinet. Three (3) tapping screws will be needed for
each bracket.
Note: Extra screws may be included.
Cabinet Side
Cabinet Side

Timberman
Instruction Manual
[e-mail] 9 For assistance call: +1.716. 866-0054
Assembly – Step B Install the Marquee
•Two people are required to assemble the marquee sign
•A ladder or other platform at the back of the unit is also required
•Open the rear upper door
•Lift the marquee up, climb onto the platform, and place the
marquee base brackets in the holes on top of the unit.
•Pass the backlight power cord through the hole.
•Secure marquee using the marquee topper screws provided.
Tighten the screws.
•Connect the power cable connectors.
Assembly – Step
C
Level Adjustment
Adjust levers to lift casters off the ground to level the game. If the game is installed on an unstable floor, it could
cause a malfunction.
•Adjust the leveler down until it touches the floor, lifting the casters off the ground by about 1/8”
•Repeat the same for all levelers.
NOTICE: Make sure the machine is level with the ground & all adjustable legs are resting on the floor

Timberman
Instruction Manual
[e-mail] 10 For assistance call: +1.716. 866-0054

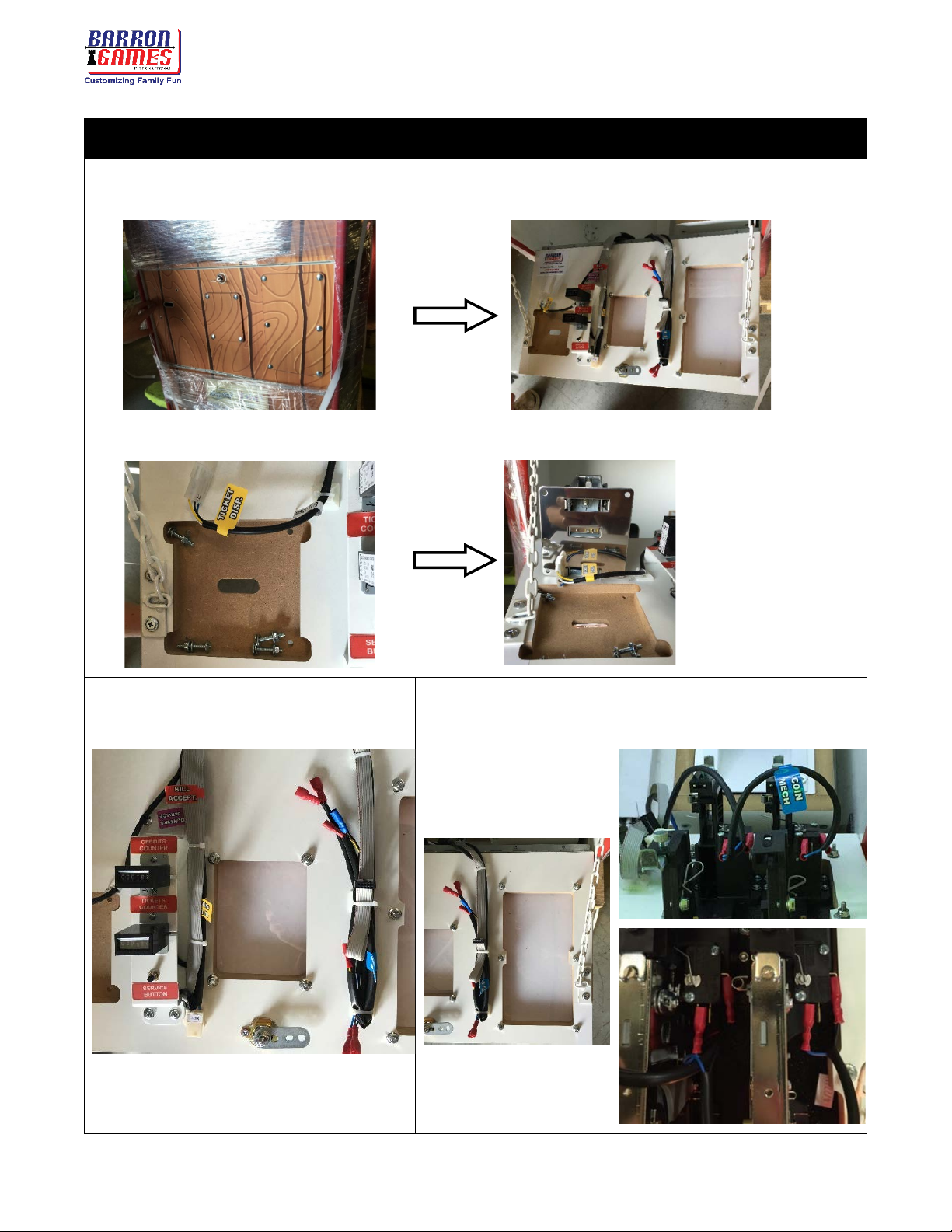

Assembly – Step D Adding the Mechanisms
•After unboxing the unit, the front of the machine will look like this. The cavities from left to right include:
ticket dispenser, dollar bill acceptor, and coin acceptor.
•Left: Install the ticket dispenser (plate facing down) using the four (4) bolts, washers, and nuts provided.
•Middle: Install the DBA according to the
instructions on your DBA’s model
•Right: Install the coin acceptor according to the instructions
on your model

Timberman
Instruction Manual
[e-mail] 11 For assistance call: +1.716. 866-0054
Assembly – Step E Connecting the Power
IMPORTANT: POWER SUPPLY ADJUSTS AUTOMATICALLY
•Machines electrical system (power supplies & display) will adjust automatically to 220V/110V
•Do not plug the equipment power cables into an electrical outlet if the power cable is damaged
•Avoid putting too many loads on one electrical outlet, as it could result in an electrical fire
•Connect the grounding conductor to the earth/ground terminal (GND)
WARNING: Ensure no heavy objects rest on the power cord.
Check to make sure the game cabinet does not sit on the power cord as
this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet.
Never pull by the cord.
Do not touch the power plug when hand is wet to prevent shock.
Ensure nothing rests on the power cord and that it is not located where
it can be stepped on or tripped over.
Software Activation
! IMPORTANT !
THE SOFTWARE ON THIS DEVICE IS COPYRIGHT PROTECTED.
COPYING AND DISTRIBUTING THIS SOFTWARE IS STRICTLY PROHIBITED. IT IS ALSO FORBIDDEN TO INTERFERE
WITH THE INTEGRITY OF THE SOFTWARE VIA MODIFICATION OR IMPLEMENTATION OF ANY CHANGES
WITHOUT PRIOR AUTHORIZATION BY THE MANUFACTURER. ANY ATTEMPTS TO CHANGE THE SOFTWARE,
OTHER THAN THOSE SPECIFIED BY THE MANUFACTURER WILL RESULT IN WARRANTY LOSS AND IS
HAZARDOUS.

Timberman
Instruction Manual
[e-mail] 12 For assistance call: +1.716. 866-0054
Software Activation
This machine is typically pre-activated; however, sometimes the game must be
re-activated (in the case of replacement of some electronic components, etc.).

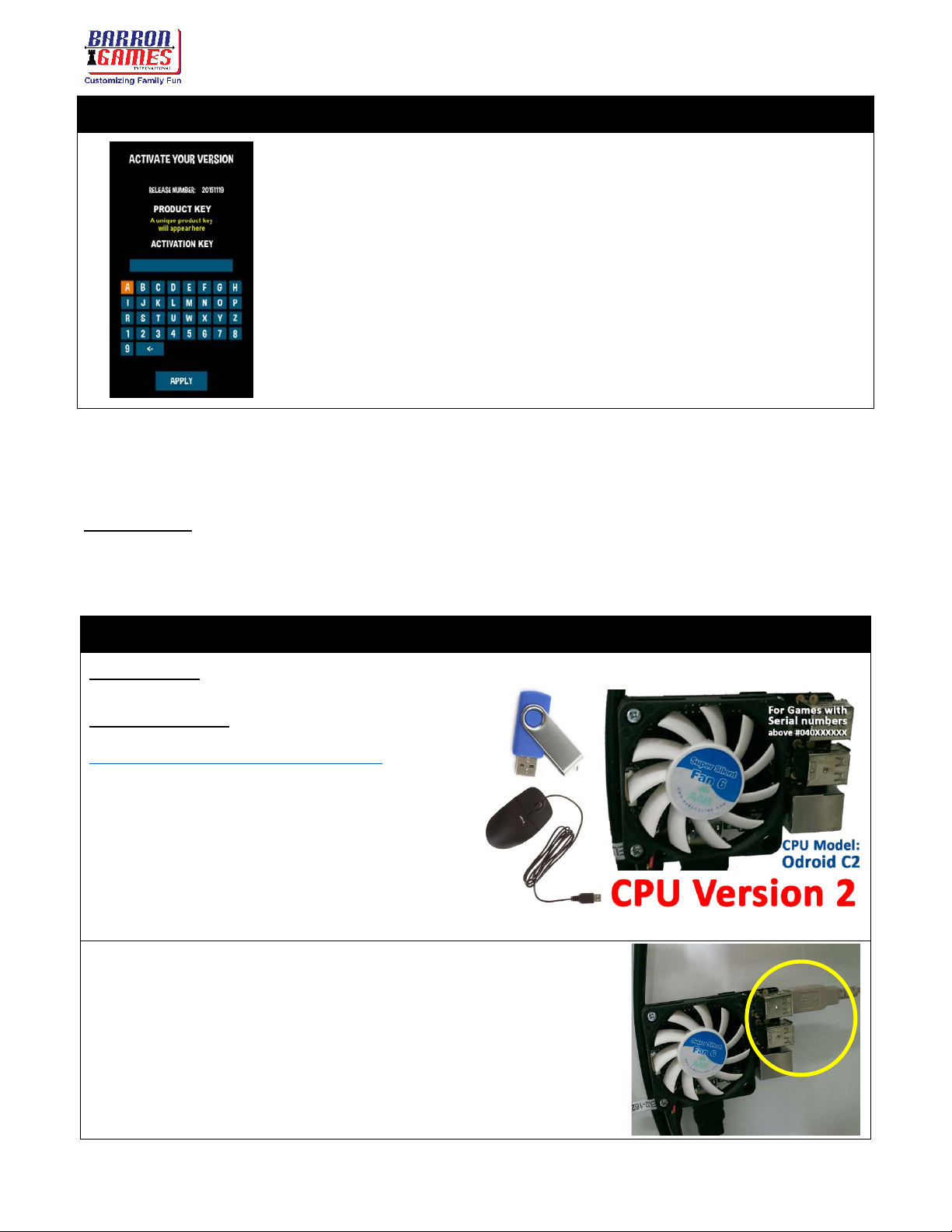

To Activate Your Software: Turn the machine on and copy the version number displayed
on the screen. Your screen should look like the one on the left. The version number is a
series of twelve characters (numbers and letters only).
•In order to obtain an activation code, send your version “release number” (see left) to
[e-mail] . Your activation code is a series of sixteen numbers and
letters separated by dashes.
•Use RIGHT AXE BUTTON to select NEXT
•LEFT AXE BUTTON to select PREVIOUS
•Use START BUTTON to ENTER
•Dashes are generated automatically
These instructions have been customized for units that have the newest CPU. If your CPU does not
look like the one below (with a blue -stickered fan; Odroid model C2), please contact Barron Games for
alternate instructions.
Please Note: You may have received additional accessories directly from the manufacturer to aid in
the update process. If you have received a USB drive from Barron Games, you do not have to
download any additional files. The .apk file described in these instructions has been pre-installed
on the USB drive sent to you.
Installing a Software Update via USB
Tools Needed: a USB memory stick and a wired USB
computer mouse
Before You Begin: If you were not provided with a
USB drive from Barron, navigate to our website at
http://barrongames.com/software-updates.
•Select your unit from the list of app games and
then click on the update file (.apk) that
corresponds to your machine. Most models will
be CPU Version #2.
•Download the file and then copy the .APK file
from your downloads folder onto the USB drive.
•Eject the USB drive properly to avoid corruption
1. Start with the game powered off (switch located above power input)
2. Open lower rear service door and locate the control processor
3. Connect the memory stick and a computer mouse into 2 free USB
ports, near the fan on the CPU (see photo)
4. Turn on the machine. It may take several minutes to boot completely.
5. Leave the Timberman game application by single-clicking the right
mouse button; this opens the Android control panel.

Timberman
Instruction Manual
[e-mail] 13 For assistance call: +1.716. 866-0054
Installing a Software Update via USB
6. Go to the app list by
clicking the circle at
the bottom center
of the screen. Take
care to choose the
TOP CIRCLE.
7. Click on the FILE
MANAGER folder
icon
8. Select the icon in the
upper left corner
that looks like three
parallel lines
9. Select your memory
drive from the list (it
should be listed as
“USB Storage” or
something similar)
10. Locate and click
the .apk file from
your USB drive
Take note of the file
name to verify at
update completion.
11. You will be prompted
“Do you want to
install an update to
this existing …” The
default selection is
new, change the
selection to ALL.
12. In the lower right
corner, select
“Install”
13. The update may take a
few minutes to
complete. Wait until
you are prompted with
the dialogue box that
informs you the app
has been installed
14. When prompted,
select “Open” in
the lower right
corner. If you
accidentally select
“ Done ,” it’s okay.
(The open option
just loads the app
game, it needs to
reboot anyway)
15. Verify that your
software has been
updated.
Use the “Service”
button (behind the
front panel) and the
axe buttons to
navigate to “stats
and logs” in the
operator settings

Timberman
Instruction Manual
[e-mail] 14 For assistance call: +1.716. 866-0054
Installing a Software Update via USB
16. At the bottom of the Stats and Logs page, the software version should
now match the ending numbers of the .APK file name.
17. For example, this update was called “_timber_20161215.apk” when we
downloaded it. The update is called Version 20161215 (see photo).
18. Once the software has updated successfully, turn off the power.
19. Remove the USB mouse and USB memory stick.
20. Restart the machine by turning the power back on.
21. Your update is complete. Congratulations!
22. If you require assistance at any time, please email or call our service
department and we will be happy to help you.
Software Updates
To find the latest updates and make sure you have the most up-to-date software, please visit the Timberman
section of our online software updates page: http://barrongames.com/software-updates
Game Play
To Start the Game:
1. Insert coins, tokens, bills or swipe point card (depending on accessories).
2. Press the START button to start the game.
3. Instructions for players who are playing for the first time will appear on the screen first. You can skip this step by
pressing the START button.
4. After the countdown, the game will start.
5. Push LEFT AXE button to chop tree on the left side. Push RIGHT AXE button to chop tree on the right side.
6. A point is earned for every successful chop. The operator designates how many points will earn an adjustable number
of tickets in the settings options.
7. Game Over: Any contact with tree branches will end the game.
8. Game Over: If the timer (also set by the operator in the setting menu) expires, the game will end. However, successful
chops may increase the players time by earning a speed bonus. If you cut fast enough, you can refill the timer bar to
the maximum level.
9. Bonus Tickets: After a long enough speed bonus, timer bar will change color (red to blue), indicating that the player is
receiving a reward bonus and they will earn extra tickets (amount set by operator).

Timberman
Instruction Manual
[e-mail] 15 For assistance call: +1.716. 866-0054
Game Options
To access the settings menu:
•Press the SERVICE BUTTON located inside the service door at the front of
the machine, next to the coin and ticket mechanisms.
•Use game panel buttons to navigate in the menu.

Timberman
Instruction Manual
[e-mail] 16 For assistance call: +1.716. 866-0054
Navigating the Settings Menu

Timberman
Instruction Manual
[e-mail] 17 For assistance call: +1.716. 866-0054
Navigating the Settings Menu

Timberman
Instruction Manual
[e-mail] 18 For assistance call: +1.716. 866-0054
Navigating the Settings Menu
