OPERATOR’S MANUAL

Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|2

Product Specifications

ElectricalPower
Domestic 120VAC@60Hz,5amps
International240VAC@50Hz,2.5amps
Japan 100VAC@50Hz,5amps

DCPowerFuseGuide

ELECTICALSAFETYNOTICE:REPLACEFUSEWITHSPECIFIEDFUSERATINGONLY.DONOTREPLACEFUSE
WITHHIGHERTHANSPECIFIEDRATING.

RIOPCBFUSEGUIDE:
+5VDC‐3ampSlowBlow(RIOMCU,STARTBUTTON)
+12VDC‐5ampSlowBlow(COINDOOR,COOLINGFANS,DASHLED)
*+12VDC‐AUDIOPOWERUSESATHERMALFUSE,RIOF3

CABINETFUSEGUIDE:
(NOTE:FUSESAREMOUNTEDTOTHELEFTOFTHERIOPCB.F1ISLOCATEDCLOSESTRIOPCB)

F1‐PLAYER1GUNSOLENOIDPOWER,5ampSlowBlow
F2‐PLAYER2GUNSOLENOIDPOWER,5ampSlowBlow
F3‐DINOHEADBACKLIGHT,5ampSlowBlow
F4‐JURASSICPARKGATELOGO,5ampSlowBlow
F5‐ROOFLEDLEDT‐MOLD,5ampSlowBlow
F6‐BENCHLEDT‐MOLD,5ampSlowBlow


Temperature
32°to100°Fahrenheit(0°to38°Celsius)
Humidity
Mustnotexceed95%relativehumidityorwherevisiblecondensationispresent.

CabinetDimensions


ComponentHeightWidthDepth
Assembled55”
Environmental
Model
118in./300cm53.5in./136cm80in./203cm

Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|3

ContactInformation
Foranauthorizeddistributornearyou,checktheRawThrillswebsiteatwww.rawthrills.com
ContactBetsonEnterpriseHeadquartersoryourlocalBetsonofficeforsales,technicalinformation,
warrantyorrepair.Betsoncanbereachedat(800)524‐2343Fax(201)438‐4837www.betson.com
BetsonEnterprisesHeadquarters
303PatersonPlankRd.
Carlstadt,NJ07072
(800)524‐2343or(201)438‐1300
fax(201)438‐4837








<JPenvironmentalcabinetimage>

Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|4

Safety

OPERATION
Beforeoperatinggame,readthismanual.Failuretoproperlyinstallandoperatethisgamecouldresultin
malfunctionoraccident.Operatethegameinaccordancewiththemanual.

TRANSPORTING
Cabinetisveryheavyandcontainsfragilecomponents.Useappropriatecarewhenmovingortransportingcabinet.
Avoidroughhandling.

HANDLINGCOMPONENTS
Manycomponentsareextremelysensitivetohandling,environmentalandElectrostaticDischarge(ESD)events—
especiallythecomputer.Donothandleitroughly.Beforeservicing,callyourdistributorandinquireaboutthePC
warranty.UseproperESDprocedureswhenservicing.Protectcomponentsfromharmfulenvironmental
conditions,suchasextremetemperatures,excessivemoistureorotherdamagingeffects.

DISCONNECTPOWER
Alwaysturnoffpowerandunplugtheunitbeforeservicingormakingadjustments,unlessotherwiseinstructed.
Installingorrepairingcomponentswhilepowerisoncandamagethecomponentsandvoidthewarranty.

GROUNDING
Avoidelectricalshock.DonotpluginACpoweruntilyouhaveinspectedandproperlygroundedtheunit.Onlyplug
intoagrounded,three‐wireoutlet.Donotusea“cheater”plugorcutoffthegroundpinonthelinecord.

ELECTRICALSHOCKS
Thereisnoisolationtransformerinthecabinet.DisconnectACpowerbeforeservicing.However,beawarethat
lethalvoltagescanremainintheelectroniccomponentsevenwhenACpowerisdisconnected.Useextreme
cautionwhenservicing.Verifythatthereisaworkinggroundconnection.Iftheunitsustainswaterdamage,cease
usingitimmediatelyandunplugACpower.

MONITOR
Extremelyhighvoltagesexistinthemonitoratalltimes.Thesehighvoltagesexistevenwhenthemonitorisoff
andtheAClinecordisdisconnected.Thesevoltagesareextremelylethalandwillcausedeath.Themonitor
containsnouserserviceableparts.Donotattempttoservicethemonitor.

POWERSELECTOR
Beforeinstallinggame,ensurethevoltageonthePCissetproperly.Thereisa115/230VACselectorswitchthat
mustbesetforthecorrectvoltageforyoursite.Verifythefluorescentlamprating.Theratingmustmatchtheline
voltageattheinstallationsite.

CONNECTORS
Ensureallconnectorsmateproperly.Ifconnectorsdonotslipineasily,donotforcethem.Connectorsareoften
keyedandonlyconnectoneway.Checkforcorrectorientation.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|5





COMPUTER
Thecomputercontainssensitivecomponents,includingaharddrive.Donothandleitroughly.Callyourdistributor
beforeservicingitsinternalcomponents.AskaboutwarrantyinformationasitrelatestothePC.
DonotturnthePCpowerswitchonoroff.ItshouldremainpermanentlyintheONposition.
CycleACpoweronoroffwiththecabinetpowerswitch.
AdonglehasbeeninsertedintooneoftheUSBports.Thisisrequiredforgameplay.
Donotremovethedongleexceptfortroubleshootingpurposes.

POWERCORD
Ifthepowercordisdamagedorlost,replaceitwithanidenticalcordassuppliedbythemanufactureroran
authorizedserviceagent.

WATERJETS
Donotinstalloroperategamewithinoperatingperimeterofawaterjet.Donotcleanequipmentusingwaterjet.

HAZARDTOEPILEPTICS
Asmallportionofthepopulationhasanepilepticconditionthatmaycauseseizures.Affectedpersonsexperience
seizurewhilewatchingsometelevisionpicturesorplayingcertainvideogames.Peoplewhohavenothadseizures
maystillhaveanundetectedepilepticcondition.Ifanyoneinyourfamilyhasexperiencedepilepsysymptoms
(seizuresorlossofawareness),consultyourphysicalbeforeusingvideogames.Whilechildrenplayvideogames,a
parentshouldobserve.Bealerttothefollowingsymptoms:dizziness,alteredvision,eyeormuscletwitching,
involuntarymovements,lossofawareness,disorientationorconvulsions.Ifyouoryourchildexperiencesthese
symptoms,discontinueuseimmediatelyandconsultyourphysician.

MANUAL
Keepthismanualavailableandreadyforuse.Ifthegamefailstofunctionproperly,turnoffthemachineand
unplugtheAClinecord.Contactyourlocaldistributor.Yourwarranty,whenapplicable,lasts60daysfromyour
purchasedate.Youmaynotreproducethisdocumentoranyofitscontentswithoutwrittenauthorizationfrom
RawThrills™,Inc.

SPECIFICATIONS
Forreasonssuchasperformance,thisproduct’sspecificationsmaychangewithoutnotice.Federalpatent,
copyrightandotherintellectualpropertylawsprotectthecontent,devicesanddesignofthegameandits
equipment.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|6

Cabinet Setup

SAFETYNOTICE:

Installingthisproductrequirestwoindividualsabletoliftheavyobjectssafely.Youwillalsoberequiredtoclimba
ladderaspartoftheinstallationprocess.Makesurethatyouarefamiliarwiththemanualcontentsandgameset
upandoperationbeforeyoubegintheinstallationprocess.Donotpushorpulltheonthegunsordecorative
itemssuchasthemarqueeorbenchlogtomovethegame.Doingsocandamagethegunmechanismor
decorativeitems.Beawareofyoursurroundingandindividualsaroundyouduringtheinstallationprocessforyour
safetyandothers.Workonlyinareawithsufficientlightingandacleanandlevelsurface.
UnpackCartons
1. Placetheshippingcratesonaflatstablesurface.
2. Cutthebandingstrapsandremovethecardboardlids.
3. Liftoffthelargecardboardcontainersurroundingthecabinetandanyshippingcleats.
4. Withatleasttwopeopleandadolly,removethecabinetfromtheshippingpallet.Seemodel
specificassemblydiagram.
5. Removethecoindoorkeyfromthecoinreturnchute.
6. Openthetopcoindoor.
7. Locatethekeyforthetopandbottombackdoorsandthecashbox.
8. Removetheitemsinsidecashbox:ACpowercable,abagofscrewsandtools,marqueepower
cable,thismanual.

CheckElectricalSettings(ForUnitsShippedFromDifferentLocation)
1. VerifythevoltageinthenearestACoutlet.
2. VerifytheACoutletgroundconnectionispresentandworking.
3. Openthelowerbackdoorofthemonitorassembly.
4. VerifythevoltageselectorswitchissettocorrectACvoltageforallpowersupplies.Thisstepis
recommendediftheunithasbeenmovedorshippedfromanotherlocality.
5. RoutethelinecordsothattheplugisneartheACoutletandoutofthewayoftraffic.
6. Replacethebackdoorofthemonitorassembly.

StartUpGame
1. PluginlinecordtoACoutlet.
2. TurnthepowerswitchtoON.
3. Checkthatnocomponentisexcessivelyhotoremittingfoulodors.
Ifnot,turnoffACpoweranddisconnectlinecord.Refertothediagnosticsectionofthismanual.
4. Oncesoftwareloads,youwillbeaskedtocalibratetheguns.
Ifnot,entertheservicemenubypressingtheTESTbuttonlocatedonthebracketinsidethetop
coindoor.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|7

Cabinet Setup

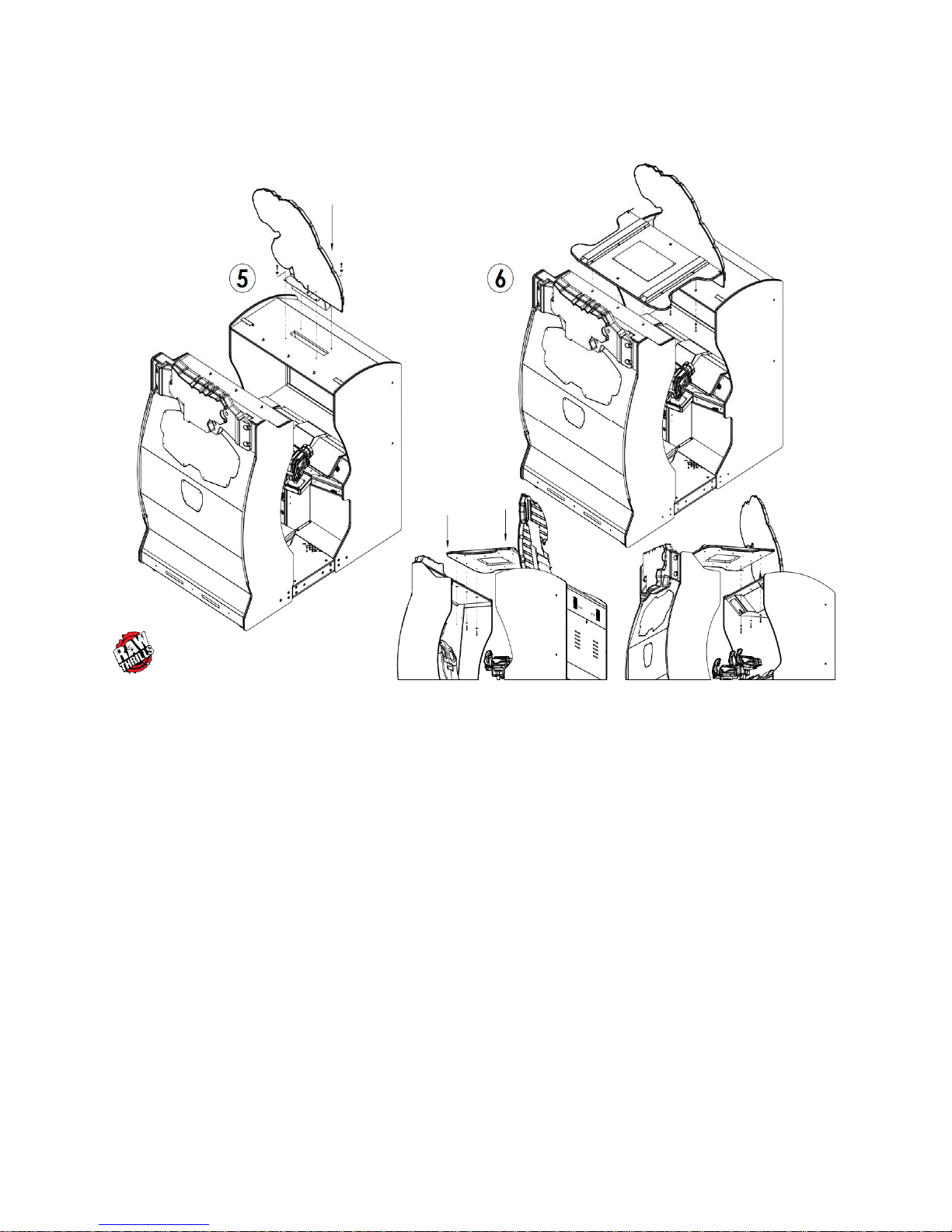

55”ENVIRONMENTALMODELASSEMBLYILLUSTRATION


NOTE:ALLFASTENERSARET27‐
1/4‐20EXCEPTFORSTEP1AND5
WHICHUSEPHILIPSHEAD
SCREWS
NOTE:DONOTFULLYTIGHTEN
SCREWSFORSTEP3UNTILALL
SCREWSFORSTEP4AREIN
PLACE.
NOTE:MAKEELECTRICAL
CONNECTIONSFORSEATANDLCD
CABINETTOTHEINTERFACE
HARNESSFOUNDINSIDETHE
FLOORASSEMBLY.

Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|8



NOTE:CONNECTIONFORDINO
TOPPERISBEHINDTHELCD.
CONNECTIONFORTHEROOFLED
ISONTHETOPRIGHTOFLCD
CABINET

Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|9

Diagnostic Menu System
DiagnosticMenuInterface
TheServicePanelhastworockertypemomentaryONbuttons.PresstheswitchUP/DOWNtowardthe
directionofthefunctionyouwishtoperform.PressingtheTESTbuttonatanypointwhilethegameis
runningwillenterthediagnosticmenu.Thismenucanbenavigatedwiththeservicepanelorthegun.

Anon‐screenmessageacknowledgeschangesorwhenyouexitaselectionwithoutmakingachange.
Atthebottomofeachscreen,thereisabriefdescriptionofthehighlightedmenuoption.

NavigatingwithServicePanelSwitches












TEST  entersdiagnosticsystemorselecthighlightedmenuoption
SERVICE  exitcurrentmenu
VOLUMEDOWN movesdownthroughmenuorsettingchoices
VOLUMEUP movesupthroughmenuorsettingchoices

NavigatingwithGun
Themenuinterfacecanbenavigatedwiththegunbyaimingandshooting.
Shootingtherightsideoptionswillperformtheindicatedaction.
Shootscrolluporscrolldowntohighlightmenuoptions.
Shootselecttoenterthehighlightedmenuorperformthehighlightedoption.
Shootexittoreturntothepriormenuorexitthediagnosticsystem.

TEST
SERVICE
Volume
UP
Volume
DOWN

Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|10

MenuScreensandDescriptions
MainMenu

Diagnostics‐verifygameinputsandoutputsarefunctional
Pricing ‐viewvarioustrackingstatistics
GameAdj‐setupandmanagegameparameters
SystemAdj‐setupandmanagesystemparameters
Audits ‐viewvarioushardwareandsoftwareinformationie.collectionandplaydata
GunCal‐calibrateandverifygunfunctionality
GameVol‐adjustgameandattractvolume

Thisdocumentwillbeupdatedperiodicallytoimproveaccuracyandusability.
Pleasevisit:rawthrills.comtogetthelatestversionofthismanual.







Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|11

MainMenu
Diagnostics
SwitchTests
Periodicchecksofallgameinputsarekeytomaximizingearnings,customerenjoymentandsafety. 

MainMenu
Diagnostics
SoundTest



Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|12

MainMenu
Diagnostics
LightTests
Increaseyourgame’scurbappealwhilealsoofferingthebestvisualexperienceforplayersand
prospectivecustomersbymakingsurethatallcontrolledlightingeffectsareworking.

MainMenu
Diagnostics
GunVibrationTests
Thegunmechanicalfeedbacksystemisdesignedwithuniquefeaturesthatenhancetheplayer’s
experience.Verifythatgunvibrationspecialeffectsarefunctional.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|13

MainMenu
Diagnostics
ColorBarLCDDisplayTest

MainMenu
Diagnostics
MotionTests(JurassicParkArcadeMotionModelsOnly)




Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|14

MainMenu
Diagnostics
WatchdogTests
Thewatchdogfunctionisacriticalpartofmakingsurethatthegameisabletorecoverfromalock‐up
conditionautomatically.Thisisespeciallycriticalinunattendedlocations.

MainMenu
Diagnostics
MotionSelfTests(JurassicParkArcadeMotionModelsOnly)



Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|15

MainMenu
Diagnostics
MotionCalibration(JurassicParkArcadeMotionModelsOnly)


MainMenu
Diagnostics
CoinMeterTests
ThisunithasacommonmeterforcoinandDBVaccounting.Replacewith5VDCmeteronly.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|16

MainMenu
Pricing
Adjustgamepricingandcreditingparameters.Customizepricingforbestlocationearnings.


MainMenu
GameAdjustments
Adjustin‐gameparameters.Customizein‐gamefeaturestosuitcustomerbaseandlocation.



Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|17

MainMenu
SystemAdjustments


MainMenu
Audits
Monitorgameauditstomakeinformeddecisionsindeterminingkeygamesettings.ie.pricing,game
length.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|18


MainMenu
Utilities
ResettingAuditinformationisrecommendedwheneveryouchangeagameparameterinorderto
accuratelytrackchangesinearnings.

MainMenu
GunCalibration
Maximizeyourgamesearningpotentialbymakingsurethatthegunsareperiodicallycalibratedandall
switchinputsarefunctional.


Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|19

Troubleshooting
Warning:Reviewsafetychapterbeforemakinganyadjustmentstogame.
GeneralTroubleshooting
ProblemPossibleCause Solution
GamewillnotpowerupGamenotpluggedin.Pluggameintooutlet.
Gamenotturnedon.

Turnonmainpowerswitch.
Gamefuseisblown.

Checkandreplacefuse.
Nopowertoreceptacle.Testoutletandpluggameinto
poweredoutlet.
PCnotturnedon.

TurnPCpowerswitchon.Ensure
IECcabletightlypluggedin.Trace
cablebacktosourcetoensure
continuity.
PCBIOSsetincorrectly.SeeBIOSSettingschapter.

ScreennotpoweringonwithgameNoACpowerorbadvideocable ChecklooseorbadACorvideo
connection

NOVIDEOmessageVideocablesnotpluggedinproperly
PCdidnotpowerup
Reattachand/ortightenvideocable
tomonitor.
Reattachand/ortightenvideocable
toPC.PowercyclePCorgame
Faultyvideocable Replacevideocable
PCnotturnedon. Turn PCpowerswitchon.

NosoundBadConnection fromPCtoRIO
audioorbadspeakerconnection.
Checkconnection¼”stereocable
fromPCtoRIOandspeakers.

Gamedoesnotload
Harddrivetestreports“bad”or
“missing”files.

Gamefailstofinishloading.Harddrivefailure Recoverharddrive.

Afterresetting,gamestillreportsan
error.

Gamesuggestsinsertingaboot
DVD.

Erraticgamemodeorattractmode.
WARNING!
DataFilesCorrupted.
(GameOperationMayBecome
Unstable.)
Use“Test”SwitchtoEnterTest
Mode
andRun“FileTest.”
PressStartToContinue.



Operator’sManual

JurassicPark™©isatrademarkandcopyrightofUniversalStudiosandAmblinEntertainment,Inc.LicensedbyUniversalStudios
LicensingLLC.Allrightsreserved.JurassicParkArcadeGameSoftwareCopyright2014RawThrills,Inc.Allrightsreserved.
Page|20


GameresetsBadfileorbad5VRIOfuse. RunFileTest.Restoreharddrive.
Replace5VfuseonRIOpcb.

ProblemPossibleCause Solution
Gunswon’tregisterorfunction
poorly
Badcalibration Calibrateguns.
Dirty/damagedpotentiometers Inspectandorreplacepotentiomer
Gun/pot. disconnected Checkgun/potconnections.

Coinmeterdoesnotclickduring
Test
Nopulsetometer CheckallwiringfrommetertoI/O
board
Faultymeter Replacecoinmeter

ExitsTestModeevery3secondsTestbuttonstuckinONposition SlideortogglebuttonoffafterTest
Menuappears

DongleNotPresentDonglemissingordisconnected FinddongleUSBconnectionand
reseatinUSBport
FaultyUSBport ConnectdongletoanotherUSBport

ConnectI/OBoar
d
or
I/OBoardMissing
USBcabledisconnected CheckUSBconnectionfromPCto
I/Oboard
TryconnectingtoadifferentUSB
port
Blownfuse Verify5Vand12Vfusesarenot
blown
NopowertoRIO board Checkforpropervoltage
(+5V,+12V)atRIOP2connector
BadRIOBoard ReplaceRIOboardwithknown
functionalboard
MissingField/EarthGroundCheckAClinecordformissingor
damagedgroundplugor
connection.Useonlyproperly
groundedACpoweroutlet.
GunsnotvibratingBadfuse or24VDCpowersupply.
Badrecoilpcb.
Verifypartsarebadandreplace.
Seatsubwoofersoundisweak.Lowvoltageon12Vpowersupply.
Volumesettoolow.
Adjustpowersupplyvoltage.
SetVolumefordesiredvibration
effect.
Lightfeatureisnotlightingup.Badconnectionordamagedwires.
Badfuseorpowersupply.SEEFUSE
CHART.
Replaceorrepairdamagedwiresor
connectors.
Replacebadfusewithcorrectvalue.



