Sega Sonic Allstarts Kids Basketball User manual

1

2
Safety Introduction –Read before operating
This manual is intended to provide detailed descriptions together with all necessary information covering the
general
operation of electronic assemblies, electromechanical, servicing control, spare parts, etc. for the product:
"Sega Sonic Allstars Kids Basketball"
This manual is intended for the owners, personnel managers in charge of operation of this product.
Operate the product after carefully reading and sufficiently understanding the instructions.
In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician
to touch the internal system. Turn off the power to the machine, making sure to unplug the electrical cord from the
outlet, and contact the office listed below or the point-of-purchase for this product.
Use of this product is unlikely to cause physical injuries or damage to property. However, points that require
special attention are indicated on the game cabinet in the form of warning labels.

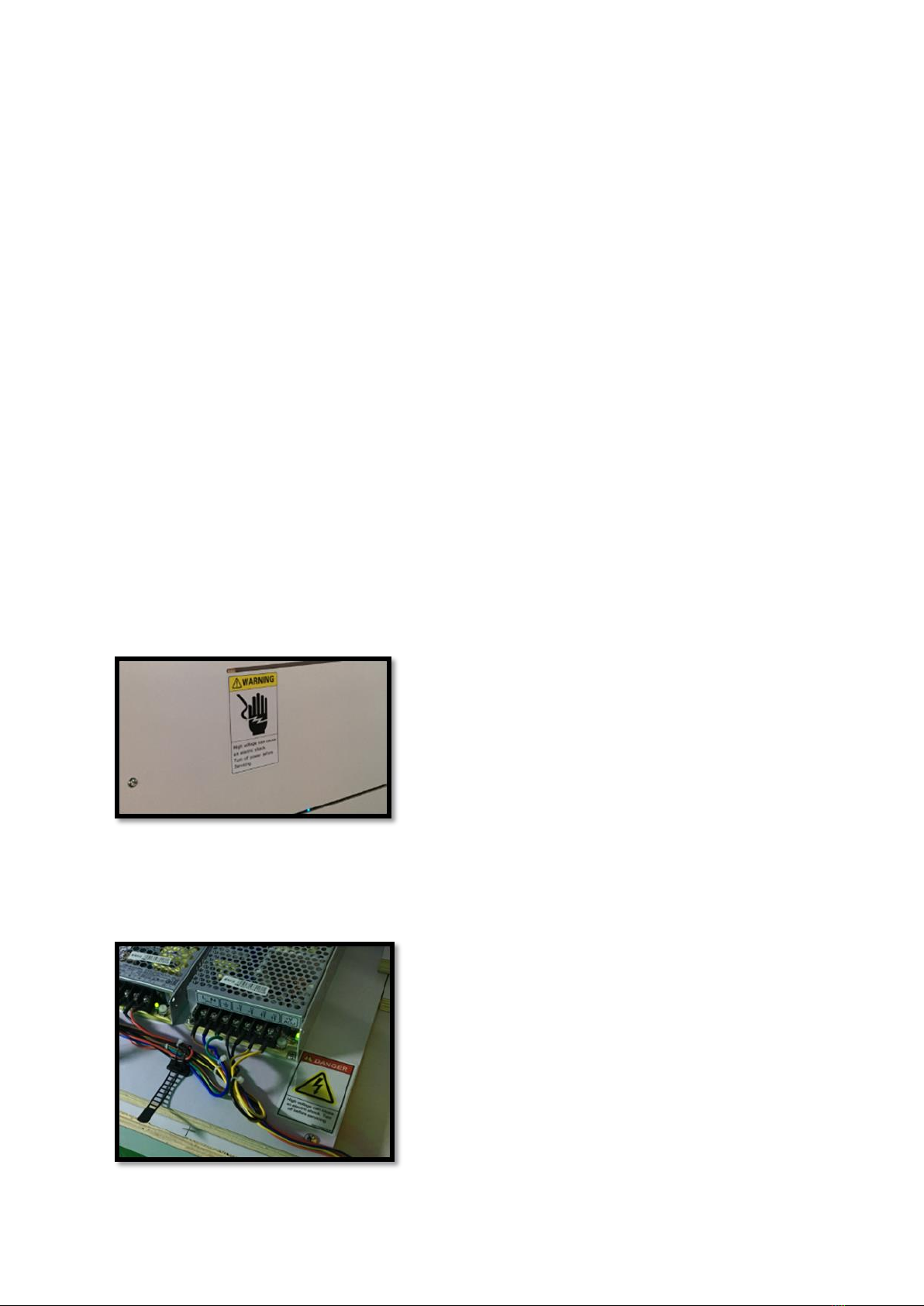

Warning: Proceed with caution –Only open door/cover if you are a qualified technician
High voltage can cause an electric shock
Turn off before servicing
Danger: Potential immediate danger
High voltage can cause an electric shock
Turn off before servicing

3
Potential Risk to life or damage to product
If ignored, may result in the mishandling of the product and cause faulty operation or damage to the
product or person(s)
Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance
personnel or other qualified professionals. This manual includes directions for potentially dangerous procedures
which should only be carried out by professionals with the appropriate specialised knowledge.
The site maintenance personnel or other qualified professionals mentioned in this manual are defined as follows:
Site maintenance personnel:
Individuals with experience in maintaining amusement equipment, vending machines, etc., working under the
supervision of the owner/operator of this product to maintain machines within amusement facilities or similar
premises by carrying out everyday procedures such as assembly, maintenance inspections, and replacement of
units/expendable parts.
Activities to be carried out by site maintenance personnel:
Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable
parts.
Other qualified professionals:
Persons employed by amusement equipment manufacturers, or involved in design, production, testing or
maintenance of amusement equipment. The individual should have either graduated from technical school or hold
similar qualifications in electrical/electronic/mechanical engineering.
Activities to be carried out by other qualified professionals:
Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.
Definition of 'Site Maintenance Personnel’ or Other Qualified individuals. d
Individuals
STOP
IMPORTANT
Procedures not described in this manual or marked as ‘to be carried out by site
maintenance personnel or other qualified professionals should not be carried out
by personnel without the necessary skill or technological experience. Work carried
out by unqualified persons may cause serious accidents, including
electrocution.

4
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
To maintain safety:
To ensure the safe operation of this product, be sure to read the following before usage:
The following instructions are intended for the users, operators and the personnel in charge of the operation of the
product. After carefully reading and sufficiently understanding the warning displays and cautions, handle the
product
appropriately. Be sure to keep this manual close to the product or in a convenient place for future reference.
• Perform work in accordance with the instructions herein stated. Instructions for work
are explained by paying attention to the aspect of accident prevention. Failing to perform work as per
the instructions can cause accidents. In the case where only those who have technical expertise should
perform the work to avoid hazardous situation, the instructions herein state that the site maintenance
personnel should perform such work.
• Be sure to turn off the power before working on the machine. To prevent an electric shock, be sure
to turn off the power before carrying out any work that requires direct contact with the interior of the
product. If the work is to be performed in the power-on status, the Instruction Manual herein always states
to that effect.
• Be sure to ground the Earth Terminal (This is not required in the case where a power cord with earth is
used).
• This product is equipped with the Earth Terminal. When installing the product, connect the Earth
Terminal to the "accurately grounded indoor earth terminal" by using an earth wire. Unless the product is
grounded appropriately, the user can be subject to an electric shock. After performing repair, etc. for the
control equipment ensure that the Earth Wire is firmly connected to the control equipment.
• Ensure that the Power Supply used is equipped with an Earth Leakage Breaker. This product does
not incorporate the Earth Leakage Breaker. Using a power supply which is not equipped with the Earth
Leakage Breaker can cause a fire when earth leakage occurs.
• Be sure to use fuses which meet the specified rating (only for the machines which use fuses). Using
fuses exceeding the specified rating can cause a fire and an electric shock (only for the machines which
use fuses). Using fuses exceeding the specified rating can cause a fire and an electric shock.
Specification changes (removal of equipment, conversion and/or addition) not designated by SEGA are not
allowed. The parts of the product include warning labels for safety, covers for personal protection, etc. It
is hazardous to operate the product by removing parts and/or modifying the circuits. Should doors, lids and
protective parts be damaged or lost, refrain from operating the product, and contact where the product was
purchased from or the office herein stated. SEGA shall not be held responsible for any accidents, compensation
for damage to a third party, resulting from the specifications not designated by SEGA.

5
• Ensure that the product meets the requirements of appropriate electrical specifications. Before installing
the product check for electrical specifications. SEGA products have a nameplate on which electrical
specifications are described. Ensure that the product is compatible with the power supply voltage and frequency
requirements of the location. Using any electrical specifications different from the designated specifications can
cause a fire and an electric shock.
• Install and operate the product in places where appropriate lighting is available, allowing warning labels
to be clearly read. To ensure safety for the customers, labels and printed instructions describing potentially
hazardous situations are applied to places where accidents can be caused. Ensure that where the product is
operated has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again
immediately. Please place an order with where the product was purchased from or the office herein stated.
• When transporting or reselling this product, be sure to attach this manual to the product.
• Descriptions herein contained may be subject to improvement changes without notice.
• The contents described herein are fully prepared with due care. However, should any question arise, or errors be
found, please contact SEGA.
INSPECTIONS IMMEDIATELYAFTER TRANSPORTINGTHE PRODUCT TO THE
LOCATION
Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after
transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before turning
on the power,check the following points to ensure that the product has been transported in a satisfactory status.
• Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?
• Are casters and adjusters damaged?
• Do the power supply voltage and frequency requirements meet with those of the location?
• Are all wiring connectors correctly and securely connected? Unless connected in the correct way, connector
connections cannot be made accurately. Do not insert connectors forcibly.
• Do power cables have cuts and dents?
• Are all accessories available?
• Can all doors and lids be opened with the accessory keys? Can doors and lids be firmly closed?

6
Contents
Product Profile-----------------------------------------------------------------------3
Accessories List----------------------------------------------------------------------4
How to install the machine--------------------------------------------------------5
Game description-------------------------------------------------------------------7
Maintenance and Repair-----------------------------------------------------------9
Wiring Diagram--------------------------------------------------------------------10

7
：
：
：
：
、
、
、
Roof Cage
Frame
Basket Ring
Score Display
Time Display
High Score display
Ball cage
Lighting
Ticket
Start Button
Coin Acceptor
Basket Ring

8

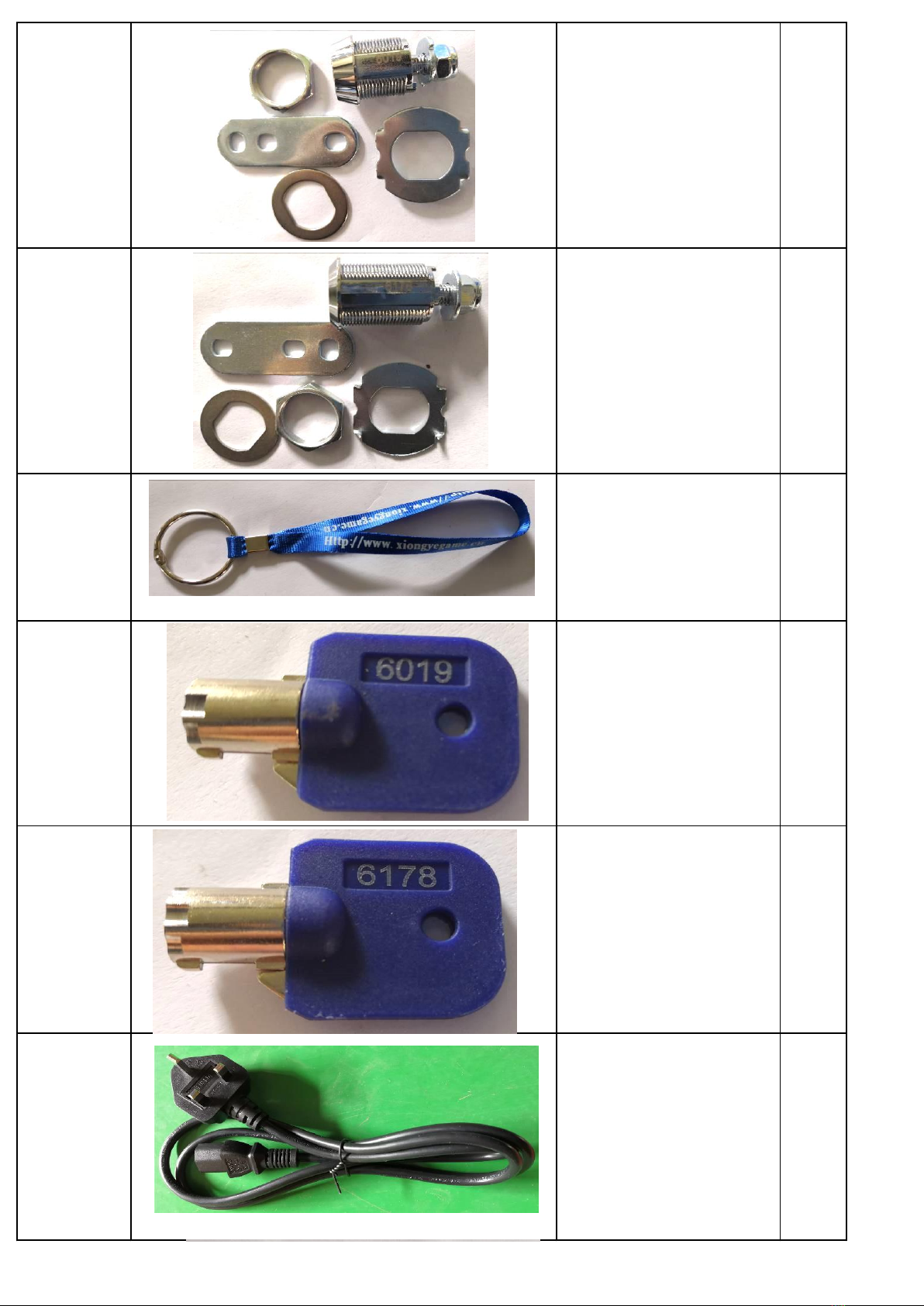

Accessories List
Content
Quantity
Remarks
User Manual
1
Keys (Service and cashbox)
1x 6019 / 1x 6178
power cord
1
Bolts
6
M6 type
Screws
5
M4 Type
Basketball
15
Game to operated with 10
balls. Keep 5 as spares
Air pumper
1
Reflective stickers
2
Spares for basket sensors

9

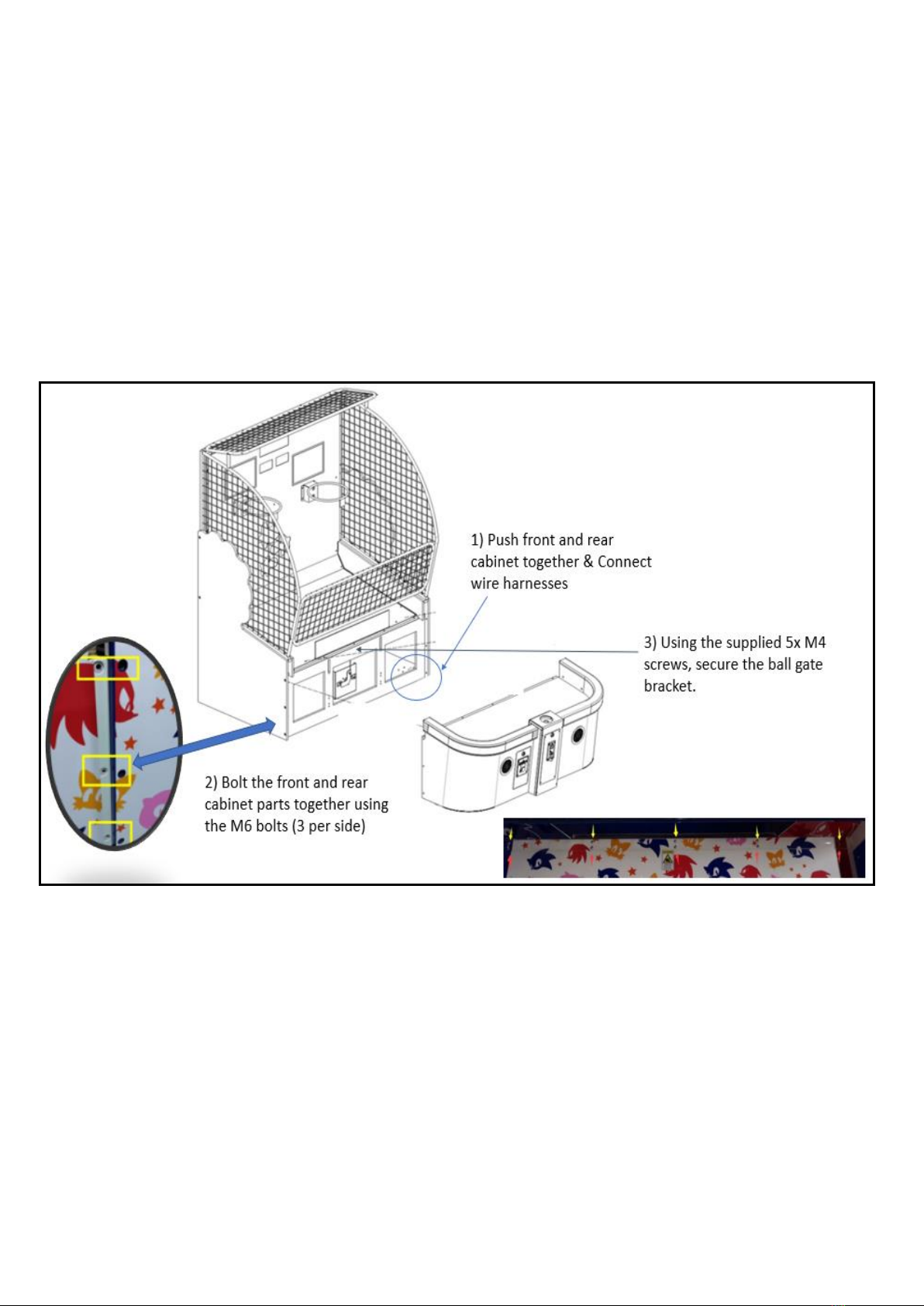

Machine Installation
1) Before pushing front and back of machine together, connect all wire harnesses.
(It is not possible to make a misconnection as the connectors are unique)
Carefully push the machine together minding not to trap the wire harnesses.
Note: You may find it easier to tilt the machine backwards to get the front of the
game to push underneath the bracket strip
2) Using the supplied M6 bolts, secure the front and rear of the game together through the
holes in the side of the game (3 per side)
3) Fix the center bracket to the front of the machine using the supplied M4 bolts.

10

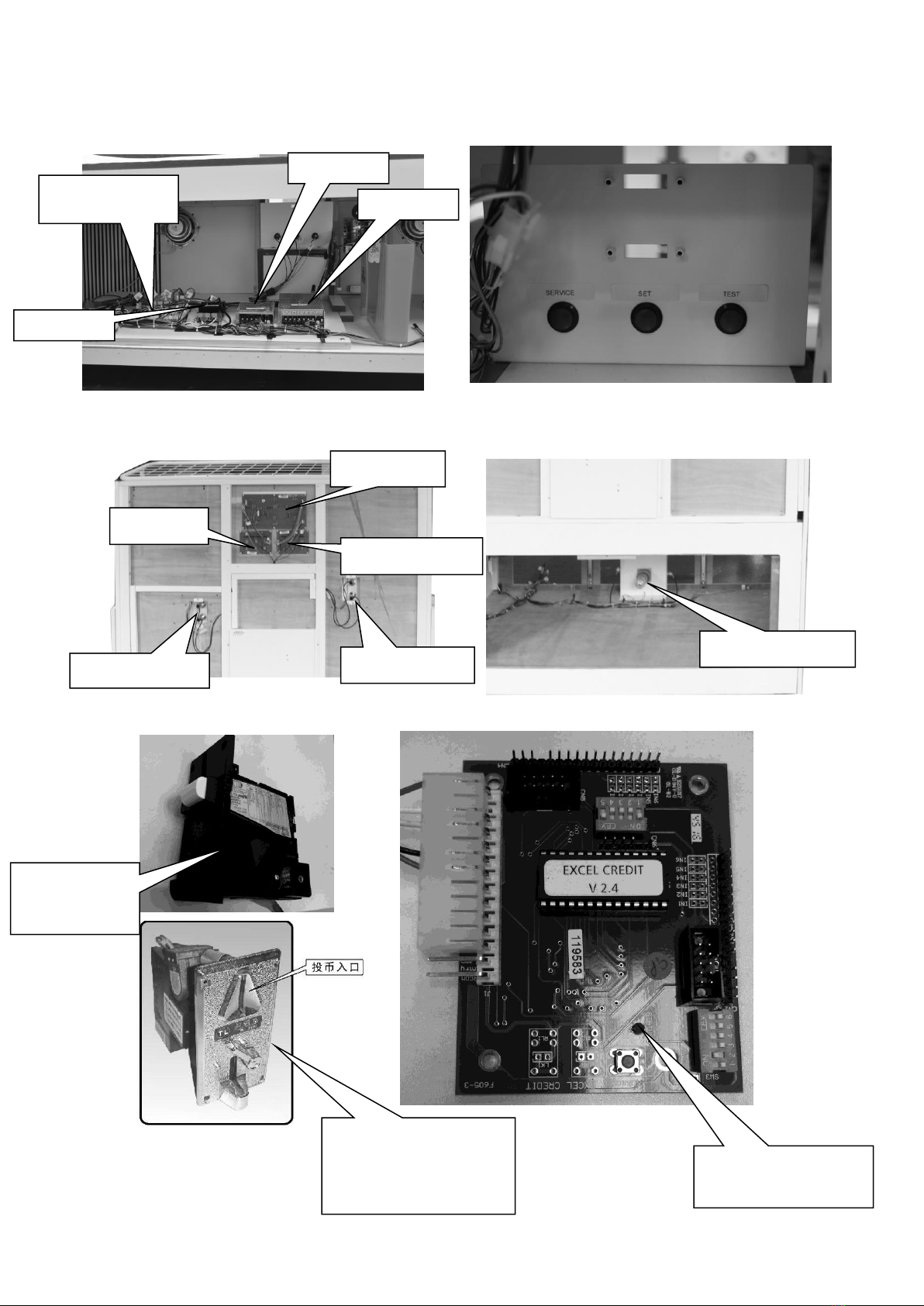

Main electrical area:
Accessories in the basket machine shelf
Digital Coin Acceptor devices:
Power supply
Main control board
Score Board
Time board
High score board
Score Sensor
Score Sensor
Ball Gate Motor
Credit board
(Europe only)
Power supply
Coin Acceptor
(USA & Middle East
Only)
Amplifier
Coin Acceptor
(Europe only)

11
Game description
Reward description：If all 3 levels are passed, a free game is awarded.
Scoring:
1) Score three points when a basket is scored with less than 15seconds.
2) Score 2 points in normal play (more than 15 seconds on the clock remaining
Button
1、Setting》SET \ Switch Menu
2、Service》SER \ Increase parameter value +
3、Testing》TEST \ Decrease parameter value -
一、Standby Presentation
Check In Run
InCoins:00001
二、Entering the settings menu
*Press SET button will show Ser –Test option
In Menu Setup
Ser:<- Test:->
：Press SER button to return to game/demo mode
：Press TEST button to Enter settings menu
Navigation once in Settings menu
•SET button moves to next option
•SER increase parameter number
•SER decrease parameter number
oThe first level scores setting.
Play One Set
Score: 040
Score required for player to get to round 2
Play One Set
In Time: 040
Time for round 1
Play Two Set
Score: 040
Score required for player to get to round 3
Play One Set
Score:060
Play Two Set
Score:120

12
Play Two Set
In Time: 040
Time for round 2
Play Three Set
Score: 040
Score required for player to beat the high score
Play Three Set
In Time: 040
Time for round 3
MaxScore Set
Score:040
Set the Max score than can be achieved.
Setup In Coins
InCoins: 001
Credit required per play
Set_Lottery
Lottery: 001
Set how many points you need for 1 ticket
(e.g. if a player gets 60 points, they win 10 tickets (60/6)
Setup VolSong
Vol: 001
Game volume 0-30 (default 25)
Dome VolSong
Vol: 001
Demo volume 0-30 (default 15)
Play Two Set
In Time:035
Play Three Set
Score:180
Play Three Set
In Time:030
MaxScore Set
Score:180
Set Lottery
Lottery: 006
Set Volume song
Vol: 025
Standby Volume
Vol: 015

13
Issue
Countermeasures
八
、
Score not registered
when basket is scored.
1) Check sensor reflector stickers are in good condition and
sensor is aligned with them.
2) Check wiring is connected at the back of the game and at the
IO board
3) Check the sensor has 12vdc supply and the signal line is not
short circuit
0
、
Ball gate does not move
1) Check wiring at the gate motor is connected between motor
and IO board
2) Check the motor has 12vdc when a game is started
3) Check bate open and closed sensors
G
Game does not credit
1) Check the coin acceptor/credit board has 12vdc supply
2) Check the coin line is 5vdc and not short
3) Ground the coin line to see if you can get a credit
Game countdown time does not
function
1) Check wiring between count down timer board & IO board
2) Check to see if other function work (Ball gate opens, music
starts, can score points)
6
、
Game does not dispense tickets
1) Check the setting is turned on
(Setting mode “Ticket Switch = ON”
2) Check the Dispenser has 12vdc power (Press the drive
button on the dispenser to test.
3) Check there are tickets in the dispenser
4) Check the switch settings on the dispenser (Should be like
below pic)
No Power to Game
1) Check IEC fuse at the back of the machine
2) Check Switch mode power supplies have 100-240VAC
supply
3) Check wiring between IEC and Power supplies
Maintenance and Repair

14
b
匕
、
Wiring Diagram
RGB LED Light

Parts code Image Descriptionj
Qty per
machine
1.DZ.DQ.0090 Basket score Sensor 4
1.DZ.DQ.0287 Ticket Dispenser (TL-002) 1
1.DZ.DQ.0291 Main fuse holder 1
1.DZ.DQ.0332 Main Fuse 1
1.DZ.DY.0135 IEC Mains inlet (250V) 1
1.DZ.DY.0143 SMPS (5V/7A) 100-240VAC 1
Page 1

Parts List
1.DZ.DY.0147 SMPS (12v/8.5A) 100-240VAC 1
1.DZ.KG.1005 Main power swirch 1
1.DZ.KG.2001 TEST Button (Red) 3
1.DZ.KG.2020 Start Button / incl switch 1
1.DZ.LB.0056 4" Speaker 15W 8 Ohm 2
1.DZ.LE.0063 RGB LED strip with cons (90cm) 2
1.DZ.LE.0063 RGB LED strip with cons (45cm) 1

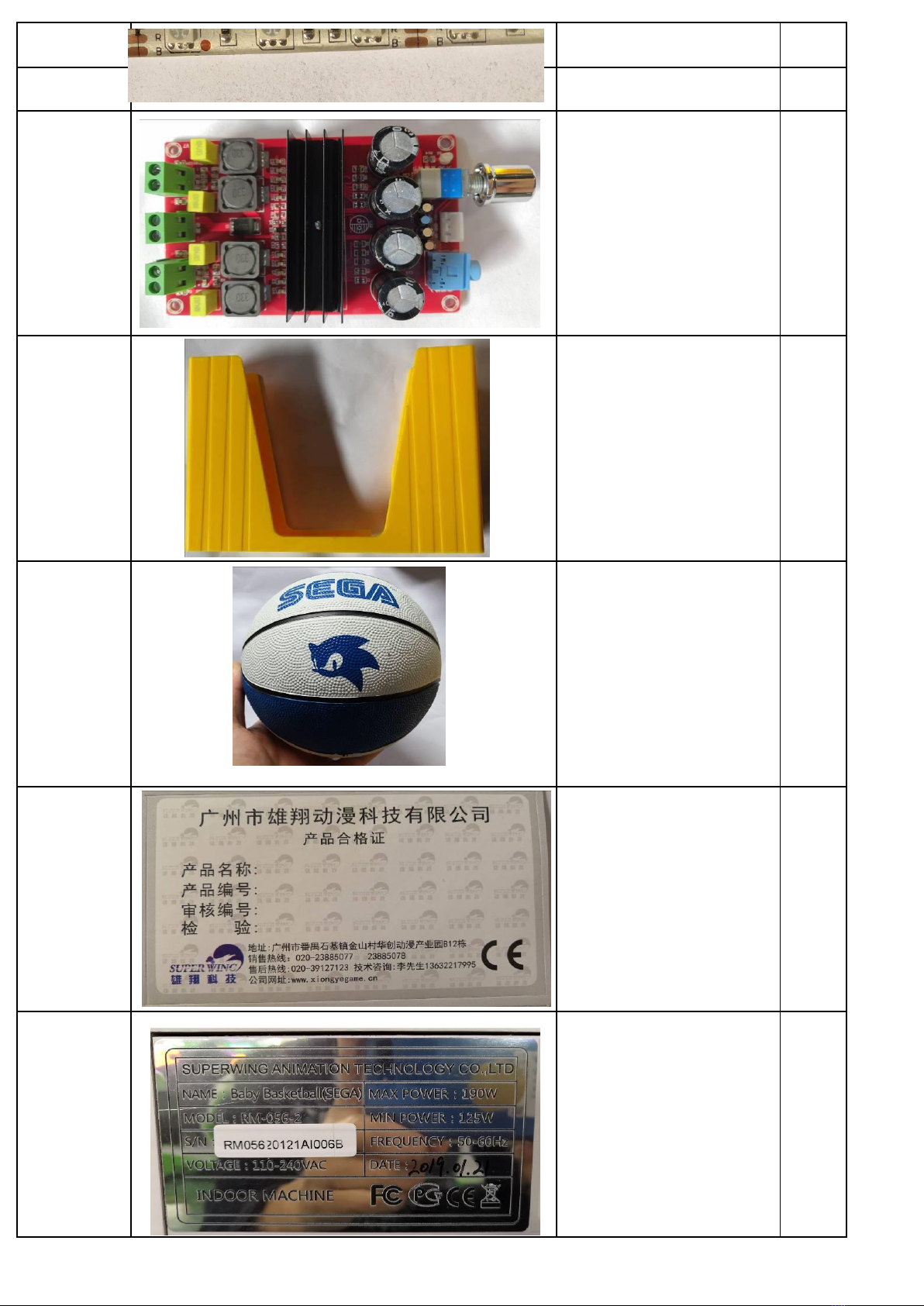

Parts List
1.DZ.LE.0063
RGB LED strip with cons
(180cm)
2
1.DZ.LE.0063
RGB LED strip with cons
(140cm)
1
1.DZ.XB.0135 Audio Amplifier 1
1.SL.QT.0092 Ticket bin (Yellow) 1
1.SL.YZ.0124 Sonic basketball 5" 15
1.TZ.ET.0524 Mark（CE版） 1
1.TZ.ET.0702 Mark 1
Page 3

Parts List
1.WJ.S.1028 6019 door lock (Kids BB) 2
1.WJ.S.1029 6178 Lock (kids BB) 1
5.FL.0060 Key Ring 1
1.WJ.S.2008 6019 Key (Kids BB) 1
1.WJ.S.2010 6178 Key (Kids BB) 1
1.XC.QT.0170 Wire（5A）1
Page 4

2.XB.ET.0010 Main IO board (Kids BB) 1
2.XB.ET.0020 Sub Sound board (Kids BB) 1
2.XB.ET.0054 Front LCD display (Kid BB) 1
2.XB.QJ.0064
Optocoupler isolation board
(Kids BB)
1
2.XB.YZ.0033 Ball Gate sensor board (Kids BB) 2
Page 5

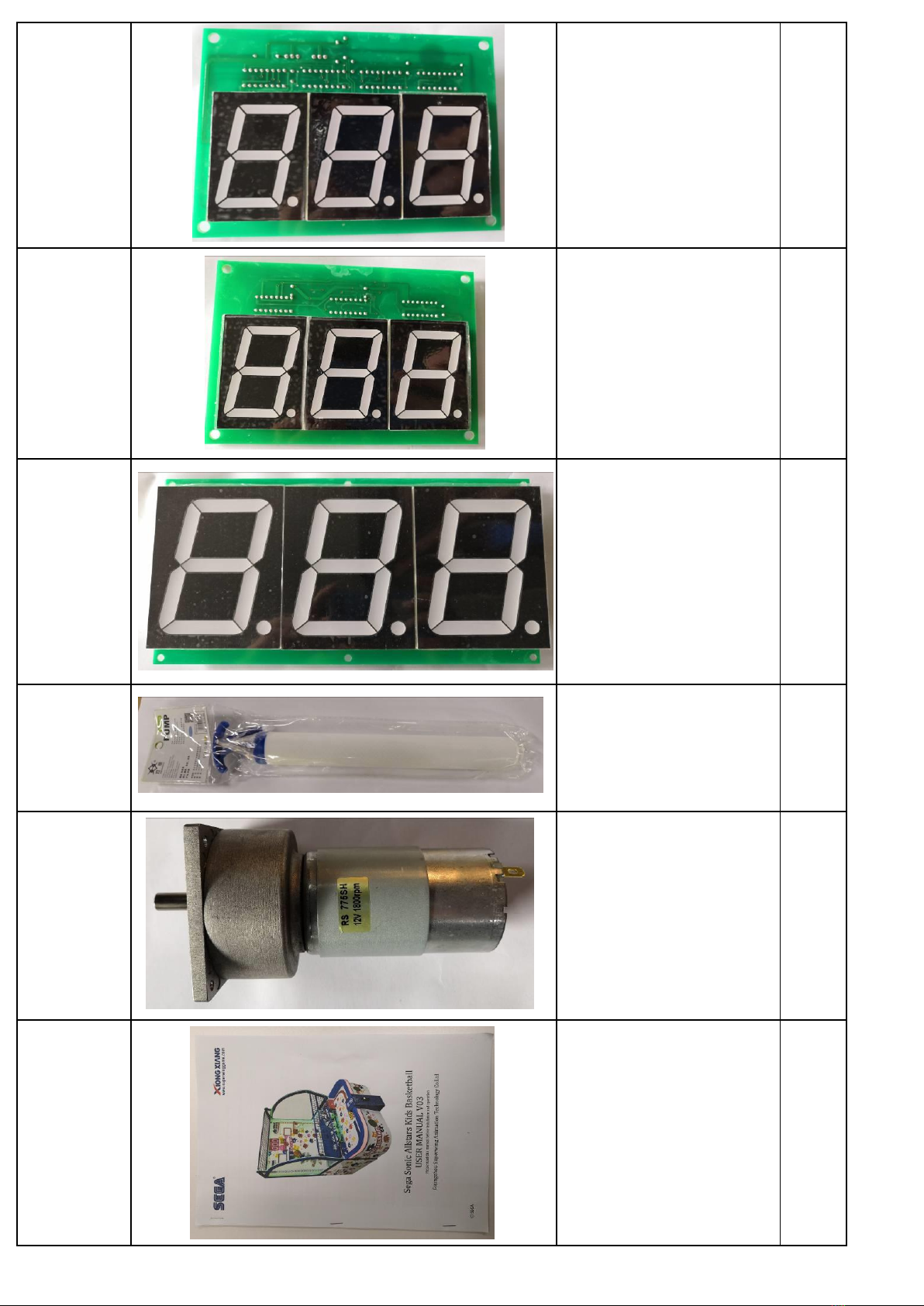

Parts List
2.XB.YZ.0036
3 digit time/score display (kids
BB)
1
2.XB.YZ.0037
3 digit time/high score display
(kids BB)
1
2.XB.YZ.0100
3 digit high score display (kids
BB)
1
5.FL.0075 Ball Pump (Kids BB) 1
9.DZ.DJ.0010
Ball Gate motor 12v 1800RPM
(kids BB)
1
9.SM.ET.0041 Kids BB manual 1
Page 6
