Quadair
Air Hockey Table Owners Manual
Assembly operation and care instuctions.
Serial #
Distributed By
Sales Person
Technical Service #

1
Forward
First, we would like to thank you very much for
purchasing the Quad Air from Barron Games
International. This product is a multi-player game for an
entertainment centerpiece and a family game.
For your own safety, please read through the this
instruction manual that we have prepared for you
thoroughly and take precautions when using the
product. We hope that will become accustomed to the
product quickly.
Note before assembling
1. Prior to assembly, you must ensure there is
sufficient space for placing or shifting this product
before assembling.
2. QuadAir needs at least 6 people for assembly and
ensure your safety and others around you when
moving the product.
3. Prior to assembly, inspect and ensure all parts are
completely assembled and secure.
Tools required for assembling
• Quadair Manual
• Screw Driver
• Scissors
• Pliers
• Electronic Screw Driver
• QuadAir Door Key
*Note: Self prepare the above specified tools. Be careful not to
damage the product while using the tools

Assembly Procedures
This wooden side is the
bottom surface of Quadair.
32
1. Use scissors or utility knife to cut* through the
packing tape. *Do not cut too deep or you’ll damage unit.
2. Open the paper box to ensure the wooden side is
facing upwards and playfield is facing down to the floor.

For Legs
16 Roundhead screw M8x25
16 Flat washer M8x16
For machine
3 serial number 2868
Quadair keys
32
Use the screw driver to unscrew the 4 screws on the
panel with sticker PARTS on it. Once panel is opened,
please take out the parts as indicated below.

Power cord holder.
After taking out the key, open the center door panel, and
take out all the parts from inside the machine body.
+
+
+
20 Pucks 2 Red Mallets 2 Blue Mallets
1 Polish Spray Wax 1 AC power cord
4
4 Quad Air Plastic Legs
4 Adjustable Leg Levelers 2 Accessory boxes
(Accessories inside the
box are illustrated below)
(Do not remove
air blower)

Attach power
cord to
cord holder.
(1) roundhead screw M8x25
(1) flat washer M8x16
Attach the leg levelers
to the base of legs.
Grey surface
Finished picture
Tightly attach.
1
5
Take out the 4 Quadair plastic legs and screw the adjustable
leg levelers onto the base of the legs. Then place the leg* to
the bottom surface of the table, ensure alignment and then
attach with big flathead screw M5x35 and washer M8x16.
*Make sure grey surface is facing out.
Ensure all legs are tightly attached
then flip the table 90 degrees.
This action requires at least 6
people. Flip it another 90 degrees
to place the legs on ground.
*Place the included foam padding
on either side of the goal release
bay. Do not damage the goal
bay or LED lights.
Foam
Padding

Warning labels are attached by the goal of each side.
1
6 7

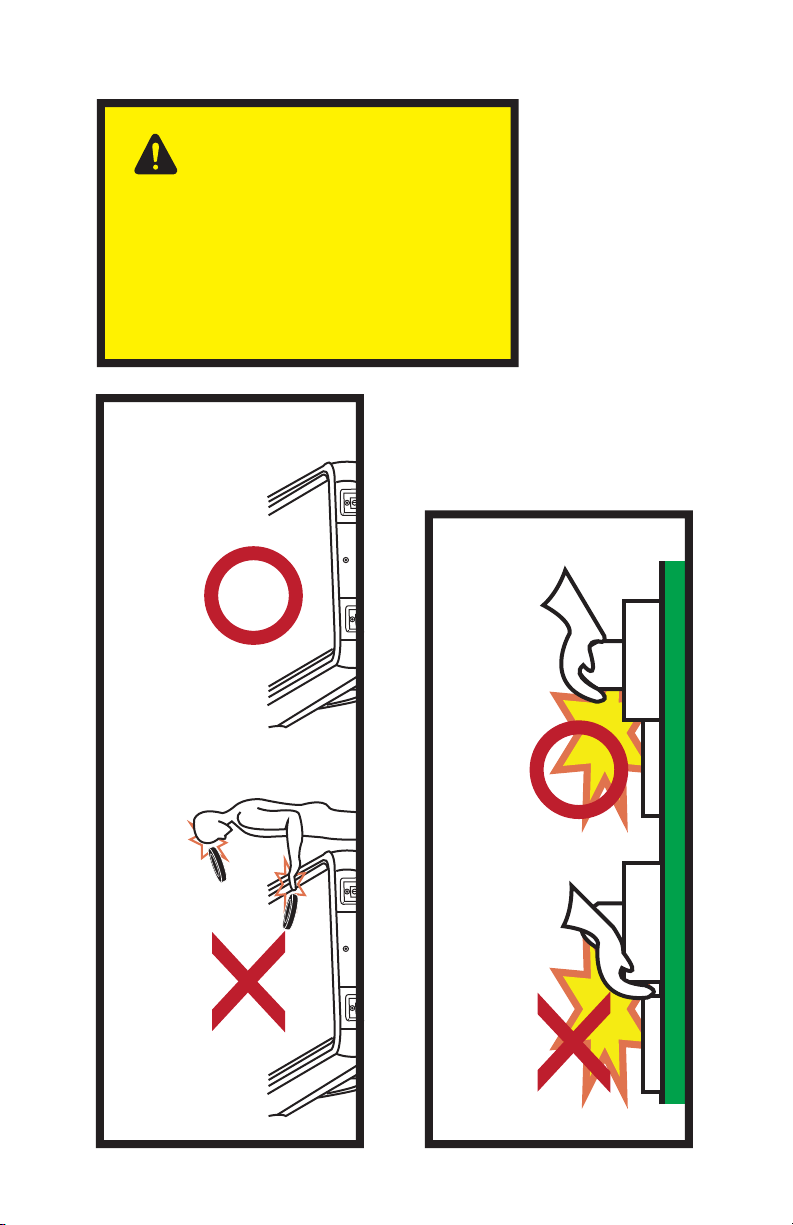

Safety Instructions for use and play.
ATTENTION
ATTENTION
Do not hit the puck with the mallet when the
puck is not leveled and flat.
Spectators don’t stand by the side of table.
This may cause cause injury.
Hold the mallet by the handle and not
the base or puck may hit fingers.
This game features
flashing lights which
may not be suitable for
photosensitive epilepsy
How to Play Quadair
1. Need 2 Players to Start. Insert coins.
2. Defend your Goal!
3. You have 5 lives until Game Over.
4. Insert coin to continue game.
Risk of Electric Shock
Playing Warnings
Hazardous voltage which can cause electrical shock
exists inside the equipment. Only qualified personnel
should work inside the equipment.
Do not hit the puck with the mallet when the puck is
not leveled and flat.
Spectators don’t stand by the side of table. This may
cause cause injury.
Hold the mallet by the handle and not the base or puck
may hit fingers.
This game features flashing lights which may not be
suitable for photosensitive epilepsy.

32
6 7
How to Play QuadAir 1. Need 2 Players to Start. Insert credits. 2. Defend your Goal! You have 5 lives. 3.
After 5 lives Game Over. Time is limited.
4. Insert coin to continue game.
Do not hit the puck with the mallet when the
puck is not leveled and flat.
ATTENTION
BEWARE OF
ELECTRIC SHOCK

3
9
2
8
ATTENTION
This game features
flashing lights which
may not be suitable for
photosensitive epilepsy
Spectators don’t stand by the side of table.
This may cause cause injury.
Hold the mallet by the handle and not
the base or puck may hit fingers.

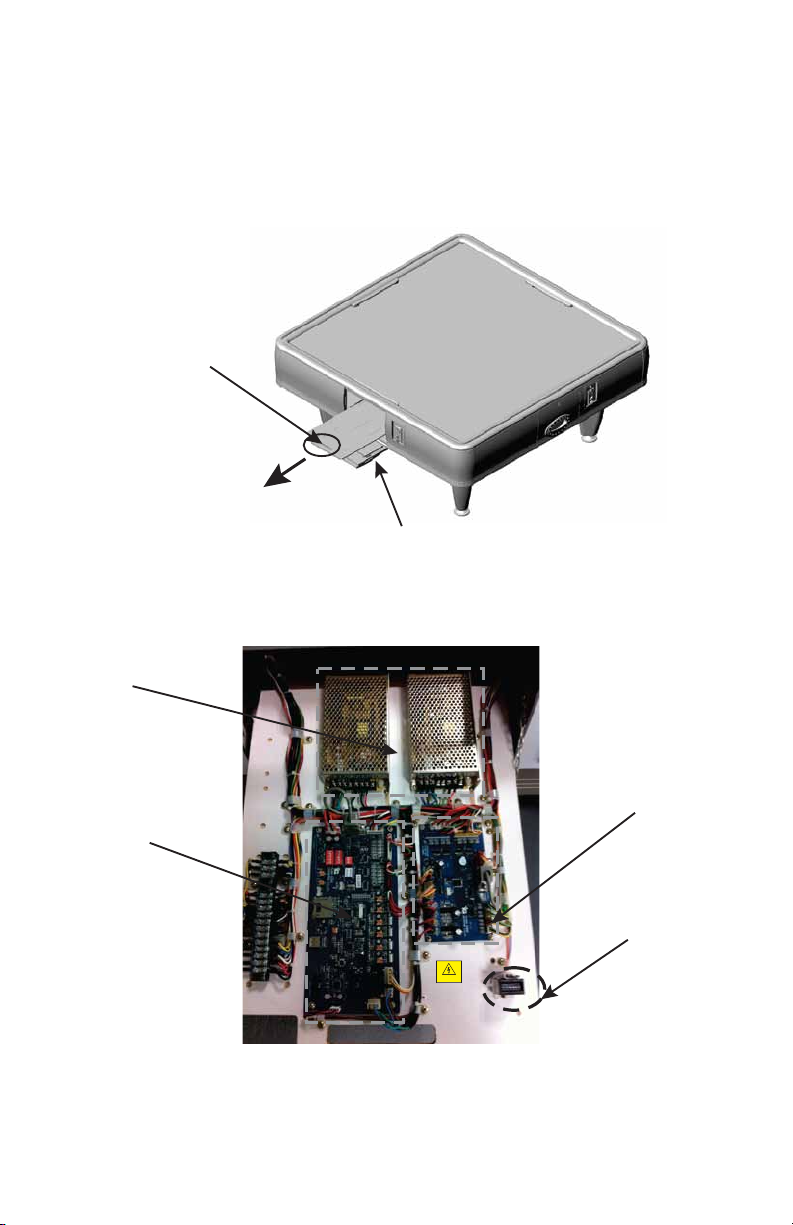

First, ensure the power is off. Open the panel with a key,
hold the panel's handle and pull it out until half of the
power panel is exposed.
Handle on
the panel
Open the panel with a key
Note: Do not touch open terminals or exposed wires while
the game is on. Risk of electric shock.
Descriptions of internal hardware
Power supply
Motherboard
Sound board
Coin Counter
9
8
4
Manual for the software of machine
BEWARE OF
ELECTRIC SHOCK

5
11
10
Function Descriptions of all hardware
Power Sets
Provide power to all internal components, such as the
motherboard, voice board, coin mechanism, motor... etc
+5v and +12v is separated toensure no interference on the
power supply to other components whenone has
insufficient supply or unstable supply of power.
Note: +5v is on the left +12v is on theright
Motherboard
Controls the operation of all internal components.
Malfunctions or errors with any of the components can
be diagnosed by looking at the LED light indication on
the motherboard.
Note: Avoid electric
shock. Do not touch
open terminals or
exposed wires. Please
turn off the game to
perform repairs.
BEWAREOF
ELECTRICSHOCK
BEWARE OF
ELECTRIC SHOCK

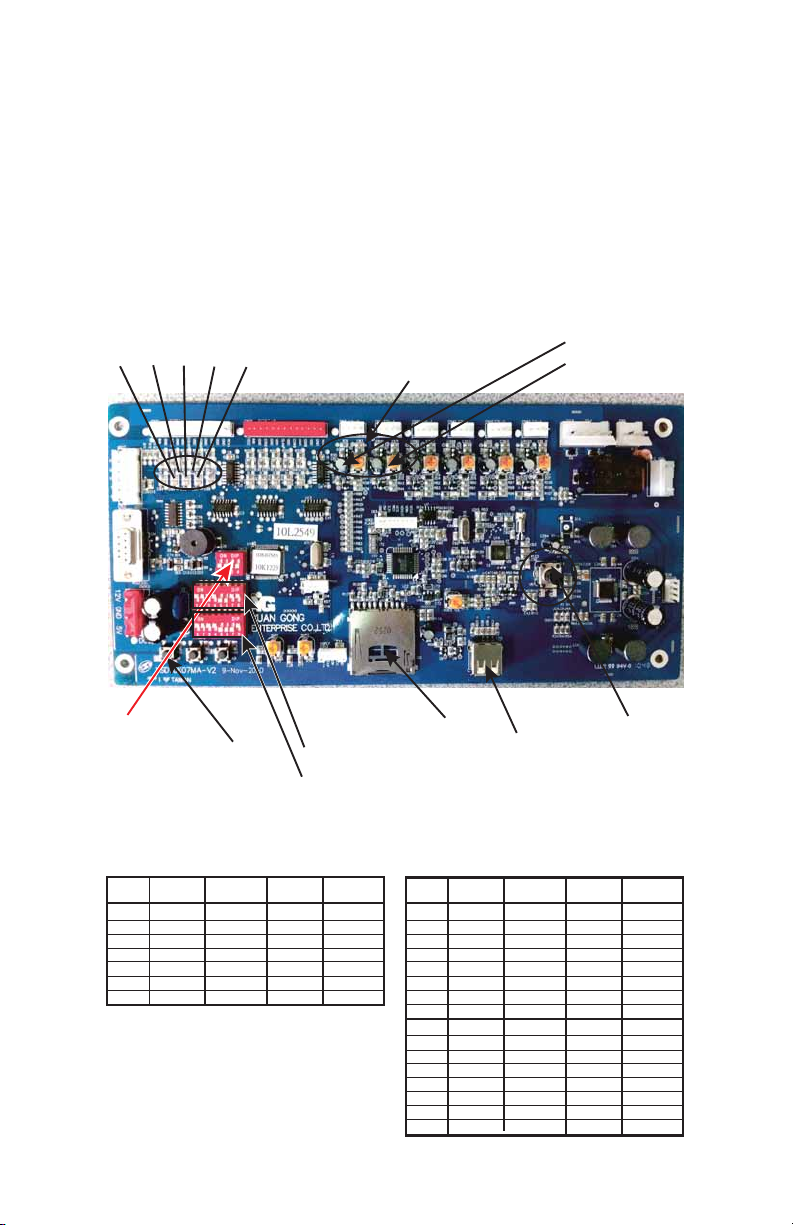

A B C D E
DIP SW 1
DIP SW 2
Error Lights
Light A Goal Sensor signal
Light B Start button Light signal
Light C Insert Coin mechanism Light signal
Light D Ticket Light signal
Light E Rail Noise Strike Light signal
Rail adjustment for sensitivity
Turn clockwise for desired noise level.
Right side of table
Left side of table
SD card
slot USB
music
slot
Game
test
6 7
11
10
Descriptions of light signals and DIP SW
DIP Switch Adjustment
DIP SW1 1 2 3 4 5 6 7 8
COINS CREDITS I I I
1 2 O I I
1 3 I O I
1 4 O O I
2 1 I I O
3 1 O I O
4 1 I O O
SW1 - Dip Switch 1
I = UP O = DOWN
SW2 - Dip Switch 2
DIP SW2 1 2 3 4 5 6 7 8
LIFE 5 O O O
5 1 O O
5 O I O
5 I I O
5 O O I
5 I O I
4 O I I
3 I I I
TIME NO LIMIT O O O
10 1 O O
8 O I O
6 I I O
4 O O I
3 I O I
2 O I I
1 I I I
ATTENTION:
All switches must
be down for
game to function.
*Default switch position is down.
Volume knob
Turn clockwise for
increased volume.
Turn counter clockwise
for decreased volume.

6 7
13
12
Description of Motherboard Controls
SD card SlotGame
Test
Transform
NO-NC button
Volume
adjustment knob
DIP SW2
DIP SW1
LEDA: Running LED lights around table
NC2 : Display panel connection outlet
NC313 : Direct Current (DC) Input outlet
NC35 : A1 Output Control point
NC36 : B1 Output Control point
NC311 : Electro-magnet switch for goal gates (solenoid)
Nc3 : Rail Strike Detector
NC4 : Rail Strike Detector
NC40 : Rail Strike Detector
NC41 : Rail Strike Detector
NC42 : Rail Strike Detector
NC43 : Strike Detector
NC310 : Blower output
NC312 : Alternating Current (AC) Output
R3 : Sound Effect and Volume adjustment
VF1 : Total Volume Adjustment
SPEAK : Sound Output

9
13
8
12
11
39
21
29
37
18
2
30
23
1
10
50/51
27

9
8
14
48
49
1
2
5
40
47
36
34
7
15

10
Ref # Part # Description Qty
1 3202001 Long lock Assembly #2868 3
2 3202004 Key #2868 3
3 3213082 Solenoid Bracket 4
4 3399107 Volume Control Knob 1
5 3601007 Power Cord 1
6 3601246 LED Interior Connector 31CM 2
7 3604056 Coin Mech HI-071CS 2
8 3605091 Solenoid DC12 2
9 3605076 PowerSupplyNES-100-12-+12V 1
10 3605012 PowerSupplyNES-100-5+5V 1
11 3607050 Air Blower 110V 1
12 3611010 Speaker 2
13 3612028 LED Light Control 2
14 3612277 H10416 Sound Board 1
15 3612363
LED Multi-Color Light Strip [Interior] 6
16 3612364
LED Multi-Color Light Strip [Goal Sides] 4
17 3612365
LED Multi-Color Light Strip [Interior Short] 2
18 3612370 Optical Goal Sensor 2
19 3612383 Puck Release Bay LED 2
20 3619007 Rail Sensor Chip (27mm) 2
21 3699001 6 Digit Counter (12V) 1
22 3699019 Power Switch 1
23 3203245 Access Door Hinge 396mm 2
24 3203264 Motor Door Hinge 594mm 1
25 3207466 Coin Panel 419mm 2
3Ref # Part # Description Qty
26 3207511
Aluminum PC Board Cradle 550mm 2
27 3207514 Side Impact Rail (1962mm) 2
28 3212021 Leg Bottom 0
29 3212075 Door Chain 410mm 2
30 3213349 Puck Terminal 0
31 3213365 Power Switch Box 1
32 3213486 Air Tray W/o intake 1
33 3213487 Air tray W/ Intake 1
34 3213492 Puck Chute 2
35 3213501 Rail Reinforcement Corner 4
36 3301288 Coin Chrome Door 4
37 3301292 Access Door Spacers 4
38 3301311 Interior Corner Part Attach 4
39 3301320 Corner Piece-327mm 4
40 3301347 Puck Release Bay with LED 2
41 3301352 Puck Terminal 2
42 3303637 Puck Slide 0
43 3303707 Side LED Cover (1962*33*4mm) 2
44 3303708 End LED Cover (425*33*4mm) 4
45 3399146 Hammer 0
46 3501053 Black Rubber trim 23
47 616030009 Face Plate Coin 2
48 616030028 Leg Lever 4
49 616030029 Leg 4
50 616030040 Goal Red 1
Ref # Part # Description Qty
51 616030041 Goal Green 1
52 3704009 Play Field Spray Polish 2
53 616030001 Deluxe Mallet Orange 4
54 616030002 Deluxe Mallet Blue 4
55 3399112 Barron Pucks 20
15

10
16
Ref # Part # Description Qty
1 3202001 Long lock Assembly #2868 3
2 3202004 Key #2868 3
3 3213082 Solenoid Bracket 4
4 3399107 Volume Control Knob 1
5 3601007 Power Cord 1
6 3601246 LED Interior Connector 31CM 2
7 3604056 Coin Mech HI-071CS 2
8 3605091 Solenoid DC12 2
9 3605076 PowerSupplyNES-100-12-+12V 1
10 3605012 PowerSupplyNES-100-5+5V 1
11 3607050 Air Blower 110V 1
12 3611010 Speaker 2
13 3612028 LED Light Control 2
14 3612277 H10416 Sound Board 1
15 3612363
LED Multi-Color Light Strip [Interior] 6
16 3612364
LED Multi-Color Light Strip [Goal Sides] 4
17 3612365
LED Multi-Color Light Strip [Interior Short] 2
18 3612370 Optical Goal Sensor 2
19 3612383 Puck Release Bay LED 2
20 3619007 Rail Sensor Chip (27mm) 2
21 3699001 6 Digit Counter (12V) 1
22 3699019 Power Switch 1
23 3203245 Access Door Hinge 396mm 2
24 3203264 Motor Door Hinge 594mm 1
25 3207466 Coin Panel 419mm 2
3Ref # Part # Description Qty
26 3207511
Aluminum PC Board Cradle 550mm 2
27 3207514 Side Impact Rail (1962mm) 2
28 3212021 Leg Bottom 0
29 3212075 Door Chain 410mm 2
30 3213349 Puck Terminal 0
31 3213365 Power Switch Box 1
32 3213486 Air Tray W/o intake 1
33 3213487 Air tray W/ Intake 1
34 3213492 Puck Chute 2
35 3213501 Rail Reinforcement Corner 4
36 3301288 Coin Chrome Door 4
37 3301292 Access Door Spacers 4
38 3301311 Interior Corner Part Attach 4
39 3301320 Corner Piece-327mm 4
40 3301347 Puck Release Bay with LED 2
41 3301352 Puck Terminal 2
42 3303637 Puck Slide 0
43 3303707 Side LED Cover (1962*33*4mm) 2
44 3303708 End LED Cover (425*33*4mm) 4
45 3399146 Hammer 0
46 3501053 Black Rubber trim 23
47 616030009 Face Plate Coin 2
48 616030028 Leg Lever 4
49 616030029 Leg 4
50 616030040 Goal Red 1
Ref # Part # Description Qty
51 616030041 Goal Green 1
52 3704009 Play Field Spray Polish 2
53 616030001 Deluxe Mallet Orange 4
54 616030002 Deluxe Mallet Blue 4
55 3399112 Barron Pucks 20
17

12
16
Ref # Part # Description Qty
1 3202001 Long lock Assembly #2868 3
2 3202004 Key #2868 3
3 3213082 Solenoid Bracket 4
4 3399107 Volume Control Knob 1
5 3601007 Power Cord 1
6 3601246 LED Interior Connector 31CM 2
7 3604056 Coin Mech HI-071CS 2
8 3605091 Solenoid DC12 2
9 3605076 PowerSupplyNES-100-12-+12V 1
10 3605012 PowerSupplyNES-100-5+5V 1
11 3607050 Air Blower 110V 1
12 3611010 Speaker 2
13 3612028 LED Light Control 2
14 3612277 H10416 Sound Board 1
15 3612363
LED Multi-Color Light Strip [Interior] 6
16 3612364
LED Multi-Color Light Strip [Goal Sides] 4
17 3612365
LED Multi-Color Light Strip [Interior Short] 2
18 3612370 Optical Goal Sensor 2
19 3612383 Puck Release Bay LED 2
20 3619007 Rail Sensor Chip (27mm) 2
21 3699001 6 Digit Counter (12V) 1
22 3699019 Power Switch 1
23 3203245 Access Door Hinge 396mm 2
24 3203264 Motor Door Hinge 594mm 1
25 3207466 Coin Panel 419mm 2
3Ref # Part # Description Qty
26 3207511
Aluminum PC Board Cradle 550mm 2
27 3207514 Side Impact Rail (1962mm) 2
28 3212021 Leg Bottom 0
29 3212075 Door Chain 410mm 2
30 3213349 Puck Terminal 0
31 3213365 Power Switch Box 1
32 3213486 Air Tray W/o intake 1
33 3213487 Air tray W/ Intake 1
34 3213492 Puck Chute 2
35 3213501 Rail Reinforcement Corner 4
36 3301288 Coin Chrome Door 4
37 3301292 Access Door Spacers 4
38 3301311 Interior Corner Part Attach 4
39 3301320 Corner Piece-327mm 4
40 3301347 Puck Release Bay with LED 2
41 3301352 Puck Terminal 2
42 3303637 Puck Slide 0
43 3303707 Side LED Cover (1962*33*4mm) 2
44 3303708 End LED Cover (425*33*4mm) 4
45 3399146 Hammer 0
46 3501053 Black Rubber trim 23
47 616030009 Face Plate Coin 2
48 616030028 Leg Lever 4
49 616030029 Leg 4
50 616030040 Goal Red 1
Ref # Part # Description Qty
51 616030041 Goal Green 1
52 3704009 Play Field Spray Polish 2
53 616030001 Deluxe Mallet Orange 4
54 616030002 Deluxe Mallet Blue 4
55 3399112 Barron Pucks 20
17

12
18
How to fix the goal gate.
If the gate is clicking, it is because the solenoid is not
catching in the Solenoid Capture hole. During shipment
and instillation the solenoid can bend inward toward gate.
This results in the solenoid not catching in the capture
hole. To remedy pull the solenoid and slightly bend the
bracket down, away from the gate until the solenoid is
completely in the capture area and stops the goal gate
from “clicking”. The clicking noise is the sensor switch not
getting the information to “lock” by the solenoid.
Instructions:
1) Remove gate from table
2) Bend bracket down
3) Ensure proper alignment between solenoid and
solenoid capture hole.
4) Test unit.
SolenoidMoving
Goal Gate
Solenoid Capture

For Parts and Technical
Service please contact
BARRON GAMES.
BARRON GAMES
84 Aero Drive
Suite 4
Buffalo, NY 14225
United States
Phone: [phone]
Fax: [phone]
www.barrongames.com
14
18
