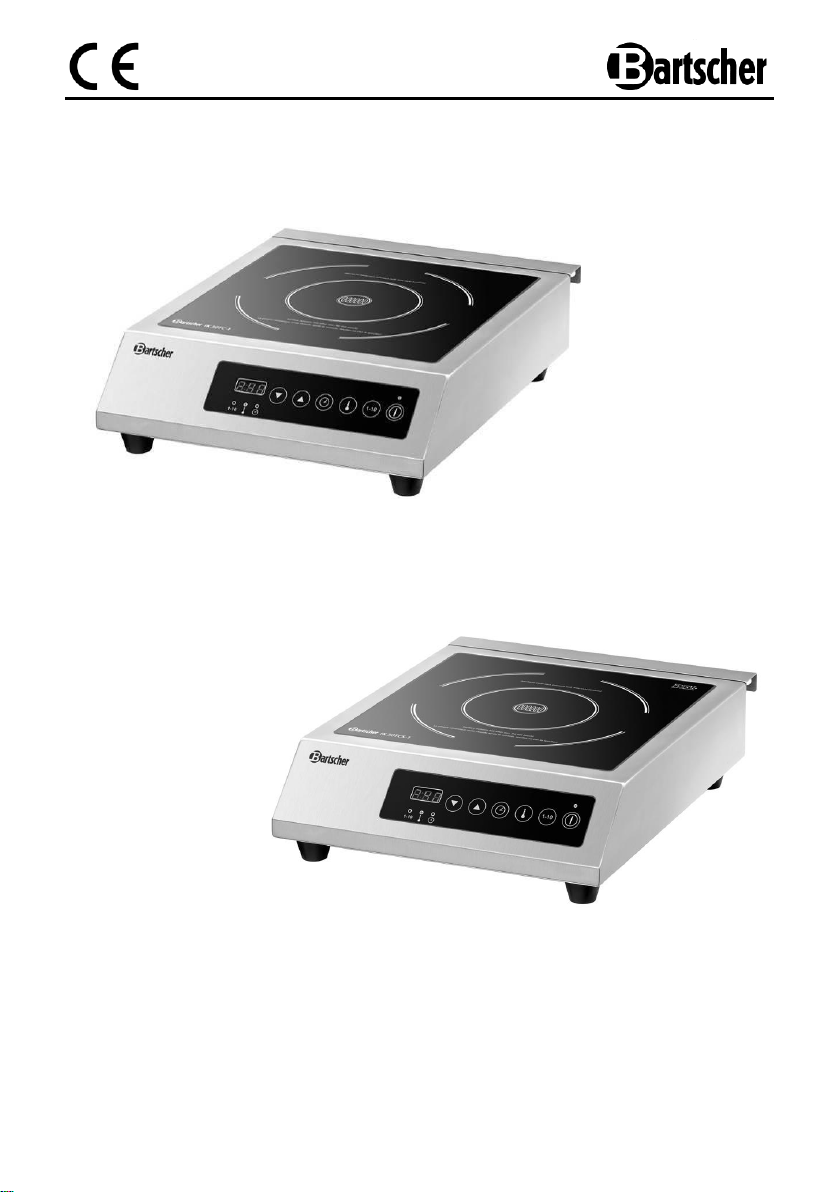

Bartscher IK 30TC-1 User manual

IK 30TC-1 / 105991
IK 30TCS-1 / 105991S
Original-Gebrauchsanleitung
V1/0718

- 23 -
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 24
1.1 Key to symbols..................................................................................................... 24
1.2 Safety instructions................................................................................................ 25
1.3 Intended use......................................................................................................... 30
2. General information................................................................................................ 31
2.1 Liability and Warrantees....................................................................................... 31
2.2 Copyright protection ............................................................................................. 31
2.3 Declaration of conformity...................................................................................... 31
3. Transport, packaging and storage......................................................................... 32
3.1 Delivery check...................................................................................................... 32
3.2 Packaging............................................................................................................. 32
3.3 Storage................................................................................................................. 32
4. Technical data ......................................................................................................... 33
4.1 Technical data...................................................................................................... 33
4.2 Overview of parts ................................................................................................. 34
5. Installation ............................................................................................................... 35
5.1 Positioning............................................................................................................ 35
5.2 Electric connection ............................................................................................... 35
6. Operation................................................................................................................. 36
6.1 Functionality of induction cookers ........................................................................ 36
6.2 Suitable and unsuitable cookware........................................................................ 37
6.3 Operation.............................................................................................................. 38
7. Cleaning................................................................................................................... 42
8. Possible malfunctions ............................................................................................ 43
9. Waste disposal........................................................................................................ 44
Bartscher GmbH phone: [phone]
Franz-Kleine-Str. 28 fax: [phone]
33154 Salzkotten Service-Hotline: [phone]
Germany www.bartscher.com
GB/UK

- 24 -
Read these instructions before using and keep
them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety cControls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions in this
manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
DANGER!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.

- 25 -
HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
CAUTION! Magnetic field!
This symbol informs that the magnetic fields occurring during the device
operation may cause interference.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions
The device is not intended for use by individuals (including
children) with physical or mental disabilities, insufficient
experience, and/or insufficient knowledge unless such persons
are under the care of a person responsible for their safety or
have received instructions regarding appropriate use of the
device.
Children should be observed to ensure that they are not playing
with or starting the device.
Never leave the device unattended when in use.
Only use the device indoors.
The device is not designed for use with an external timer or
remote control.

- 26 -
The device must be operated in correct and safe technical
condition only. In case of operational problems disconnect the
device from the power supply and contact the service company.
Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions
below.
Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step on
or trip over the cable.
The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
Do not cover the cable. Keep away the cable from operating
range.

- 27 -
Check the power cord regularly for damage. Do not use the
appliance if the power cord is damaged. If this cable is damaged,
it must be replaced by customer service or a qualified electrician
in order to avoid dangers.
The supply cable must be disconnected from the socket
only by pulling the plug.
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
Never immerse the appliance, the power cord and the power
plug in water or other liquids.
Do not use any acid agents and make sure no water ingresses
the device.
Never operate the device with moist hands or standing on wet
floor.
Remove the plug from its socket:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
HOT SURFACE! Burn hazard!
To avoid the hazard results please follow the instructions below.
During the operation the cooking surface becomes very hot.
Keep in mind, that the induction cooker itself does not produce
any heat during cooking. However, the heat from the pan will
leave the cooking surface hot! After use the surface is hot.
Do not touch!

- 28 -
Do not place any metal kitchen utensils, pot covers, frying pans,
knives, or other metal objects on the cooking field. After the
device activation they may become very hot.
Keep in mind that the objects like rings, watches, etc. may
become hot in the vicinity of the cooking surface.
Do avoid overheating do not place the aliminium foil or metal
plates on the surface of the device.
WARNING! Fire hazard!
To avoid the hazard results please follow the instructions below.
Avoid prolonged heating of oils and fats! The overheated oil or
fat may quickly ignite. In case of ignition on the cooking field
deactivate the device and cover the flame with large pot cover,
plate, or moistened cloth.
Never use water for extinguishing!
After covering the flame wait for the cooking pots to cool down
and assure appropriate amount of fresh air.
WARNING! Explosion hazard!
To avoid the hazard results please follow the instructions below.
Do not place any flammable plastic containers or acidic and
basic materials near the device as it may limit its life and cause
deflagration during the activation.

- 29 -
Do not heat closed containers, e.g. canned food, on the
induction cooking field. The containers or cans may explode
(crack) due to overpressure. Open the can and place it in the
pot with some water heated on the cooking field.
CAUTION! Electromagnetic field hazard!
To avoid the hazard results please follow the instructions below.
The magnetic objects, like credic cards, data storage devices,
or calculators, must not be placed in the direct vicinity of the
operating device. Their operation may be disturbed by the
magnetic field.
Do not open the lower cover!
Make sure that the cooking pots are placed in the centre of the
work field to cover the electromagnetic field in the best possible
range.
The scientific research confirm that the induction cookers are not
dangerous. But persons with the artificial pacemakers should
keep the distance of min. 60 cm from the operating device.
CAUTION!
In order to avoid any damages of the device follow the
instructions below.
Do not use any sharp objects or abrasive agents for cleaning
the surfaces.
The device should not be used as a shelf or for storage of
empty kitchenware.

- 30 -
The cooking surface is made from glass resistant to high
temperature. In case of damages or small cracks disconnect the
device from the power supply immediately and contact the
service.
1.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The device is not suitable for continuous commercial use.
The device is intended for home use or in similar places such as:
in stores, offices or similar places of work;
in agricultural holdings;
for customers in hotels, motels and similar dwellings;
in Bed & Breakfast facilities.
The induction cooker is designed only for preparing and heating food while
using the appropriate cookware.
Do not use the induction cooker, among other things, for:
-heating and warming flammable, harmful, volatile or
similar liquids or materials.
CAUTION!
Any use going beyond the intended purpose and/or any different use
of the device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as
a consequence of experiencing damages resulting from unconventional
use are impossible.
The operator is liable for all damages resulting from inappropriate use.

- 31 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 32 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
If you liked to dispose the packing, consider the regulations applicable
in your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-do not store outdoors,
-keep it dry and dust-free,
-do not expose it to aggressive media,
-do not expose it to direct sunlight,
-avoid mechanical shocks and vibration,
-in case of longer storage (> 3 months) make sure you check the state
of the packaging and the parts regularly, if required refresh or renew.

- 33 -
4. Technical data
4.1 Technical data
Name
Induction cooker
Code-No. / type:
105991 / IK30TC-1
105991S / IK30TCS-1
Material:
Stainless steel
Material hob
Glass
SCHOTT CERAN®
Colour:
Silver/black
Model:
The connection of the device: ready to connect
Hob:
-Number: 1
-Type: induction
-Diameter: 230 mm
-Output hob max.: 3000 W
Control:
-Electronic
-Touch
-Regulation of: power, temperature, time
Digital display
Timer
Pot recognition
ON/OFF switch
Indicator lights: ON/OFF, power, temperature, time
Overheating protection
Grease filter
Power level:
10
Temperature levels /
Temperature range:
10 / 60 °C - 240 °C, intervals: 20 °C
Time setting:
1 to 180 minutes, intervals: 1 min. / 10 min.
Power:
3 kW / 230 V 50 Hz
Dimensions:
Device: W 325 x D 420 x H 105 mm
Glass hob: W 275 x D 275 mm
Weight:
5.55 kg
We reserve the right to make technical changes!

- 34 -

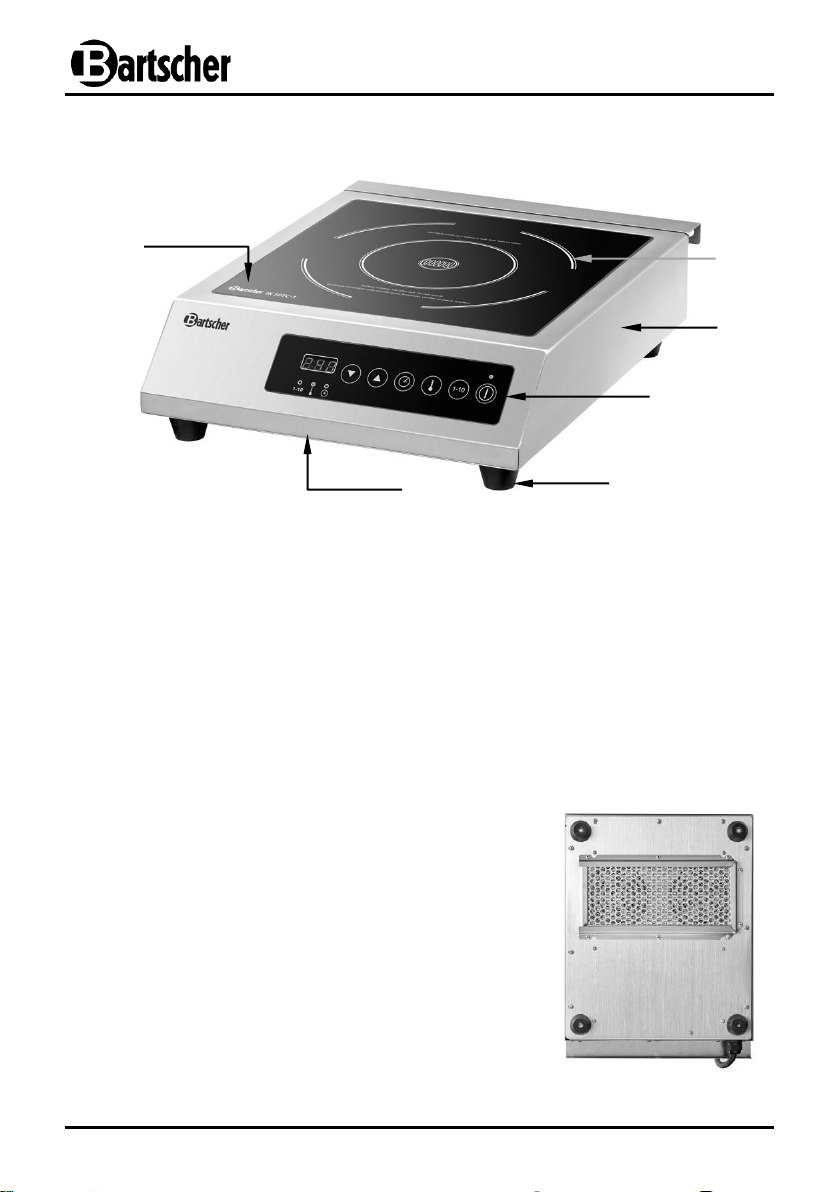

4.2 Overview of parts
1
Heating plate
2
Hob
3
Body
4
Touch control panel
5
Feet (4)
6
Grease filter
Grease filter
The induction cooker is provided with a grease
filter. It is located at the bottom of the device.
The grease filter is to protect the body from dirt and
grease sucked by the fan together with the air.
The grease filter is easily detachable and
dishwasher safe.
The device should be always provided with
the grease filter when in operation.
3
5
2
1
6
4

- 35 -
5. Installation
5.1 Positioning
Unpack the device and remove all package materials according to the valid
environment protection regulations.
CAUTION!
Never remove the rating plate and any warning signs from the device.
Place the device on top of an even, stable, dry, and water-resistant surface which
supports the weight of the device and is not heat sensitive.
Never place the device on a flammable surface.
Do not place the device near an open flame, electric oven or other source of heat.
Do not block or cover the ventilation ducts that allow for air to circulate around the
device. Doing so may lead to overheating of the device.
Keep a distance of at least 5 –10 cm from flammable walls and other objects.
Never place the device in humid or wet environment.
Do not place the induction plate near other equipment and objects sensitive to
magnetic fields (e.g. radio, television, etc.).
Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
5.2 Electric connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation the local power grid specification
should be compared with that of the device (see type label).
Connect the device only in case of compliance!
The power supply circuit with the socket must be protected by the fuse of at least 16A.
Connect the device directly to a single grounded socket. Do not use any power bar or
multiple socket.

- 36 -
6. Operation
6.1 Functionality of induction cookers
With induction cooker, an electric voltage is applied on a conductor spool beneath the
glass. This creates magnetic fields, which directly heat up the bottom of the cookware
through a physical effect.
This means saving time and energy, because contrary to common hotplates, the
cookware is heated up, not the heating element and the glass.
Due to the technical characteristics described above, another advantage is the very
short start-up cooking time.
In addition, the heat supply promptly adapts to changed settings and can be controlled in
small steps. The induction cooker reacts to changed settings just as fast as a gas stove,
as the energy reaches the pot immediately without having to heat up other materials first.
The induction technology combines this fast reaction with the basic advantage of
electricity, meaning being able to exactly adjust the heat supply.
Additional advantages of an induction cooker:
As the cooking zone is only heated up indirectly via the bottom of the cookware,
over spilling food cannot stick. The glass cooking zone is only heated up by the
hot cookware.
If the device is turned on and no dish for cooking is present or is removed, a repeating
audio signal will sound and the device will turn itself off after approx. 30 seconds.
The device will detect if the appropriate cookware is placed on the heating plate.
If the cookware is not appropriate for induction hotplates, energy will not flow.
The device will turn off after approx. 30 seconds.
When operating the cooking zone with empty cookware, a temperature sensor turns
it off automatically.

- 37 -

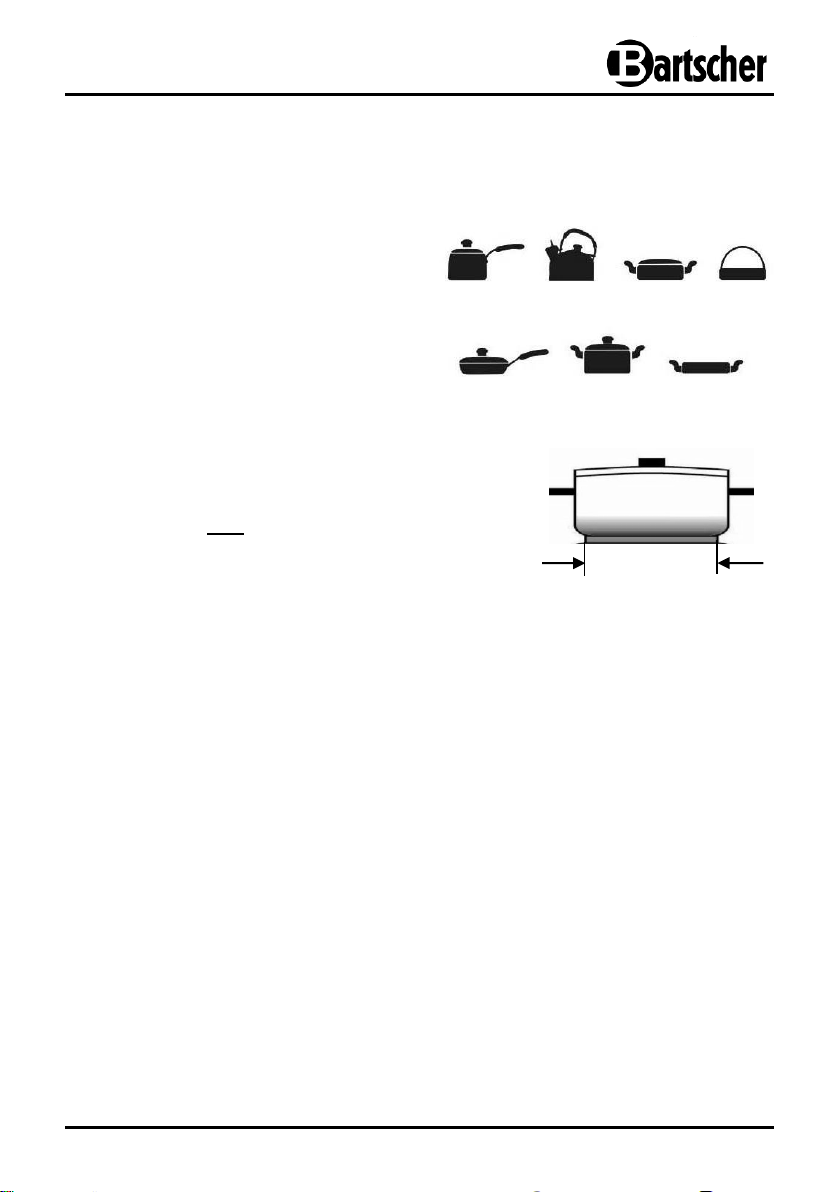

6.2 Suitable and unsuitable cookware
Suitable cookware
oIron cookware;
oEnameled iron cookware;
oSteel or enameled iron pots / pans;
oCast iron pots / pans;
oStainless steel 18/0 and aluminum
cookware, if they are marked as
suitable for induction cookers (pay
attention to the description of the
cookware).
Due to the particular nature of the induction field,
the cookware must have a plane magnetic bottom
(a magnet must stick to it).
We recommend only pots/pans with the bottom
diameter between 12 cm and 26 cm for better
results.
e.g.
Bartscher Induction cookware, 9-piece cooking pot set
chromium-nickel steel ● edge suitable for pouring ● cold handles
4 pots with lid 1 pan
2.0 litres ● Ø 16 cm ● height 10.0 cm 2.8 litres ● Ø 24 cm ● height 6.5 cm
2.7 litres ● Ø 18 cm ● height 11.0 cm
5.1 litres ● Ø 24 cm ● height 11.5 cm
6.1 litres ● Ø 20 cm ● height 20.0 cm
Code-No.: A130442
>12 cm

- 38 -
Unsuitable cookware
oCookware with a convex bottom;
oAluminium, bronze or copper
cookware. The exception is
cookware clearly labeled as
suitable for induction cookers;
oPots / pans with a diameter less
than 12 cm;
oCookware with feet;
oCeramic cookware;
oGlass cookware.
CAUTION!
Please use only the cookware marked suitable for induction cooker.
If the induction hotplate detects too great a separation from the magnetizing
container, it will cause a reduction in power. This may cause the overheating
prevention device to malfunction. For this reason, do not use aluminum, bronze
or non-metallic containers.
6.3 Operation
Before the first use, thoroughly clean the device according to the instructions in
section 7 “Cleaning”.
Place the appropriate cookware with food in the middle of the hob.
CAUTION!
Never place empty pans on the hob.
Warming up an empty pot or frying pan activates the overheating protection
system; an error acoustic signal sounds and the device turns off. The digital
display shows “E2”.
Remove the cookware from the hob and leave the device for a few minutes to
cool down. Then, you may start using the device again as usual.

- 39 -

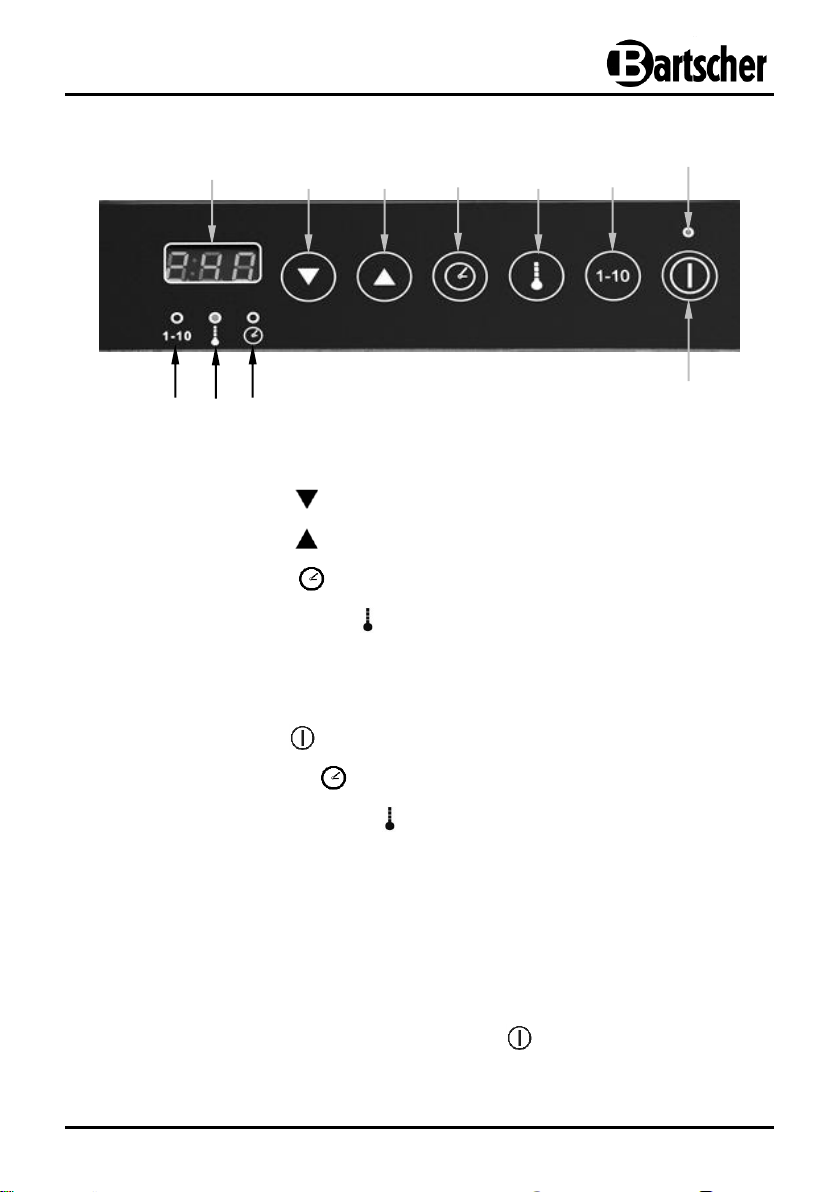

Touch control panel
1
Digital display
2
Selection button : Time, temperature or output level can be reduced
3
Selection button : Time, temperature or output level can be increased
4
Time setting key
5
Temperature setting key
6
Power level button 1 - 10
7
ON /Standby LED indicator
8
ON/OFF button
9
Time LED indicator
10
Temperature LED indicator
11
Power level LED indicator 1 - 10
Device start-up
Connect the device to a single grounded socket.
An audio signal sounds and the ON / Standby LED indicator light starts blinking.
The device is now in STANDBY mode.
To switch the device on, press the ON/OFF button. .
2
3
5
6
1
7
2
10
4
4
9
11
4
8

- 40 -
Settings
Power
When the ON/OFF button has been pressed the power level LED indicator is on.
The control panel shows the the power level default setting “5“ and the device starts.
The ON/Standby LED incidator stays lit at all times.
NOTE!
Unless within 30 seconds following pressing the ON/OFF button new
settings are introduced, the device automatically returns to the Standby mode.
By the selection button or you can modify the settings at any time in the
range 1 - 10 (500 –3000 W).
Power level 1 refers to 500 W value and power level 10 to 3000 W value.
The digital display shows the selected power level and the LED indicator is on 1 - 10.
Temperature
Press the button to set the temperature.
The digital display shows the temperature “120 °C“ default setting and the device
starts.
By the selection button or you can modify the setting at any time in the
range 60 °C to 240 °C. The following temperature settings are possible:
60, 80, 100, 120, 140, 160, 180, 200, 220 and 240 °C
The digital display shows the selected temperature level and the temperature
LED indicator is on.
The device heats up the foods in the cookware and then maintains the set
temperature. The output level is then controlled automatically.
NOTE!
When the device is on without the pan or the pan is removed from the hob
during operation, the repetitive acoustic signal sounds and the device
switches off after approx. 30 seconds.
The digital display shows “E0”.

- 41 -
Time
When the operation mode (power level or temperature level) has been selected,
you can set the cooking time. Press the button to set the time.
The digital display shows “0“ and the time setting LED indicator is on.
By the selection button or you can set the operation time in the range
1 - 30 minutes with 1-minute intervals or in the range 30 –180 minutes with 10-
minute intervals.
The selected time of operation is counted down in 1-minute intervals and the digital
display returns to the previous indications (the power level or temperature is shown).
To verify the cooking time left, press again the button .
NOTE!
When the timer is on you can modify the cooking time setting at any time by
using the selection button or . The device memory function let the set
output or temperature stay unchanged. The same way the power level or
temperature level may be modified without changing the set time.
When the set time elapses the acoustic signal sounds and the device automatically
switches to Standby mode.
When the device has been switched off, the cooling fans will continue working for
some time and then they will switch off.
In order to stop the timer before the set time has expired, press ON/OFF button .
Press the button again to restart the device.
When the cooking or heat maintaining process has been finished the device should
be disconnected from the socket (unplug!).
NOTE!
The induction cooker switches off automaticallywhen within 2 hours no new
setting has been introduced.
