Bartscher Saladette 900T2 Operation instructions

Original-Gebrauchsanleitung
V3/0817
200256
200257
200258
200270
200275

- 27 -
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 28
1.1 Key to symbols..................................................................................................... 28
1.2 Safety instructions................................................................................................ 29
1.3 Proper use............................................................................................................ 33
2. General information................................................................................................ 34
2.1 Liability and Warrantees....................................................................................... 34
2.2 Copyright protection ............................................................................................. 34
2.3 Declaration of conformity...................................................................................... 34
3. Transport, packaging and storage......................................................................... 35
3.1 Delivery check...................................................................................................... 35
3.2 Packaging............................................................................................................. 35
3.3 Storage................................................................................................................. 35
4. Technical data ......................................................................................................... 36

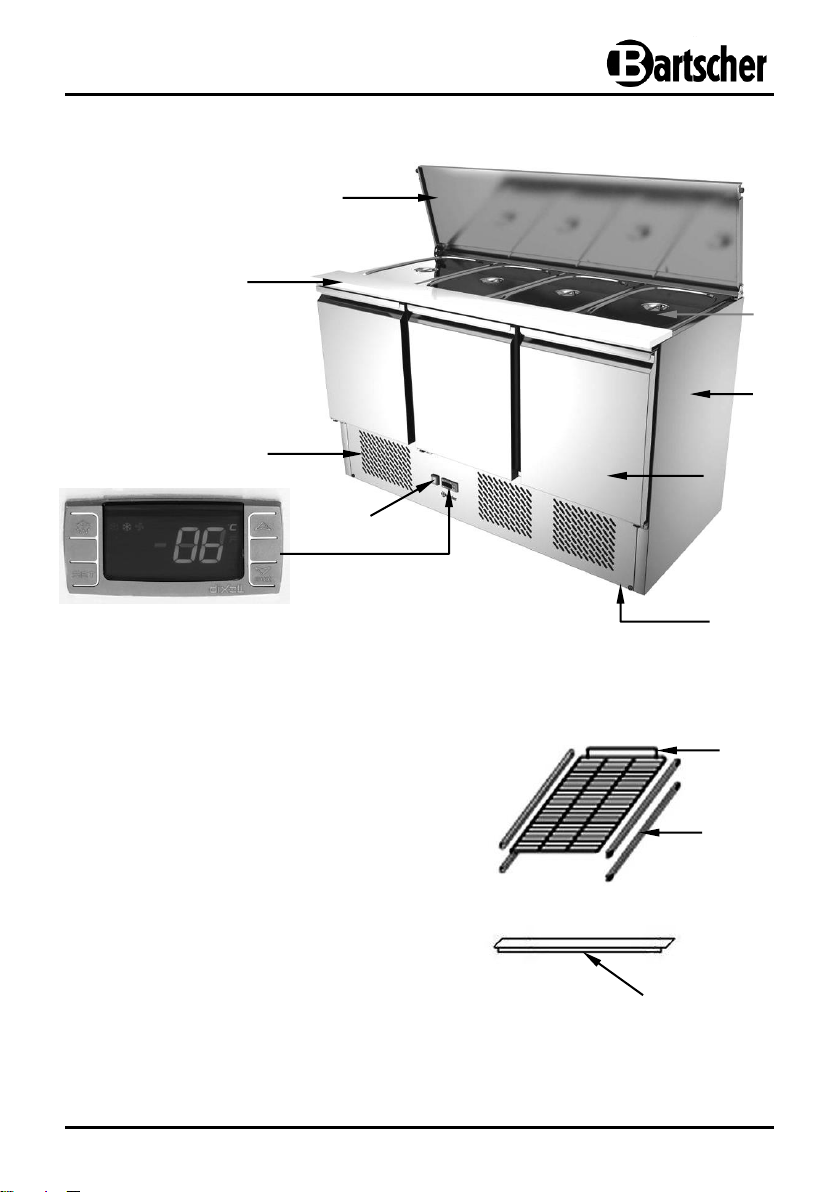

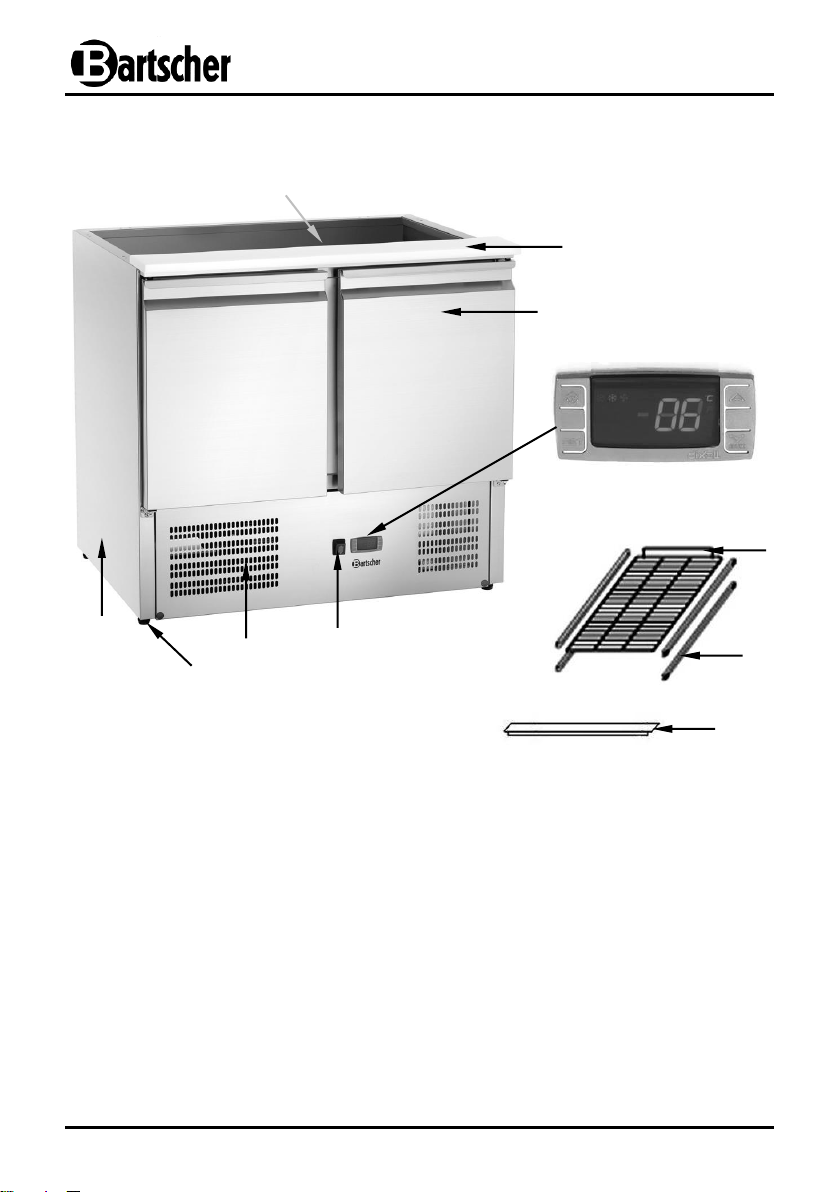

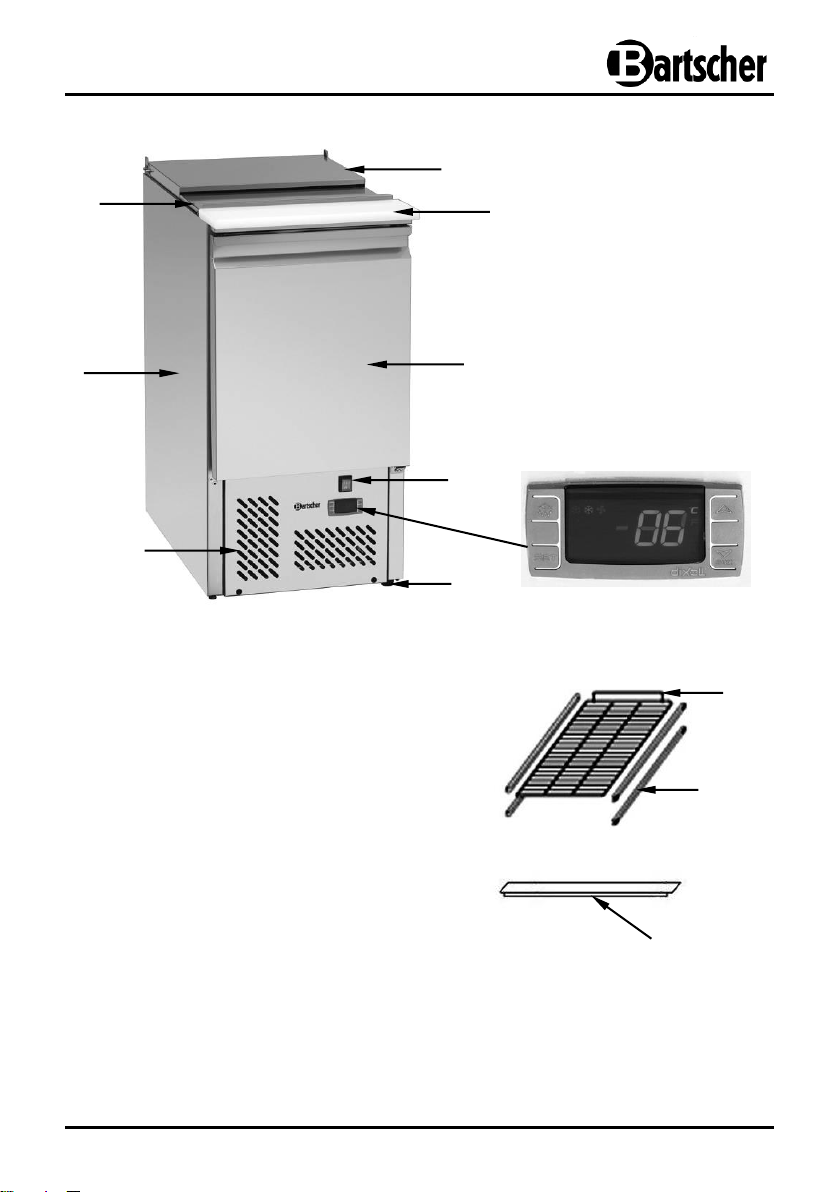

4.1 Overview of parts ................................................................................................. 36
4.2 Technical specification ......................................................................................... 41
5. Installation and operation....................................................................................... 43
5.1 Positioning and connection................................................................................... 43
5.2 Operation.............................................................................................................. 45
6. Cleaning and maintenance..................................................................................... 49
7. Possible Malfunctions ............................................................................................ 51
8. Waste disposal........................................................................................................ 52
Bartscher GmbH
Franz-Kleine-Str. 28
33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 28 -
Read these instructions before using and keep
them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions in this
manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
DANGER!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.

- 29 -
HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions
The device is not intended for use by individuals (including
children) with physical or mental disabilities, insufficient
experience, and/or insufficient knowledge unless such persons
are under the care of a person responsible for their safety or
have received instructions regarding appropriate use of the
device.
Children should be observed to ensure that they are not playing
with or starting the device.
Only use the device indoors.
The device must be operated in correct and safe technical
condition only. In case of operational problems disconnect the
device from the power supply (pull the plug from the socket) and
contact the service company.

- 30 -
Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions
below.
Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step on
or trip over the cable.
The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
Do not cover the cable. Keep away the cable from operating
range and do not immerse it into water.

- 31 -
Check the power cord regularly for damage. Do not use the
device if the power cord is damaged. If this cable is damaged, it
must be replaced by customer service or a qualified electrician in
order to avoid dangers.
The supply cable must be disconnected from the socket
only by pulling the plug.
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
Do not use any acid agents and make sure no water ingresses
the device.
Never operate the device with moist hands or standing on wet
floor.
Remove the plug from its socket:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
HOT SURFACE! Burn hazard!
To avoid the hazard results please follow the safety instructions
below.
During normal use, the condenser and compressor surfaces
may be hot. To avoid burning your palm or hands, do not touch
them with your bare hands. Wear protective gloves!

- 32 -
WARNING! Fire or explosion hazard!
To avoid the hazard results please follow the safety instructions
below.
Do not store the flammable or explosive substances in the
device, like ether, kerosene, or glues.
Do not clean the device with use of flammable liquids.
The released vapours may cause fire or explosion.
Do not store gasoline or other flammable substances in the
vicinity of the device. The vapours may cause fire or explosion.
Do not store the explosive objects in the device, like cans
with explosive work substances.
Do not allow for the cooling circuit damages.

- 33 -
1.3 Proper use
CAUTION!
The device has been designed and constructed only for commercial use
and should be operated by qualified personnel of restaurants, cafeterias
and similar facilities.
The operational safety of the device is assured only in case of proper use, according to
the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The saladette is intended only for cooling, preparing and disturbing salads, fruits
and cold meals.
Do not use the saladette for any of the following:
-storing of the flammable or explosive substances in the device, like ether,
kerosene, or glues;
-storing of pharmaceutical products or preserved blood.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.

- 34 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 35 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
If you liked to dispose the packing, consider the regulations applicable
in your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-do not store outdoors,
-keep it dry and dust-free,
-do not expose it to aggressive media,
-do not expose it to direct sunlight,
-avoid mechanical shocks and vibration,
-in case of longer storage (> 3 months) make sure you check the state
of the packaging and the parts regularly, if required refresh or renew.

- 36 -
4. Technical data
4.1 Overview of parts
200256
1
Cooling basin cover
2
Cooling basin
3
Cutting board
4
Housing
5
Door (2)
6
Digital temperature controller
7
ON/OFF switch with power indicator
8
Ventilation ducts
9
Feet (4)
10
Grid–shelf (2)
11
Rails for grid –shelf
12
Adapter bars for GN containers (8)
8
7
4
1
2
12
6
3
5
9
10
11

- 37 -
200257
1
Cooling basin cover
2
Cooling basin
3
Cutting board
4
Housing
5
Door (3)
6
Digital temperature controller
7
ON/OFF switch with power indicator
8
Ventilation ducts
9
Feet (4)
10
Grid–shelf (3)
11
Rails for grid –shelf
12
Adapter bars for GN containers (10)
5
2
1
3
4
6
7
8
9
10
12
11

- 38 -
200258
1
Cooling top
2
Cooling basin
3
Granite worktop
4
Housing
5
Door (2)
6
Digital temperature controller
7
ON/OFF switch with power indicator
8
Ventilation ducts
9
Feet (4)
10
Grid–shelf (2)
11
Rails for grid –shelf
12
Adapter bars for GN containers (4)
5
3
1
2
4
6
7
8
9
10
12
11

- 39 -
200270
1
Sliding part of the cover
of GN-containers basin
2
Tilting part of the cover
of GN-containers basin
3
Cutting board
4
Door
5
ON/OFF switch with power indicator
6
Digital temperature controller
7
Feet (4)
8
Ventilation ducts
9
Housing
10
Grid–shelf (1)
11
Rails for grid –shelf
12
Adapter bars for GN containers (2)
4
1
2
3
10
5
6
9
8
12
7
11

- 40 -
200275
1
GN container area
7
Feet (4)
2
Cutting board
8
Housing
3
Door (2)
9
Grid–shelf (2)
4
Digital temperature controller
10
Rails for grid –shelf
5
ON/OFF switch with power indicator
11
Adapter bars for GN containers (8)
6
Ventilation ducts
5
3
2
4
6
7
10
11
9
8
1

- 41 -
4.2 Technical specification
Name
Saladette 900T2
Code-No.:
200256
Design:
for 2 x 1/1 GN and 3 x 1/6 GN (or 6x 1/3 and 3x 1/6),
GN containers 150 mm deep ***
2 doors
circulating air cooling
electronic control
condensation water evaporation
with foamed evaporator
Material:
housing: chrome-nickel steel, cutting board: polyethylene
Capacity:
260 litres
Power:
0.204 kW / 220-240 V 50 Hz
Temperature range:
0 °C - 10 °C
Coolant:
R134a
Dimensions:
W 900 x D 700 x H 870 mm
Weight:
61.6 kg
Accessories:
2 adaptor bars: length 326 mm, width 25 mm;
2 adaptor bars: length 535 mm, width 35 mm;
4 adaptor bars: length 174 mm, width 25 mm
Name
Saladette 1365T3
Code-No.:
200257
Design:
for 4 x 1/1 GN or 2x 1/1 and 4x 1/2,
GN containers 150 mm deep ***
3 doors
circulating air cooling
electronic control
condensation water evaporation
with foamed evaporator
Material:
housing: chrome-nickel steel; cutting board: polyethylene
Capacity:
390 litres
Power:
0.321 kW / 220-240 V 50 Hz
Temperature range:
0 °C - 10 °C
Coolant:
R134a
Dimensions:
W 1365 x D 700 x H 870 mm
Weight:
87.2 kg
Accessories:
3 adaptor bars: length 326 mm, width 25 mm;
3 adaptor bars: length 535 mm, width 35 mm;
4 adaptor bars: length 174 mm, width 25 mm

- 42 -
Name
Pizza Saladette 900T2
Code-No.:
200258
Design:
cooling top for 5 x 1/6 GN (or 2 x 1/3 GN and 1 x 1/6 GN,
GN containers 150 mm deep ***
2 doors
circulating air cooling
electronic control
condensation water evaporation
with foamed evaporator
Material:
chrome-nickel steel with granite worktop
Capacity:
260 litres
Power:
0.204 kW / 220-240 V 50 Hz
Temperature range:
0 °C - 10 °C
Coolant:
R134a
Dimensions:
W 900 x D 700 x H 1080 mm
Weight:
90.0 kg
Accessories:
4 adaptor bars: length 174 mm, width 25 mm
Name
Saladette 438T1
Code-No.:
200270
Design:
1 doors, possibility to change hinge side
circulating air cooling
electronic control
condensation water evaporation
with foamed evaporator
Material:
housing: chrome-nickel steel; cutting board: polyethylene
Power:
0,23 kW / 230-240 V 50 Hz
Temperature range:
0 °C –10 °C
Coolant:
R134a / 150 g
Capacity:
140 litres
Dimensions:
W 438 x D 700 x H 882 mm
Weight:
43.0 kg
Accessories:
2 adaptor bars: length 535 mm, width 35 mm;
1 shelf - 1/1 GN, W 335 x D 570 mm

- 43 -
Name
Saladette 900T2 +GL
Code-No.:
200275
Design:
for 3x 1/6 GN and 2 x 1/1 GN,
GN containers 150 mm deep ***
2 doors
circulating air cooling
electronic control
condensation water evaporation
with foamed evaporator
Material:
housing: chrome-nickel steel; cutting board: polyethylene
Power:
0.187 kW / 230 V 50 Hz
Temperature range:
0 °C –10 °C
Coolant:
R134a / 200 g
Capacity:
250 litres
Dimensions:
W 900 x D 700 x H 850 mm
Weight:
57.0 kg
Accessories:
2 grid –shelves 1/1 GN, stainless steel;
2 adaptor bar: length 326 mm, width 25 mm;
2 adaptor bars: length 535 mm, width 35 mm;
4 adaptor bars: length 174 mm, width 25 mm
We reserve the right to make technical changes! ***Delivery without GN containers!
5. Installation and operation
5.1 Positioning and connection
CAUTION!
The installation and connection of the device should be made only by
qualified specialist establishment.
Positioning
Unpack the device and remove any packing material.
Place the device on a firm, dry, level and waterproof surface adapted to the impact of
high temperatures and sufficient load-bearing capacity for the weight of the device
including the entire contents.
Never place the device on flammable surfaces.

- 44 -
Do not place the device in the vicinity of an open flame, electric ovens, heating
stoves or other heat sources, such as direct sunlight. High temperatures may
adversely affect cooling performance and power consumption.
The device should be set so that there is an adequate supply of air circulation. Keep
a 10 cm clearance on the sides and rear, and 30 cm from the ceiling or cabinets.
Never cover and do not block ventilation openings.
Do not place the device in places where there is high humidity. Too much moisture
can cause damage to the device. The optimum operating conditions at the set device
is achieved at ambient temperatures between 10 ° C and 30 ° C and relative humidity
between 30-55%.
In order to avoid damage to the legs or other equipment, in the case of moving,
lift the device (eg. by forklift).
Place the device so that the plug is easily accessible in order to quickly
disconnect the device from the power supply if need arises.
After placing the device in the intended place, level it by tightening or loosing the feet.
Remove the protection foil from the device before the first use.
CAUTION!
Never remove the rating plate and any warning signs from the device.
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid
specification should be compared with that of the device
(see rating plate). Connect the device only in case of
compliance!
If during transport the device was placed horizontally, the connection may
occur only after a period of 2 hours (built-in condensing unit).
After a power failure or if the plug is removed, the device should not be
connected to the power supply for at least 5 minutes.
The power supply circuit with the socket must be protected by the fuse of at least 16A.
Connect the device directly to a single grounded socket. Do not use any power bar or
multiple socket.

- 45 -
5.2 Operation
Before first use
Before the initial start-up, clean the saladette. Follow the instructions in section 6
„Cleaning and maintenance“.
Plug the device to the single, grounded socket.
Turn the device with ON/OFF power switch located on the front panel of the device.
The green power indicator in the switch will come on. The digital display will show the
current temperature inside the device.
Before first use and placing any food products in the saladette, or the cooling top,
the device should reach the required temperature.

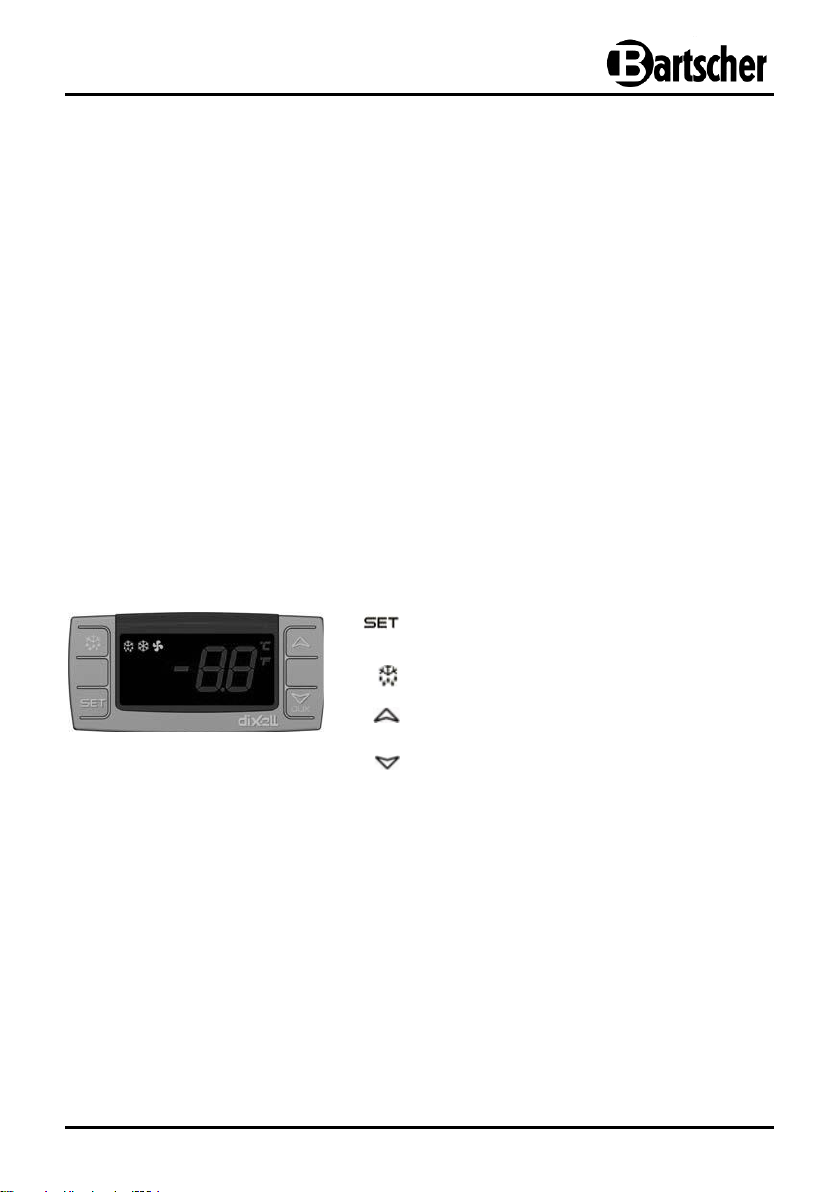

Digital temperature control
Basic settings of the temperature are pre-set and reflect the operating temperature in
the range of 0 °C –10 °C inside of the device. During normal operation of the device the
digital display indicates the current temperature inside of the device.
Button
Functions
Display a required value, select parameters
in programming mode or save the procedure
Manual start of defrost
In programming mode, select a parameter
code, increase the displayed value
AUX
In programming mode, select a parameter
code, decrease the displayed value
