Bathology Spectrum 441 User manual

BATHOLOGY
Spectrum 441
Sauna White Light System
Installation and Operation Manual
rediscover bathing

2
Spectrum 441
Contents
Installation Considerations ---------------------------------------------
Installation ---------------------------------------------------------------
Product Care -------------------------------------------------------------
Specifications ------------------------------------------------------------
Replacement Parts -------------------------------------------------------
Notes ---------------------------------------------------------------------
3
4
9
10
10
11

3
BATHOLOGY
by
Carefully review all
installation options and instructions
before proceeding.
For safety purposes, use
safety goggles at all times.
Do not hot swap any
electrical components. This will void
the warranty, and likely cause the
product to fail. Fully disconnect the
system from its power source before
swapping any electrical components.
Check for piping /
electrical before cutting or drilling.
Some electrical
components are not waterproof.
If there is any risk of
uninsulated electrical connections in
your wall / ceiling area, use insulating
gloves.
The splitters should be
kept in an accessible location when
installed. Only use the splitters
provided when assembling the
Brilliance light fixtures and components
of this kit.
The Spectrum 441 Sauna
White Light System can be controlled
by the use of a light switch provided by
others. NEVER place a switch where it
can be reached from a tub or shower.
All wiring must be done in
accordance with National Electric Code
and local building code.
The Spectrum 441 White
Light System should be installed by a
licensed, qualified electrician.
Consider light placement
carefully. The fixture(s) for this system
should be placed to avoid direct contact
with the bather’s eyes.
Splitters should be kept in
a dry accessible location when installed.
Only use the splitters provided when
assembly brilliance light fixtures and
components of this kit.
Both “OUT” ports of a
splitter must be used. An open splitter
connection will prevent the lights from
turning on. Fully disconnet the power
supply of this system from its power
source before changing any lights.

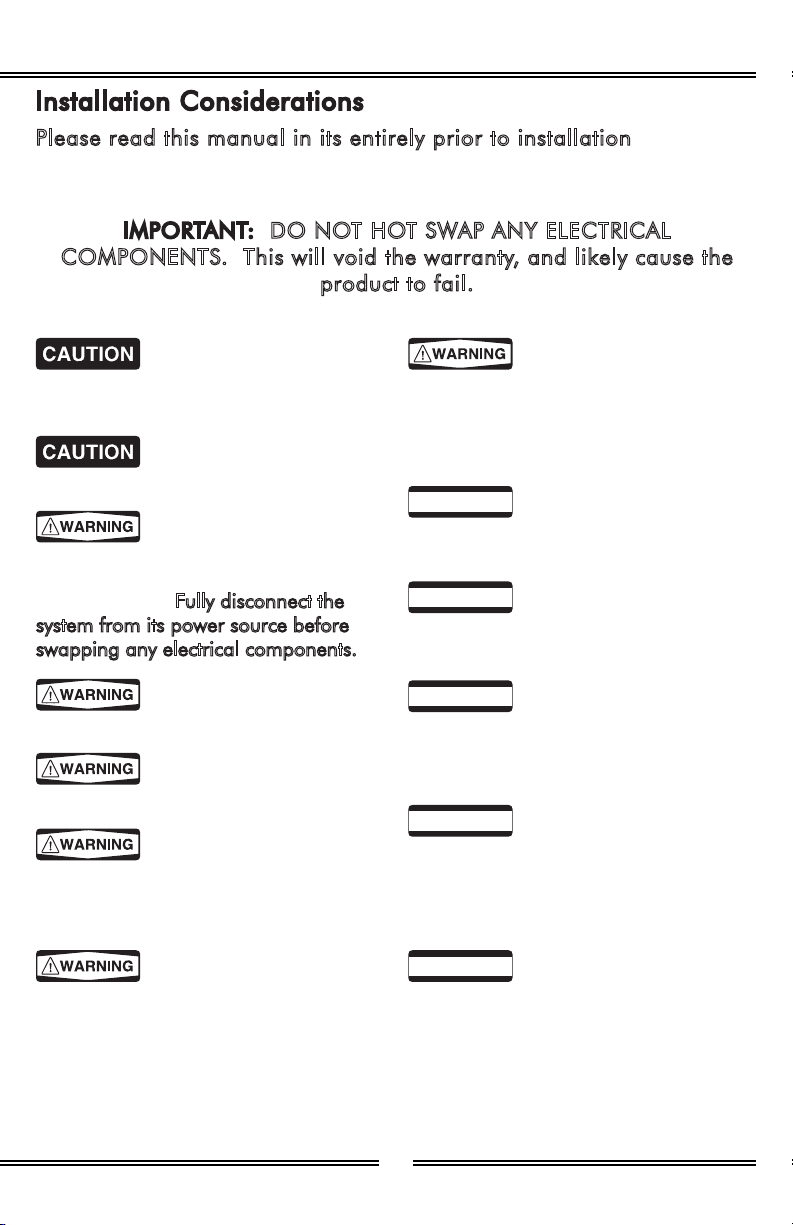

Installation Considerations
Please read this manual in its entirely prior to installation
! IMPORTANT
! IMPORTANT
! IMPORTANT
! IMPORTANT
! IMPORTANT
IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL
COMPONENTS. This will void the warranty, and likely cause the
product to fail.

4
Spectrum 441
Installation
Package Includes
Item Quantity Description
A 1 Driver
1Screw
1Locknut
B 1 Enclosure
1Enclosure Top
Item Quantity Description
2Enclosure Top Screws
4Screws / Anchors
4Wire Nuts
1Ground Connector
C 2 Strain Relief Bushings
Accessible, dry location
120VAC Grounded Power Source
(Controlled by switch by others. NEVER
place a switch where it can be reached
from a tub or shower)
IMPORTANT: DO NOT HOT
SWAP ANY ELECTRICAL
COMPONENTS
PHYSICALLY UNPLUG FROM
POWER SOURCE BEFORE
SWAPPING ELECTRICAL
COMPONENTS
A
B
C C
D
E
G

5
BATHOLOGY
by
Package Includes
Item Quantity Description
D 1 Male NEMA Cable
E 1 Light Cable
F0* Cat6 Cable, 1’
G1* Cat6 Cable, 25’
Item Quantity Description
H0* Splitter
I1* Mounting Template
J1* Brilliance Light Fixture
K1* Wire Fit Cap
1Silicone Sealant, 1 ounce
Sauna
Allow for 2” of clearance from
insulation above and around fixture.
NOTE: Quantity with an * increases by one per each additional light purchased. Quantities shown
assume no additional lights purchased with Spectrum 441 system.
I
K
J

6
Spectrum 441
1. Install a standard single gang
electrical box in an accessible,
dry location.
2. Run a grounded 120VAC
from the power supply to
the accessible, dry location’s
electrical box.
3. Secure enclosure (B) to wall in
an accessible, dry location using
provided screws / anchors.
Installation (Continued)
Accessible, dry location
Typical Installation
Accessible,
dry location
120VAC Grounded
Power Source
A
B
D E
C
Brown - Black
Blue - White
Ground - GND
Black - Black
Red - White
Typical Installation
ED
A
Accessible, dry
location
120VAC Grounded
Power Source
B
E
D
Typical Installation
IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL
COMPONENTS. This will void the warranty, and likely cause the
product to fail.

7
BATHOLOGY
by
Joist
I
1”
Ceiling / Wall
Material
16” Location
Template
Joist Joist Joist
16” Location
Template
Notch used to align
fixture center to other
fixture centers
Desired Fixture
Location
I
Installation (Continued)
4. Arrange lights per separate light
sheet. Both “OUT” ports of a
splitter (H) must be used if a
splitter is used.
5. Determine desired brilliance
light fixture (J) location. Note:
Fixture should be placed to avoid
direct contact with the bather’s
eyes. Allow for 2” clearance from
insulation above and around the
fixture.
SEE SEPARATE LIGHT SHEET
2” Clearance from insulation
above and around the fixture.
6. Optional: Mount 16” location
template (I) to ceiling / wall
framework. Use notches to
quickly align desired location to
other fixtures in the room.

8
Spectrum 441
7. Make a 1-5/8” hole in desired
location.
8. Mount brilliance light fixture (J)
to ceiling through 1-5/8” cut-
out. Allow for 2” clearance from
insulation above and around the
fixture.
9. Repeat steps 6 - 8 for each light.
1-5/8”
Bathing Space
J
Installation (Continued)

9
BATHOLOGY
by
Product Care
For routine cleaning, simply use
a soft damp cloth and common
household soap. Use a damp cloth
to wipe clean, then dry. Clean
product frequently to avoid calcium
deposits on surfaces. Use only
mild soap. Never use abrasive
cleaners, bleach, disinfectants
or cleaning products containing
alcohol, ammonia, hydrochloric
or phosphoric acids as they may
damage the product’s finish. To
clean electrical components, gently
wipe down using a dry cloth or
duster. Never use a wet duster,
water, or any other liquid to clean
the device.

10
Spectrum 441
Replacement Parts
Contact your Bathology
representative for Spectrum
441 Sauna White Light System
replacement parts.
800-957-2862
www.Bathology.com
Specifications
Driver
Operating Voltage: 120 VAC
Output Voltage: 700mA
Power Consumption: 35W
Nominal Amperage: 1.1 Amps
Dimensions: 5-7/8” W x 1-1/8” H x
1-5/8” D
Brilliance Fixture
Type: LED Cool White (5650-
6300K)
Operating Voltage: 12VDC
Maximum Input Current: 700mA
LED: 1 x 3 Watt
Beam Angle: 35°
Trim Finish: Polished Stainless Steel
Housing Composition: First Grade
Aluminum
Lens: Clear or Frosted, 1-7/32”
Diameter
Lens Composition: Tempered Glass
Rough-in Cutout: 1-5/8” to
1-11/16”
Trim Dimension: 2-3/64” Diameter,
1/8” Profile
Body Dimensions: 1-15/32”
Diameter x 1-7/8” Deep
Rating: IP68
Certifications: CE / RoHS / WEEE
Max Operating Temperature: 220°F
when installed per instructions
Enclosure
Housing Composition: Steel, black
powder coated finish
Dimensions: 7-3/4” W x 1-7/8” H x
4-7/8” D
Standards: NEMA 1
Listing: ETL, UL
Construction Template
Composition: Steel, Galvanized,
Gauge 22
Dimensions: 15-1/8” L x 1/32” H x
3” D
Description Part Number
Driver Spectrum078
Enclosure Spectrum079
Strain Relief Bushings Spectrum077
Male NEMA Cable Spectrum038
Cat6 Cable, 1’ Spectrum030
Cat6 Cable, 25’ Spectrum031
Splitter Spectrum071
Mounting Template Spectrum-68-Temp
Clear LED White Light Spectrum065
Frosted LED White Light Spectrum066

11
BATHOLOGY
by
Notes

Spectrum441-5
900-0143-1019
A division of Bathing Brands,Inc.
www.Bathology.com 800-957-2862
