bathstore Rimini 43100001650 User manual

430mm
Y1 / Y2 / Y3
Any Queries? Call : 08000 23 23 23
tools required
p
arts re
q
uired
Rimini Radiator Installation Instruction
- review instructions carefully before installation
- installation should be completed by a suitably qualified person
- please dispose of packaging in a responsible manner
1a
1b
1c
1
2
2a
M6X12mm
4x
4x
4x
4x
4x
4x
4x
1x
ST6X65mm
4x
1x
1x
M5X12mm
3b
3c
Vertical installed distance:
•Y1: 43100001050 (dimension 800x500mm) - 654mm.
•Y2: 43100001060,43100001650 (dimension 1148x500mm) -793mm.
•Y3: 43100001070 (dimension 1700x500mm) - 1189mm.
3a
3
© ASAQ 2010 1 - 2 E

Any Queries? Call : 08000 23 23

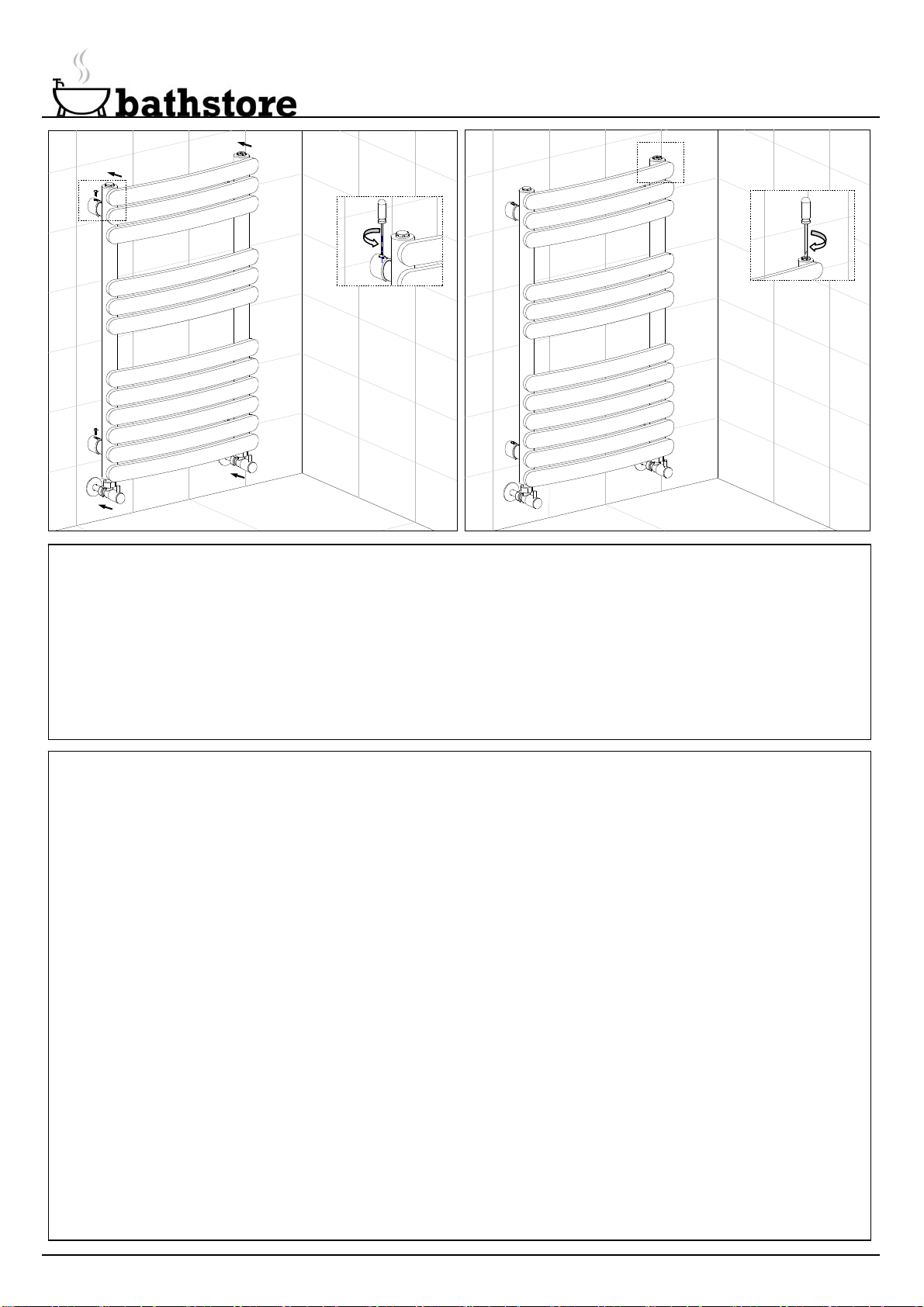

After installation ...
Maintenance...
4a
45
5a
• It is recommend that the unit should be drained if it not in use and ambient
temperatures are below 0°C(32°F) to prevent damage from the water freezing.
Before reusing, flush system with a rust inhibitor to remove any oxidization.
• If the water temperature in the system exceeds 50°C (122°F), please install a warning
mark near the radiator to avoid being scalded.
• If the product is not used for a prolonged period (for example spring,summer),ensure
the radiator is kept filled with water containing a rust inhibitor to prevent oxidization on
the inside of the unit.
• This product should only be used with a maximum pressure of
PN≤1MPa (10Kg/㎠,10Bar).
Only for use with water. Maximum temperature t≤100°C (212°F).
• Once water overflows from the air vent, there is no air in the tube.
• Use a screwdriver to close the air vent. Turn on the outlet valve and the radiator is ready
for use.
• The outside of the towel warmer can be cleaned using warm soapy water.
Do not use scouring powders or acid based products as these could damage the finish.
• Use a screwdriver to open the air vent, open the inlet valve and let the water rush into
the radiator. Check all connections for leaks.
