BAUKER PPL900GH User guide

ORIGINAL INSTRUCTION MANUAL
PPL900GH
900W 3MM PLANER

EN-2
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
PRODUCT SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and
specications provided with this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the inuence
of drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your nger on the switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables

EN-3
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools . Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could result in a
hazardous situation.
5) Service
a) Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
PLANER SAFETY WARNINGS
1. Wait for the cutter to stop before setting the tool down. An exposed rotating cutter
may engage the surface leading to possible loss of control and serious injury.
2. Hold the power tool by insulated gripping surfaces only, because the cutter
may contact its own cord. Cutting a “live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
3. Use clamps or another practical way to secure and support the workpiece to
a stable platform. Holding the workpiece by your hand or against the body leaves it unstable
and may lead to loss of control.

EN-4
SYMBOL
To reduce the risk of injury, user must read instruction manual
Wear eye protection
Wear ear protection
Wear dust mask
Warning
Double insulation

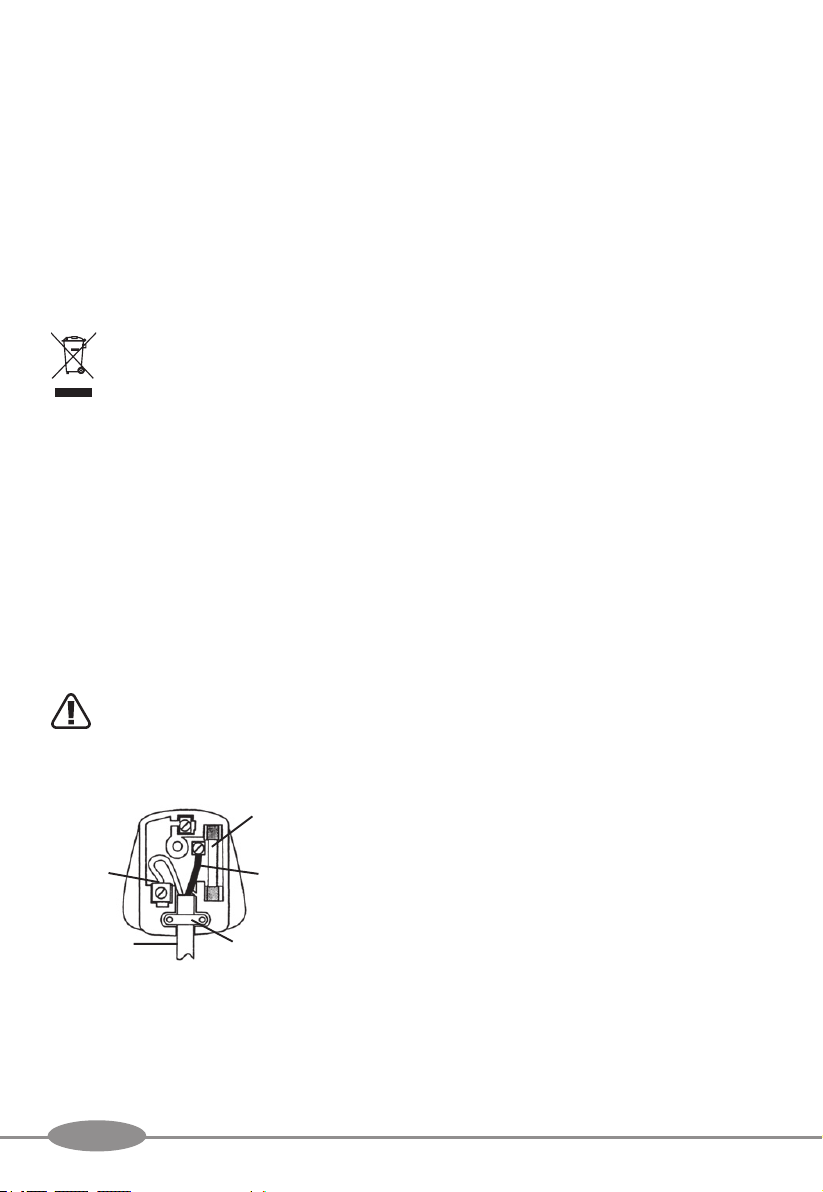

Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authorities or retailer for recycling advice.

EN-5
14
2
3
5
13
12
9
7 6 11 10 8
1714

EN-6
45o
E F
G H
1
13
12
2
11
9
11
7
b
a
C
BA
D

EN-7
J
KL
MN
OP
QR
14
I
1918
20
1
4
3
2
A B
A B
A B
17
1516

EN-8
J
KL
MN
OP

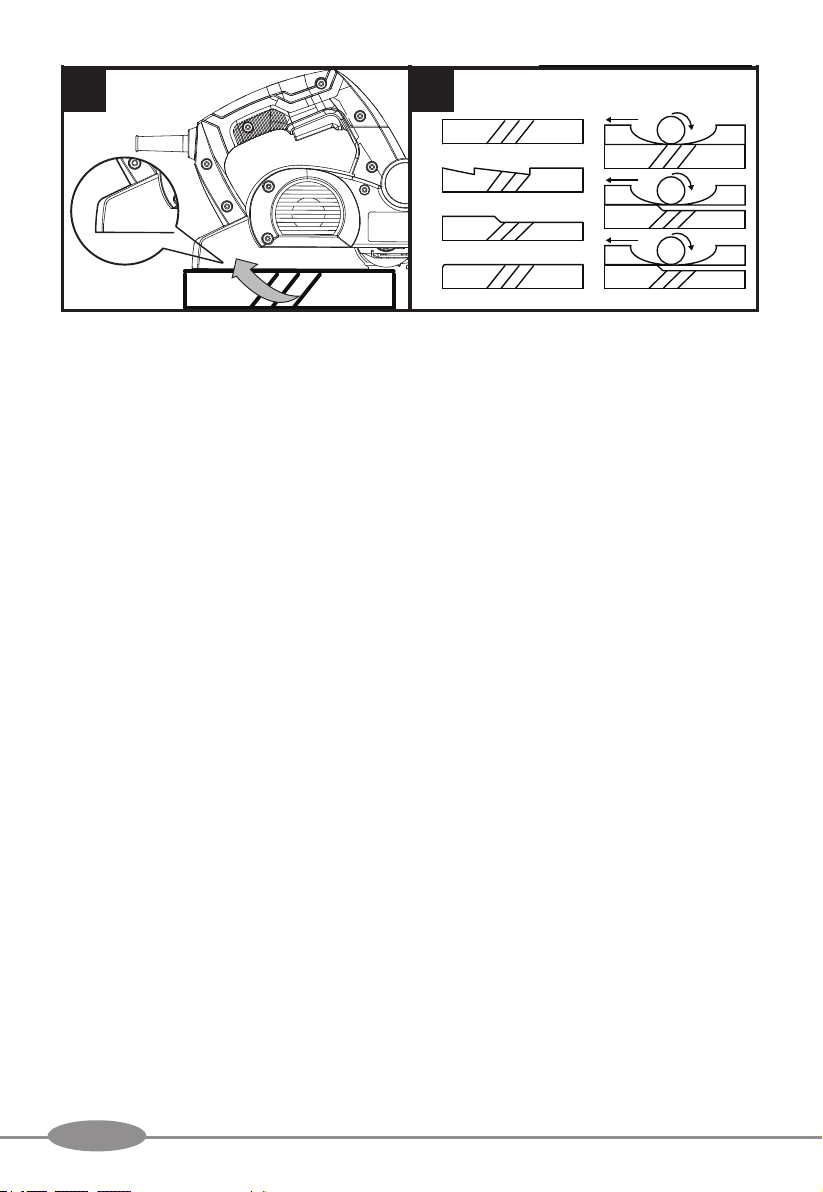

QR
14
I
1918
20
1
4
3
2
A B
A B
A B
17
1516

EN-9
TECHNICAL DATA
Type PPL900GH(PL-designation of machinery, representative of planer)
Voltage 220-240V~ 50Hz
Power input 900W
No load speed 16000/min
Max cutting depth 3mm
Max cutting width 82mm
Max rebate depth 18mm
Protection class /II
Machine weight 2.93 kg
COMPONENT LIST
1. ON/OFF SWITCH
2. LOCK-OFF SWITCH
3. HAND GRIP AREAS
4. DUST EXTRACTION COVER
5. BELT COVER
6. FASTENING SCREW
7. PARALLEL GUIDE
8. BASE PLATE
9. V-GROOVES
10. REBATE GUIDE
11. REBATE GUIDE FASTENING SCREW
12. CUTTING DEPTH SCALE
13. CUTTING DEPTH ADJUSTMENT KNOB
14. DUST BAG
15. BLADE (SEE FIG. J)
16. BLADE CLAMP (SEE FIG. J)
17. SPANNER
18. LARGE PULLEY (SEE FIG. O)
19. PINION (SEE FIG. O)
20. BASE PLATE STAND KNOB (SEE FIG. P)

EN-10
ACCESSORIES
PPL900GH
Parallel guide 1
Rebate guide 1
Blades (on machine) 2
Spanner 1
Dust bag 1
Dust cover 1
We recommend that you purchase your accessories listed in the above list from the same store that
sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you
and offer advice.
NOISE INFORMATION
A weighted sound pressure LpA =77 dB(A)
KpA= 3.0dB(A)
A weighted sound power LwA =88dB(A)
KwA: 3.0dB(A)
Wear ear protection.
Vibration Information
Vibration total values (triax vector sum) determined according to EN 62841:
Vibration emission value: ah = 4.789 m/s2 Uncertainty K = 1.5 m/s²
The declared vibration total value and the declared noise emission value have been measured in
accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a
preliminary assessment of exposure.
WARNING: The vibration and noise emissions during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used especially what kind of
workpiece is processed dependant on the following examples and other variations on how the tool is
used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool is
