Baumatic PECM1SS User manual

1
PECM1SS
Semi-automatic built in
espresso maker

2
User Manual for your Baumatic
PECM1SS
Semi-automatic built-in espresso maker
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 28/11/11

3
Contents
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications 7 – 11
Product and aperture dimensions 7
Product specifications 7 - 8
Standard accessories 8
Technical specifications 9
Description of the coffee machine 9 - 10
Controlpanel 10
Thefilters 11
Things to do before first use 11 – 14
Cleaning 11
Filling the water reservoir (manual fill mode) 11 – 12
What to do if the water level runs low during operation 12 – 13
Filling the water reservoir (auto-fill mode) 13
What to do if the water level runs low during operation 14
Getting started (Loading the system with water) 14
Using your espresso maker 15 – 17
Dispensing hot water through the main boiler 15
Dispensing steam through the steam boiler 15 – 16
Dispensing boiler water through the steam boiler 16 – 17
Makingdrinks 18 – 22
Connecting the filter holder to the main boiler 18
Making a drink using coffee pods 18 – 19
Making drinks using espresso ground coffee 19 – 20
Tips on making an espresso 20 – 21
Tips on making a cappuccino 21 – 22
Tipsonmakingtea 22
Cleaning and maintenance 23 – 25
Installation 25 – 30
Electricalconnection 25
Installing the espresso maker into a kitchen cabinet 26 – 28
Connecting the espresso maker to the mains water supply 29 – 30
Troubleshooting 30 – 31
Coffee glossary 31 – 32
Baumatic consumables 33
Contact details 34

4
Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Information
oThis appliance is designed for domestic household use only. It
can ONLY be built into a standard kitchen cabinet or housing
unit and should NOT be used as a freestanding appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic service
engineers or their authorised service agent.
Warning and safety instructions
oThis appliance complies with all current European
safety legislation. Baumatic do wish to emphasise
that this compliance does not remove the fact
that the appliance surfaces will become
extremely hot during use and retain heat after
operation.
oExtreme care MUST be taken when removing any of the
filters or nozzles. They should be allowed to cool before
they are removed from the appliance.

6
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not leave the espresso maker unattended.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not install the appliance next to curtains or soft furnishings.
Cleaning
oCleaning of the espresso maker should be carried
out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be installed by a suitably
qualified person, strictly in accordance with the
manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to any person or property, as a result of
improper use or installation of this appliance.

7
oThe manufacturer declares that the espresso maker is
built using certified materials and requires the appliance
to be installed in accordance with the standards currently
in force. This appliance must be used by a trained person
for domestic purposes only.
Specifications

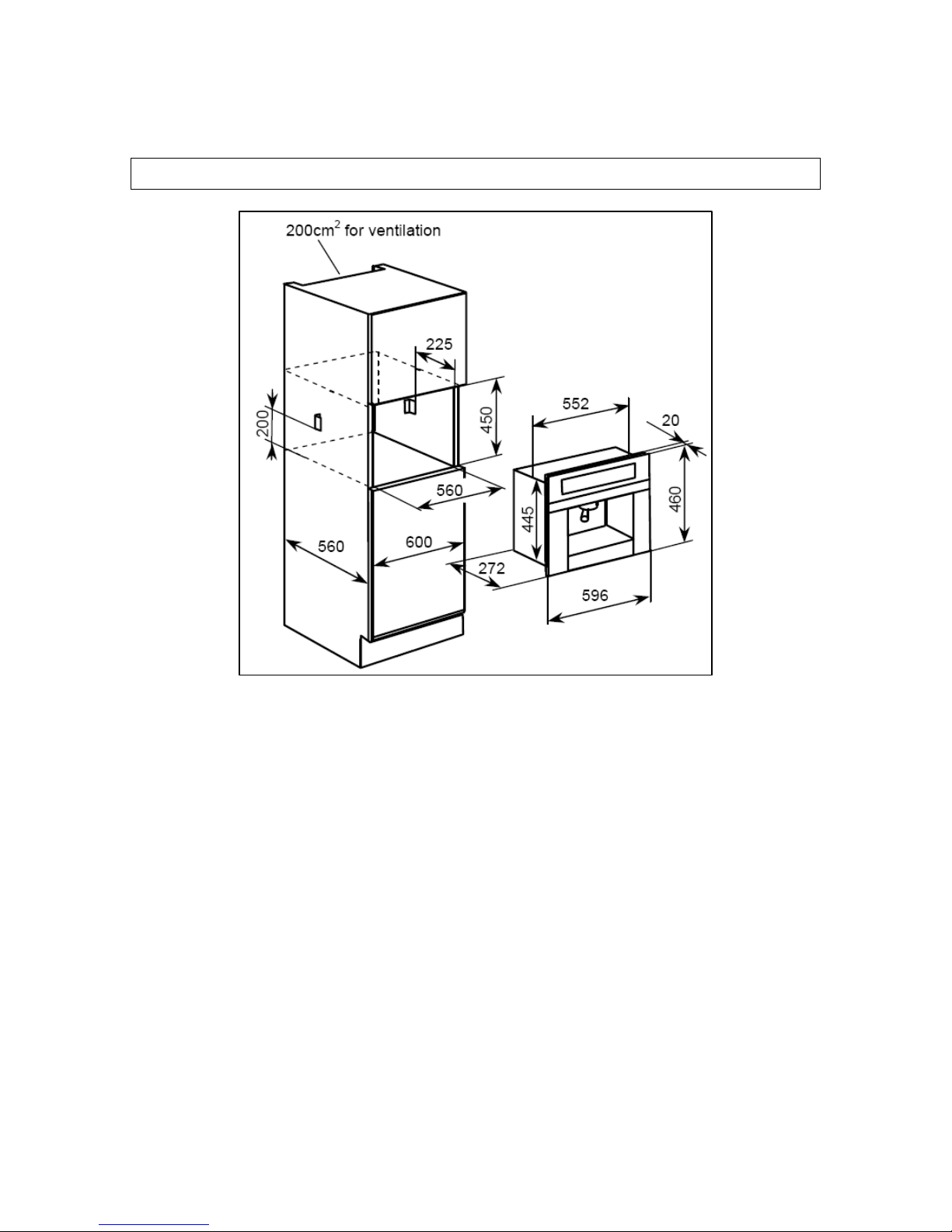

Product Dimensions
Height: 460 mm
Width: 596 mm
Depth: 272 mm
Aperture Dimensions
Height: 450 mm
Width: 600 mm
Depth: (min) 560 mm
Product specifications
oTouch control operation
oMark resistant coating
oChoice of 1 or 2 cup filters
oSuitable for sealed coffee pods or ground coffee
oSteam spout for cappuccino, hot chocolate, tea and instant
coffee
oPull-out drawer
oCompartment for cups & saucers
oSingle pump with individual boilers for coffee making &
cappuccino/steam
oAuto or manual fill system

8
oRemovable water tank (capacity 1.8 litres)
oEmpty water tank warning light
oLED high density illumination
Standard accessories
oFilter holder
o1 x one measure espresso cup filter
o1 x two measure espresso cup filter
o2 x espresso cups with saucers
oWater softener
Technical specifications
oCoffee pump pressure 15 bar
oTotal output 1860 W
oCoffee boiler output 1000 W
oSteam boiler output 800 W
oPower supply 230 Vac 50 Hz
oSupply connection 13 A (double pole switched fused outlet
with3mmcontactgap)
oMains supply lead 3 x 1.5mm²
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your coffee machine
can be located by opening the pull out drawer at the bottom of the
coffee maker.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ………………………………

9
Description of the espresso maker
Standard accessories
1) Filter holder
2) Spout for a single coffee dose
3) Spout for a double coffee dose
4) Filter for 1 Italian coffee pod or 1 dose of ground coffee
6) Filter for 2 doses of espresso coffee or 1 French coffee pod
9) Espresso coffee batcher (ground)
10) Coffee pressing tool
11) Water softener filter for the reservoir
12) Drip tray
13) Drip tray grid
14) Water reservoir door
15) Water reservoir
16) Pull out drawer
17) Pipe for boiling water
and steam
18) Espresso cup stand

10

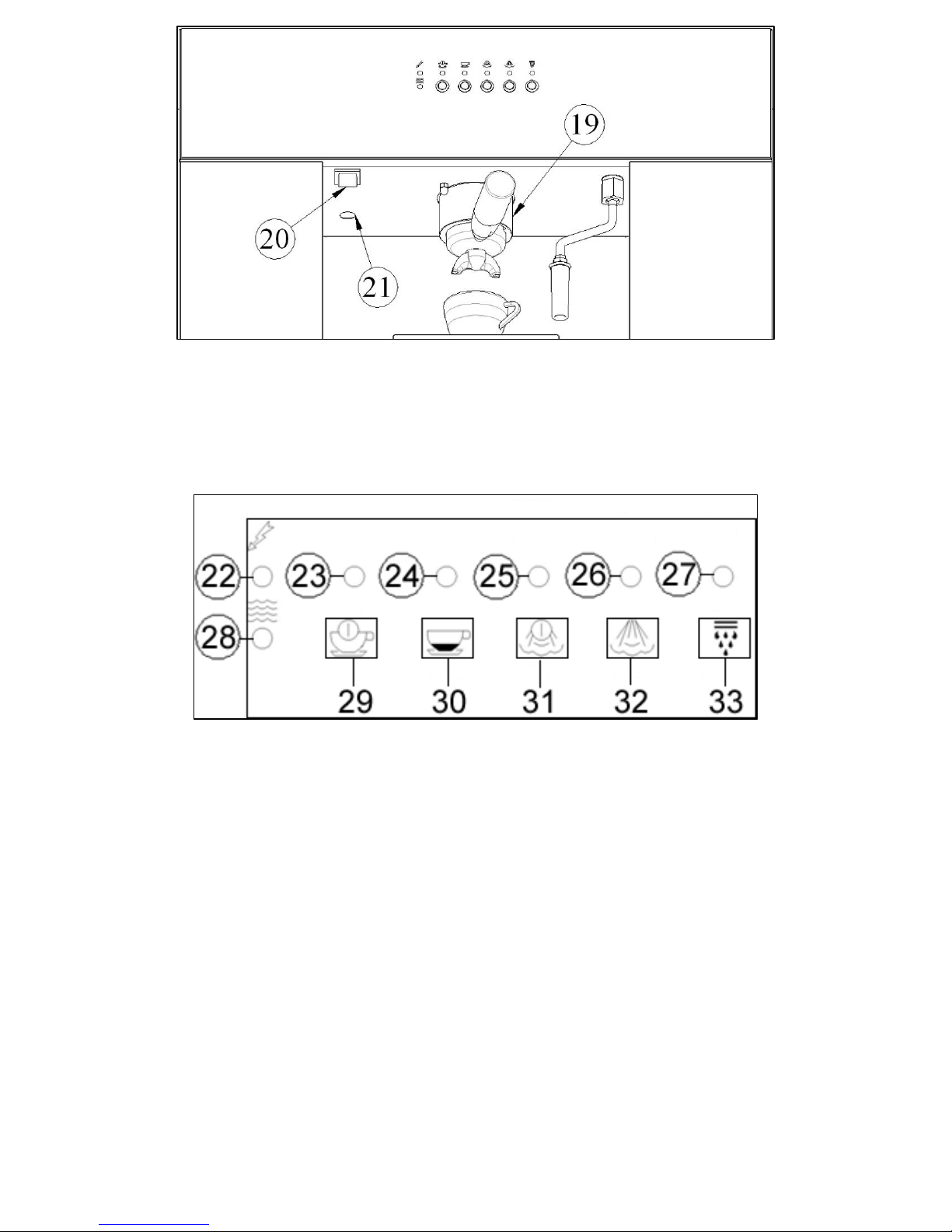

19) Filter holder ring nut
20) Power ON/OFF switch
21) Light
Control panel
22) Power ON indicator (green)
23) Main boiler status indicator (green)
24) Main boiler dispensing indicator (green)
25) Steam boiler status indicator (green)
26) Steam dispensing indicator (green)
27) Boiling water dispensing indicator (green)
28) Low water level indicator (red)
29) Main boiler activation button
30) Main boiler dispensing button
31) Steam boiler activation button
32) Steam boiler dispensing button
33) Boiling water dispensing button

11

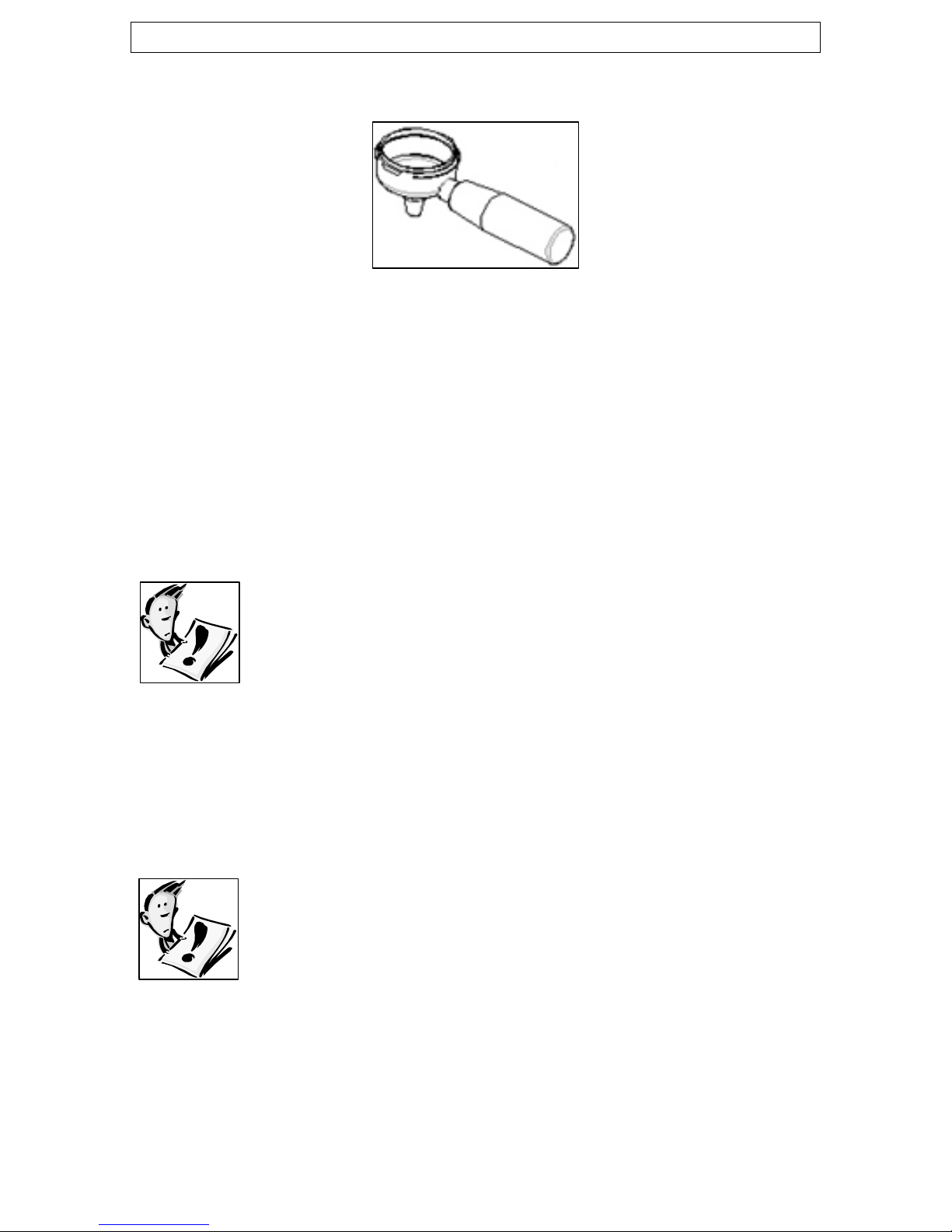

The filters
oFilter for 1 Italian coffee pod or 1
dose of ground coffee.
oFilter for 2 measures of espresso
coffee of 1 French coffee pod.
Things to do before first use
1) Cleaning
oIt is strongly recommended to clean the appliance
prior to its first use. Particular attention should be
paid to the water reservoir.
oFor further information on cleaning the appliance, please refer to
the cleaning instructions on pages 23 - 25.
2) Filling the water reservoir (manual fill mode)

12
oInstall the appliance as per the installation instructions contained
within this booklet.
oOpen the water reservoir door (14) and remove the water
reservoir (15) from the cabinet.
oRemove the water softener filter (11) from its connecting pipe
and immerse it in a bowl of cold water for approximately five
minutes prior to reconnecting.
oFill the water reservoir with cold water until it is two thirds full.
oRe-connect the water softener filter (11) to the longest tube and
then place it inside the water reservoir, along with the other two
tubes.
oPut the water reservoir back into the cabinet.
oIMPORTANT: Make sure that the water reservoir is
positioned correctly on the pedal inside the water
reservoir cabinet (as shown in the picture on the
previous page).
oSwitch the appliance on using the power ON/OFF switch (20);
the power ON indicator (22) will light.
oIf the water level in the water reservoir is not sufficient the low
water level indicator (28) will start flashing. You should add
more water to the water reservoir.
oIMPORTANT: If the low water level indicator (28)
remains steady even after filling the water reservoir
with additional water, you should switch the machine
off using the power ON/OFF switch (20) and then
restart after few seconds.
2a) What to do if the water level runs low during operation
oIf whilst making drinks, the water reservoir runs low
on water, the low water level indicator (28) will
flash. The espresso machine will stop any drinks
making operation that is in progress.
oYou should turn the appliance off using the power ON/OFF switch
(20).
oThen follow the process described above on filling the water
reservoir manually.

13
oRestart the machine using the power ON/OFF switch (20).
oYou must start the drinks making process right from the
beginning, as stated in the “Using your espresso maker” section
(pages 15 – 17).
3) Filling the water reservoir (auto-fill mode)
oInstall the appliance as per the installation instructions contained
in this booklet.
oOpen the water reservoir door (14) and remove the water
reservoir (15) from the cabinet.
oRemove the water softener filter (11) from its connecting pipe
and immerse it in a bowl of cold water for five minutes prior to
reconnecting.
oRe-connect the water softener filter (11) to the longest tube and
then place it inside the water reservoir, along with the other two
tubes.
oPut the water reservoir back into the cabinet.
oIMPORTANT: Make sure that the water reservoir is
positioned correctly on the pedal inside the water
reservoir cabinet (as shown in the picture on page
11).
oSwitch the appliance on by using the power ON/OFF switch
(20); the power ON indicator (22) will light.
oThe reservoir will fill for approximately 40 seconds. During this
operation the low water level indicator (28) will continue to
flash.
oThe low water level indicator (28) will remain steady if the
appliance is insufficiently filled. If this occurs, you should switch
off the appliance using the power ON/OFF switch (20) and
restart after a few seconds. The appliance will automatically
commence a further fill of the water reservoir.
oWhen the water reservoir has been filled sufficiently, the low
water level indicator (28) will go out.
oDO NOT touch any other button on the espresso
machine during this process.

14
3a) What to do if the water level runs low during operation
oIf water in the water reservoir runs low during the
drinks making process the low water level indicator
(28) will start flashing. The espresso machine will
stop any drinks making processes that are in
progress.
oThe water reservoir will start filling with water automatically
after a few seconds.
oWhen the water reservoir has filled sufficiently, the low water
level indicator (28) will switch off.
oThe low water level indicator (28) will remain steady if the
appliance is insufficiently filled. If this occurs, you should switch
off the appliance using the power ON/OFF switch (20) and
restart after a few seconds. The appliance will automatically
commence a further fill of the water reservoir.
oDO NOT touch any other button on the espresso machine during
this process.
oYou must start the drink making process right from the
beginning, as stated in the “using your espresso maker” section
(pages 15 – 17).
4) Getting started (Loading the system with water)
IMPORTANT: YOU MUST FOLLOW THE STEPS BELOW
BEFORE HEATING THE WATER BOILER FOR THE
FIRST TIME.
oPlace a jug below the pipe (for boiling water and steam) (17).
oPush the boiling water dispensing button (33).
oAllow the appliance to have a constant flow of water running
through the system for a few seconds.
oPress the boiling water dispensing button (33) again to stop the
flow of water from the pipe.

15
Using your espresso maker
IMPORTANT: Please note that the main boiler and
the steam boiler CANNOT be operated at the same
time.
1) Dispensing hot water through the main boiler
oFollow the instructions on filling the water reservoir as stated
previously and proceed as follows:-
oPress the main boiler activation button (29) to allow the boiler
to heat up. During this process, the main boiler status indicator
(23) will flash.
oWhen the boiler has reached its operating temperature, the main
boiler status indicator (23) will stop flashing and remain steady.
oPlace a cup underneath the filter holder ring nut (19) and then
press the main boiler dispensing button (30).
oTo stop hot water from dispensing, press the same button again.
¾Noise generated during this operation is perfectly
normal. This is caused by the activation of the high
pressure pump during this operation.
¾It is also quiet normal for a certain amount of water
to drip into the drip tray after water has been
dispensed.
2) Dispensing steam through the steam boiler
oFollow the instructions on filling the water reservoir (pages 11 –
14) as stated previously and proceed as follows:-
oPress the steam boiler activation button (31) to allow the boilers
to heat up. During this process, the steam boiler status indicator
(25) will flash.
oWhilst the steam boiler is heating up, it is normal to get a small
amount of water dripping from the pipe for boiling water and
steam. (17).
oWhen the boilers have reached their operating temperature, the
steam boiler status indicator (25) will stop flashing and remain
steady.

16
oTo dispense steam, press the steam boiler dispensing button
(32).
NOTE: Steam will dispense from the pipe for boiling water and
steam (17).
oTo stop steam from dispensing, press the same button again.
¾The noise generated during this operation is perfectly
normal. This is caused by the activation of the high
pressure pump during this operation.
¾It is also quiet normal for a certain amount of water to
drip into the drip tray after water has been dispensed.
oWARNING: During this operation,
extreme caution should be
exercised, as the dispensing pipe will
get hot.
oWhen releasing steam, avoid
directing the steam towards your
person. There is a danger of
scalding.
oAlways use a container or a mug
underneath the dispensing pipe
whilst dispensing steam.
3) Dispensing boiling water through the steam boiler
oFollow the instructions on filling the water reservoir (pages 11 –
14) as stated previously and proceed as follows:-
oPress the steam boiler activation button (31) to allow the boilers
to heat up. During this process, the steam boiler status indicator
(25) will flash.
oWhilst the steam boiler is heating up, it is normal to get a small
amount of water dripping from the pipe (17).
oWhen the boilers have reached their operating temperature, the
steam boiler status indicator (25) will stop flashing and remain
steady.
oTo dispense boiling water, press the boiling water dispensing
button (33).

17
NOTE: Boiling water will dispense from the pipe (for boiling water
and steam) (17).
oTo stop boiling water from dispensing, press the same button
again.
¾The noise generated during this operation is perfectly
normal. This is caused by the activation of the high
pressure pump during this operation.
¾It is also quiet normal for a certain amount of water to
drip into the drip tray after water has been dispensed.
oWARNING: During this operation,
extreme caution should be
exercised, as the dispensing pipe
will get hot.
oWhen releasing boiling water, avoid
directing boiling water towards
your person. There is a danger of
scalding.
oAlways use a container or a mug
underneath the pipe whilst
dispensing boiling water.

18
Making drinks
Connecting the filter holder to the main boiler
oLift the filter holder (1) towards the filter holder ring nut (19);
making sure that it is in the position shown in the drawing
above.
oContinue lifting the holder until it locates inside of the ring nut.
oTurn the handle of the holder anti-clockwise, making sure that it
is fully secured.
oWhen you have finished using the holder, turn the handle
clockwise and remove it from the filter holder ring nut (19).
IMPORTANT: If the filter gets attached to the boiler, you
should carefully remove it. This is a result of a vacuum
being created during the espresso making process.
Making a drink using coffee pods
Coffee pods are an easy, practical and hygienic way to make coffee.
The packaging used for coffee pods does not allow excess coffee to
spill out and can be easily removed after use.
oIMPORTANT: If you are using Italian coffee
pods, then the filter for 1 Italian coffee pod (4)
must be used. If you are using French coffee
pods, then the filter for 1 French coffee pod (6)
must be used.
oFor best results ensure that the coffee pods are used prior
to their use by date.
oFollow the instructions on filling the water reservoir (pages 11 –
14) and “Dispensing hot water through the main boiler” (page
15).

19
oTo make a single dose of espresso, use the spout for a single
coffee dose (2) and use one espresso cup.
oTo make a double dose of espresso, use the spout for a double
coffee dose (3) and use two espresso cups.
oInsert an appropriately sized coffee pod filter (4) or (6) into the
filter holder (1).
oPlace the coffee pod into the filter holder (1) and place it onto
the filter holder ring nut (19) on to the main boiler and lock it
into position.
oPlace a suitably sized cup under the main boiler. If using the
espresso for making espresso shots use the espresso cup stand
(18).
oPress the main boiler dispensing button (30).
oWhen your espresso is made, press the same button again to
stop hot water from dispensing.
oRelease the filter holder (1) from the filter holder ring nut (19).
oWhen the coffee pod is sufficiently cooled, remove it from the
filter holder (1) and discard it.
oWipe over the filters with a damp cloth, if you want to make
another drink.
oWhen you have finished making drinks, you can either wash the
filters and spouts in hot soapy water or in a dishwasher.
Making drinks using espresso ground coffee
oFollow the instructions on filling the water reservoir (pages 11 –
14) and “Dispensing hot water through the main boiler” (page
15).
oTo make a single dose of espresso, use the spout for a single
coffee dose (2) and use one espresso cup.
oTo make a double dose of espresso, use the spout for a double
coffee dose (3) and use two espresso cups.
oInsert the appropriately sized coffee pod filter (4) or (6) into
the filter holder (1).

20
oUsing the supplied espresso coffee batcher (ground) (9) put the
required amount of espresso coffee into the filter holder (1).
oUse the coffee pressing tool (10) to pack down the espresso
coffee in the filter holder. Place the filter holder into the filter
holder ring nut (19) on the main boiler and lock it in position.
oIMPORTANT: Do not overfill or compact the
espresso coffee too tightly. Doing this will not
allow the water to flow freely.
oPlace a suitably sized cup under the main boiler. Use the
espresso cup stand (18) if using the espresso cup.
oPress the main boiler dispensing button (30).
oWhen your espresso is made, press the same button again to
stop hot water from dispensing.
oRelease the filter holder (1) from the filter holder ring nut (19)
and discard the used espresso coffee.
oWipe over the filters with a damp cloth, if you want to make
another drink.
oWhen you have finished making drinks, you can either wash the
filters and spouts in hot soapy water or in a dishwasher.
Tips on making an espresso
An espresso is a strong black coffee that is made
by forcing pressurised hot water, through finely
ground espresso coffee.
oApproximately 7 grams of coffee is required for
an espresso. After filling the filter with coffee, use the coffee
pressing tool (10) to tap down the coffee in the filter holder.
Remove any excess coffee from the filter holder before making
the espresso.
oIf you are using the small cups especially designed for
espressos, then you should utilise the espresso cup stand (18)
to raise the cup closer to the filter holder (1).
oThe main boiler should be pre-heated and a small amount of
water should be dispensed through the machine to warm it up.
